Model Whirlpool GX5SHDXVT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability

Following Parts Not Illustrated WPL ARI152183A Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI152186A Contact Us For Availability

REFRIGERANT CHARGE 5.25 Ozs. (R-134A) WPL ARI152187A Contact Us For Availability

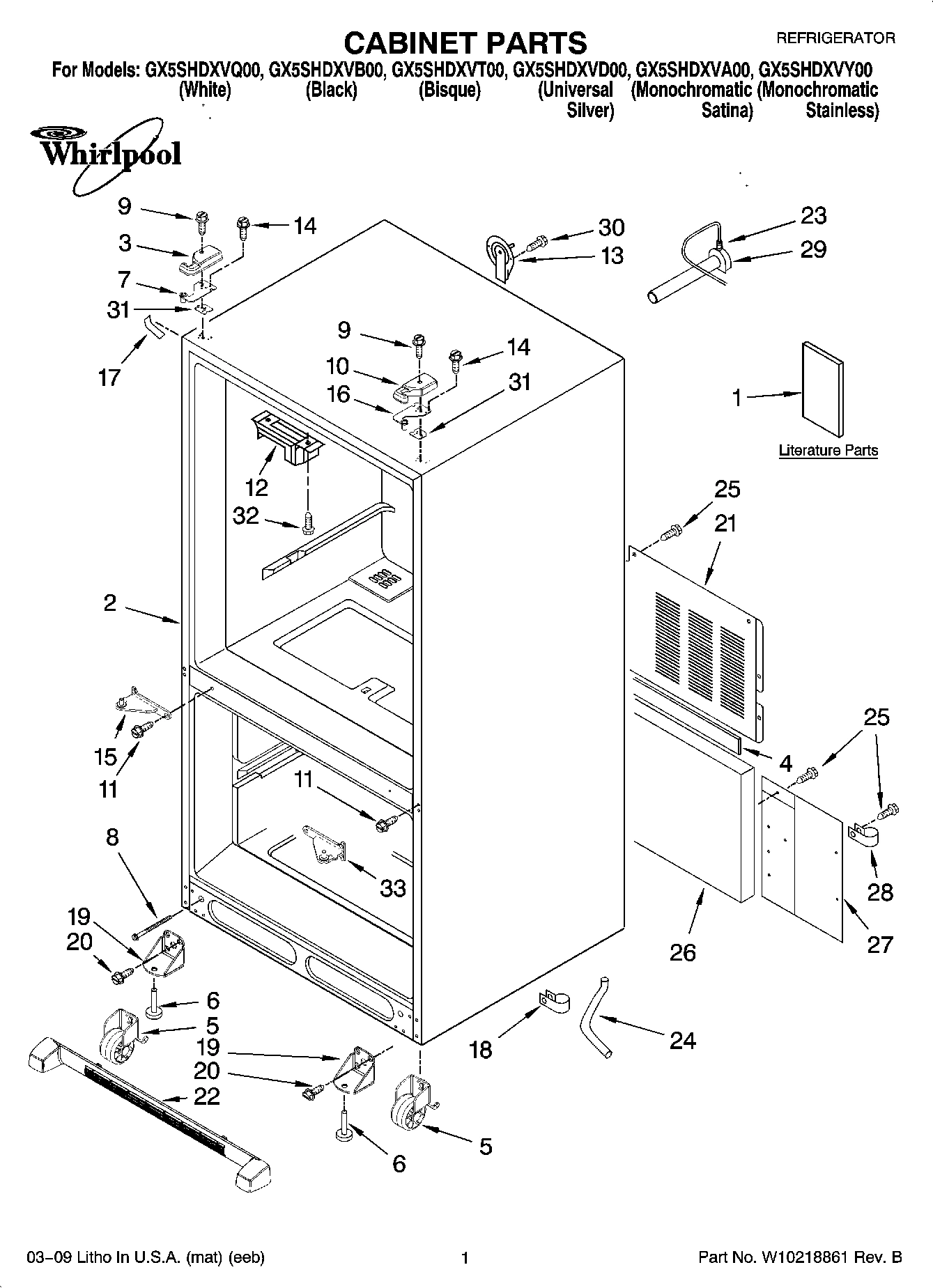

1

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

1

Liner (Not A Seviceable Part) WPL ARI152182A Contact Us For Availability

1

Door, Left (Universal Silver) WPL 12978033DQ Contact Us For Availability

1

Door, Left (White) WPL W10199095 Contact Us For Availability

1

Door, Left (Stainless) WPL W10199863 Contact Us For Availability

1

Door, Left (Bisque) WPL W10199864 Contact Us For Availability

1

Door, Left (Satina) WPL W10199868 Contact Us For Availability

1

Door, Left (Black) WPL W10199872 Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $33.18

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WPB5705307 Whirlpool Refrigerator Tube Backorder WPL WPB5705307 $7.39

2

Door, Right (Universal Silver) WPL 12978032DQ Contact Us For Availability

2

Door, Right (White) WPL W10199092 Contact Us For Availability

2

Door, Right (Stainless) WPL W10199865 Contact Us For Availability

2

Door, Right (Bisque) WPL W10199866 Contact Us For Availability

2

Door, Right (Satina) WPL W10199871 Contact Us For Availability

2

Door, Right (Black) WPL W10200711 Contact Us For Availability

3

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $11.69

3

WPW10169346 Whirlpool Refrigerator Beverage H Backorder WPL WPW10169346 $207.93

3

WPW10180451 Whirlpool Refrigerator Overlay Backorder WPL WPW10180451 $31.16

3

Basepan WPL 67005889 Contact Us For Availability

3

Clamp WPL 67003932 Contact Us For Availability

4

WP13005401SP Whirlpool Can Rack In Stock WPL WP13005401SP $31.40

4

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

4

Cover, Light WPL 67003905 Contact Us For Availability

5

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $59.33

5

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

5

WPW10289497 Whirlpool Refrigerator Shelf Bin In Stock WPL WPW10289497 $42.77

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $41.23

5

Basket, Freezer (Lower) WPL W10150039 Contact Us For Availability

5

Block, Condenser WPL 67005491 Contact Us For Availability

6

W10205737 Whirlpool Refrigerator Glass Shelf Backorder WPL W10205737 $146.14

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

6

WP12722803AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722803AP $100.73

6

WP12722803B Whirlpool Door Guide In Stock WPL WP12722803B $124.97

6

WP12722803W Whirlpool Door Support In Stock WPL WP12722803W $133.64

6

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $31.46

6

Tube, Discharge WPL W10134293 Contact Us For Availability

7

W11311945 Whirlpool Refrigerator Screw Backorder WPL W11311945 $9.59

7

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

7

Harness, Evap. Heater WPL W10119856 Contact Us For Availability

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

W10830162 Whirlpool Refrigerator Door Gasket In Stock WPL W10830162 $125.53

8

W10830189 Whirlpool Refrigerator Door Gasket In Stock WPL W10830189 $124.35

8

W11368721 Whirlpool Refrigerator French Door In Stock WPL W11368721 $105.32

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $152.51

8

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

8

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

9

W11351147 Whirlpool Refrigerator Handle Backorder WPL W11351147 $100.67

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

9

WPW10222984K Whirlpool Refrigerator Handle As Backorder WPL WPW10222984K $101.43

9

Handle, Door (Black) WPL W10157428 Contact Us For Availability

9

Handle, Door (Bisque) WPL W10157429 Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

67005958 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67005958 $12.02

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $28.80

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $68.67

WP67005956 Whirlpool Refrigerator Cover Backorder WPL WP67005956 $12.06

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

WPW10191117 Whirlpool Refrigerator Cover Backorder WPL WPW10191117 $11.03

Cover, Right Hinge (Bisque) WPL 67005957 Contact Us For Availability

Housing, Light WPL 67001035 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

W11703060 Whirlpool Door Stop Backorder WPL W11703060 $5.38

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

W11727809 Whirlpool Evaporator Cover Backorder WPL W11727809 $32.79

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Stop, Door (Bisque) WPL 12968202Q Contact Us For Availability

Clip, Retainer WPL 2255199 Contact Us For Availability

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP67003405 Whirlpool Pivot Block In Stock WPL WP67003405 $3.70

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $40.46

Nameplate WPL 2220214 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $27.29

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $3.70

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $49.10

W10267047 Whirlpool Screw Backorder WPL W10267047 $9.59

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WPW10165425 Whirlpool Bimetal Defrost Thermos In Stock WPL WPW10165425 $32.00

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

67006442 Whirlpool Refrigerator Center Hinge Backorder WPL 67006442 $49.41

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $35.52

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $39.45

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $27.82

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

W11592374 Whirlpool Refrigerator Top Door Hin Backorder WPL W11592374 $10.07

Endcap, Handle (White) WPL W10157431 Contact Us For Availability

Endcap, Handle (Black) WPL W10157432 Contact Us For Availability

Endcap, Handle (Biscuit) WPL W10157433 Contact Us For Availability

Endcap, Handle (Apollo Grey) WPL W10157434 Contact Us For Availability

Endcap, Handle (Nickel) WPL W10172585 Contact Us For Availability

Screw WPL 67006573 Contact Us For Availability

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $9.59

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

Clip, Handle WPL 13067102SP Contact Us For Availability

Cover, Corner (Bisque) WPL 67003486 Contact Us For Availability

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $153.47

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

Clip, Drain WPL W10157973 Contact Us For Availability

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

Bracket, Foot (2) WPL W10208641 Contact Us For Availability

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.51

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $29.39

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

WP33001882 Whirlpool Screw Backorder WPL WP33001882 $26.21

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

Cover, Unit WPL 12575101ED Contact Us For Availability

12002041 Whirlpool Refrigerator Evaporator Re In Stock WPL 12002041 $185.26

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10171558 Whirlpool Refrigerator Divider Backorder WPL W10171558 $27.72

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $55.37

WPW10534154 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534154 $55.04

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $52.43

Grille, Toe (Bisque) WPL 67006376 Contact Us For Availability

23

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $34.13

23

Dam (Left Side) WPL 67001083 Contact Us For Availability

23

Dam (Right Side) WPL 67001084 Contact Us For Availability

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

W10164397 Whirlpool Refrigerator Drain Tube Backorder WPL W10164397 $8.73

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

Motor, Fan WPL 67004432 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

WPW10171529 Whirlpool Refrigerator Ice Pan In Stock WPL WPW10171529 $56.82

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.00

WPW10330993 Whirlpool Refrigerator Bracket Backorder WPL WPW10330993 $56.13

26

13060302 Whirlpool Refrigerator Wire Harness Backorder WPL 13060302 $125.92

26

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

Cover, Water Valve WPL 12479803 Contact Us For Availability

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $383.49

28

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.45

28

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $41.85

WPW10284684 Whirlpool Refrigerator Bracket In Stock WPL WPW10284684 $14.42

WPW10284685 Whirlpool Refrigerator Bracket In Stock WPL WPW10284685 $14.51

Clip, Evaporator WPL 10623002 Contact Us For Availability

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

30

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

W10149389 Whirlpool Refrigerator Handle Backorder WPL W10149389 $28.80

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

Shroud WPL 12575309 Contact Us For Availability

32

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

32

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $29.43

32

WP7101P126-60 Whirlpool Screw Backorder WPL WP7101P126-60 $2.51

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $46.85

W11489993 Whirlpool Refrigerator Rail In Stock WPL W11489993 $8.14

W11489994 Whirlpool Refrigerator Rail In Stock WPL W11489994 $8.14

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

Hinge, Center (RT) (White) WPL 67006379 Contact Us For Availability

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

34

W10157765 Whirlpool Refrigerator Deflector Backorder WPL W10157765 $28.80

35

WP67005149 Whirlpool Roller Backorder WPL WP67005149 $10.76

36

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

37

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $68.02
