Model Whirlpool GX2FHDXVB07 REFRIGERATOR – Common Parts & Diagrams
04 - REFRIGERATOR LINER PARTS
05 - REFRIGERATOR DOOR

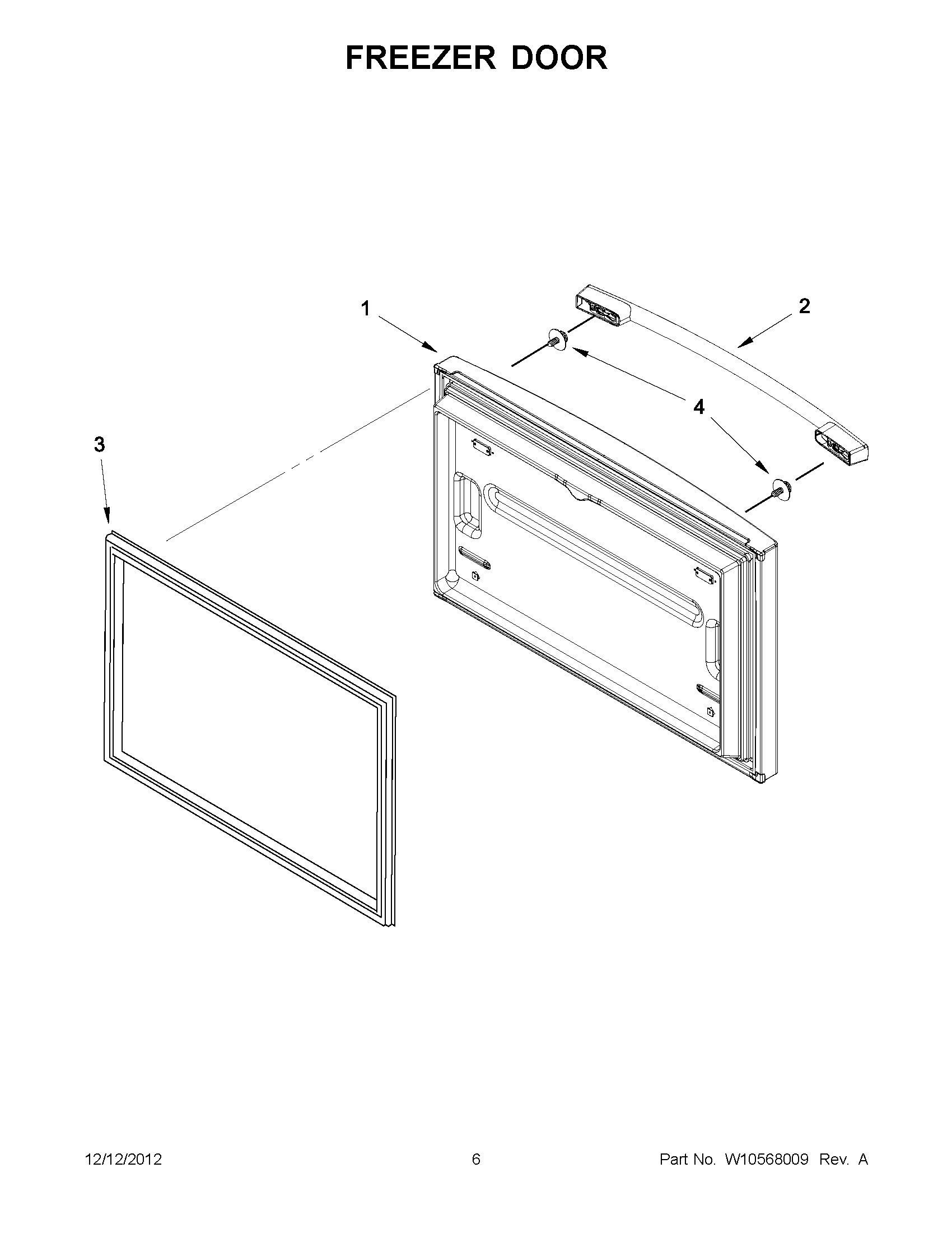

03 - FREEZER DOOR

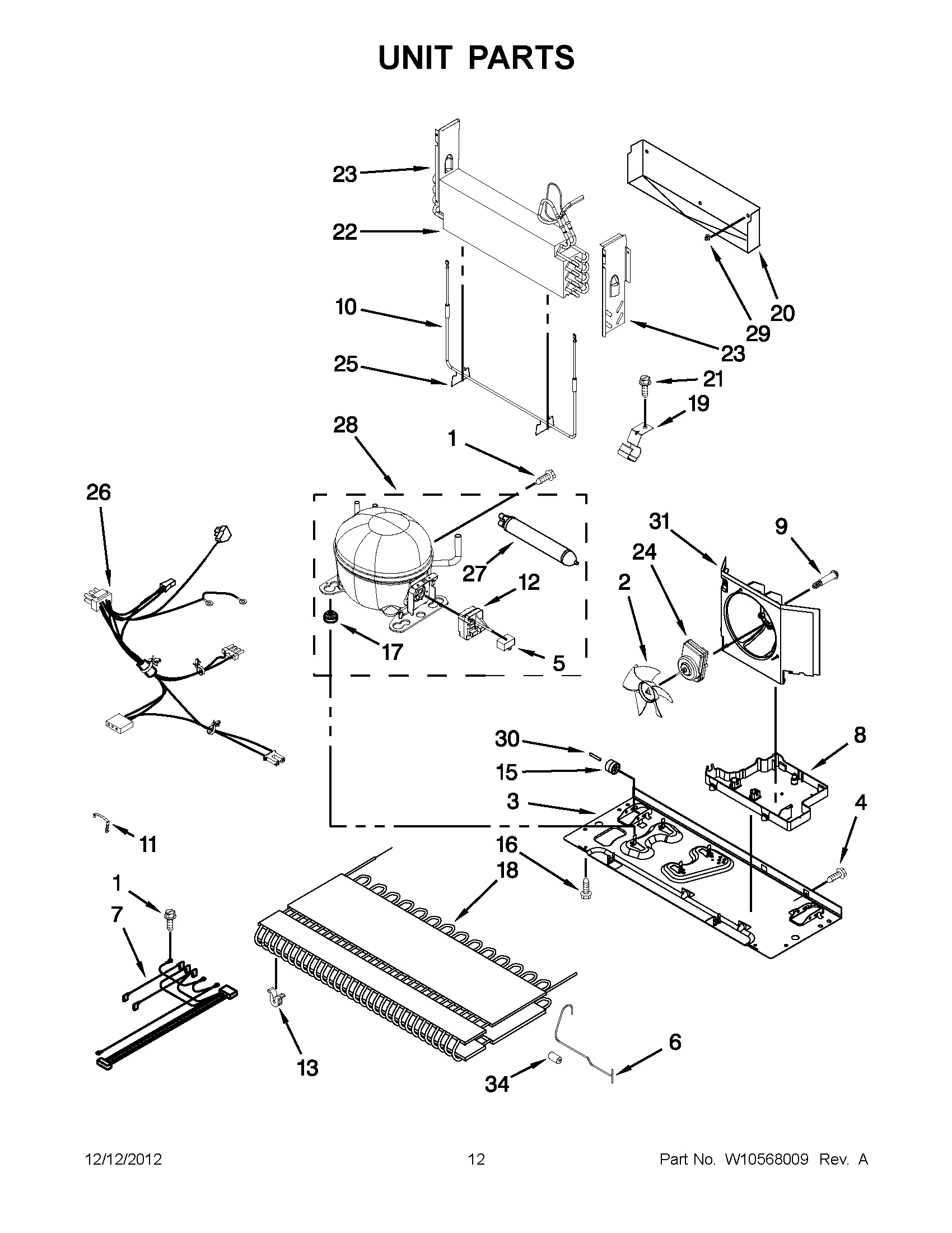

06 - UNIT PARTS

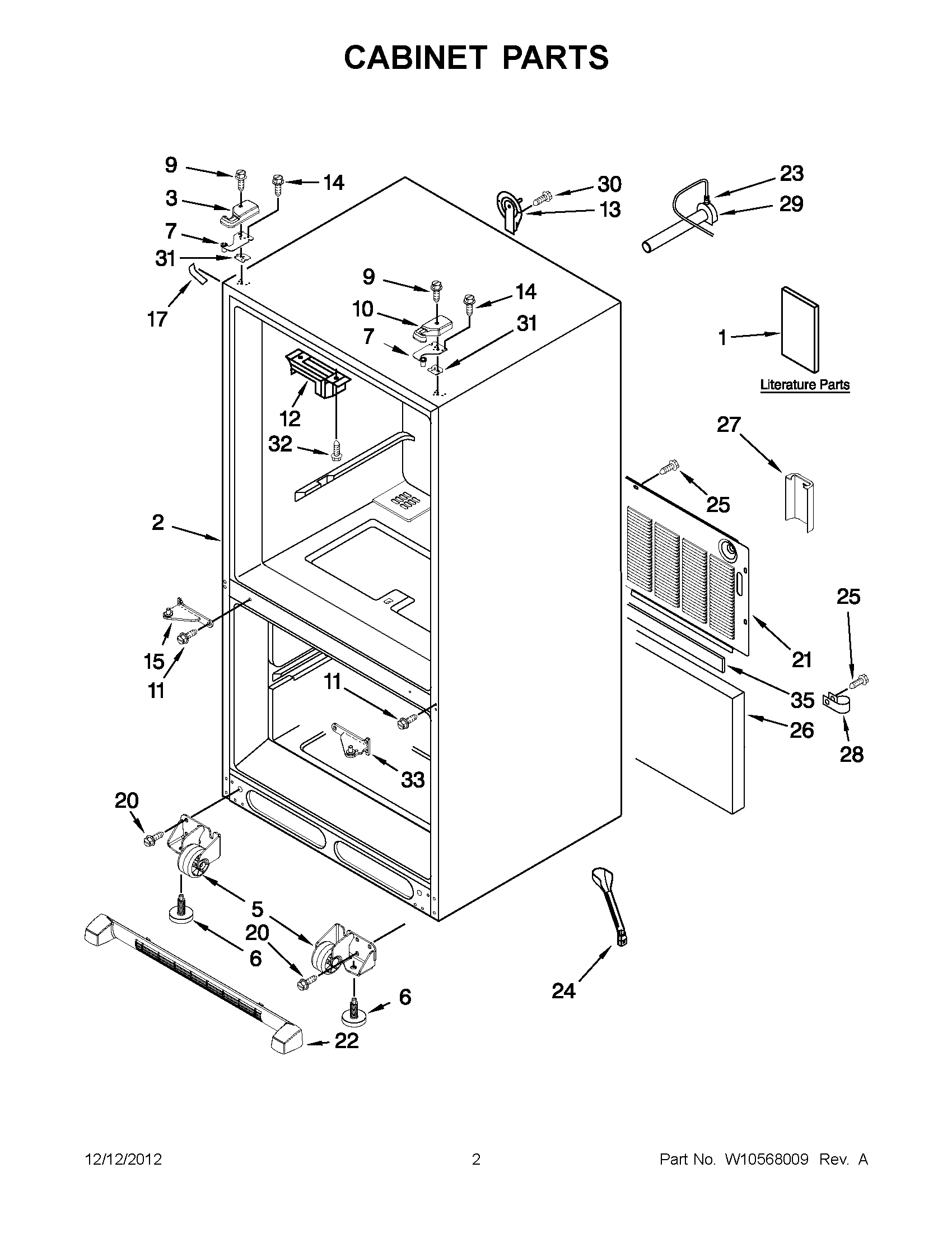

01 - CABINET PARTS

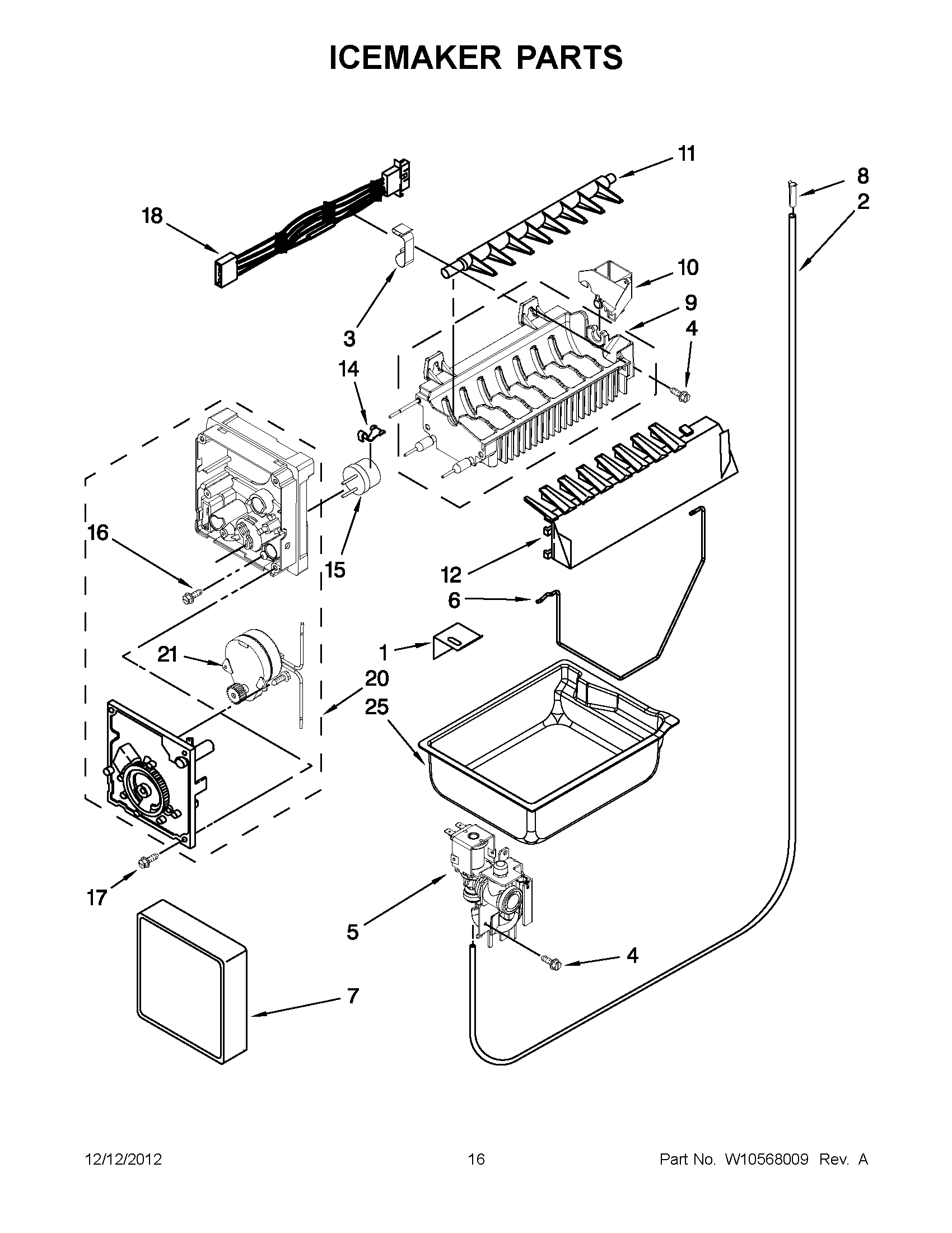

08 - ICEMAKER PARTS

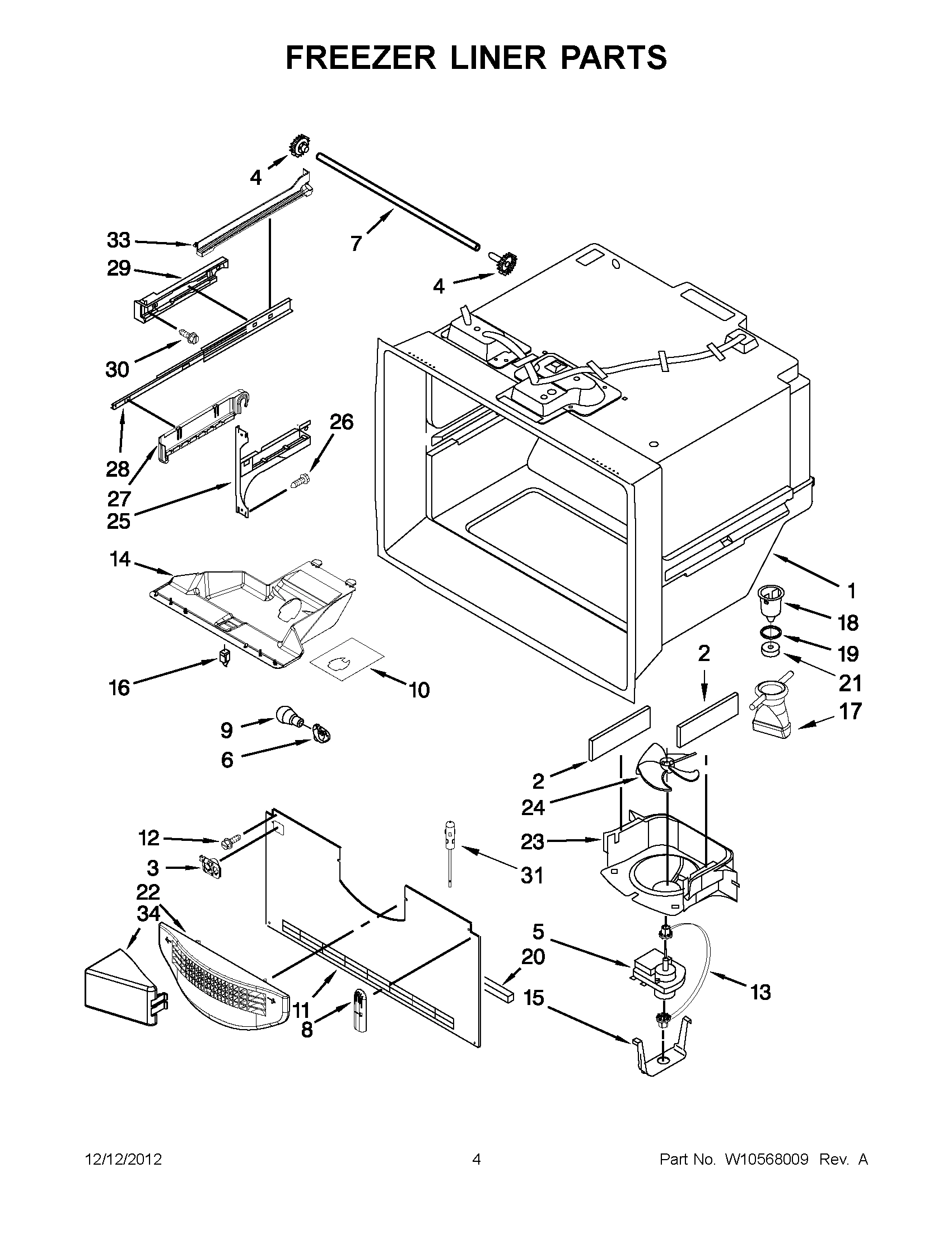

02 - FREEZER LINER PARTS

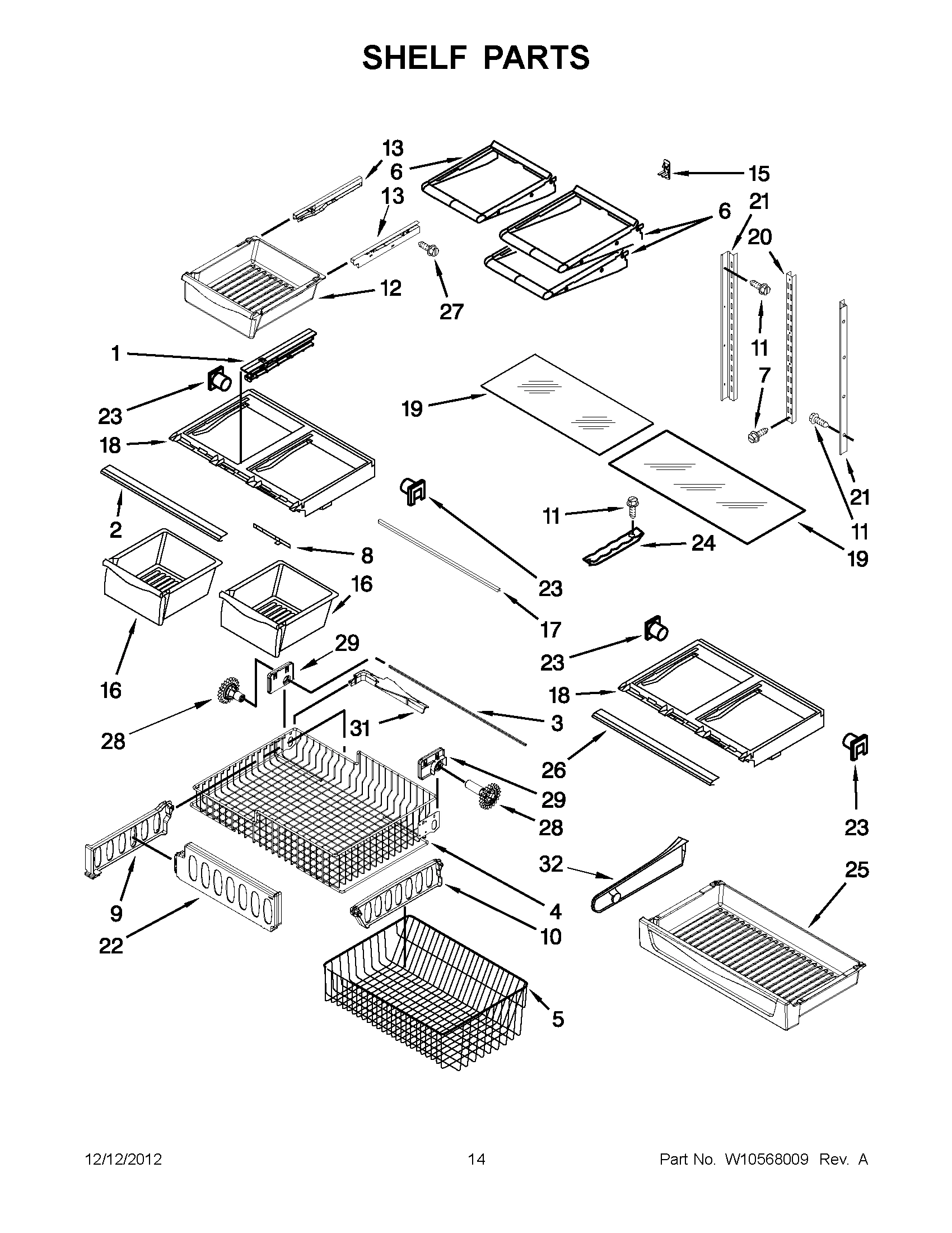

07 - SHELF PARTS
09 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool GX2FHDXVB07 REFRIGERATOR
1
SCREW WPL 12992301 Contact Us For Availability
2
MODULE, LIGHT WPL W10464766 Contact Us For Availability
3
BASEPAN WPL W10480110 Contact Us For Availability
3
Bucket, Can Dispenser WPL W10169347 Contact Us For Availability
3
OVERLAY, CONTROL WPL W10316011 Contact Us For Availability
4
Gear WPL 12002497 Contact Us For Availability
4
BASKET, UPPER WPL W10348238 Contact Us For Availability
4
Screw WPL W10001240 Contact Us For Availability
7
COVER, FRONT WPL W10377174 Contact Us For Availability
7
SCREW WPL W10215666 Contact Us For Availability
8
HOUSING, LIGHT WPL W10443023 Contact Us For Availability
9
DIVIDER, UPPER WPL W10241046 Contact Us For Availability
10
CUP, WATER FILL WPL W10410073 Contact Us For Availability
11
COVER, EVAPORATOR WPL W10308415 Contact Us For Availability
11
EJECTOR, ARM WPL W10318914 Contact Us For Availability
13
GROMMET WPL W10121318 Contact Us For Availability
13
COVER, WATER LINE WPL 12726003 Contact Us For Availability
15
CLIP, EVAPORATOR MOTOR WPL 13058002 Contact Us For Availability
16
Screw WPL 8533917 Contact Us For Availability
20
LADDER, CENTER WPL W10273463 Contact Us For Availability
21
LADDER, SIDE WPL W10251969 Contact Us For Availability
22
DIVIDER, UPPER WPL W10311695 Contact Us For Availability
23
DAM (LEFT HAND) WPL 12225602 Contact Us For Availability
25
DRAWER, PANTRY WPL W10328326 Contact Us For Availability
26
INSULATION WPL 12820505 Contact Us For Availability
27
COVER, VALVE WPL W10208592 Contact Us For Availability
29
MOUNT, GEAR (LEFT HAND) WPL W10348259 Contact Us For Availability
29
MOUNT, GEAR (RIGHT HAND) WPL W10348260 Contact Us For Availability
31
SHIM, TOP HINGE (LEFT HAND) WPL 12999501 Contact Us For Availability
31
SHIM, TOP HINGE (RIGHT HAND) WPL 12999502 Contact Us For Availability
34
DIVERTER, AIR WPL W10157765 Contact Us For Availability
35
GASKET WPL B5759655 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
NI
VALVE, ACCESS WPL 876764 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) WPL 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. BISCUIT/BISQU WPL 4392901 Contact Us For Availability
NI
VALVE, ACCESS WPL 978026 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ WPL 511873 Contact Us For Availability
NI
VALVE, ACCESS WPL 978027 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3``X 24` WPL 876370 Contact Us For Availability
NI
VALVE, ACCESS WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS WPL 978030 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30`` X 32 1/2` WPL 876029 Contact Us For Availability
NI
Miscellaneous (Kit, Terminal Connector) WPL 833938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability
NI
TORX SCREW WRENCH TORX KEY WPL 1117510 Contact Us For Availability
× ![]()
