Model Whirlpool GSQ9633LW0 WASHER – Common Parts & Diagrams
10 - MISCELLANEOUS, OPTIONAL
09 - WATER SYSTEM

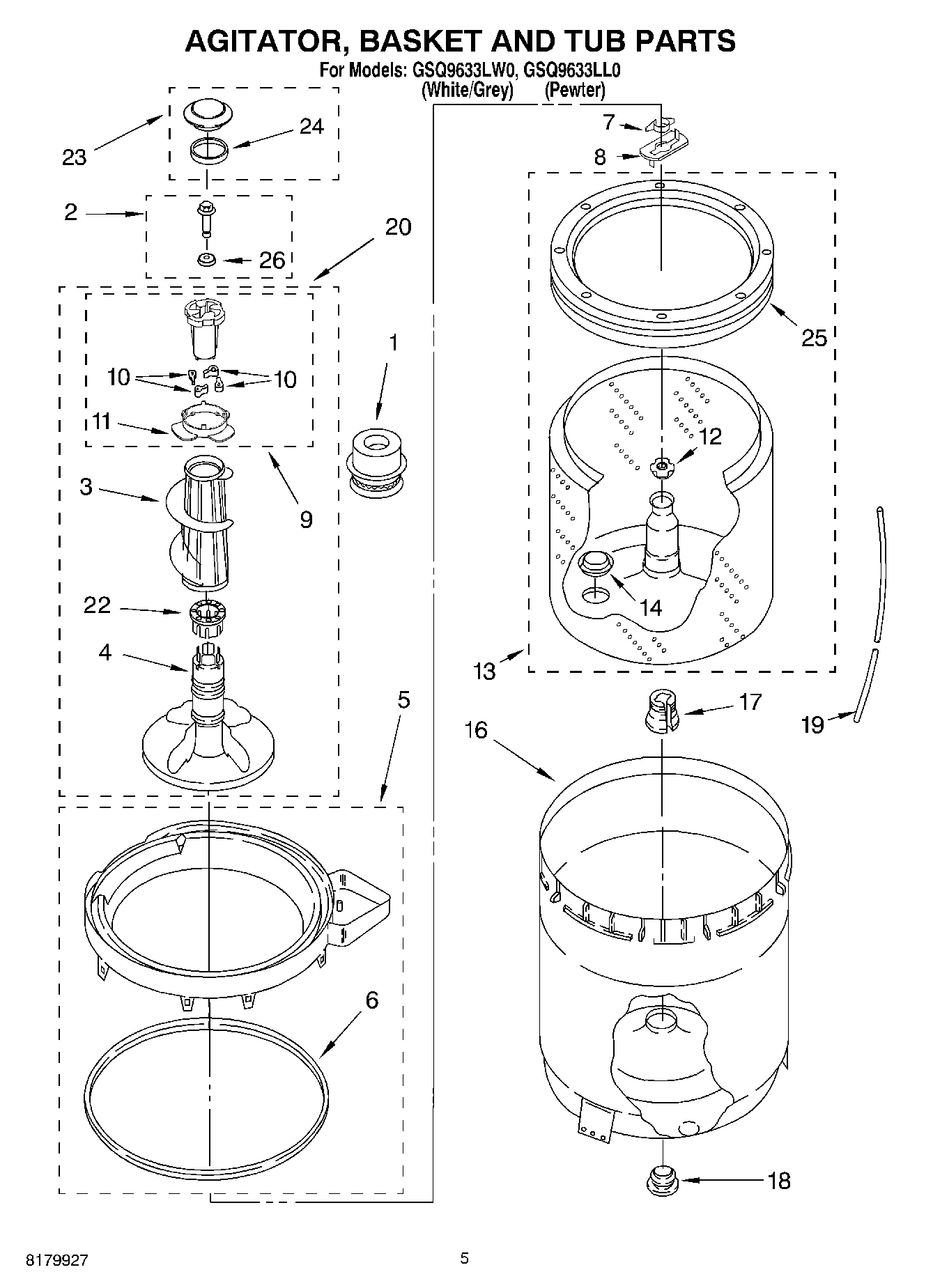

03 - AGITATOR, BASKET AND TUB

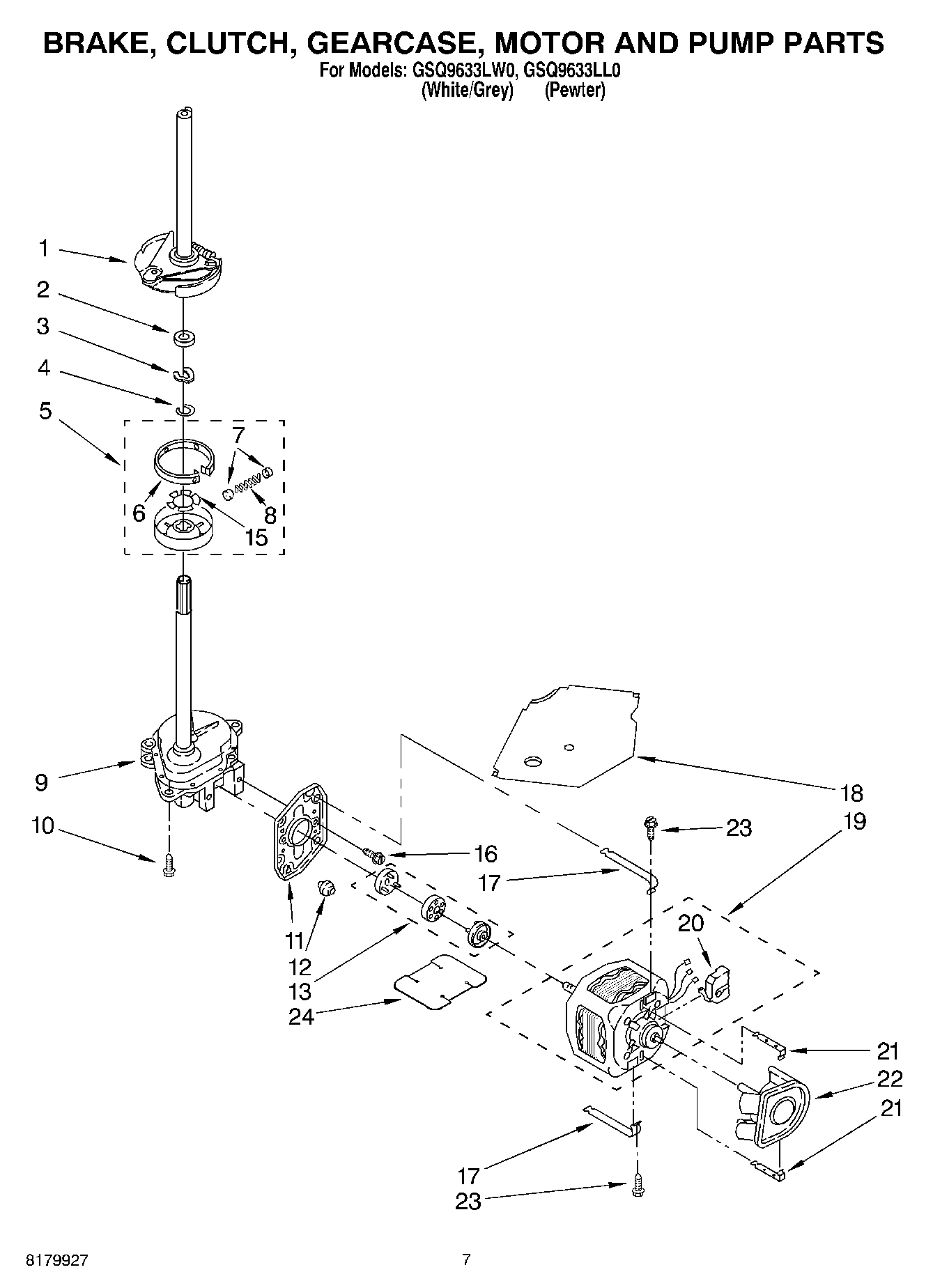

04 - BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP

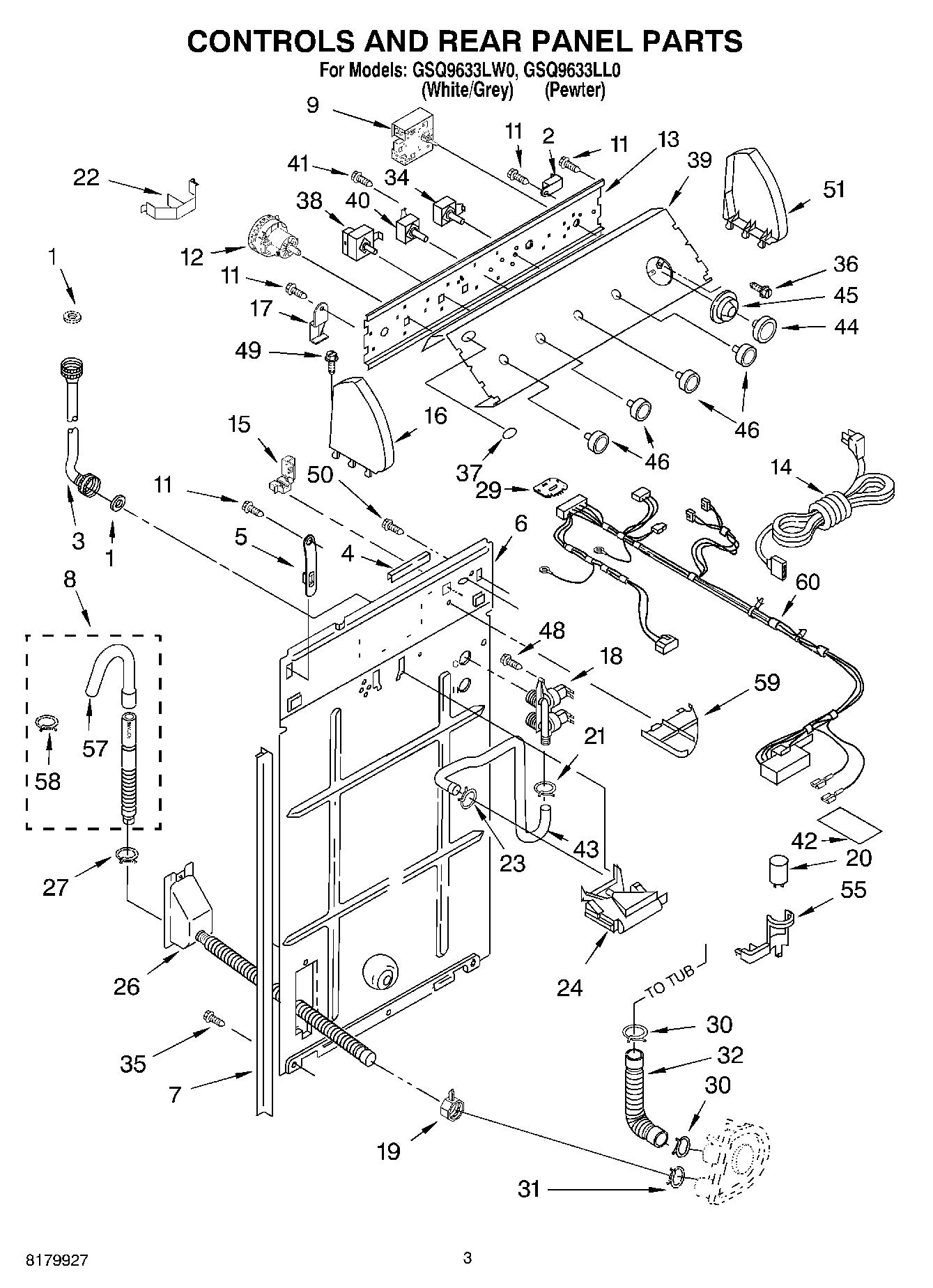

02 - CONTROLS AND REAR PANEL
05 - MACHINE BASE

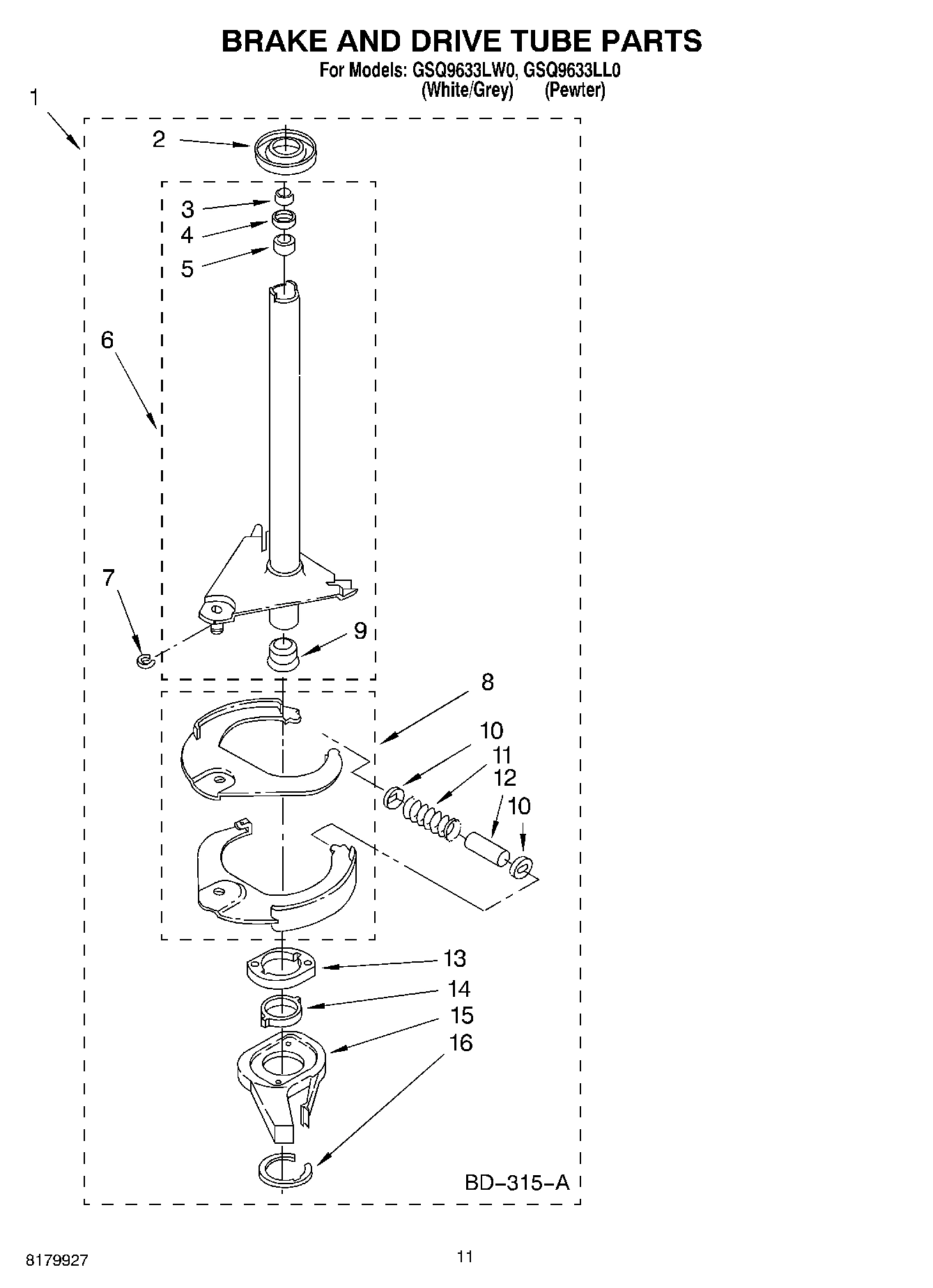

07 - BRAKE AND DRIVE TUBE

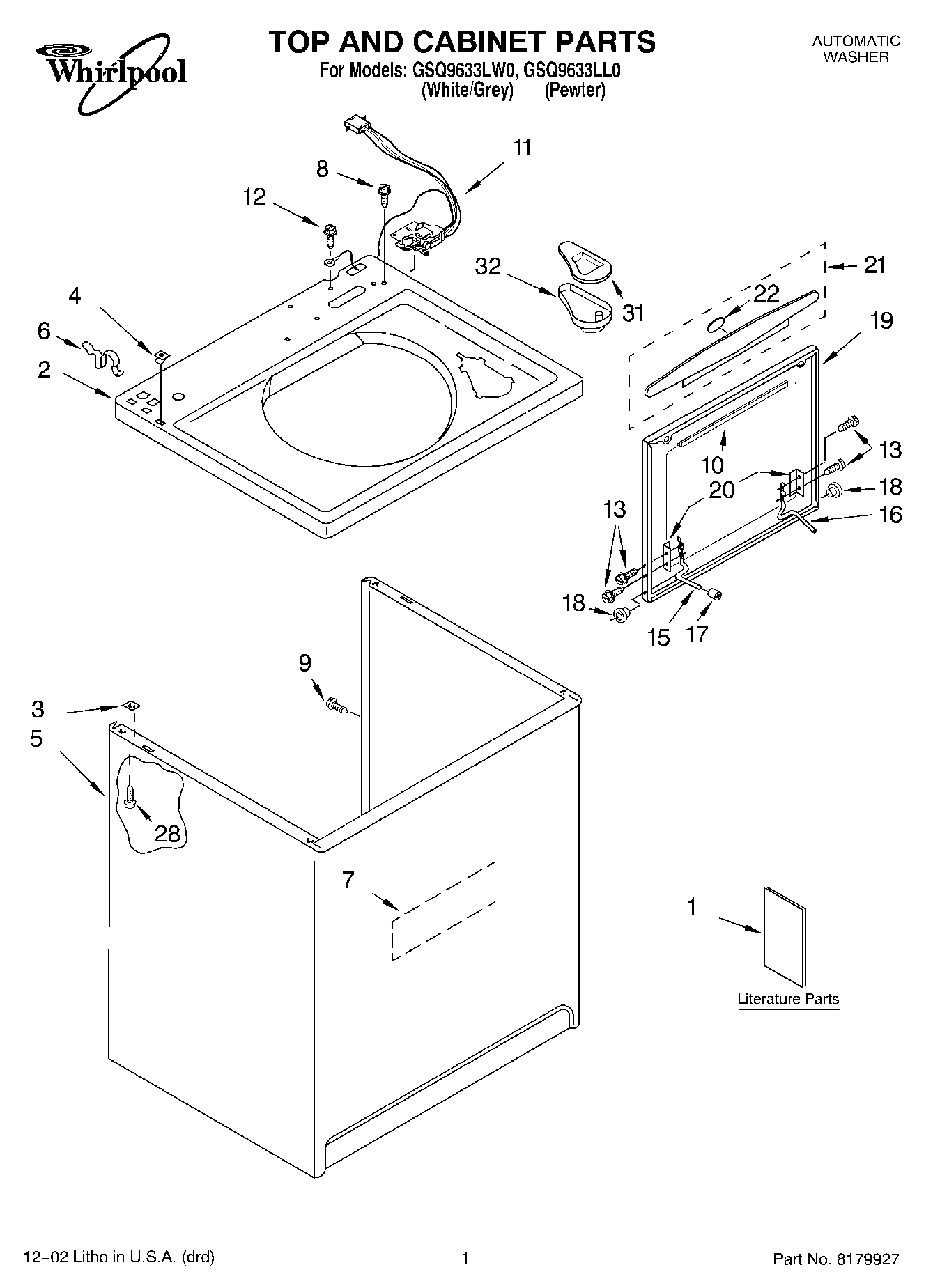

01 - TOP AND CABINET, LITERATURE
06 - WIRING HARNESS
08 - GEARCASE
Common parts from model Whirlpool GSQ9633LW0 WASHER
Manual, (Washer) WPL LIT4313896 Contact Us For Availability
1
Clip, Harness WPL 3349557 Contact Us For Availability
1
Literature Parts (Energy Guide) WPL LIT3955564 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT3955767 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT3955869 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT3956025 Contact Us For Availability
2
Top (White) WPL 3955789 Contact Us For Availability
2
Top (Pewter) WPL 3955791 Contact Us For Availability
2
Clip, Harness WPL 388498 Contact Us For Availability
5
Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability
5
Spacer, Drive Tube WPL 356937 Contact Us For Availability
5
Cabinet (Pewter) WPL 3956112 Contact Us For Availability
6
Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability
6
Clip, Harness WPL 3390496 Contact Us For Availability
7
Cabinet - Sound Damper WPL 3976348 Contact Us For Availability
8
Screw, Lid Switch (2) WPL 3400611 Contact Us For Availability
8
Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability
8
Ring, Retaining (2) WPL 90369 Contact Us For Availability
10
Seal, Lid WPL 8054939 Contact Us For Availability
10
Spring, Agitate WPL 62676 Contact Us For Availability
11
Spring, Brake WPL 387806 Contact Us For Availability
13
Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability
14
Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability
15
Hinge, Lid (L.H.) WPL 8055257 Contact Us For Availability
15
Protector WPL 63523 Contact Us For Availability
16
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability
16
Hinge, Lid (R.H.) WPL 8055256 Contact Us For Availability
16
Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability
16
Washer, Cam Thrust WPL 62618 Contact Us For Availability
17
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
17
Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability
18
Bearing, Lid Hinge (2) WPL 8319539 Contact Us For Availability
18
Clip, Harness WPL 3352944 Contact Us For Availability
19
Clamp, Hose WPL 3976395 No Longer Available
19
Lid (White) WPL 3956013 Contact Us For Availability
19
Lid (Pewter) WPL 3956015 Contact Us For Availability
19
Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability
19
Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability
20
Switch, Main Drive Motor WPL 8529896 Contact Us For Availability
20
Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability
21
Handle, Lid WPL 3956012 Contact Us For Availability
21
Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability
22
Insert, Handle WPL 3956010 Contact Us For Availability
22
Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability
23
Connector, Etc WPL 3349494 Contact Us For Availability
23
Ring, Retaining WPL 3362552 Contact Us For Availability
24
Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability
24
Washer Kit, Thrust WPL 285735 Contact Us For Availability
25
E.T.C. Control WPL 3407125 Contact Us For Availability
26
Assembly, Drain Hose WPL 8317941 Contact Us For Availability
29
WPL 3354926 WPL 3354926 Contact Us For Availability
30
WPL 3948615 WPL 3948615 Contact Us For Availability
31
Cover, Dispenser WPL 3955788 Contact Us For Availability
32
Dispenser, Bleach WPL 8519517 Contact Us For Availability
34
Switch, Rotary WPL 3956080 Contact Us For Availability
× ![]()
