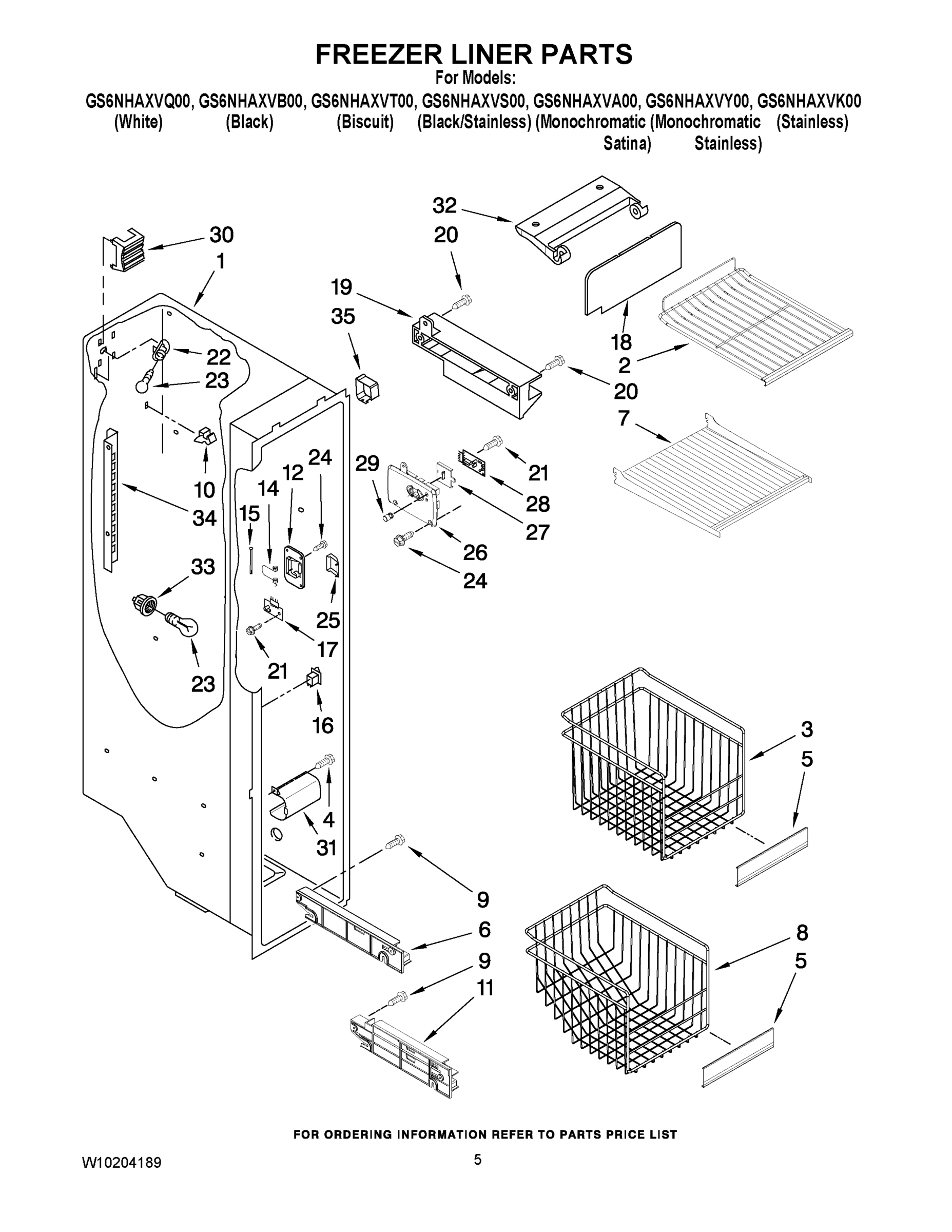

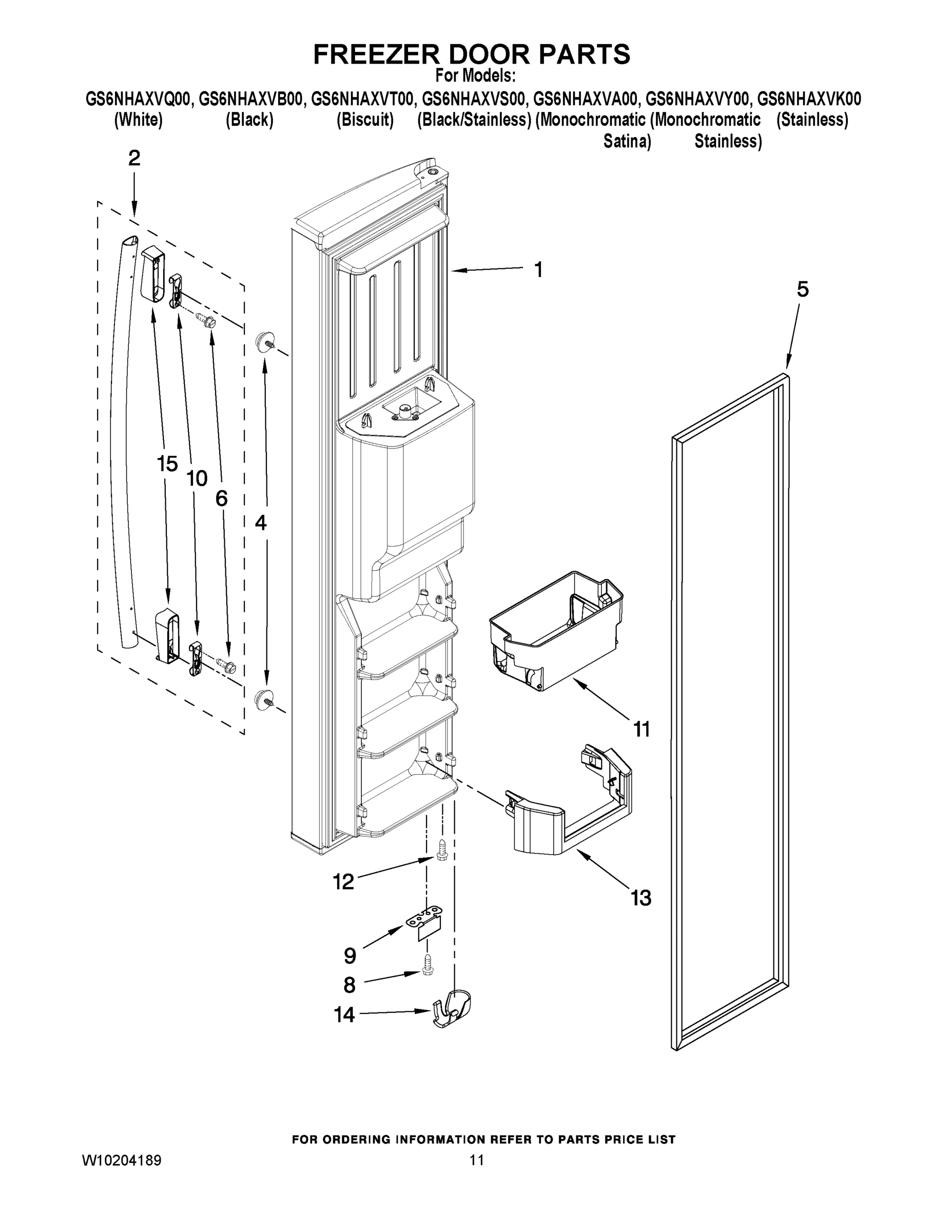

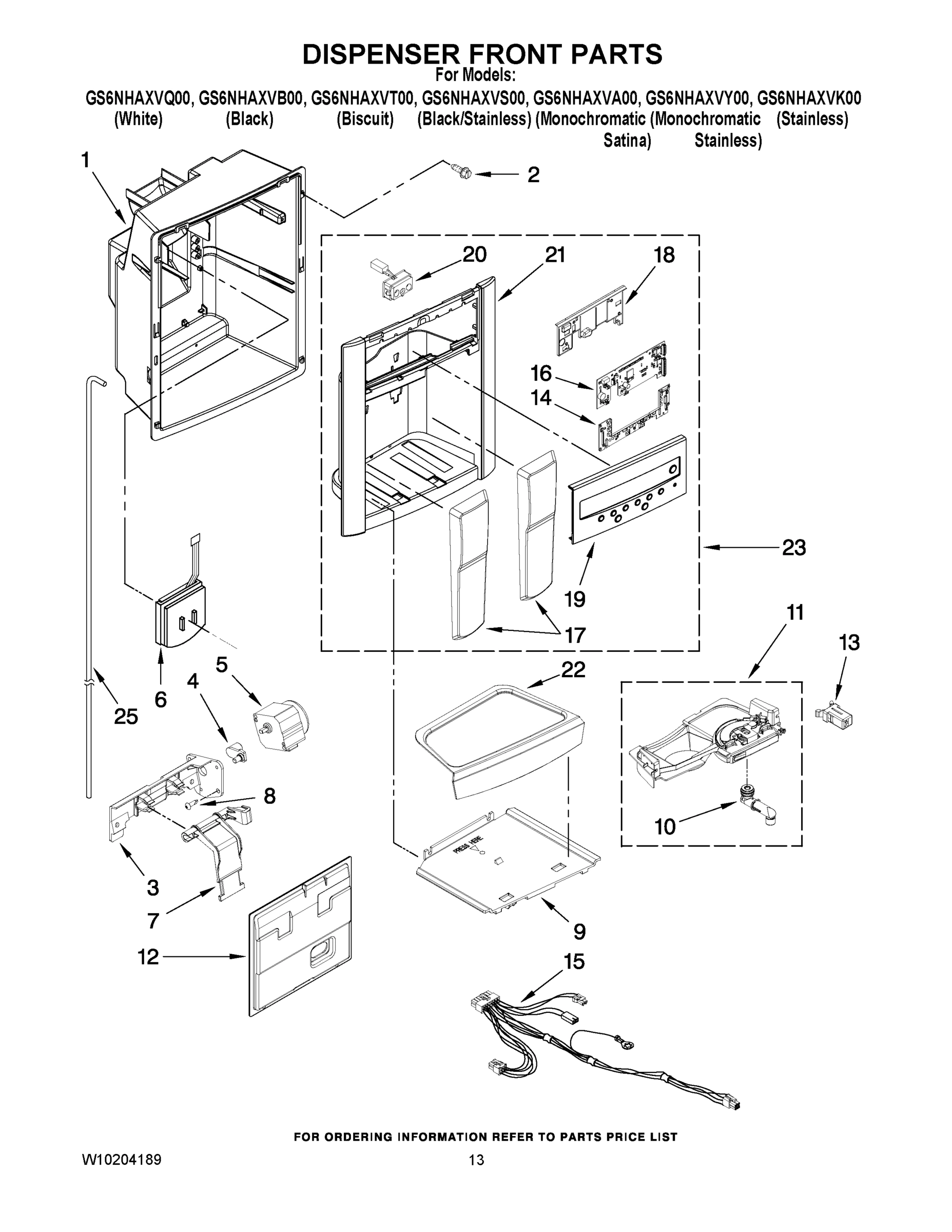

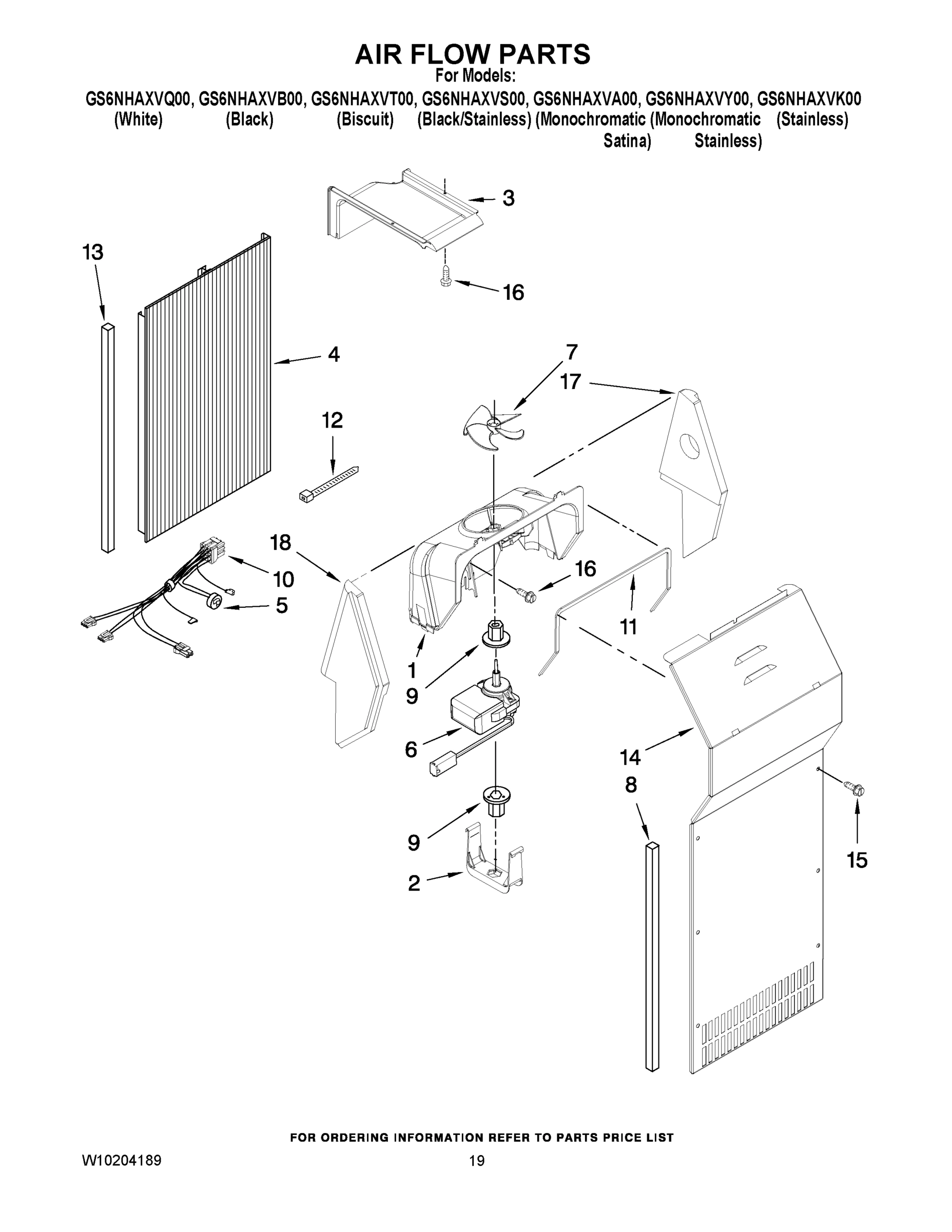

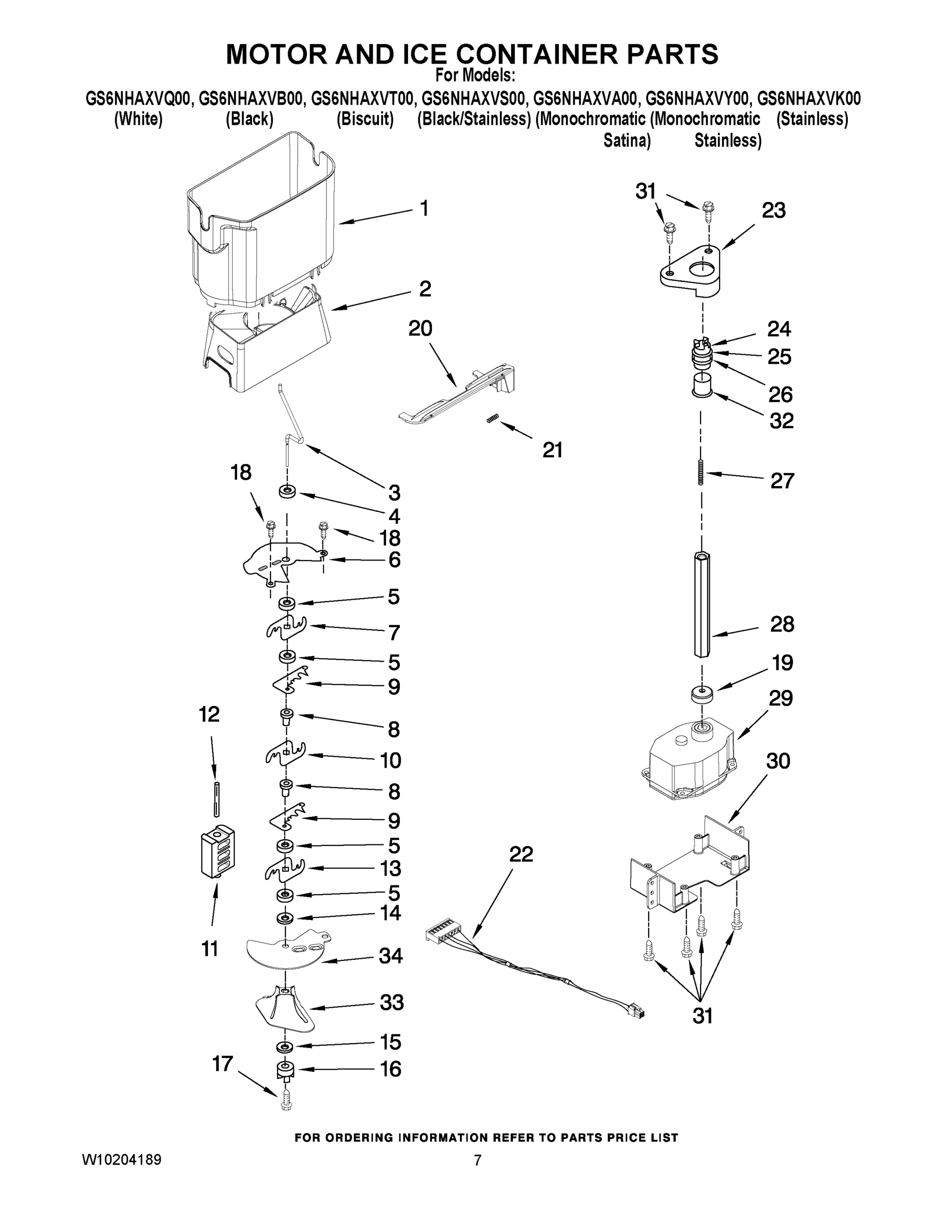

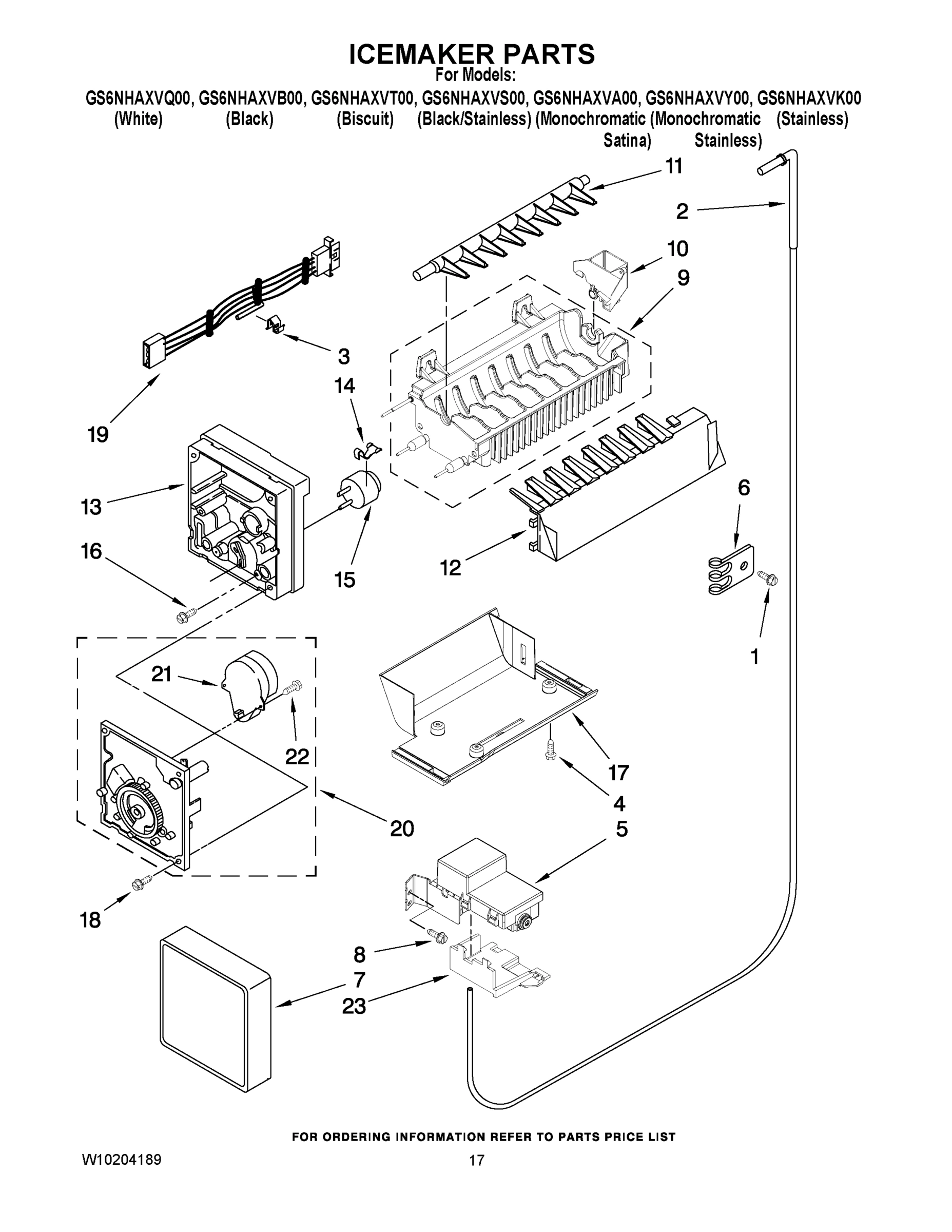

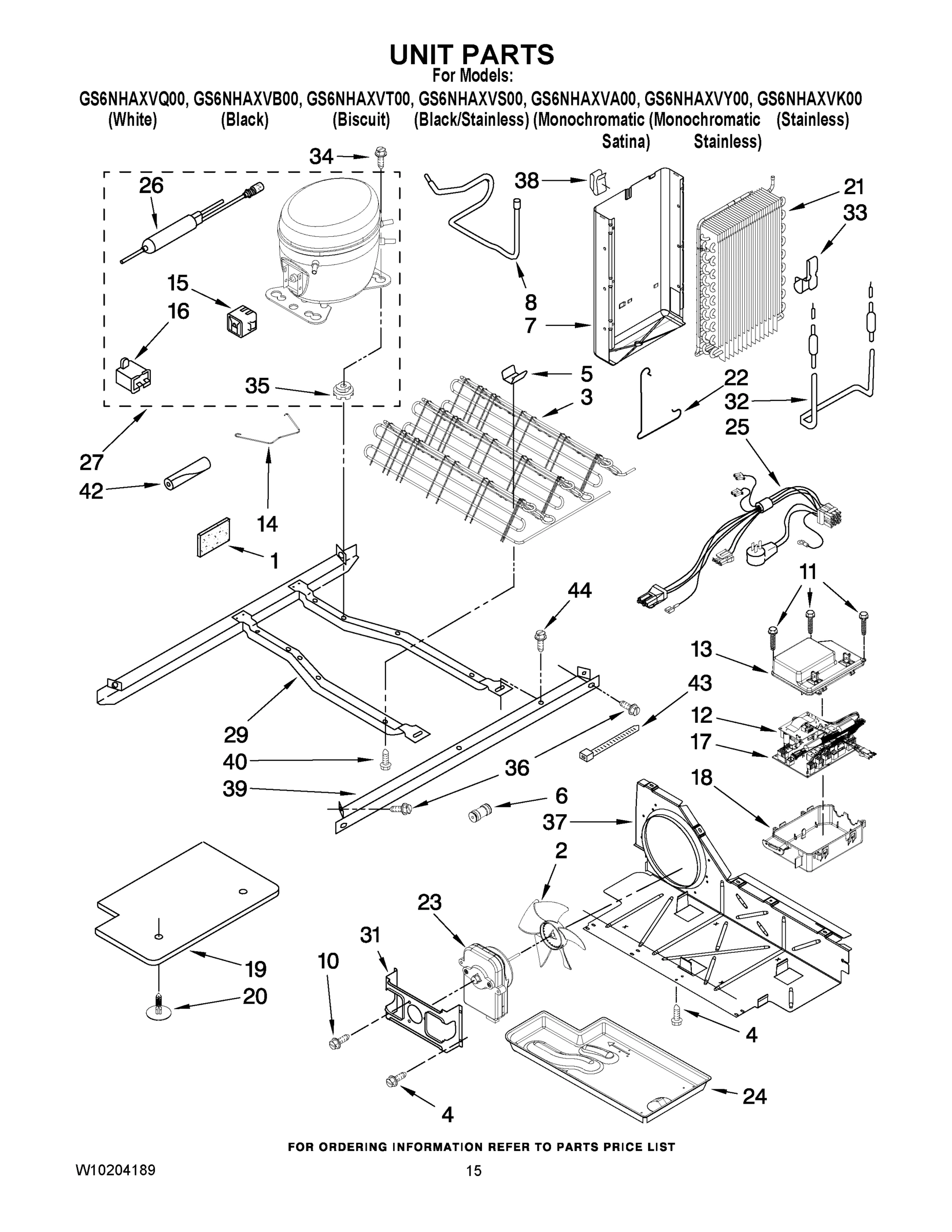

Model Whirlpool GS6NHAXVS00 REFRIGERATOR – Common Parts &amp; Diagrams

1

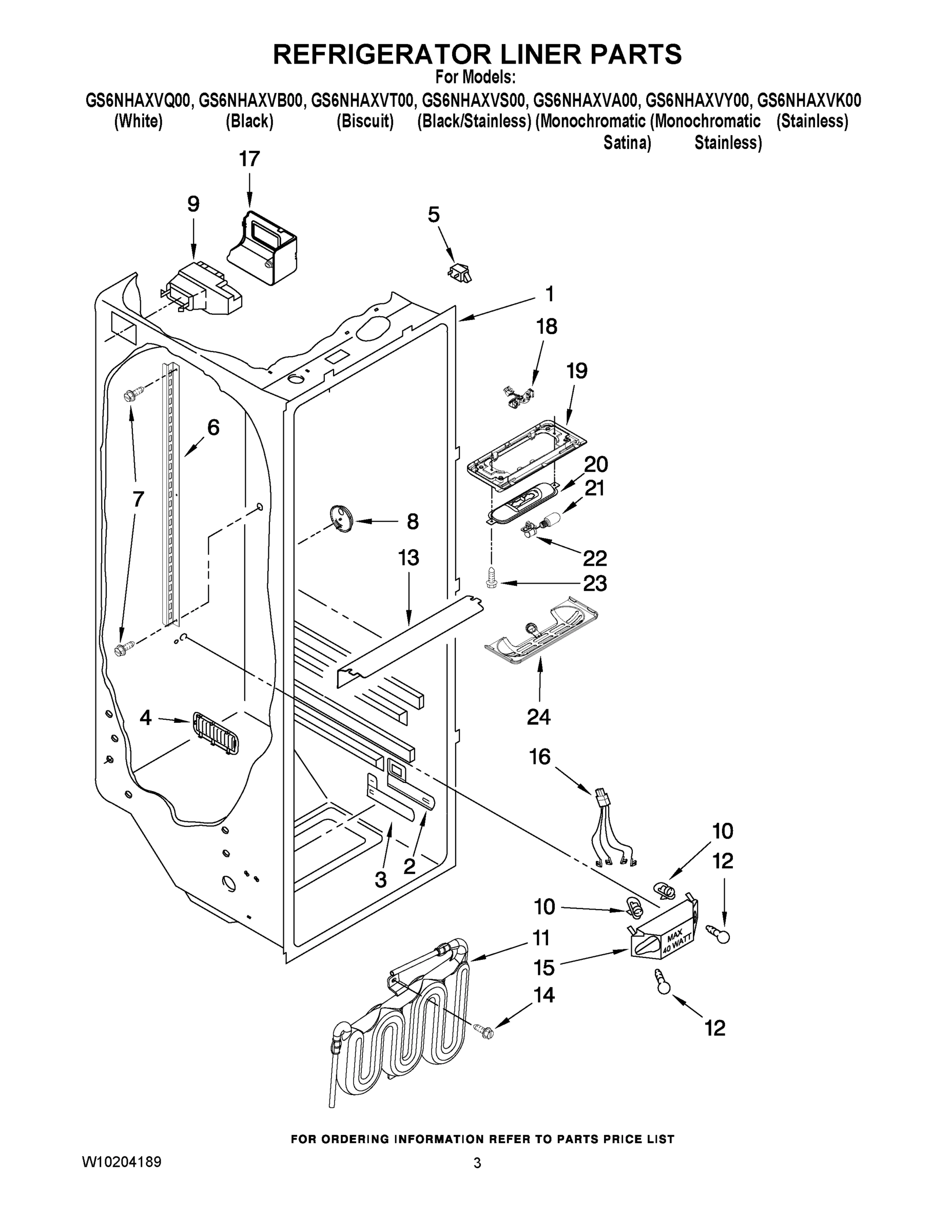

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

1

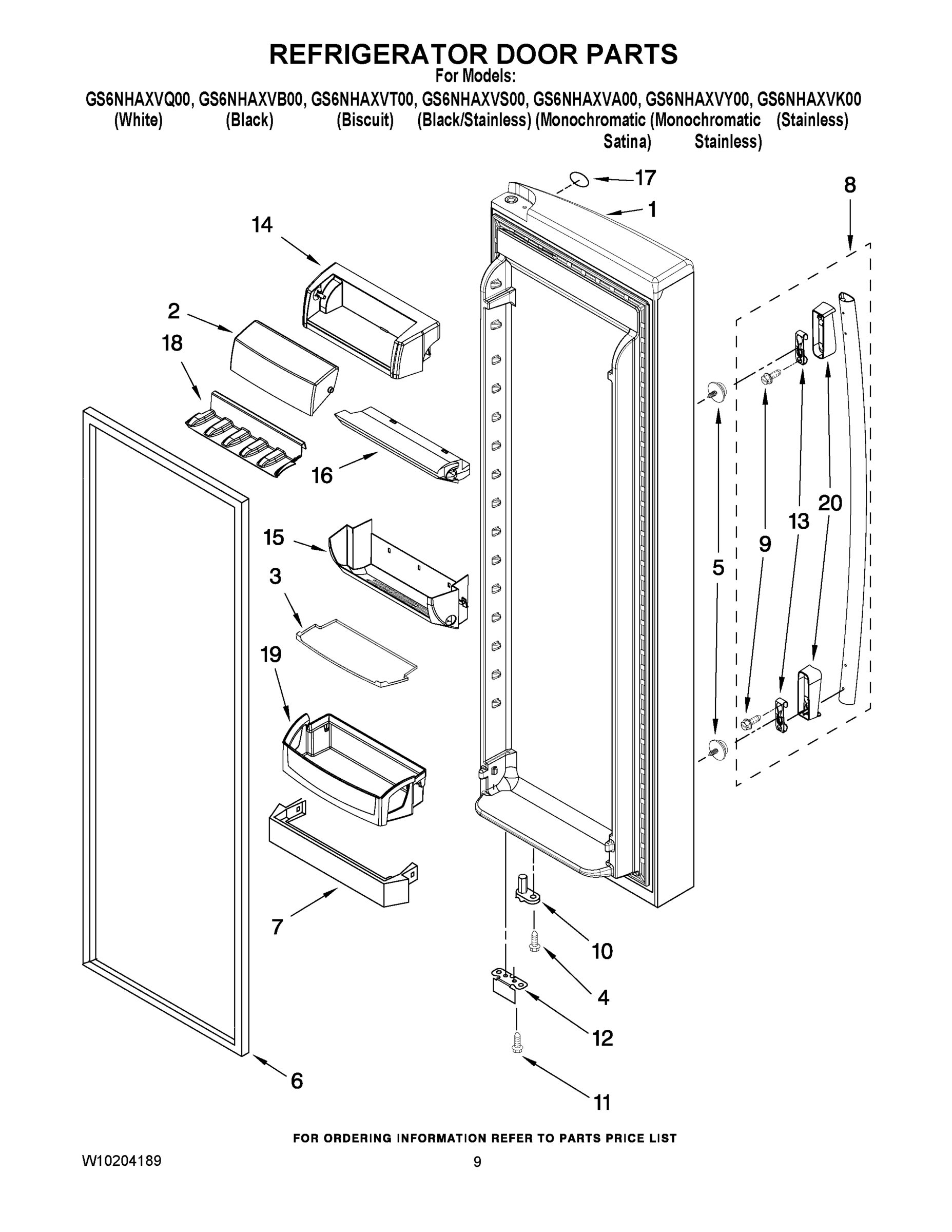

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (WHITE WPL W10167185 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (BLACK WPL W10167186 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (STAIN WPL W10167187 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (BISCU WPL W10169212 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (MONO WPL W10169213 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM No.6) (MONO WPL W10169214 Contact Us For Availability

2

Dairy Door WPL 2255421 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

2

Crusher Bin WPL W10174543 Contact Us For Availability

2

Shelf, Slide Out WPL 2211746K Contact Us For Availability

3

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Cover, Crisper (Includes 11 & 12) WPL 2223307 Contact Us For Availability

3

Basket, Tall WPL 2301190 Contact Us For Availability

3

Mat, Bin (2) WPL 2223464K Contact Us For Availability

4

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $32.74

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer, Auger WPL 2258220 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2321753 Whirlpool Refrigerator Inlet Valve Backorder WPL WP2321753 $223.44

5

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

5

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.84

5

Trim, Basket WPL 2195905K Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

6

W10139321 Whirlpool Refrigerator Cover Backorder WPL W10139321 $30.25

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

6

WPW10136734 Whirlpool Refrigerator Door Gaske In Stock WPL WPW10136734 $122.13

6

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

6

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

6

Glass, Meat Cover WPL 2223714 Contact Us For Availability

6

Shelf Ladder WPL 2319866 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

7

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

Glass, Cover WPL 2223591 Contact Us For Availability

7

Shelf (2) WPL 2205837K Contact Us For Availability

8

W10210942A Whirlpool Refrigerator Handle Backorder WPL W10210942A $54.35

8

W10210943A Whirlpool Refrigerator Handle Backorder WPL W10210943A $54.35

8

W10210944A Whirlpool Refrigerator Handle M Backorder WPL W10210944A $49.41

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

WPW10257120 Whirlpool Refrigerator Handle Backorder WPL WPW10257120 $26.10

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Basket, Sloped WPL 2301191 Contact Us For Availability

9

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

9

W10899382 Whirlpool Refrigerator Damper Contr In Stock WPL W10899382 $116.82

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

9

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP8533988 Whirlpool Screw Fastener In Stock WPL WP8533988 $3.33

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Grille, Slide (Black) WPL 2322626B Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

Spigot WPL W10187441 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Separator Assembly (Black) WPL 2322658B Contact Us For Availability

Separator Assembly (Stainless) WPL 2322658S Contact Us For Availability

Shelf Track, Dual (Right Side) WPL 2301293 Contact Us For Availability

Shelf Track, Dual (Left Side) WPL 2301294 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WPW10356040-includeCORE Whirlpool WPW10356040 Backorder WPL WPW10356040-includeCORE $197.03

Bracket, Door Stop (Zinc) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $50.71

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $29.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Door Compartment WPL 2255420 Contact Us For Availability

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $70.92

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

Frame, Can Rack WPL 2255422 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.68

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.19

Air Diffuser Asm WPL 2255424 Contact Us For Availability

W10128735 Whirlpool Refrigerator Cover Backorder WPL W10128735 $69.88

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

Nameplate WPL 2220214 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Shelf, Slide Out (2) WPL 2255160 Contact Us For Availability

2310527 Whirlpool Refrigerator Wire Jumper Backorder WPL 2310527 $69.65

2323186 Whirlpool Refrigerator Housing Backorder WPL 2323186 $35.67

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $13.05

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Floor, Can Rack WPL 2255423 Contact Us For Availability

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

Extension Tube WPL 2304937 Contact Us For Availability

Door Bin WPL W10158506 Contact Us For Availability

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Grommet, Drive Shaft WPL 2323357 Contact Us For Availability

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W10127813 Whirlpool Refrigerator Handle Endca Backorder WPL W10127813 $28.09

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Latch, Bin WPL W10140685 Contact Us For Availability

Endcap, Handle (Black) WPL W10127814 Contact Us For Availability

Endcap, Handle (Biscuit) WPL W10127815 Contact Us For Availability

Endcap, Handle (Stainless) WPL W10152864 Contact Us For Availability

21

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

21

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

Clip WPL 2161324 Contact Us For Availability

Wire Assembly, IDI Motor WPL 2310401 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Holder WPL 2212369 Contact Us For Availability

24

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.79

24

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

24

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

25

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

25

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

26

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

26

Cover, Receiver WPL W10173569 Contact Us For Availability

27

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

27

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.97

28

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $228.34

28

Drive Shaft WPL 2323355 Contact Us For Availability

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

29

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

29

WP2323603 Whirlpool Refrigerator Motor In Stock WPL WP2323603 $123.75

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

30

Bracket, Motor WPL 2305208 Contact Us For Availability

30

Light Shield WPL 2198589 Contact Us For Availability

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Light Lens WPL 2212340 Contact Us For Availability

32

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

33

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

33

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

34

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

34

LIGHT LADDER (LEFT SIDE) WPL 2198609 Contact Us For Availability

34

LIGHT LADDER (RIGHT SIDE) WPL 2198610 Contact Us For Availability

35

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

38

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

38

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

39

WPL 2223751 WPL 2223751 Contact Us For Availability

40

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

44

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

100

Ice Container (Complete) WPL W10188747 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $15.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CLEANER, (STAINLESS STEEL) WPL 2217192 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability
