Model Whirlpool GS5SHGXLQ00 REFRIGERATOR – Common Parts & Diagrams

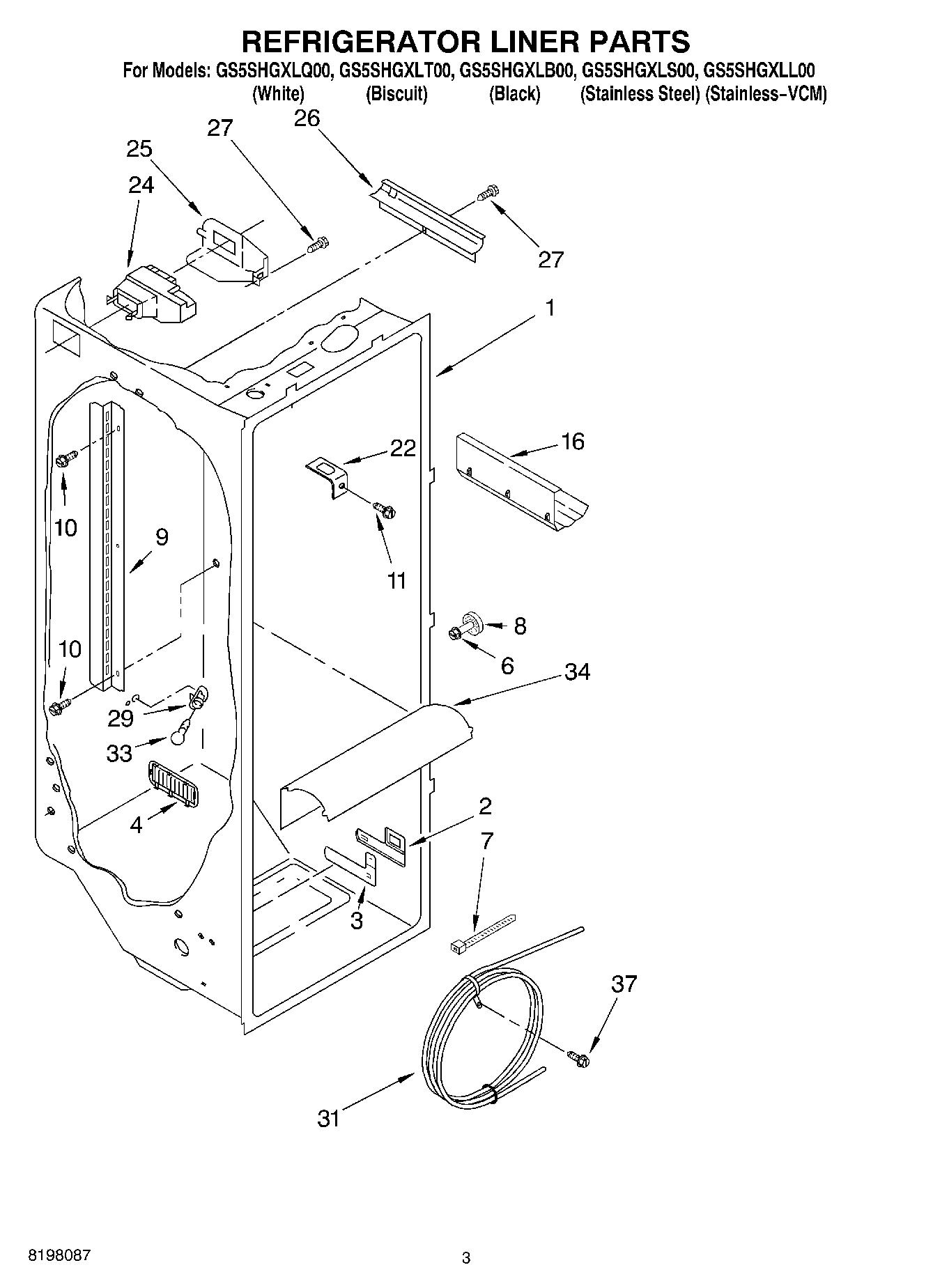

02 - REFRIGERATOR LINER
06 - REFRIGERATOR DOOR
07 - FREEZER DOOR
09 - UNIT
12 - ICE MAKER, OPTIONAL
08 - DISPENSER FRONT
10 - AIR FLOW
01 - CABINET, LITERATURE
04 - FREEZER LINER
11 - CONTROL
03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER
Common parts from model Whirlpool GS5SHGXLQ00 REFRIGERATOR
1
Literature Parts (Service & Wiring Sheet) WPL LIT2216342 Contact Us For Availability
1
LITERATURE PARTS (Energy Guide) WPL LIT2220426 Contact Us For Availability
1
LITERATURE PARTS (Use & Care Guide) WPL LIT2220699 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Liner (Not A Seviceable Part) WPL ARI70728A2 Contact Us For Availability
1
Control Box WPL 2200137 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
2
Fan, Blade WPL 2190685 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Bracket, Fill Tube WPL 2209674 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Ice Compartment WPL 2204285 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Air Duct Freezer WPL 2203593 Contact Us For Availability
7
TUBE, SUCTION WPL 2205765 Contact Us For Availability
8
Hole Plug WPL 940014 Contact Us For Availability
8
Cover, Meat Pan WPL 2217039 Contact Us For Availability
9
Grille, Overflow (White) WPL 2207007W Contact Us For Availability
9
Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability
9
Shim (1) WPL 2209697 Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
9
Frame, Shelf WPL 2195975 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2203562B Contact Us For Availability
11
Duct, Icemaker WPL 2182146 Contact Us For Availability
11
Lever, Ice Dispenser (Biscuit) WPL 2203562T Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Nameplate WPL 2220214 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
14
Wiring Cover WPL 2155572 Contact Us For Availability
15
Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Screw WPL 627068 Contact Us For Availability
17
Lever, Water Dispenser (Black) WPL 2203561B Contact Us For Availability
17
Lever, Water Dispenser (Biscuit) WPL 2203561T Contact Us For Availability
17
Lever, Water Dispenser (White) WPL 2203561W Contact Us For Availability
17
Cover, Evaporator WPL 2203841 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
20
Control Box Harness WPL 2206514 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
21
Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability
22
Grille (Biscuit) WPL 2198468T Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Shelf, Snack Bin WPL 2206347 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220387T Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2220387W Contact Us For Availability
23
Shelf, Top Compartment WPL 2174493 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Light Lens WPL 2171705 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Air Diffuser Cover WPL 2152019 Contact Us For Availability
25
BLOCK BLADE WPL 2157405 Contact Us For Availability
25
Escutcheon, Control Box WPL 2212073 Contact Us For Availability
26
Thermostat knob WPL 2182111 Contact Us For Availability
26
Roll Pin WPL 489229 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear WPL 2196207 Contact Us For Availability
28
Tube Kit WPL 876765 Contact Us For Availability
29
SPRING, WASHER WPL 489203 Contact Us For Availability
30
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
31
Retainer, Light Lens WPL 2200097 Contact Us For Availability
32
P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability
33
Spring, Return WPL 1119020 Contact Us For Availability
34
Light Lens WPL 2254920 Contact Us For Availability
34
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
39
Washer, Plain WPL 489234 Contact Us For Availability
44
Front Cover, Ice Container WPL 2204321 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI70726A8 Contact Us For Availability
49
Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability
52
CLAMP, SERVICE CORD WPL 549193 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
100
Complete Icemaker Assembly WPL 4317943 Contact Us For Availability
100
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
100
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
100
WPL 72032 WPL 72032 Contact Us For Availability
100
Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability
100
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
100
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability
100
Enamel, Almond (12 Oz. Spray Can) WPL 350956 Contact Us For Availability
100
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
100
WPL 876370 WPL 876370 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
WPL 833938 WPL 833938 Contact Us For Availability
100
Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
