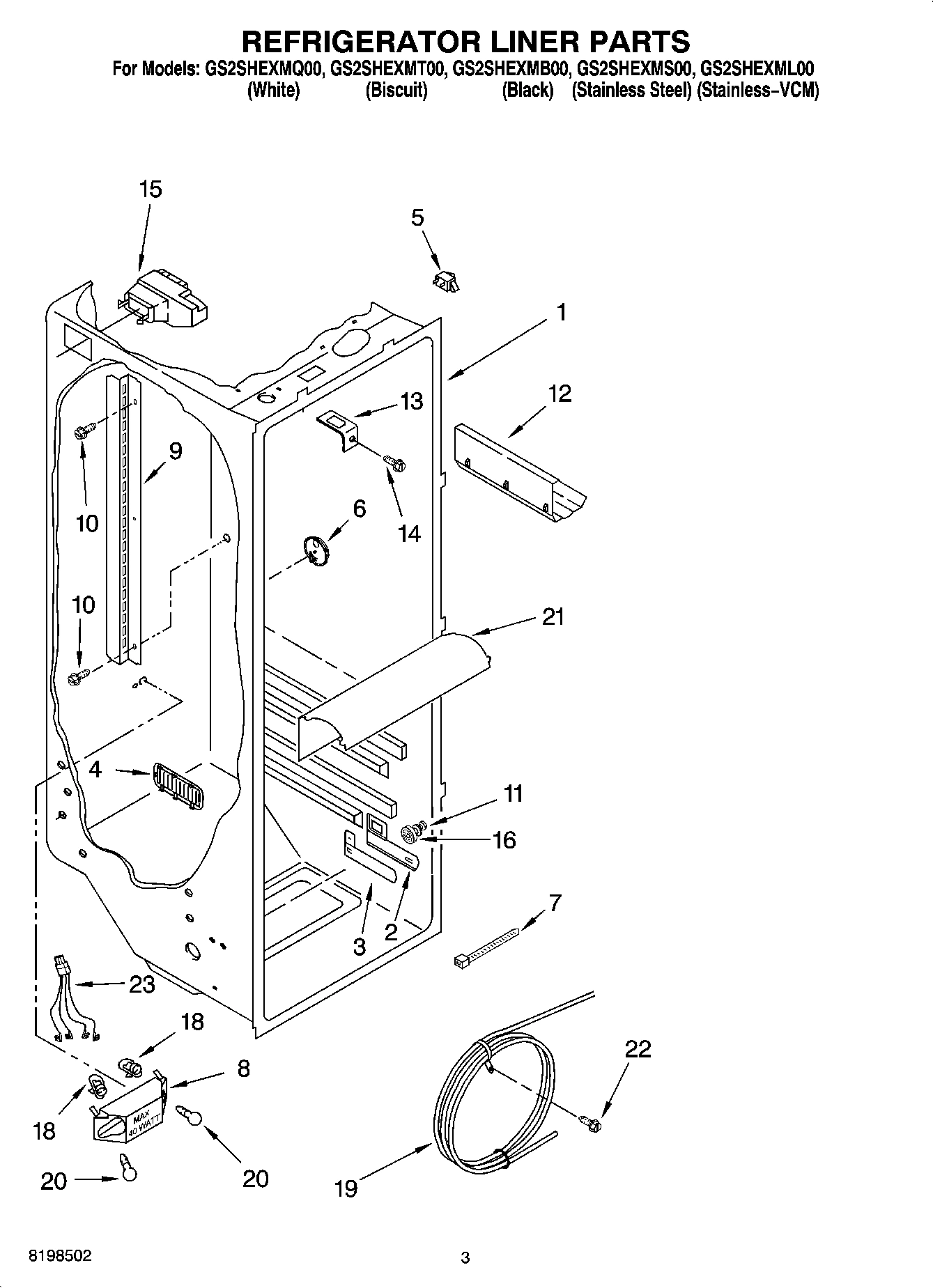

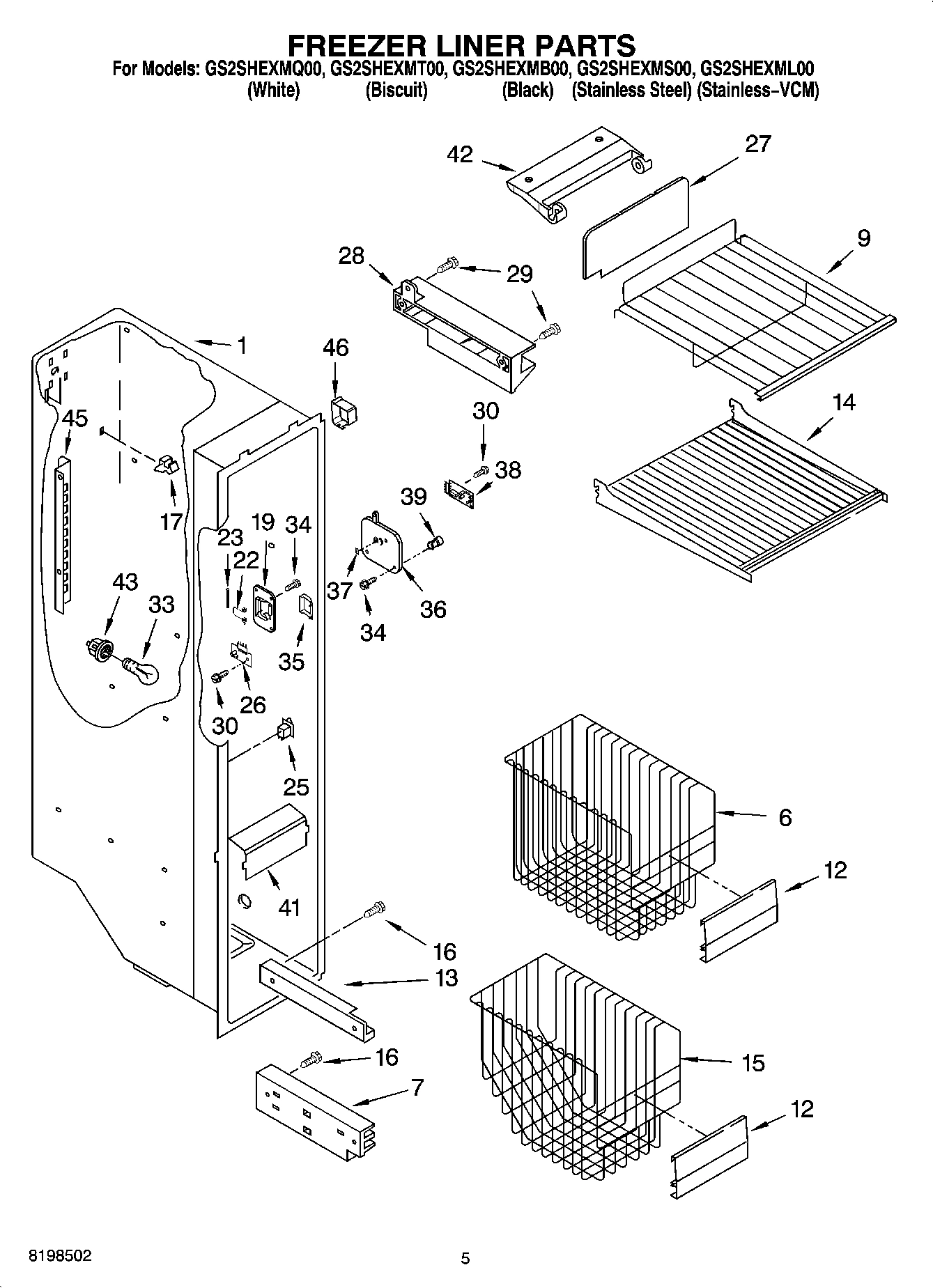

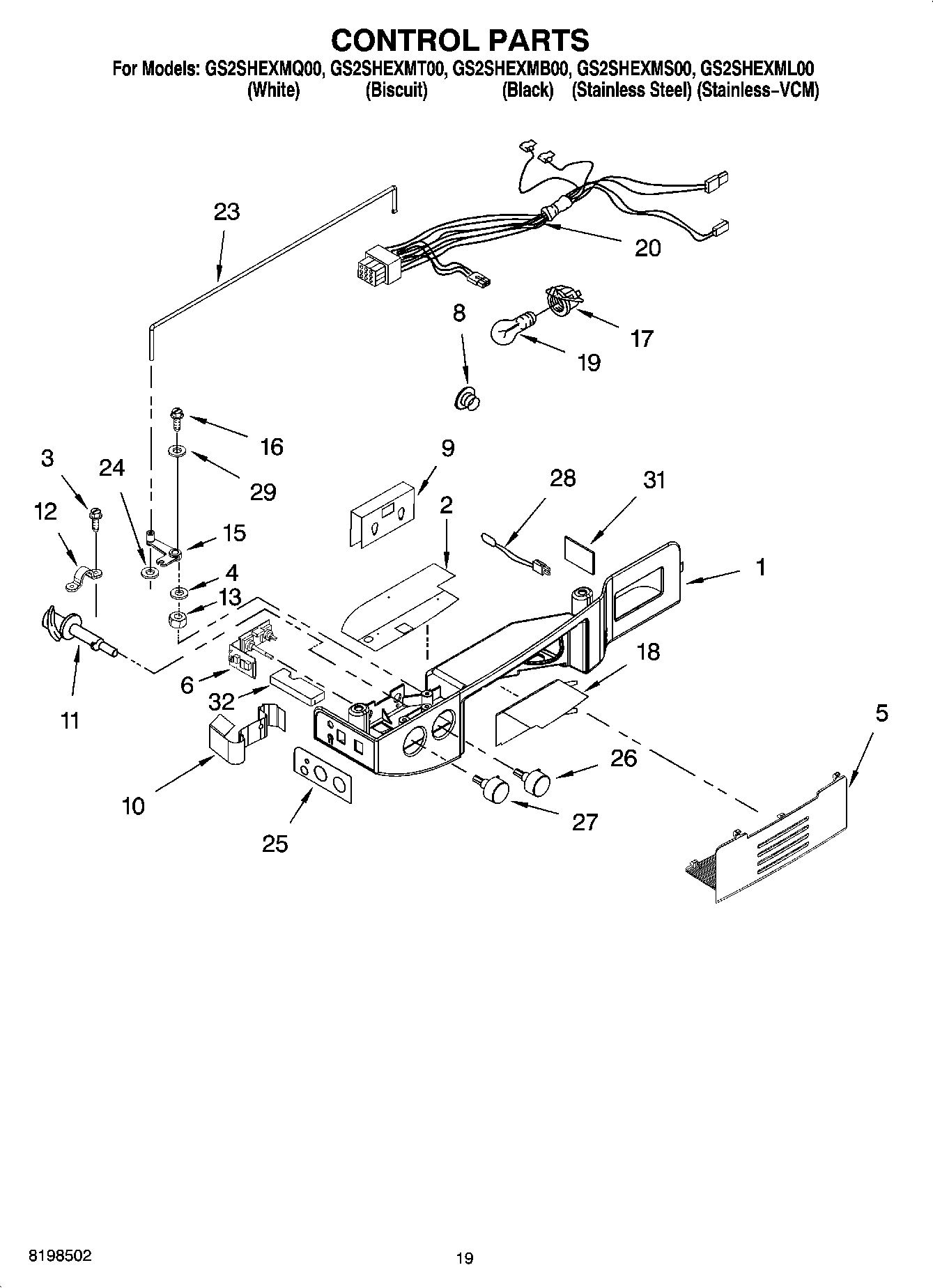

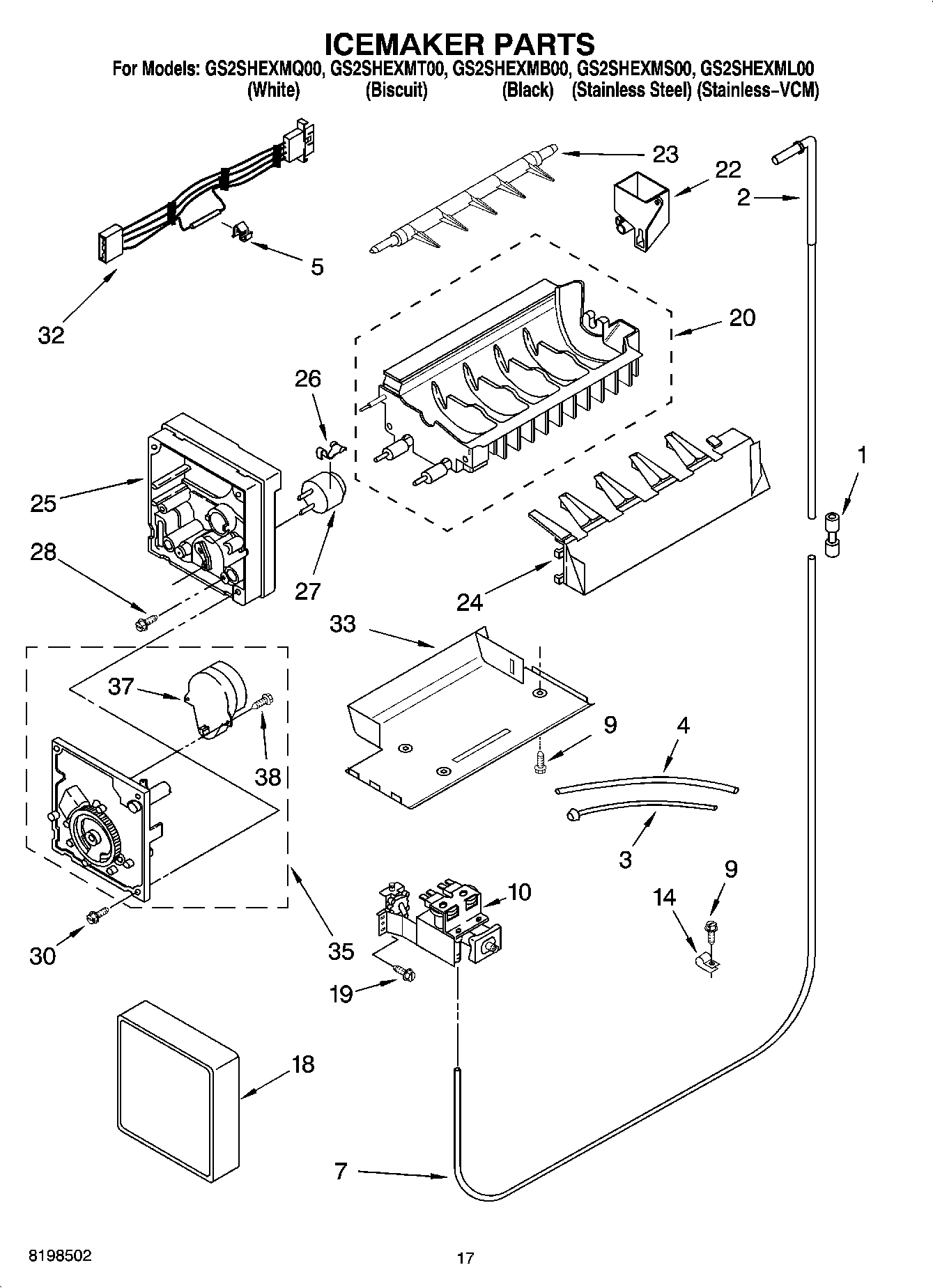

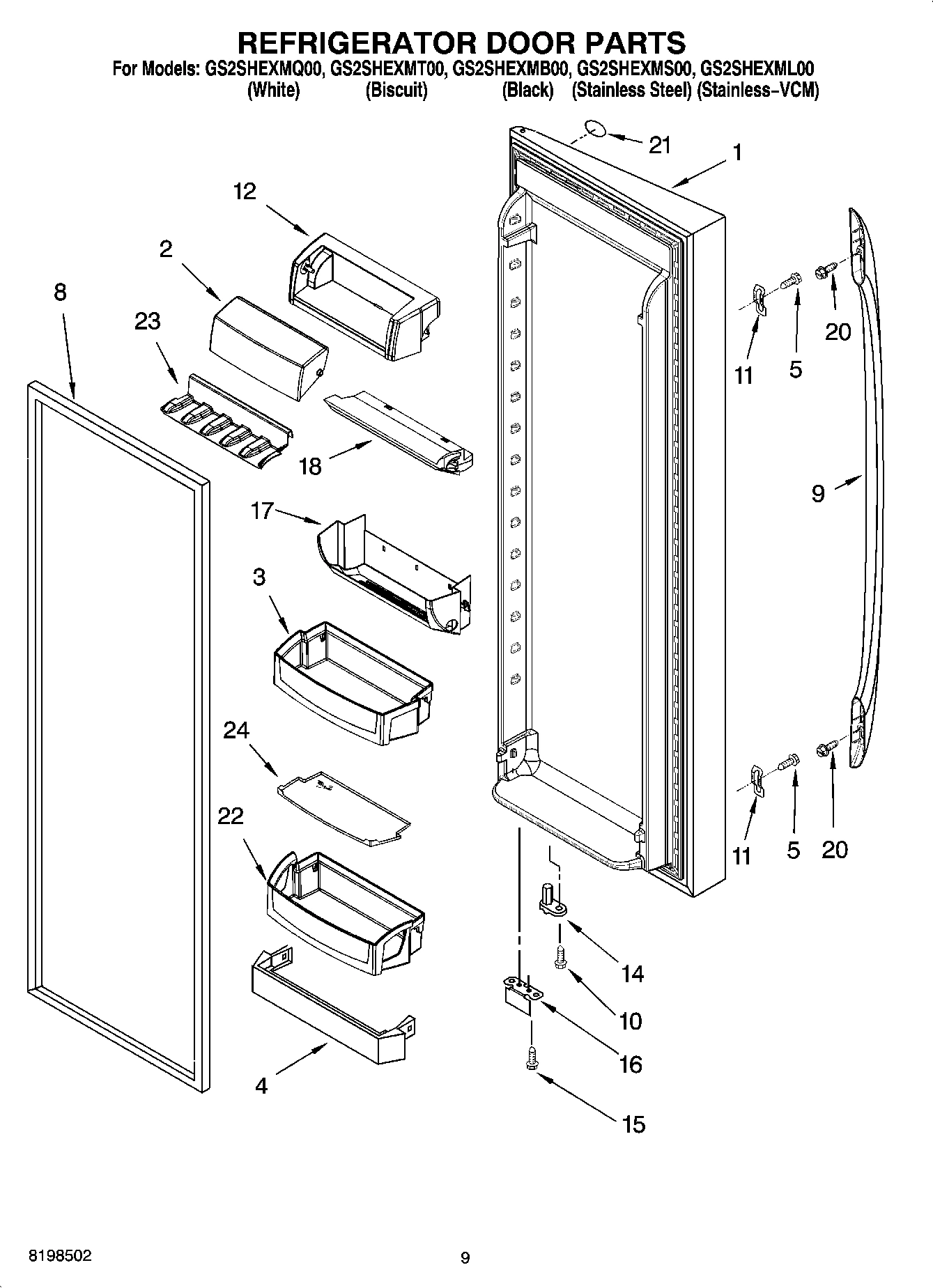

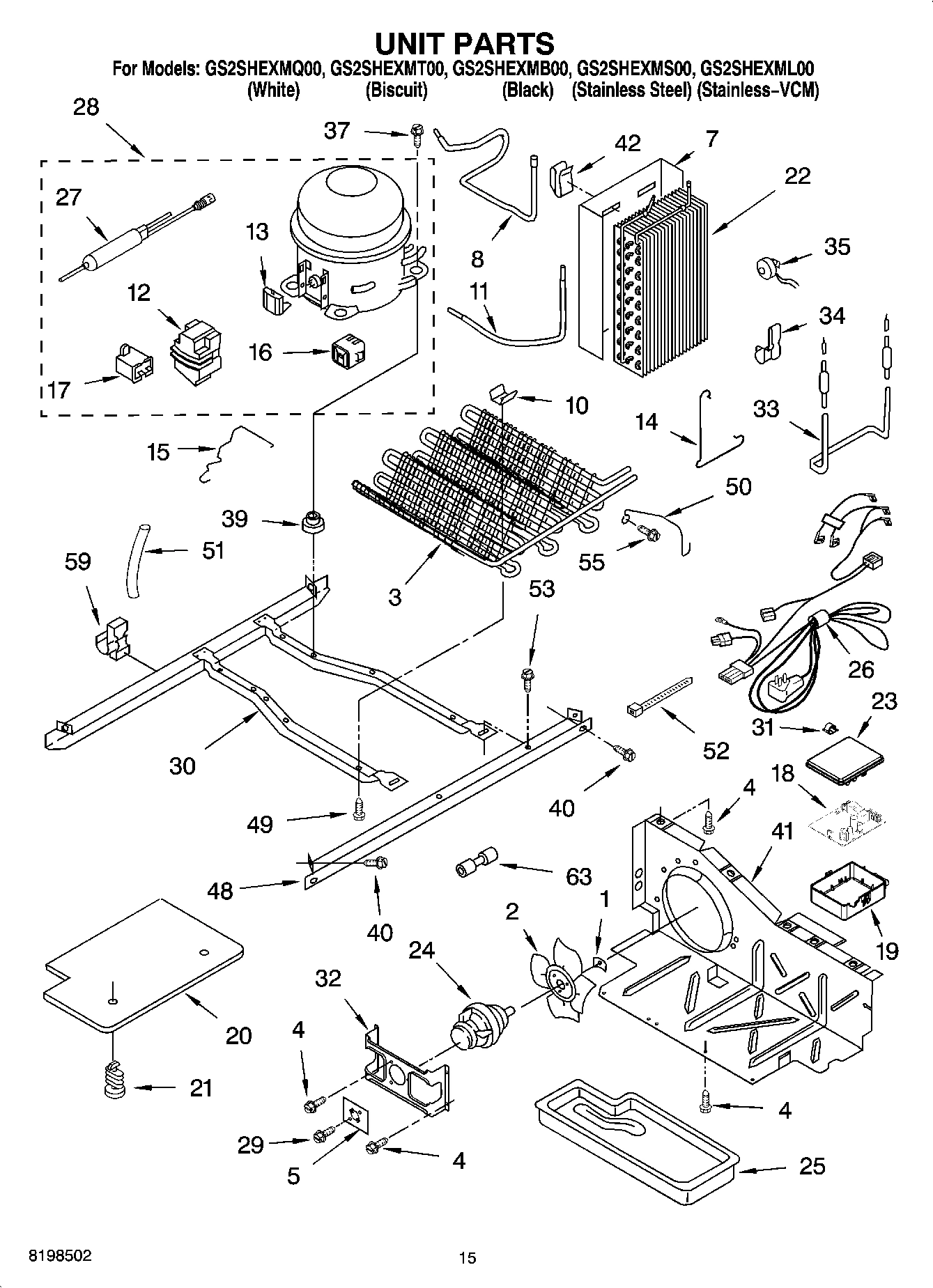

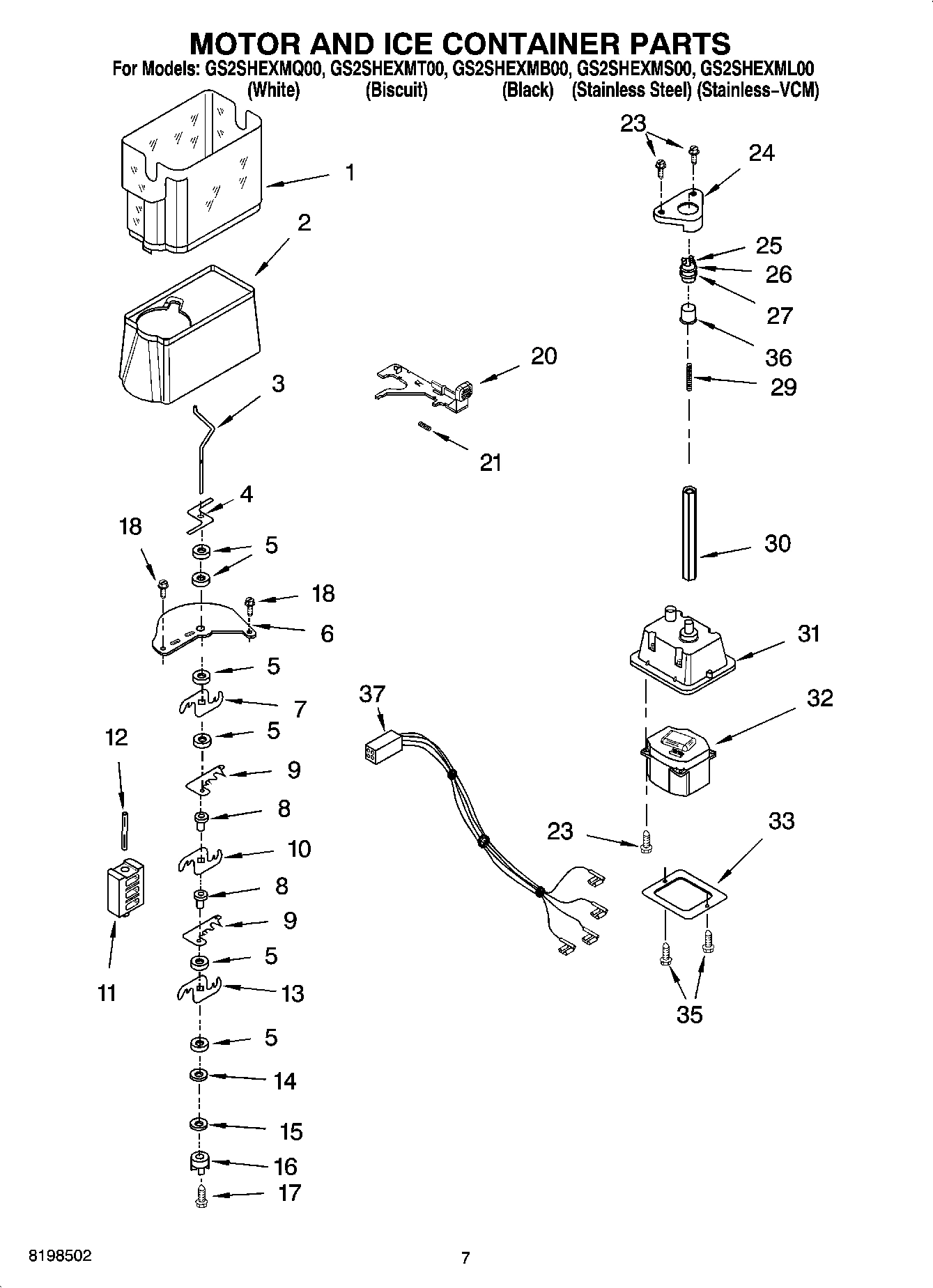

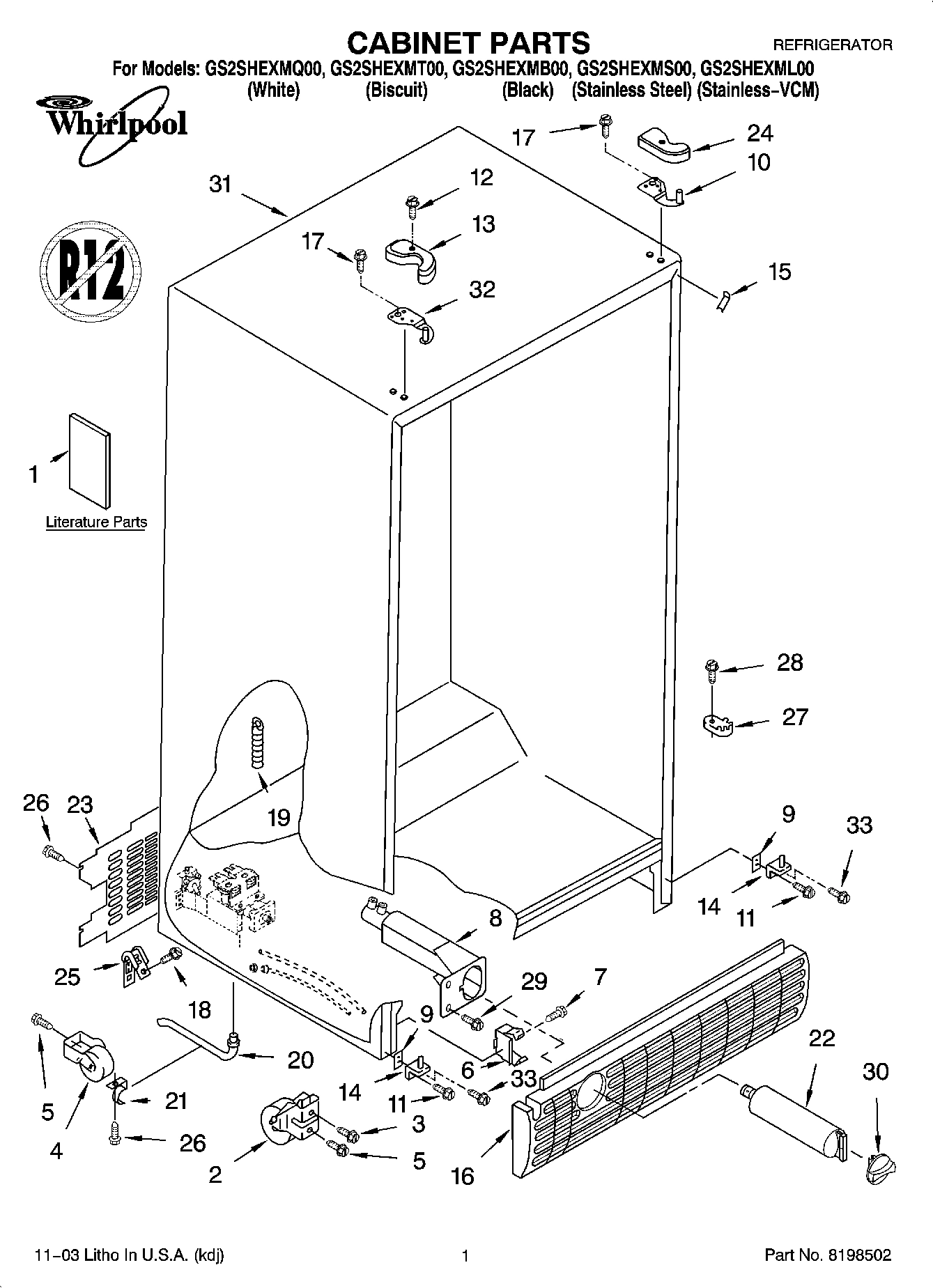

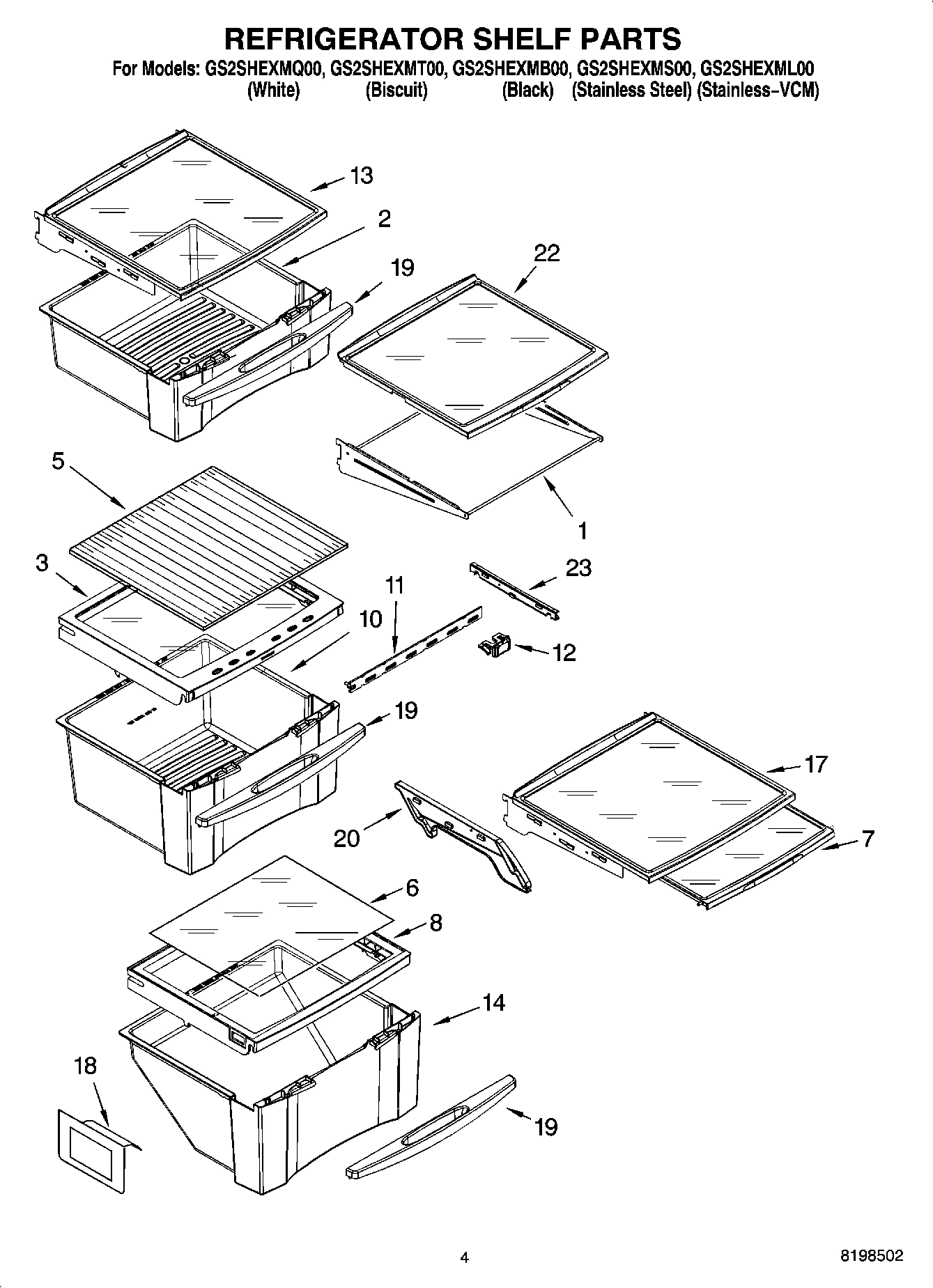

Model Whirlpool GS2SHEXML00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Brush Touch-up Kit (Graphite) WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

Tape, Vinyl WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Modular Icemaker Service Sheet WPL LIT2220407 Contact Us For Availability

1

LITERATURE PARTS (Energy Label) WPL LIT2220425 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2255705 Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2255955 Contact Us For Availability

1

Literature Parts (Instruction Sheet, Door Rem WPL LIT2261039 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI149834A Contact Us For Availability

1

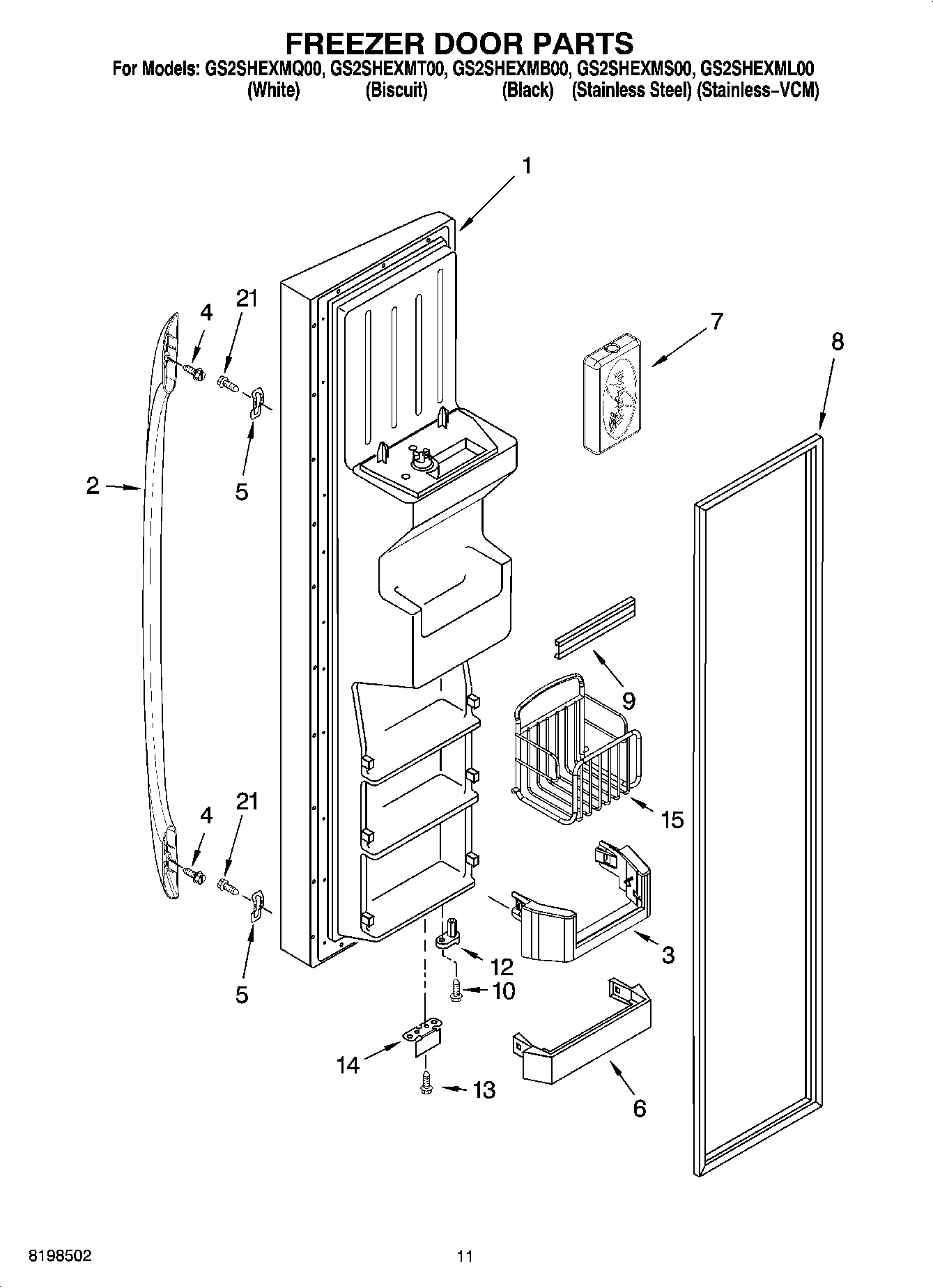

Freezer Door (Includes Item 8 And Dispenser F WPL 2255933B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2255933LB Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2255933SB Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2255933T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2255933W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Dairy Door WPL 2255421 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Handle (Black) WPL 2255517B Contact Us For Availability

2

Handle (Biscuit) WPL 2255517T Contact Us For Availability

2

Handle (White) WPL 2255517W Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Trivet, Tilt Out (2) WPL 2223472 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

SCREW WPL 8533920 Contact Us For Availability

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $124.94

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Insert, Bracket WPL 2216997 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2156021 Whirlpool Refrigerator Door Trim Backorder WPL WP2156021 $39.97

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Glass, Cover WPL 2223714 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Bottle, Ice Pack WPL 2255493 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability

8

2159072 Whirlpool Refrigerator FIP Gasket Backorder WPL 2159072 $87.71

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $139.96

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (Black) WPL 2207048B Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207048T Contact Us For Availability

9

Grille, Overflow (White) WPL 2207048W Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

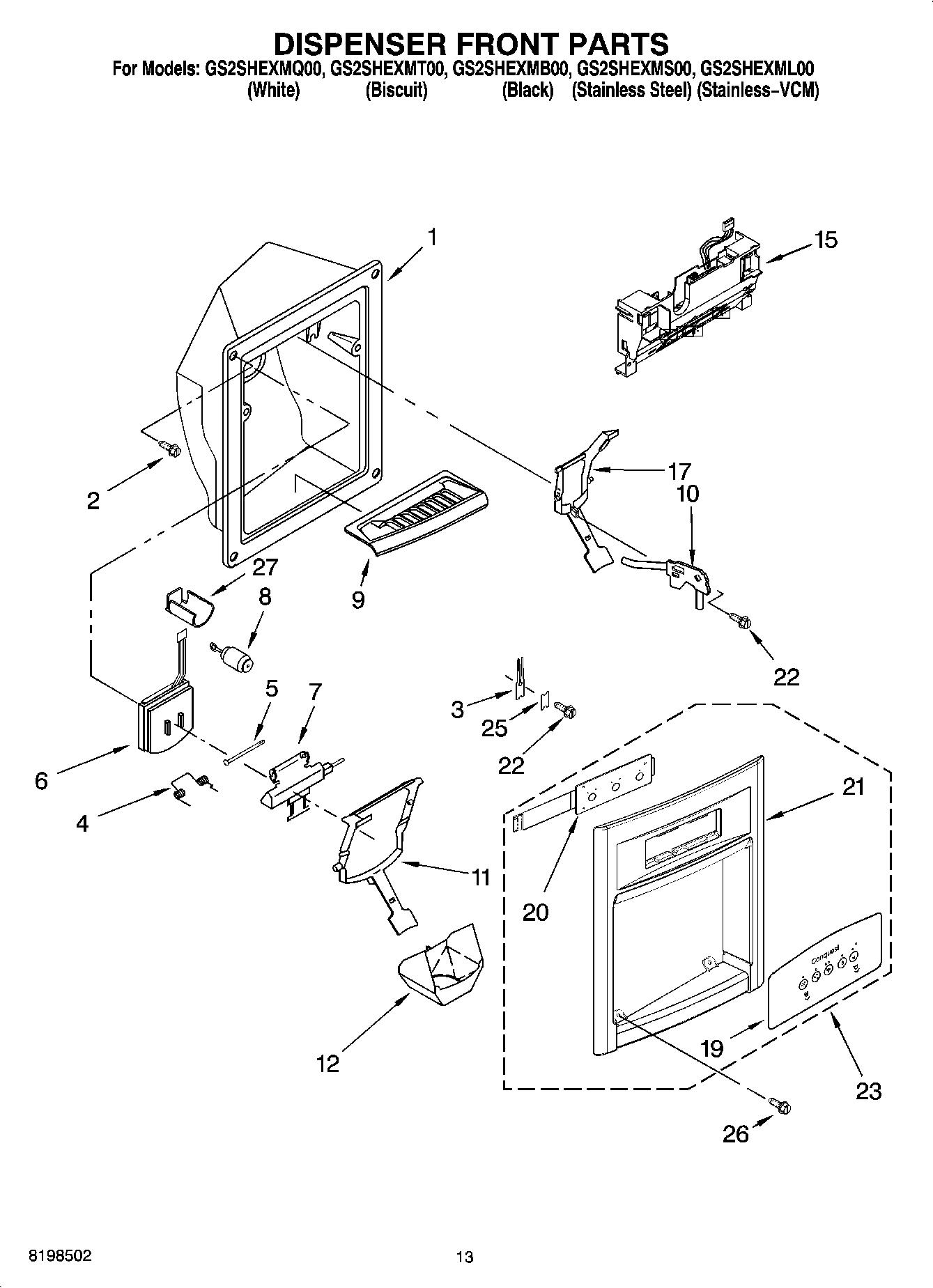

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2255798 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $57.59

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

4387535 Whirlpool Refrigerator Compressor Rel In Stock WPL 4387535 $68.76

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 2200082 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

Bracket, Control WPL 2252050 Contact Us For Availability

Basket, Tilt Out (2) WPL 2223473 Contact Us For Availability

Clip, Retaining WPL 2255199 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $55.37

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $64.45

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $35.90

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

Cover, Evaporator WPL 2212314 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Electronic Control WPL 2255239 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Control Box WPL 2255623 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI149835A Contact Us For Availability

20

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

20

LED Display with Auto Night Light (Not Availa WPL ARI149836A Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Nameplate WPL 2220214 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI149837A Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Shelf, Slide Out WPL 2255160 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 19,20 & WPL 2252079B Contact Us For Availability

Front Cover Assembly (Includes Items 19,20 & WPL 2252079T Contact Us For Availability

Front Cover Assembly (Includes Items 19,20 & WPL 2252079W Contact Us For Availability

Cover WPL 2255624 Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Fastener, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

26

Harness, Wire WPL 2187733 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Sleeve, Mechanism Display WPL 2252127 Contact Us For Availability

Knob, FC WPL 2255992 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $341.23

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $95.80

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

31

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

31

Cabinet (Not A Serviceable Part) WPL ARI149831A Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $115.68

33

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $47.25

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Clip WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

59

W10169512 Whirlpool Clip Backorder WPL W10169512 $26.21

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

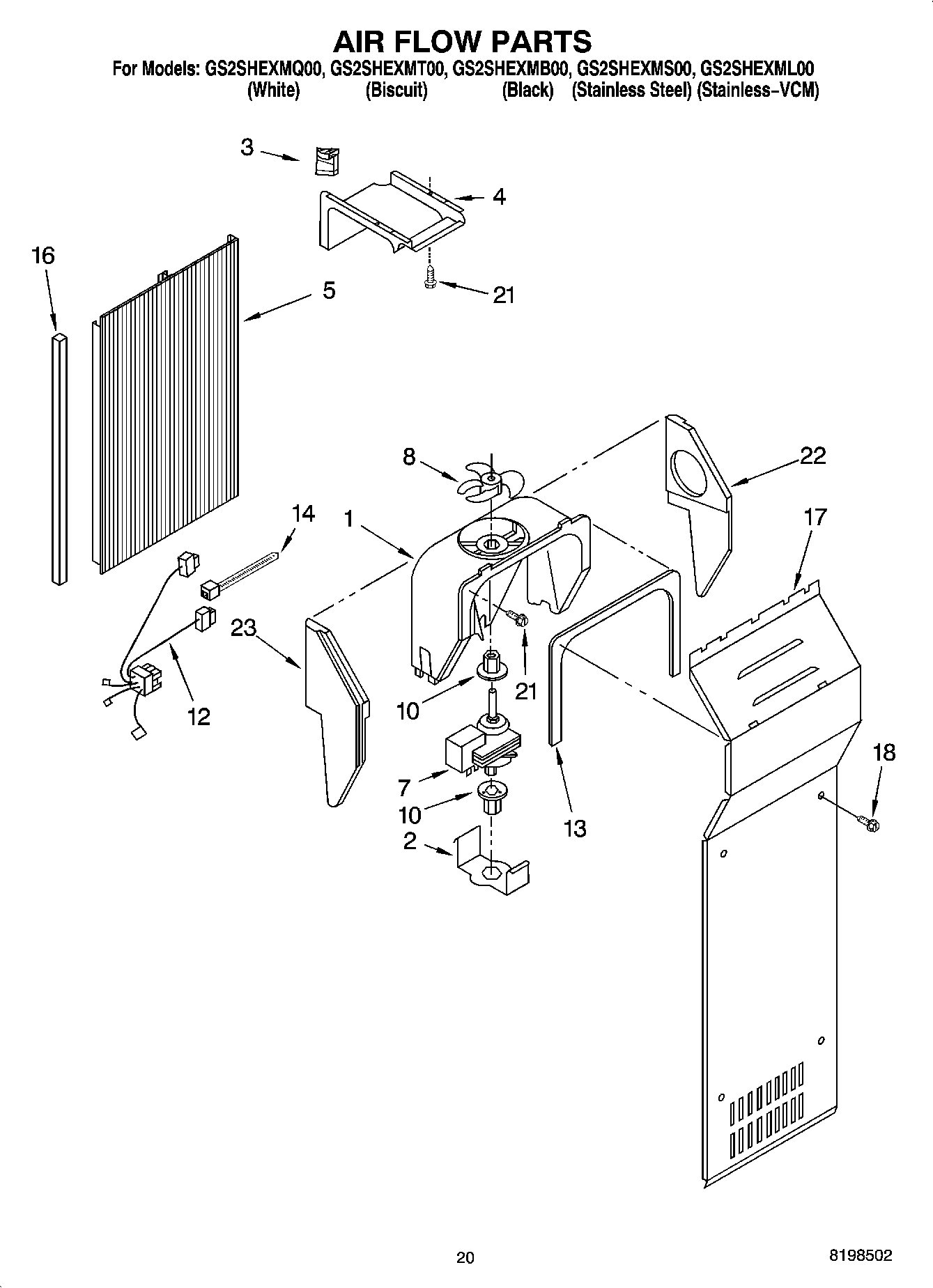

FOLLOWING PARTS NOT ILLUSTRATE WPL ARI149838A Contact Us For Availability

WPL ARI149839A WPL ARI149839A Contact Us For Availability

WPL ARI149840A WPL ARI149840A Contact Us For Availability
