Model Whirlpool GI6FDRXXQ02 REFRIGERATOR – Common Parts &amp; Diagrams

1

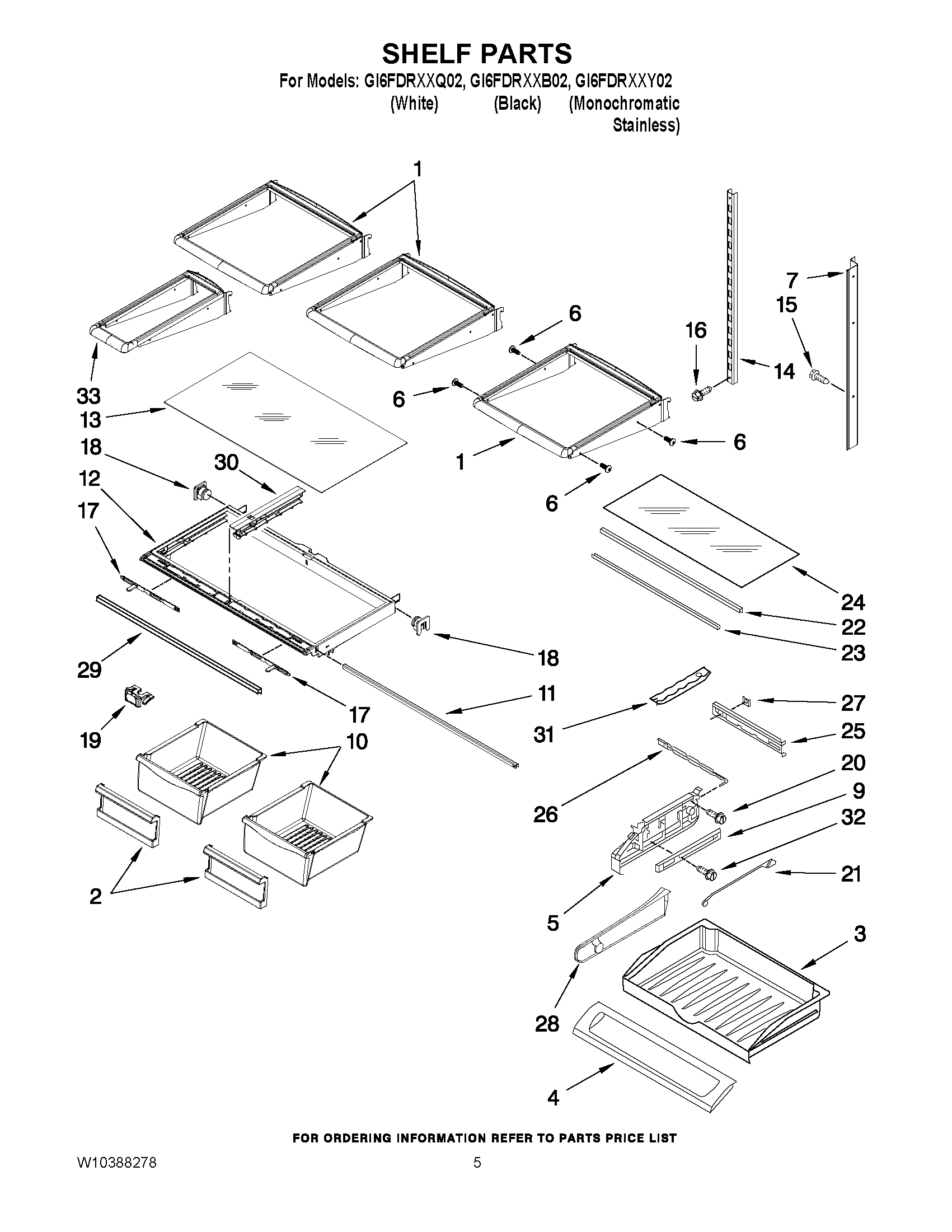

W11402525 Whirlpool Glass Shelf Backorder WPL W11402525 $118.14

1

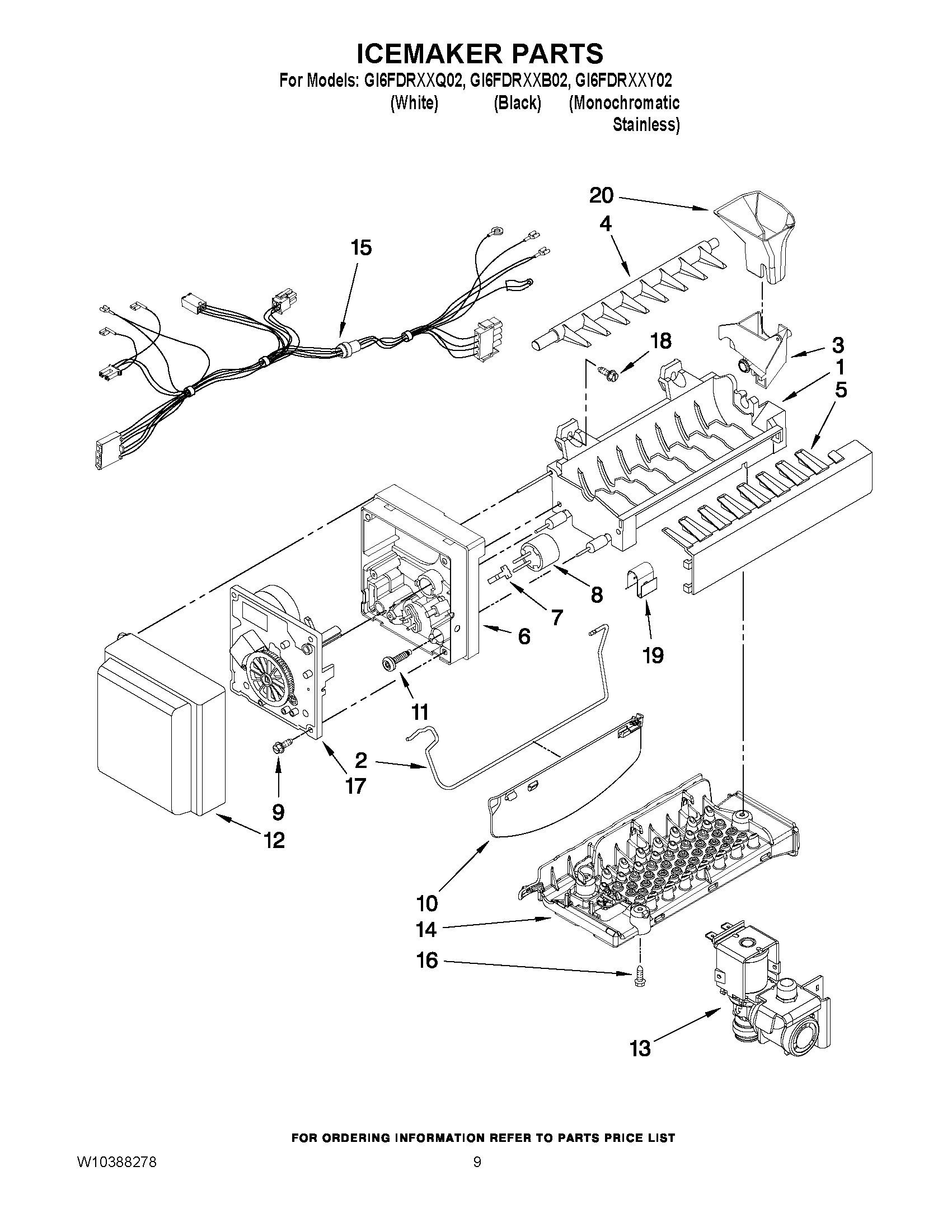

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $90.86

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.16

2

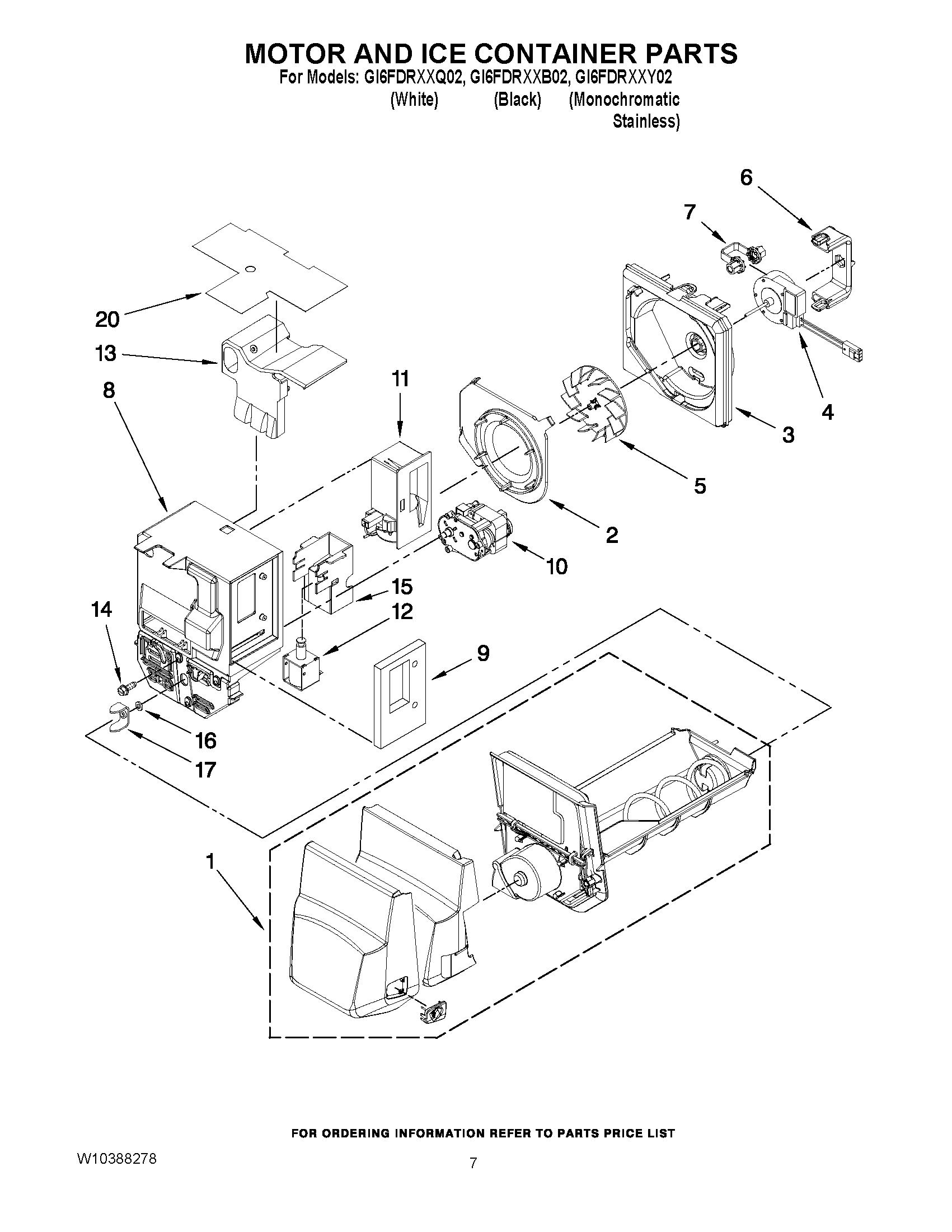

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WPW10175514 Whirlpool Refrigerator Shut-Off A Backorder WPL WPW10175514 $42.71

3

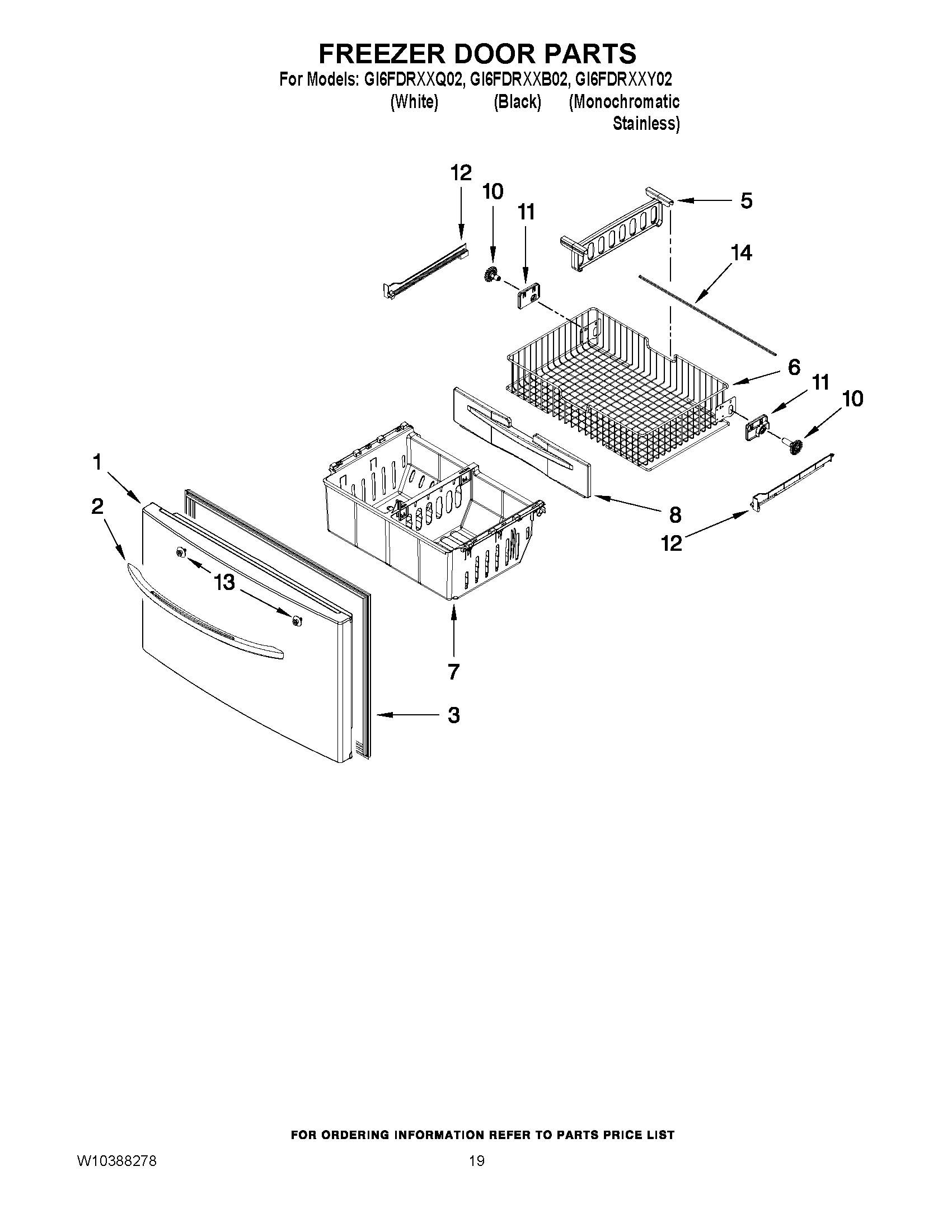

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10309863 Whirlpool Refrigerator Scroll Fan Backorder WPL W10309863 $32.83

3

W10327050 Whirlpool Refrigerator Cup Fill Backorder WPL W10327050 $33.65

3

W11045978 Whirlpool Refrigerator Shield Backorder WPL W11045978 $46.65

3

WPW10323808 Whirlpool Refrigerator Cantilever Backorder WPL WPW10323808 $42.86

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

4

W11529245 Whirlpool Refrigerator Evaporator M In Stock WPL W11529245 $71.86

5

W10146439 Whirlpool Refrigerator Divider Backorder WPL W10146439 $15.90

5

W10874836 Whirlpool Endcap Assembly Left Hand In Stock WPL W10874836 $16.87

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

5

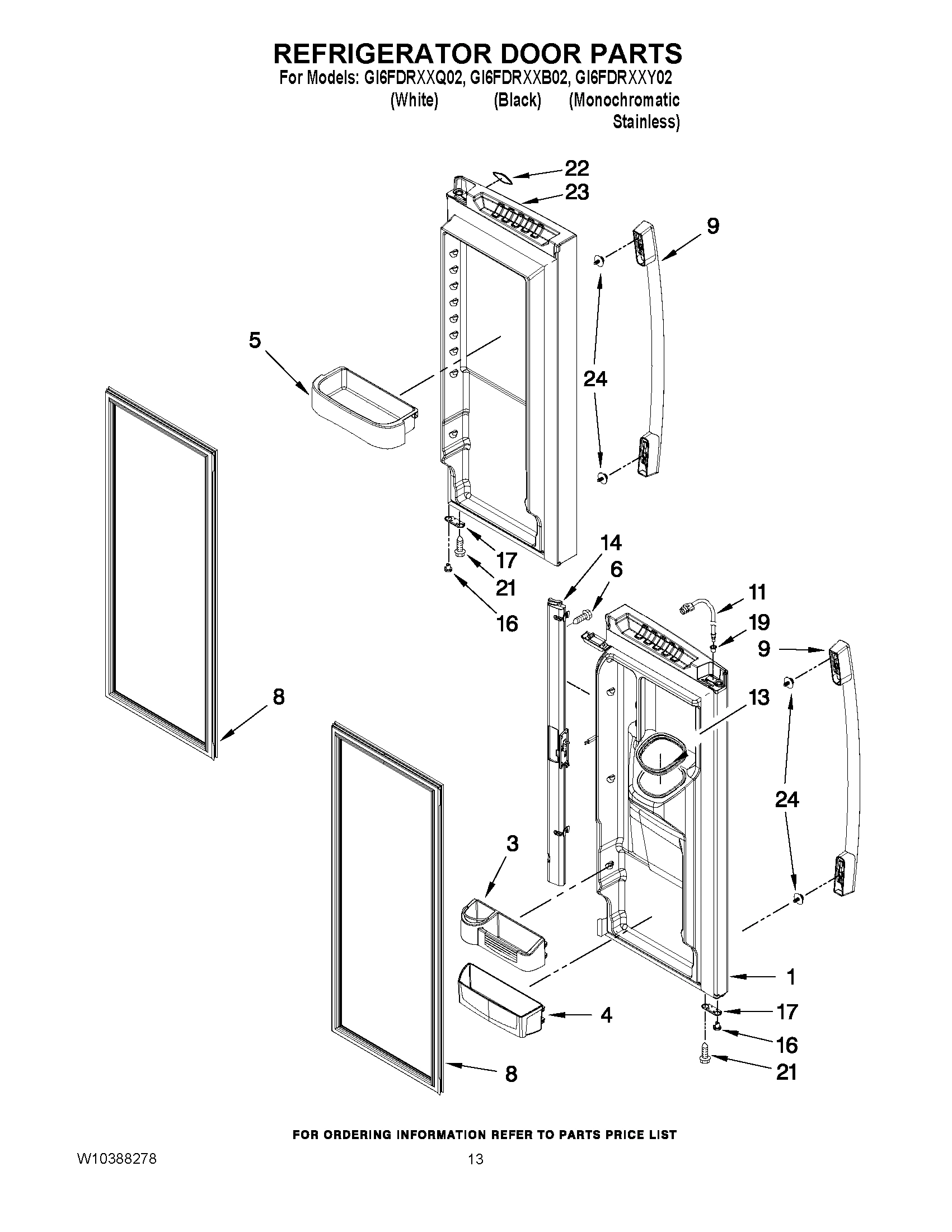

WPW10224961 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10224961 $49.36

6

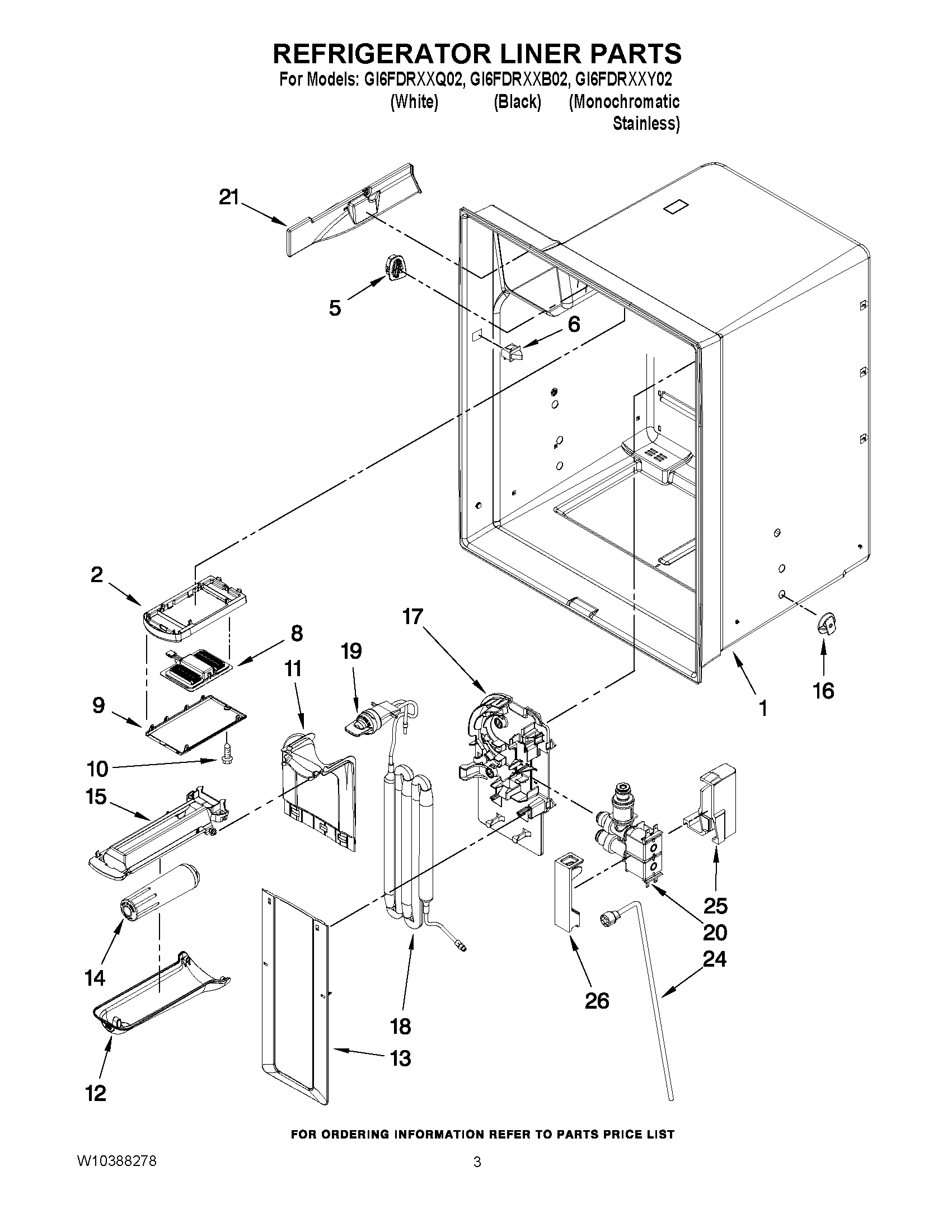

12981401B Whirlpool Refrigerator Filtration C Backorder WPL 12981401B $7.78

6

12981401W Whirlpool Refrigerator Cover Filter Backorder WPL 12981401W $7.78

6

WPW10217747 Whirlpool Refrigerator Tube Backorder WPL WPW10217747 $47.49

6

WPW10353552 Whirlpool Refrigerator Separator In Stock WPL WPW10353552 $97.61

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

7

W10251966 Whirlpool Refrigerator Ladder Backorder WPL W10251966 $28.80

7

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $47.31

7

WPW10293682 Whirlpool Refrigerator Freezer Bi Backorder WPL WPW10293682 $97.11

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

8

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $40.53

8

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

8

WPW10309864 Whirlpool Refrigerator Divider In Stock WPL WPW10309864 $41.85

9

W10311756 Whirlpool Refrigerator Light Lens Backorder WPL W10311756 $53.47

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

W11351146 Whirlpool Refrigerator Handle Backorder WPL W11351146 $100.67

9

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $37.17

9

WPW10235370 Whirlpool Refrigerator Glide In Stock WPL WPW10235370 $108.35

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

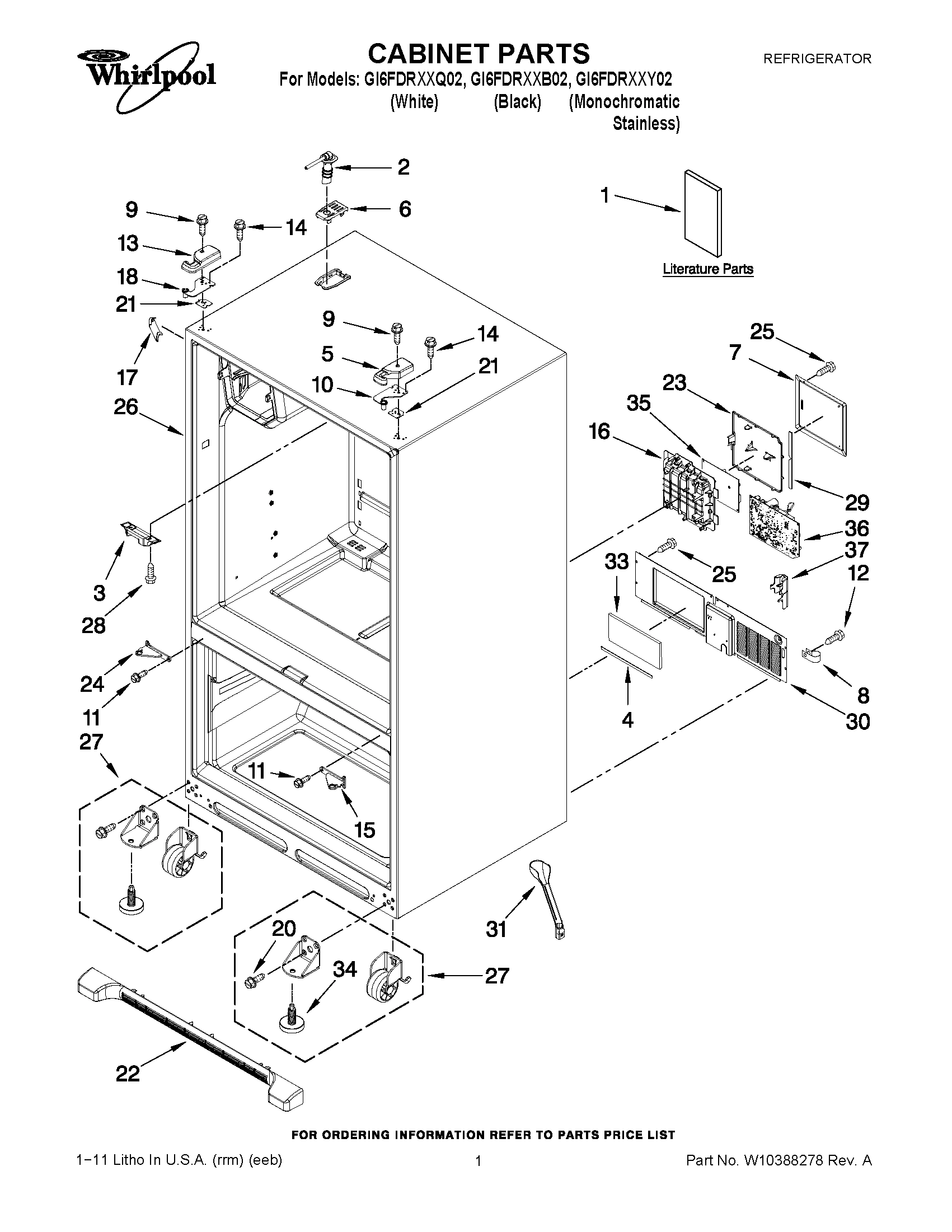

W11592374 Whirlpool Refrigerator Top Door Hin Backorder WPL W11592374 $10.07

W11671282 Whirlpool Refrigerator Ice Auger Mo In Stock WPL W11671282 $65.49

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $75.66

WPW10121440 Whirlpool Refrigerator Extension Backorder WPL WPW10121440 $28.80

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $102.86

W10348259 Whirlpool Refrigerator Bracket Asse Backorder WPL W10348259 $30.38

W10348260 Whirlpool Refrigerator Bracket Backorder WPL W10348260 $30.38

WP12642303WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12642303WD $43.11

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

W10884722 Whirlpool Refrigerator Front Cover In Stock WPL W10884722 $9.04

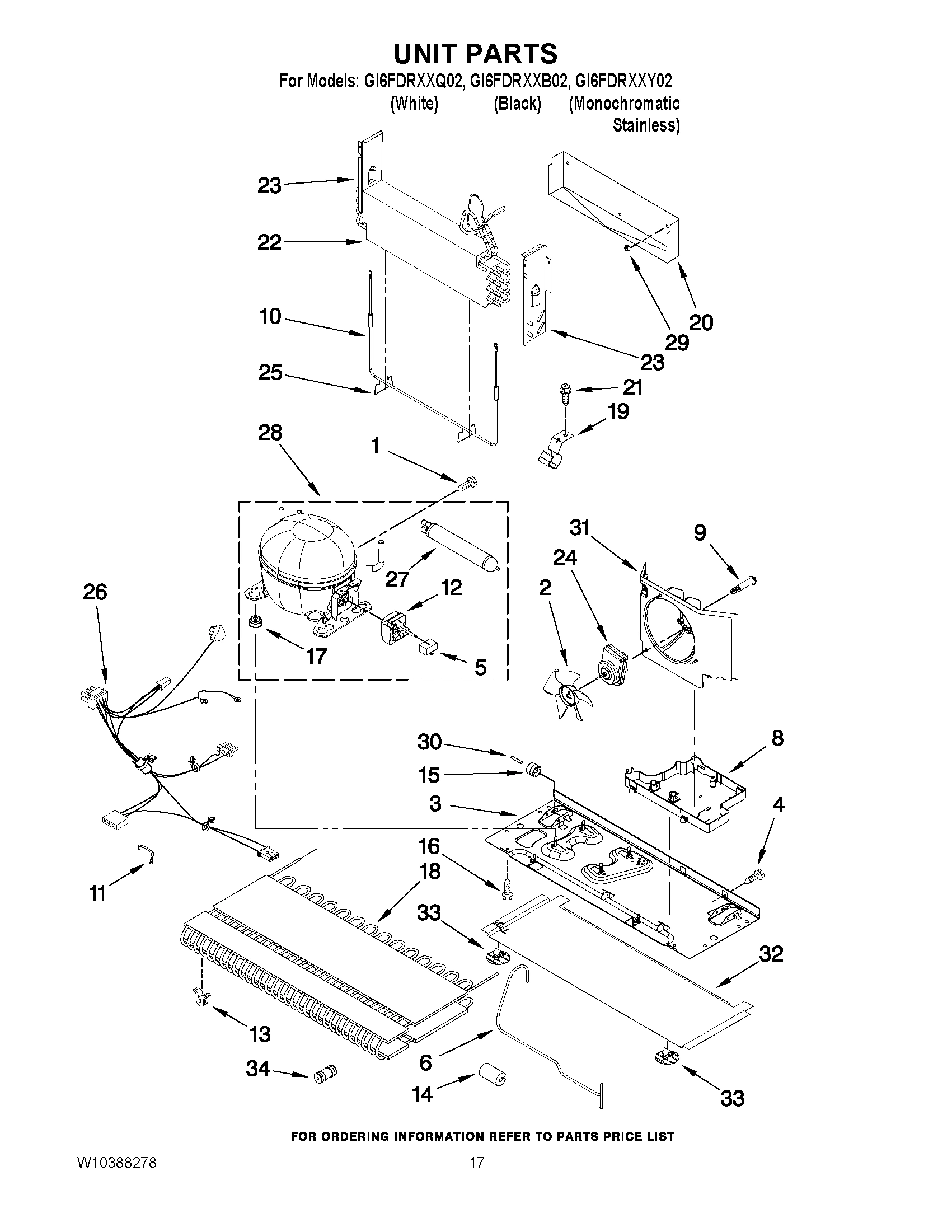

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $40.46

WPW10309866 Whirlpool Refrigerator Solenoid In Stock WPL WPW10309866 $68.93

WPW10329866 Whirlpool Frame In Stock WPL WPW10329866 $112.59

W10174818 Whirlpool Refrigerator Clip Backorder WPL W10174818 $7.78

W10337647 Whirlpool Refrigerator Cover Backorder WPL W10337647 $13.74

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $12.77

WPW10287601 Whirlpool Seal In Stock WPL WPW10287601 $14.38

WPW10337634 Whirlpool Refrigerator Cover Backorder WPL WPW10337634 $13.74

WPW10337648 Whirlpool Refrigerator Cover Backorder WPL WPW10337648 $12.22

12722815B Whirlpool Refrigerator Mullion Rail Backorder WPL 12722815B $118.05

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $11.03

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

W11045970 Whirlpool Refrigerator Drip Tray Backorder WPL W11045970 $34.66

W11045971 Whirlpool Refrigerator Drip Tray Backorder WPL W11045971 $34.66

W11173556 Whirlpool Refrigerator Shaft Backorder WPL W11173556 $10.87

W11192301 Whirlpool Refrigerator Drip Tray Backorder WPL W11192301 $34.66

W11434460 Whirlpool Refrigerator Housing Backorder WPL W11434460 $12.39

WP12722815AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722815AP $129.80

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WPW10312691 Whirlpool Refrigerator Air Baffle In Stock WPL WPW10312691 $116.63

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $53.88

W10267860 Whirlpool Refrigerator Drip Tray Backorder WPL W10267860 $35.28

W10267861 Whirlpool Refrigerator Drip Tray Backorder WPL W10267861 $35.32

W10346971 Whirlpool Refrigerator Bracket Backorder WPL W10346971 $29.48

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $27.61

HARNESS, ICEMAKER WPL W10322960 Contact Us For Availability

16

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

16

WPW10296451 Whirlpool Refrigerator Water Tube Backorder WPL WPW10296451 $42.91

16

BOX, HV CONTROL WPL W10285271 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

18

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

18

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

18

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $28.80

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $24.32

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

67006564 Whirlpool Refrigerator Screw Backorder WPL 67006564 $2.51

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $29.39

WPW10121434 Whirlpool Refrigerator Insert Backorder WPL WPW10121434 $9.86

WPW10312696 Whirlpool Water Inlet Valve In Stock WPL WPW10312696 $113.26

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $47.84

WPW10284683 Whirlpool Refrigerator Bracket In Stock WPL WPW10284683 $72.92

WPW10309869 Whirlpool Refrigerator Cover Backorder WPL WPW10309869 $39.13

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $105.14

WPW10534153 Whirlpool Refrigerator Black Kick In Stock WPL WPW10534153 $55.37

WPW10534154 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534154 $55.04

WPW10534155 Whirlpool Refrigerator Gray Kickp In Stock WPL WPW10534155 $52.43

Nameplate WPL 2220214 Contact Us For Availability

23

W11226688 Whirlpool Refrigerator Cover Backorder WPL W11226688 $30.29

23

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $42.82

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $35.52

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $39.45

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $46.85

W11033333 Whirlpool Glass Shelf Backorder WPL W11033333 $127.18

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

WATERLINE, CABINET (W/NUT) WPL W10290356 Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $52.78

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $28.80

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

26

W11334745 Whirlpool Refrigerator Evaporator F In Stock WPL W11334745 $77.32

26

HARNESS-MC WPL W10317702 Contact Us For Availability

26

CABINET (NOT A SERVICABLE PART) WPL NP Contact Us For Availability

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

27

WPW10515762 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515762 $37.39

27

WPW10515763 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10515763 $37.73

28

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

29

WPW10231345 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231345 $47.10

29

GASKET WPL 12957801K Contact Us For Availability

30

WPW10326469 Whirlpool Drawer Slide Rail In Stock WPL WPW10326469 $11.36

30

WPL W10319847 WPL W10319847 Contact Us For Availability

31

W10619951 Whirlpool Drain Tube with Grommet In Stock WPL W10619951 $24.50

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

33

WPL 12820505 WPL 12820505 Contact Us For Availability

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

34

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

36

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $226.83

37

WPL W10316171 WPL W10316171 Contact Us For Availability

100

WPW10300024 Whirlpool Ice Maker In Stock WPL WPW10300024 $122.14

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Cleaner, Stnls Steel Magic WPL 20000008 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

REFINISHING MATERIAL (ENAMEL, BLACK (1 QT. UN WPL 799340 Contact Us For Availability
