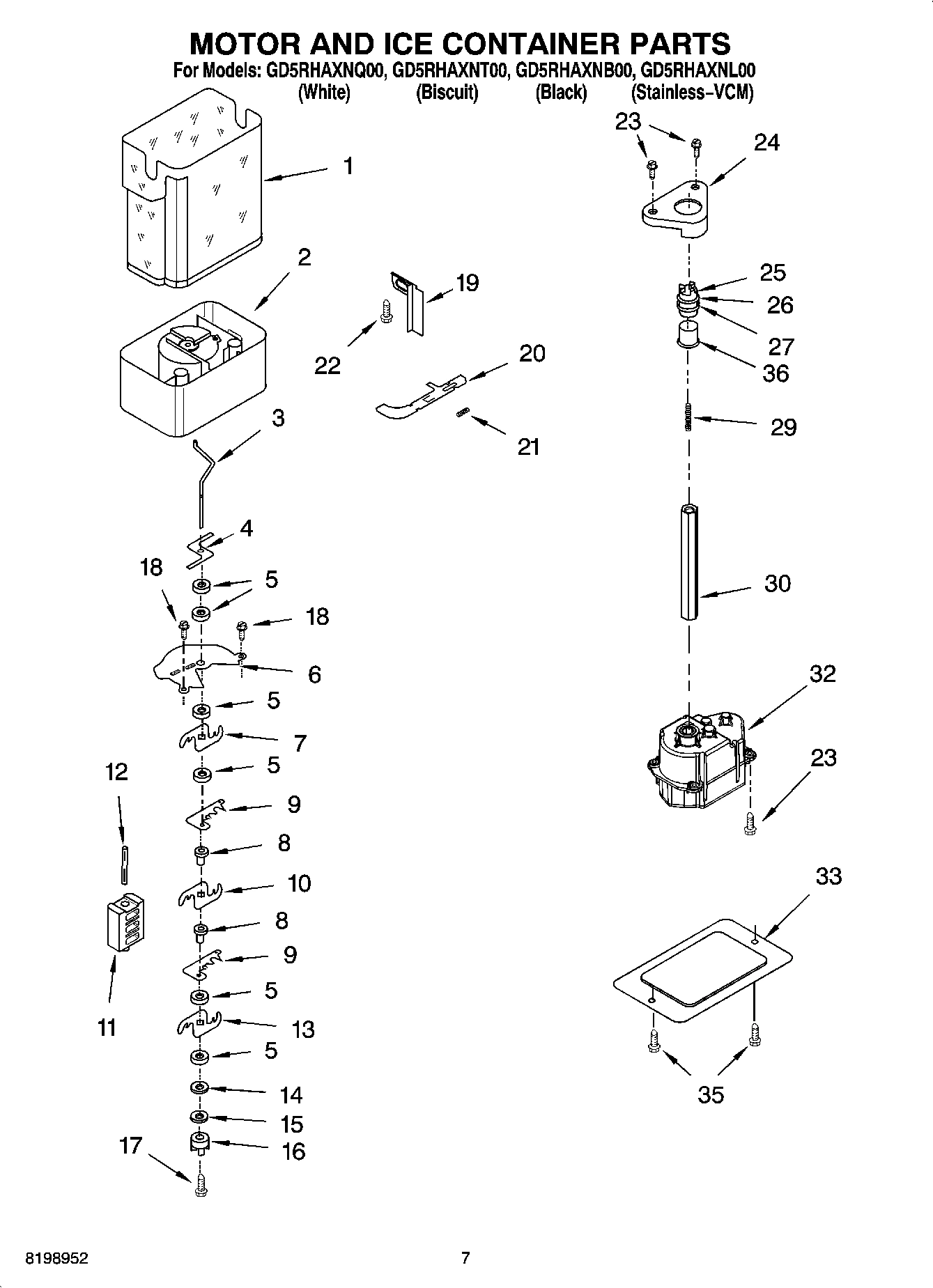

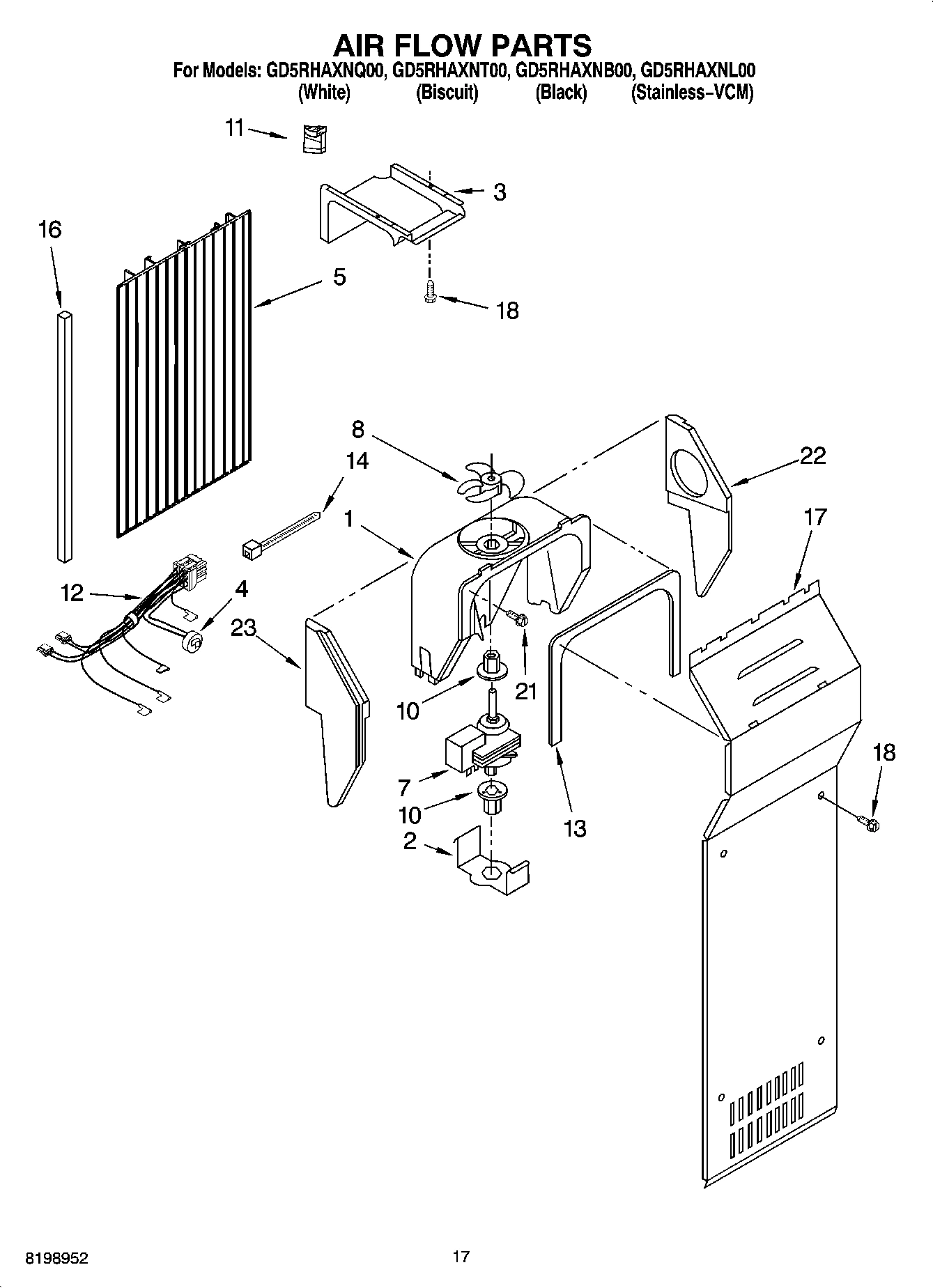

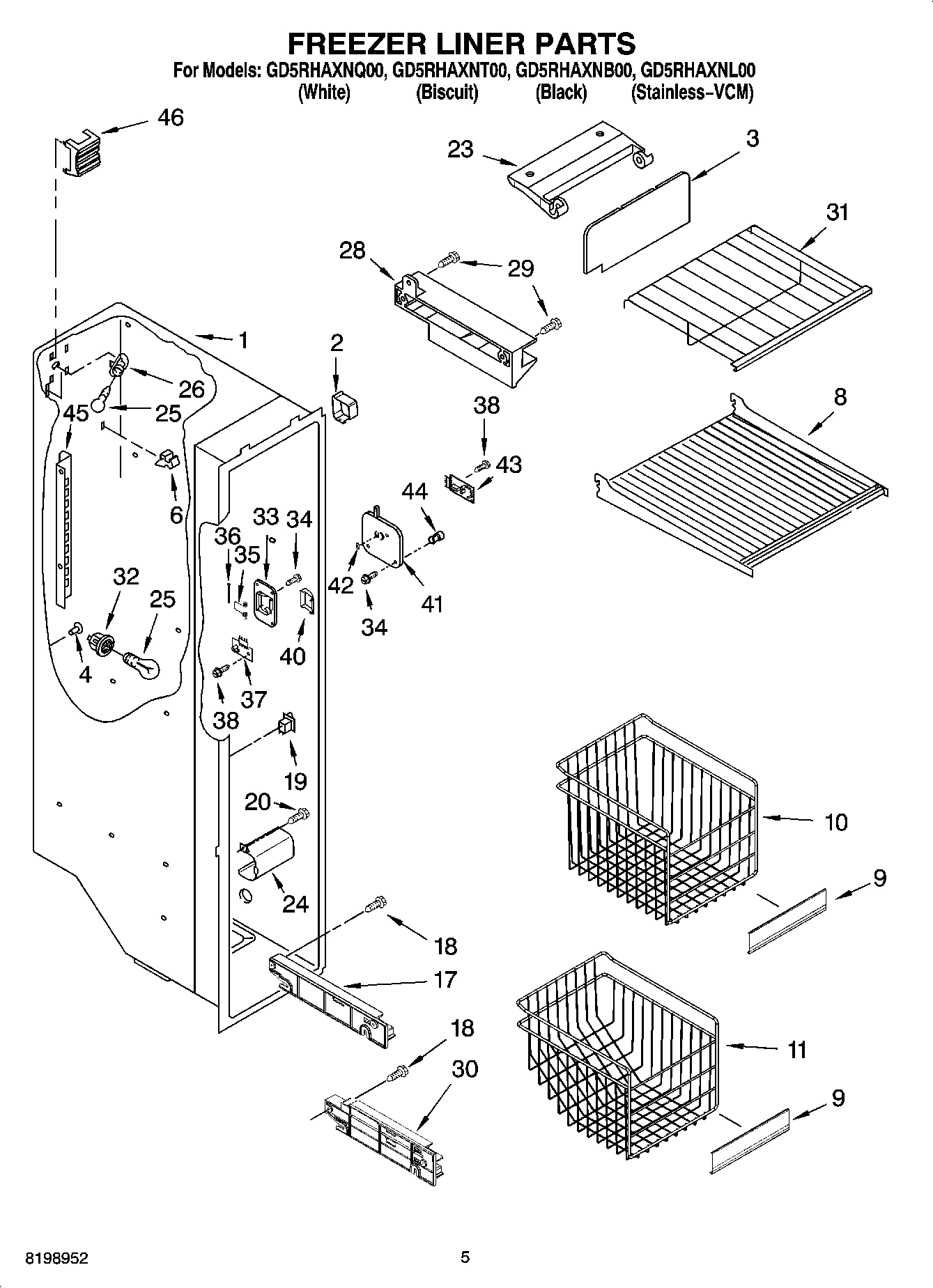

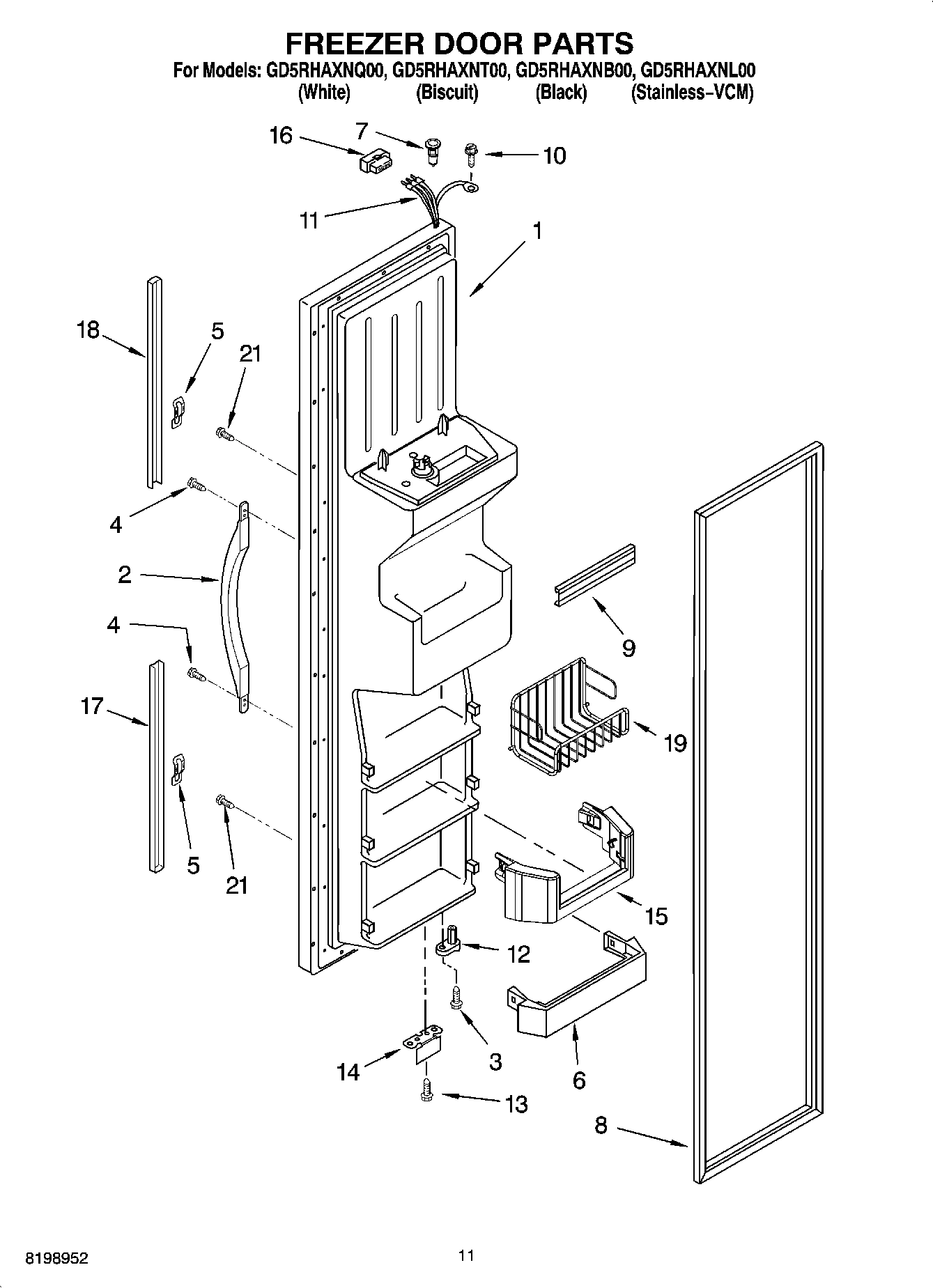

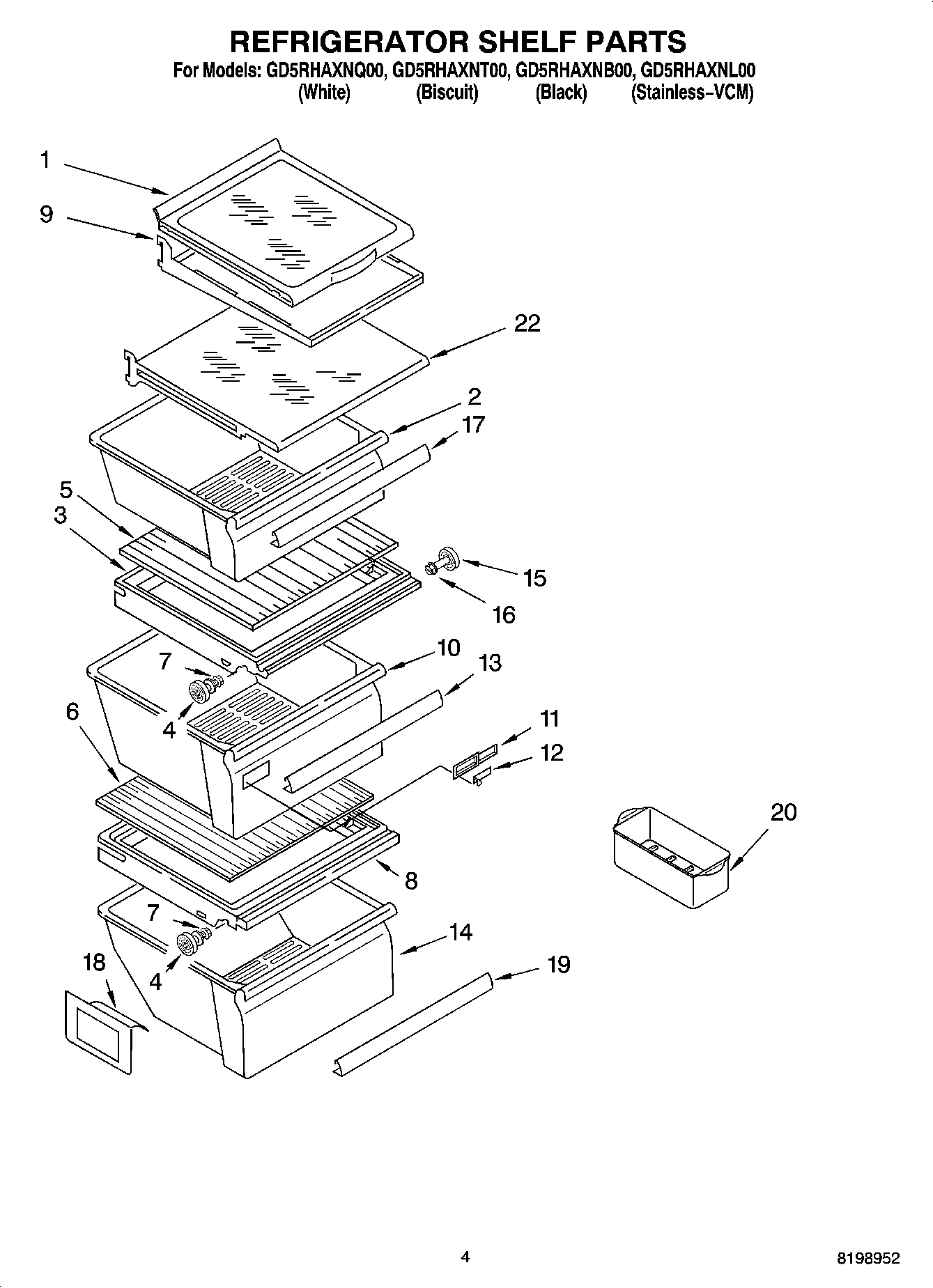

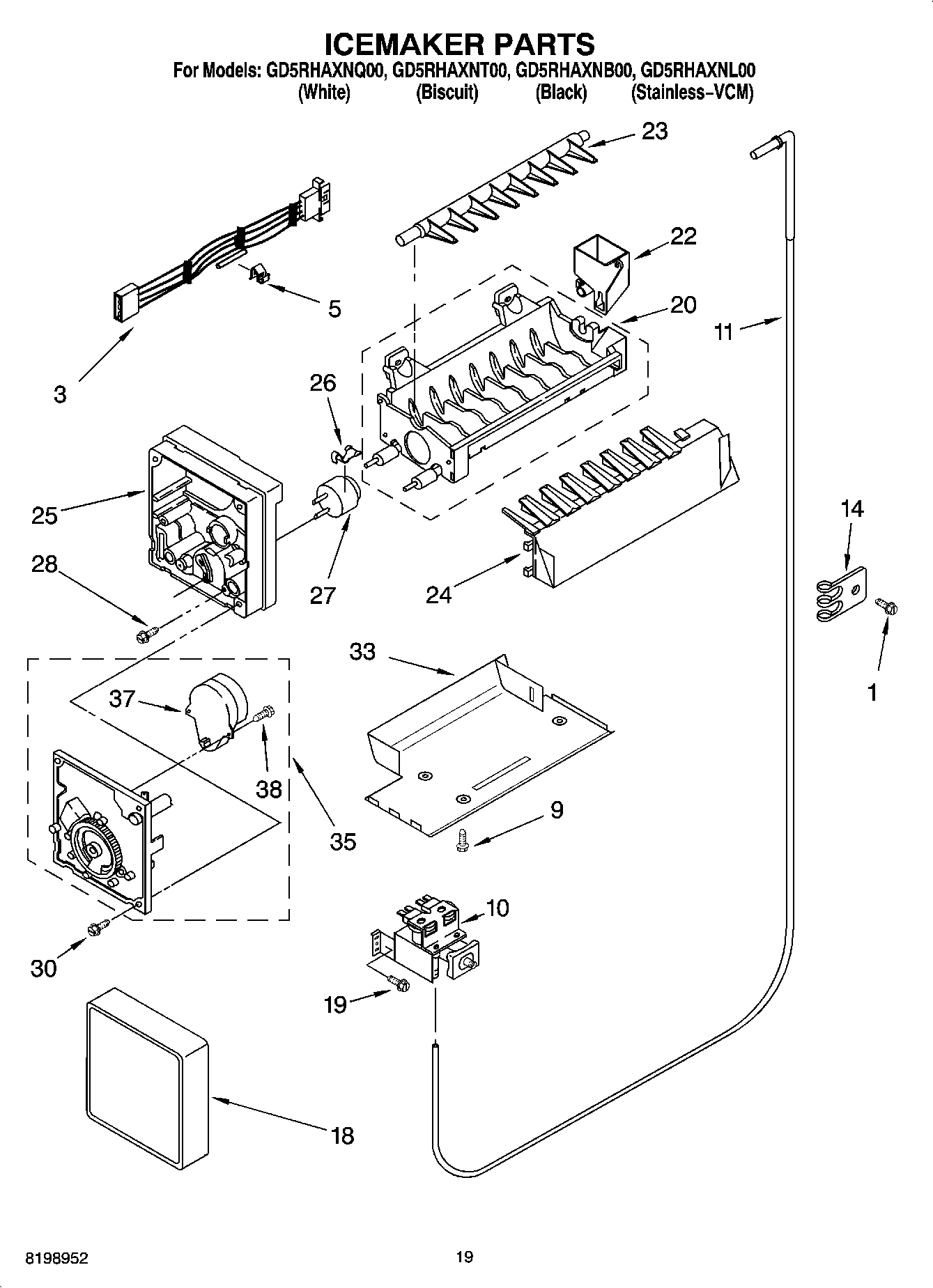

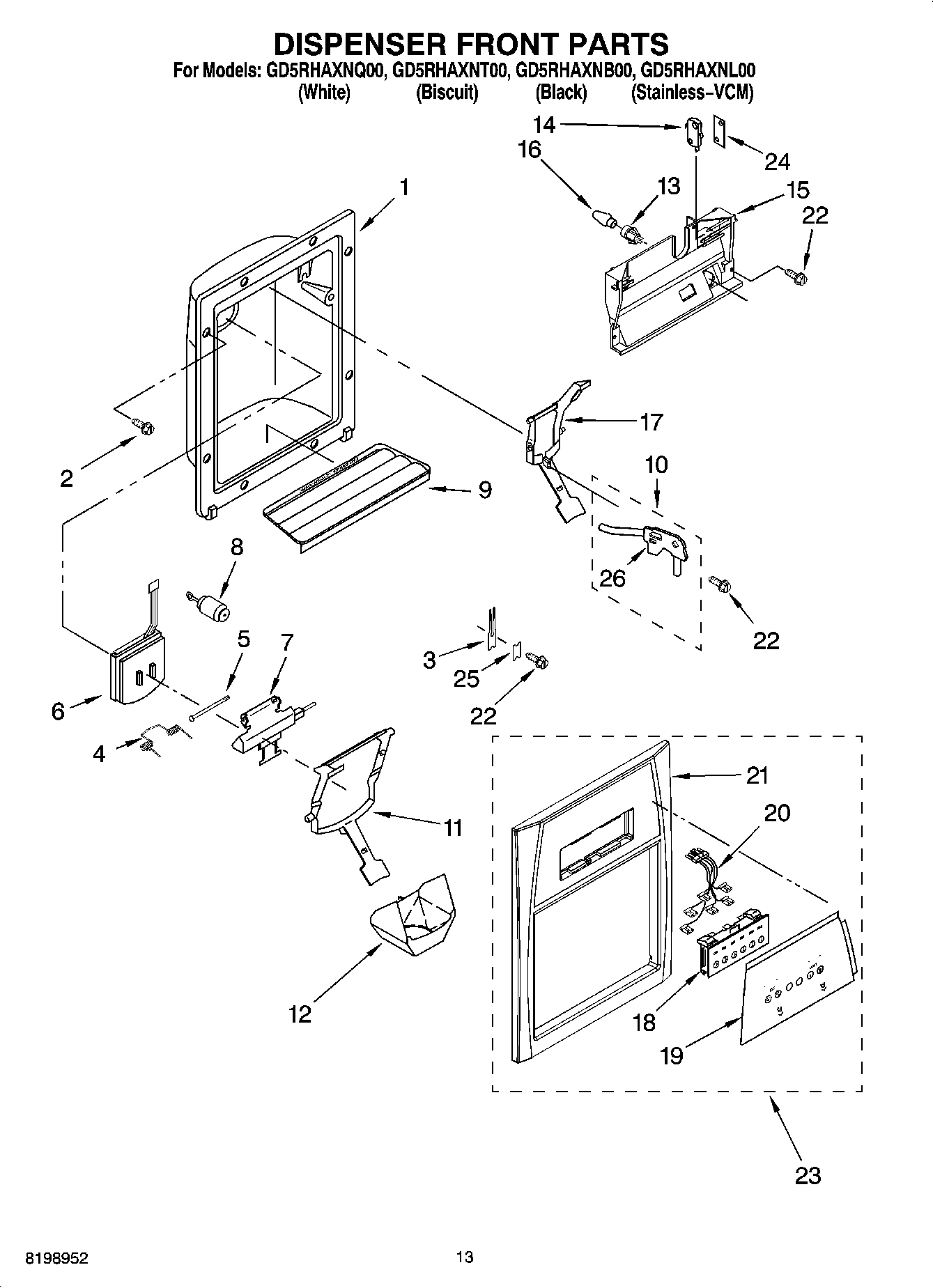

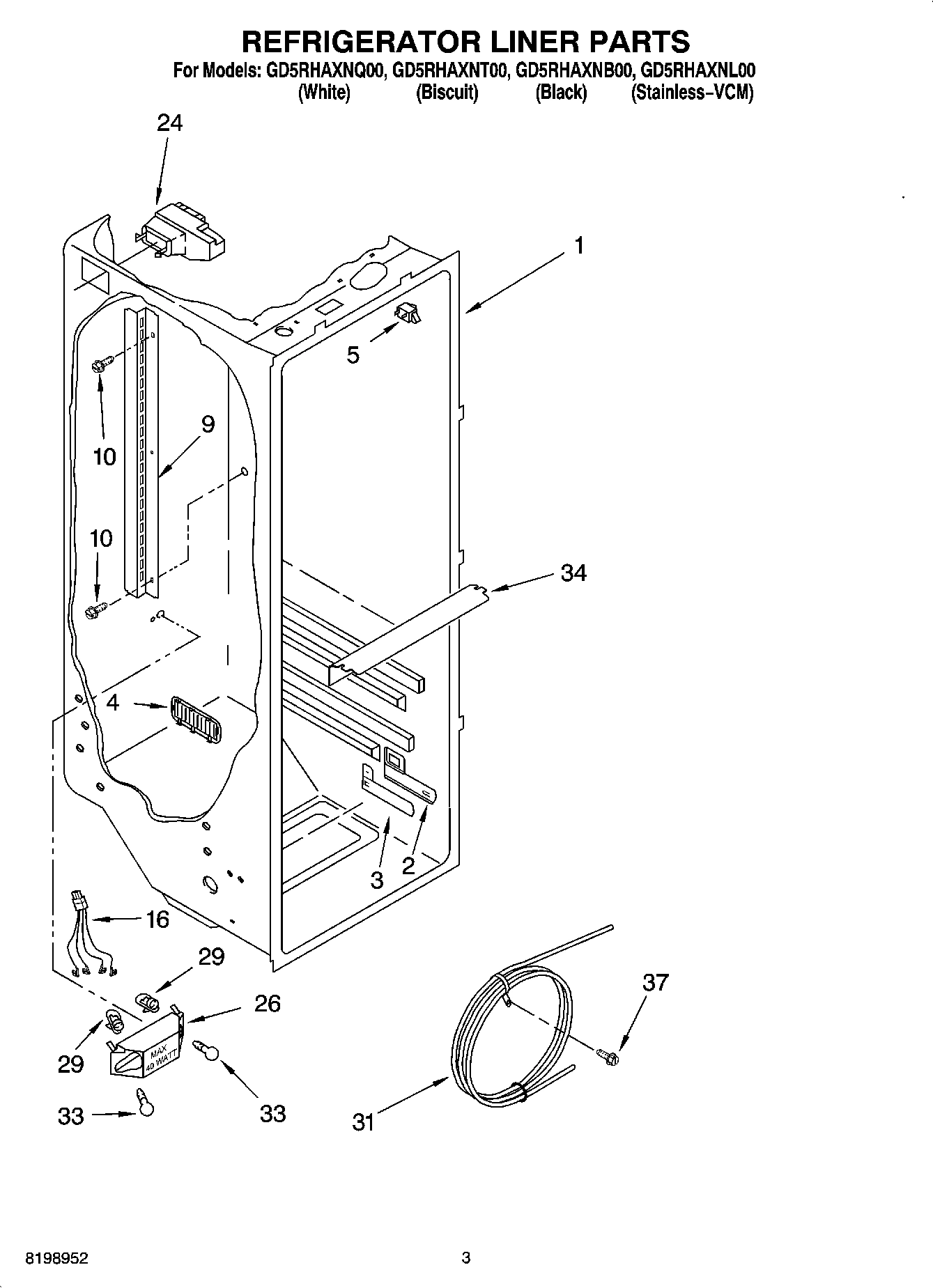

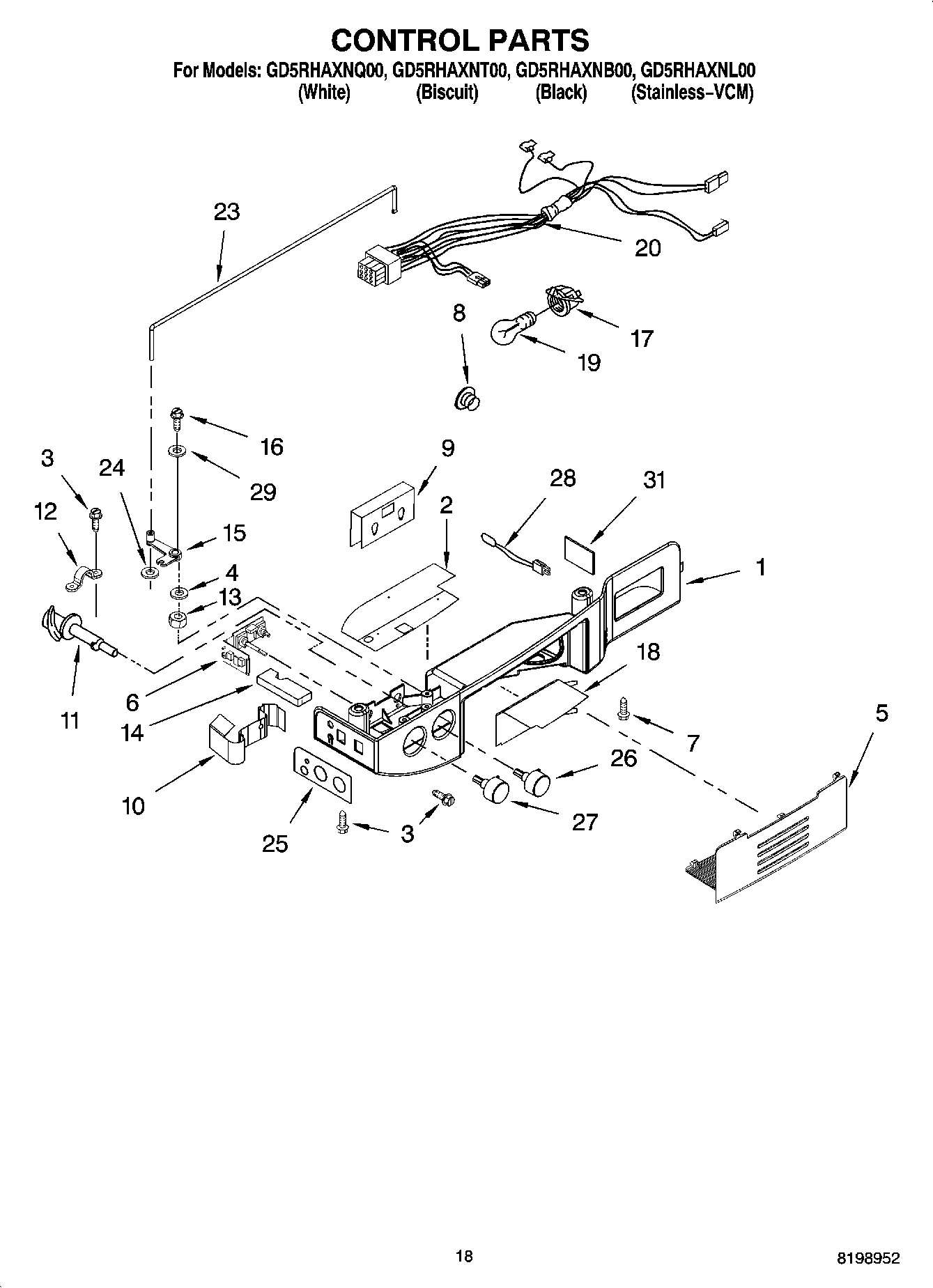

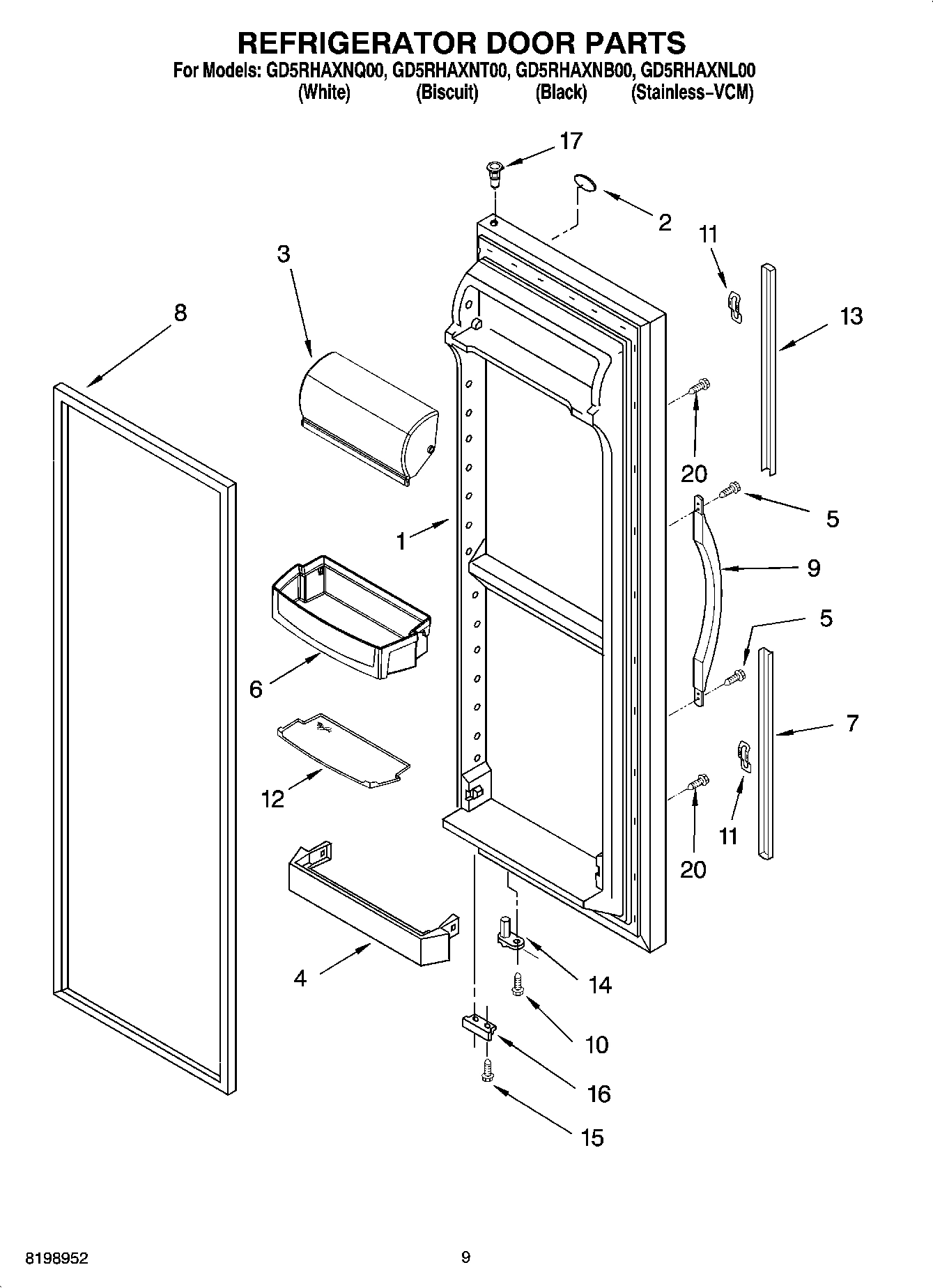

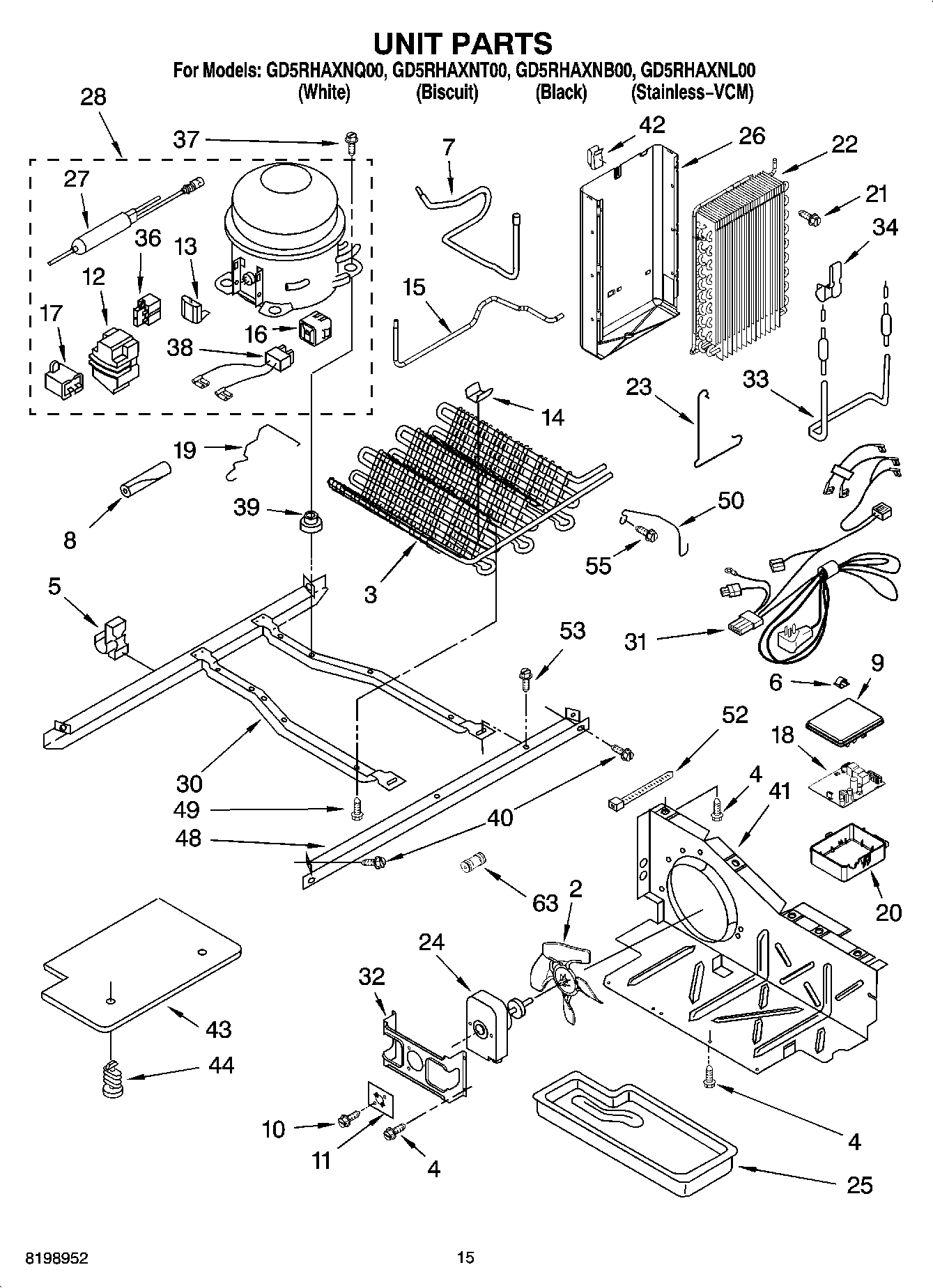

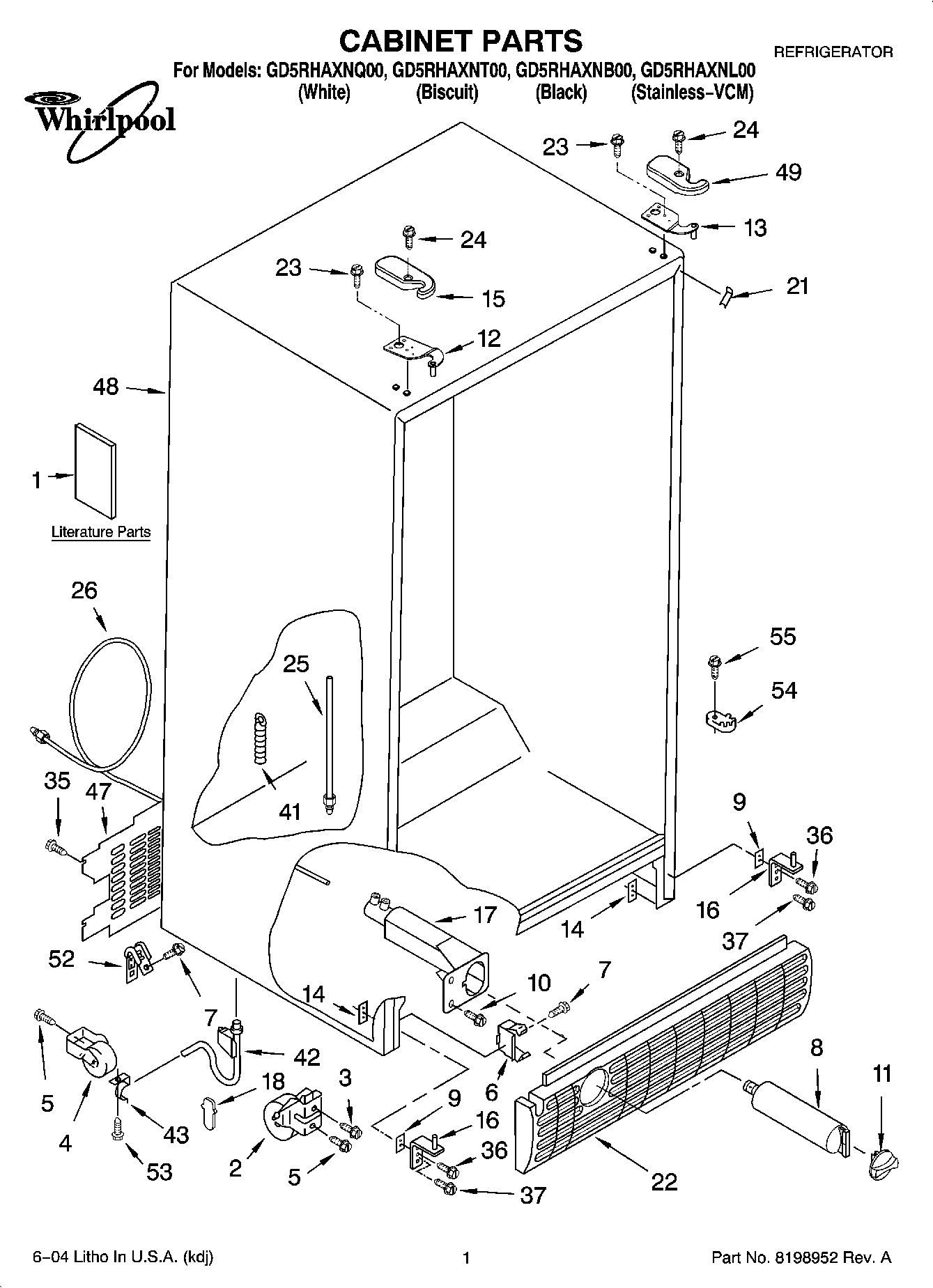

Model Whirlpool GD5RHAXNL00 REFRIGERATOR – Common Parts &amp; Diagrams

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

WP2258243 Whirlpool Refrigerator Ice Containe Backorder WPL WP2258243 $248.58

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability

Brush Touch-Up Kit (Biscuit WPL 4392899 Contact Us For Availability

SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (BISCUIT) WPL 4392901 Contact Us For Availability

Enamel, Almond (12 Oz. Spray Can) WPL 350956 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability

WPL 876370 WPL 876370 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

WPL 833938 WPL 833938 Contact Us For Availability

Primer, White (12 Oz. Spray Can) WPL 350942 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI63596A2 WPL ARI63596A2 Contact Us For Availability

WPL ARI63597A6 WPL ARI63597A6 Contact Us For Availability

WPL ARI63598A9 WPL ARI63598A9 Contact Us For Availability

WPL ARI63599A5 WPL ARI63599A5 Contact Us For Availability

WPL ARI63600A1 WPL ARI63600A1 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $32.96

1

WP2198573 Whirlpool Refrigerator Ice Bin In Stock WPL WP2198573 $130.88

1

Refrigerator Door (Includes Item 8) (Black) WPL 2206682B Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Stainles WPL 2206682L Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Biscuit) WPL 2206682T Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (White) WPL 2206682W Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability

2

Nameplate WPL 2220214 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Crusher Bin WPL 2255574 Contact Us For Availability

3

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2198574 Whirlpool Refrigerator Ice Auger Backorder WPL WP2198574 $75.59

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

WP2318736 Whirlpool Refrigerator Door Trim Backorder WPL WP2318736 $41.50

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Blade, Stirring WPL 2257021 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Shelf Bin (3) WPL 2223239 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

7

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

9

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $36.29

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $51.73

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $19.18

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Wiring Harness WPL 2198619 Contact Us For Availability

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Roll Pin WPL 489229 Contact Us For Availability

Mat, Bin WPL 2223464 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

Lamp Holder WPL 2180200 Contact Us For Availability

Extension, Top (Black) WPL 2194973B Contact Us For Availability

Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

16

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

16

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

16

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $53.75

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $35.90

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $35.94

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Slide, Basket (Right Side) WPL 2301289 Contact Us For Availability

Slide, Basket (Left Side) WPL 2301290 Contact Us For Availability

18

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

18

WP3400065 Whirlpool Refrigerator Screw In Stock WPL WP3400065 $2.51

18

WPW10289690 Whirlpool Ice Maker Cover In Stock WPL WPW10289690 $2.51

19

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $12.96

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

Box, Control WPL 2255623 Contact Us For Availability

Latch, Bin WPL 2212371 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Biscuit) WPL 2198468T Contact Us For Availability

23

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

23

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

23

Clamp WPL 2161324 Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $39.95

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

Knob, FC WPL 2255992 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $17.24

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $40.31

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

Air Seal, Thermistor WPL 2261265 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2212363 Whirlpool Refrigerator Motor In Stock WPL WP2212363 $91.59

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $35.67

33

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

35

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

36

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

40

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability

Valve, Access (5/16``) WPL 978026 Contact Us For Availability

Valve, Access (3/8``) WPL 978027 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability

100

Complete Icemaker Assembly WPL 2198597 Contact Us For Availability
