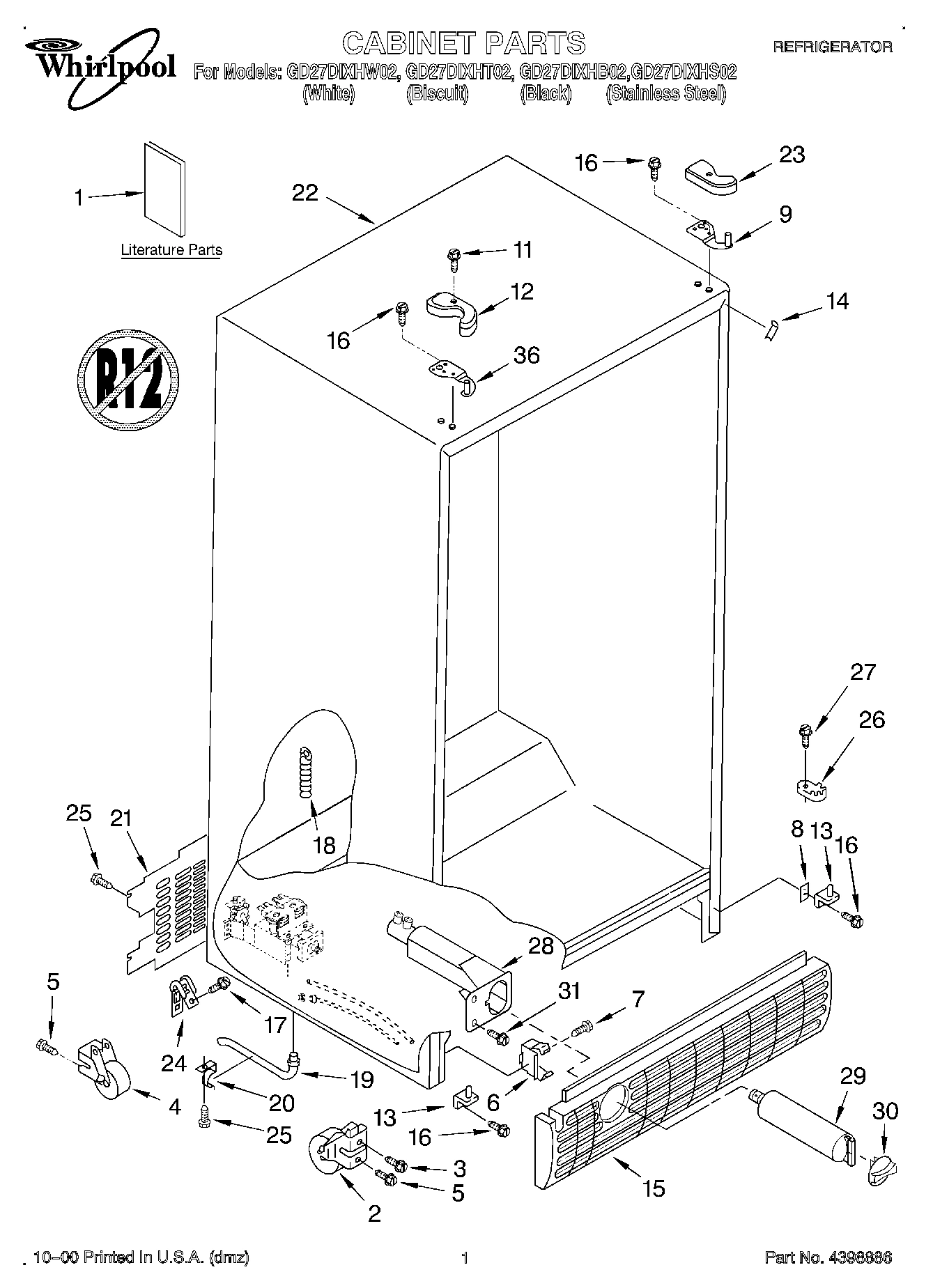

Model Whirlpool GD27DIXHS02 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

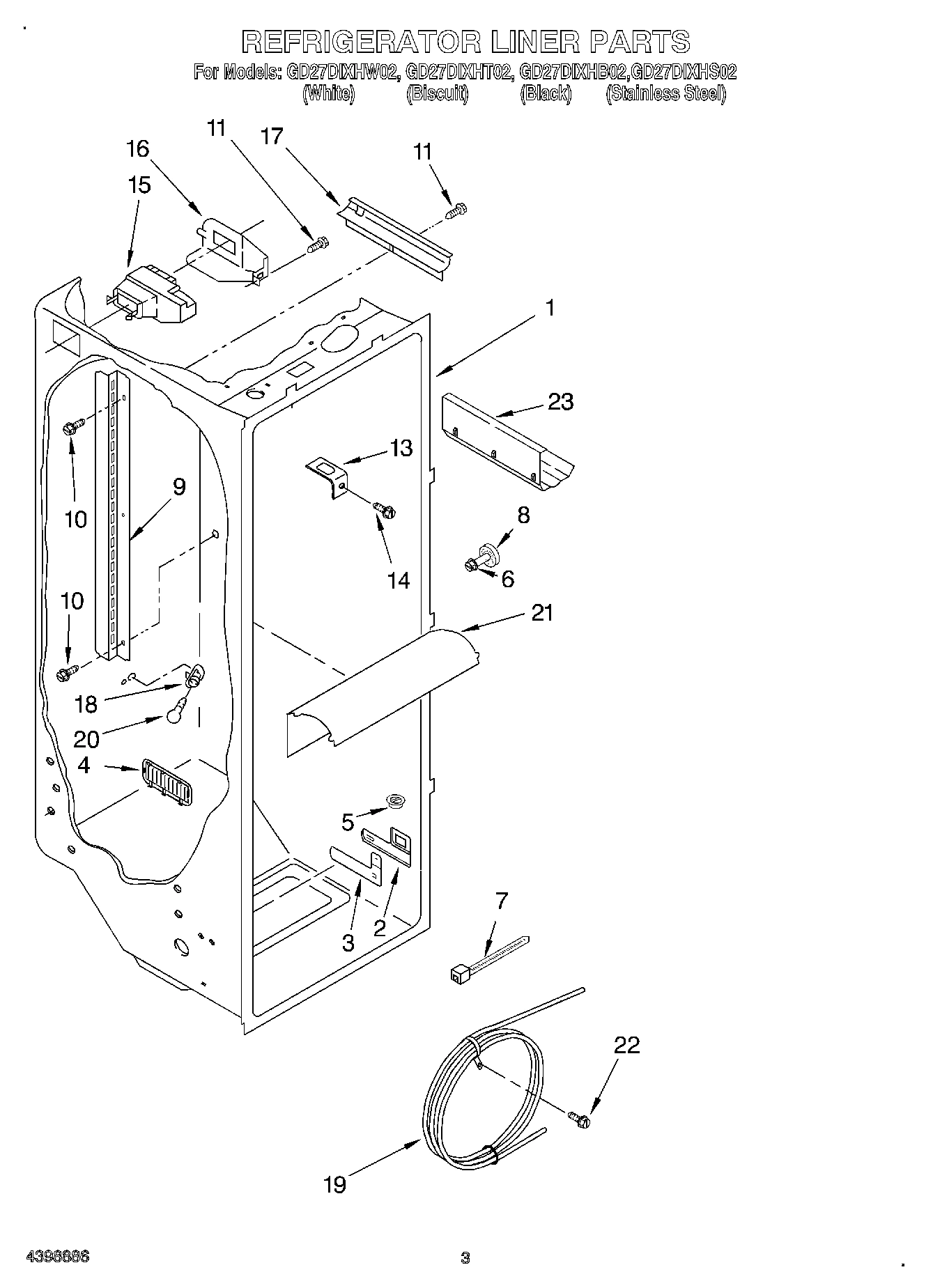

Liner (Not A Serviceable Part) WPL ARI62148A5 Contact Us For Availability

1

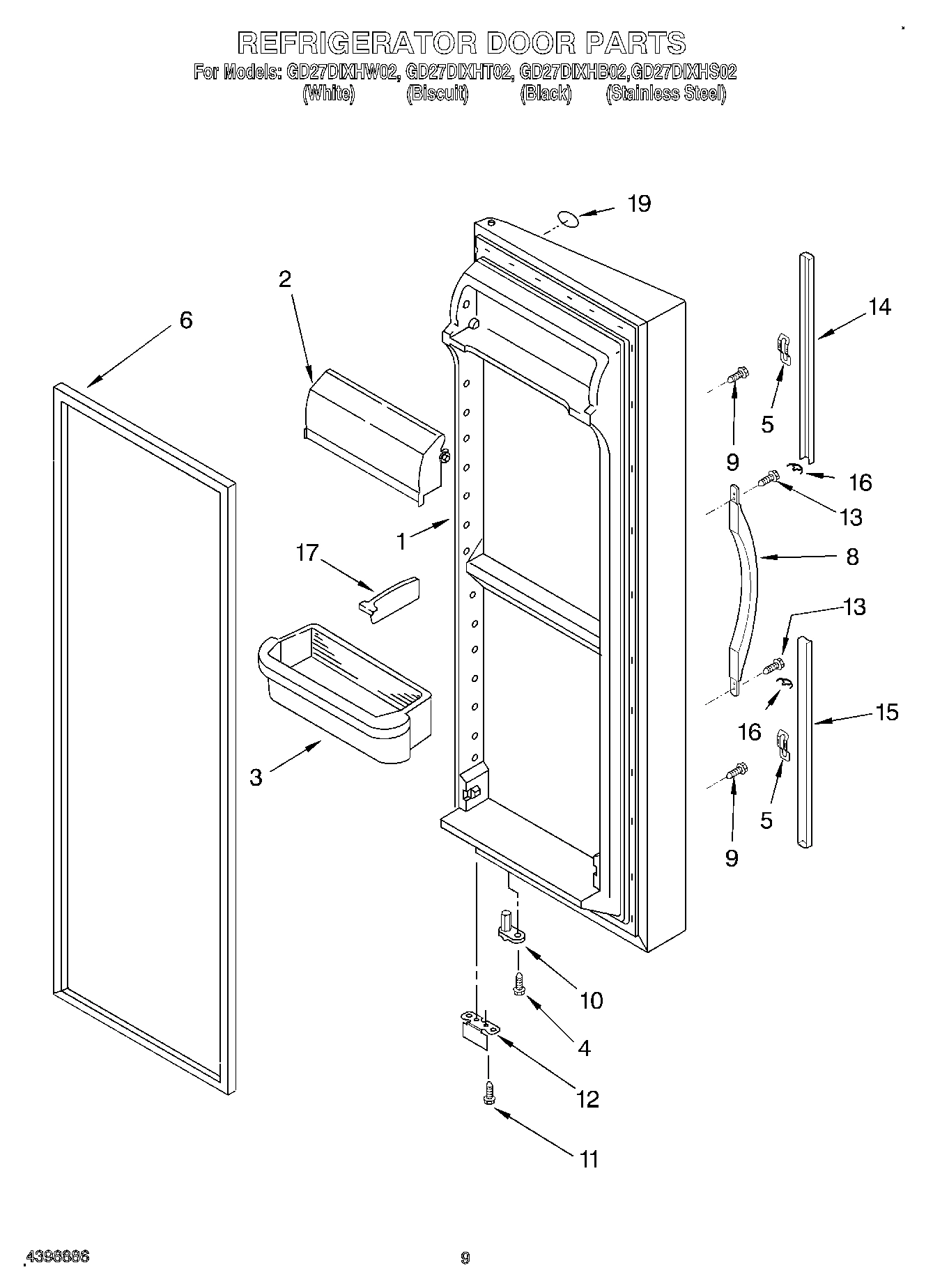

Refrigerator Door (Includes Item No.6) (Black WPL 2207024B Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (Stain WPL 2207024S Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (Biscu WPL 2207024T Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (White WPL 2207024W Contact Us For Availability

1

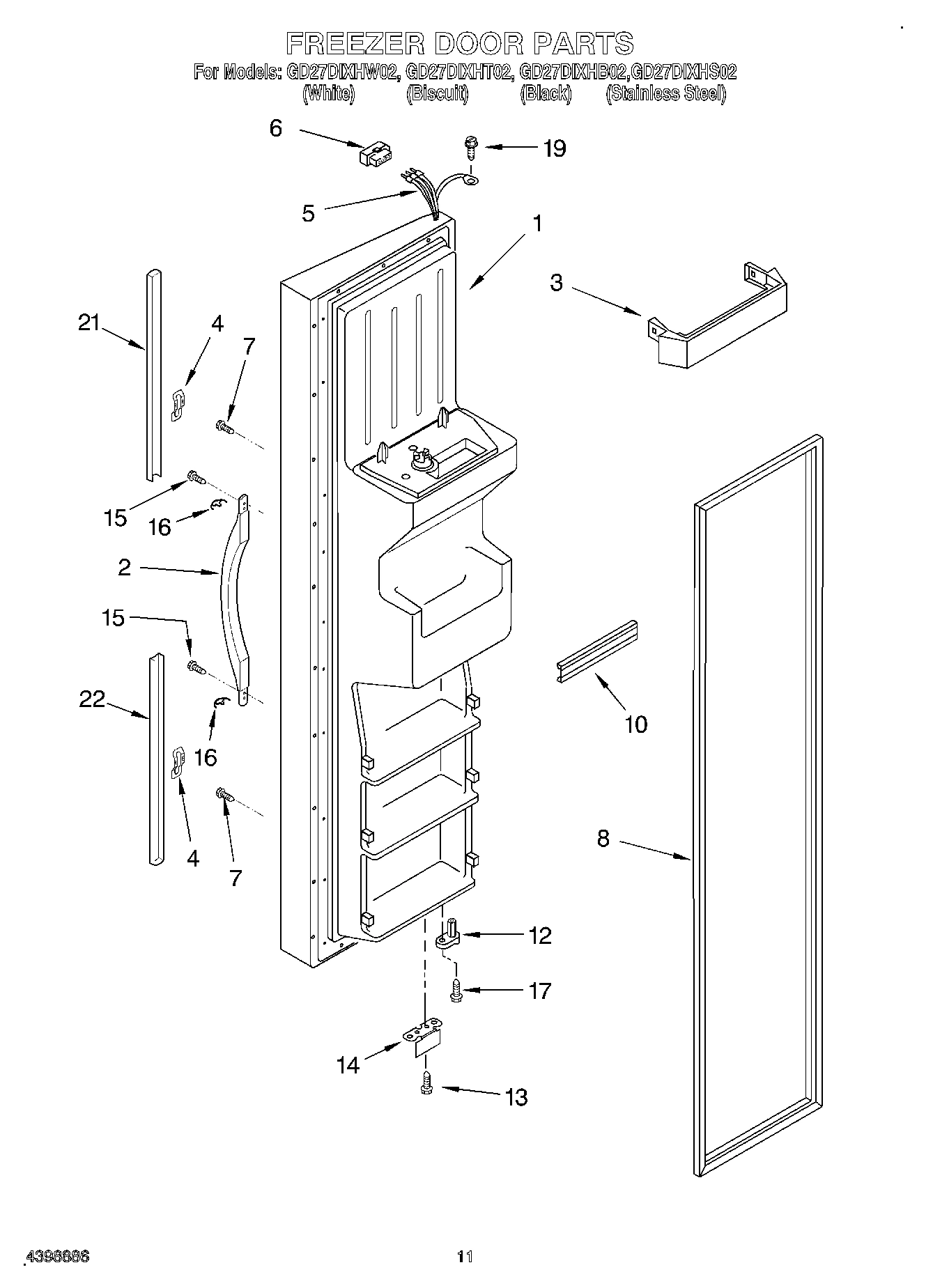

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059B Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059S Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059T Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle (Black) WPL 2207003B Contact Us For Availability

2

Handle (Biscuit) WPL 2207003T Contact Us For Availability

2

Handle (Tempest Gray) WPL 2207003TG Contact Us For Availability

2

Handle (White) WPL 2207003W Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

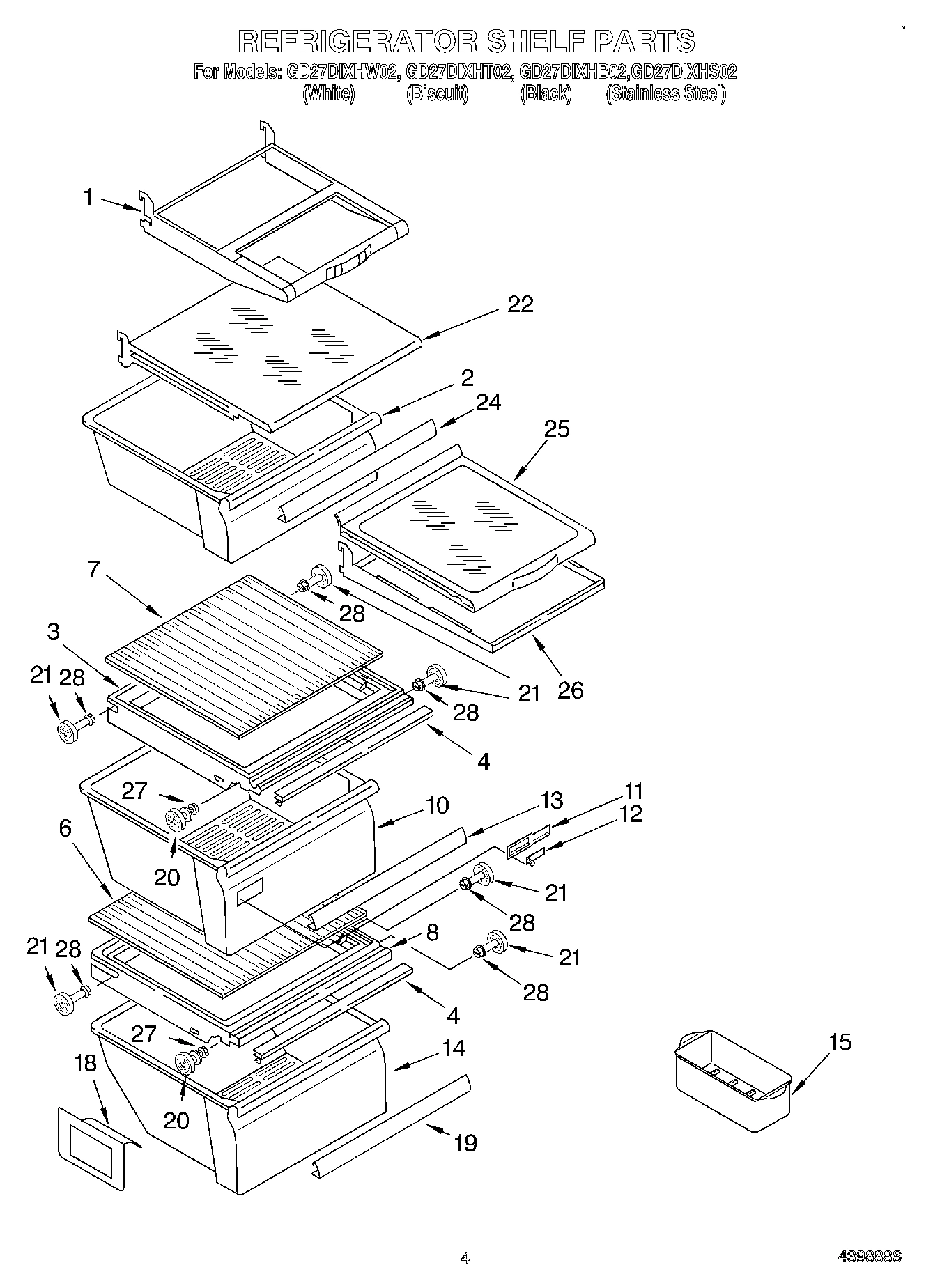

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $31.93

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2203872 Whirlpool Refrigerator Cantilever B Backorder WPL WP2203872 $45.99

3

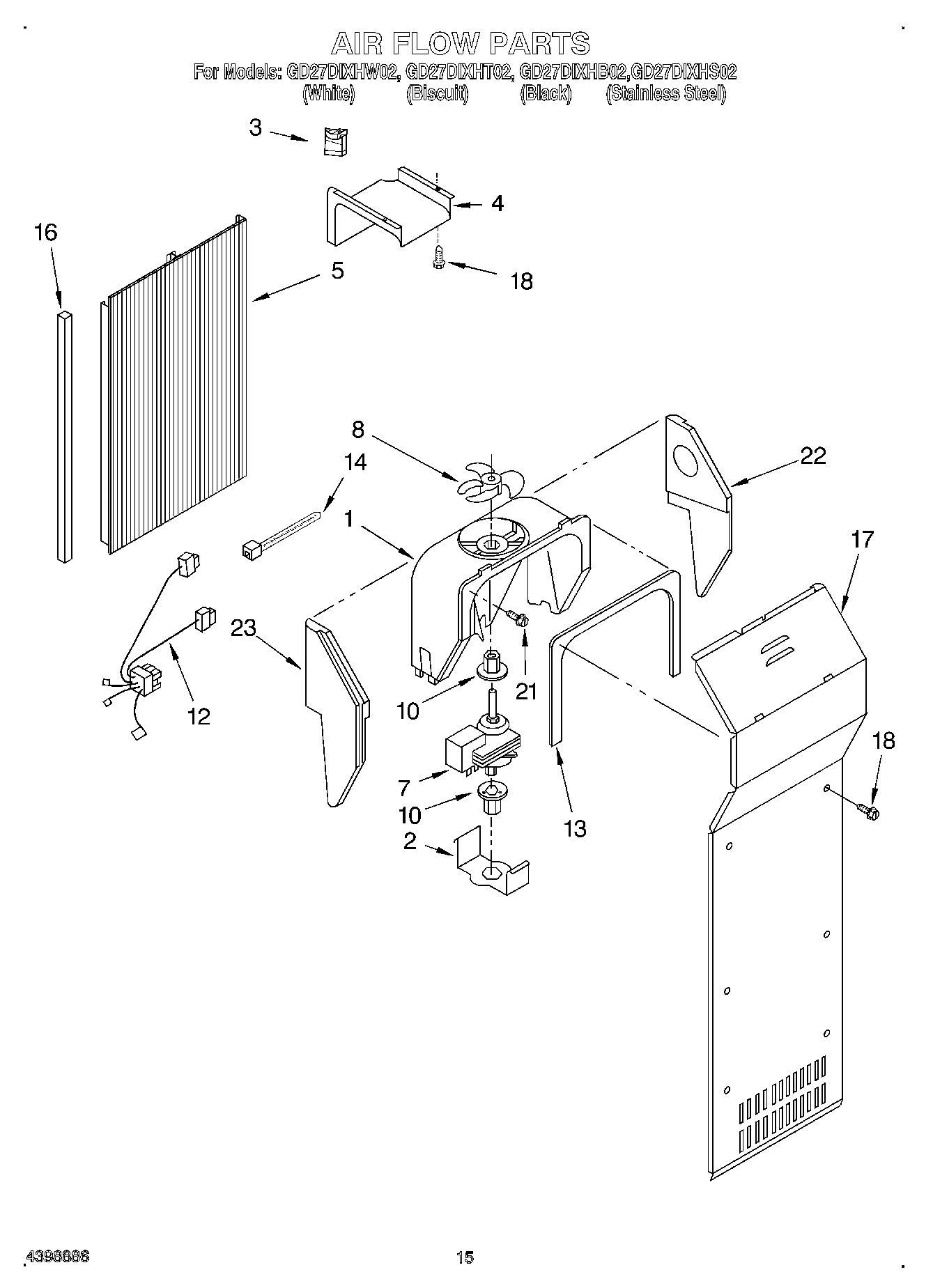

Air Scoop WPL 2198595 Contact Us For Availability

3

Condenser Assembly WPL 2204242B Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

4

Air Duct, Upper WPL 2198581 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $53.09

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $50.91

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

7

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

7

Heat Shield And Drain Pan WPL 2149294 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $35.96

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

9

Shelf Ladder WPL 2206273 Contact Us For Availability

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

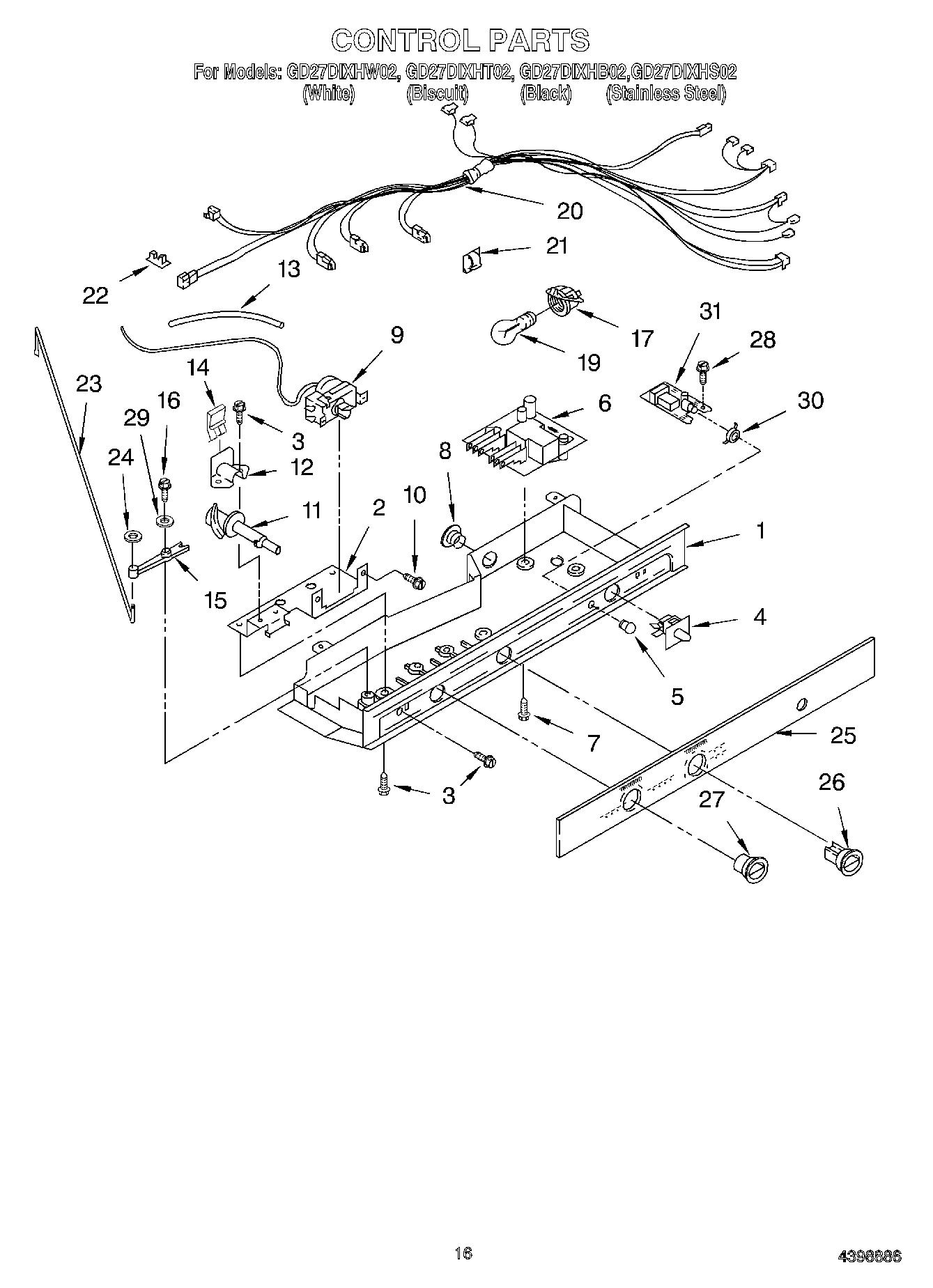

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

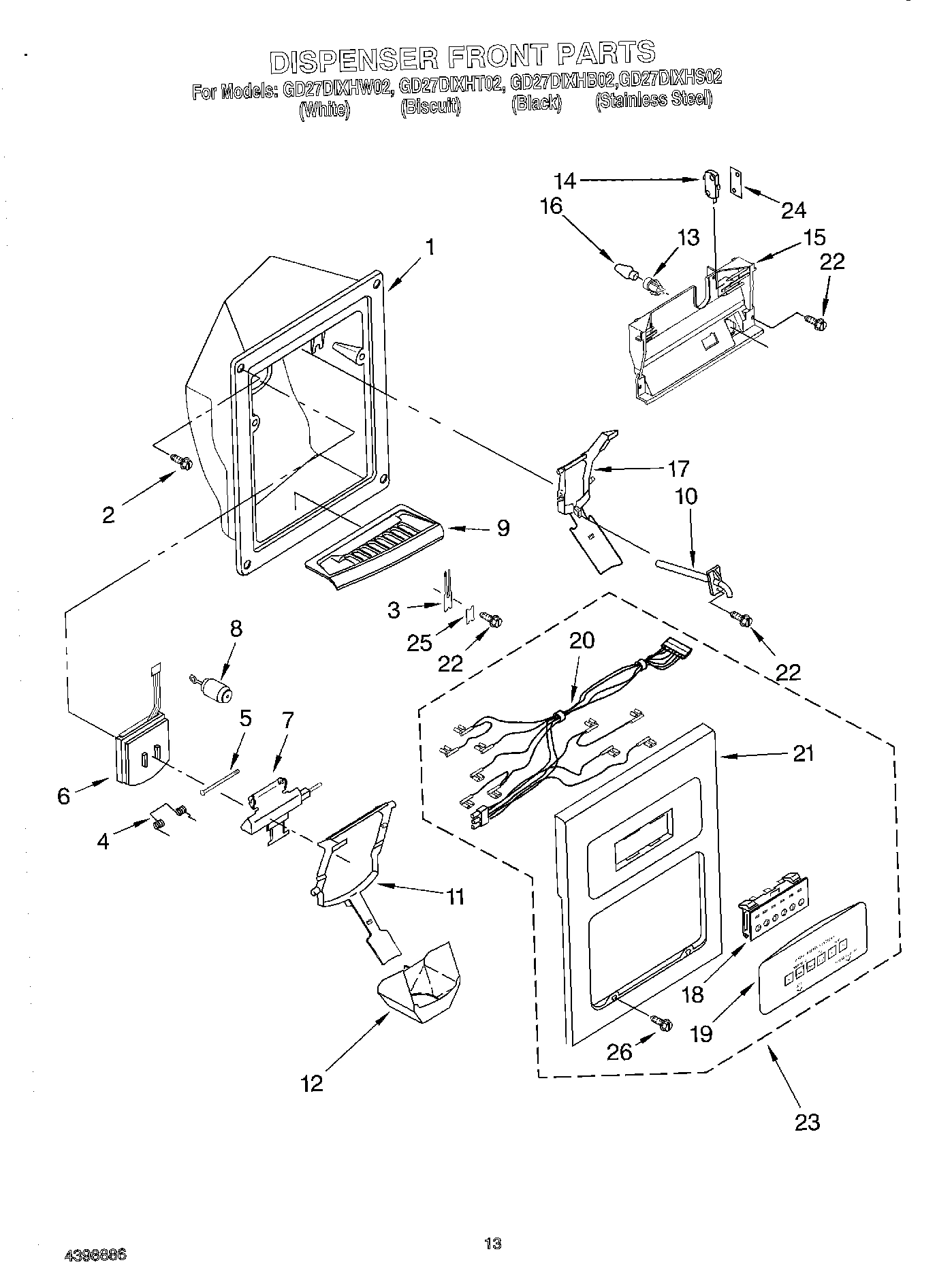

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability

Bracket, Insert WPL 2206006 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $57.59

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $10.98

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $60.33

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Bracket, Door Stop WPL 2206910 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

WPW10151375 Whirlpool Refrigerator Diffuser Backorder WPL WPW10151375 $42.25

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $26.75

8201799 Whirlpool Refrigerator Compressor Sta Backorder WPL 8201799 $64.96

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Jewelry, Handle (Gold) WPL 2207010G Contact Us For Availability

Jewelry, Handle (Satin Nickel) WPL 2207010SN Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2203561B Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561B $39.49

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $34.13

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

Divider WPL 2195496 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

2198621 Whirlpool Refrigerator Switch Backorder WPL 2198621 $88.60

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Screw Grommet WPL 509812 Contact Us For Availability

20

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

20

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

20

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Light Lens WPL 2206269 Contact Us For Availability

Trim, Door-Top (Black) WPL 2207037B Contact Us For Availability

Trim, Door-Top (Biscuit) WPL 2207037T Contact Us For Availability

Trim, Door-Top (Tempest Gray) WPL 2207037TG Contact Us For Availability

Trim, Door-Top (White) WPL 2207037W Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Screw WPL 488280 Contact Us For Availability

Trim, Door-Bottom (Black) WPL 2207038B Contact Us For Availability

Trim, Door-Bottom (Biscuit) WPL 2207038T Contact Us For Availability

Trim, Door-Bottom (Tempest Gray) WPL 2207038TG Contact Us For Availability

Trim, Door-Bottom (White) WPL 2207038W Contact Us For Availability

Backorder WPL 2179404 $8.47

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $61.57

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WPL 625834 WPL 625834 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Harness, Unit WPL 2217059 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

Knob, Air Control WPL 2197871 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

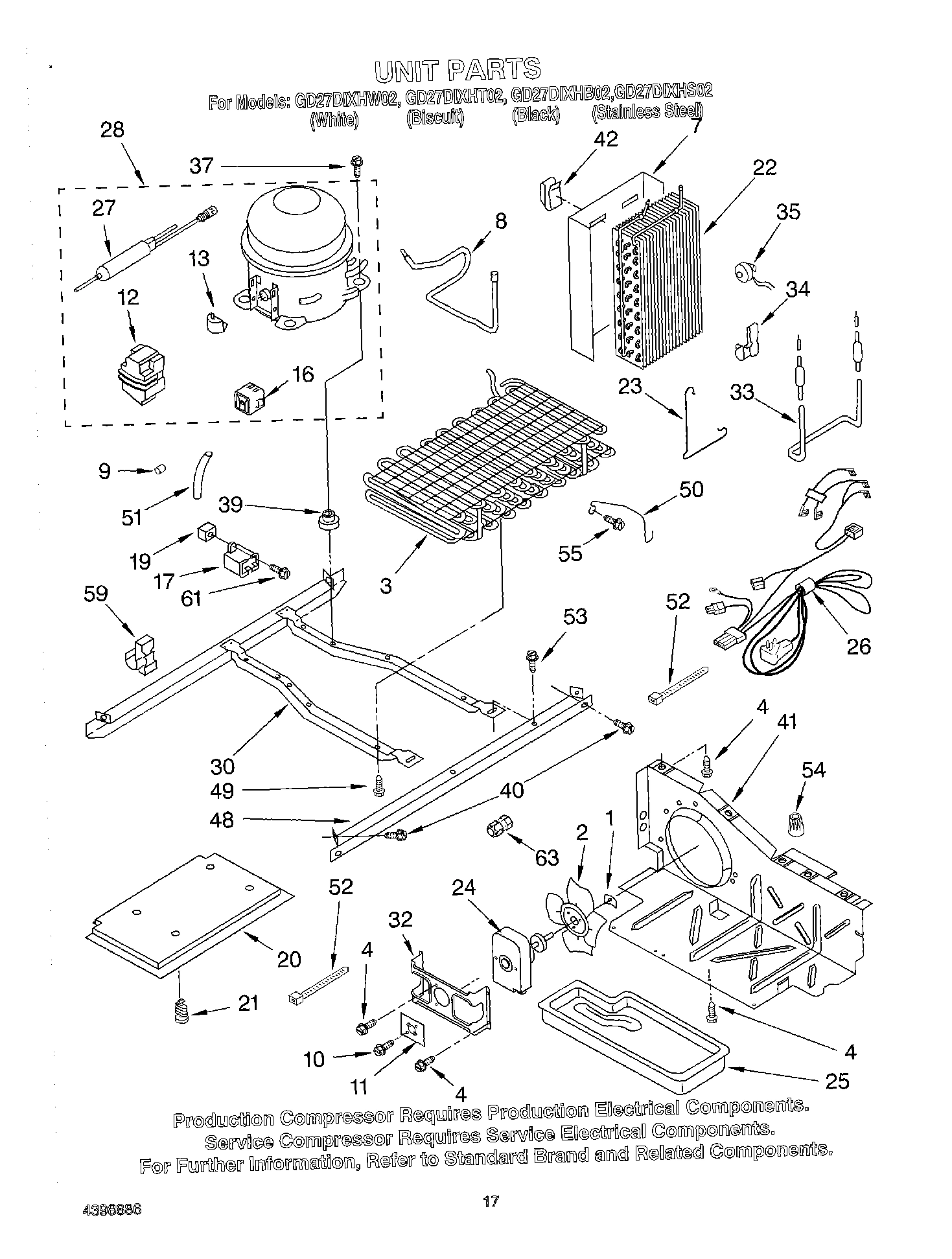

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $298.57

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

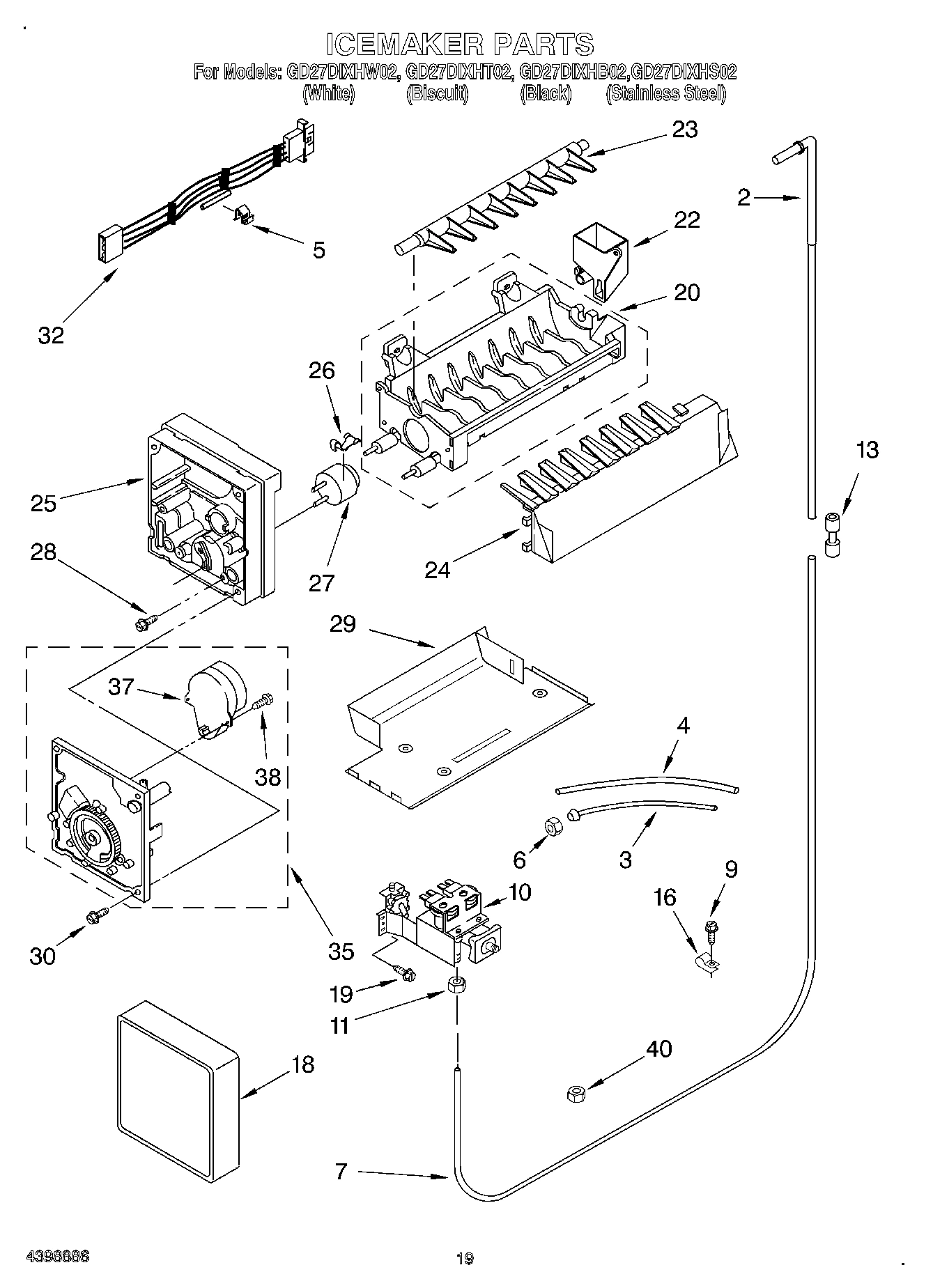

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $35.67

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $105.40

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Clip, Heater WPL 2161330 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle Backorder WPL W10896764 $36.11

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $26.21

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 2186495 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 850145 Contact Us For Availability

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

59

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

61

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
