Model Whirlpool GD25DFXFT03 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI61854A8 Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2204266B Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2204266N Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2204266T Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2204266W Contact Us For Availability

1

Control Box WPL 2200137 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204242B Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

4

Louver WPL 2182147 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

6

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.13

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $33.53

6

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

6

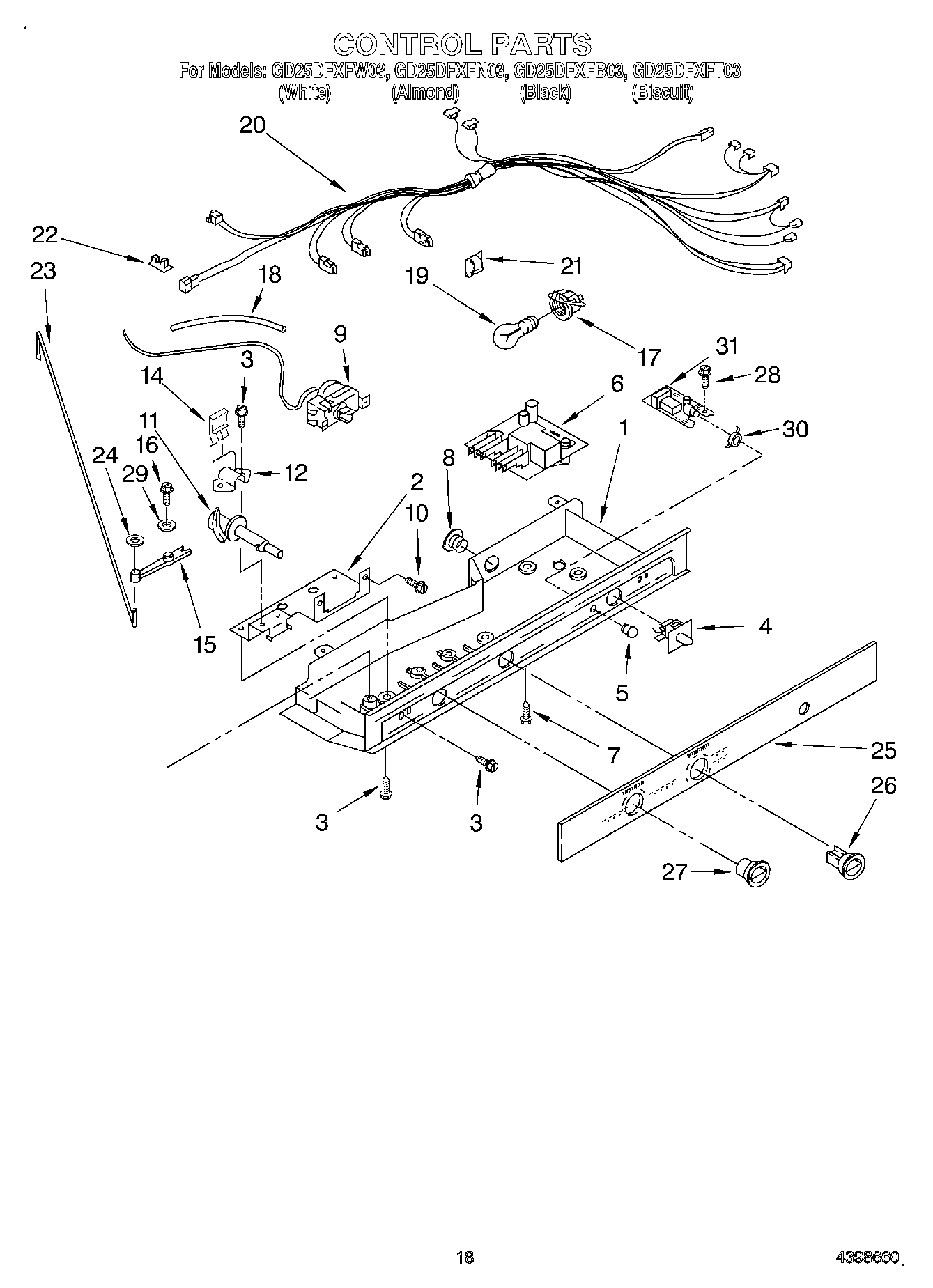

Adaptive Defrost Control WPL 2176648 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $147.90

8

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Stud, Rear WPL 2196207 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.90

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (White) WPL 2180241 Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Screw Grommet WPL 509812 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Wiring Harness WPL 2183713 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

13

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $63.35

13

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $80.36

Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

15

Hinge Cover (White) WPL 1129262 Contact Us For Availability

15

Pivot Arm WPL 1110559 Contact Us For Availability

16

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

16

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

16

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $55.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

Capacitor (Production) WPL 2169137 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $119.53

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

Extension, Top (Black) WPL 2194973B Contact Us For Availability

Extension, Top (Almond) WPL 2194973N Contact Us For Availability

Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

20

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

20

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

20

Control Box Harness WPL 2200439 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Grille (Biscuit) WPL 2198468T Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

W10822259 Whirlpool Refrigerator Condenser Fa In Stock WPL W10822259 $149.23

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

WPL 625834 WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

Tray, Evaporator WPL 1110674 Contact Us For Availability

Escutcheon, Control Box WPL 2200100 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Heat Shield WPL 2149294 Contact Us For Availability

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $102.28

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

Knob, Air Control WPL 2197871 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $32.26

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $312.36

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $108.83

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

Retainer, Light Lens WPL 2200097 Contact Us For Availability

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

Unit, Harness WPL 2188346 Contact Us For Availability

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $54.70

37

Screw (2) WPL 488280 Contact Us For Availability

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

41

4317870 Whirlpool Refrigerator Auger Sleeve Backorder WPL 4317870 $86.61

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

49

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

49

Screw WPL 488624 Contact Us For Availability

50

Guard, Fan WPL 2186495 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
