Model Whirlpool GD22DFXFB00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
10 - UNIT
12 - CONTROL
04 - FREEZER LINER

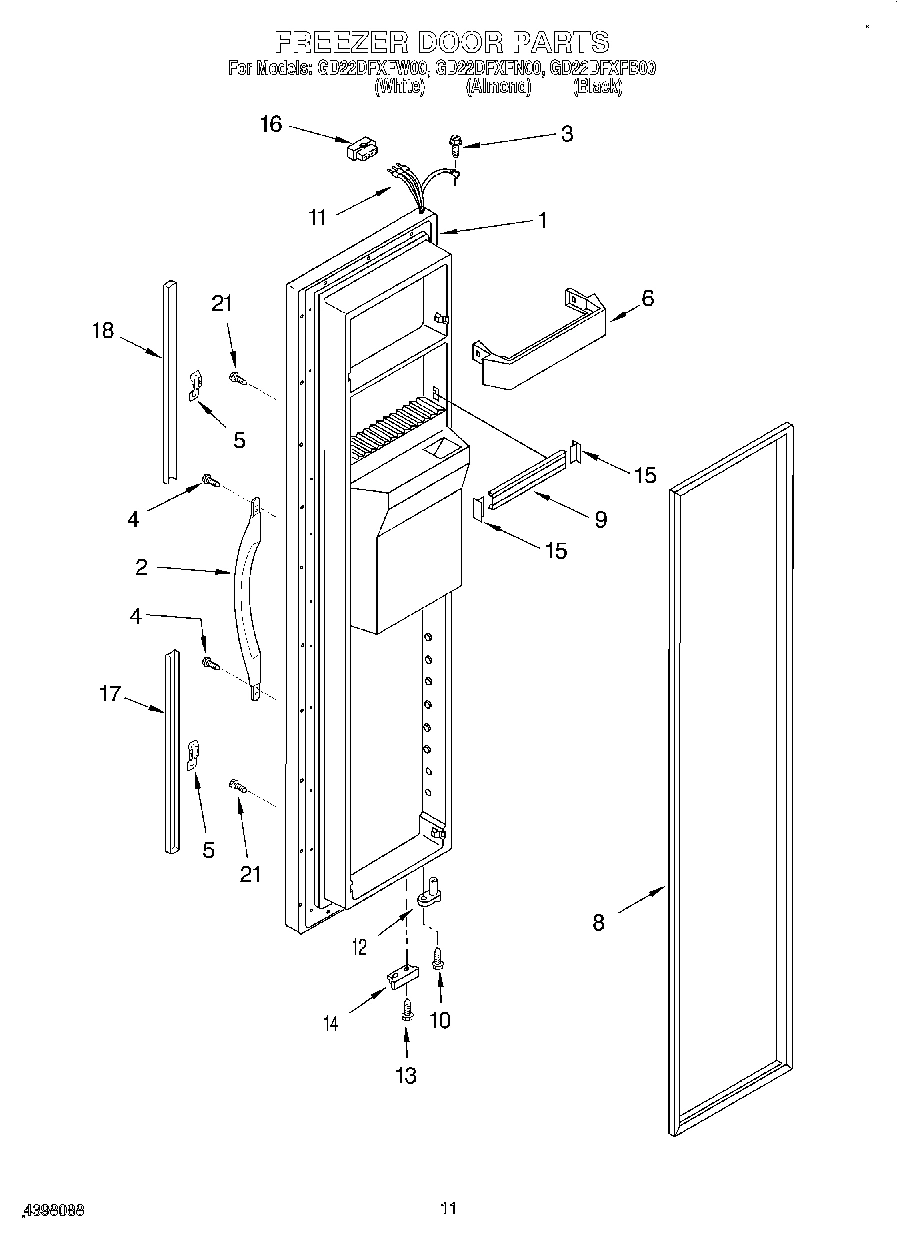

08 - FREEZER DOOR

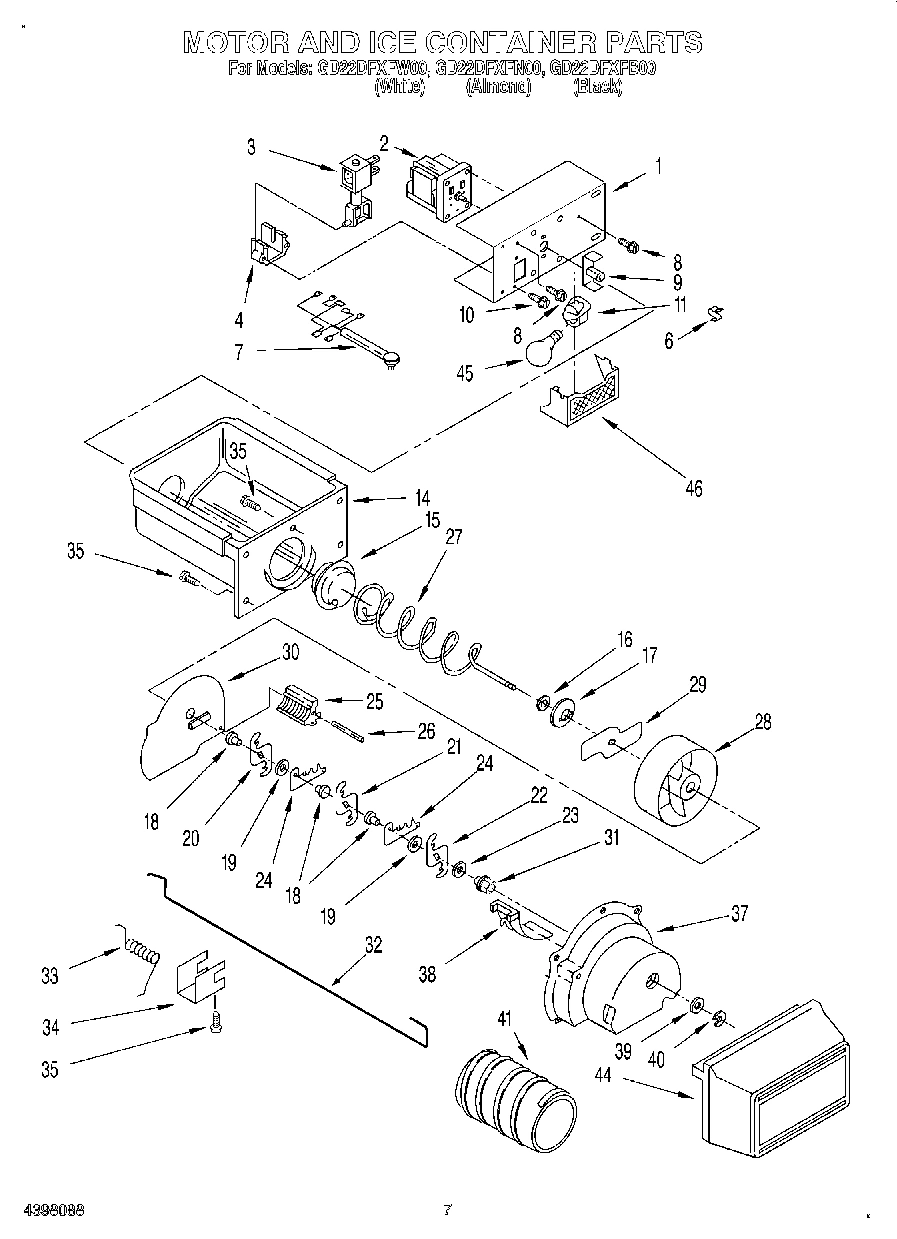

06 - MOTOR AND ICE CONTAINER

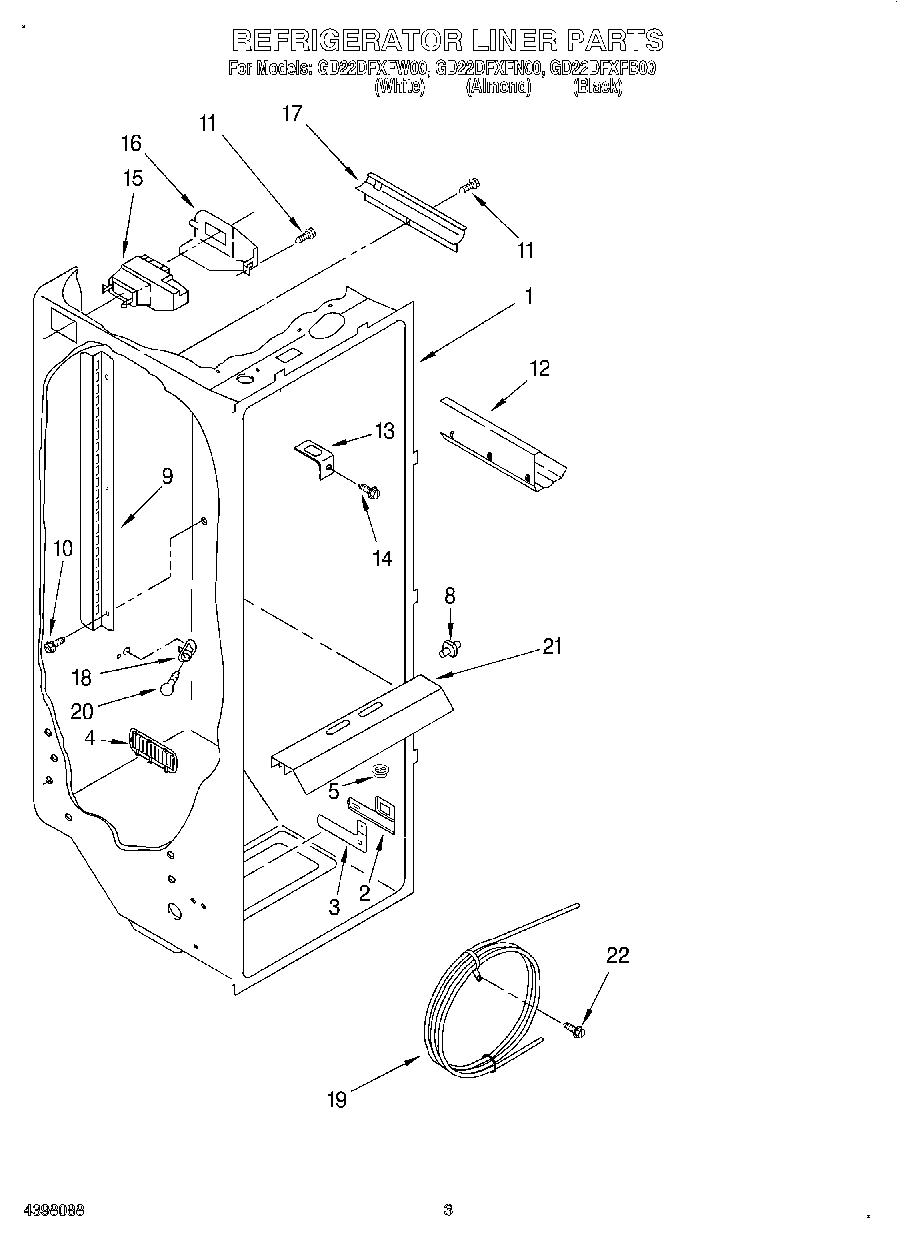

02 - REFRIGERATOR LINER

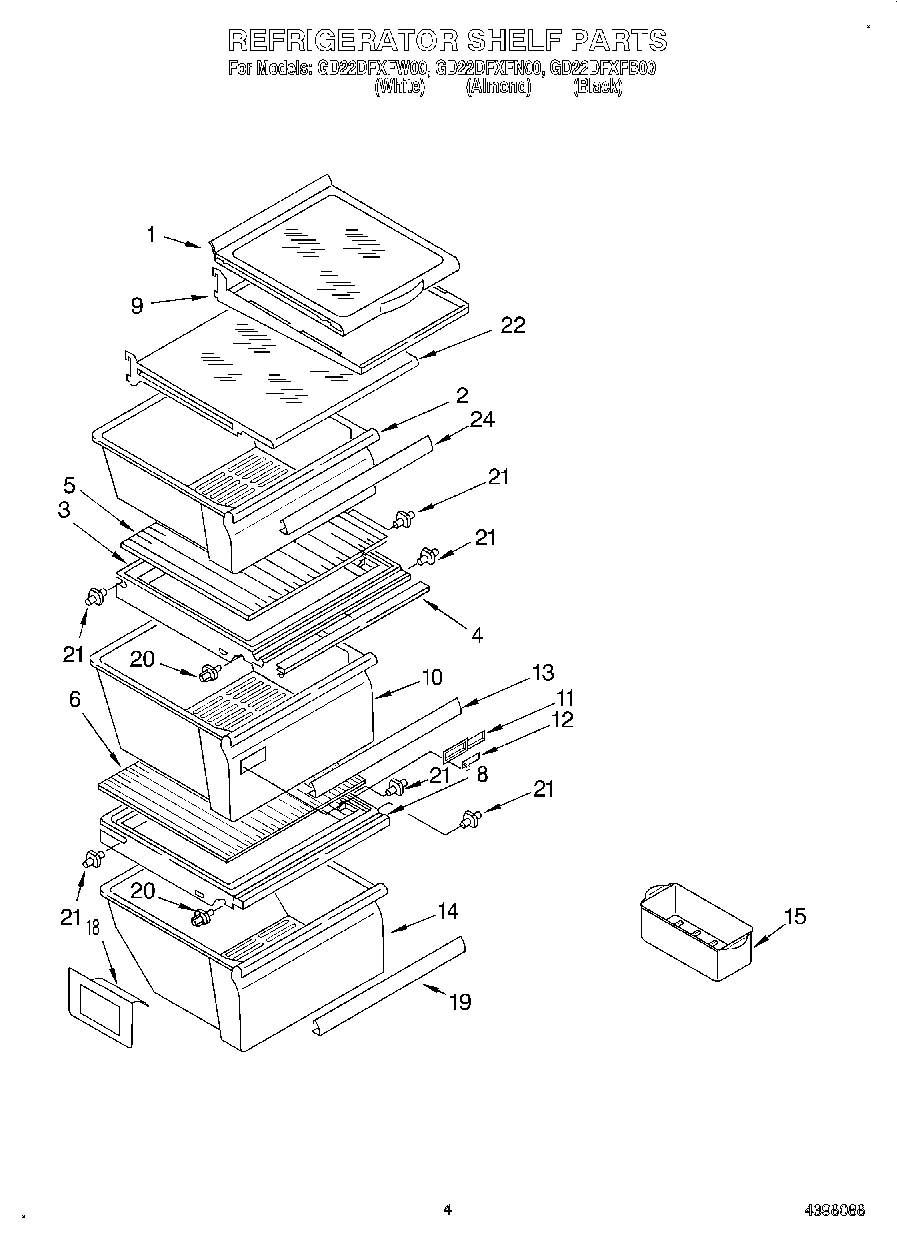

03 - REFRIGERATOR SHELF
05 - AIR FLOW

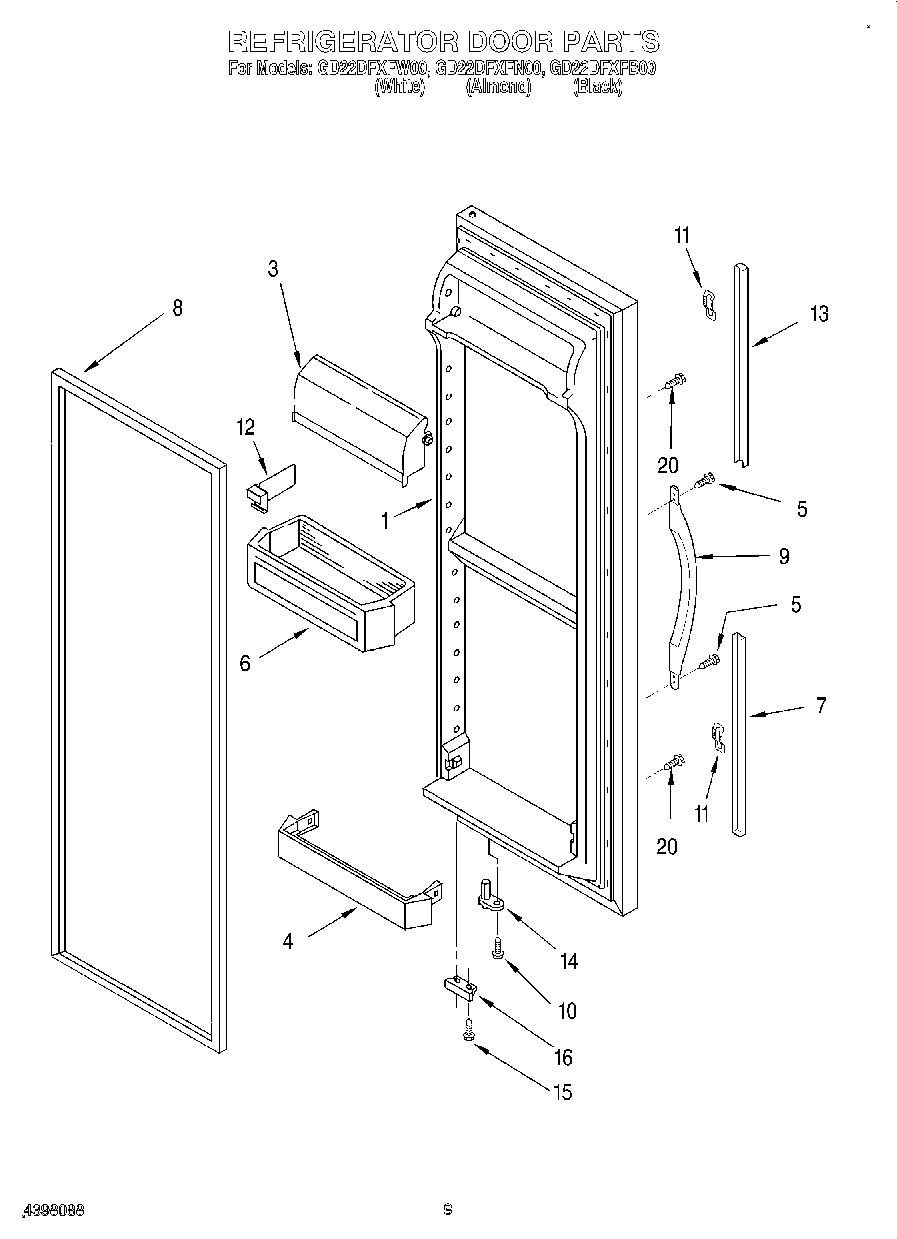

07 - REFRIGERATOR DOOR

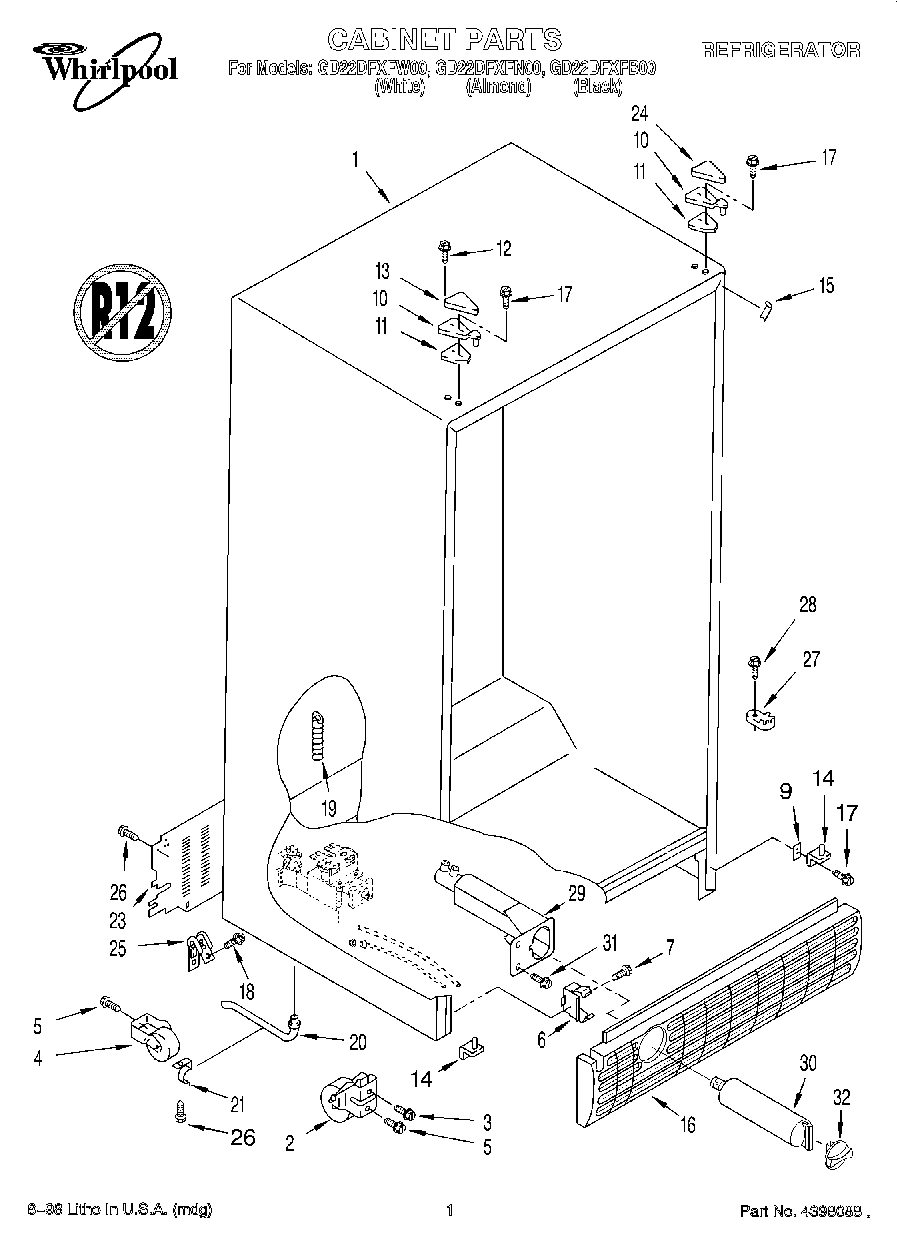

01 - CABINET

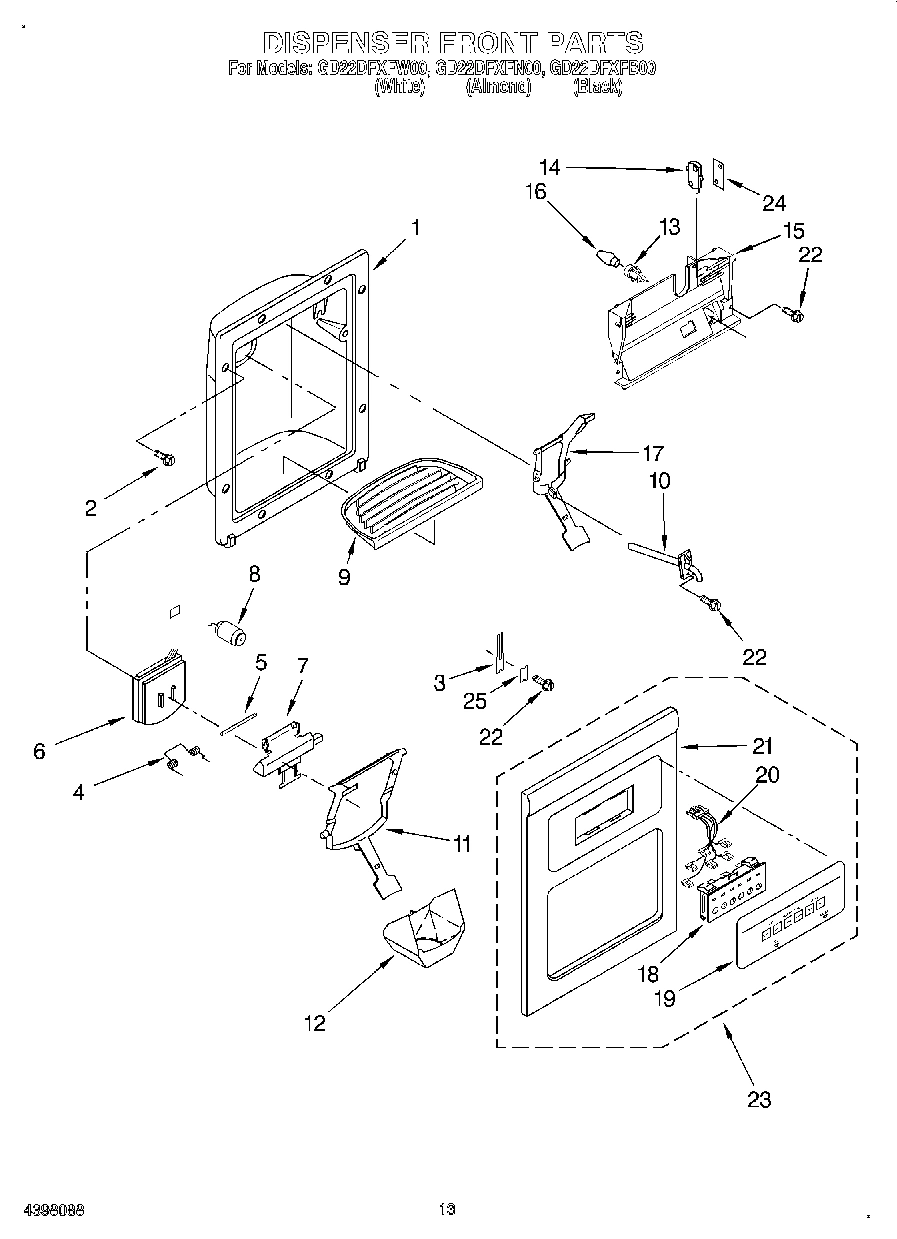

09 - DISPENSER FRONT

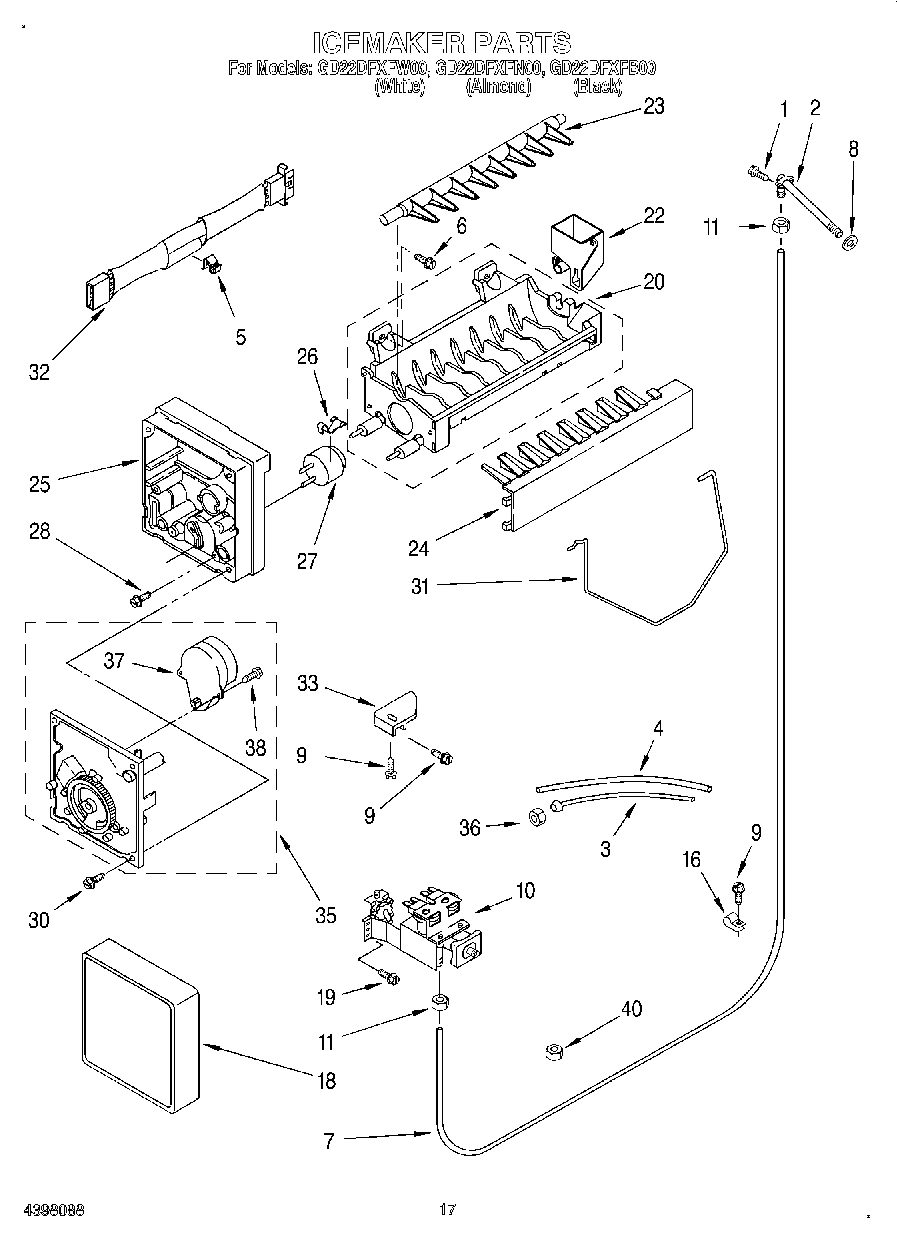

11 - ICEMAKER
Common parts from model Whirlpool GD22DFXFB00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194275N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194275W Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI61608A1 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI61611A9 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
9
Grille, Overflow (Black) WPL 2180243 Contact Us For Availability
11
Shim, Hinge Top WPL 2196048 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180257 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180258 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
12
Screw WPL 489284 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Extension, Top (White) WPL 2194971W Contact Us For Availability
13
Extension, Top (Almond) WPL 2194971N Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
15
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability
15
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
17
Lever, Water Dispenser (Almond (Almond Shadow WPL 2180266 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2186555B Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2186555N Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2186555W Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI61612A9 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186551B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186551N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186551W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
30
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
32
Cap, Water Filter (Almond) WPL 2186494N Contact Us For Availability
33
WPL 876029 WPL 876029 Contact Us For Availability
33
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
36
Nut, Compression WPL 2200083 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
