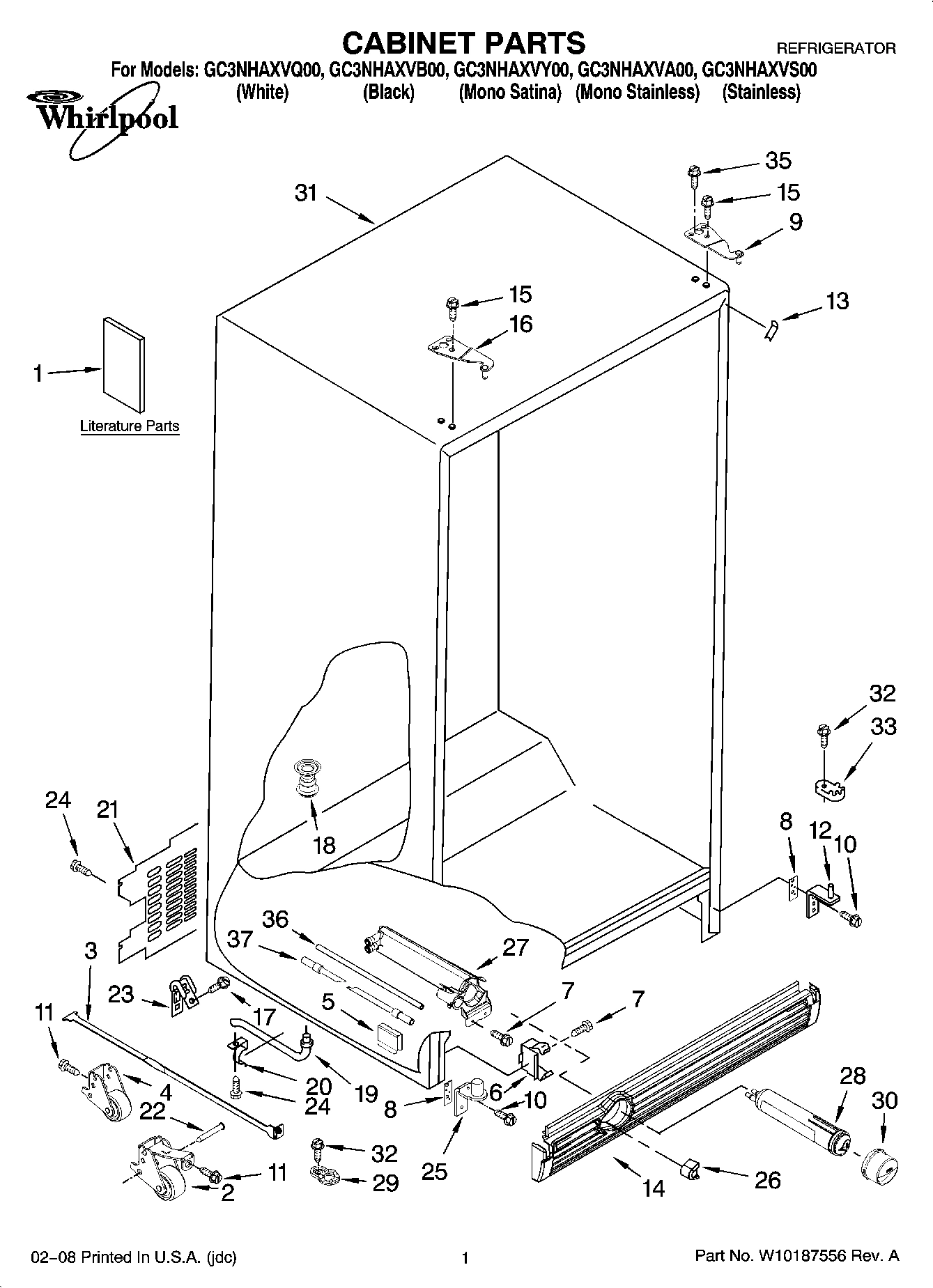

Model Whirlpool GC3NHAXVY00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

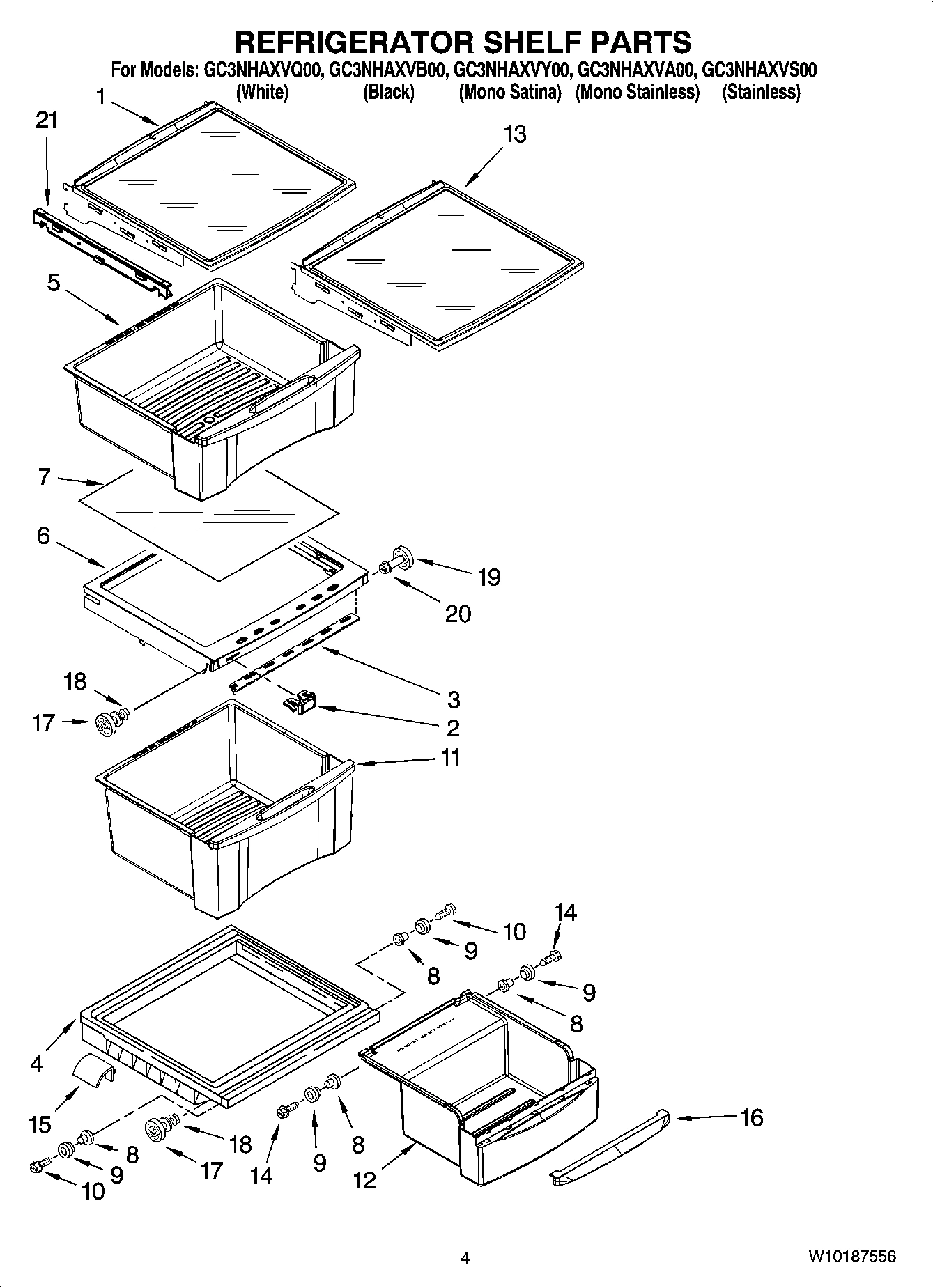

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

1

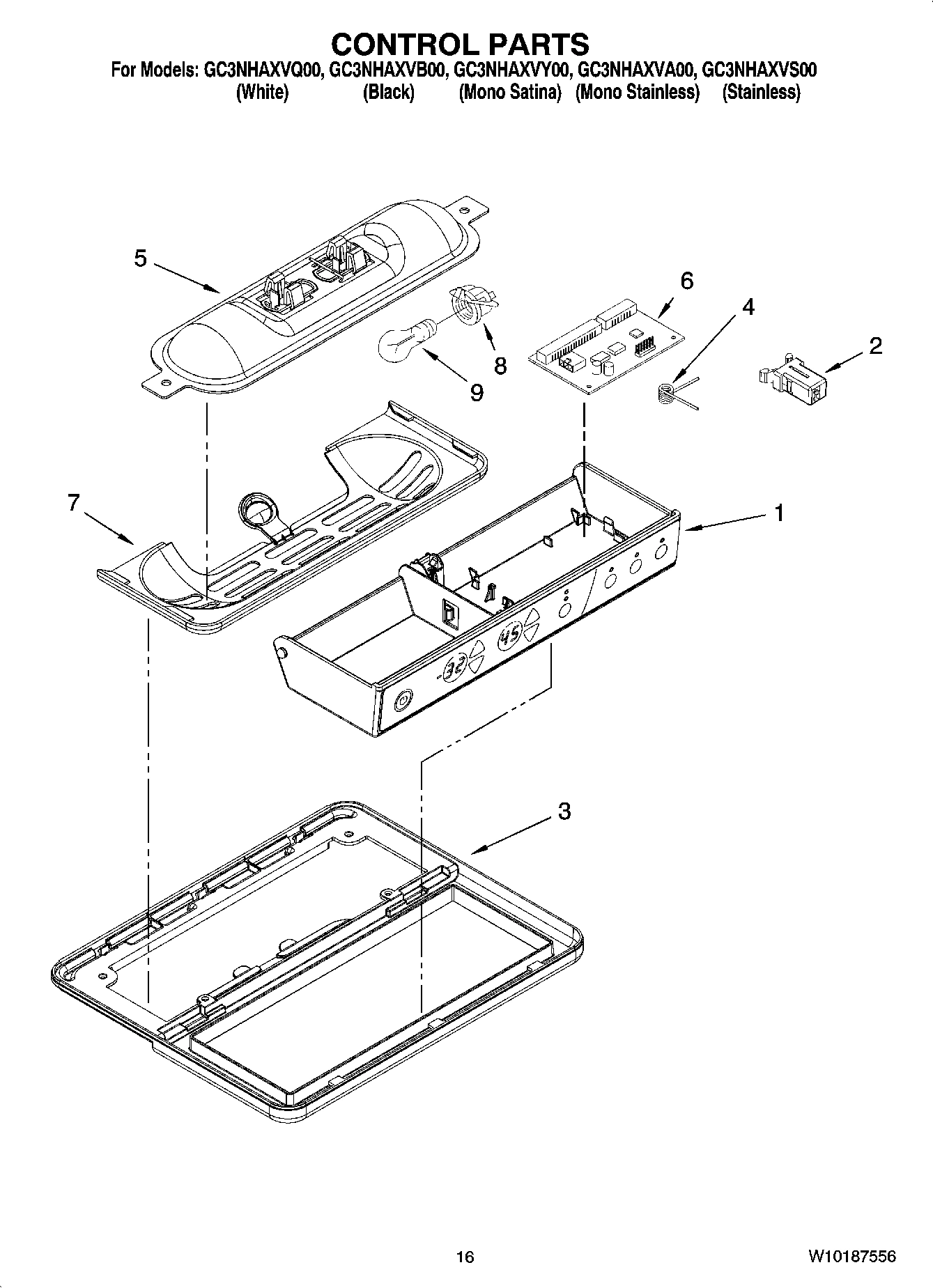

Control Box (Includes 6) WPL 2319752 Contact Us For Availability

1

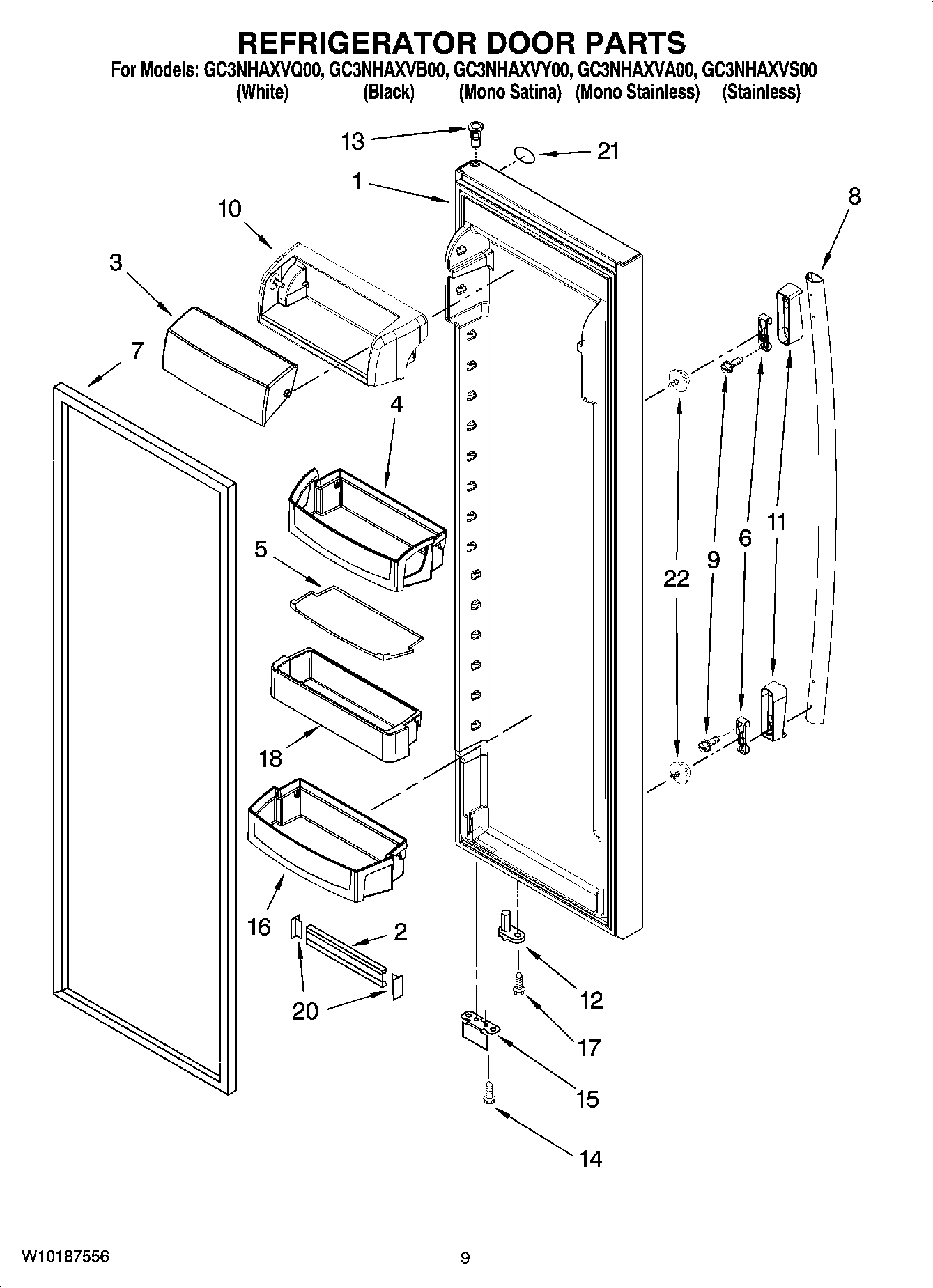

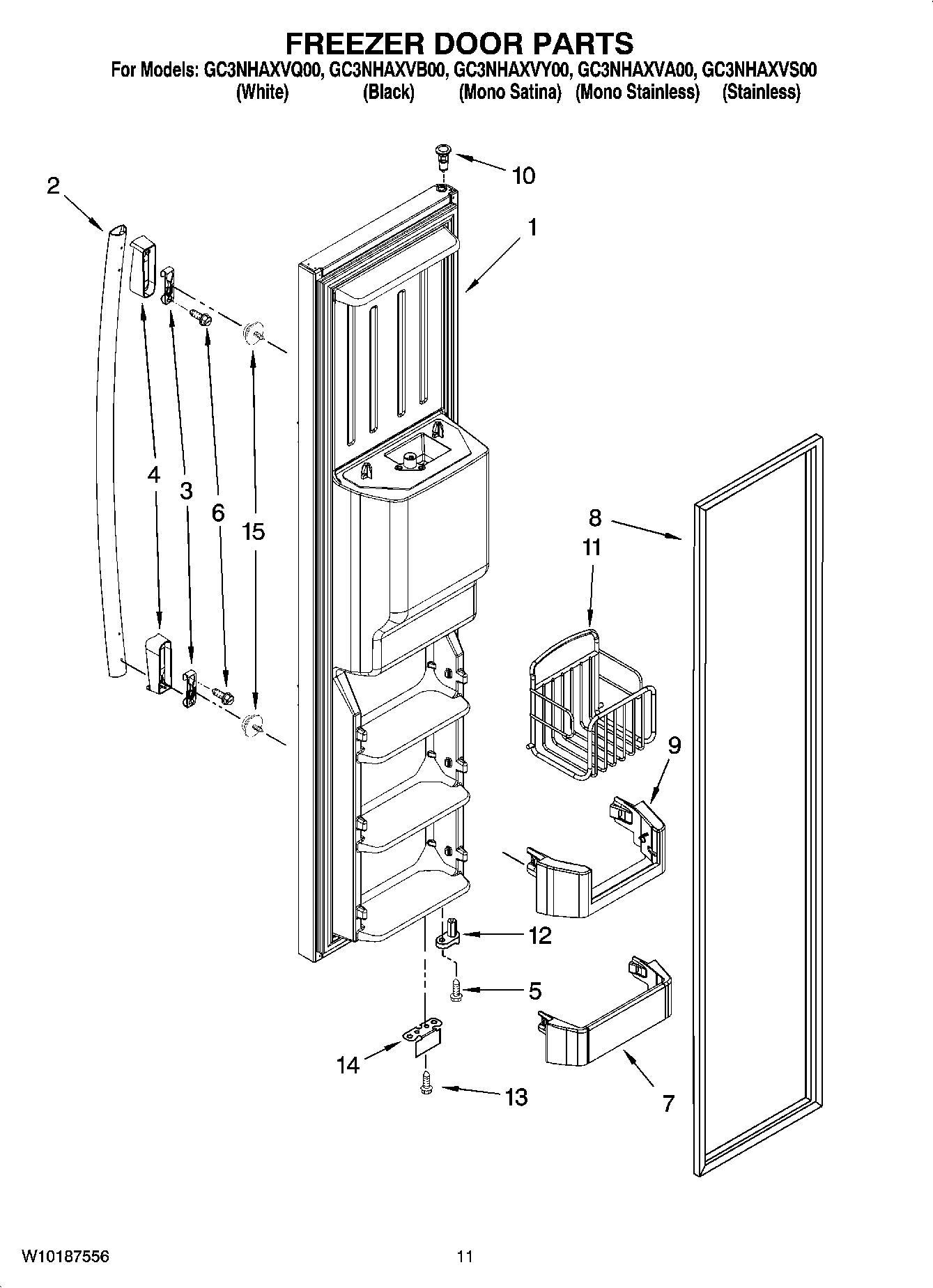

Refrigerator Door (Includes 7) (White) WPL W10168248 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL W10168249 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Mono Satina) WPL W10168250 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Monochromatic WPL W10168251 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Stainless Ste WPL W10172106 Contact Us For Availability

1

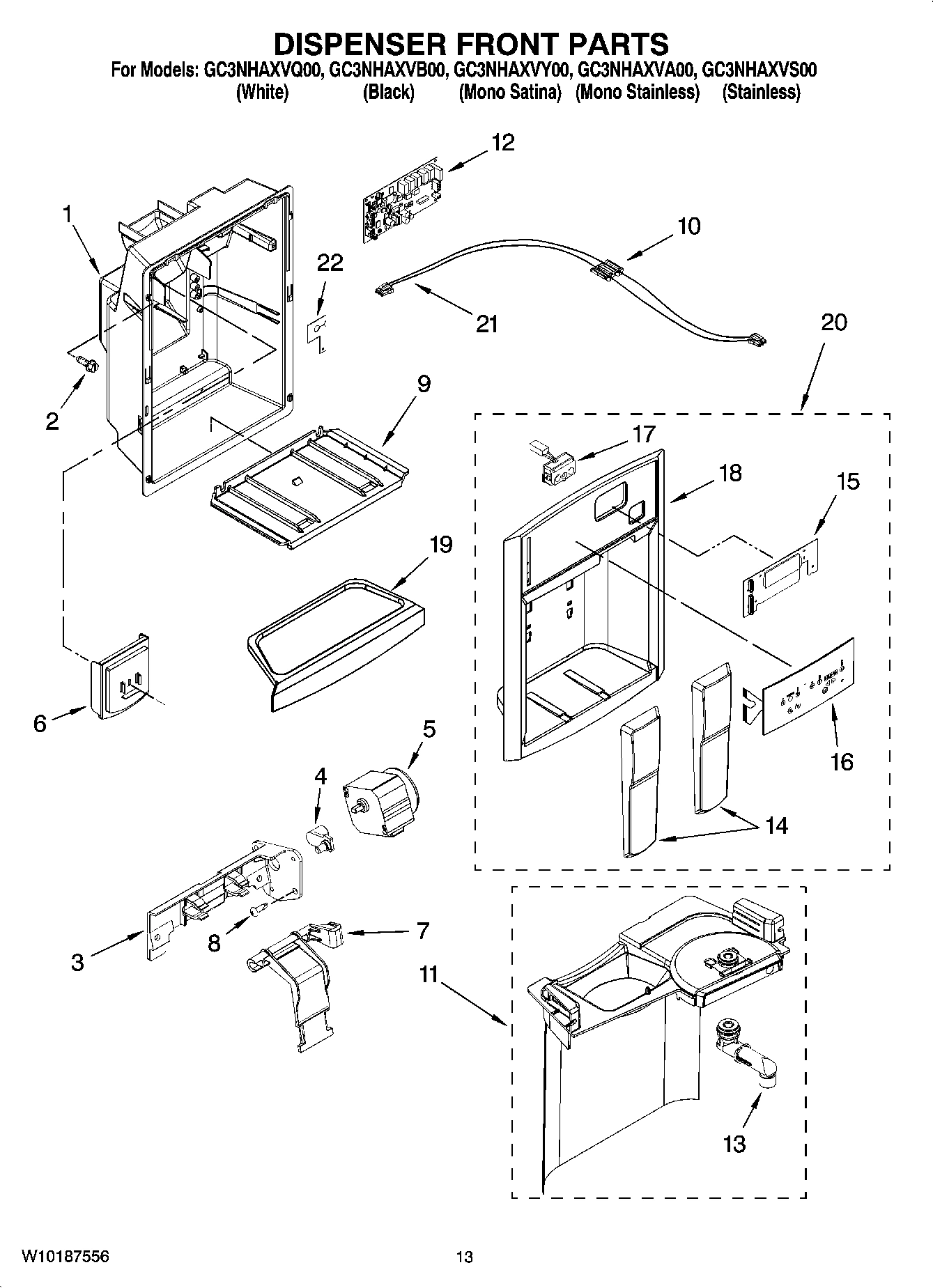

Housing Dispenser (Not Serviced) WPL ARI59595A4 Contact Us For Availability

2

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $49.89

2

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

2

Crusher Bin WPL 2305206 Contact Us For Availability

2

Button, Humidity WPL 2223309 Contact Us For Availability

2

Trim, Shelf WPL 2203087K Contact Us For Availability

3

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $30.25

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $39.86

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

Dairy Door WPL 2255421 Contact Us For Availability

3

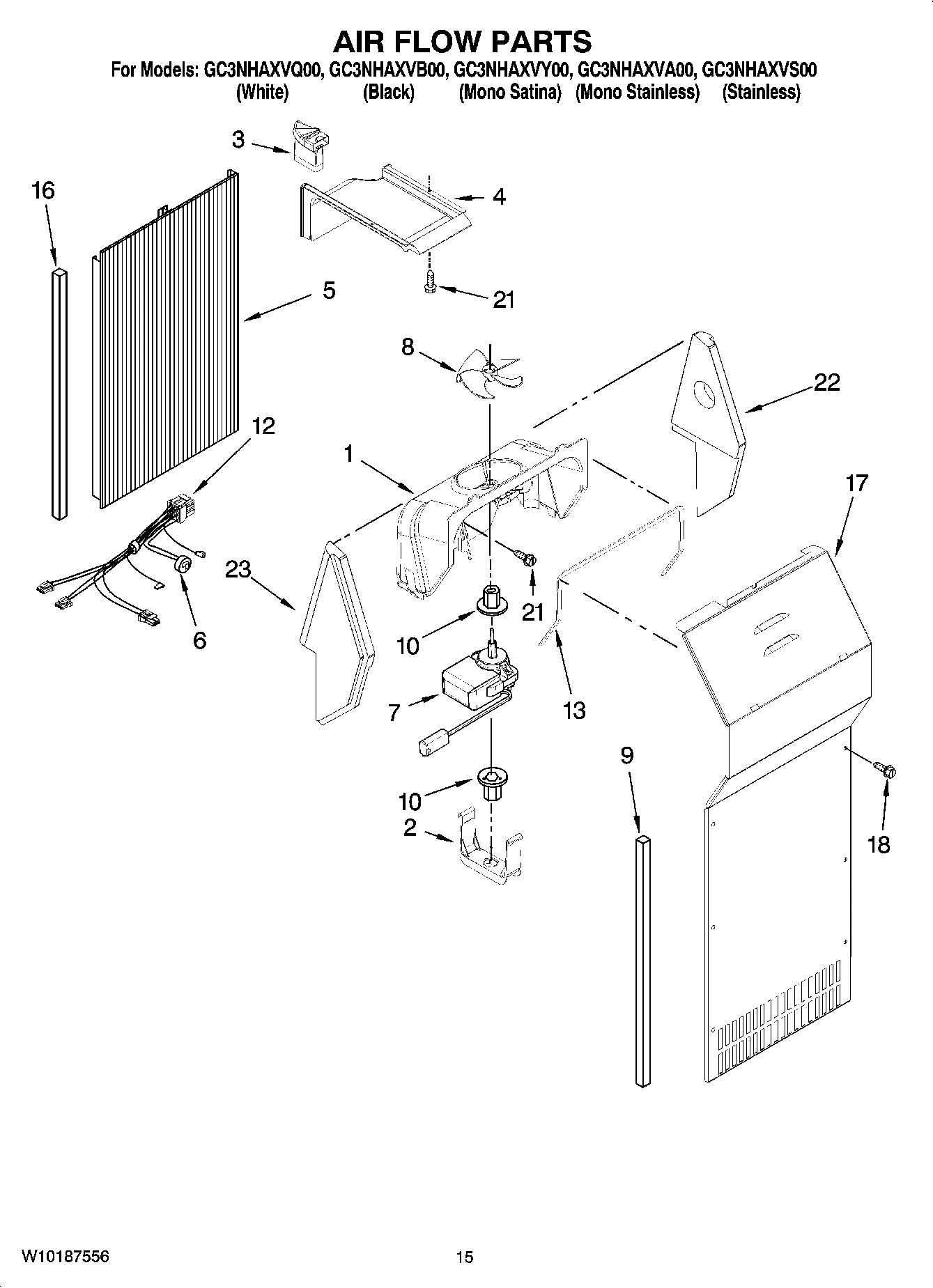

Air Scoop WPL 2223298 Contact Us For Availability

3

Condenser Assembly WPL W10131059 Contact Us For Availability

4

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $31.92

4

WPW10270150 Whirlpool Crisper Drawer Cover In Stock WPL WPW10270150 $212.25

4

Washer WPL 2258220 Contact Us For Availability

4

Door Bin WPL 2223463K Contact Us For Availability

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $7.80

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $47.71

5

Snack Pan WPL 2223261 Contact Us For Availability

5

Mat, Bin (3) WPL 2223464K Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.69

6

WPW10159840 Whirlpool Refrigerator Valve In Stock WPL WPW10159840 $176.95

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

Control Board Asm WPL 2307037 Contact Us For Availability

6

Cover, Crisper (Includes 2 & 3) WPL 2223307 Contact Us For Availability

6

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

7

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $29.08

7

Glass, Cover WPL 2223591 Contact Us For Availability

7

Door Gasket, Magnetic (Mist Beige) WPL 2223841 Contact Us For Availability

7

Door Gasket, Magnetic (Black) WPL 2223911 Contact Us For Availability

7

Door Gasket, Magnetic (Apollo Grey) WPL 2326342 Contact Us For Availability

8

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $33.31

8

W10210942A Whirlpool Refrigerator Handle Backorder WPL W10210942A $54.35

8

W10210943A Whirlpool Refrigerator Handle Backorder WPL W10210943A $54.35

8

W10273556 Whirlpool Refrigerator Handle Backorder WPL W10273556 $200.55

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

8

Eyelet, Roller WPL 2174478 Contact Us For Availability

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $16.76

9

WP8533988 Whirlpool Screw Fastener In Stock WPL WP8533988 $2.51

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Clip, Thermistor WPL 2209204 Contact Us For Availability

9

Plate, Mounting WPL 2301979 Contact Us For Availability

9

Roller WPL 2188212 Contact Us For Availability

9

Grille, Slide (Apollo Gray) WPL 2305413AP Contact Us For Availability

9

Grille, Slide (Black) WPL 2305413B Contact Us For Availability

9

Grille, Slide (White) WPL 2305413W Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

Dairy Compartment WPL 2223879 Contact Us For Availability

Ferrite Bead WPL 2308165 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

W10127813 Whirlpool Refrigerator Handle Endca Backorder WPL W10127813 $28.09

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $152.60

Block, Blade WPL 2198602 Contact Us For Availability

Endcap, Handle (Black) WPL W10127814 Contact Us For Availability

Endcap, Handle (Nickel Alloy) WPL W10152864 Contact Us For Availability

Separator Assembly (Black) WPL 2305460B Contact Us For Availability

Separator Assembly (Nickel Alloy) WPL 2305460NA Contact Us For Availability

Separator Assembly (White) WPL 2305460W Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $206.48

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

Hinge Assembly, Bottom-RC WPL 2307179 Contact Us For Availability

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

Meat Pan (Includes 8, 9, 10, & 15) WPL 2223526 Contact Us For Availability

W10235943 Whirlpool Refrigerator CANT Shelf Backorder WPL W10235943 $150.66

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP2305235 Whirlpool Refrigerator Spigot Backorder WPL WP2305235 $51.17

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Glide Assembly, Basket (2) (Right Side) WPL 2301544 Contact Us For Availability

Glide Assembly, Basket (2) (Left Side) WPL 2301545 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Cover, Emitter WPL 2259487 Contact Us For Availability

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

Pad, Ice & Water (For White Model) WPL 2305247CG Contact Us For Availability

Pad, Ice & Water (For Black Model) WPL 2305247GM Contact Us For Availability

Pad, Ice & Water (For All Stainless Models) WPL 2305247MG Contact Us For Availability

2223487 Whirlpool Refrigerator Deflector Backorder WPL 2223487 $33.25

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $34.44

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $13.10

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $179.78

Cover Assembly, User Interface WPL ARI59596A7 Contact Us For Availability

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $46.59

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

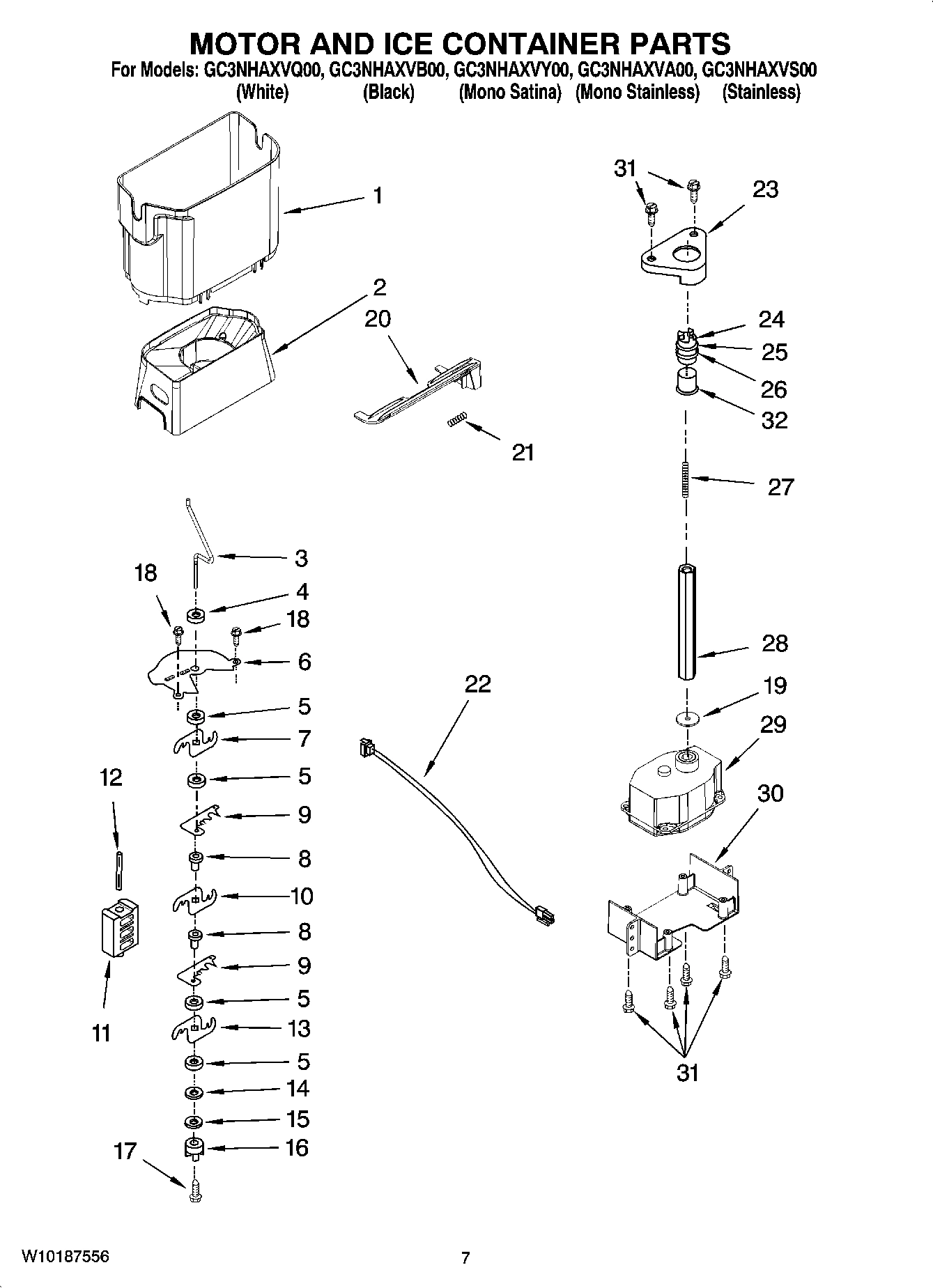

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

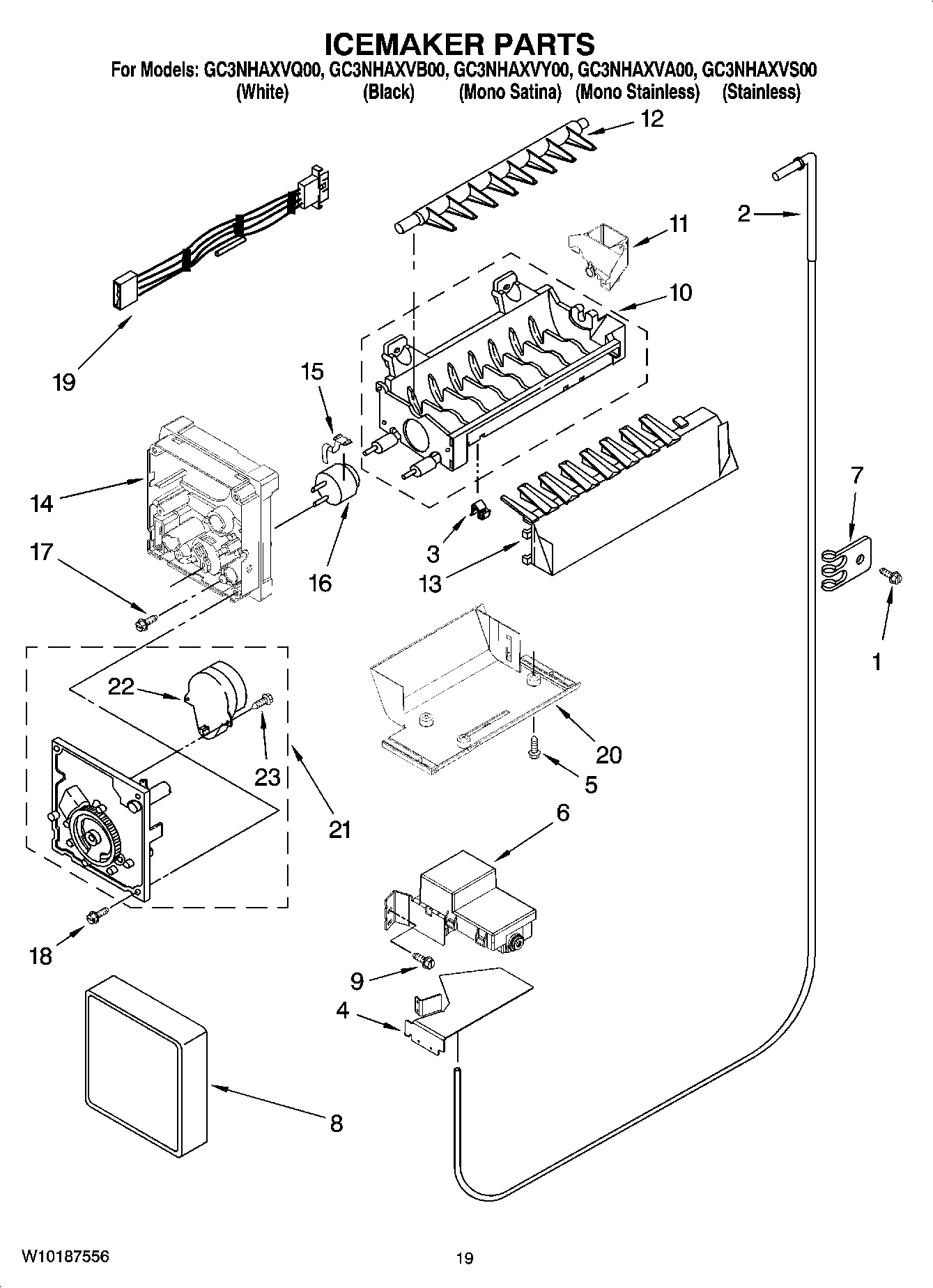

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Handle WPL 2203029 Contact Us For Availability

Door Bin (2) WPL 2223239K Contact Us For Availability

Overlay, Front Control (Not Available, Order WPL ARI59597A2 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

LED Assembly WPL ARI59598A5 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2224173 Whirlpool Refrigerator Cantilever B Backorder WPL WP2224173 $47.93

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Front Cover, Housing (Not Available, Order 20 WPL ARI59599A1 Contact Us For Availability

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP2305382 Whirlpool Refrigerator Washer In Stock WPL WP2305382 $4.19

Tube, Extension WPL 2254566 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Tray, Housing (Black) WPL 2305408B Contact Us For Availability

Tray, Housing (Nickel One) WPL 2305408NO Contact Us For Availability

Tray, Housing (White) WPL 2305408W Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

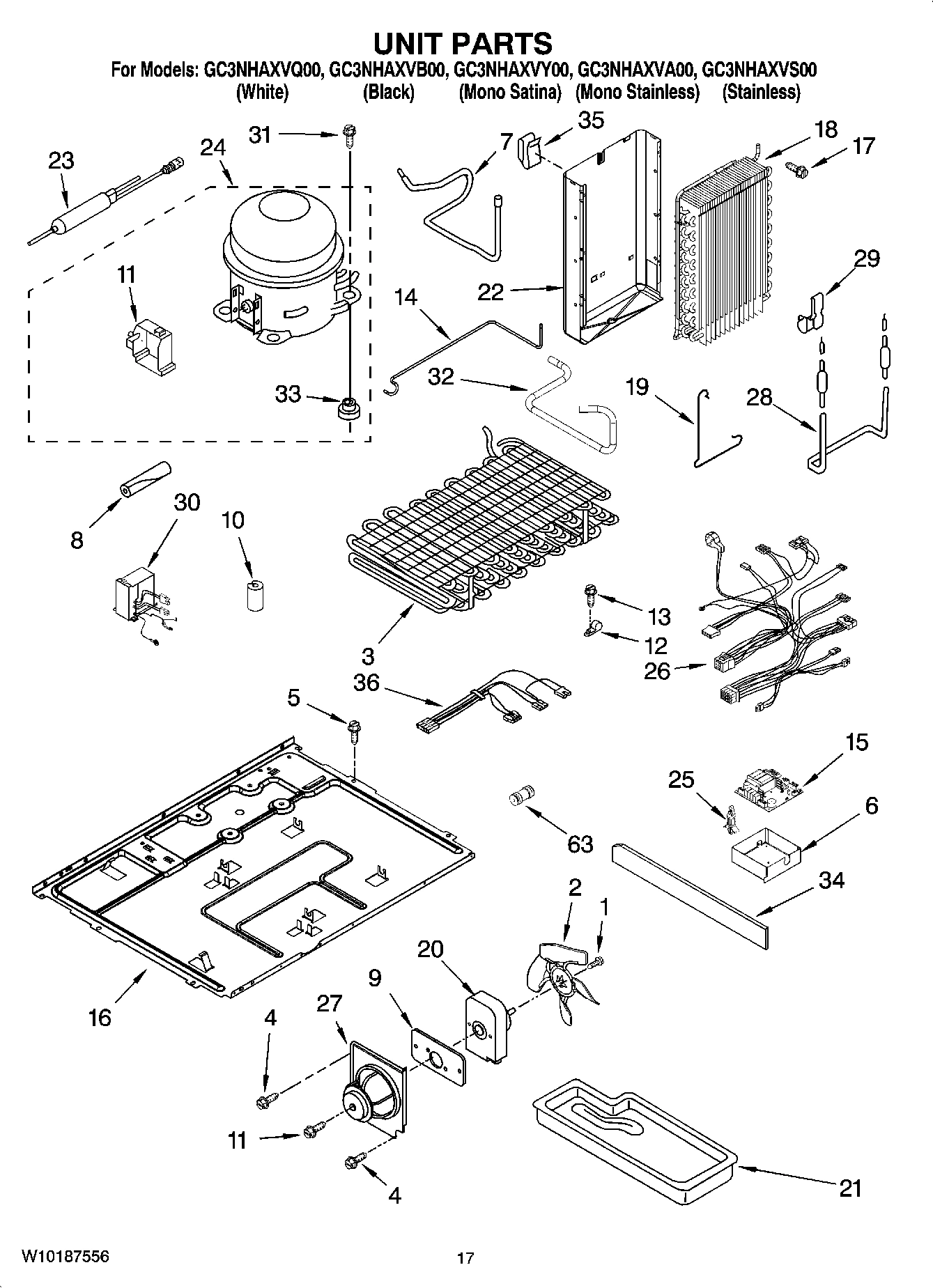

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Light Lens WPL 2223663 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Front Cover Assembly (Includes Items 14, 15, WPL 2317715B Contact Us For Availability

Front Cover Assembly (Includes Items 14, 15, WPL W10168543 Contact Us For Availability

Front Cover Assembly (Includes Items 14, 15, WPL W10173643 Contact Us For Availability

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

Nameplate WPL 2220214 Contact Us For Availability

Cover, Unit WPL 2223409 Contact Us For Availability

Wire Assembly, User Interface (Includes 10) WPL 2187814 Contact Us For Availability

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $7.78

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.02

Wire Assembly, IDI Motor WPL 2187813 Contact Us For Availability

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

23

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

23

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

23

Holder WPL 2212369 Contact Us For Availability

24

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

25

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

25

Hinge Assembly, Bottom-FC WPL 2307152 Contact Us For Availability

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP2310122 Whirlpool Refrigerator Wire Harness Backorder WPL WP2310122 $150.75

27

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

27

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $92.73

Heater, Defrost WPL 2323199 Contact Us For Availability

29

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $121.47

29

Door Closer, FC WPL 2307051 Contact Us For Availability

30

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

30

Bracket, Motor WPL 2305208 Contact Us For Availability

31

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

32

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

32

Tube, Discharge WPL 2223352 Contact Us For Availability

33

4388295 Whirlpool Refrigerator Mounting Kit Backorder WPL 4388295 $75.04

33

Door Closer (RC) WPL 2307049 Contact Us For Availability

35

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

36

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $14.90

37

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

63

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $9.90
