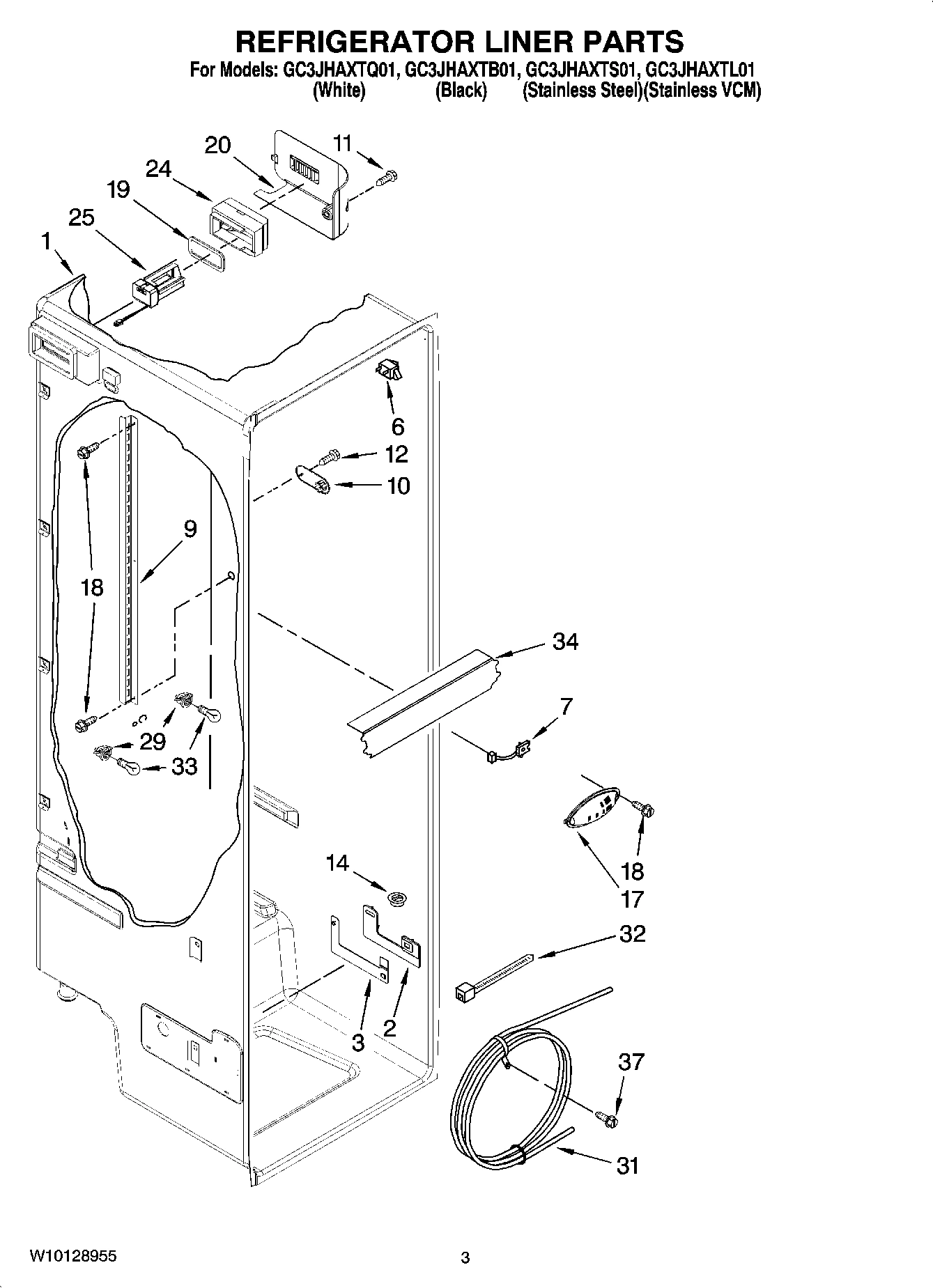

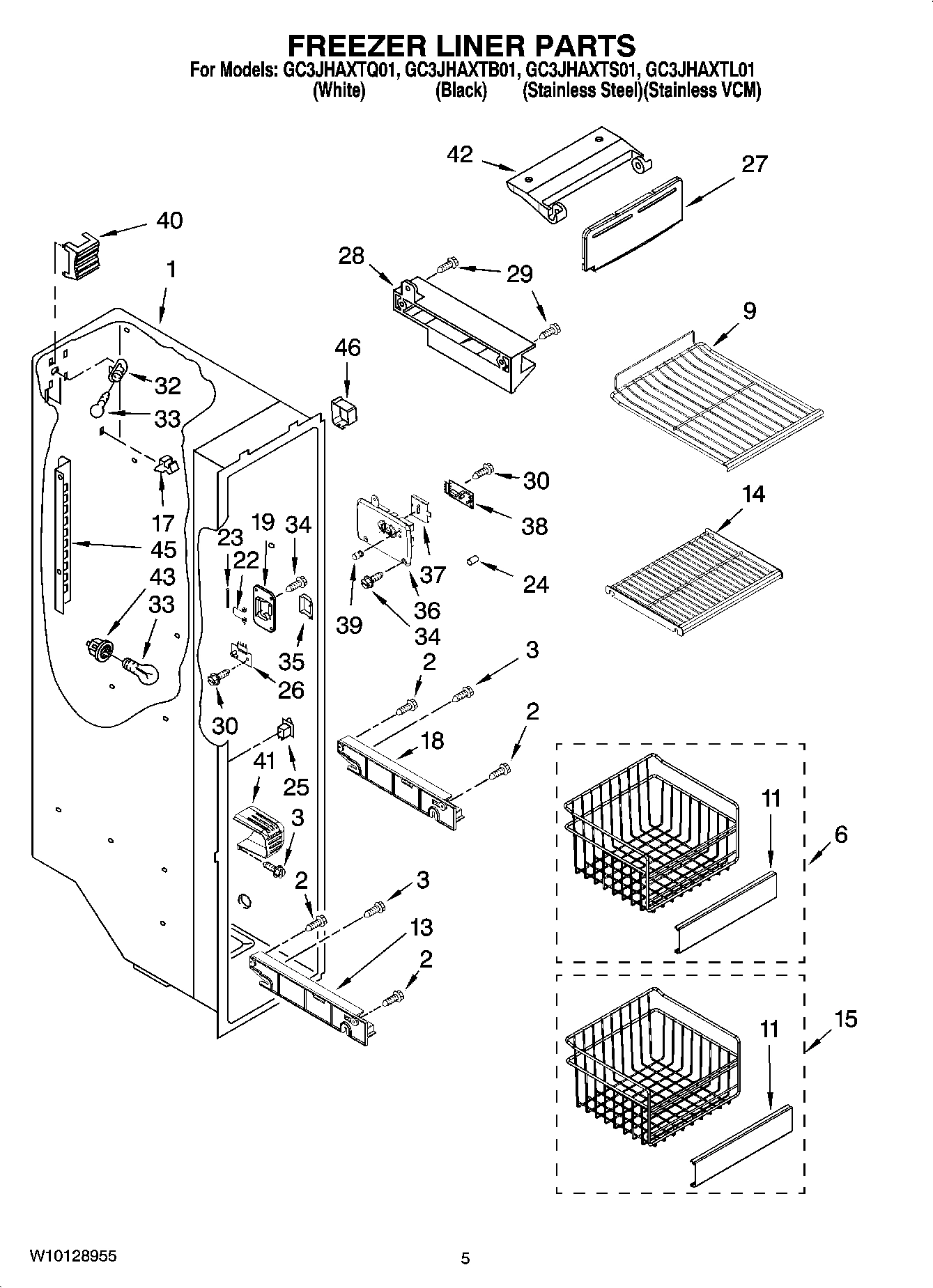

Model Whirlpool GC3JHAXTQ01 REFRIGERATOR – Common Parts &amp; Diagrams

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $271.15

1

Ice Bin WPL 2223317 Contact Us For Availability

1

Control Box (Includes 6) WPL 2319752 Contact Us For Availability

1

Refrigerator Door (Includes 7) (White) WPL W10120254 Contact Us For Availability

1

Refrigerator Door (Includes 7) (Black) WPL W10120255 Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2327677B Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2327677LG Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2327677SB Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL 2327677W Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $37.55

2

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $108.69

2

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $148.33

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

2

Trim, Shelf WPL 2203087K Contact Us For Availability

2

Handle (Includes 6) (Stainless) WPL 2254600S Contact Us For Availability

2

Button, Humidity WPL 2223309 Contact Us For Availability

3

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $28.80

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $57.58

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Trim, Control Box WPL 2306952 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

4

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

4

Washer WPL 2258220 Contact Us For Availability

4

Door Bin (3) WPL 2304952K Contact Us For Availability

4

Spring, Torsion WPL 2223512 Contact Us For Availability

5

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $37.22

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10270150 Whirlpool Crisper Drawer Cover Backorder WPL WPW10270150 $211.76

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

Control Board Asm WPL 2307037 Contact Us For Availability

6

Cover, Crusher WPL 2317248 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

6

Snack Pan WPL 2223261 Contact Us For Availability

7

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $31.93

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

7

WP2315548 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315548 $86.39

7

Door Gasket, Magnetic (Mist) WPL 2223841 Contact Us For Availability

7

Door Gasket, Magnetic (Black) WPL 2223911 Contact Us For Availability

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $31.71

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Door Gasket, Magnetic (Mist) WPL 2223850 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 2223912 Contact Us For Availability

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $15.96

9

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $7.80

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2 & 3) WPL 2223307 Contact Us For Availability

9

Ladder, Shelf (2) WPL 2319866 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $52.72

WP2223591 Whirlpool Refrigerator Glass Shelf Backorder WPL WP2223591 $124.94

WP2223879 Whirlpool Refrigerator Compressor D Backorder WPL WP2223879 $54.88

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

Plate, Mounting WPL 2301979 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

Hinge Assembly, Bottom-RC WPL 2307179 Contact Us For Availability

Door Closer Upper Cam (For SS Model) WPL 2307048 Contact Us For Availability

13

Eyelet, Roller WPL 2174478 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Door Closer, Upper Cam WPL 2307050 Contact Us For Availability

Roller WPL 2188212 Contact Us For Availability

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

15

Safety Barrier WPL 2304895 Contact Us For Availability

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $44.38

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $145.34

Door Bin (2) WPL 2223239K Contact Us For Availability

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $32.79

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $13.10

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.51

Meat Pan (Includes 13, 14, 19 & 22) WPL 2223526 Contact Us For Availability

18

W10235943 Whirlpool Refrigerator CANT Shelf Backorder WPL W10235943 $143.49

18

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

18

WP2224173 Whirlpool Refrigerator Cantilever B In Stock WPL WP2224173 $45.64

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $5.97

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Cover, Emitter WPL 2259487 Contact Us For Availability

Tube, Extension WPL 2254566 Contact Us For Availability

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

20

2223487 Whirlpool Refrigerator Deflector Backorder WPL 2223487 $31.66

20

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Nameplate WPL 2220214 Contact Us For Availability

21

Cover, Unit WPL 2223409 Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Handle WPL 2203029 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp WPL 2161324 Contact Us For Availability

24

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

24

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

24

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $28.80

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $173.69

Hinge Assembly, Bottom-FC WPL 2307152 Contact Us For Availability

26

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

29

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

29

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

29

Door Closer, FC WPL 2307051 Contact Us For Availability

30

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

30

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

31

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $63.40

33

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Door Closer (RC) WPL 2307049 Contact Us For Availability

34

Light Lens WPL 2223663 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

43

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

45

2187737 Whirlpool Refrigerator Wire Harness Backorder WPL 2187737 $54.34

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79
