Model Whirlpool GB2SHTXTB00 REFRIGERATOR – Common Parts &amp; Diagrams

1

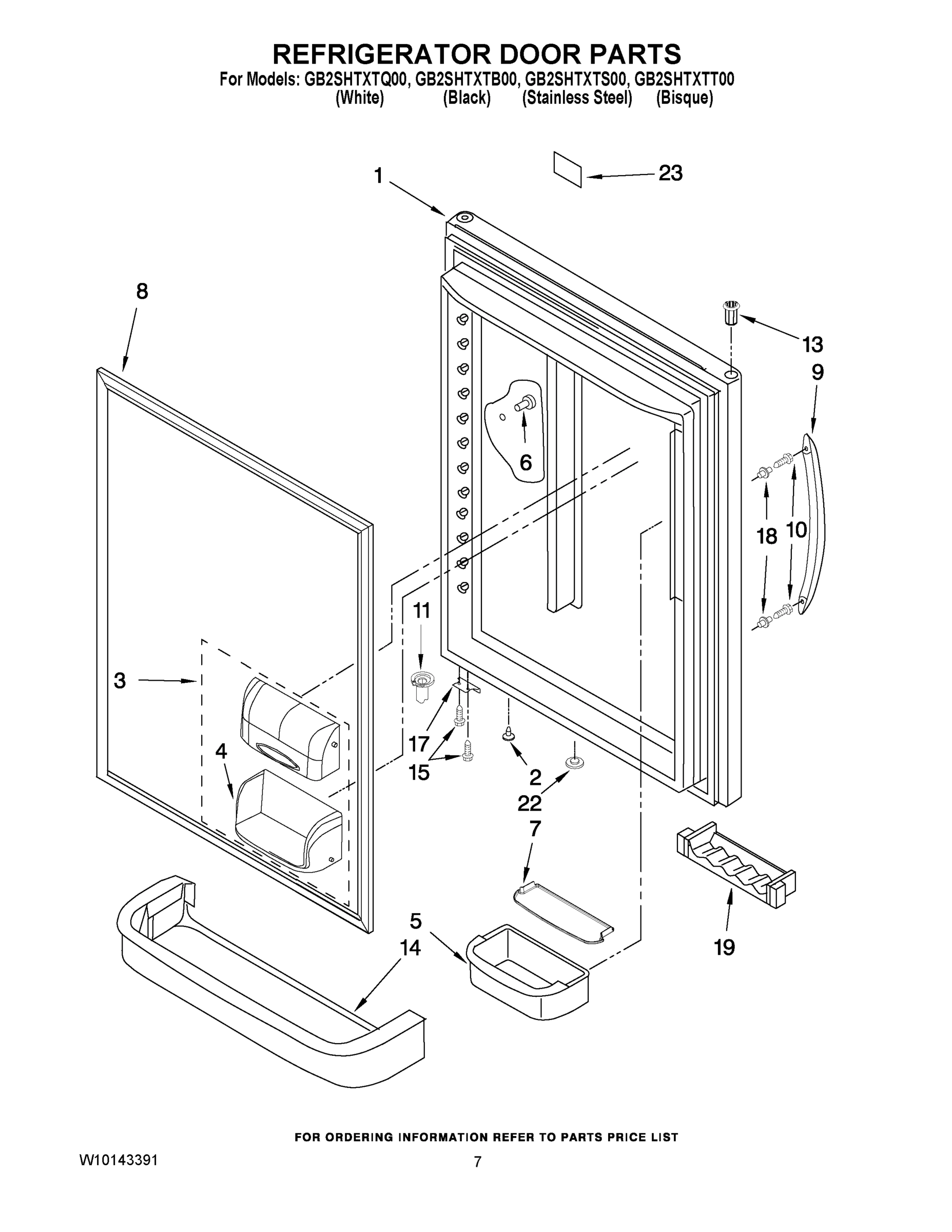

REFRIGERATOR DOOR (W/ INSULATION) (STAINLESS) WPL 12658566S Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (Bisque) WPL 67004776 Contact Us For Availability

1

Refrigerator Door (w/ Insulation) (White) WPL 67004777 Contact Us For Availability

1

Owners Manual WPL 12828178 Contact Us For Availability

1

Energy Tag WPL 12863067 Contact Us For Availability

1

Tech Sheet WPL 67004282 Contact Us For Availability

1

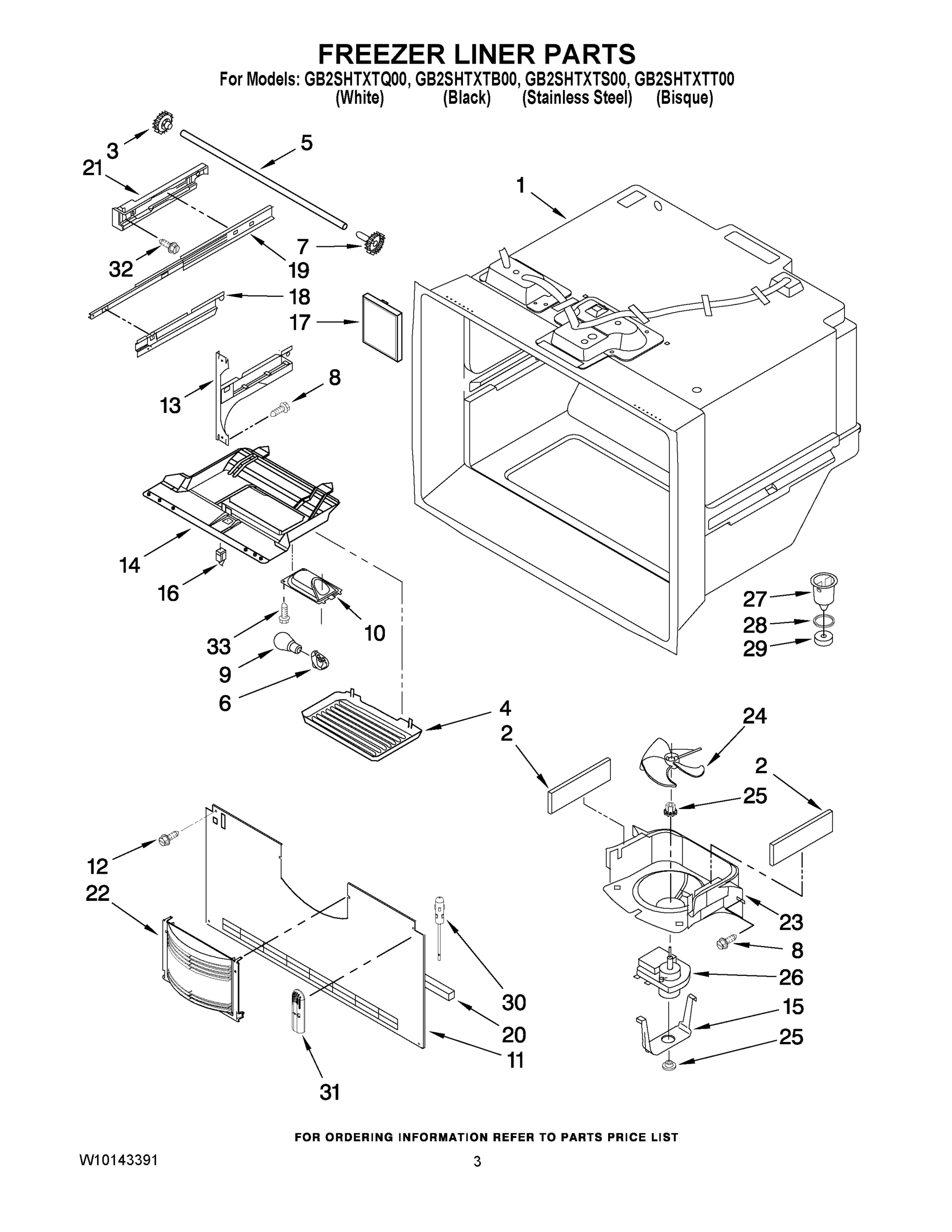

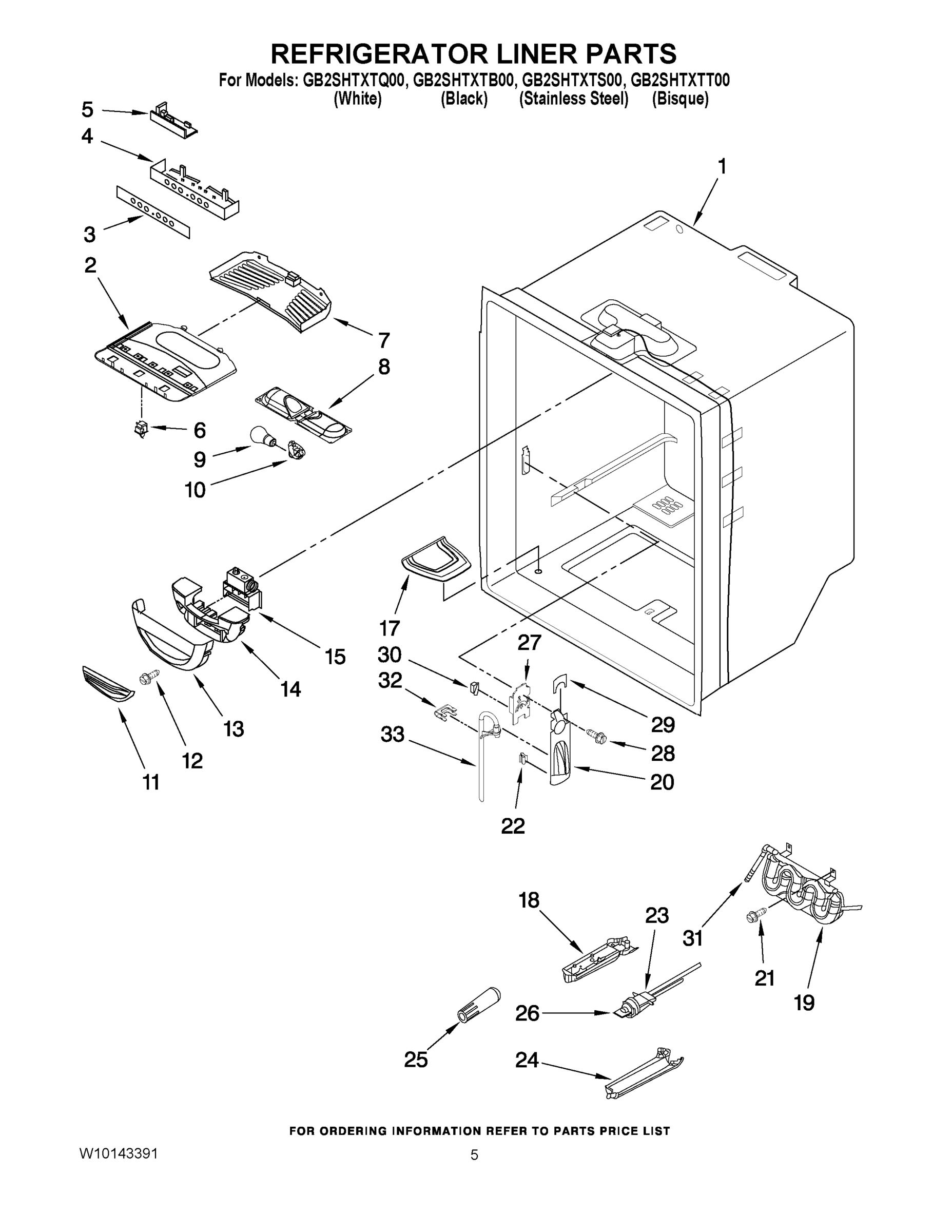

Liner (Not A Seviceable Part) WPL ARI147529A Contact Us For Availability

1

Ladder, Side WPL 67001317 Contact Us For Availability

1

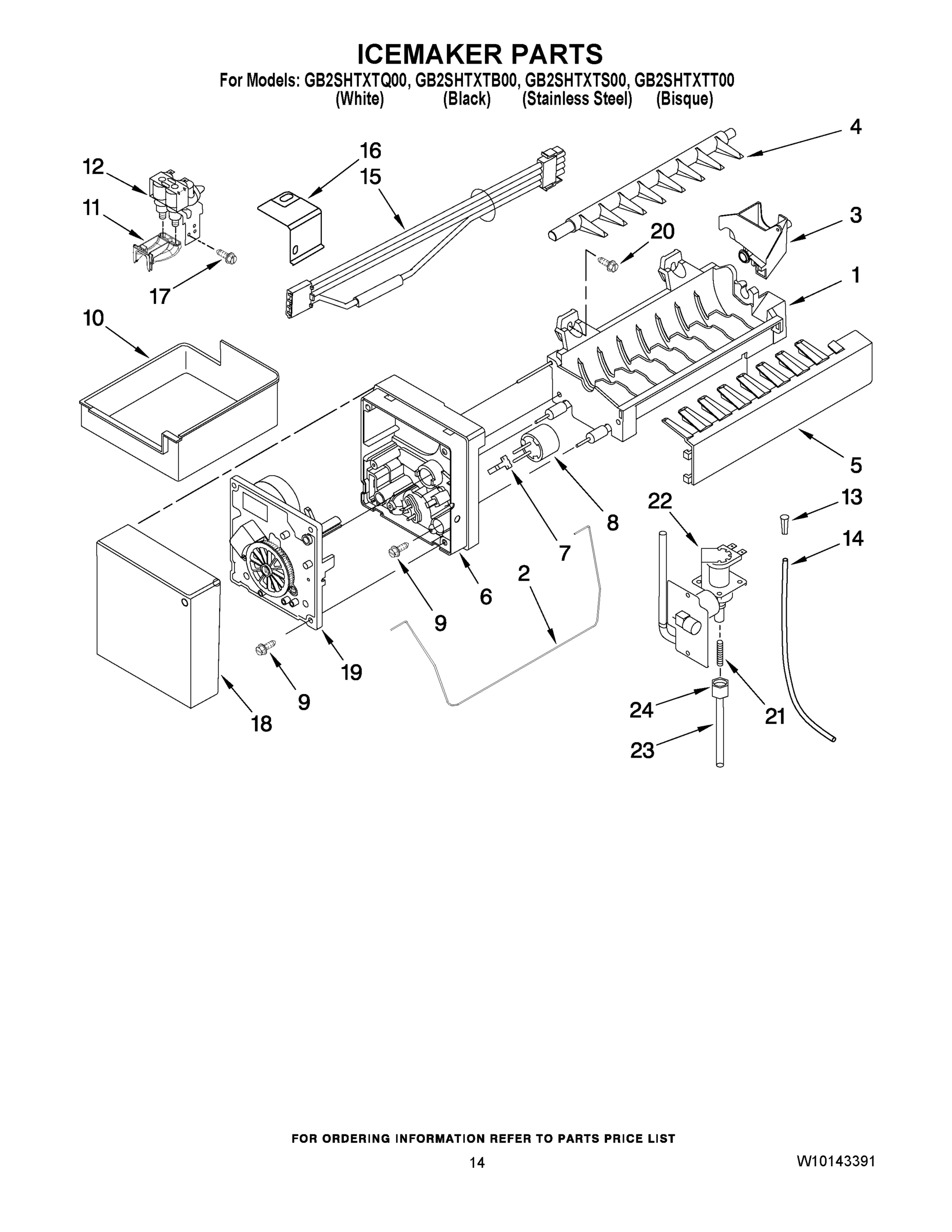

MOLD & HEATER (NOT AVAILABLE, ORDER D7824706Q WPL ARI147533A Contact Us For Availability

2

W10156818 Whirlpool Refrigerator Fan Blade In Stock WPL W10156818 $50.17

2

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

2

WP67004028 Whirlpool Refrigerator Shut-Off Ar In Stock WPL WP67004028 $33.03

2

Handle (Stainless Steel) WPL 2319727S Contact Us For Availability

2

Handle (Black) WPL 2319727B Contact Us For Availability

2

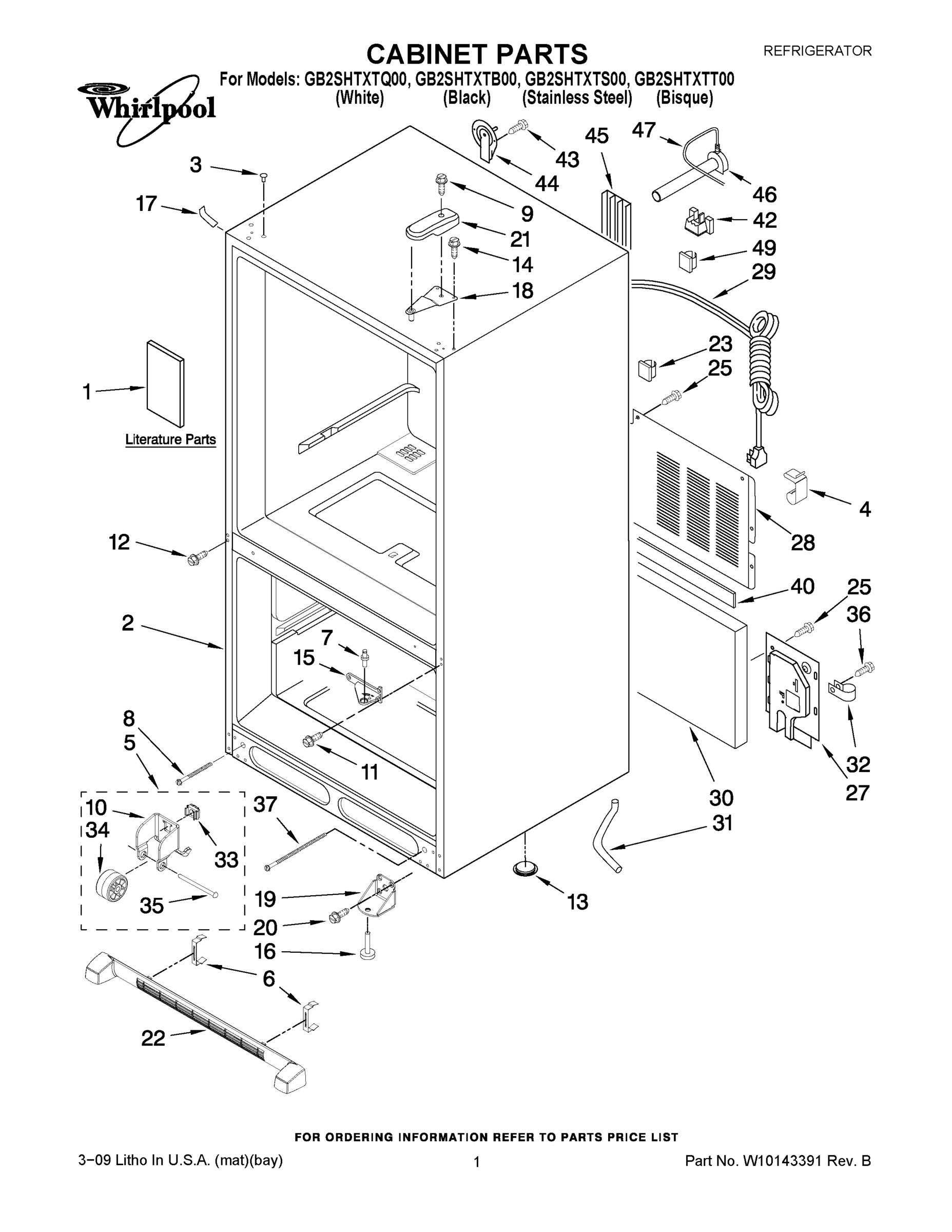

Cabinet (Not A Servicable Part) WPL ARI147528A Contact Us For Availability

3

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $29.57

3

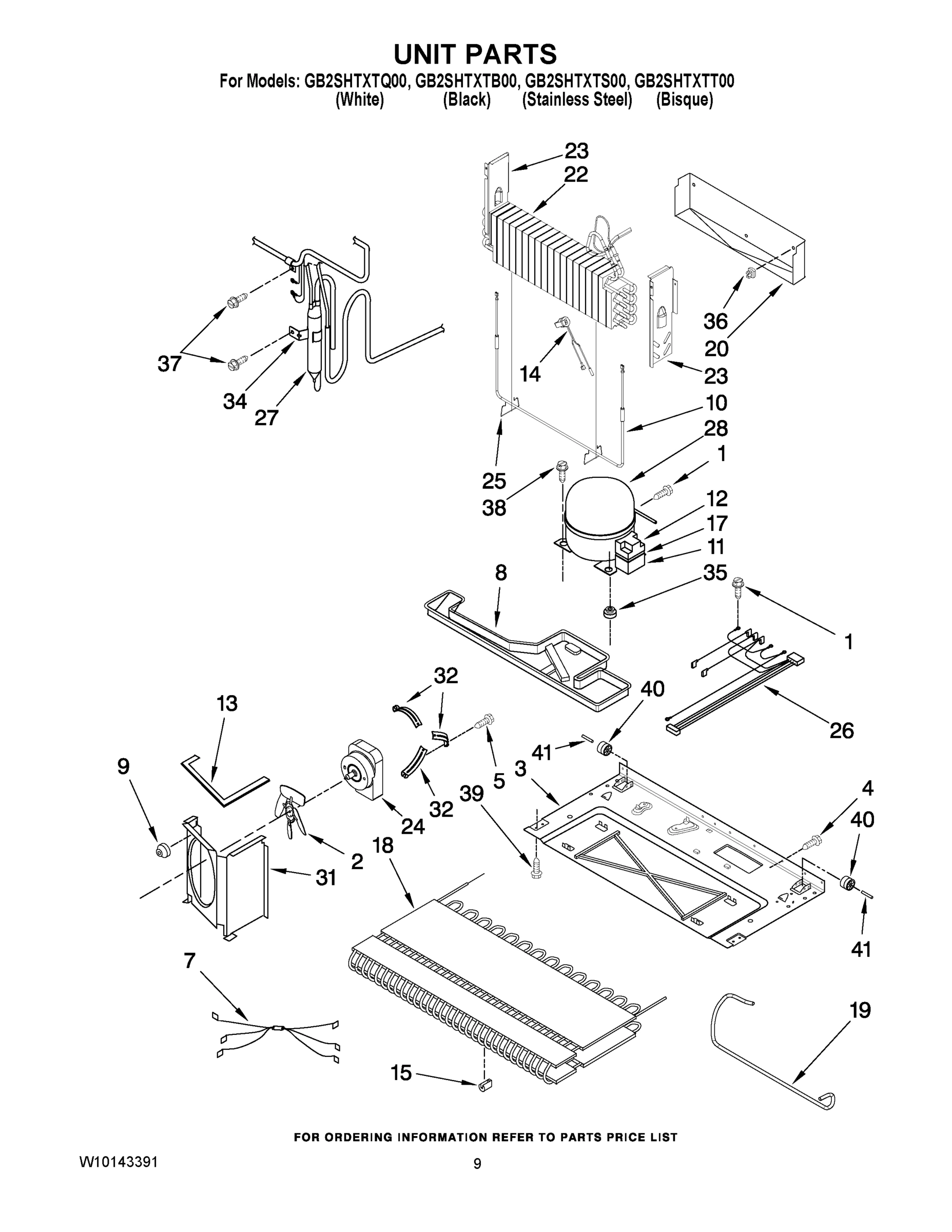

WP12744905 Whirlpool Refrigerator Compressor Backorder WPL WP12744905 $55.71

3

WP67001130 Whirlpool Refrigerator White Butto In Stock WPL WP67001130 $3.70

3

Basepan WPL 67005744 Contact Us For Availability

3

PLUG, BUTTON (3) (BISCUIT) WPL M0310738 Contact Us For Availability

3

Cup, Fill WPL 951001 Contact Us For Availability

4

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $13.89

4

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.00

4

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

4

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $48.97

4

Cover, Light WPL 67003905 Contact Us For Availability

4

Ejector WPL 951011 Contact Us For Availability

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $39.80

5

WP67004954 Whirlpool Refrigerator Screw Backorder WPL WP67004954 $2.51

5

WPW10371194 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10371194 $43.30

5

Roller Assembly WPL 67002227 Contact Us For Availability

5

Handle WPL 10508506 Contact Us For Availability

5

Ice Stripper WPL 951021 Contact Us For Availability

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

6

WP12246608 Whirlpool Refrigerator Button In Stock WPL WP12246608 $3.70

6

Clip, Grille WPL 12627302 Contact Us For Availability

6

Shelf, Fixed (3) WPL 12463302 Contact Us For Availability

6

Support & Motor Assembly WPL 951031 Contact Us For Availability

7

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

WP67006878 Whirlpool Refrigerator Crisper Gla In Stock WPL WP67006878 $127.63

7

Harness, Evap Heater WPL 12870501 Contact Us For Availability

7

Mat (Gripper) WPL 67003212 Contact Us For Availability

7

Retainer, Thermostat WPL 951041 Contact Us For Availability

8

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $4.85

8

W10443313 Whirlpool Door Gasket In Stock WPL W10443313 $126.29

8

WP12579803 Whirlpool Refrigerator Drain Pan Backorder WPL WP12579803 $160.13

8

WP33001882 Whirlpool Screw In Stock WPL WP33001882 $27.52

8

WPW10436248 Whirlpool Door Gasket In Stock WPL WPW10436248 $141.28

8

WPW10568041 Whirlpool Refrigerator Crisper Sh In Stock WPL WPW10568041 $80.04

8

Thermostat (Not Available Order D7824706Q) WPL ARI147534A Contact Us For Availability

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.89

9

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

9

Stud, Handle WPL 67004790 Contact Us For Availability

9

Grommet (3) WPL 61004743 Contact Us For Availability

9

Door Handle (White) WPL 2319727W Contact Us For Availability

9

DOOR HANDLE (BISQUE) WPL 2319729T Contact Us For Availability

9

Screw (4) WPL 951061 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $31.38

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.64

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $86.21

WP67001794 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67001794 $77.65

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.70

Housing, Frz. Light WPL 67001035 Contact Us For Availability

12831101 Whirlpool Refrigerator Tube Clamp Backorder WPL 12831101 $7.69

67003781 Whirlpool Refrigerator Door Stop (BS Backorder WPL 67003781 $35.30

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $109.42

WP67003638 Whirlpool Closing Cam In Stock WPL WP67003638 $3.70

WP67003639 Whirlpool Refrigerator Closer In Stock WPL WP67003639 $42.09

WP67006380 Whirlpool Screw Backorder WPL WP67006380 $2.51

CAPACITOR (SEE ITEM No.12) WPL ARI147531A Contact Us For Availability

12

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

12

W10613606 Whirlpool Refrigerator Start Device In Stock WPL W10613606 $36.61

12

WP67006531 Whirlpool Water Inlet Valve In Stock WPL WP67006531 $119.26

67004978 Whirlpool Refrigerator Black Door Bu Backorder WPL 67004978 $10.76

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.53

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $44.45

WP67004977 Whirlpool Refrigerator Door Hinge Backorder WPL WP67004977 $3.70

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.71

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

Bracket, Door (Left) WPL 67004012 Contact Us For Availability

Bracket, Door (Right) WPL 67004013 Contact Us For Availability

67003906 Whirlpool Refrigerator Control Modul Backorder WPL 67003906 $51.55

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

WP67003426 Whirlpool Refrigerator Thermostat In Stock WPL WP67003426 $35.72

WPB5705307 Whirlpool Refrigerator Tube In Stock WPL WPB5705307 $7.39

WPW10231482 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231482 $42.88

Trim, Door Shelf WPL 67001748 Contact Us For Availability

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $10.76

W11689473 Whirlpool Door Hinge Backorder WPL W11689473 $26.41

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $49.87

WP67002633 Whirlpool Crisper Pan In Stock WPL WP67002633 $95.97

WP67003903 Whirlpool Refrigerator Damper Cont In Stock WPL WP67003903 $102.84

WP67005633 Whirlpool Refrigerator Bracket Backorder WPL WP67005633 $3.70

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

W11177593 Whirlpool Leveling Feet In Stock WPL W11177593 $7.08

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

Basket, Freezer (Upper) WPL 67001075 Contact Us For Availability

Bracket WPL 951071 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

67003484 Whirlpool Refrigerator White Corner Backorder WPL 67003484 $10.25

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $10.76

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.07

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP67001098 Whirlpool Refrigerator Tube Cover Backorder WPL WP67001098 $3.70

WP67001716 Whirlpool Refrigerator Shelf Suppo In Stock WPL WP67001716 $8.60

Clip, Capacitor WPL 67007052 Contact Us For Availability

Cover, Corner (Bisque) WPL 67003486 Contact Us For Availability

WP12566606ED Whirlpool Refrigerator Door Hing Backorder WPL WP12566606ED $16.98

WP67006132 Whirlpool Refrigerator Condenser Backorder WPL WP67006132 $138.54

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Bracket, Basket (Left) WPL 67004864 Contact Us For Availability

Bracket, Basket (Right) WPL 67004865 Contact Us For Availability

Divider, Upper Basket WPL 67001078 Contact Us For Availability

WP67005626 Whirlpool Refrigerator Can Caddy Backorder WPL WP67005626 $45.48

Tube, Discharge WPL 67004262 Contact Us For Availability

Bracket, Foot WPL 67007174 Contact Us For Availability

Slide, Drawer (2) WPL 67006607 Contact Us For Availability

Screw WPL 67006608 Contact Us For Availability

Module Assembly (Not Available Order D7824706 WPL ARI147535A Contact Us For Availability

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

WPW10292802 Whirlpool Refrigerator Drip Tray In Stock WPL WPW10292802 $69.65

Gasket, Bottom WPL A3189320 Contact Us For Availability

Basket, Freezer (Lower) WPL 67006024 Contact Us For Availability

67001012 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001012 $29.13

67001014 Whirlpool Refrigerator Top Hinge Cov Backorder WPL 67001014 $10.76

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $36.87

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $36.87

Cover, Hinge (Bisque) WPL 67001013 Contact Us For Availability

Divider, Lower Basket WPL 67006644 Contact Us For Availability

SPRING WPL A1055105 Contact Us For Availability

10712401 Whirlpool Refrigerator Vent Plug (Wh Backorder WPL 10712401 $4.50

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $194.96

67004838 Whirlpool Refrigerator Button Vent P Backorder WPL 67004838 $4.72

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP67003753 Whirlpool Refrigerator Inlet Valve In Stock WPL WP67003753 $62.30

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $40.86

WPW10534161 Whirlpool Refrigerator Front Gril Backorder WPL WPW10534161 $50.05

WPW10534162 Whirlpool Refrigerator Front Gril In Stock WPL WPW10534162 $39.08

Grille Assembly (Includes Clips) (Bisque) WPL 67006791 Contact Us For Availability

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

WPW10671238 Whirlpool Drawer Slide Rail In Stock WPL WPW10671238 $41.34

Dam (Left Side) WPL 67001083 Contact Us For Availability

Dam (Right Side) WPL 67001084 Contact Us For Availability

Nameplate WPL 67002684 Contact Us For Availability

Clip, Cord WPL M0104102 Contact Us For Availability

Shroud, Evap.Fan WPL 67001086 Contact Us For Availability

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

24

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

24

Motor, Fan WPL 67004432 Contact Us For Availability

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

25

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

26

67004955 Whirlpool Refrigerator MC Harness Backorder WPL 67004955 $62.03

26

W10656986 Whirlpool Refrigerator Shelf Trim Backorder WPL W10656986 $44.96

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $29.08

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

27

Cover, Water Valve WPL 67004611 Contact Us For Availability

28

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

28

Cover, Unit WPL 12575101ED Contact Us For Availability

29

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $12.55

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

29

Power Cord WPL 67007121 Contact Us For Availability

30

12002355 Whirlpool Refrigerator Thermistor Ki In Stock WPL 12002355 $22.72

30

67003796 Whirlpool Refrigerator Fiber Acousti Backorder WPL 67003796 $10.76

30

W10328327 Whirlpool Refrigerator Snack Pan Backorder WPL W10328327 $79.91

W11402523 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402523 $124.05

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

Shroud WPL 12575305 Contact Us For Availability

Tube, Drain WPL 67001066 Contact Us For Availability

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.41

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.51

WP67004953 Whirlpool Refrigerator Bracket Backorder WPL WP67004953 $30.89

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $28.09

W10709797 Whirlpool Refrigerator Screw Backorder WPL W10709797 $9.59

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $12.77

WP67001721 Whirlpool Refrigerator Support In Stock WPL WP67001721 $3.70

WP67001722 Whirlpool Refrigerator Support Backorder WPL WP67001722 $3.70

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

34

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $3.04

WP67001053 Whirlpool Drawer Glide In Stock WPL WP67001053 $3.88

WP67001054 Whirlpool Left Glide In Stock WPL WP67001054 $3.88

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.70

Pin WPL M1205302 Contact Us For Availability

36

Clip, Evaporator WPL 10623002 Contact Us For Availability

36

Rack, Can WPL 67001289 Contact Us For Availability

37

Bolt, Adjusting (Rear) WPL 67006697 Contact Us For Availability

38

12846902 Whirlpool Refrigerator Screw Backorder WPL 12846902 $9.13

39

Screw WPL 67006573 Contact Us For Availability

40

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

40

Gasket WPL B5759649 Contact Us For Availability

41

67006434 Whirlpool Axle Pin In Stock WPL 67006434 $3.70

42

WP12777701 Whirlpool Refrigerator Filler Bloc Backorder WPL WP12777701 $4.15

44

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

45

Track, Water WPL 67004102 Contact Us For Availability

46

W11181718 Whirlpool Refrigerator Water Tube Backorder WPL W11181718 $45.71

49

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $78.49

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

W11619328 Whirlpool Wire Harness Backorder WPL W11619328 $49.17

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Harness, Damper Control WPL 67005162 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

REFRIGERANT CHARGE 5.00 Ozs. (R-134A) WPL ARI147532A Contact Us For Availability

Harness, Lights (Freezer) WPL 67006095 Contact Us For Availability
