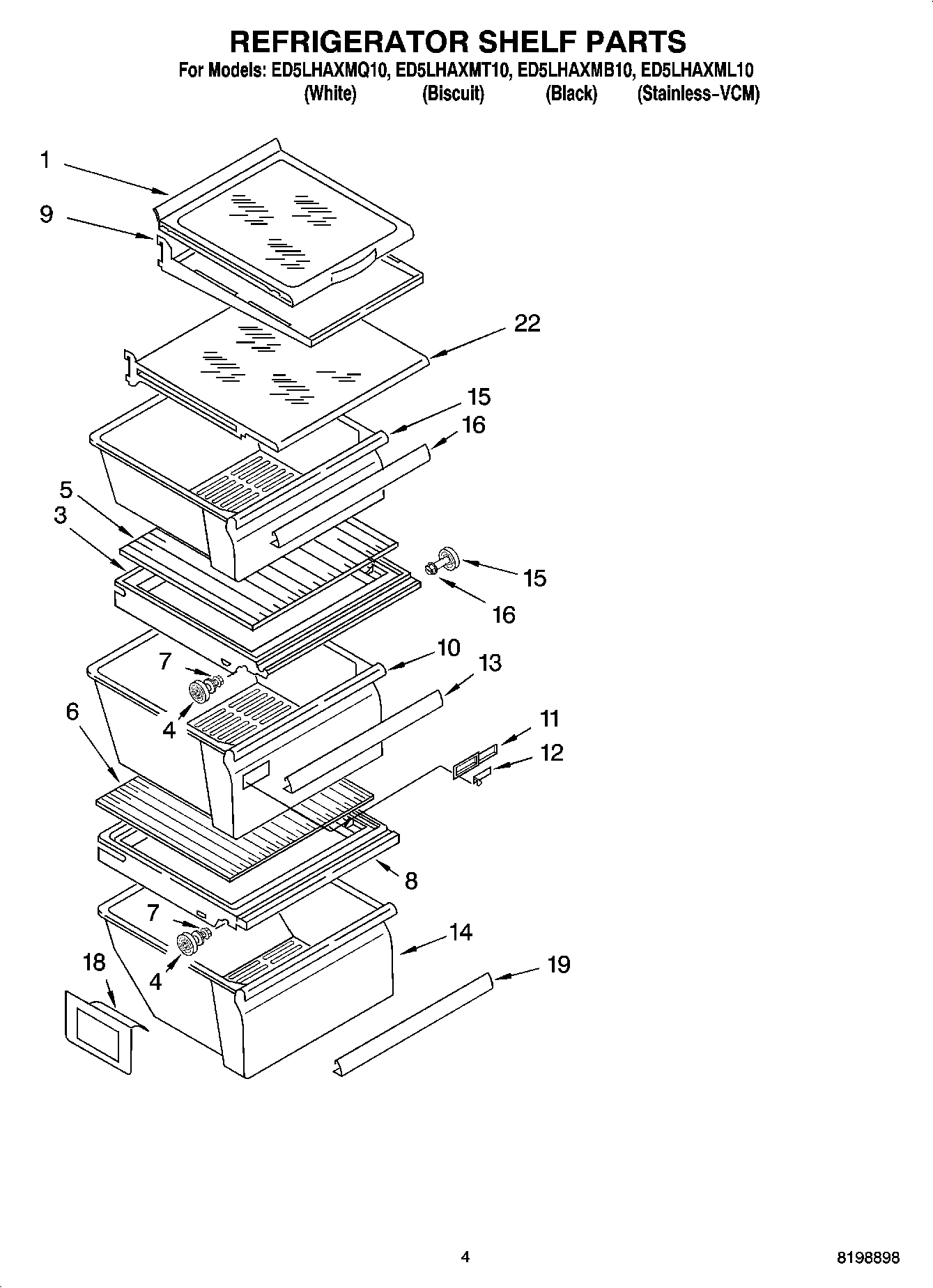

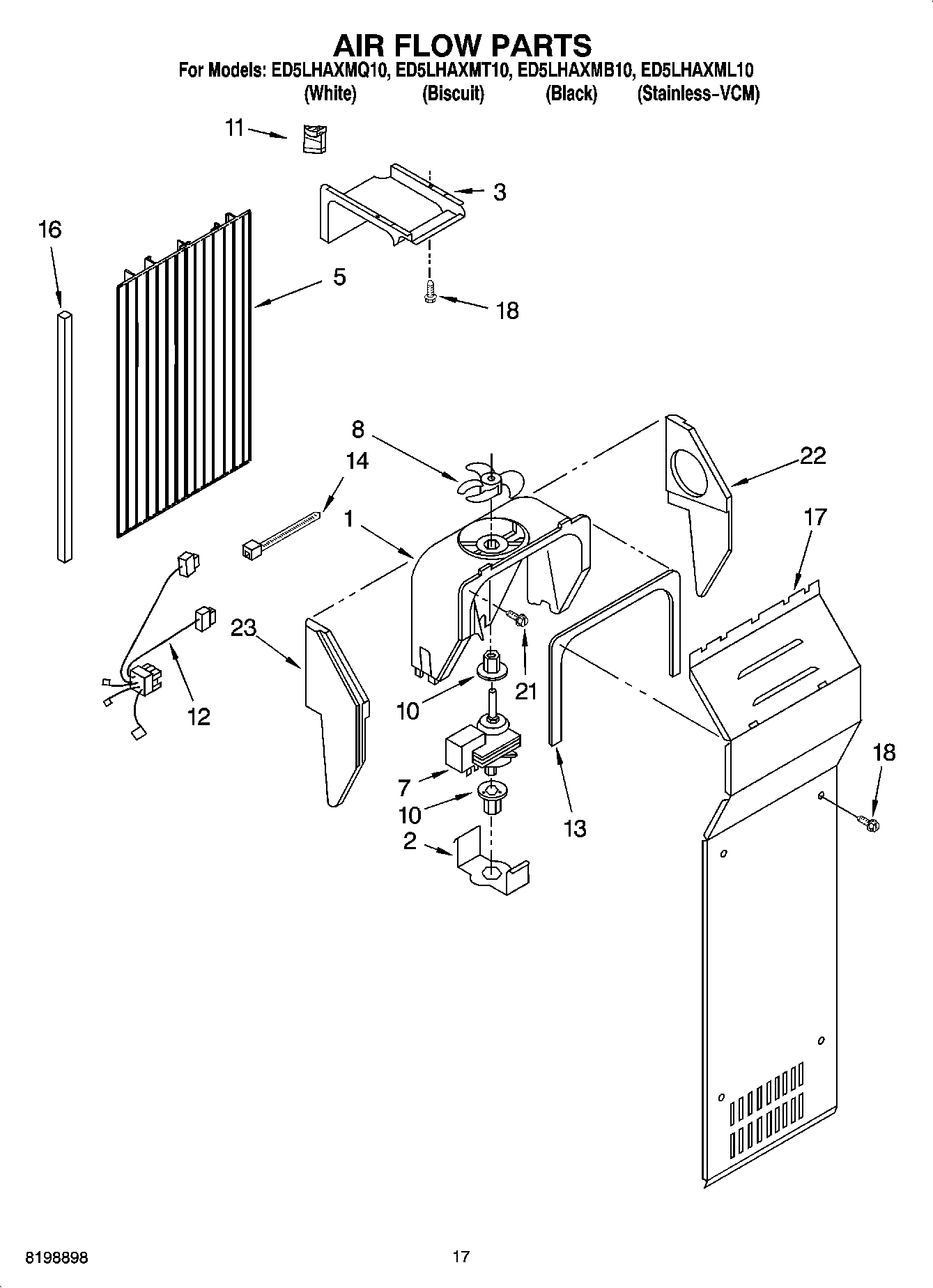

Model Whirlpool ED5LHAXMB10 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $130.88

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261180B Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261180L Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261180T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2261180W Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI36198A3 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI36199A3 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Crusher Bin WPL 2255574 Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

2

Shield, Wiring WPL 2219878 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $46.19

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2198574 Whirlpool Refrigerator Ice Auger In Stock WPL WP2198574 $75.59

3

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $41.05

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

4

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Blade, Stirring WPL 2198603 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $31.93

6

Cover, Crusher WPL 2255460 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Shelf, Wire WPL 2205837 Contact Us For Availability

9

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $36.29

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Blade, Fixed WPL 2198601 Contact Us For Availability

9

Ladder, Shelf WPL 2206273 Contact Us For Availability

9

Trim, Basket WPL 2195905 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

Basket, Square WPL 2223539 Contact Us For Availability

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $53.09

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $59.35

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Basket, Slope WPL 2223535 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

14

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

14

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

TRIVET, TILT-OUT WPL 2223334 Contact Us For Availability

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $50.03

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $53.75

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $35.90

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP2261449 Whirlpool Refrigerator Track Backorder WPL WP2261449 $44.08

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

Slide, Basket (Left Side) WPL 2261448 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.62

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Extension, Top (Black) WPL 2194973B Contact Us For Availability

Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability

19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

19

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $12.96

19

Basket, Tilt Out WPL 2223333 Contact Us For Availability

20

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

20

Box, Control WPL 2255623 Contact Us For Availability

20

Latch, Bin WPL 2212371 Contact Us For Availability

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI36204A3 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Biscuit) WPL 2198468T Contact Us For Availability

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 18, 19, WPL 2261178W Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2261178B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2261178T Contact Us For Availability

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

Light Lens WPL 2212340 Contact Us For Availability

25

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

26

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

27

Knob, FC WPL 2255992 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

30

Track, Basket- Dual (Right Side) WPL 2223708 Contact Us For Availability

30

Track, Basket- Dual (Left Side) WPL 2223709 Contact Us For Availability

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

31

Bracket, Motor WPL 2198655 Contact Us For Availability

31

Shelf, Slide Out Upper WPL 2211746 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $33.80

32

Dispenser, Motor WPL 2198594 Contact Us For Availability

33

WP2198587 Whirlpool Refrigerator Cover In Stock WPL WP2198587 $30.80

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $35.67

33

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Screw WPL 8281162 Contact Us For Availability

34

Light Lens WPL 2209769 Contact Us For Availability

35

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

36

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10856122 Whirlpool Refrigerator Screw In Stock WPL W10856122 $2.51

37

Screw WPL 488280 Contact Us For Availability

38

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

Tube, P.C. Board WPL ARI36200A5 Contact Us For Availability

40

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

41

Cover, Receiver WPL 2255558 Contact Us For Availability

42

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

44

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Light Shield WPL 2198589 Contact Us For Availability

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8` WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
