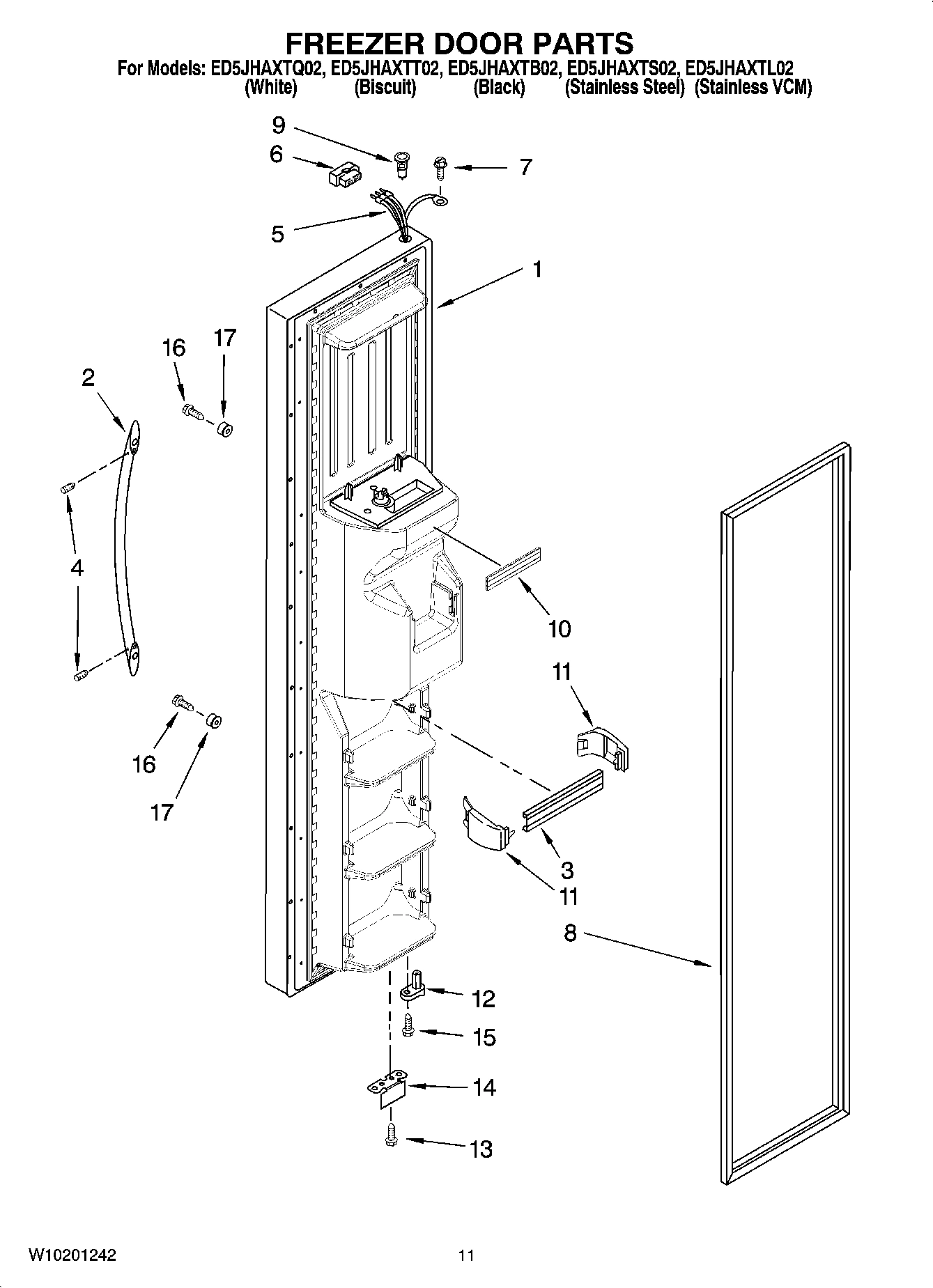

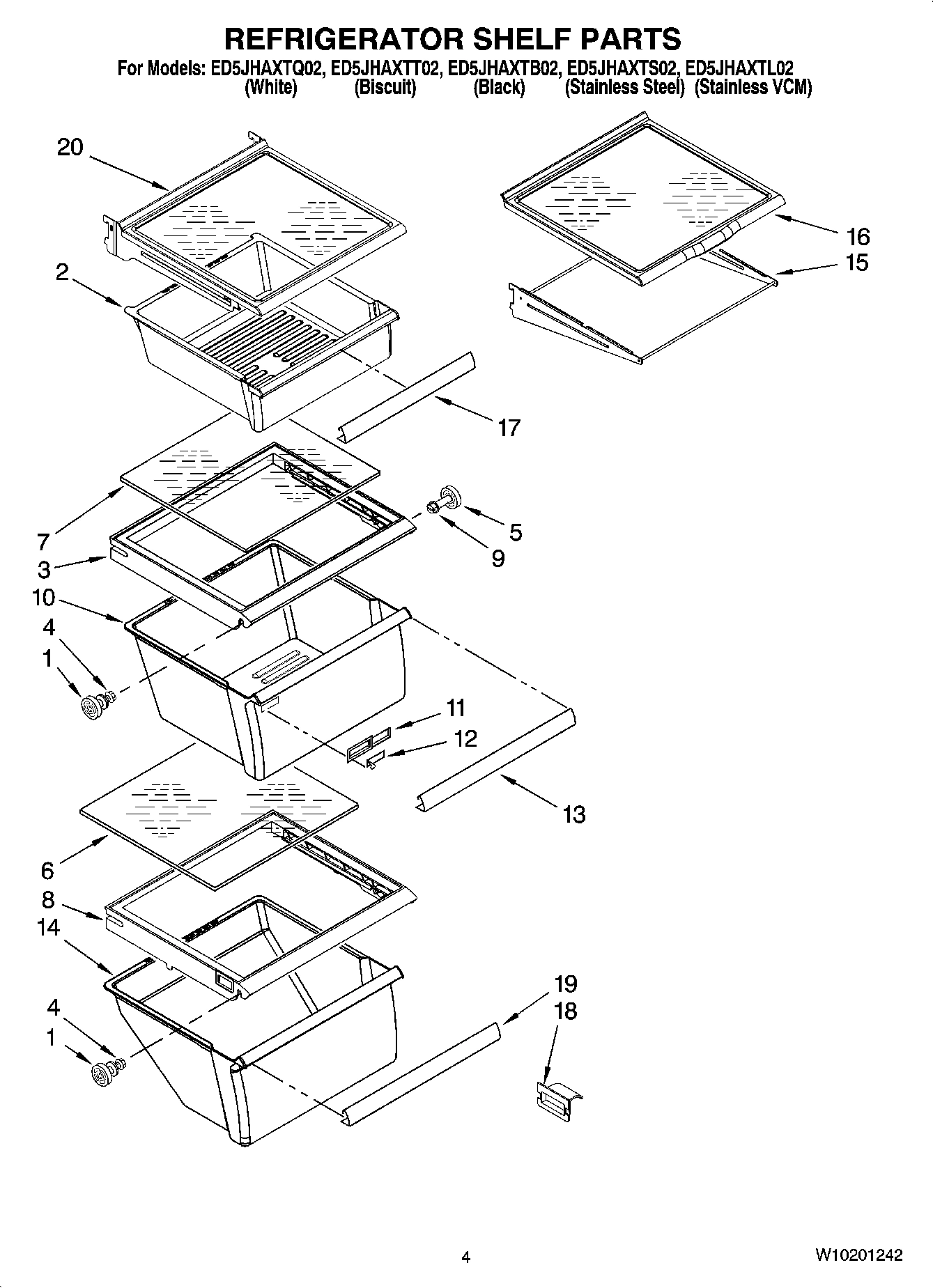

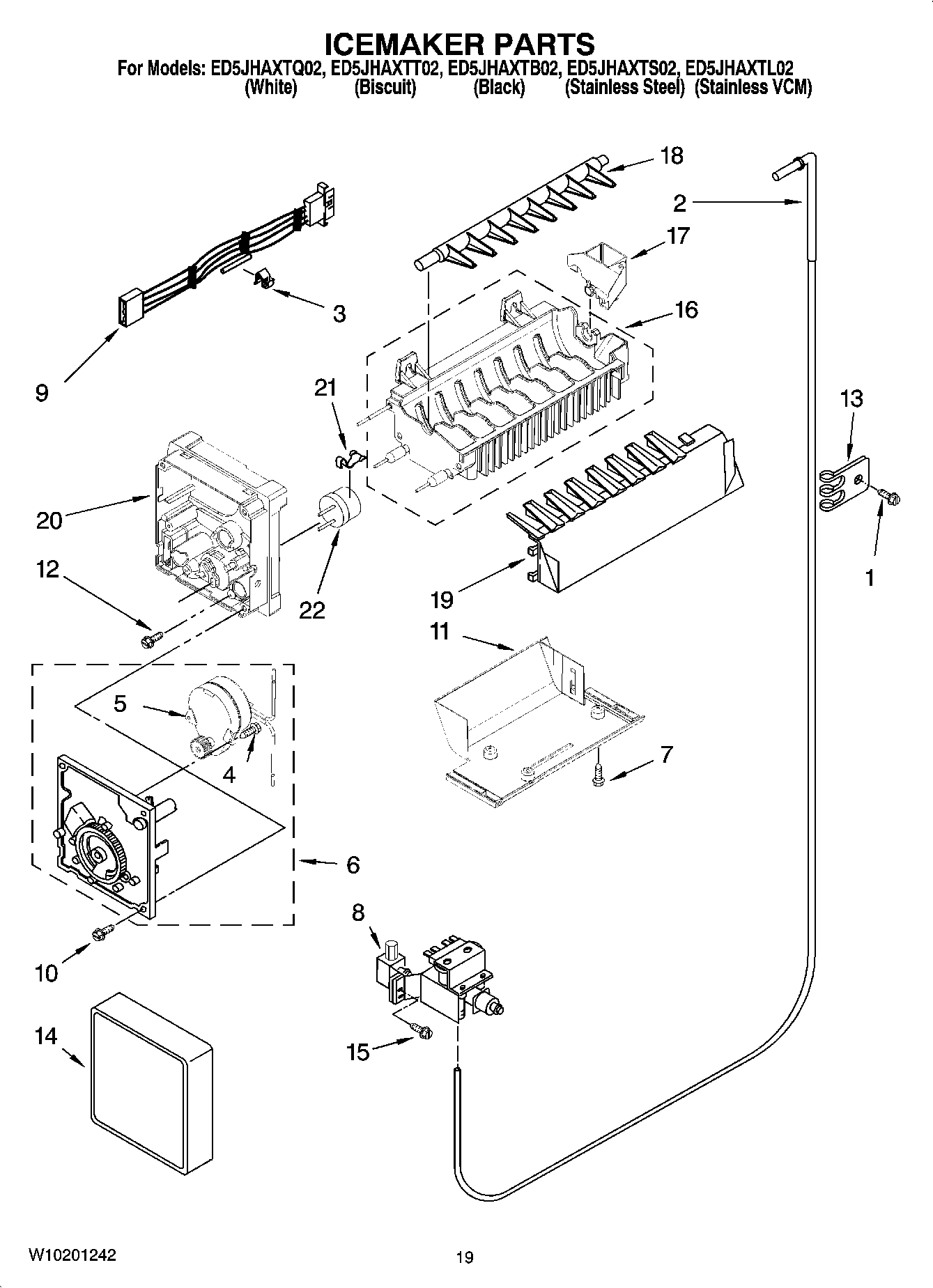

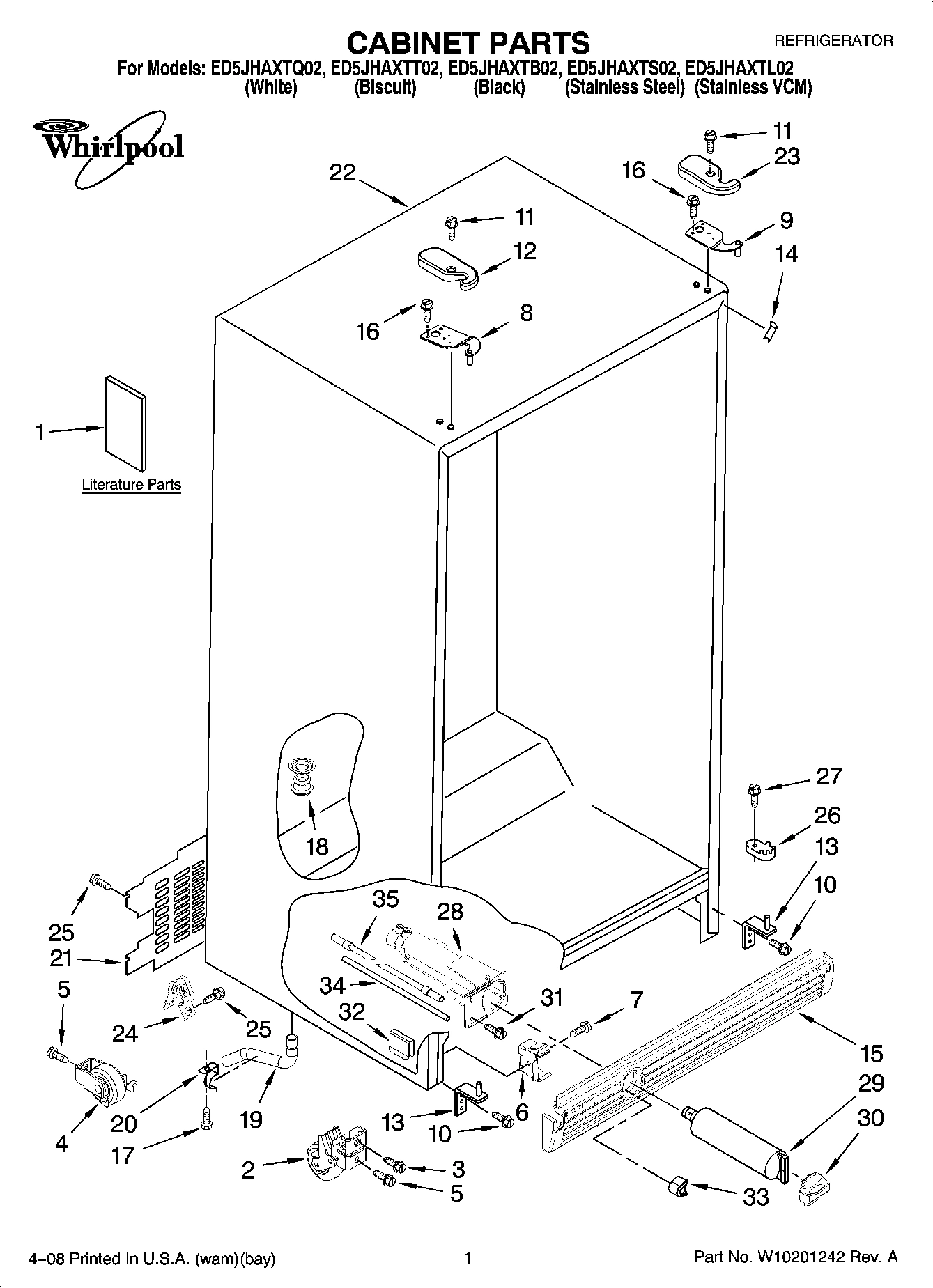

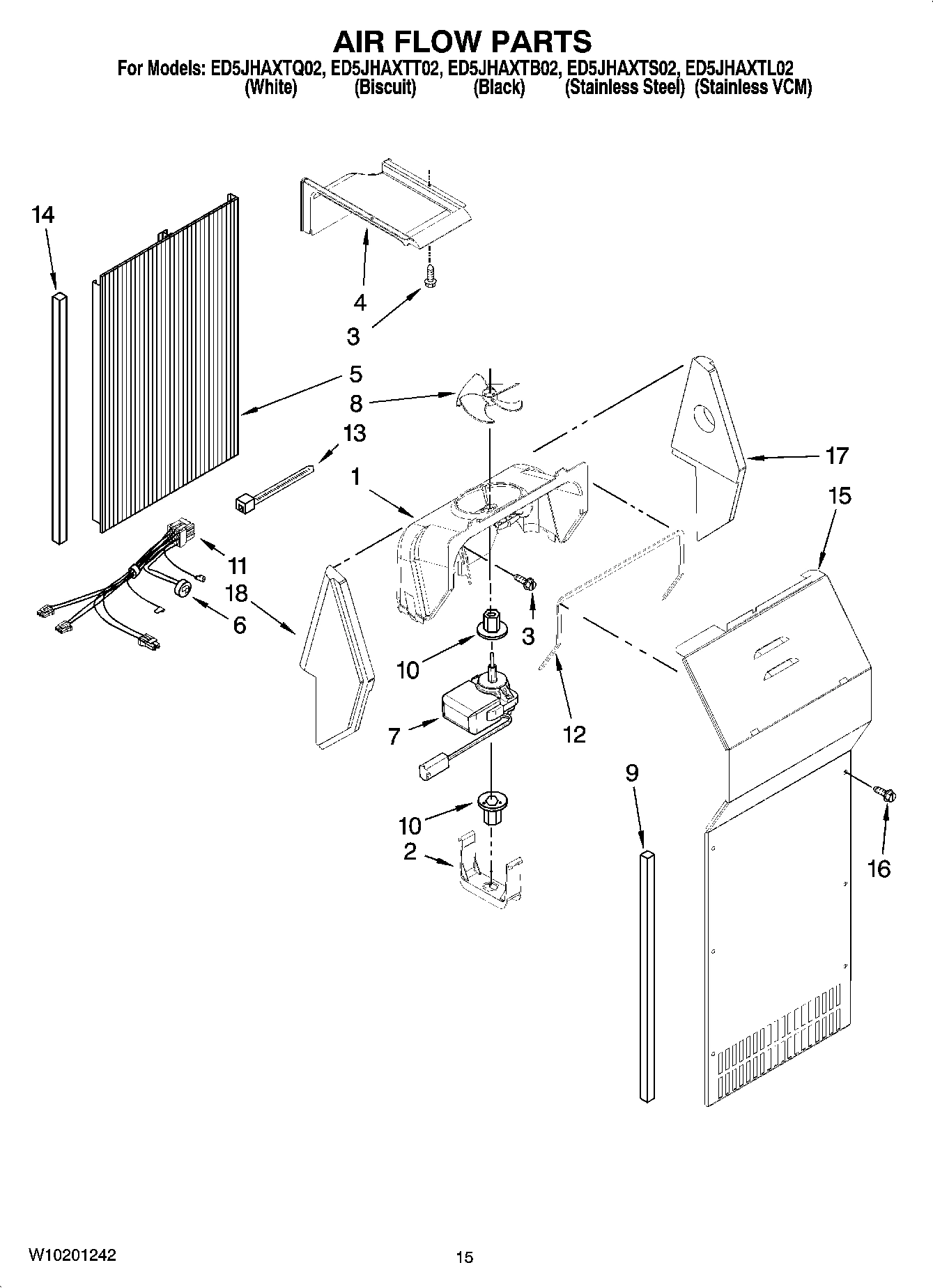

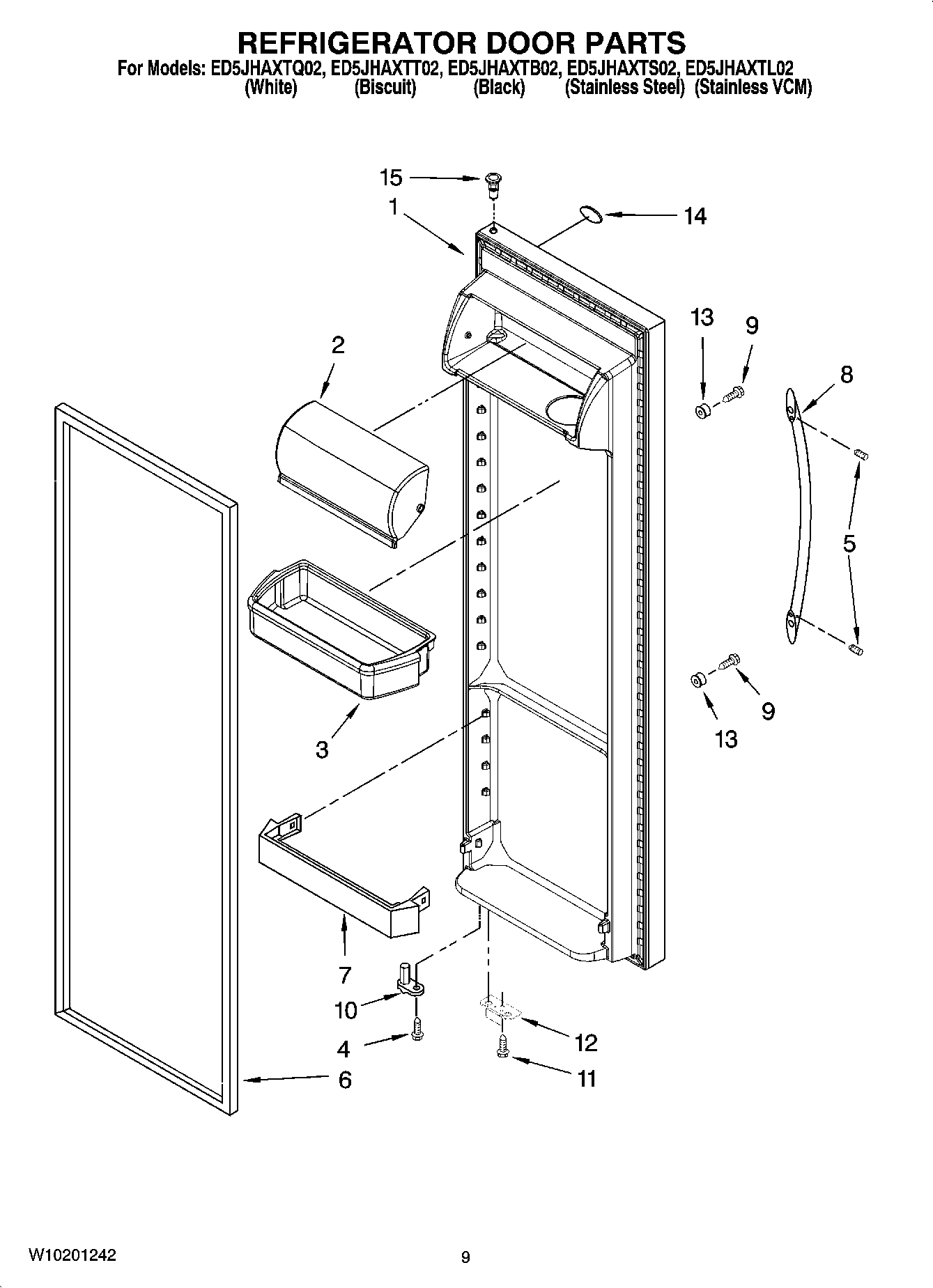

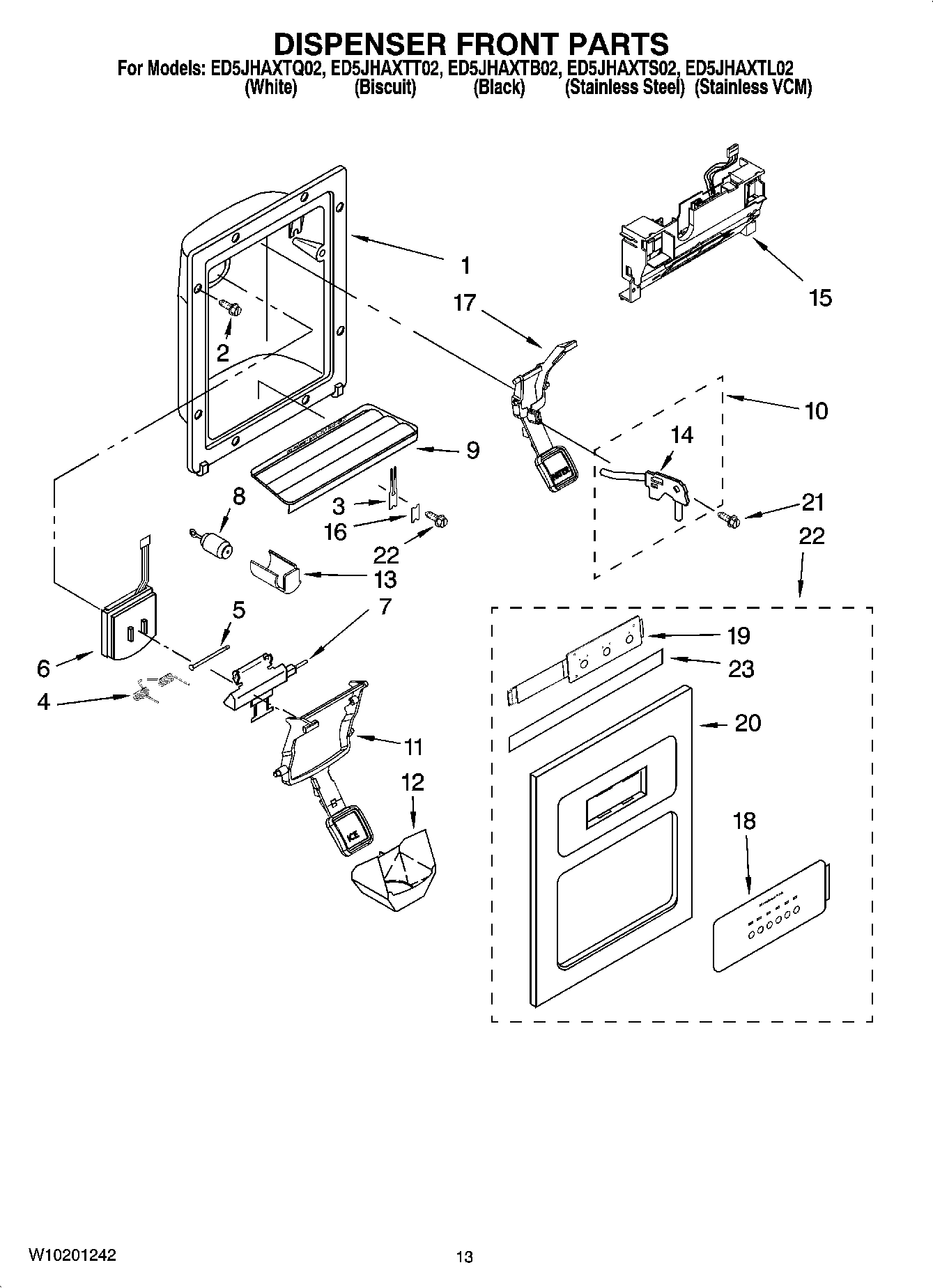

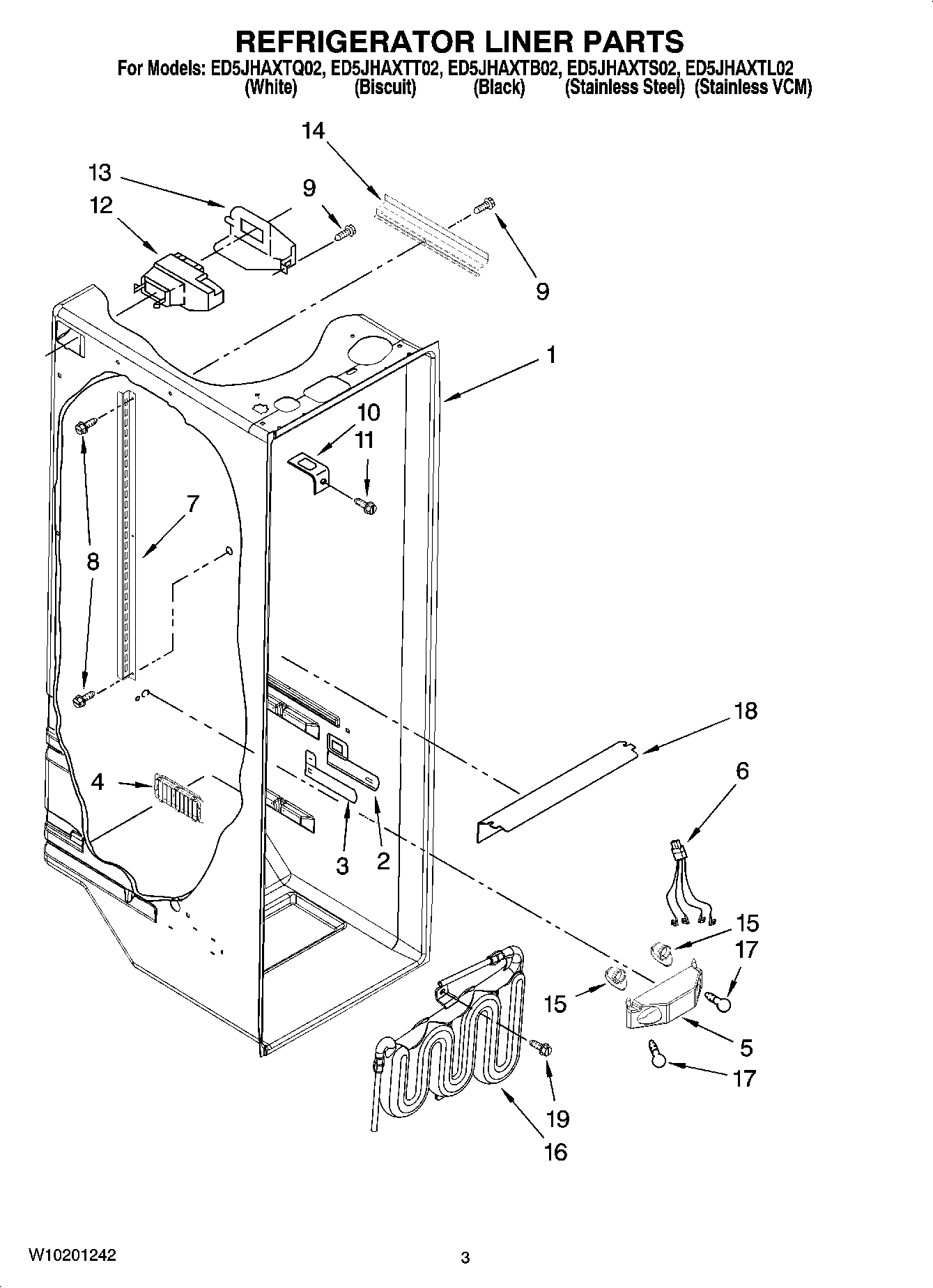

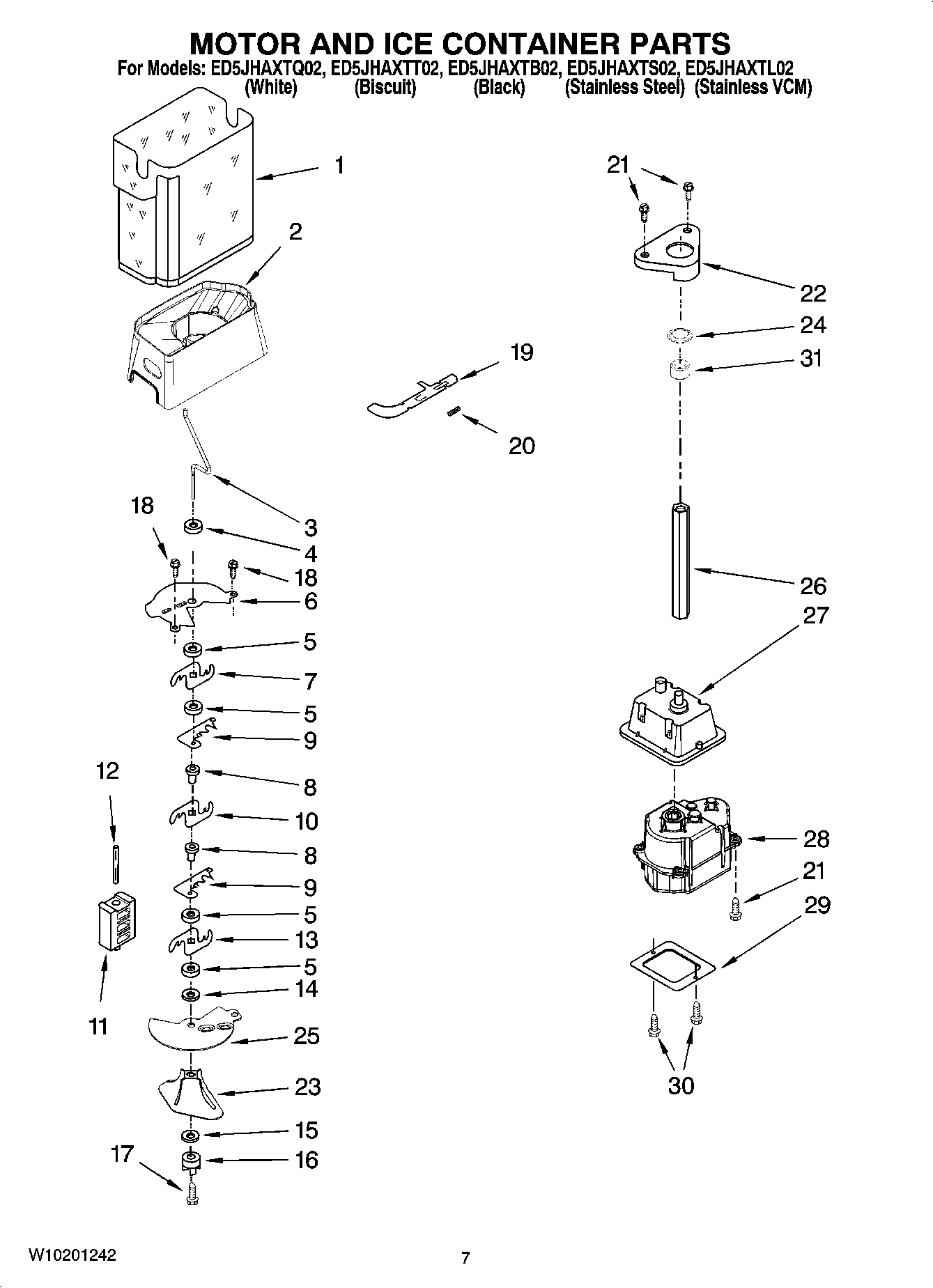

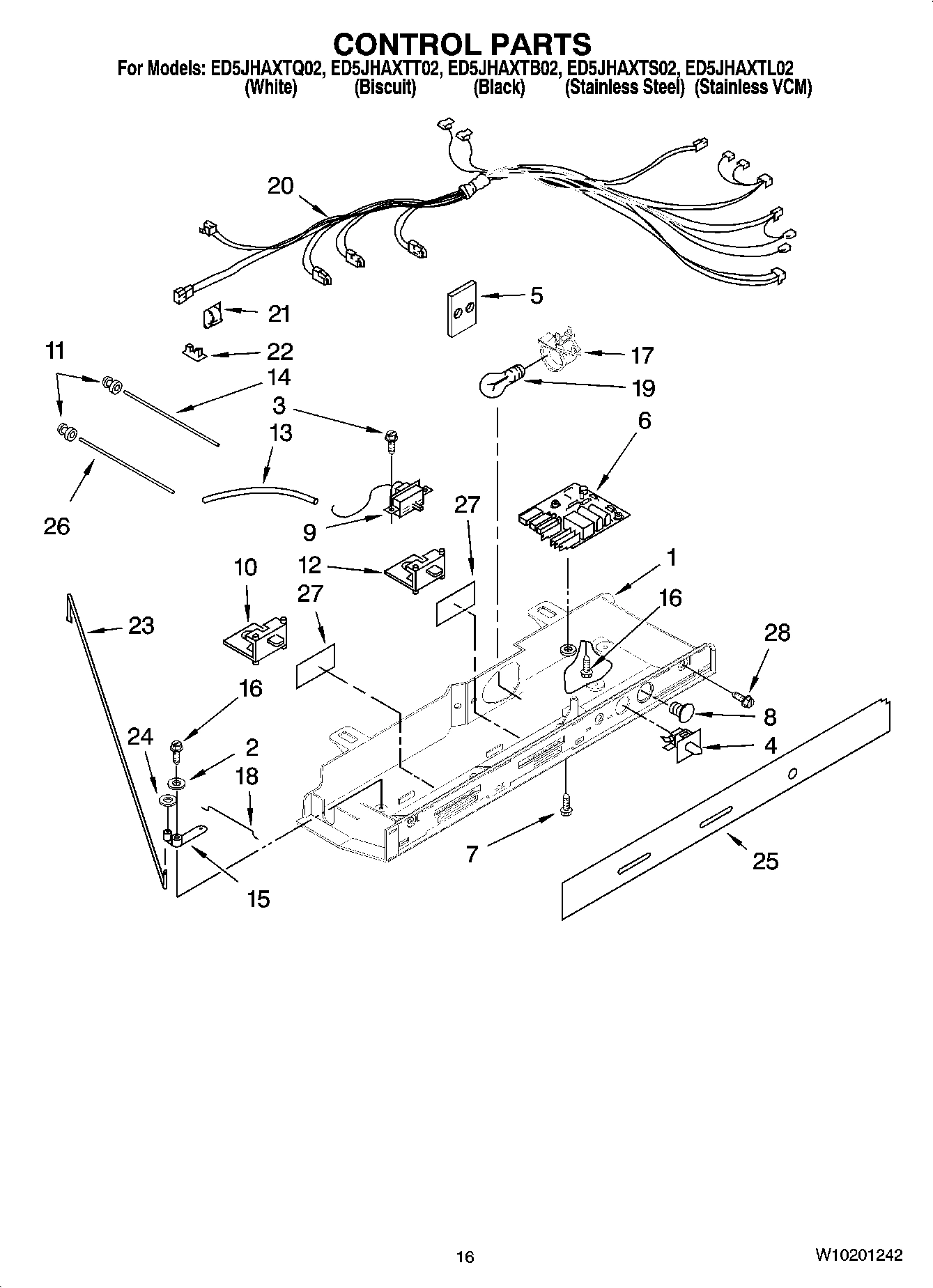

Model Whirlpool ED5JHAXTT02 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $29.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $15.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT. WPL 8171358 Contact Us For Availability

WPL ARI35777A2 WPL ARI35777A2 Contact Us For Availability

WPL ARI35778A2 WPL ARI35778A2 Contact Us For Availability

WPL ARI35779A6 WPL ARI35779A6 Contact Us For Availability

1

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $138.23

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Control Box WPL 2181737 Contact Us For Availability

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

Front Roller (2) WPL 4386774 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

3

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $34.93

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $61.42

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $10.41

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $139.55

6

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

7

Shelf Ladder WPL 2319866 Contact Us For Availability

8

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $73.70

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

9

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

9

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

9

Blade, Fixed WPL 2257020 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.33

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.98

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

Light Bar (RC) WPL 2179920 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.54

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $63.35

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $173.34

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $145.60

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $5.40

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $32.15

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $42.77

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Latch, Bin WPL 2317277 Contact Us For Availability

20

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

20

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

22

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

22

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Clip WPL 2161324 Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

Fastner, Push-On WPL 489391 Contact Us For Availability

25

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

25

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

25

Cover, Control Box Control Box WPL W10124119 Contact Us For Availability

26

Light Bar (FC) WPL 2179921 Contact Us For Availability

27

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $15.50

27

Window WPL 2175513 Contact Us For Availability

28

W10139460 Whirlpool Refrigerator Compressor In Stock WPL W10139460 $277.50

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

30

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

32

Cover, Receiver WPL W10173569 Contact Us For Availability

33

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

33

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

34

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $14.90

35

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51

100

WP2317251 Whirlpool Refrigerator Ice Containe In Stock WPL WP2317251 $196.63
