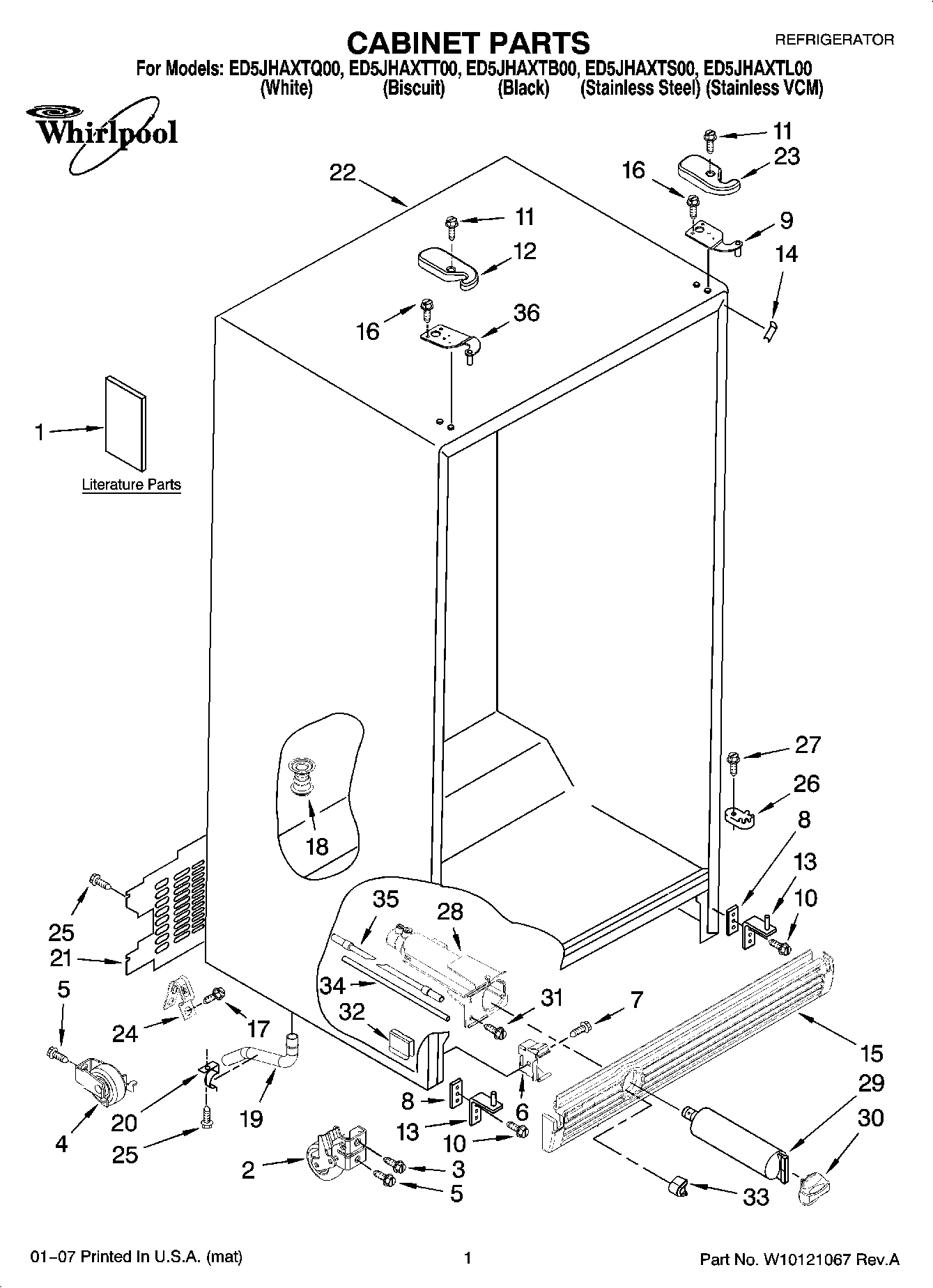

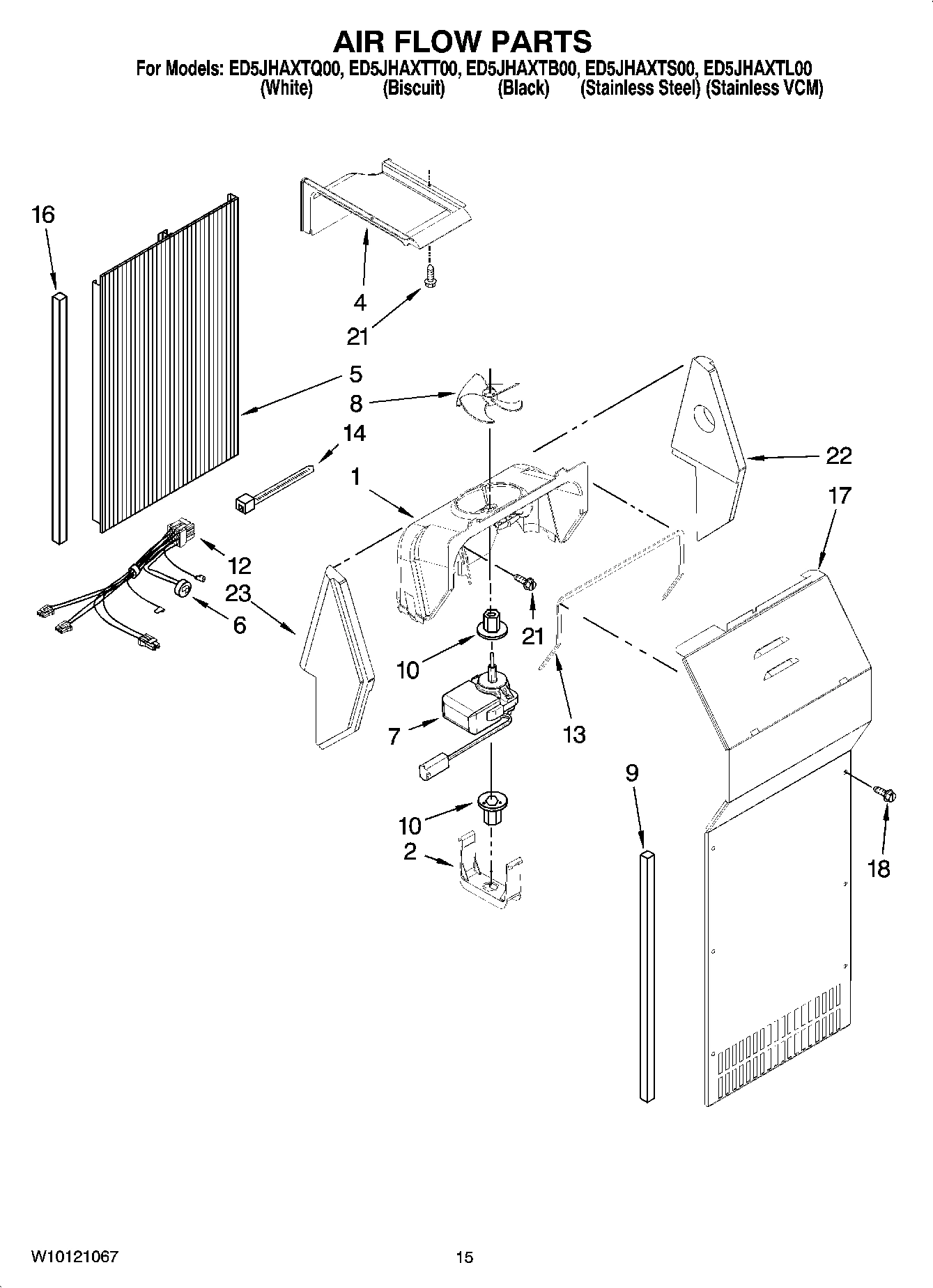

Model Whirlpool ED5JHAXTS00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $137.43

1

Liner (Not A Seviceable Part) WPL ARI35710A9 Contact Us For Availability

1

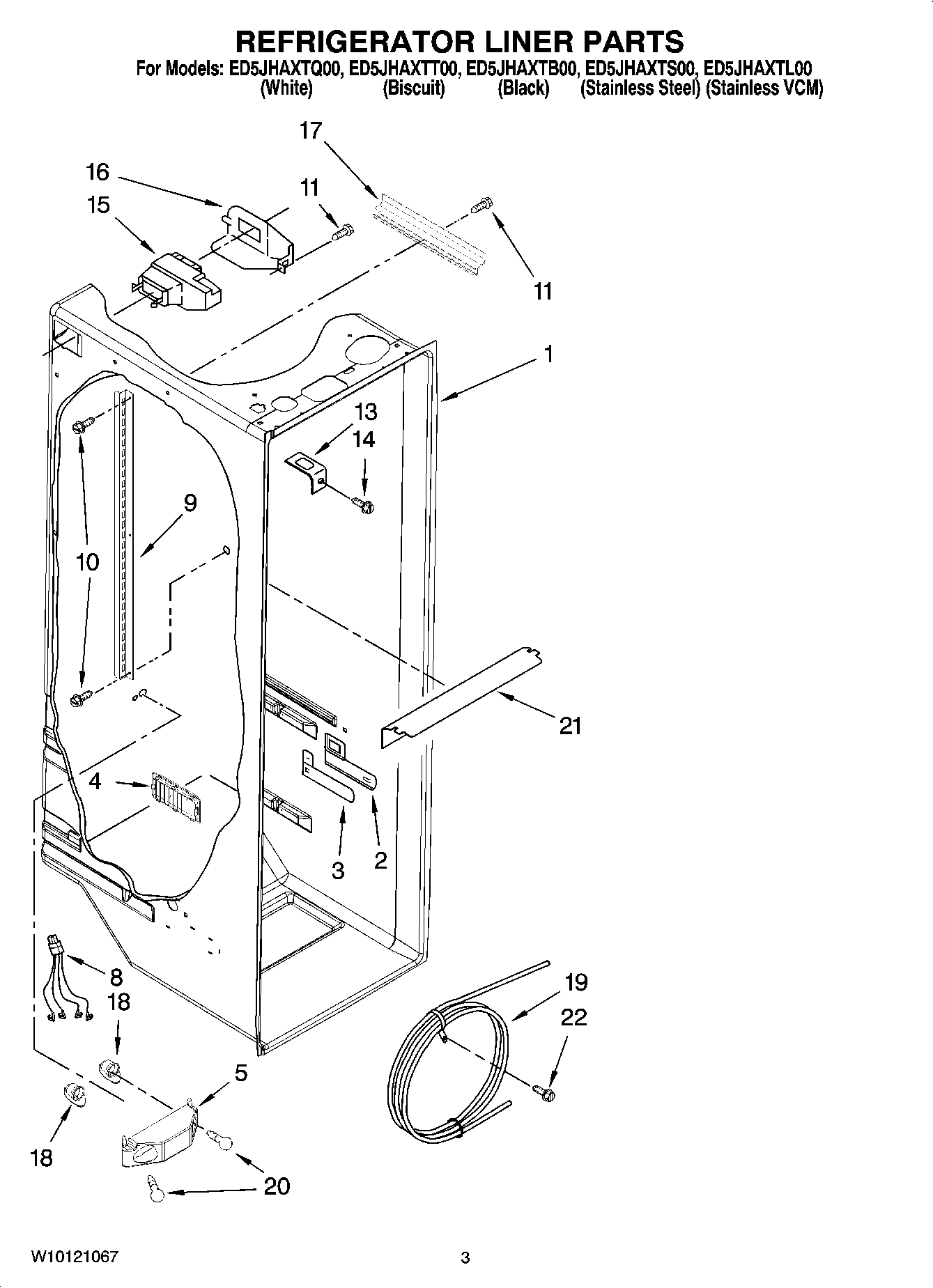

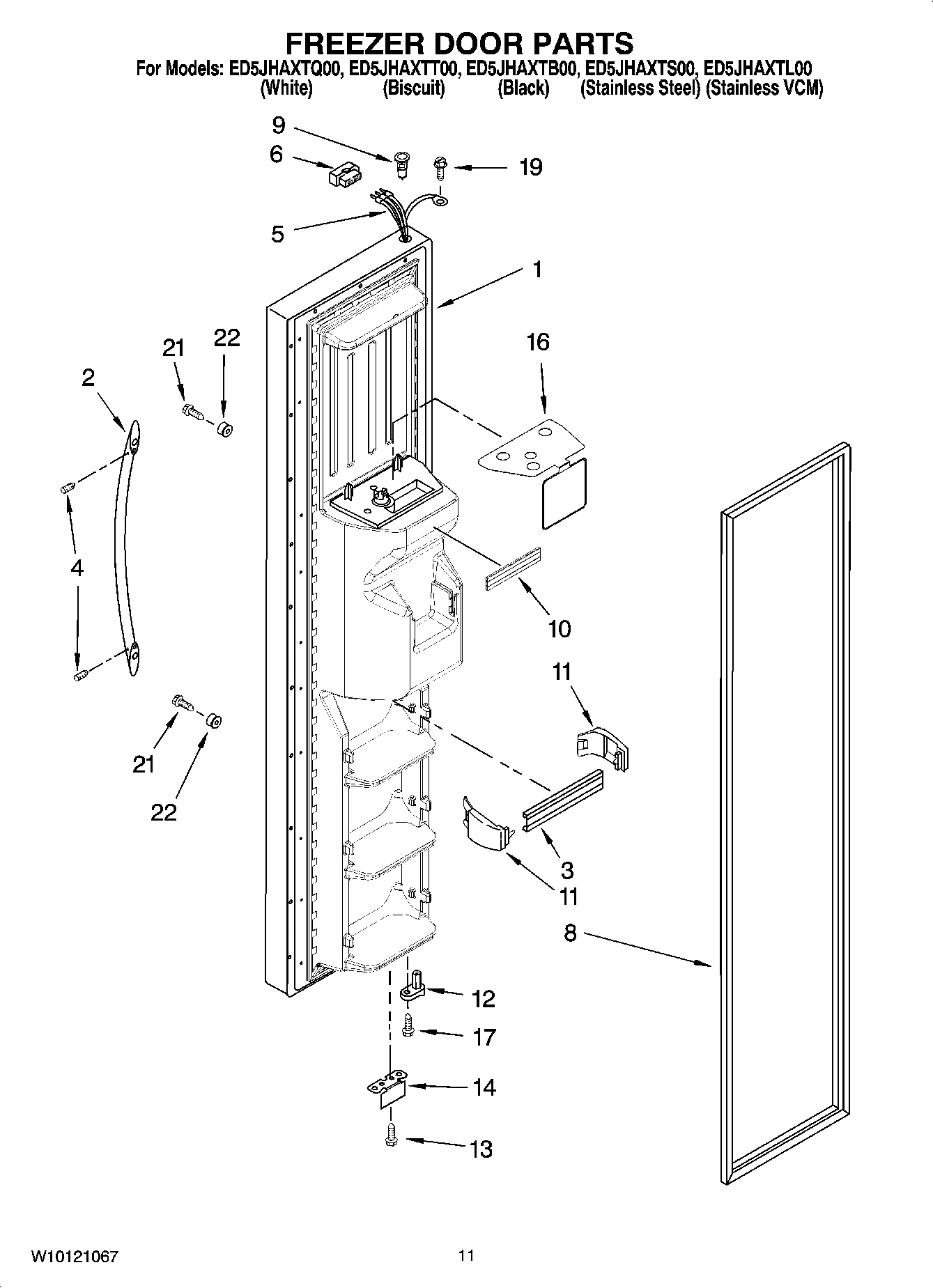

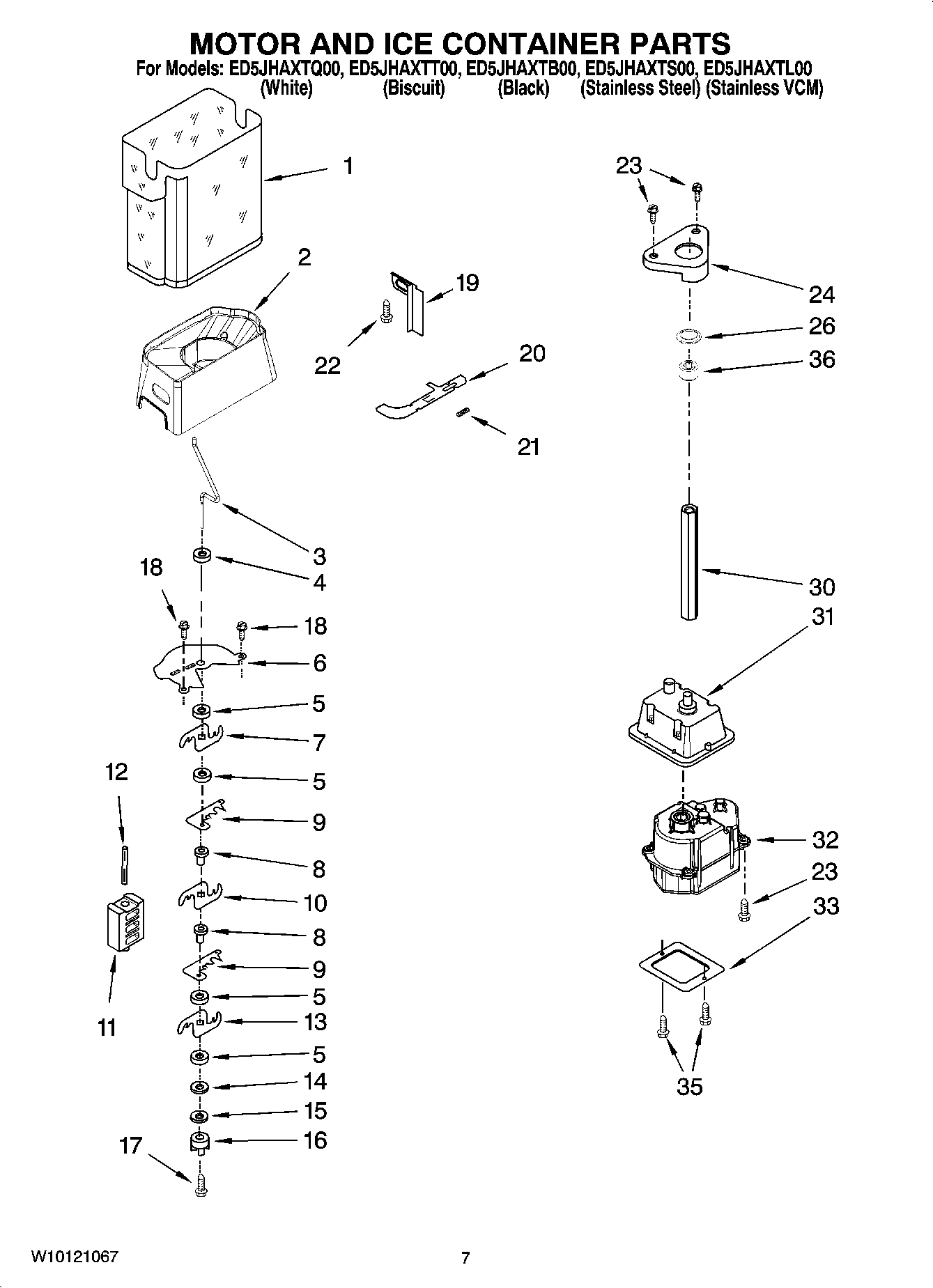

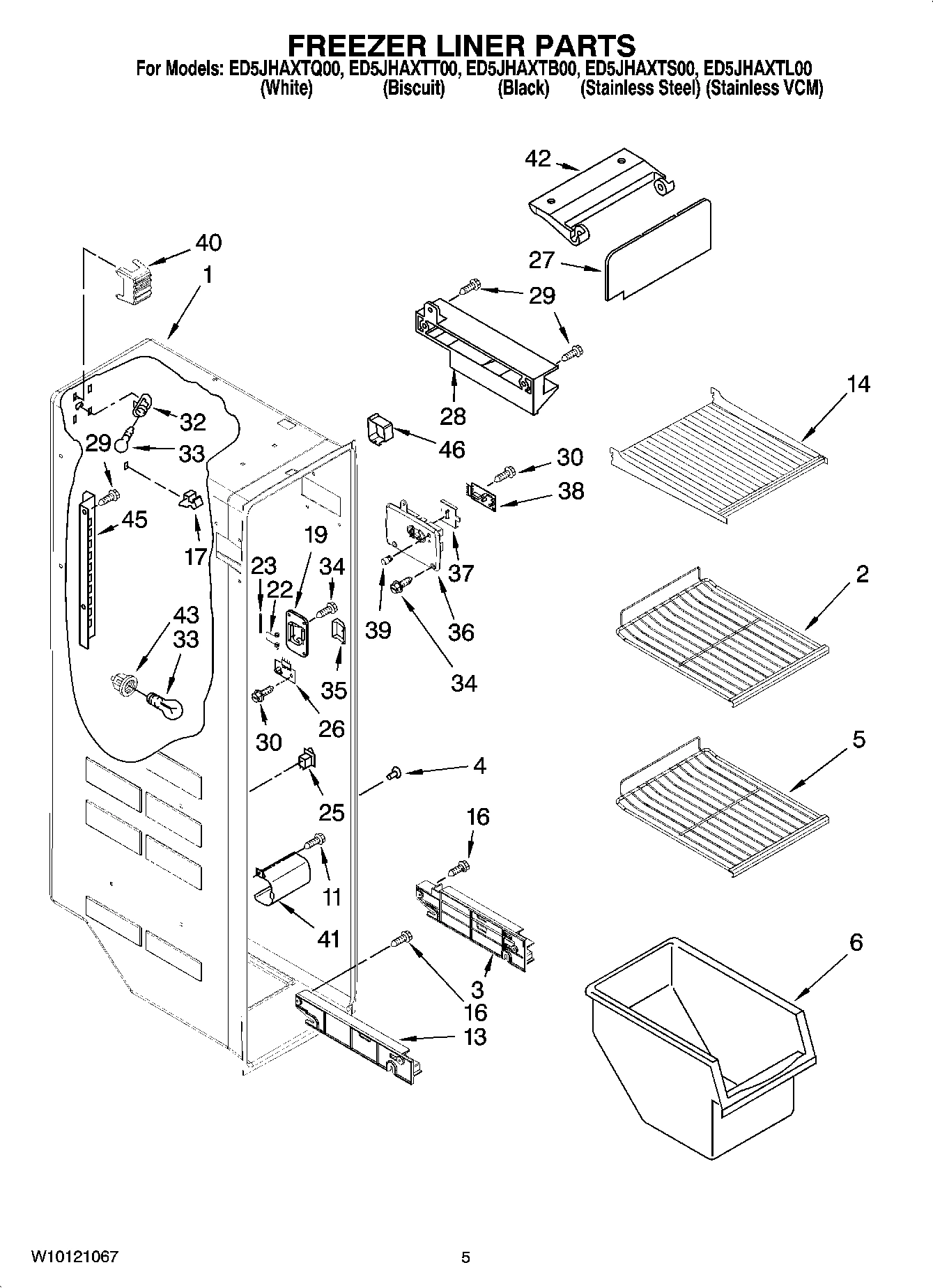

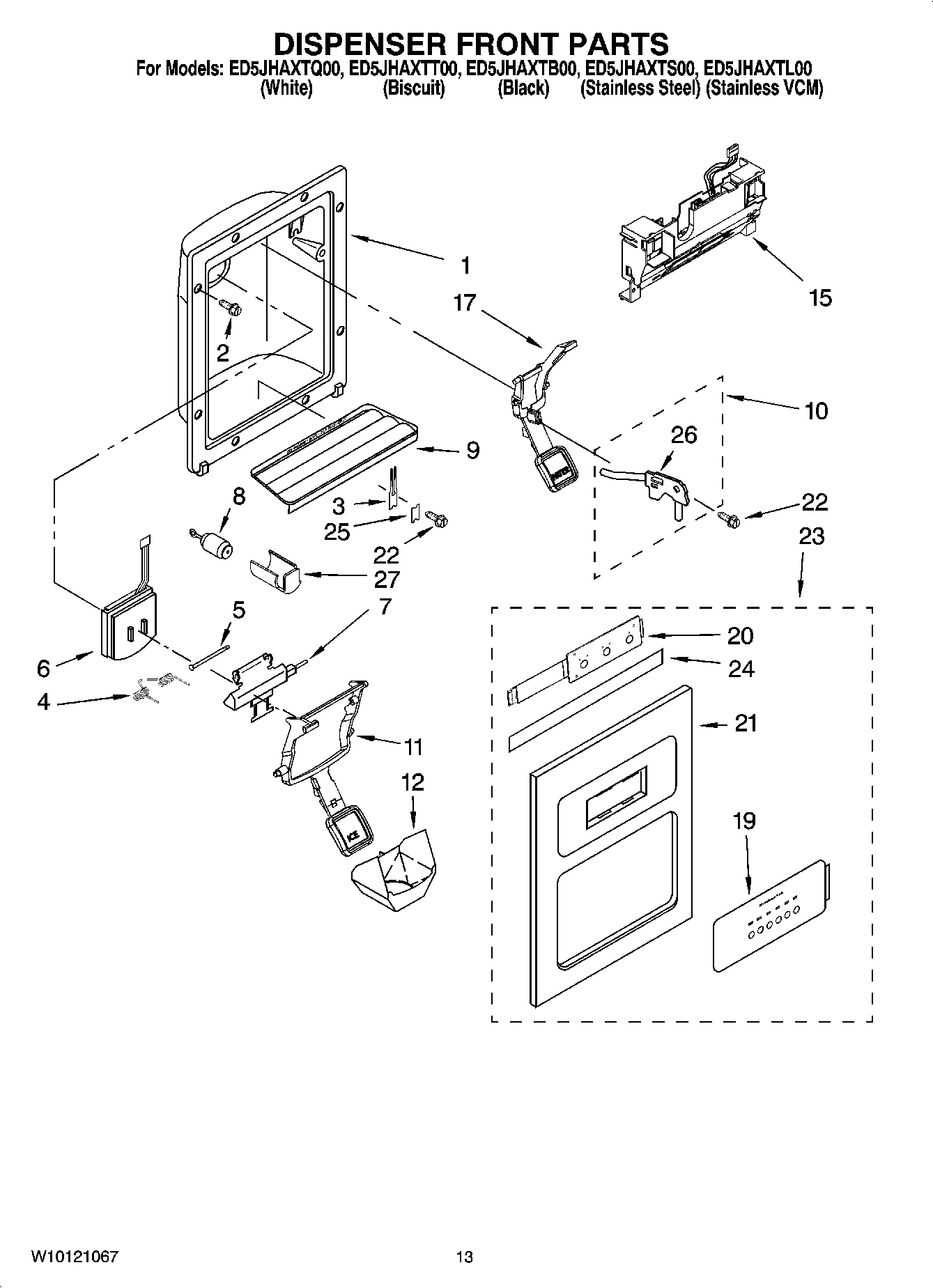

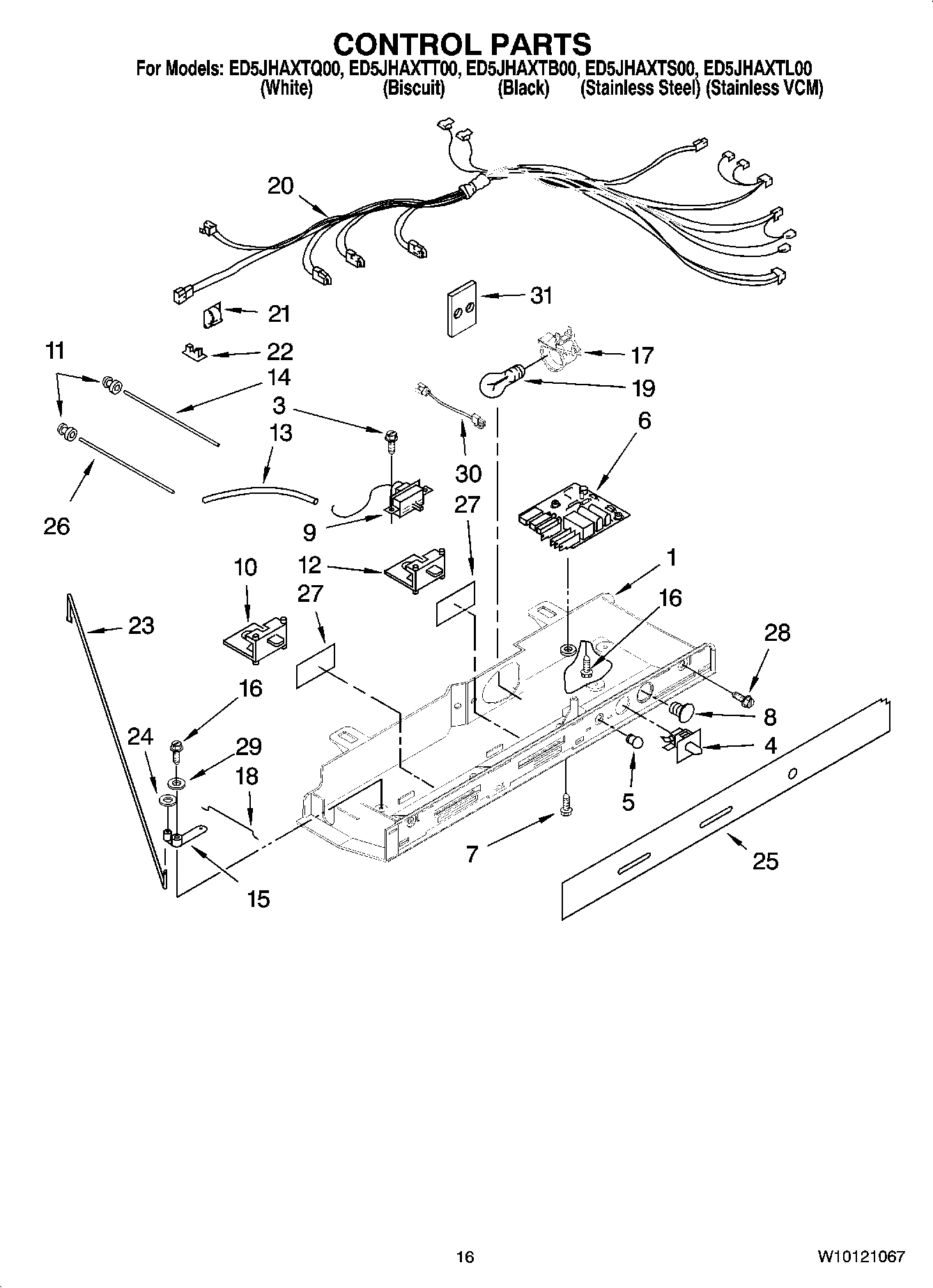

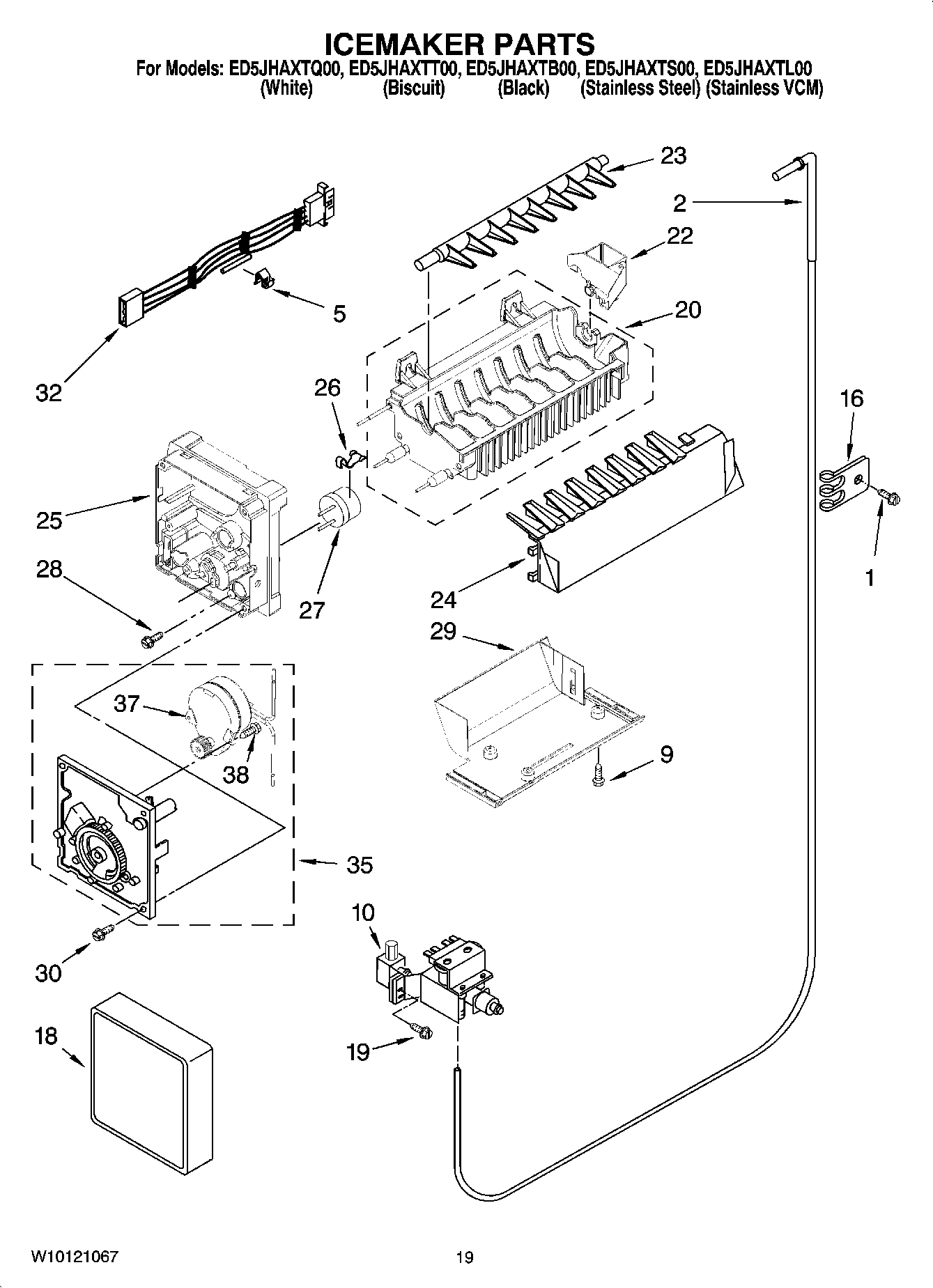

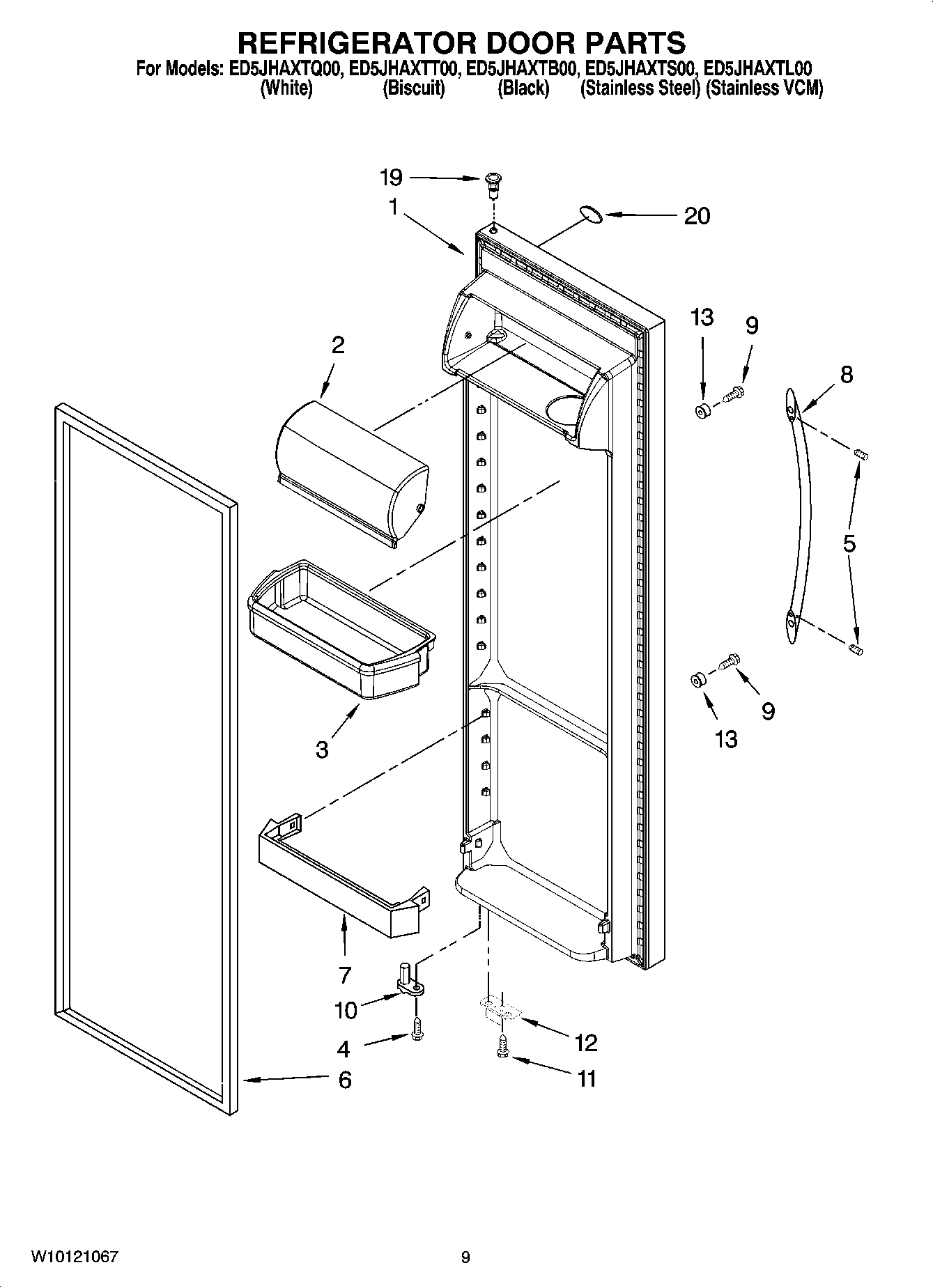

Refrigerator Door (Includes Item 6) (Black) WPL 2326326B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2326326LG Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2326326S Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2326326T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2326326W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Shelf, Slide Out Upper WPL 2211746K Contact Us For Availability

3

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $66.84

3

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $68.13

3

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $34.93

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $26.50

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

4

Washer WPL 2258220 Contact Us For Availability

5

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

5

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10317556 Whirlpool Refrigerator Wire Shelf Backorder WPL WPW10317556 $65.16

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

6

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

6

Cover, Crusher WPL 2255460 Contact Us For Availability

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $147.90

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2254600B Whirlpool Refrigerator Handle Backorder WPL WP2254600B $114.12

8

WP2254600W Whirlpool Refrigerator Handle Backorder WPL WP2254600W $155.75

8

TUBE, SUCTION WPL 2205765 Contact Us For Availability

8

Handle (Includes 5) (Biscuit) WPL 2319729T Contact Us For Availability

8

Handle (Stainless Steel) WPL 2254600S Contact Us For Availability

9

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $27.52

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

9

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Thimble-Top (For Stainless Steel Model) WPL 2301049 Contact Us For Availability

9

Shelf Ladder WPL 2319866 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.16

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Endcap (6) WPL 2195917 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $76.51

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $48.35

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Light Bar (RC) WPL 2179920 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Shelf (2) WPL 2205837K Contact Us For Availability

15

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $28.09

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2304885 Whirlpool Refrigerator Start Device In Stock WPL WP2304885 $62.54

Safety Barrier WPL 2304895 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $37.70

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

Cover, Evaporator (Includes 9) WPL 2206314 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4389654 Whirlpool Screw Backorder WPL 4389654 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

21

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

24

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

24

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

25

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $227.62

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

28

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

29

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

30

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.09

30

W10853646 Whirlpool Indicator Light In Stock WPL W10853646 $48.75

31

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

33

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

36

Cover, Receiver WPL 2255558 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

40

Light Shield WPL 2198589 Contact Us For Availability

41

Light Lens WPL 2212340 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $35.48

45

Ladder (Left Side) WPL 2320024 Contact Us For Availability

45

Ladder (Right Side) WPL 2320025 Contact Us For Availability

46

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51
