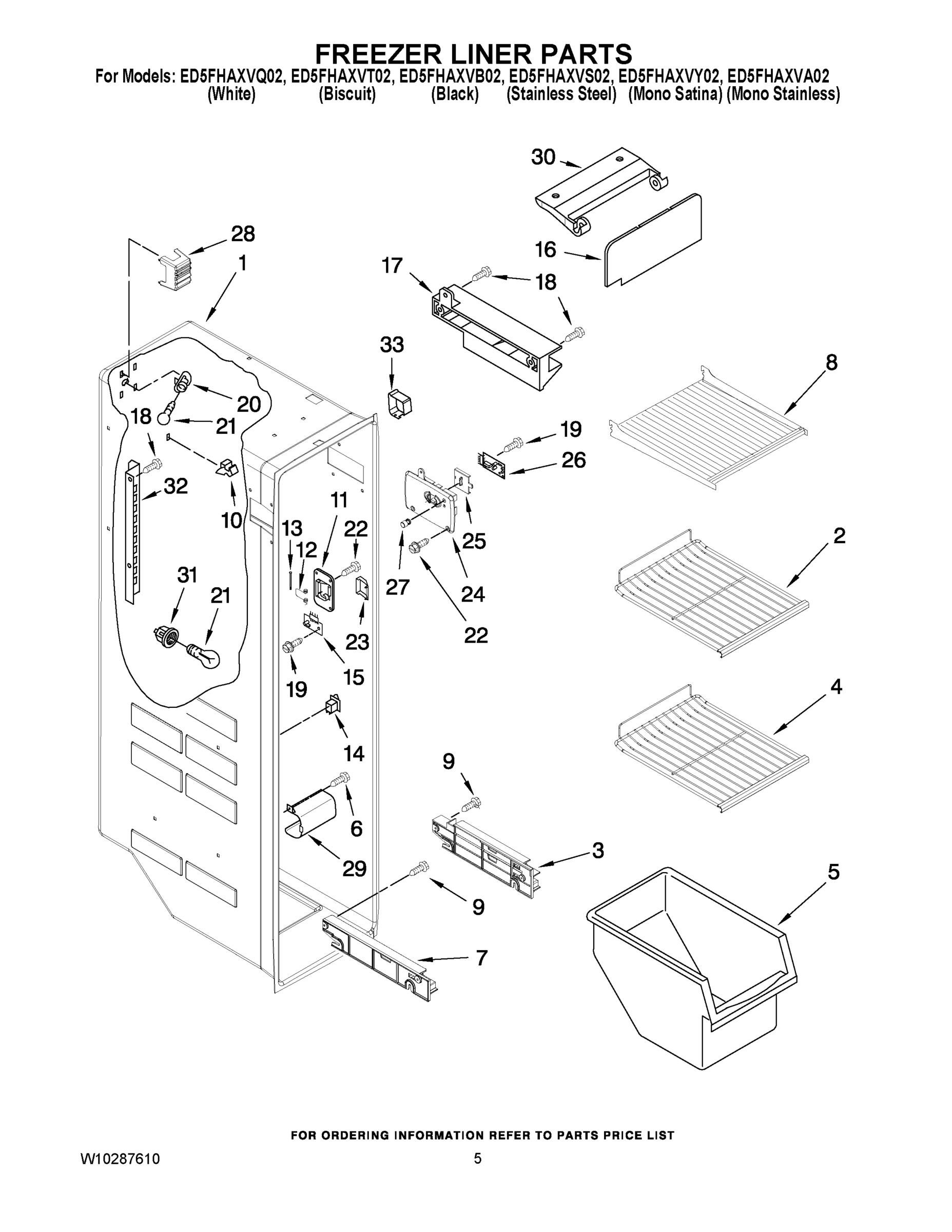

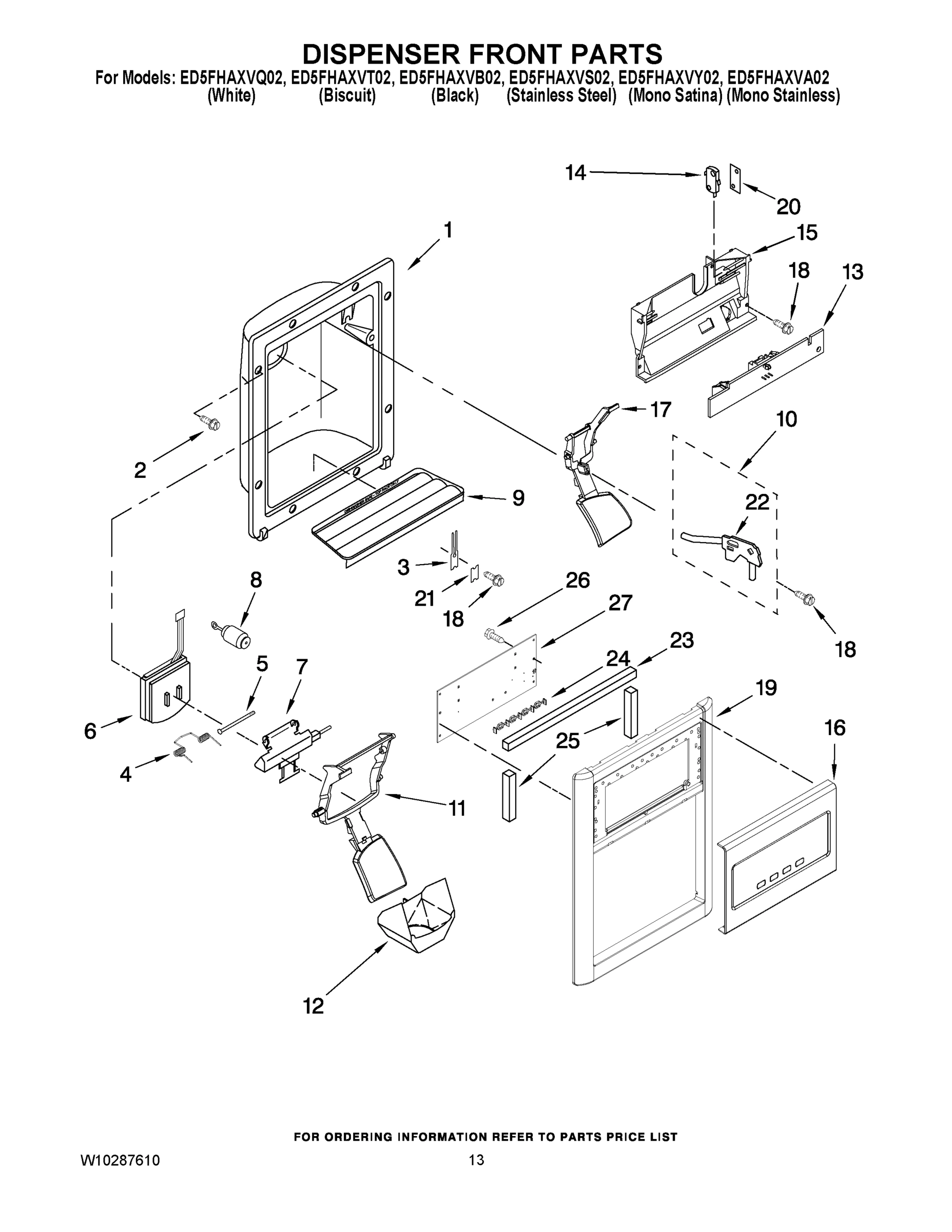

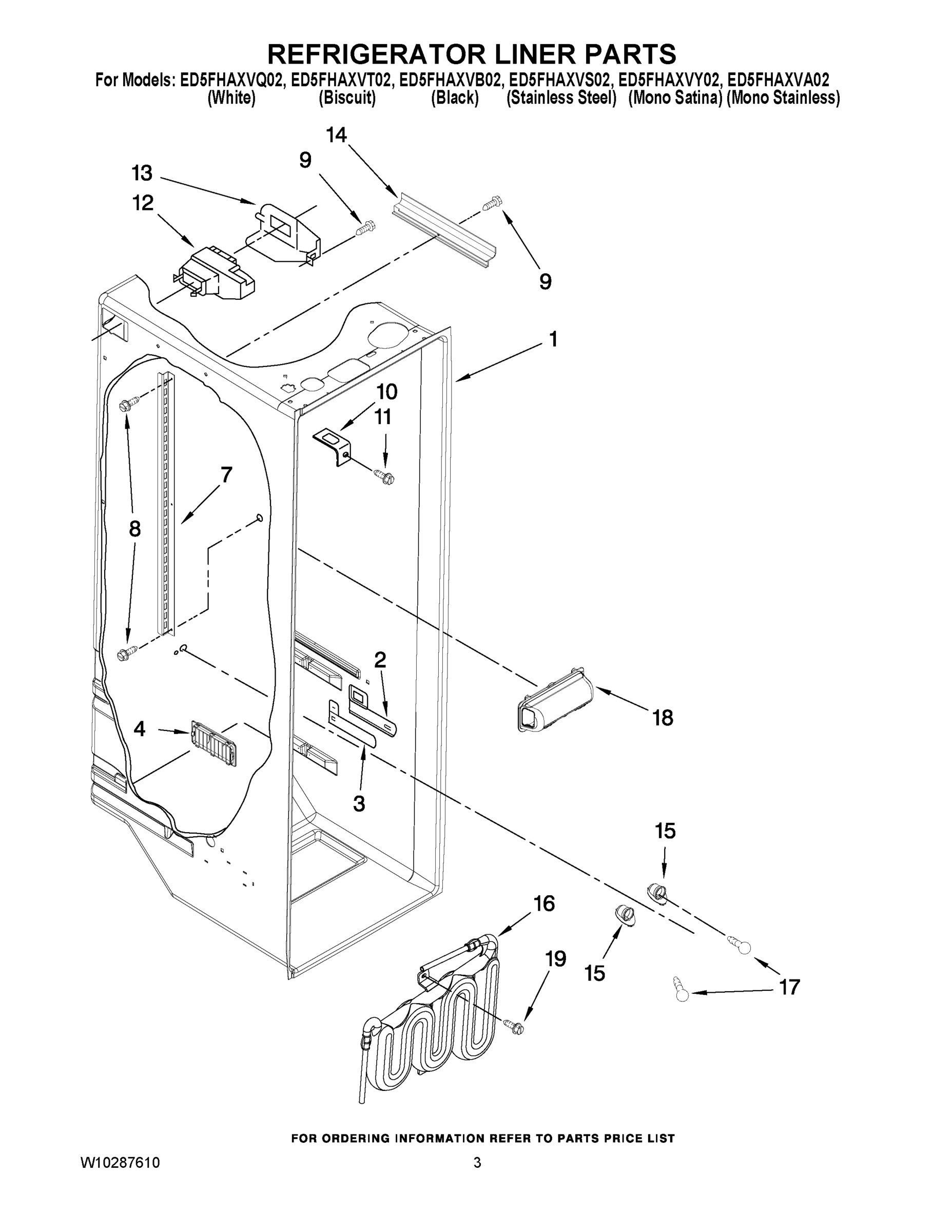

Model Whirlpool ED5FHAXVA02 REFRIGERATOR – Common Parts &amp; Diagrams

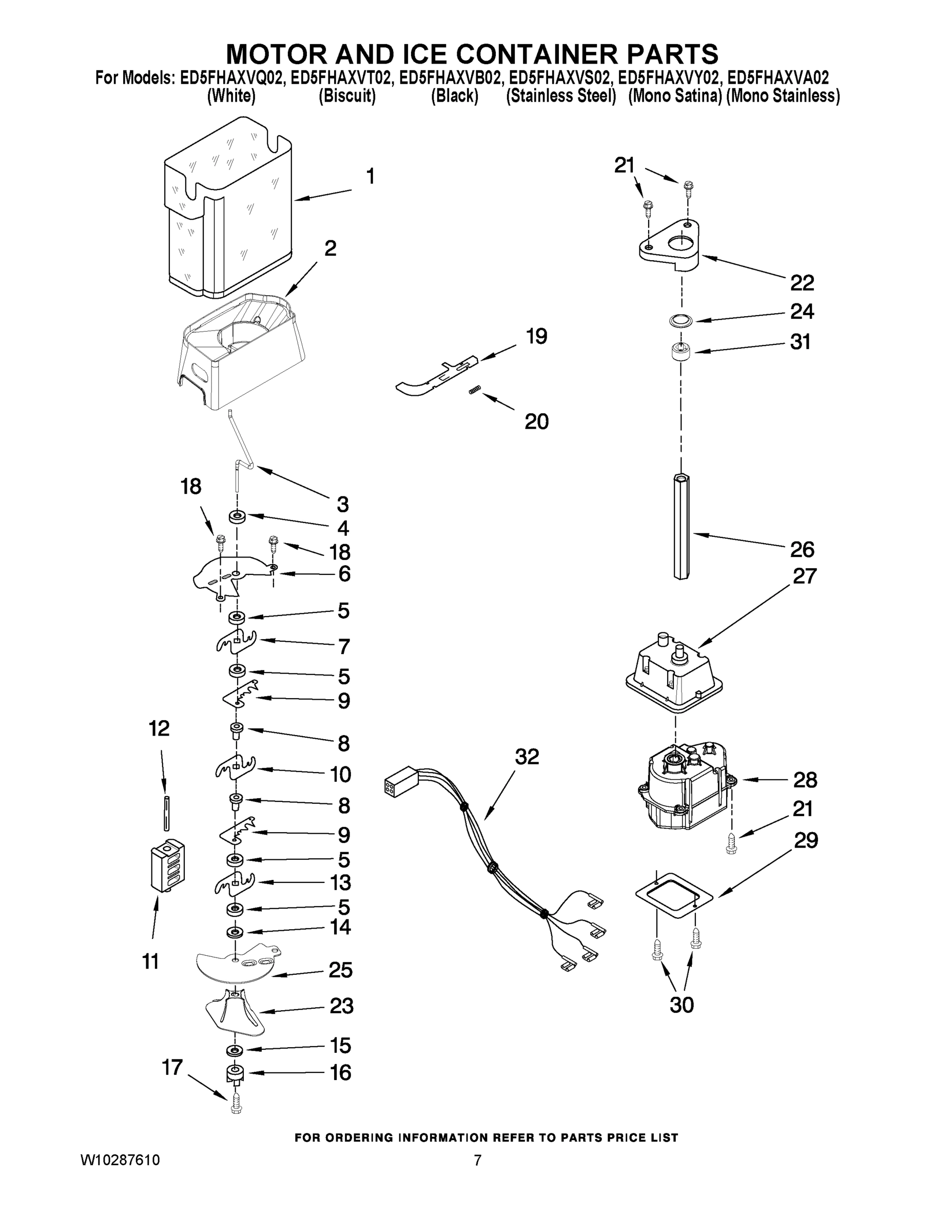

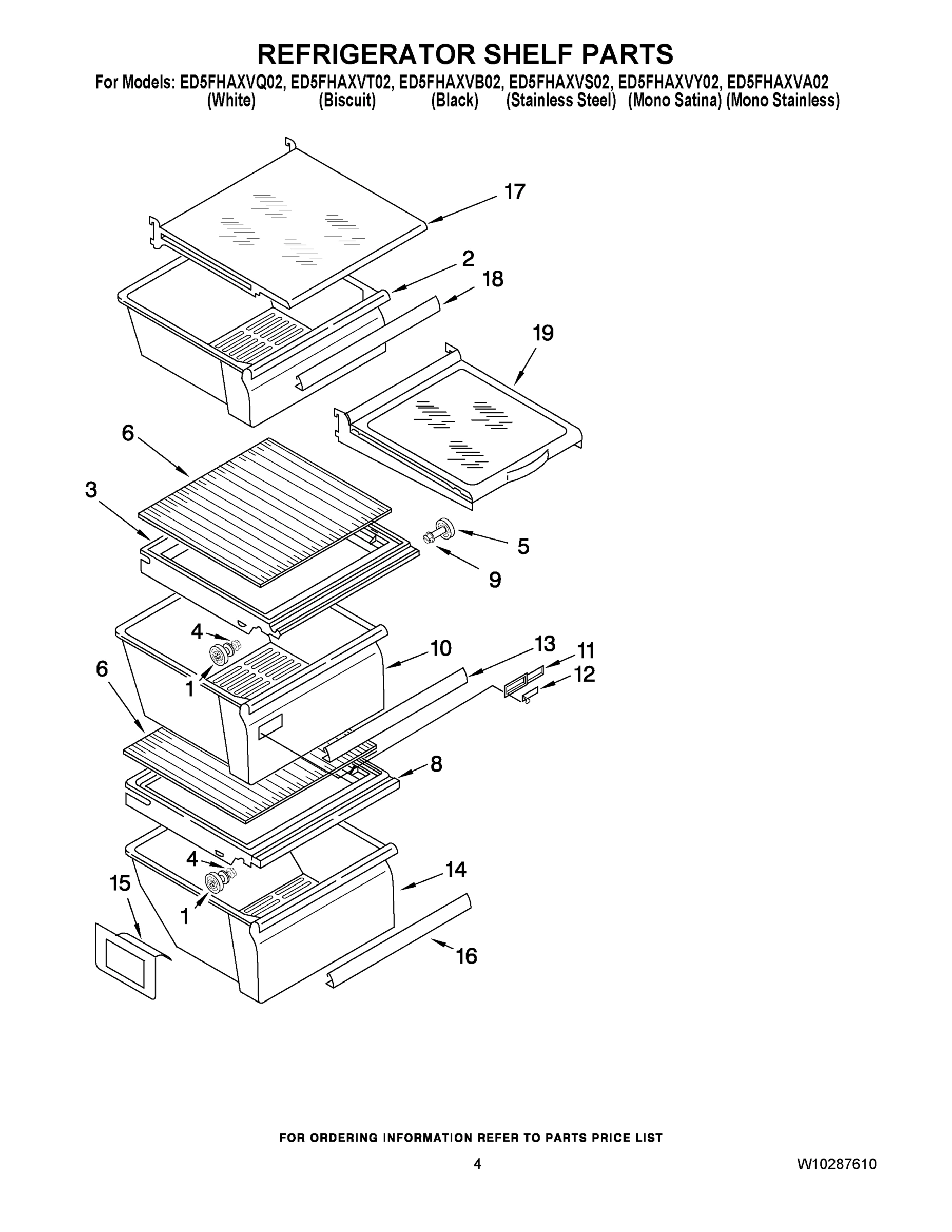

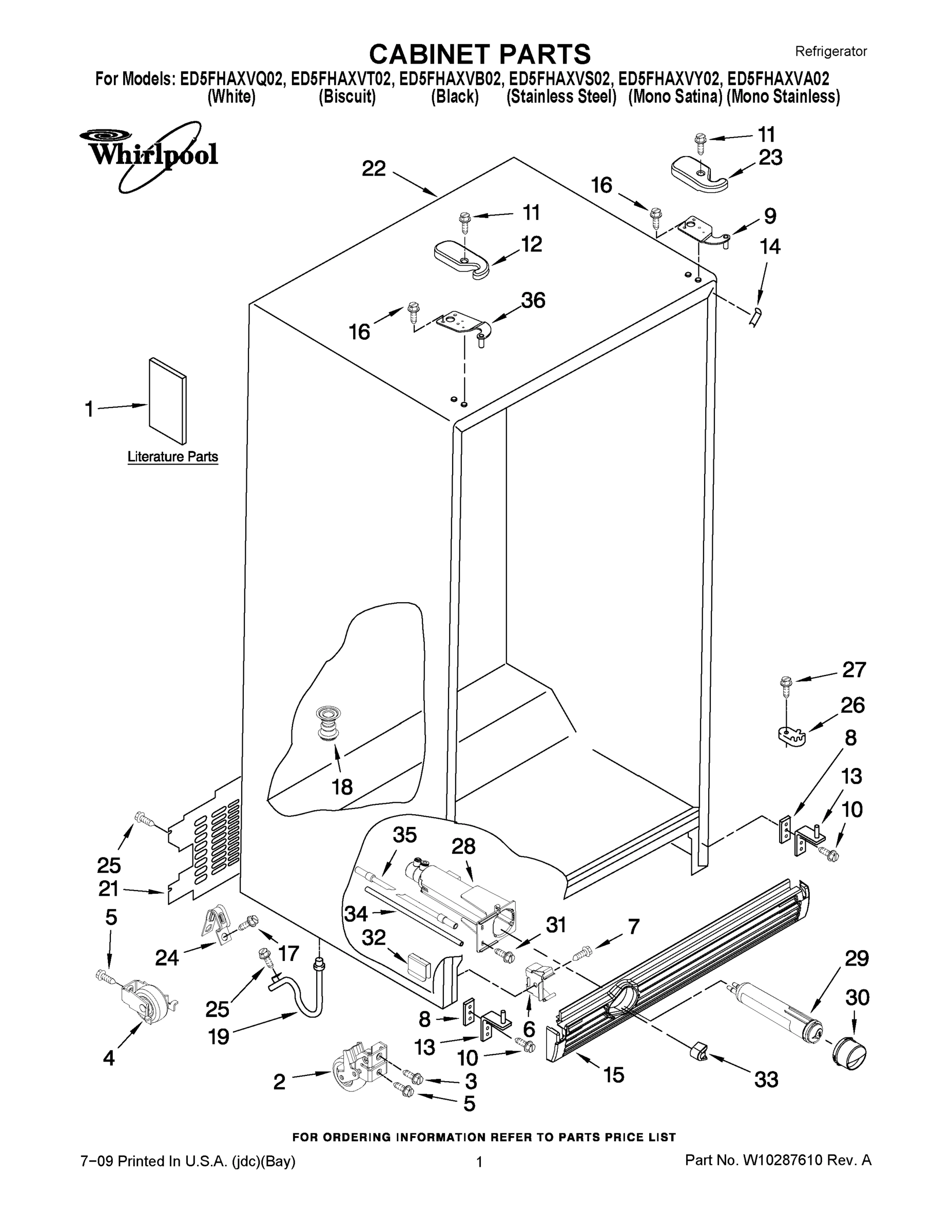

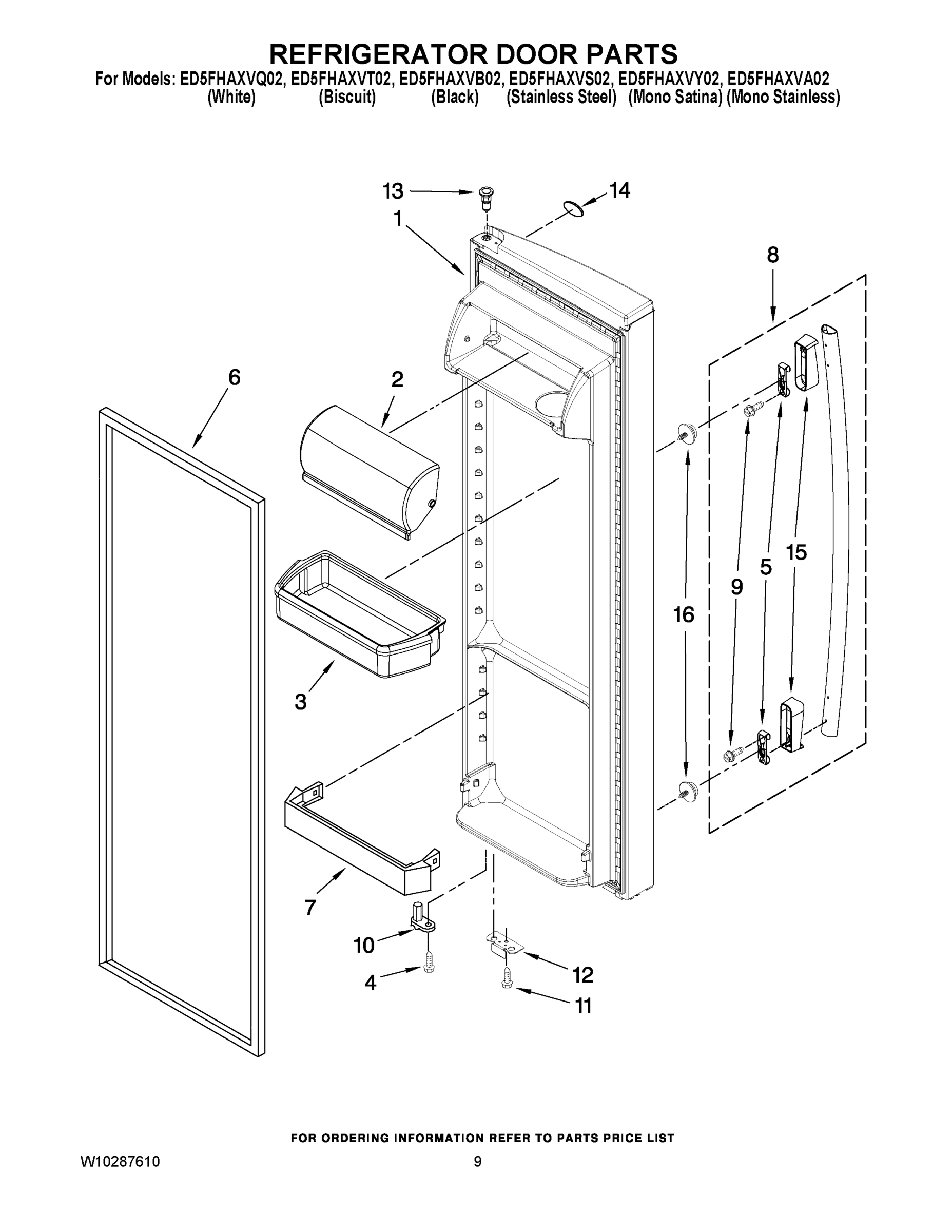

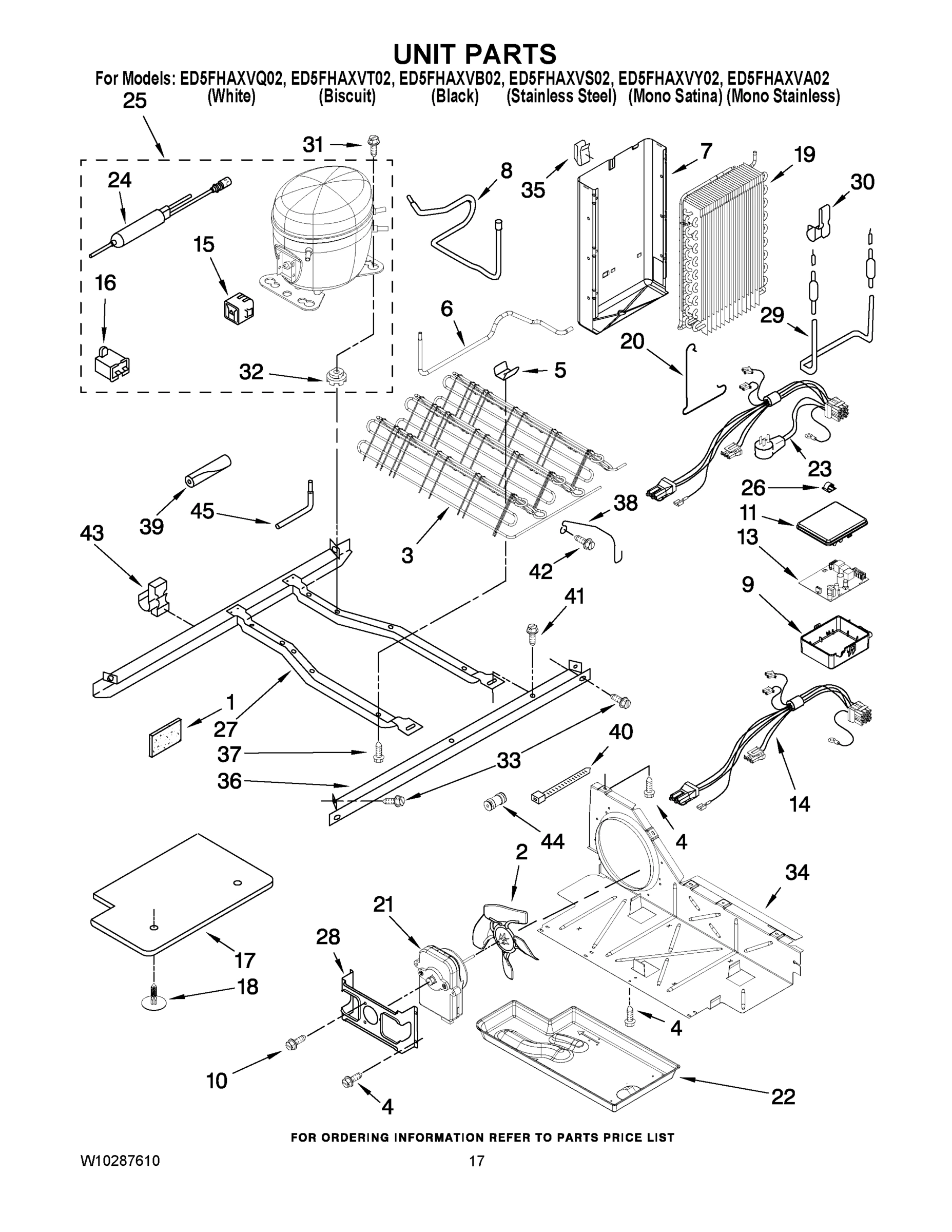

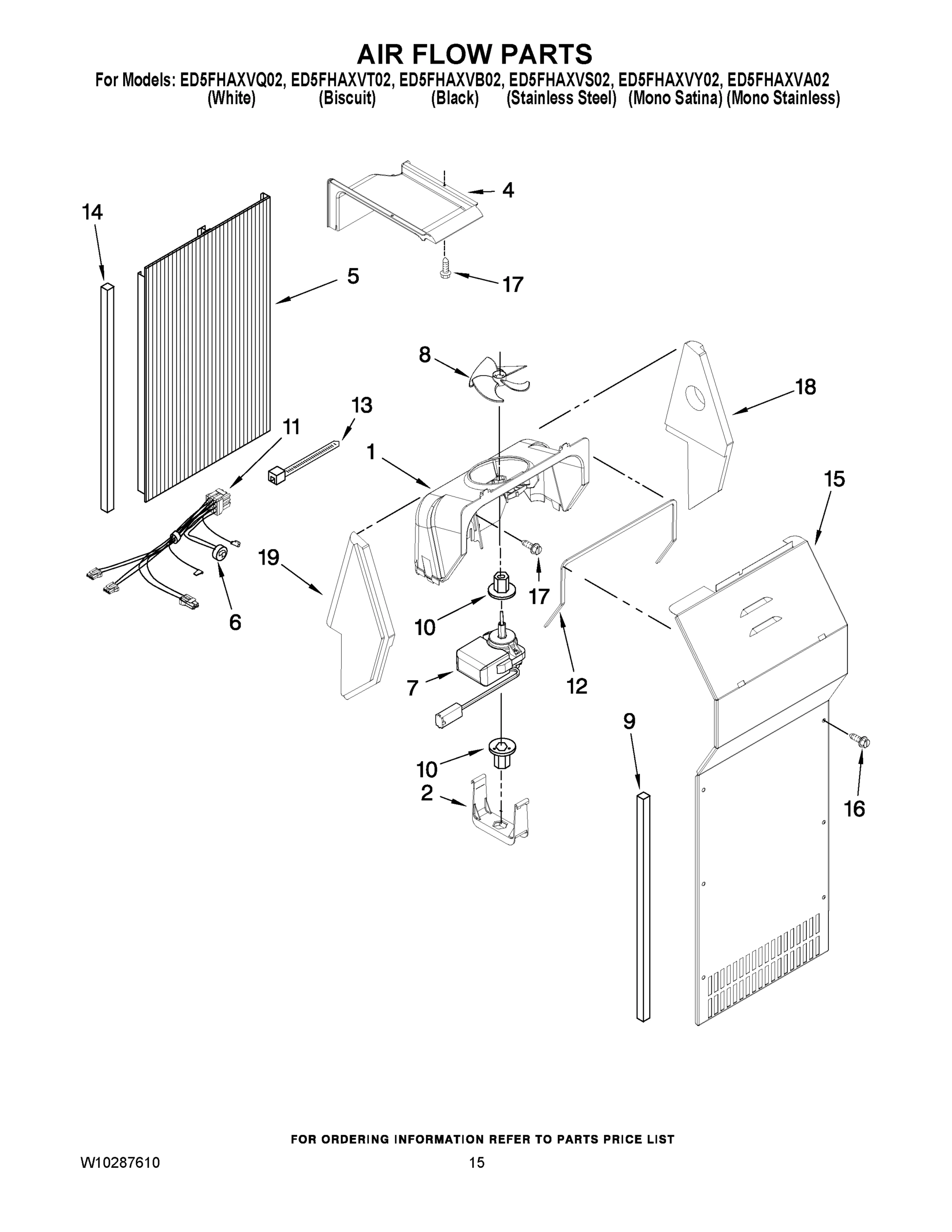

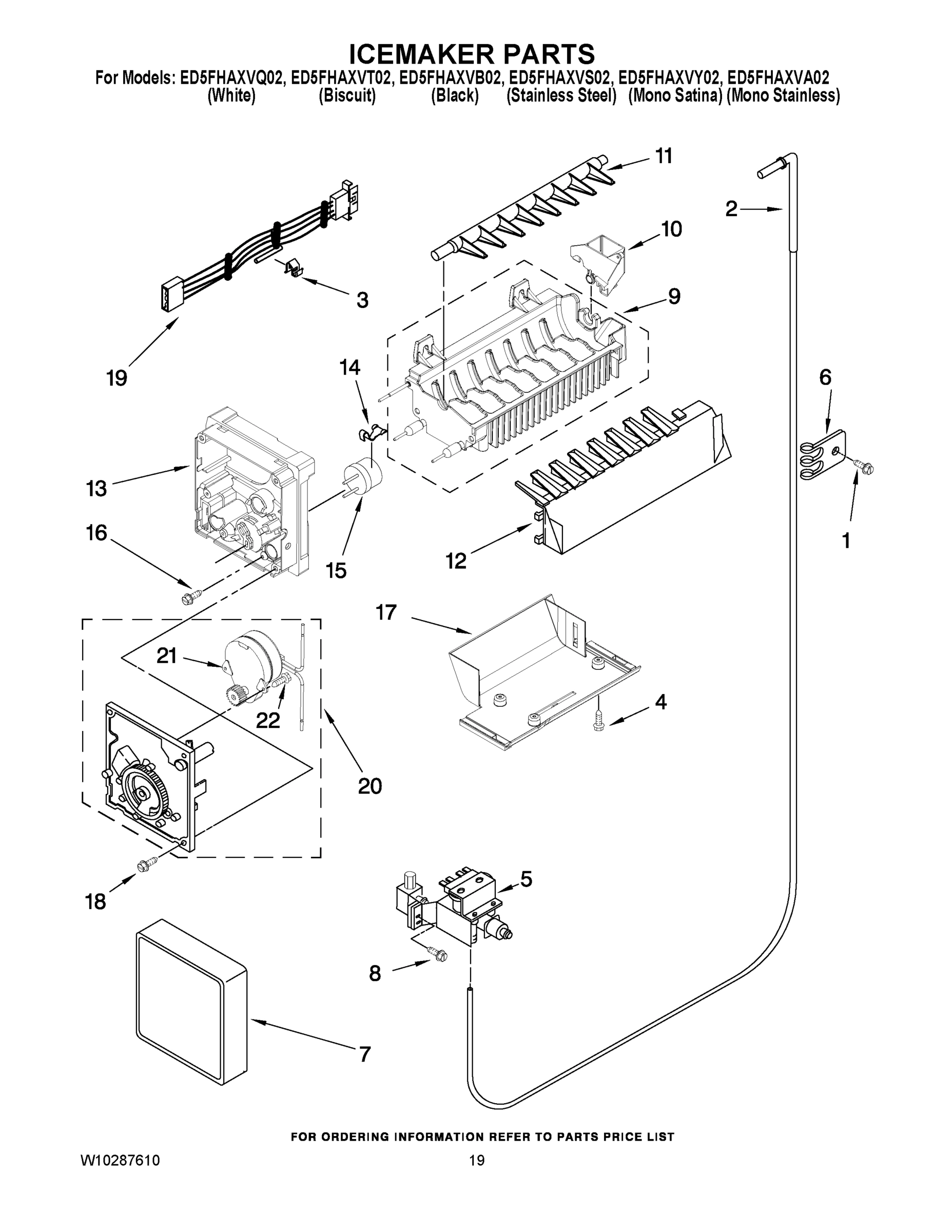

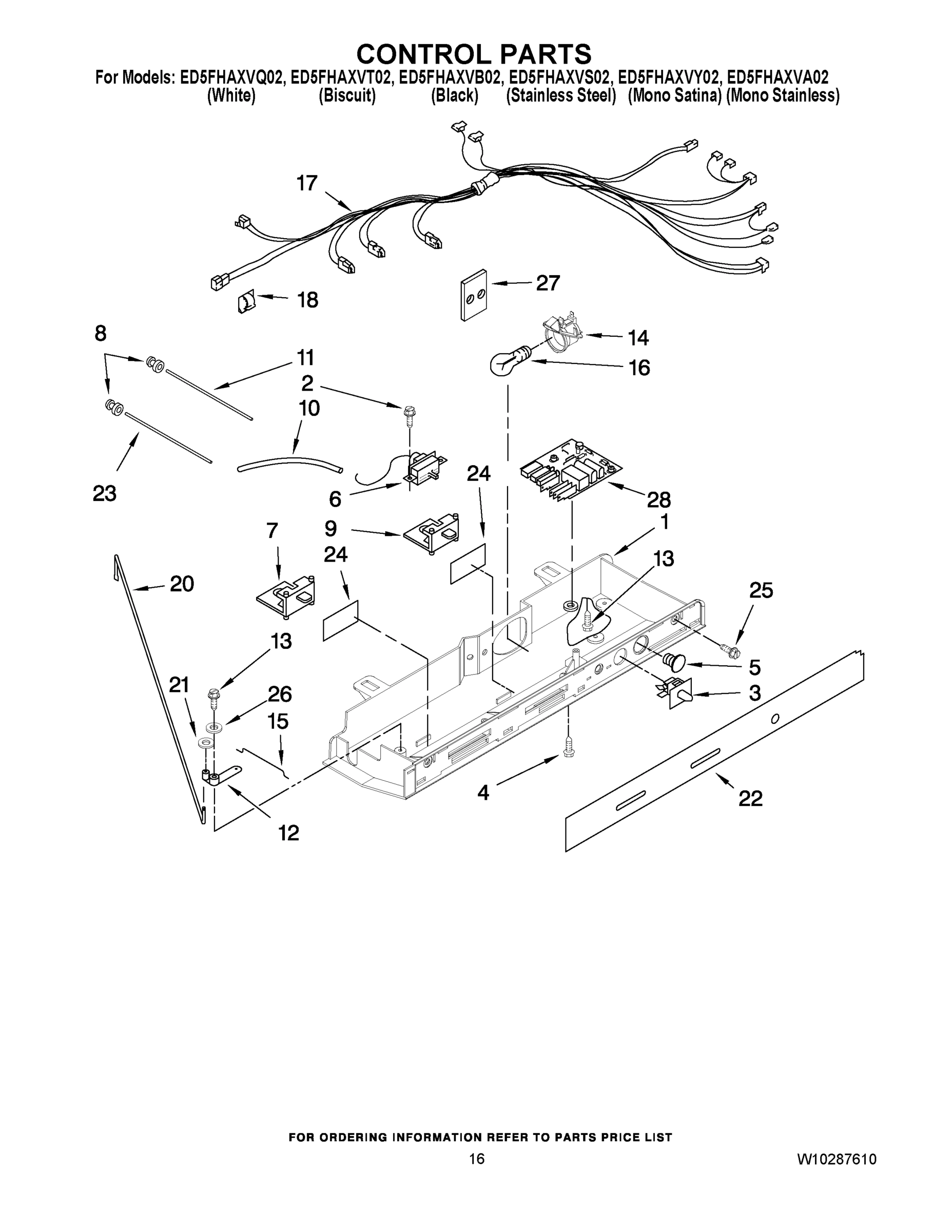

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $138.23

1

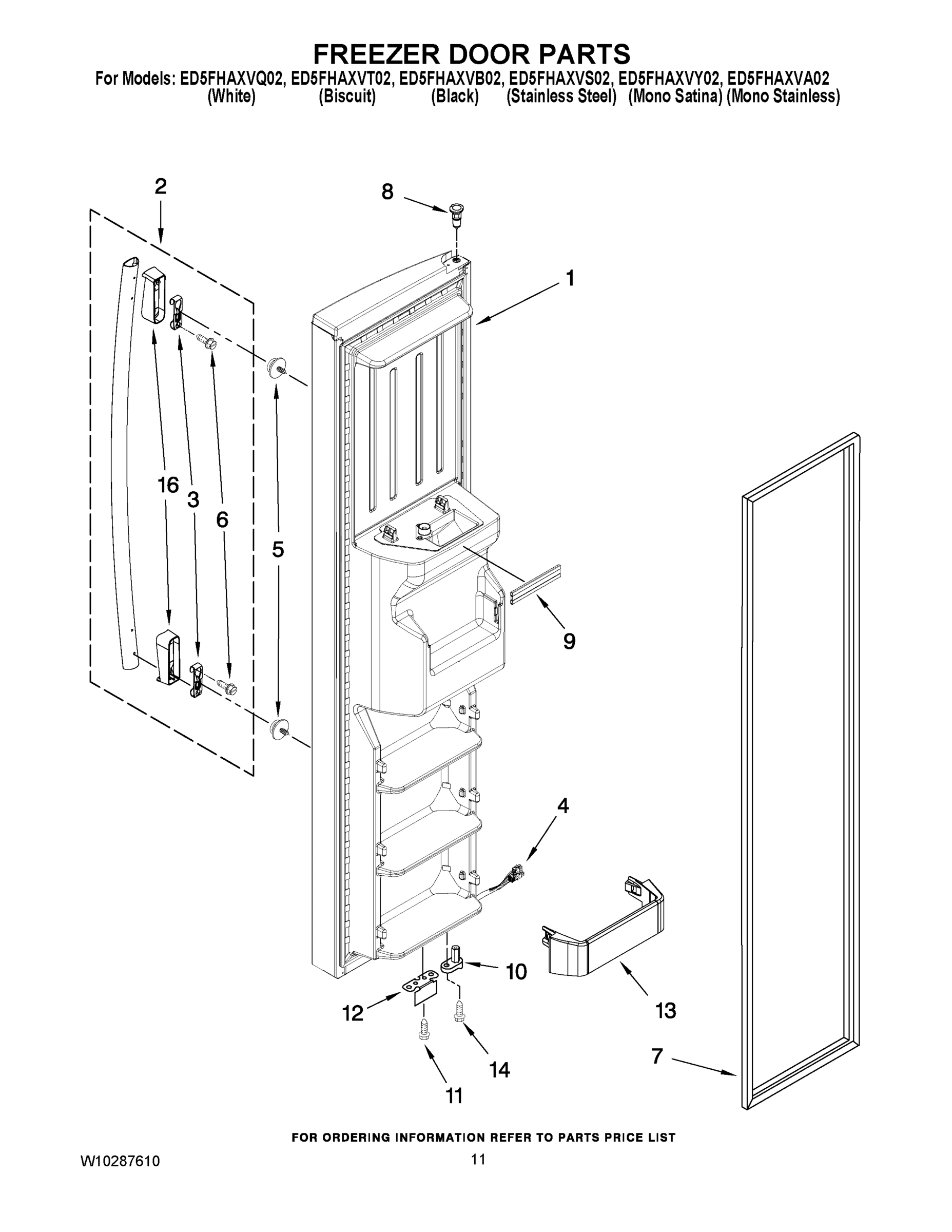

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10141323 Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10141324 Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10141325 Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10141327 Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10177269 Contact Us For Availability

1

FREEZER DOOR (INCLUDES No.8 AND DISPENSER FRO WPL W10177270 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

OWNER S MANUAL WPL W10193164 Contact Us For Availability

1

Energy Guide WPL W10194133 Contact Us For Availability

1

INSTRUCTION SHEET, DOOR REMOVAL WPL W10206334 Contact Us For Availability

1

Service & Wiring Sheet WPL W10238215 Contact Us For Availability

2

W10210942A Whirlpool Refrigerator Handle Backorder WPL W10210942A $54.35

2

W10210943A Whirlpool Refrigerator Handle Backorder WPL W10210943A $54.35

2

W10210944A Whirlpool Refrigerator Handle M Backorder WPL W10210944A $49.41

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $129.98

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

WPW10257120 Whirlpool Refrigerator Handle Backorder WPL WPW10257120 $26.10

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2317240 Whirlpool Refrigerator Ice Auger In Stock WPL WP2317240 $61.42

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $43.21

4

WPW10193328 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10193328 $58.46

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $33.21

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $13.05

5

WPW10288153 Whirlpool Refrigerator Screw In Stock WPL WPW10288153 $3.84

6

W10267047 Whirlpool Screw Backorder WPL W10267047 $9.59

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $57.79

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

6

Cover, Crusher WPL 2317248 Contact Us For Availability

7

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

7

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $148.70

7

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $39.71

7

W10136735 Whirlpool Refrigerator Door Gasket In Stock WPL W10136735 $124.28

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $142.38

7

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

7

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

7

Shelf Ladder WPL 2319866 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

8

Thimble-Top (For White, Black, Biscuit and St WPL 2301049 Contact Us For Availability

9

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $38.10

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Screw WPL W10191952 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

Door Closer, Upper Cam WPL 2323535 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.78

W10152855 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152855 $35.56

W10155161 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10155161 $59.15

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $13.98

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $32.34

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $36.65

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

2323534 Whirlpool Refrigerator Bracket Backorder WPL 2323534 $59.21

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Bracket, Door Stop (Black) WPL 2323534B Contact Us For Availability

Hinge Cover (FC) (White) WPL W10138576 Contact Us For Availability

HINGE COVER (FC) (BISCUIT) WPL W10138577 Contact Us For Availability

HINGE COVER (FC) (BLACK) WPL W10138578 Contact Us For Availability

Hinge Cover (FC) (Apollo Grey) WPL W10138579 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2303141 Whirlpool Refrigerator Door Hinge Backorder WPL 2303141 $126.31

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $34.93

2323581 Whirlpool Refrigerator Tube Cover Backorder WPL 2323581 $29.85

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

FILLER, WRAPPER (BISCUIT) WPL 2304848 Contact Us For Availability

FILLER, WRAPPER (BLACK) WPL 2304849 Contact Us For Availability

Filler, Wrapper (Apollo Grey) WPL W10143043 Contact Us For Availability

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10184888 Whirlpool Refrigerator Grille Backorder WPL WPW10184888 $117.36

WPW10184890 Whirlpool Refrigerator Grille Backorder WPL WPW10184890 $95.73

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.49

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $61.29

Grille (Biscuit) WPL W10184889 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W10127813 Whirlpool Refrigerator Handle Endca Backorder WPL W10127813 $28.09

W11629923 Whirlpool Coupling In Stock WPL W11629923 $13.54

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $28.47

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $43.10

Handle, Endcap (Black) WPL W10127814 Contact Us For Availability

Handle, Endcap (Biscuit) WPL W10127815 Contact Us For Availability

Handle, Endcap (Stainless, All) WPL W10152864 Contact Us For Availability

W10152860 Whirlpool Refrigerator Dispenser Ar Backorder WPL W10152860 $34.31

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Lever, Water Dispenser (Apollo Grey) WPL W10155162 Contact Us For Availability

BRACKET, ICEMAKER MOUNTING WPL 2303583 Contact Us For Availability

Shelf, Snack Bin WPL W10141750 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $34.18

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

W10136850 Whirlpool Refrigerator Front Cover Backorder WPL W10136850 $75.95

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.85

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

Latch, Bin WPL 2317277 Contact Us For Availability

Bezel, Disp (Mono Stain (NO)) WPL W10139842 Contact Us For Availability

Shelf Assembly, Spillguard (2) WPL W10141749 Contact Us For Availability

20

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

20

Spacer, Switch (2) WPL 625834 Contact Us For Availability

20

Clip WPL 2161324 Contact Us For Availability

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Cover, Unit WPL 2304891 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $4.52

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $5.38

CABINET (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

2317243 Whirlpool Refrigerator Wiper Backorder WPL 2317243 $30.25

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

Hinge Cover (RC) (White) WPL W10138581 Contact Us For Availability

Hinge Cover (RC) (Black) WPL W10138582 Contact Us For Availability

Hinge Cover (RC) (Biscuit) WPL W10138583 Contact Us For Availability

Hinge Cover (RC) (Apollo Grey) WPL W10138584 Contact Us For Availability

24

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

24

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

24

Cover, Receiver WPL W10173569 Contact Us For Availability

25

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.78

25

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.09

25

NLA:SCREW Backorder WPL WPW10141645 $3.70

26

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.21

26

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $32.39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

Ctrl-Elek, Puma WPL 2321748 Contact Us For Availability

Enclosure, Motor WPL 2322488 Contact Us For Availability

28

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $57.79

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

29

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $3.33

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $28.57

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.09

Cap, Water Filter (Biscuit) WPL 2260502T Contact Us For Availability

31

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $37.44

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

32

Block, Housing Support WPL 2260519 Contact Us For Availability

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.11

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $30.25

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

34

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

35

WPL W10212512 WPL W10212512 Contact Us For Availability

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

37

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

38

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

41

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

42

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

100

WP2317251 Whirlpool Refrigerator Ice Containe In Stock WPL WP2317251 $196.63

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $29.35

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
