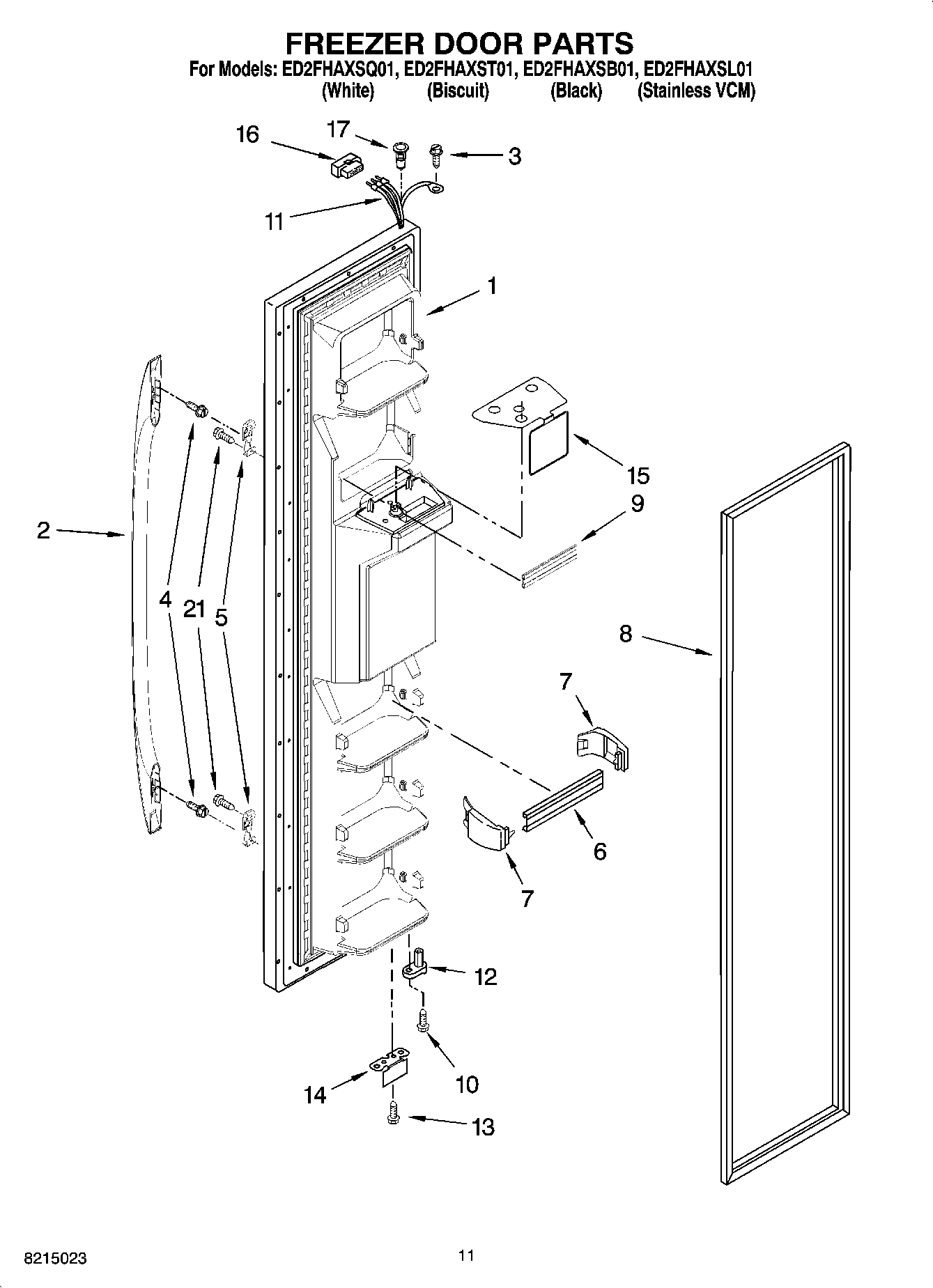

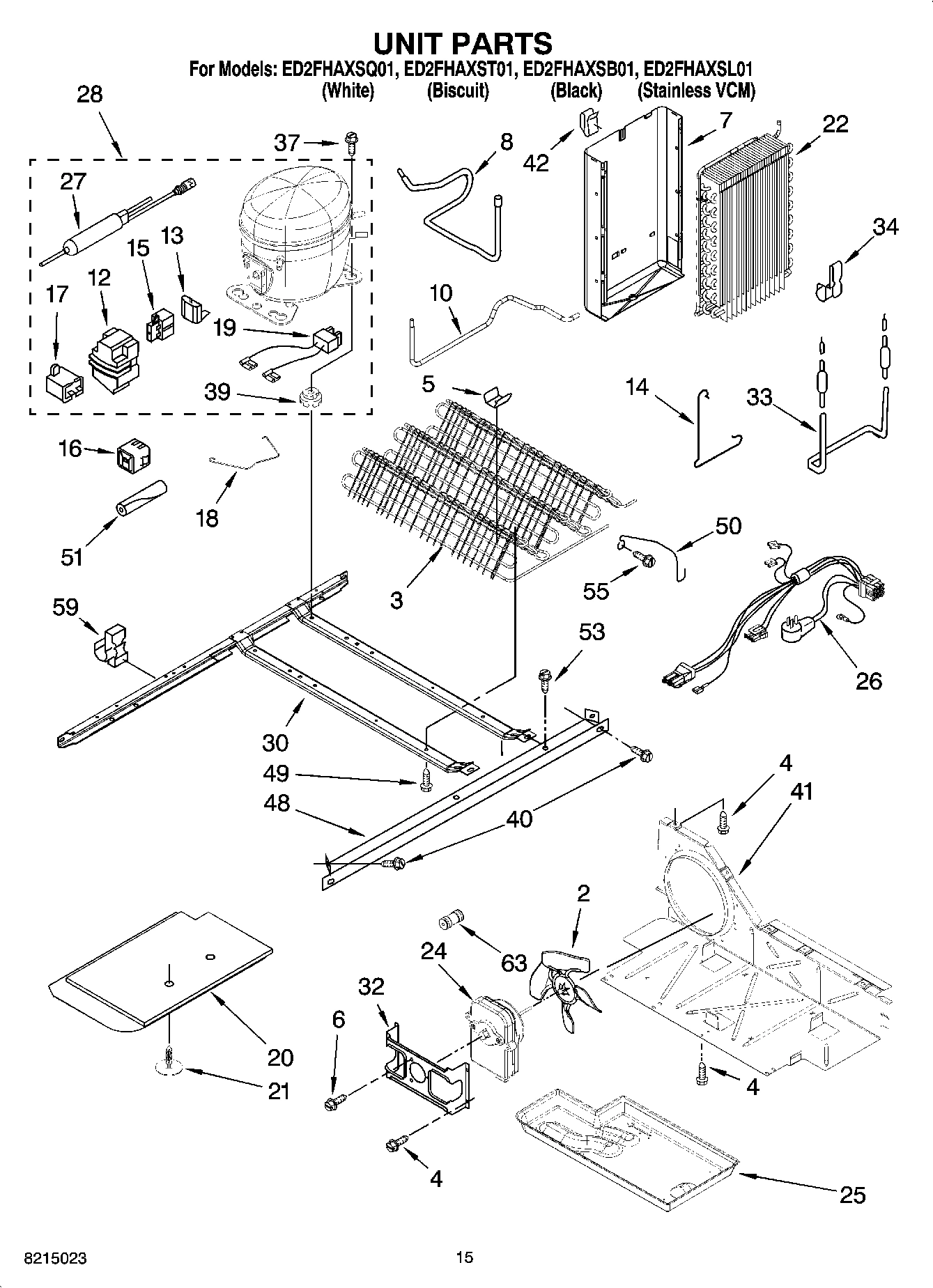

Model Whirlpool ED2FHAXSL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Housing Dispenser (Not Serviced) WPL ARI29027A3 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI29025A5 Contact Us For Availability

2

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $109.31

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $41.16

4

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $50.03

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

SCREW WPL 8533920 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $134.84

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $26.75

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $35.90

9

WP2206671W Whirlpool Refrigerator Grille In Stock WPL WP2206671W $32.35

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $49.85

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2206671T Contact Us For Availability

9

Shelf Ladder WPL 2206270 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $37.83

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $125.38

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $52.10

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $12.22

WP2255431B Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431B $36.27

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

2310237 Whirlpool Refrigerator Wire Harness Backorder WPL 2310237 $72.87

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

Bracket, Dual Crisper Light WPL 2256035 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $13.83

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Cover, Indicator Light WPL 2200096 Contact Us For Availability

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Light Bar (RC) WPL 2179920 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $4.72

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $6.38

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

Freezer Bin WPL 2216111 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

W11629923 Whirlpool Coupling In Stock WPL W11629923 $12.72

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

Grille (Black) WPL 2260501B Contact Us For Availability

Grille (Biscuit) WPL 2260501T Contact Us For Availability

Grille (White) WPL 2260501W Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $35.74

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $35.90

WP2255432W Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432W $35.94

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.13

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

Switch Assembly (Not Available Order 23) WPL ARI29028A4 Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Overlay, Front Cover (Not Available, Order 23 WPL ARI29029A7 Contact Us For Availability

20

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $41.71

20

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

20

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

Front Cover, Housing (Not Available Order 23 WPL ARI29030A8 Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $27.27

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Screw WPL 488280 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $65.32

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Front Cover Assembly (Includes Items 19, 20 & WPL 2318558B Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2318558T Contact Us For Availability

Front Cover Assembly (Includes Items 19, 20 & WPL 2318558W Contact Us For Availability

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $3.70

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

25

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

27

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

27

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10853646 Whirlpool Indicator Light Backorder WPL W10853646 $46.43

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

30

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

30

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

30

Cap, Water Filter (Biscuit) WPL 2260502T Contact Us For Availability

31

Cabinet, (Not A Serviceable Part) WPL ARI29024A4 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

33

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

34

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $14.42

35

Block, Housing Support WPL 2260519 Contact Us For Availability

36

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $26.70

36

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

37

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $47.93

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
