Model Whirlpool ED27DQXDN04 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
08 - DISPENSER FRONT
10 - AIR FLOW

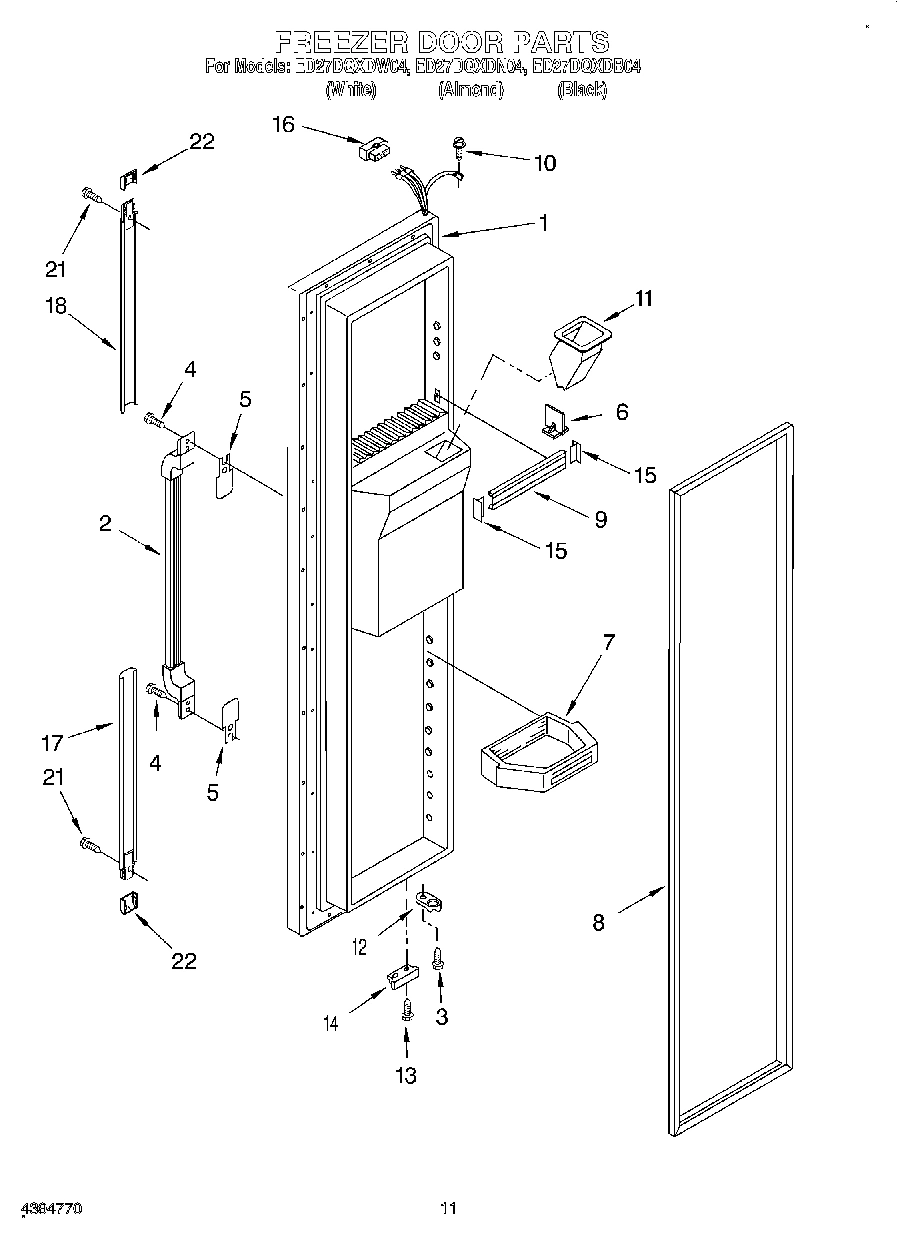

07 - FREEZER DOOR

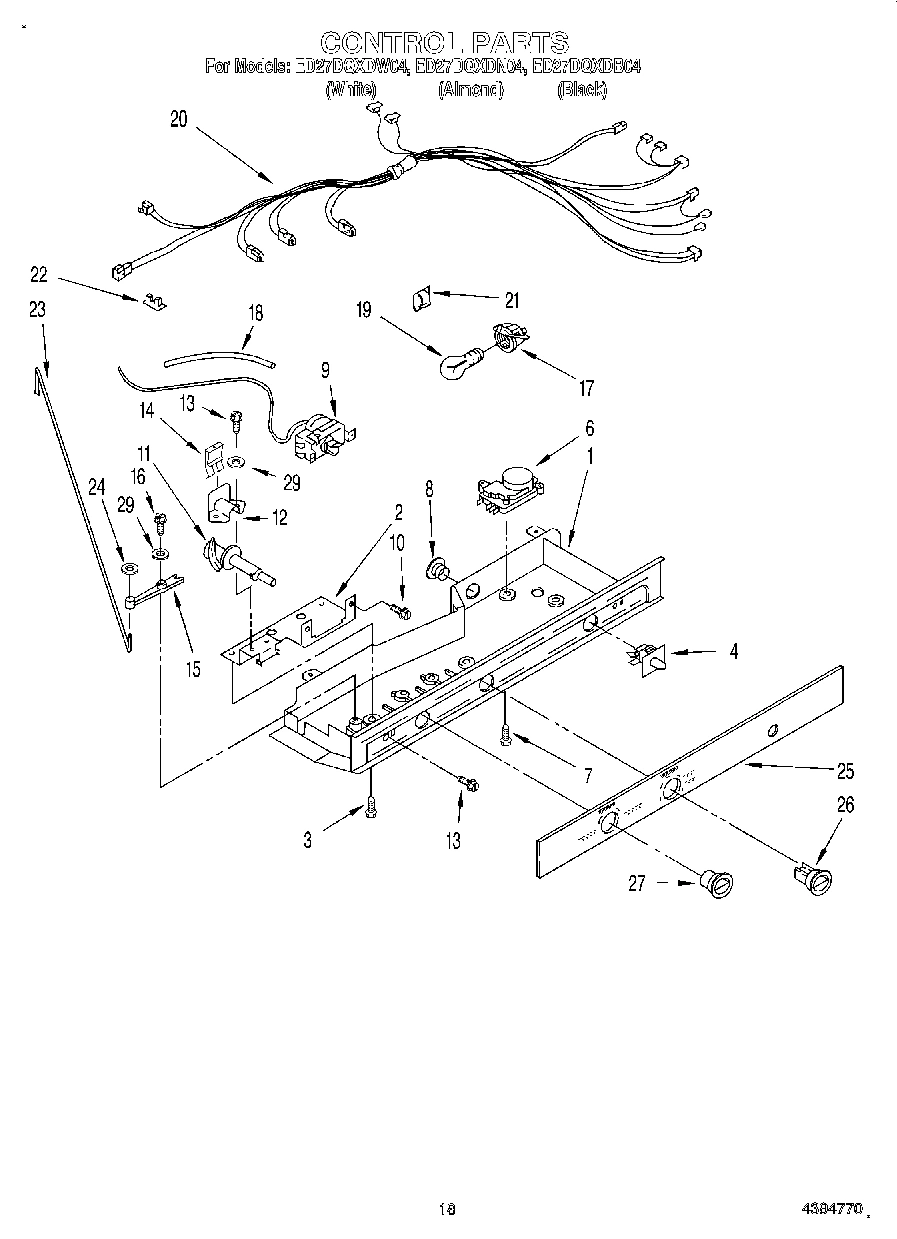

11 - CONTROL
12 - ICE MAKER, LIT/OPTIONAL

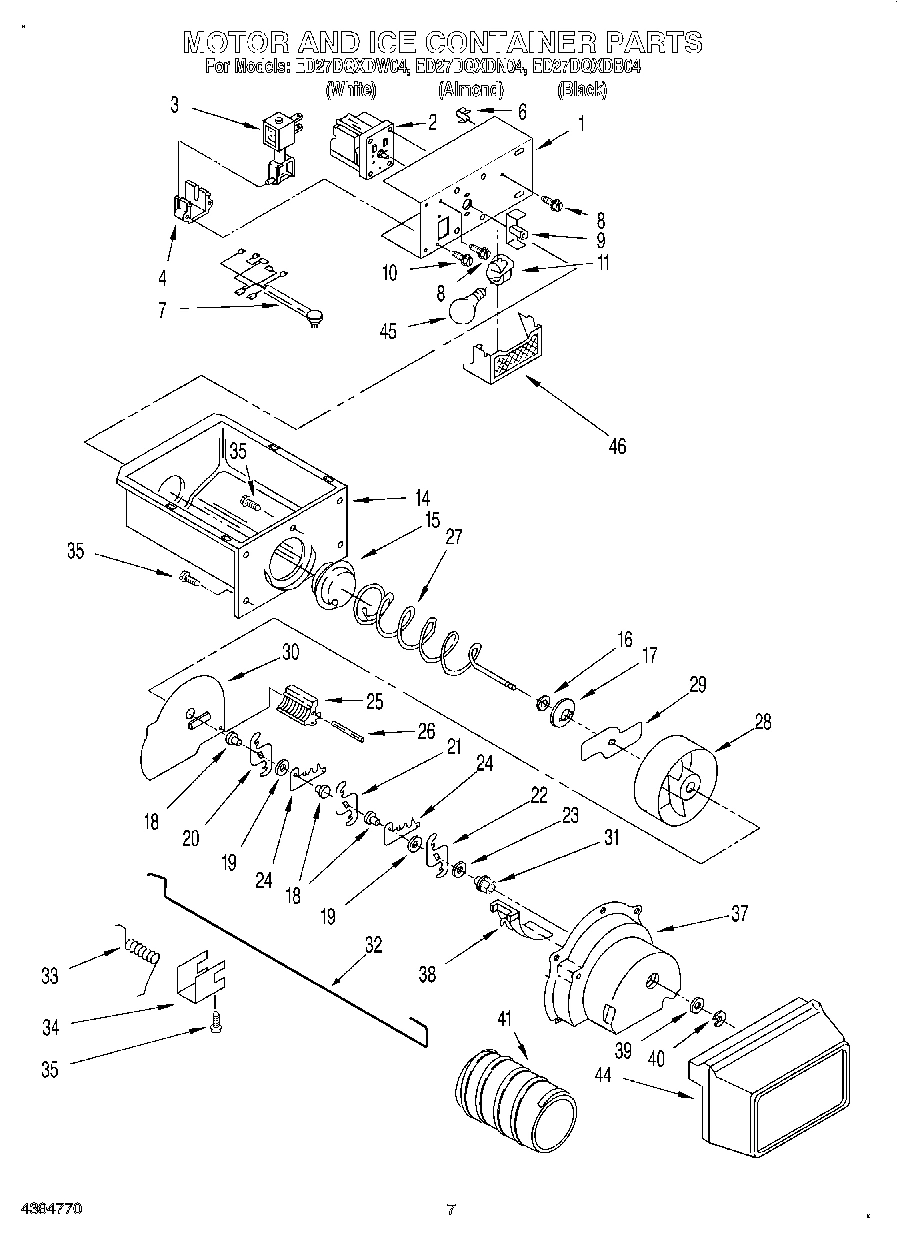

05 - MOTOR AND ICE CONTAINER

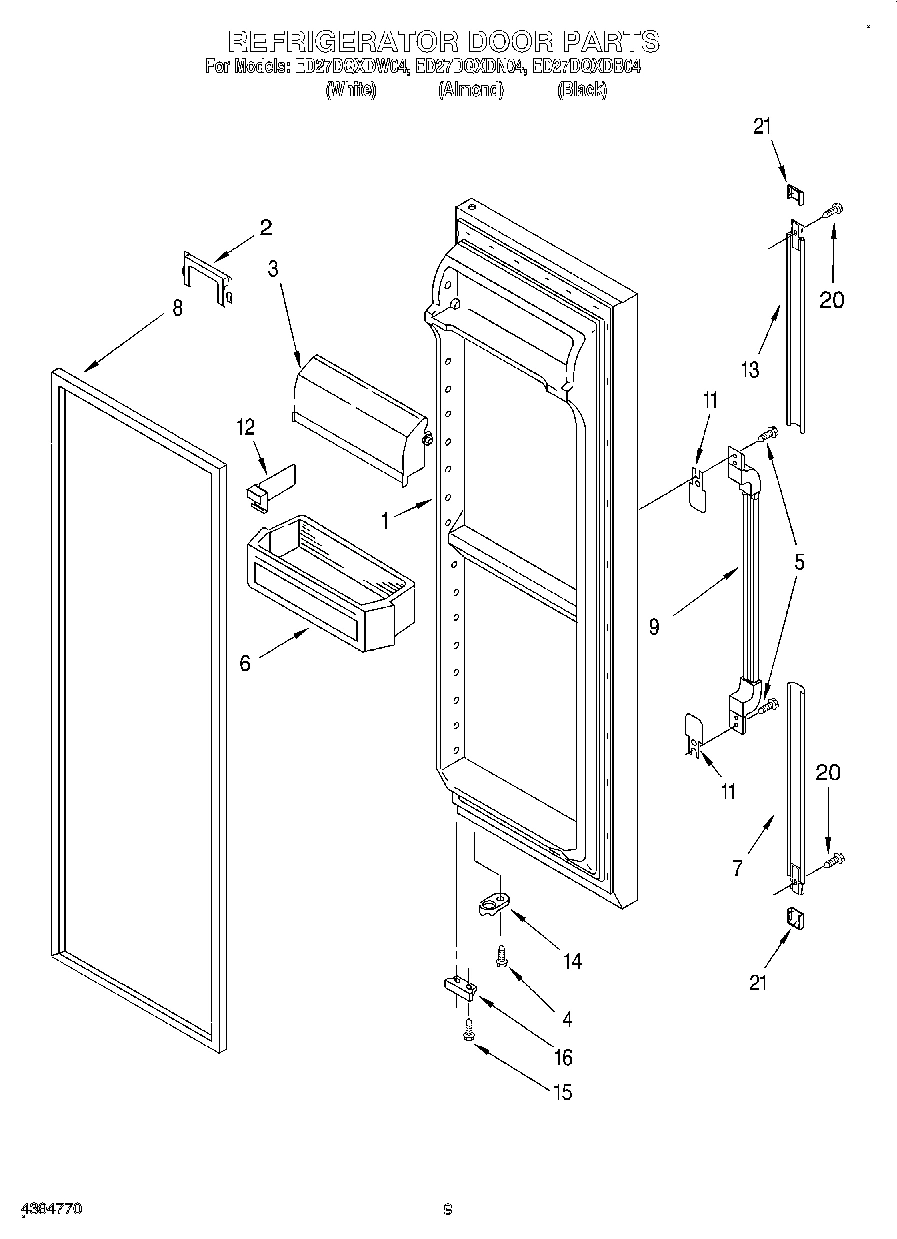

06 - REFRIGERATOR DOOR

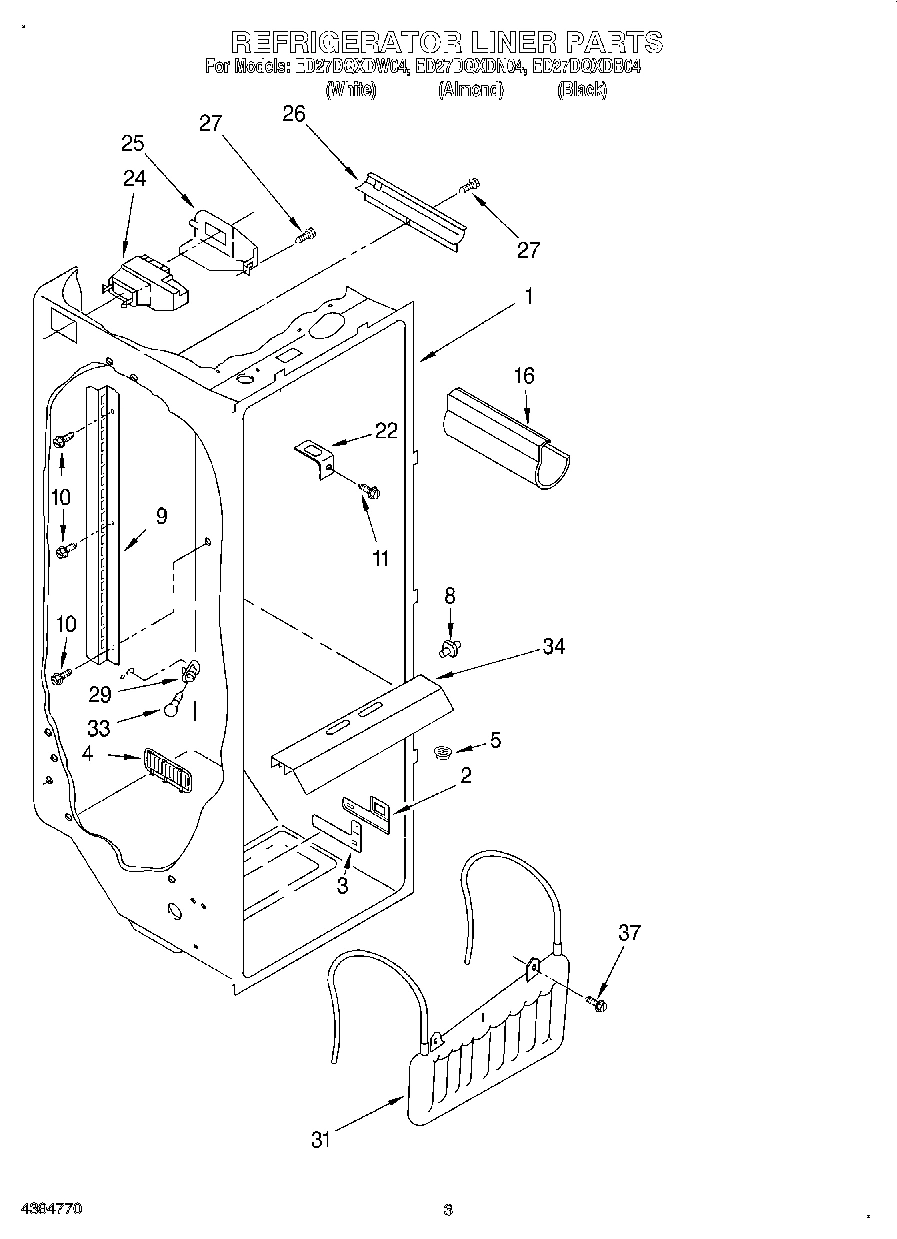

02 - REFRIGERATOR LINER
09 - UNIT

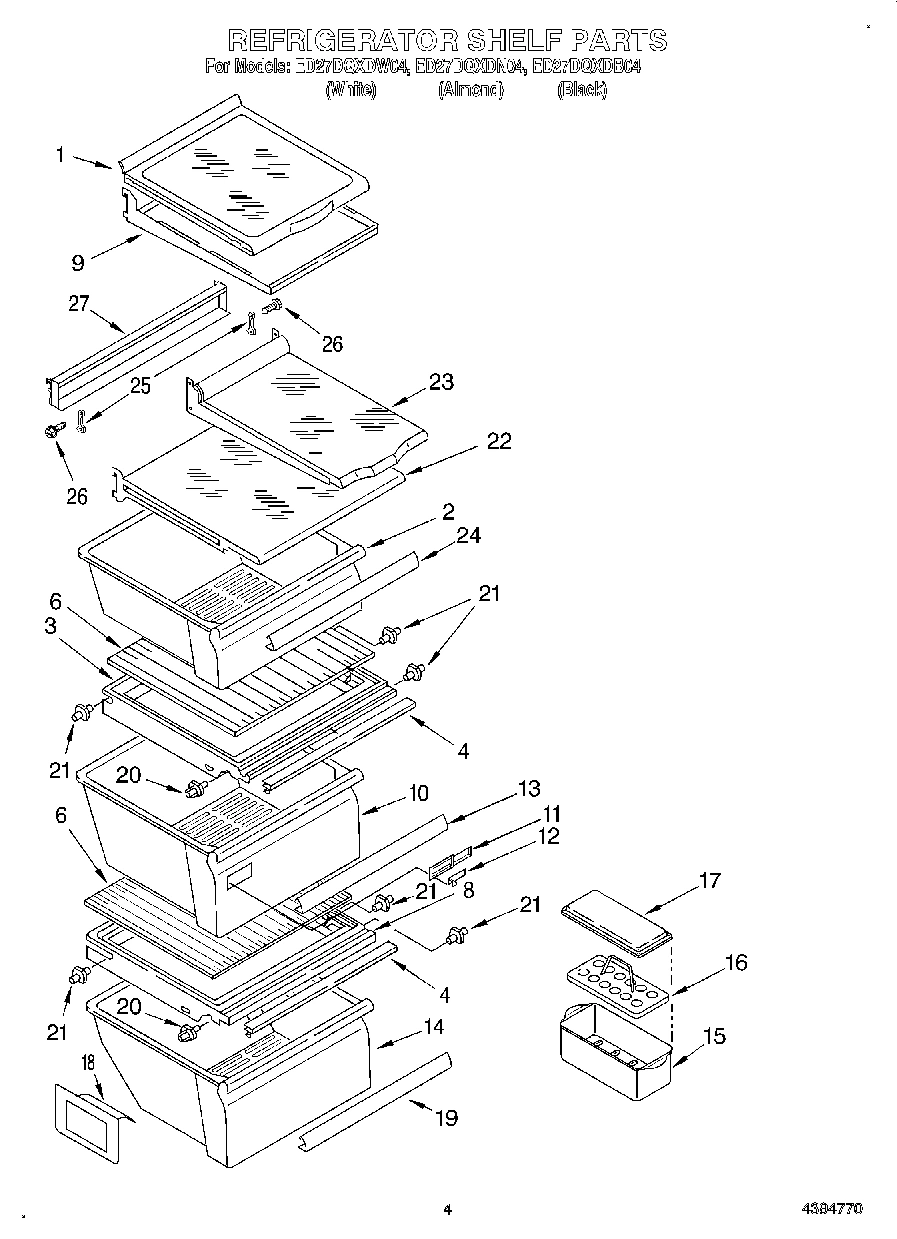

03 - REFRIGERATOR SHELF
04 - FREEZER LINER
Common parts from model Whirlpool ED27DQXDN04 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194514B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194514N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194514W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28332A4 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28333A1 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Extension, Bottom (Black) WPL 2194766B Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
7
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
9
Handle, Center (Black) WPL 2194759B Contact Us For Availability
9
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
9
Handle, Center (White) WPL 2194759W Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
9
Trim, Basket WPL 2195903 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
11
Shim WPL 2179399 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
12
Basket WPL 2181763 Contact Us For Availability
13
Extension, Top (Black) WPL 2194765B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194765N Contact Us For Availability
13
Extension, Top (White) WPL 2194765W Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI28335A7 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
17
Slide, Basket (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (3)) WPL 2181760 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
21
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
21
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
21
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
Door, Top Compartment WPL 2194090 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174468 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
31
Unit, Harness WPL 2194746 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
