Model Whirlpool ED25TWXDW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
04 - FREEZER LINER
06 - REFRIGERATOR DOOR

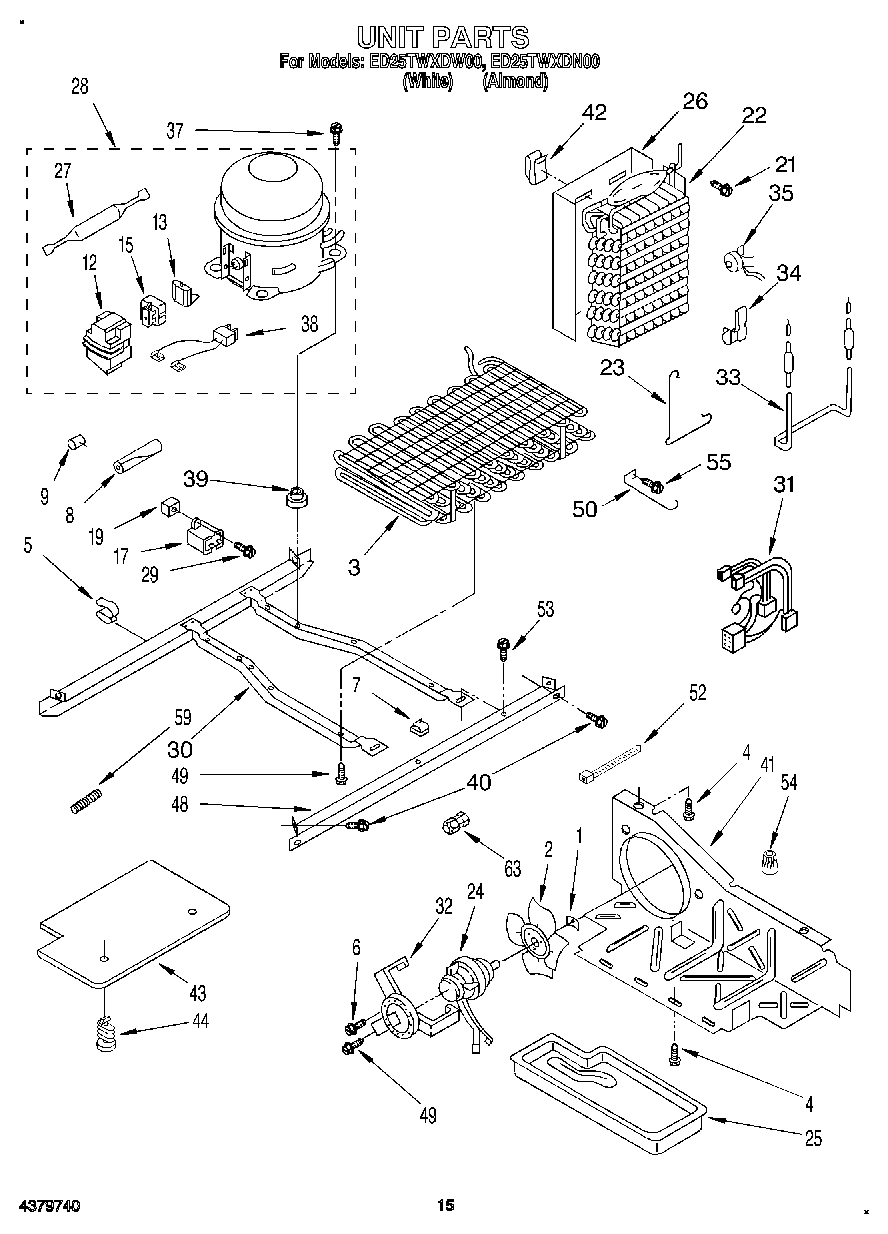

09 - UNIT
11 - CONTROL

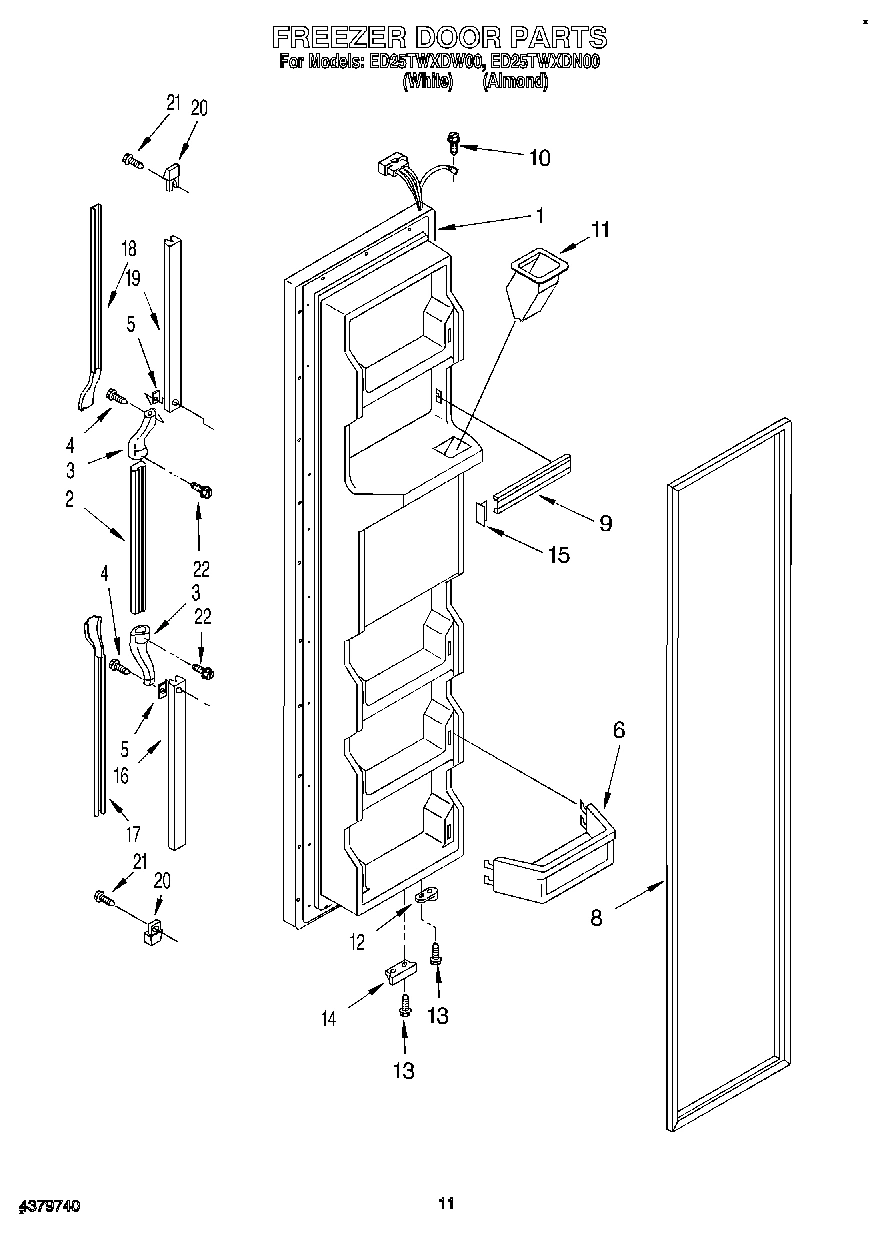

07 - FREEZER DOOR

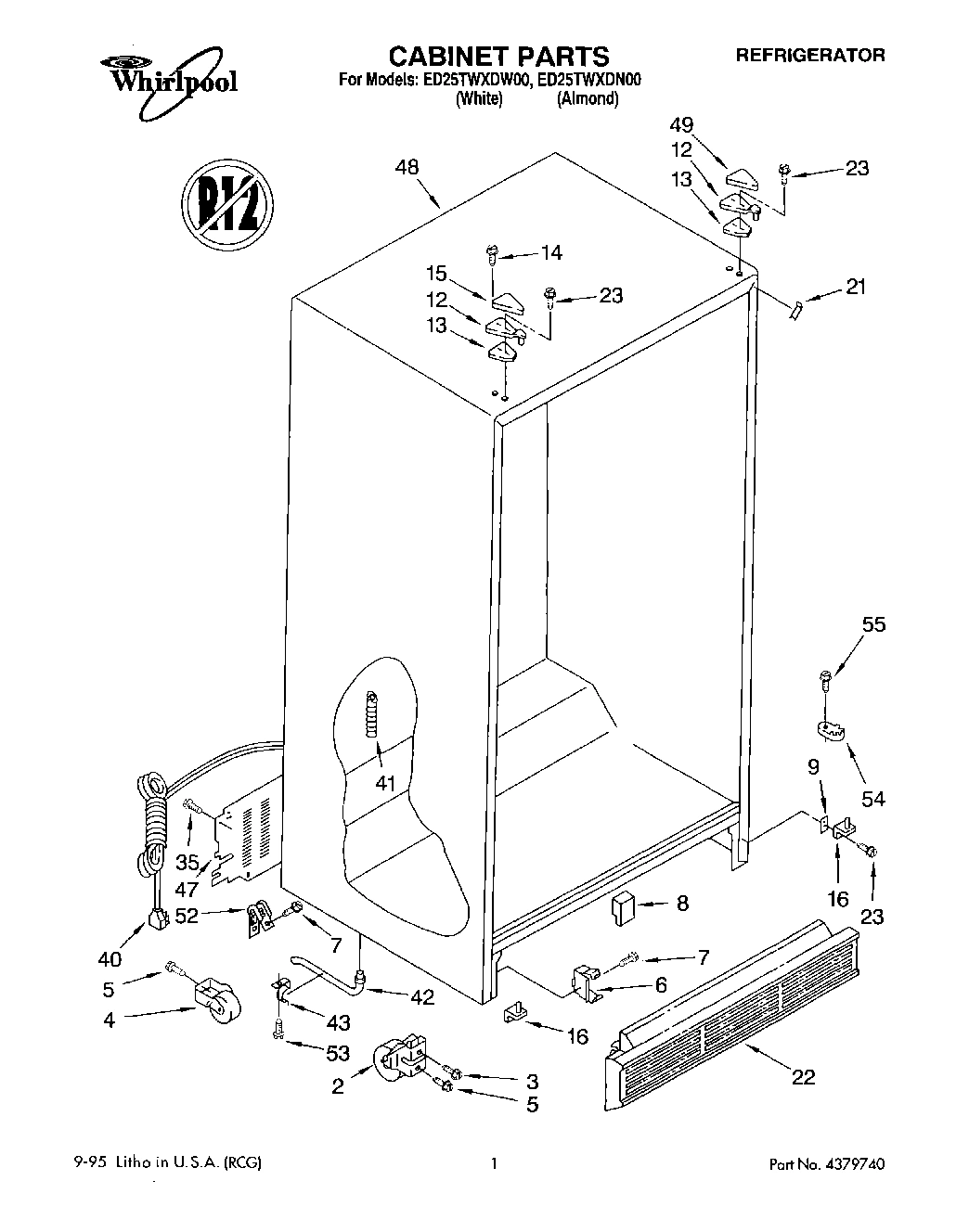

01 - CABINET

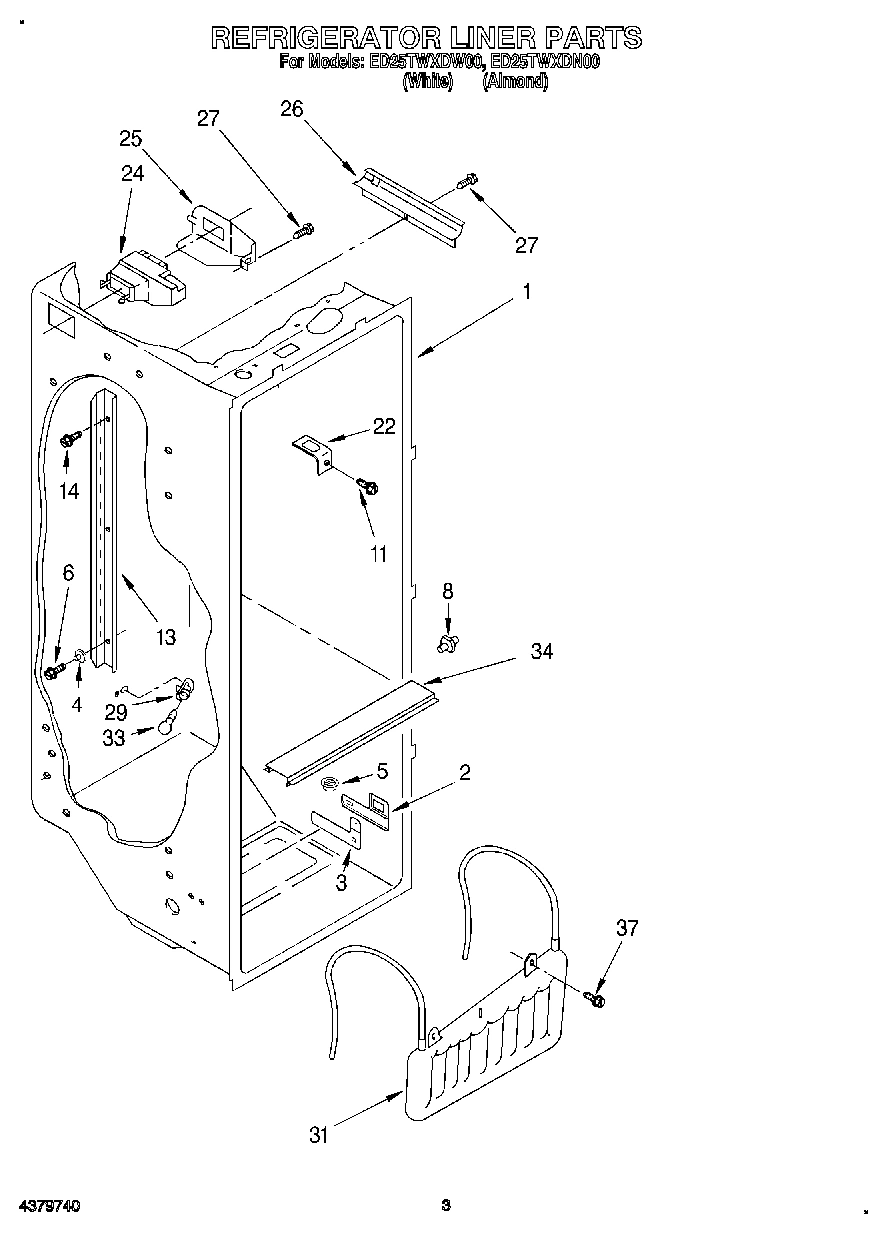

02 - REFRIGERATOR LINER

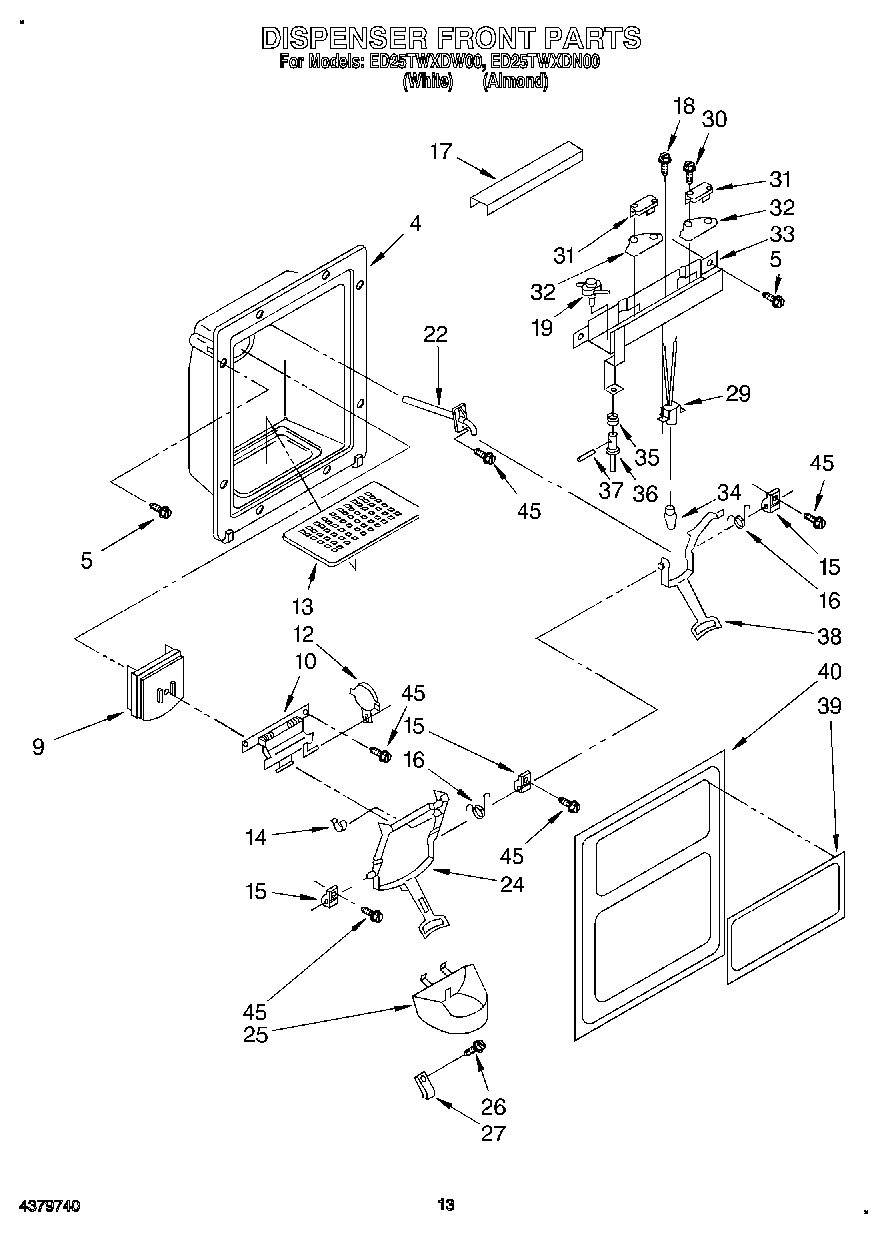

08 - DISPENSER FRONT

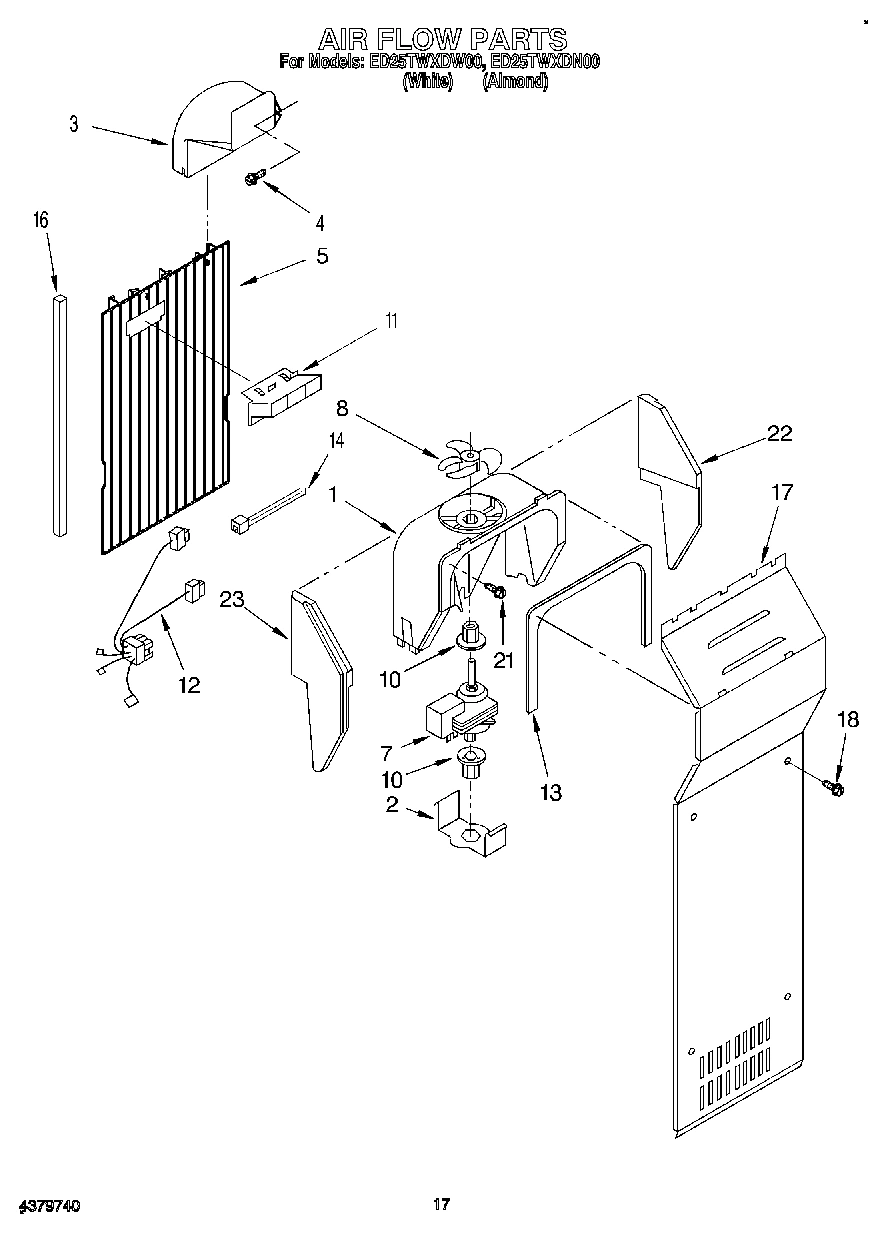

10 - AIR FLOW

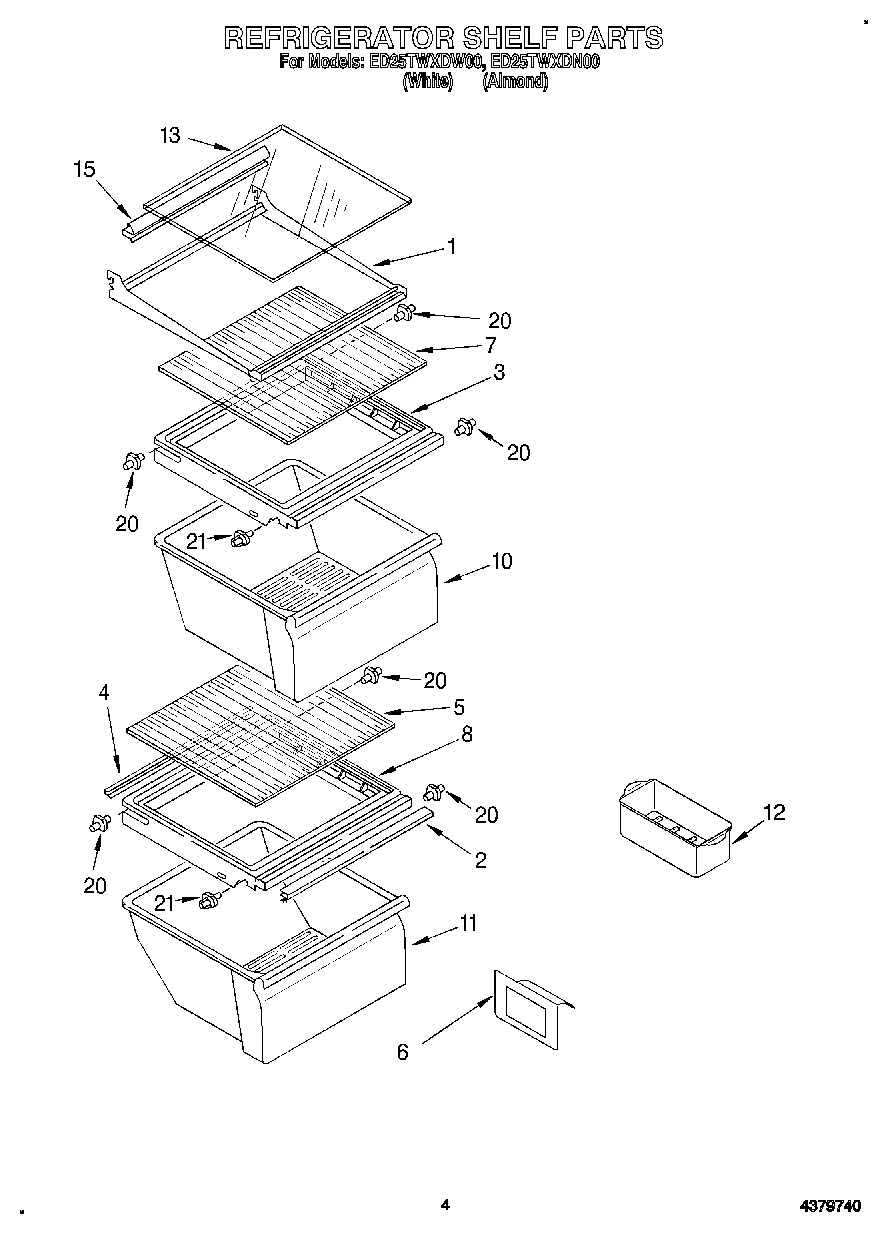

03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER
12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool ED25TWXDW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176769 WPL LIT2176769 Contact Us For Availability
WPL LIT2179285 WPL LIT2179285 Contact Us For Availability
WPL LIT2180535 WPL LIT2180535 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2171494 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2177211 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI28157A2 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 2163572 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Gasket, Front WPL 2174442 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Screw WPL 489432 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
4
Stud WPL 658944 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI28159A8 Contact Us For Availability
4
Gasket, Rear WPL 2174483 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2171168 Contact Us For Availability
6
Screw WPL 487559 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Shelf Ladder WPL 1116794 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Glass, Shelf WPL 2175987 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Baffle WPL 1115362 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Reflector WPL 2170621 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119360 Contact Us For Availability
16
Front Cover WPL 2174352 Contact Us For Availability
17
Insert, Handle (White) WPL 1119361 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Insert, Handle (White) WPL 1119373 Contact Us For Availability
18
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
Retainer, Insert WPL 1119372 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2171495 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2175844 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2171497 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2177138 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI28156A4 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNC WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
