Model Whirlpool ED25TEXHT02 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2205747 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2205958 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2211854 Contact Us For Availability

1

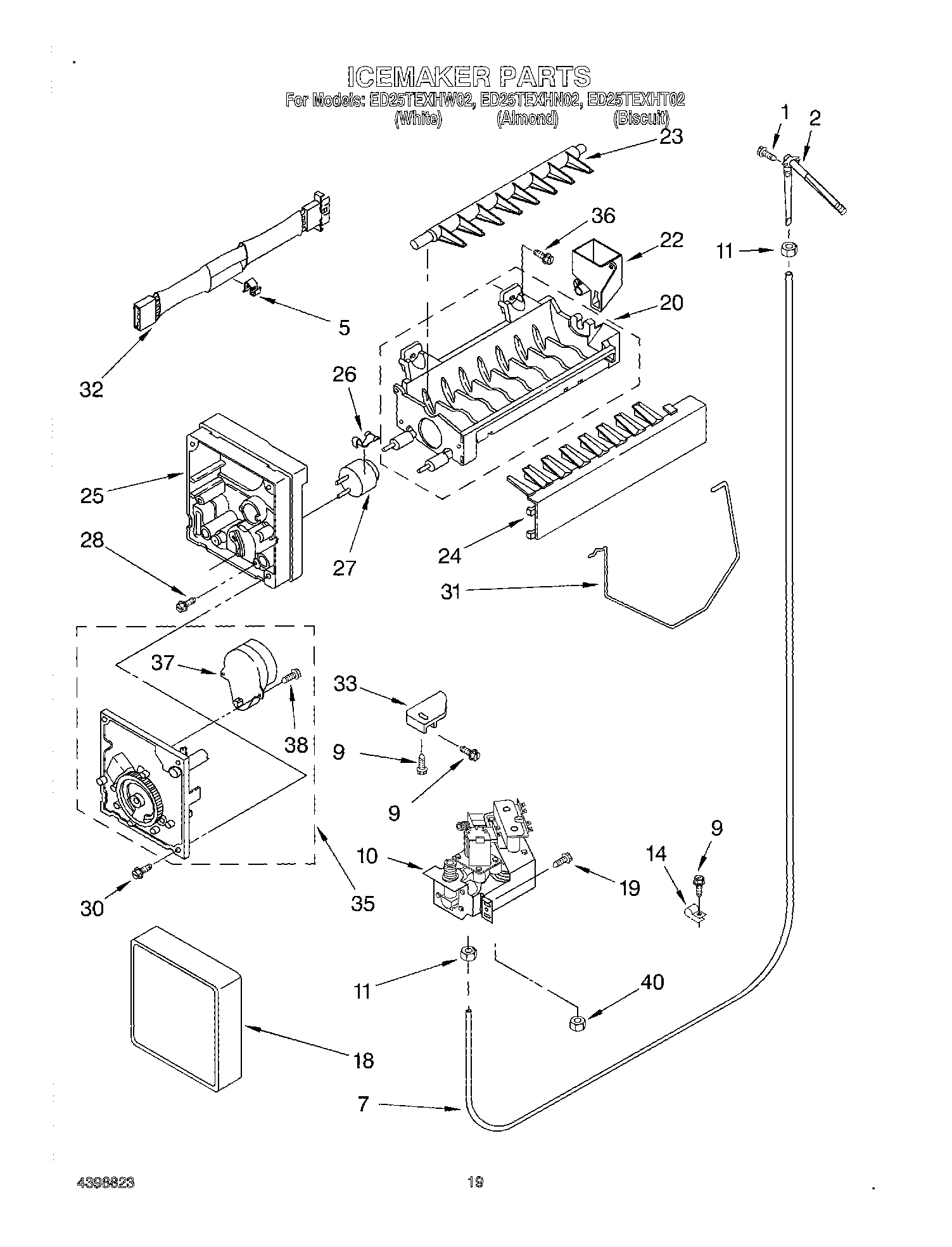

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

1

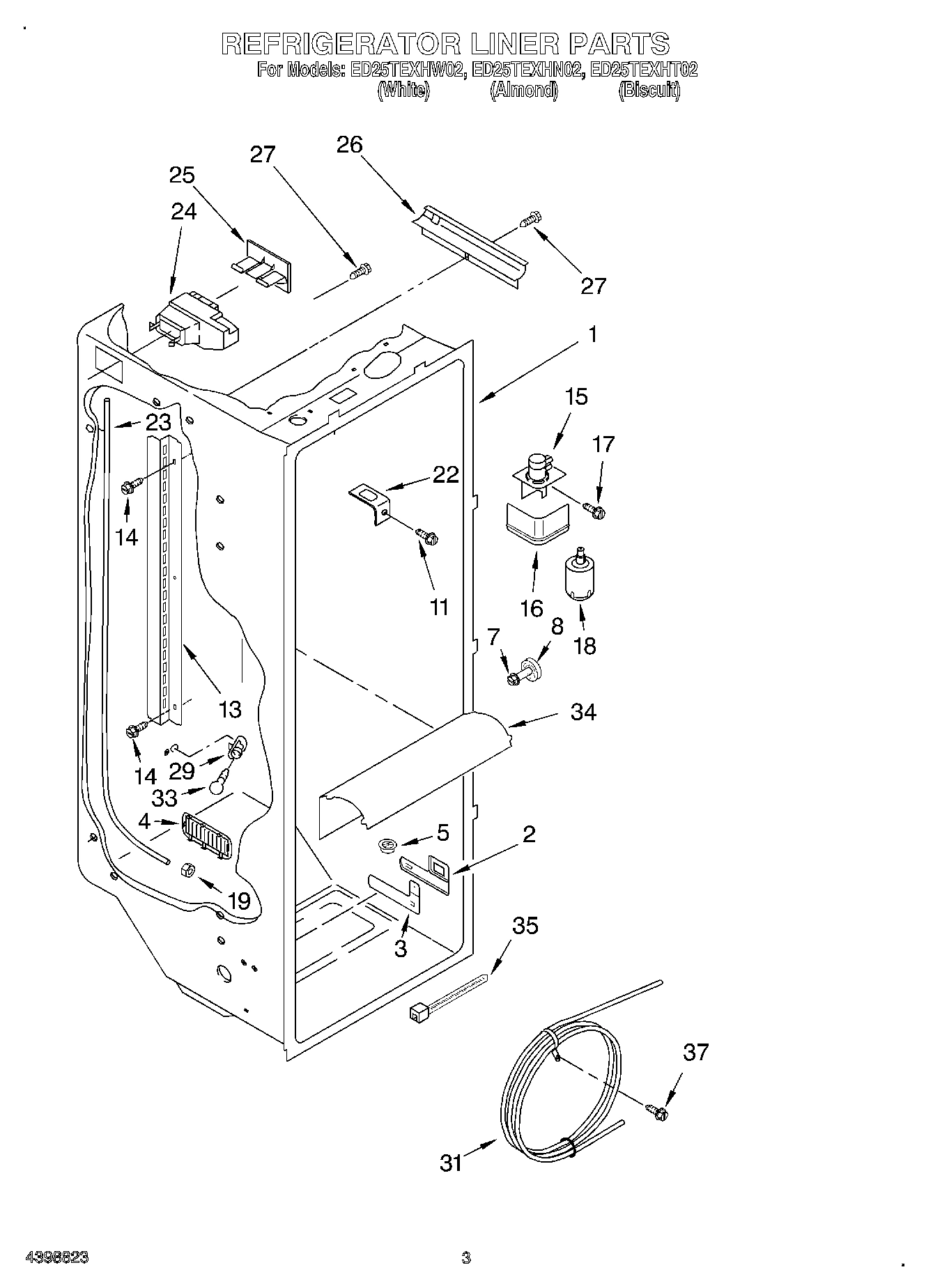

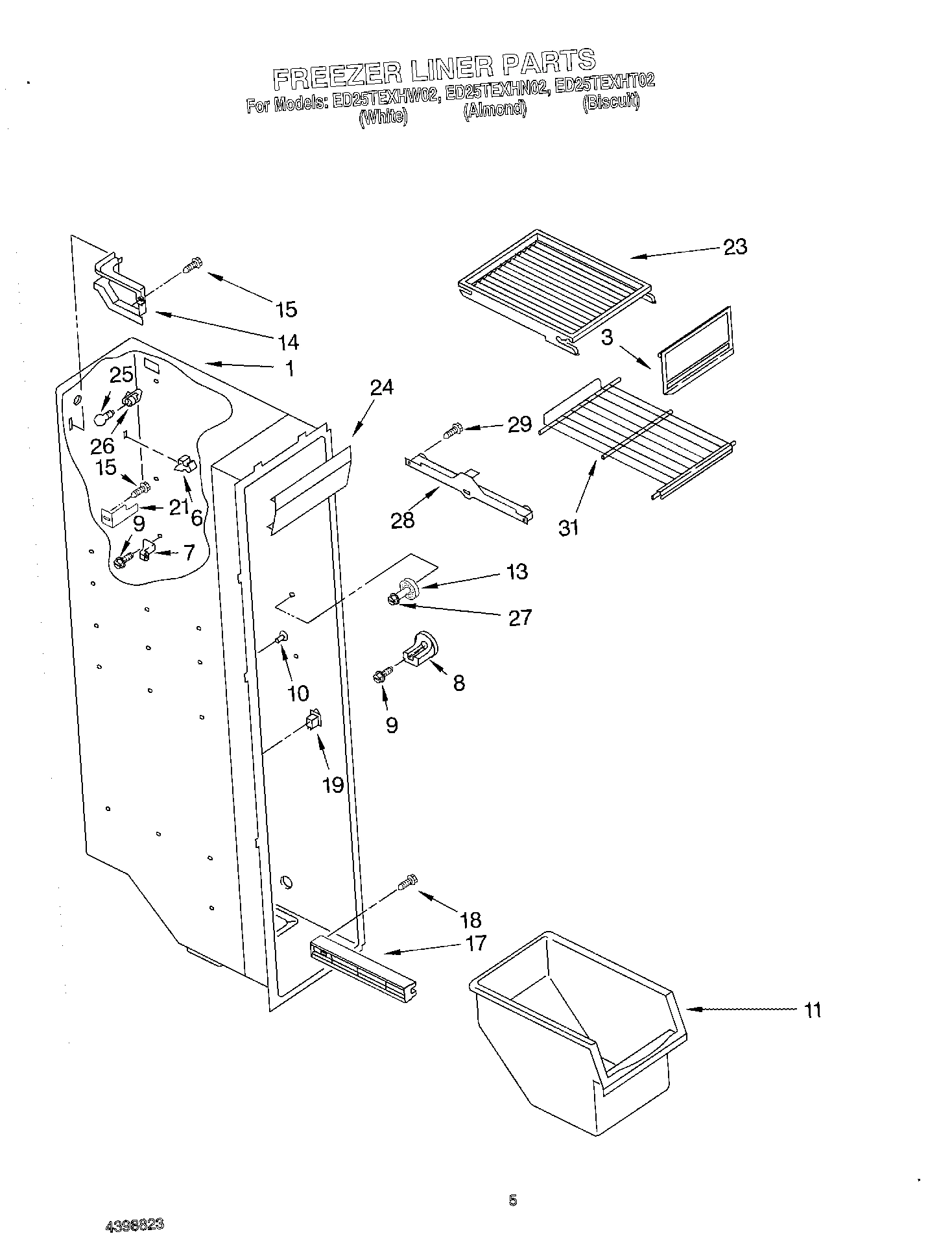

Liner (Not A Serviceable Part) WPL ARI28047A9 Contact Us For Availability

1

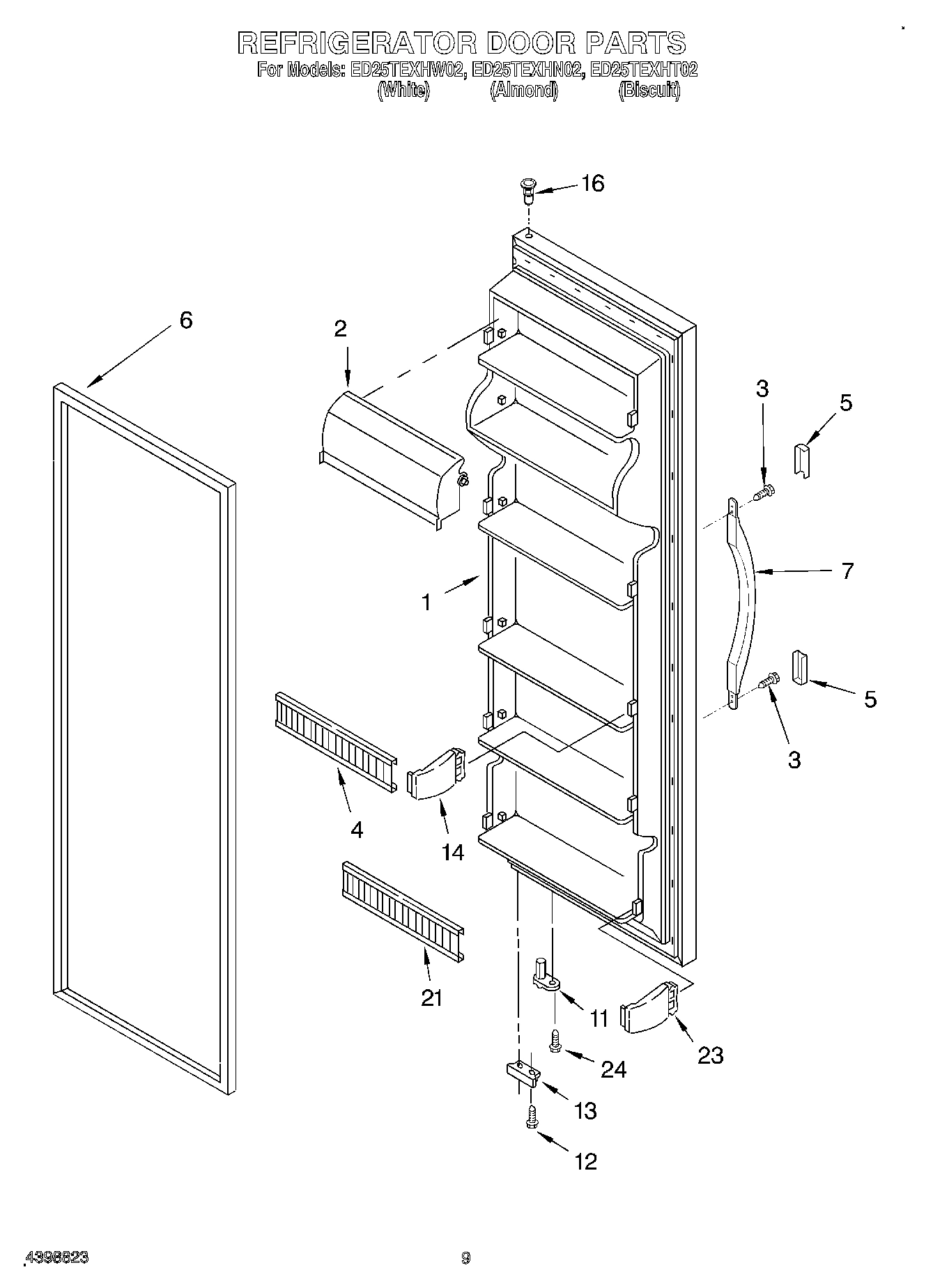

Refrigerator Door (Includes Item 6) (Almond) WPL 2198499N Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2198499T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2198499W Contact Us For Availability

1

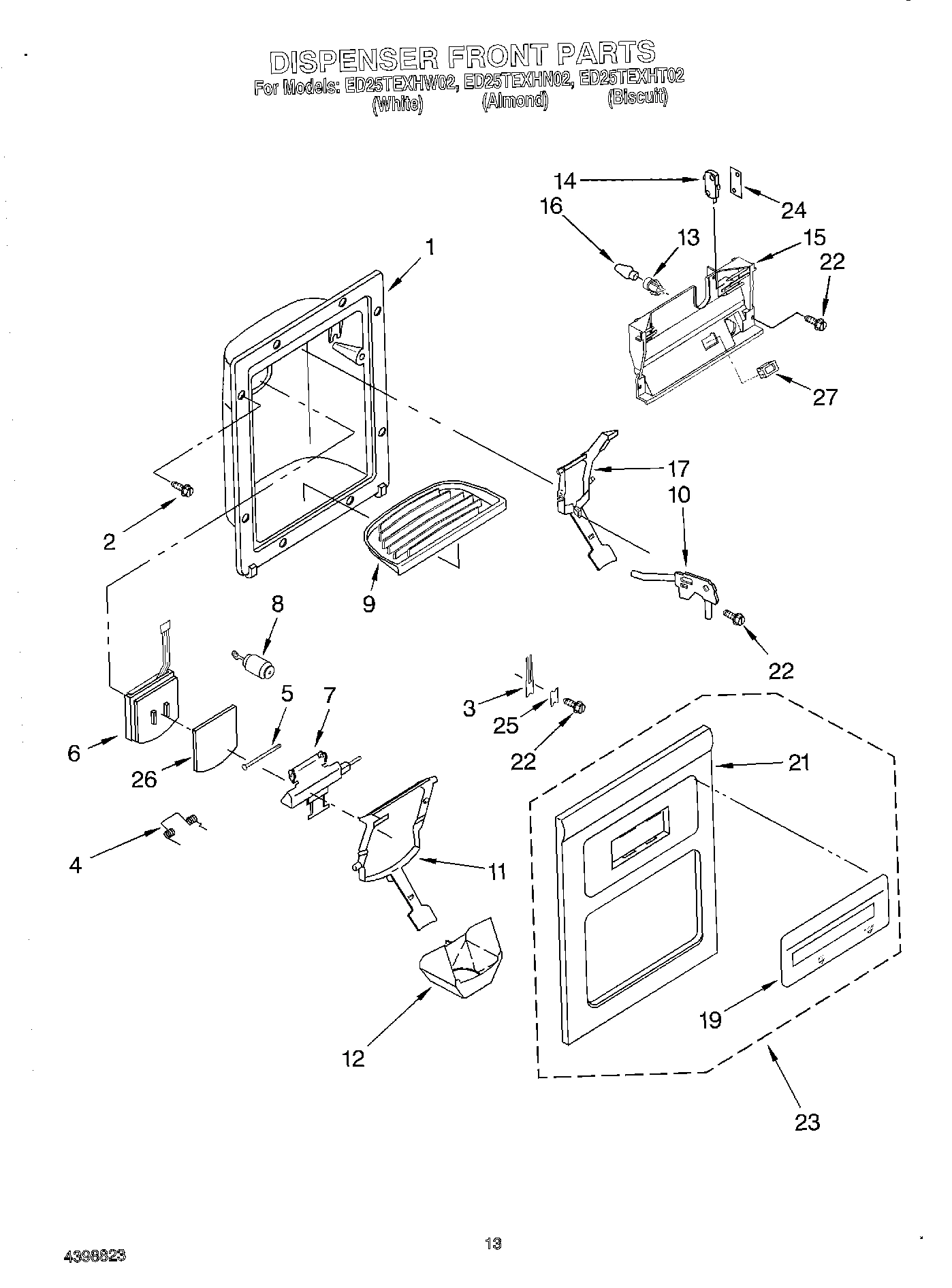

Housing, Dispenser (Not a Serviceable Part) WPL ARI28049A2 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.83

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $2.51

2

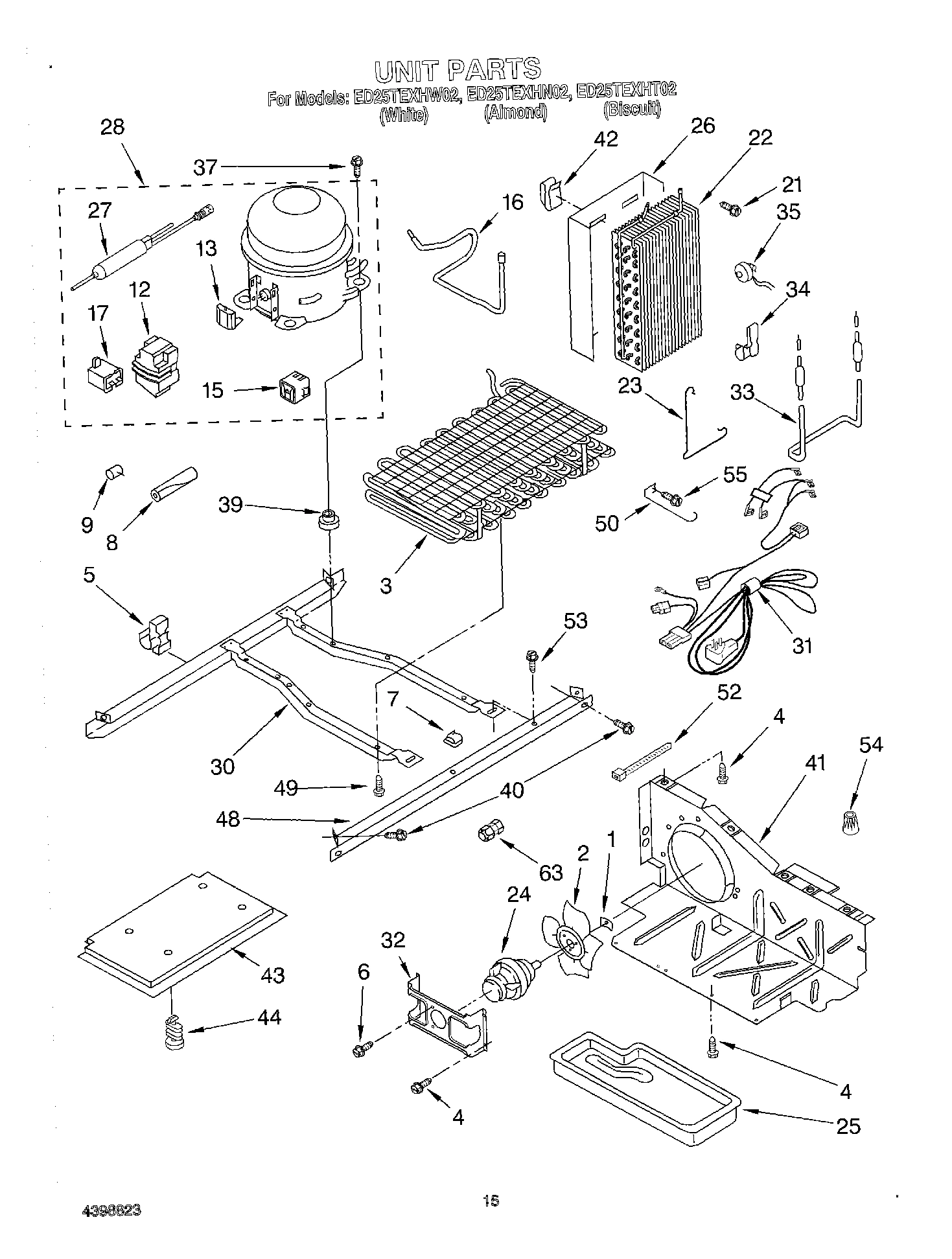

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

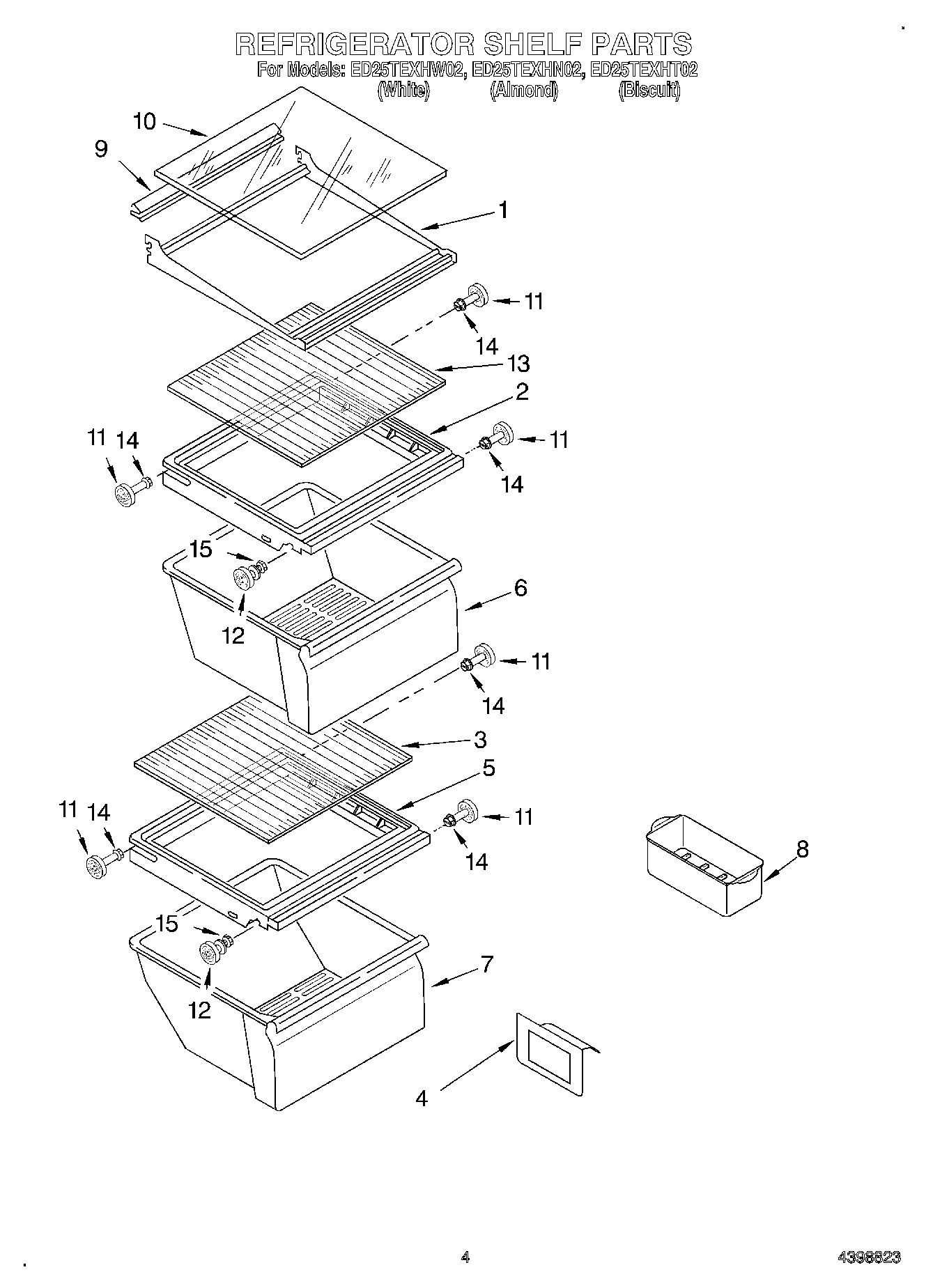

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $32.39

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Louver WPL 2182147 Contact Us For Availability

4

Trim, Door (4) WPL 2198488 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Endcap, Handle (2) (Almond) WPL 2193353N Contact Us For Availability

5

Endcap, Handle (2) (Biscuit) WPL 2193353T Contact Us For Availability

6

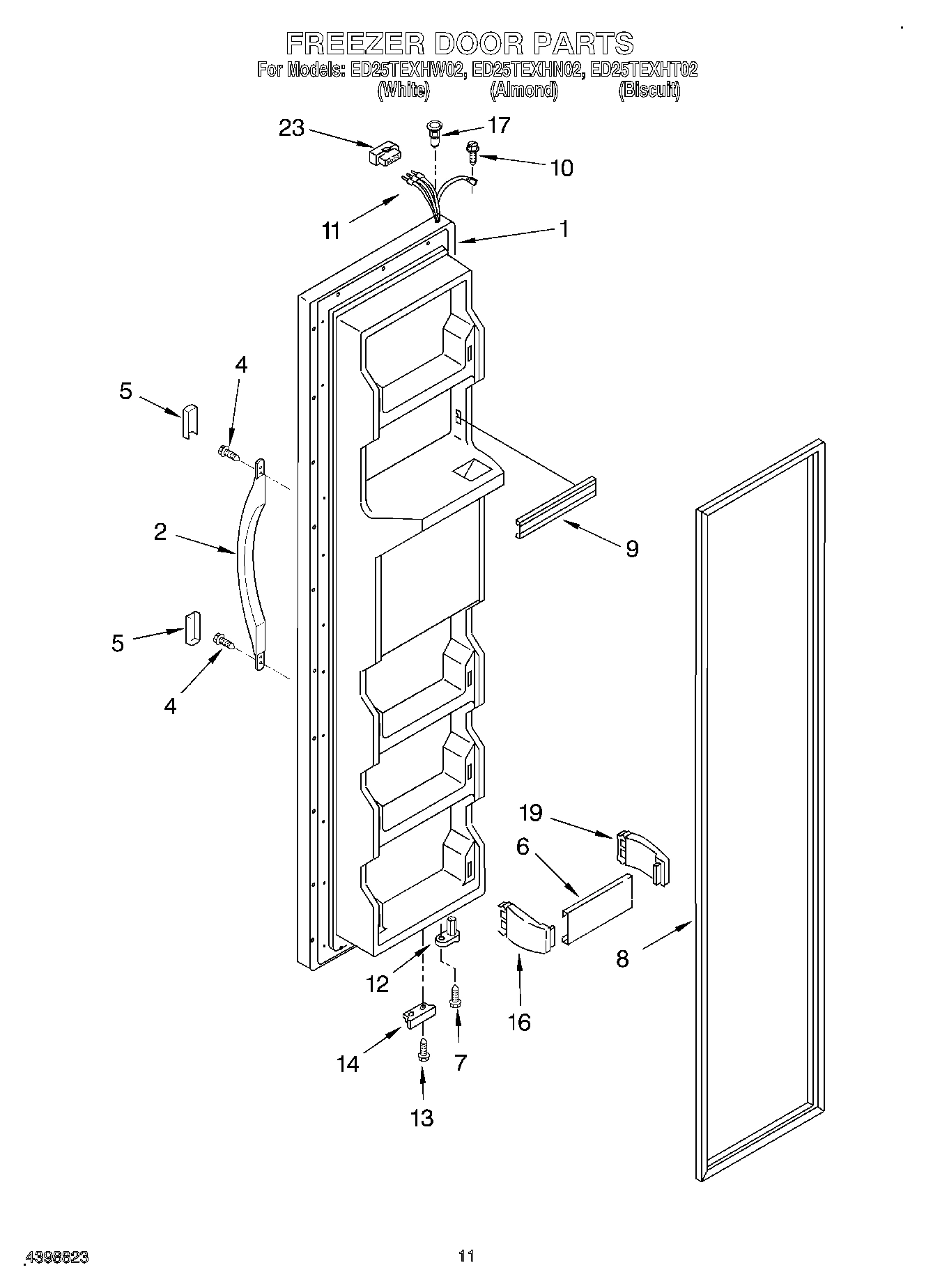

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

7

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

7

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

7

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $163.87

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Stud, Rear WPL 2196207 Contact Us For Availability

8

Delay Mechanism WPL 2205686 Contact Us For Availability

9

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $35.65

9

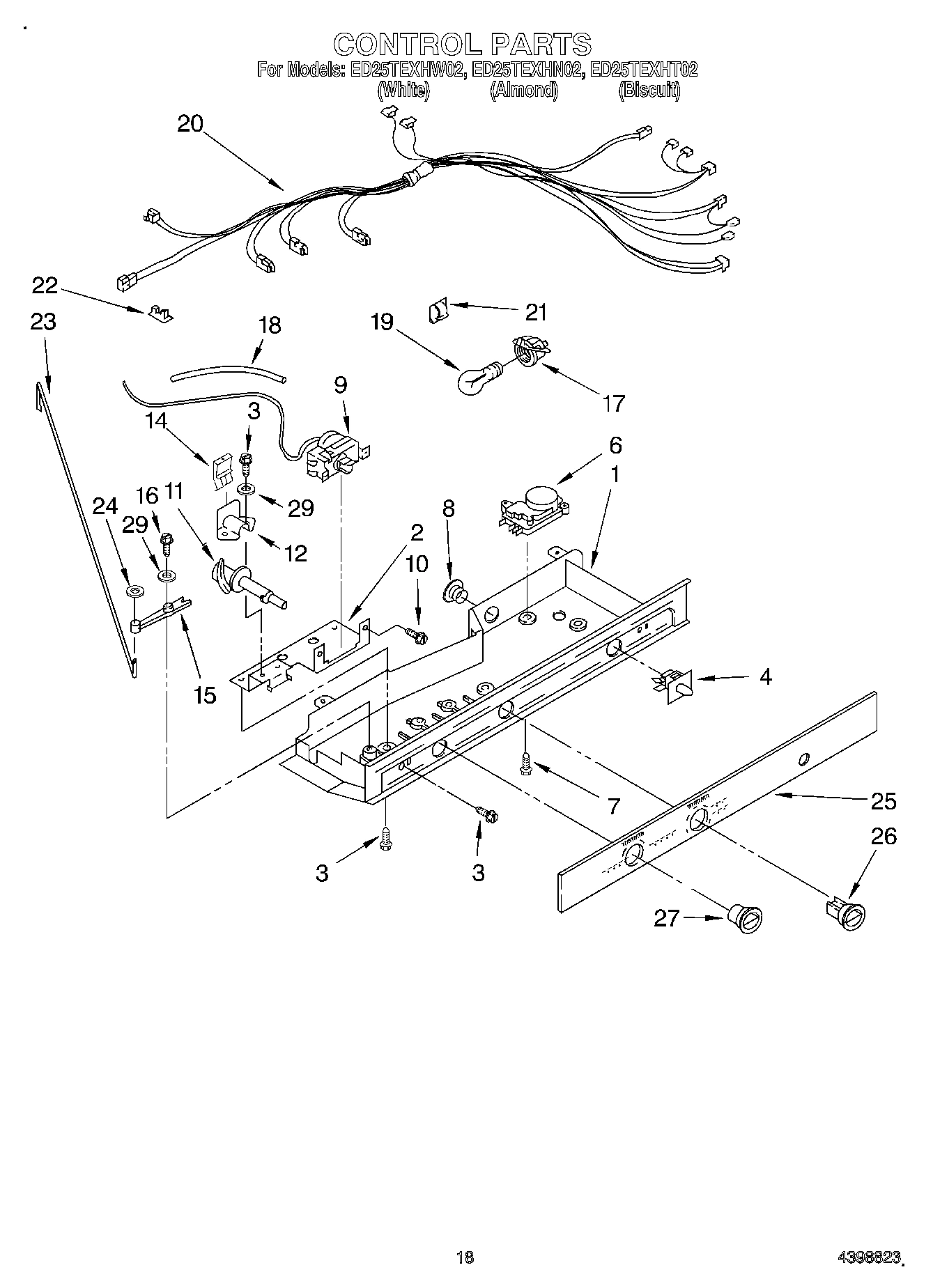

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2183787T Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $54.70

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

Valve, Solenoid WPL 2206123 Contact Us For Availability

Grommet WPL 2176134 Contact Us For Availability

Glass (3) WPL 2177986 Contact Us For Availability

Shim, Hinge Top WPL 2196048 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

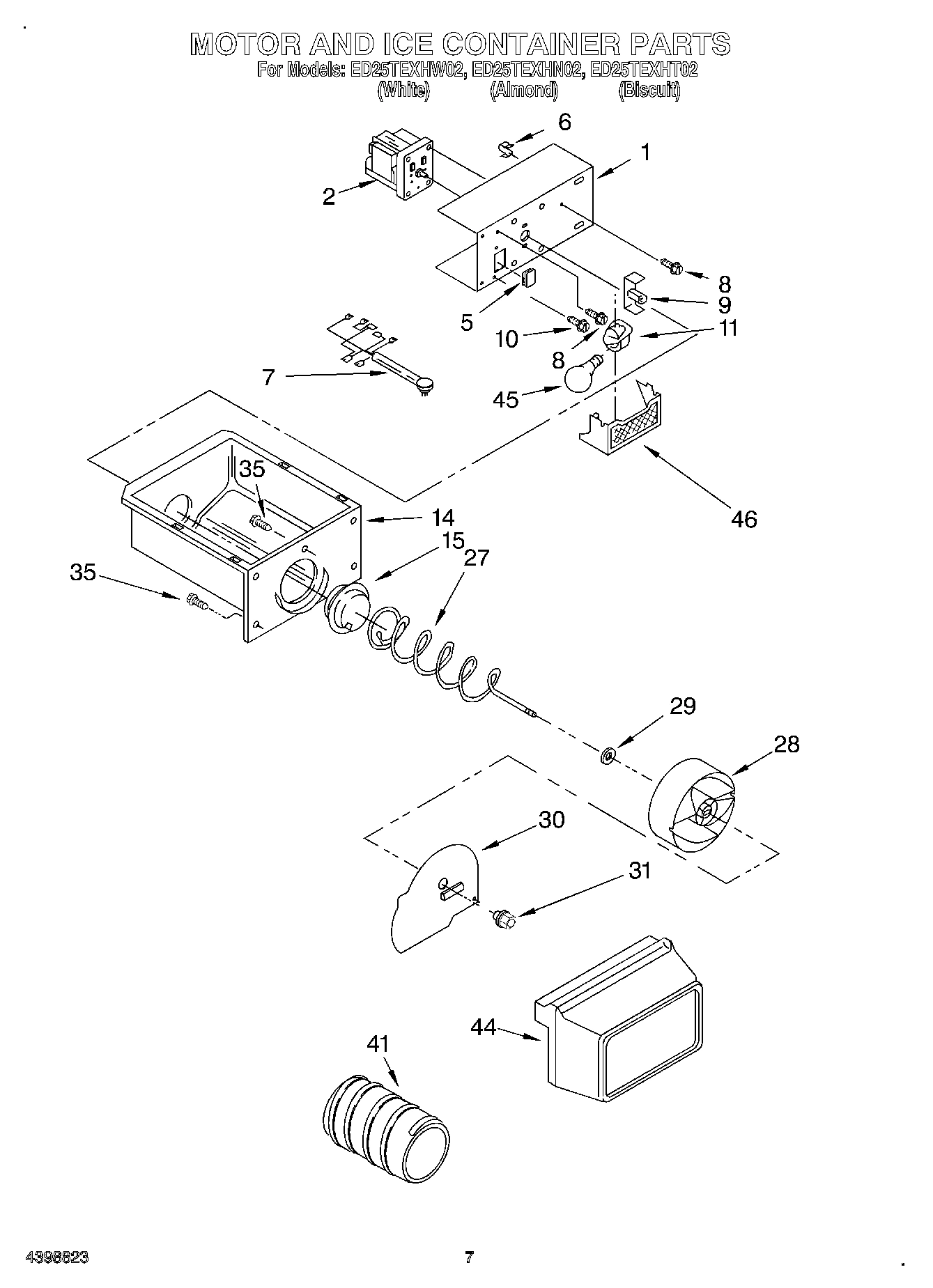

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Screw WPL 489284 Contact Us For Availability

Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

Hinge Cover (Biscuit) WPL 2186858 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $63.35

Shelf Ladder WPL 2206273 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $7.08

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.64

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

W10283947 Whirlpool Grille Assembly Backorder WPL W10283947 $49.15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.94

WPW10283946 Whirlpool Refrigerator Grille Backorder WPL WPW10283946 $56.63

Pivot Arm WPL 1110559 Contact Us For Availability

Bracket, Water Filter WPL 2204329 Contact Us For Availability

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

TUBE, SUCTION WPL 2205765 Contact Us For Availability

Endcap (Left) WPL 2195917 Contact Us For Availability

Cover, Water Filter WPL 2204350 Contact Us For Availability

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $85.09

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

18

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

18

Water Filter WPL 2206039 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

Compression Nut (Outlet) WPL 2200083 Contact Us For Availability

Compression Nut (Inlet) WPL 2204357 Contact Us For Availability

Overlay, Front Cover (Almond) WPL 2205691N Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2205691T Contact Us For Availability

Overlay, Front Cover (White) WPL 2205691W Contact Us For Availability

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.17

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

Trim, Door (1) WPL 2198486 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI28050A7 Contact Us For Availability

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $12.24

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $6.24

Clamp WPL 2161324 Contact Us For Availability

Water Tube (Inlet) WPL 2205814 Contact Us For Availability

Water Tube (Outlet) WPL 2205815 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205695N Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205695T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205695W Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

NLA:SCREW Backorder WPL WPW10141645 $3.70

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

25

Air Diffuser Cover WPL 2204409 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

26

Shield, Ice Door WPL 987121 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

Knob, Air Control WPL 2197871 Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI28046A7 Contact Us For Availability

Switch WPL 2180254 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $25.97

28

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

28

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

29

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

30

Floating Baffle WPL 2181722 Contact Us For Availability

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

31

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

31

Shelf (2) WPL 2174268 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

33

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

Light Lens WPL 2206269 Contact Us For Availability

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

37

Screw (2) WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $89.62

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
