Model Whirlpool ED25PSXDW02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

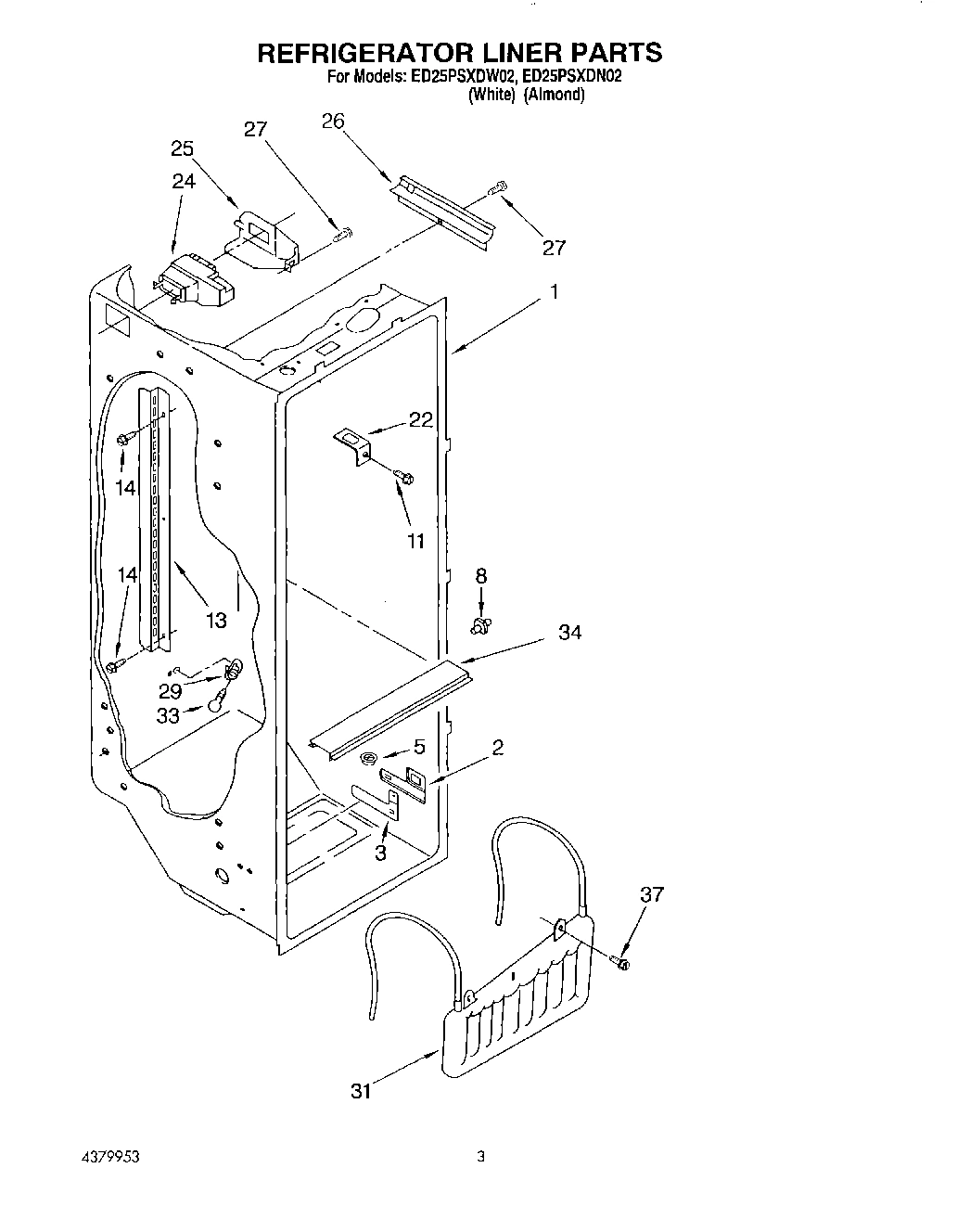

02 - REFRIGERATOR LINER

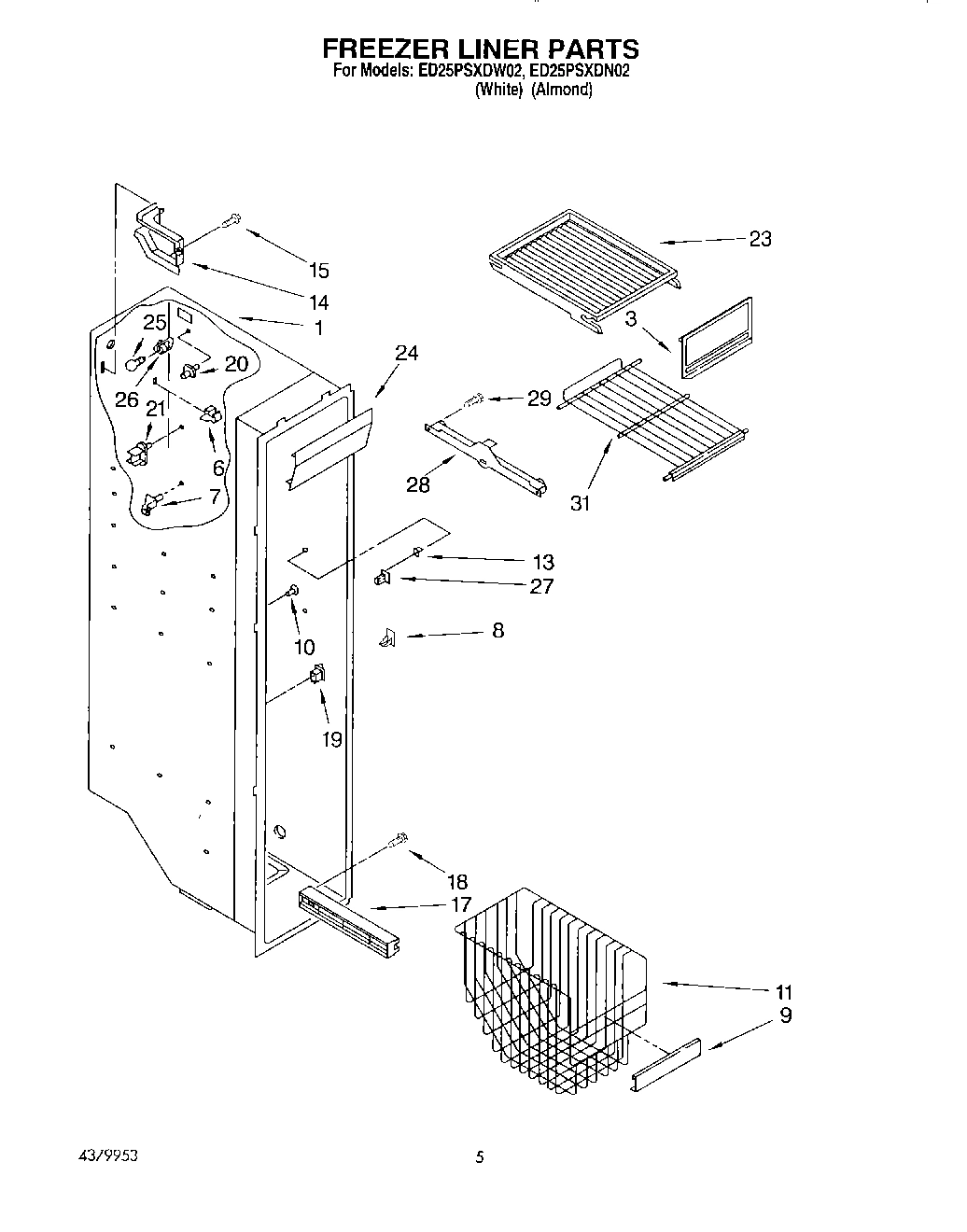

04 - FREEZER LINER
11 - CONTROL
03 - REFRIGERATOR SHELF
10 - AIR FLOW
06 - REFRIGERATOR DOOR
07 - FREEZER DOOR
01 - CABINET
08 - DISPENSER FRONT
09 - UNIT
05 - MOTOR AND ICE CONTAINER
12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool ED25PSXDW02 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176773 WPL LIT2176773 Contact Us For Availability
WPL LIT2180535 WPL LIT2180535 Contact Us For Availability
WPL LIT2182525 WPL LIT2182525 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2177319 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2177320 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2179932 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2179933 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI27805A4 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2171168 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Relay (See Overload) WPL ARI27806A5 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119360 Contact Us For Availability
16
Front Cover WPL 2174352 Contact Us For Availability
17
Insert, Handle (White) WPL 1119361 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Insert, Handle (White) WPL 1119373 Contact Us For Availability
18
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
Retainer, Insert WPL 1119372 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Unit, Harness WPL 2181709 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2171495 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2175844 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2171497 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2177138 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27802A8 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
KIT, EVAPOR WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
