Model Whirlpool ED25PSXDW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

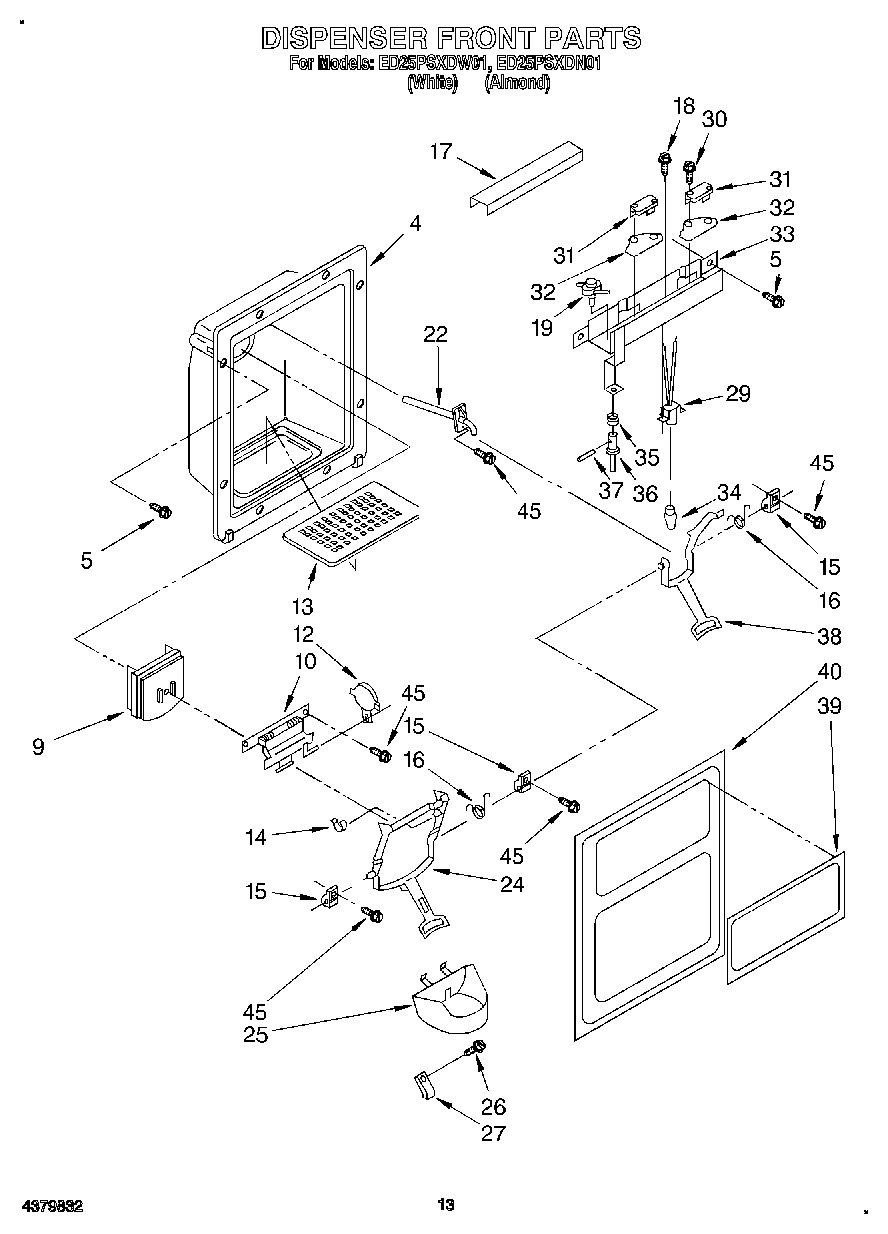

08 - DISPENSER FRONT

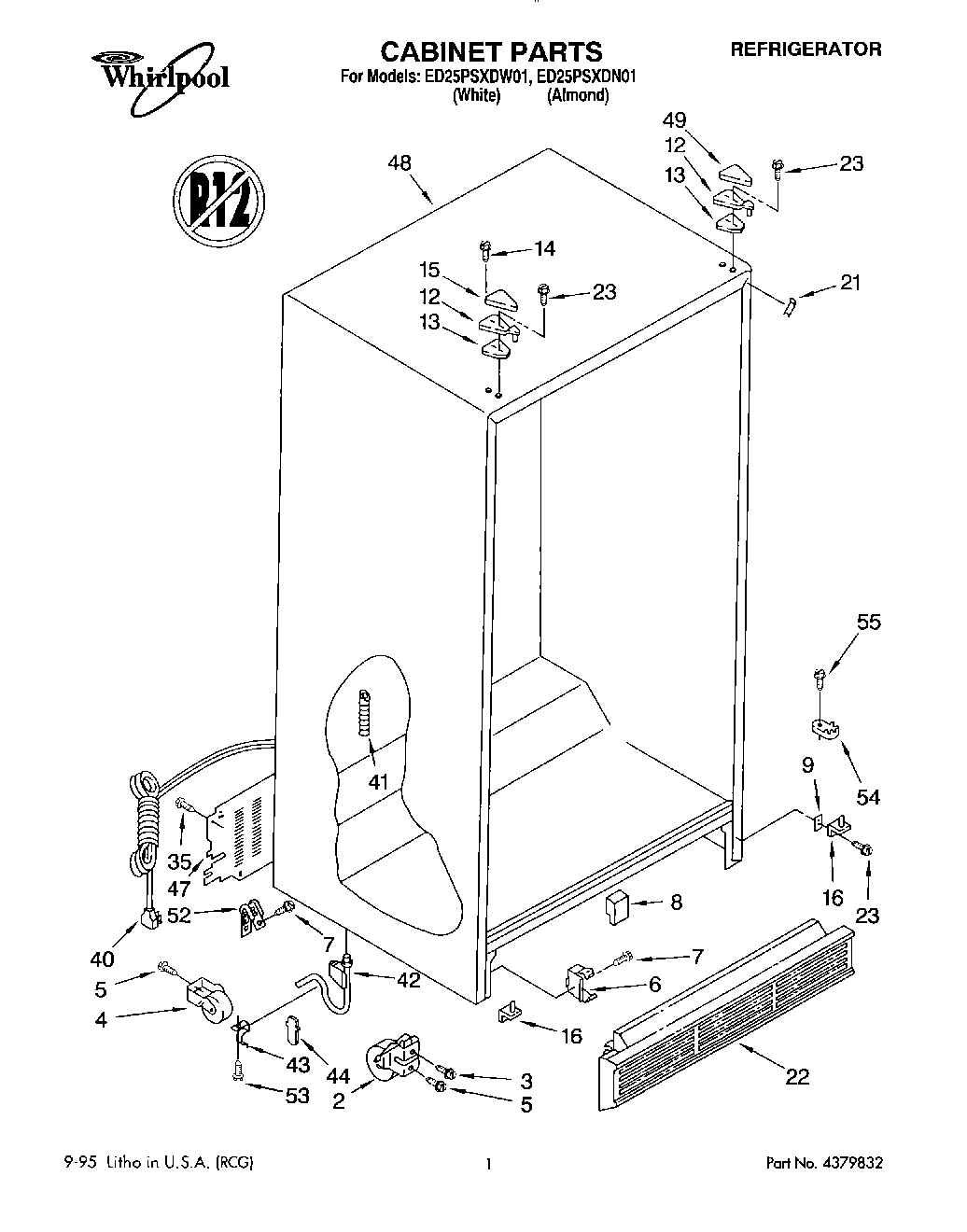

01 - CABINET

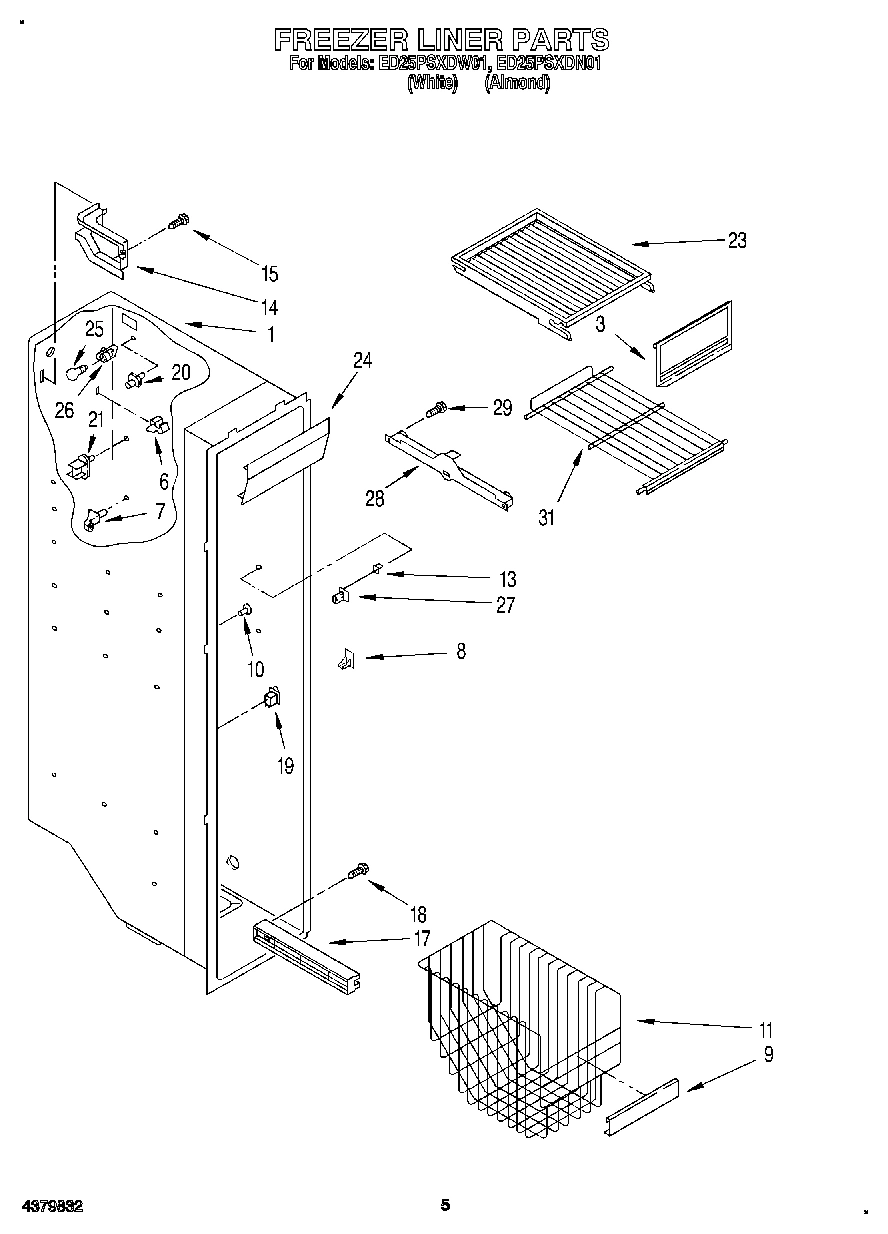

04 - FREEZER LINER

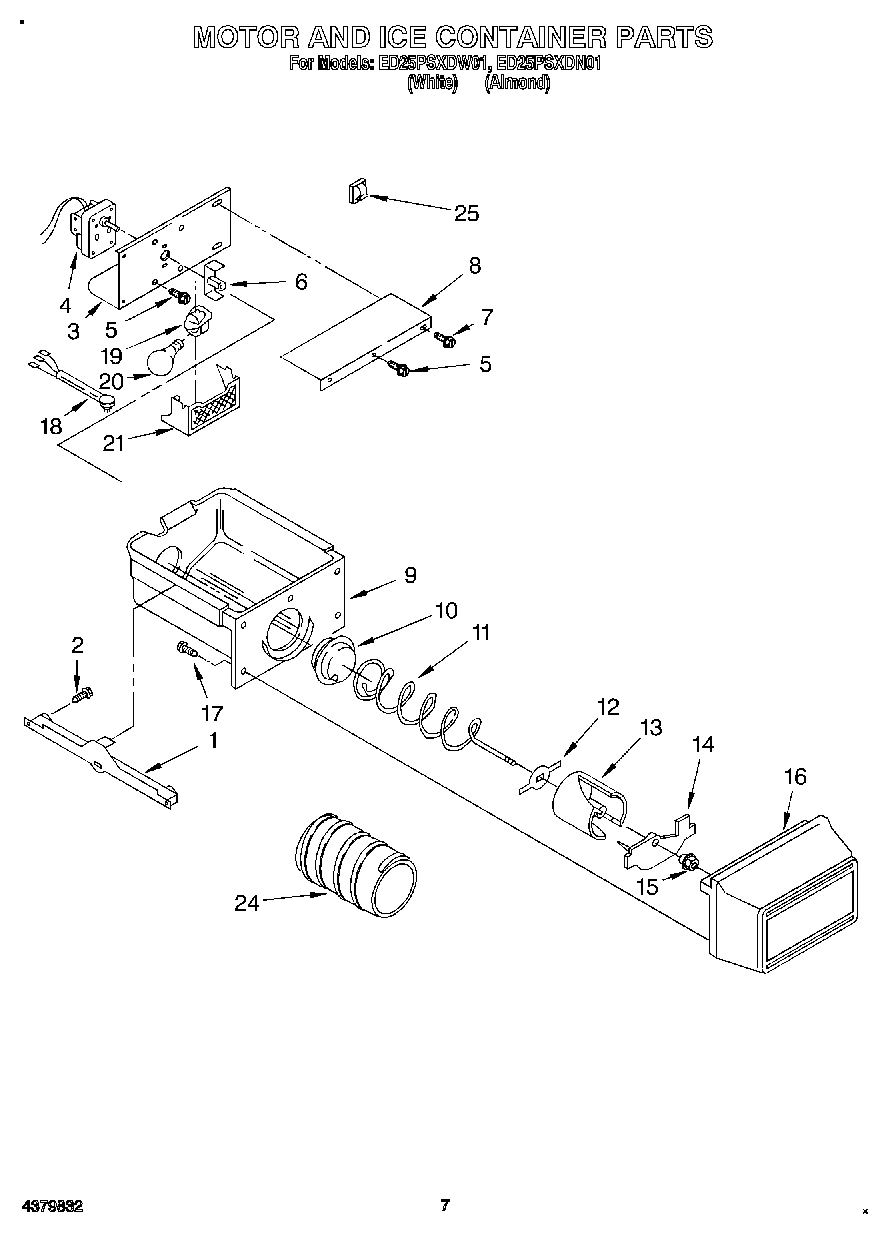

05 - MOTOR AND ICE CONTAINER

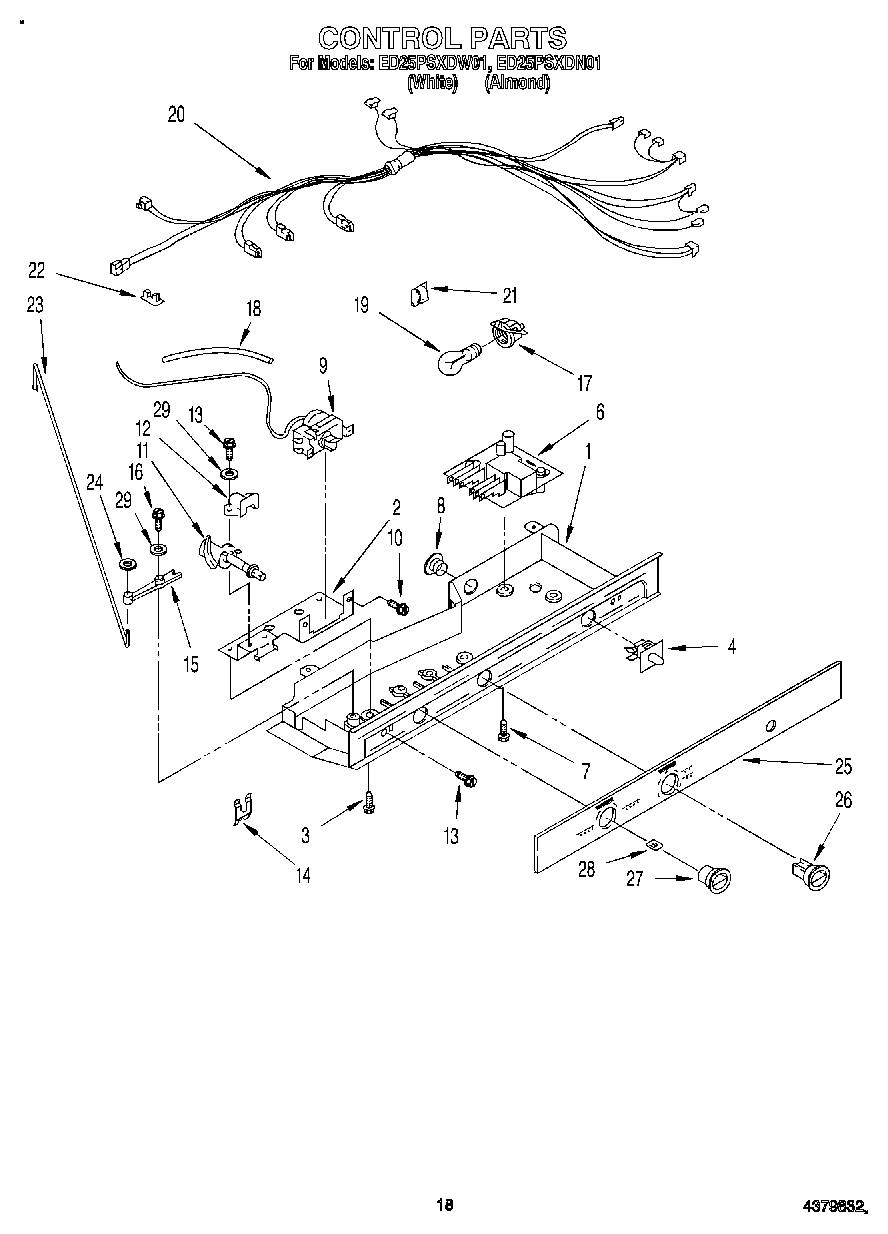

11 - CONTROL
10 - AIR FLOW
12 - ICEMAKER, LIT/OPTIONAL

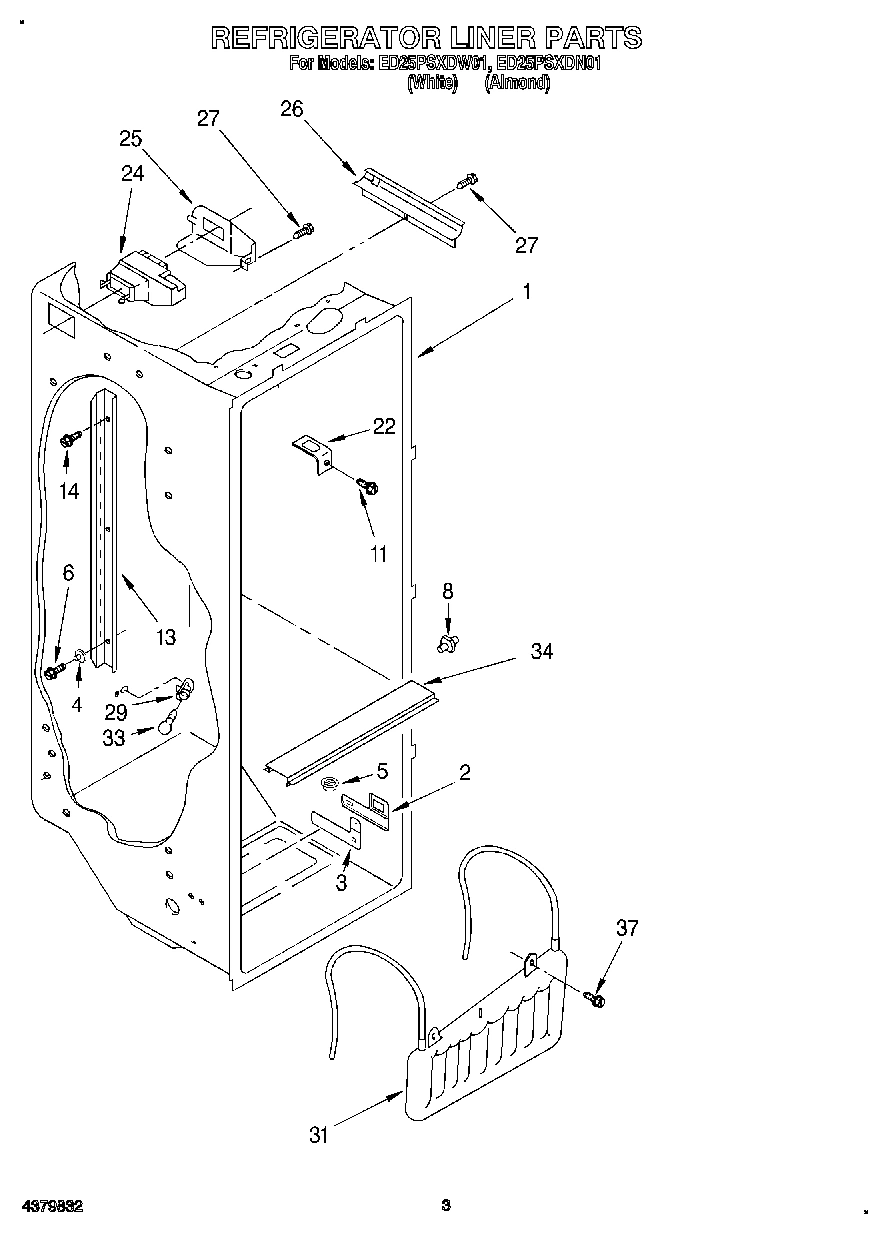

02 - REFRIGERATOR LINER

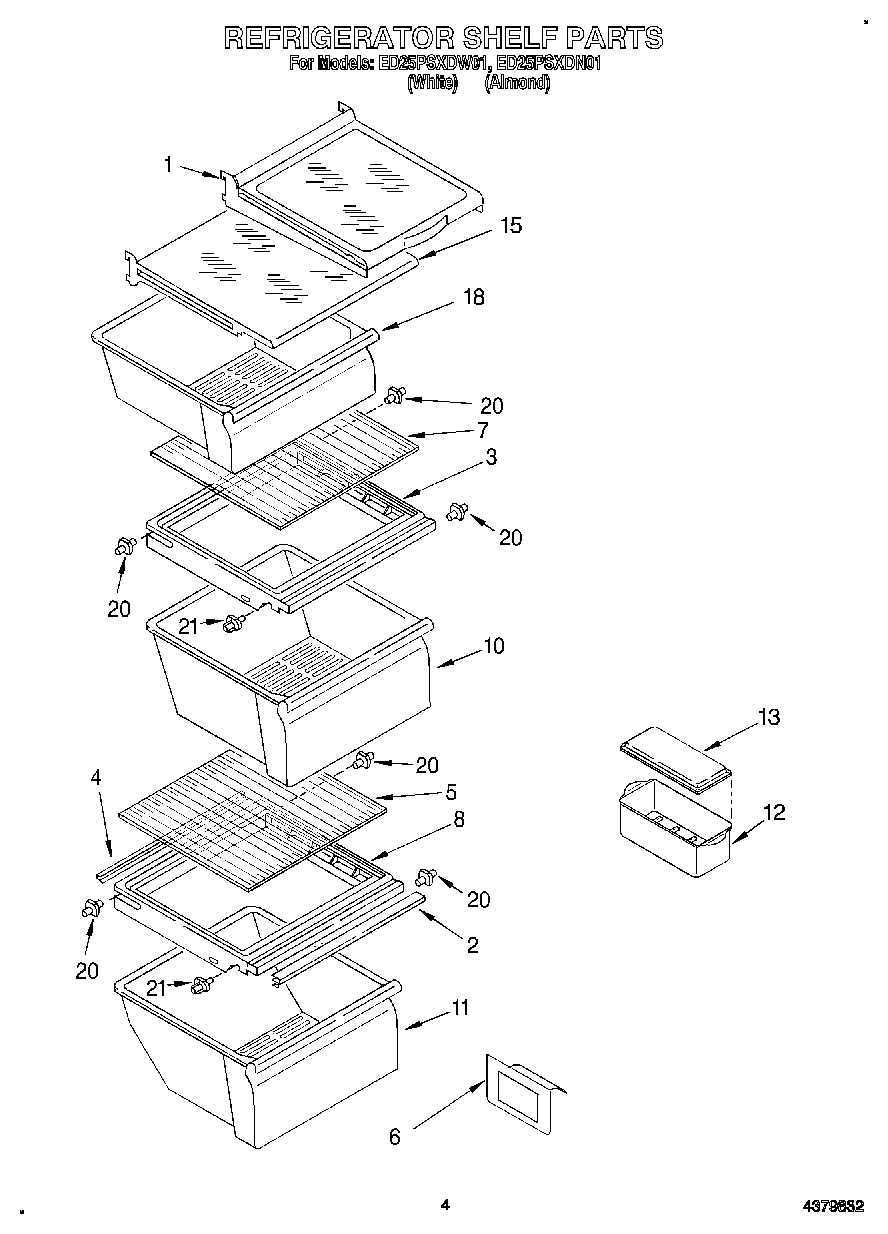

03 - REFRIGERATOR SHELF

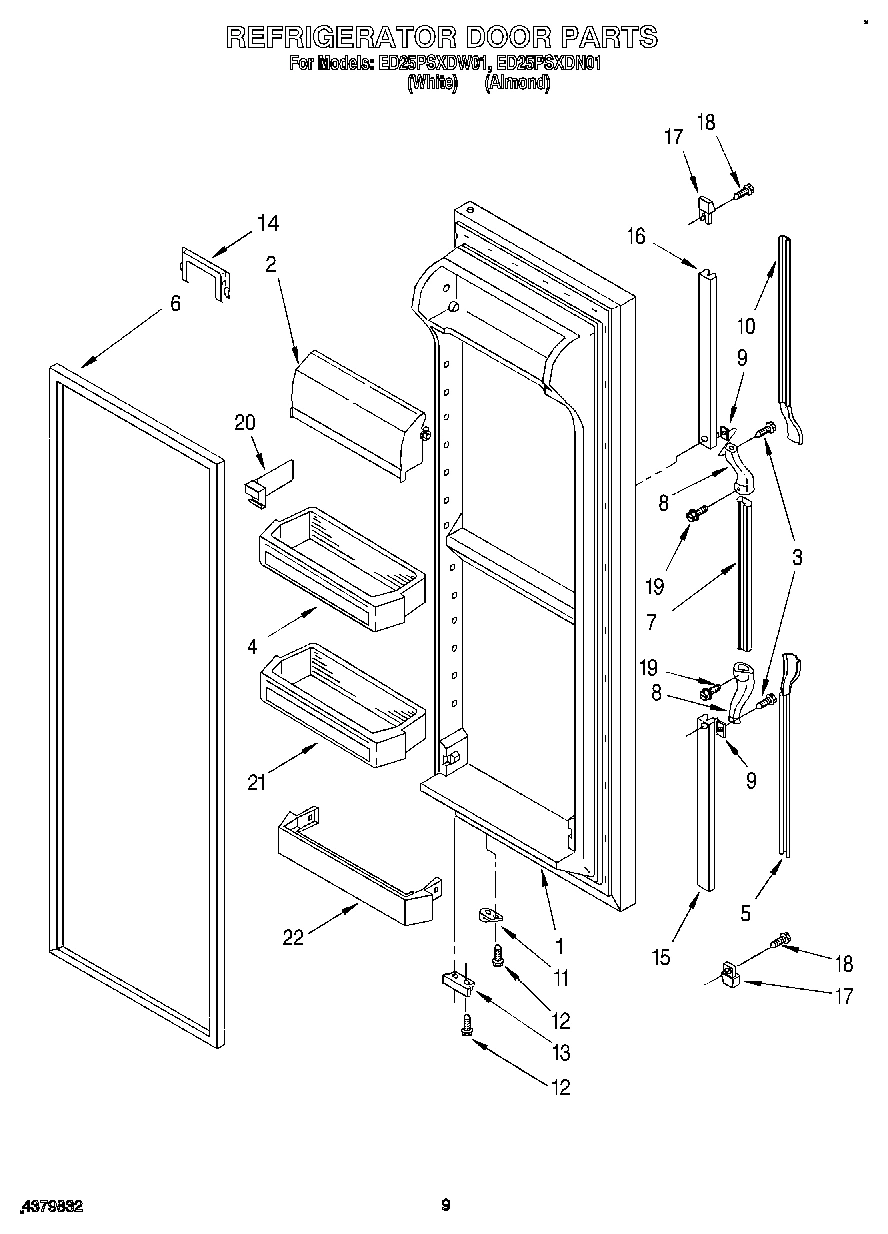

06 - REFRIGERATOR DOOR

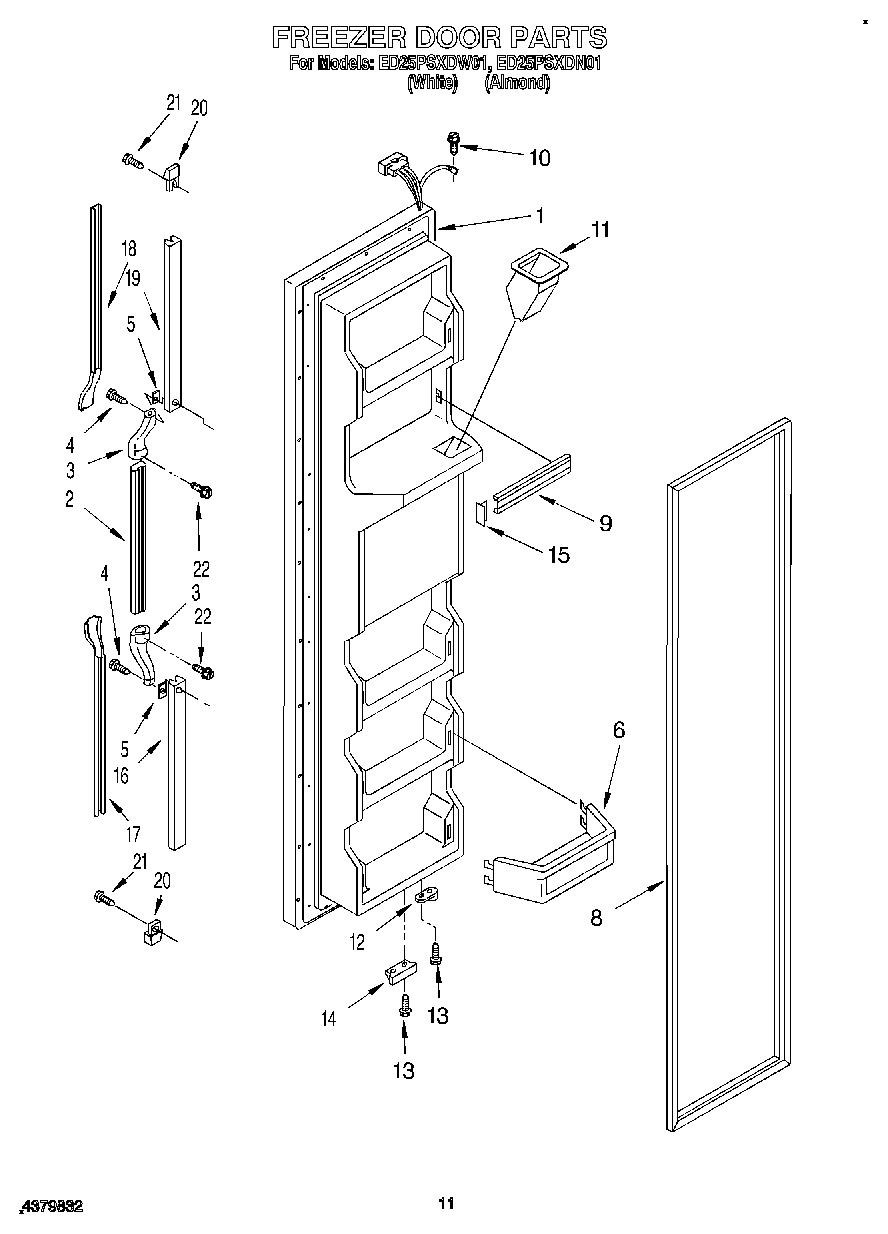

07 - FREEZER DOOR

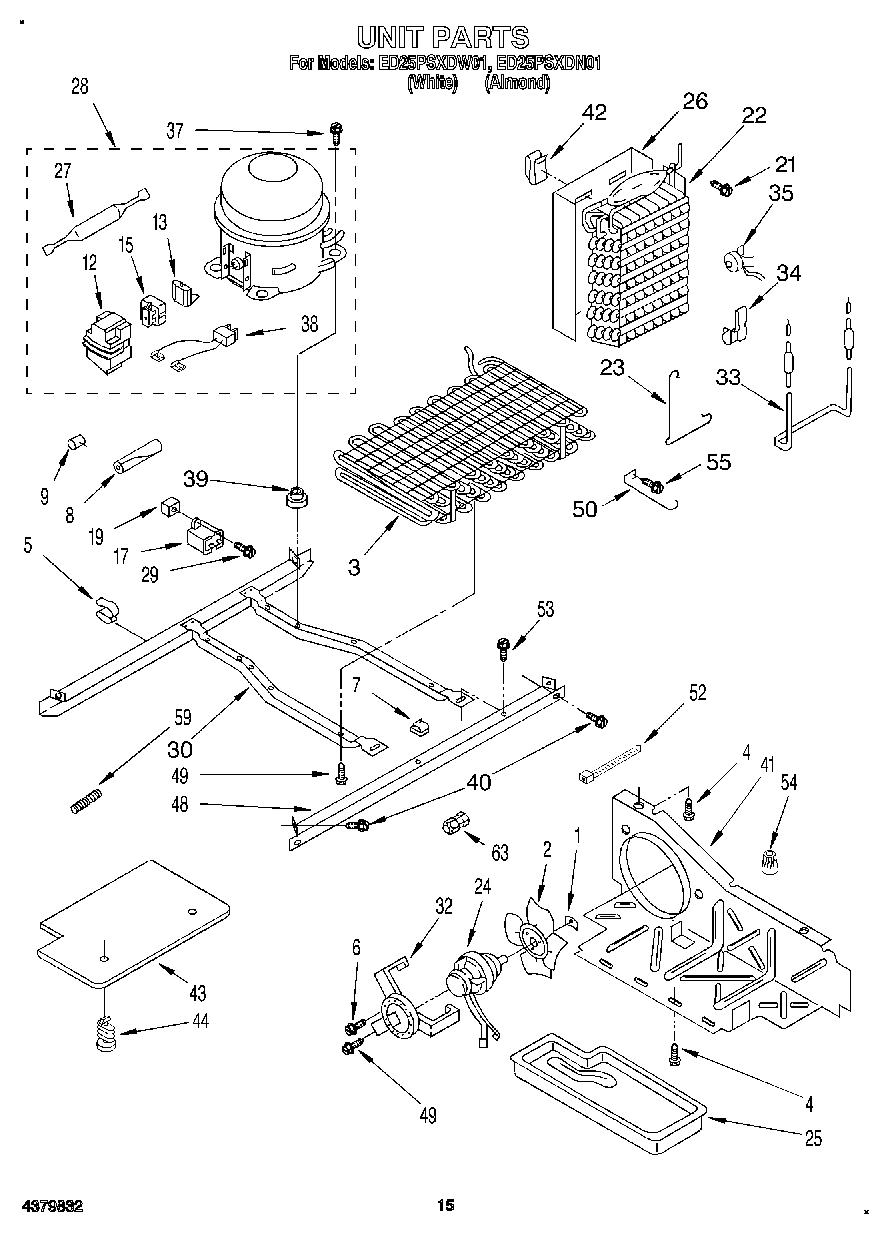

09 - UNIT
Common parts from model Whirlpool ED25PSXDW01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176773 WPL LIT2176773 Contact Us For Availability
WPL LIT2180535 WPL LIT2180535 Contact Us For Availability
WPL LIT2182525 WPL LIT2182525 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27798A5 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2177319 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2177320 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2179932 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2179933 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Gasket, Front WPL 2174442 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
3
Bracket, Ice Dispenser WPL 1115337 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Stud WPL 658944 Contact Us For Availability
4
Gasket, Rear WPL 2174483 Contact Us For Availability
4
Shelf Bin (2) WPL 2170614 Contact Us For Availability
5
Air Duct Freezer WPL 2176072 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Screw WPL 487559 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2171168 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Cover, Motor WPL 1115339 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
11
Cam Assembly WPL 2161250 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Shelf Ladder WPL 2171996 Contact Us For Availability
13
Cover WPL 2170969 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Retainer, Damper WPL 938439 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Retainer, Bottle WPL 2163566 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
15
Relay (See Overload) WPL ARI27801A1 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Front Cover WPL 2174352 Contact Us For Availability
16
Retainer, Insert WPL 1119360 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Insert, Handle (White) WPL 1119361 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
18
Insert, Handle (White) WPL 1119373 Contact Us For Availability
18
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
19
Retainer, Insert WPL 1119372 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Control Box Harness WPL 2162460 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
20
Divider (3) WPL 2152335 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Shelf Bin WPL 2170613 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
22
Trim Kit WPL 4210344 Contact Us For Availability
22
Trimless Black Decor Panel WPL 4210352 Contact Us For Availability
22
Black Handle Insert WPL 4210378 Contact Us For Availability
22
Woodgrain Handle Insert WPL 4210446 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNC WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
