Model Whirlpool ED25PSQDN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

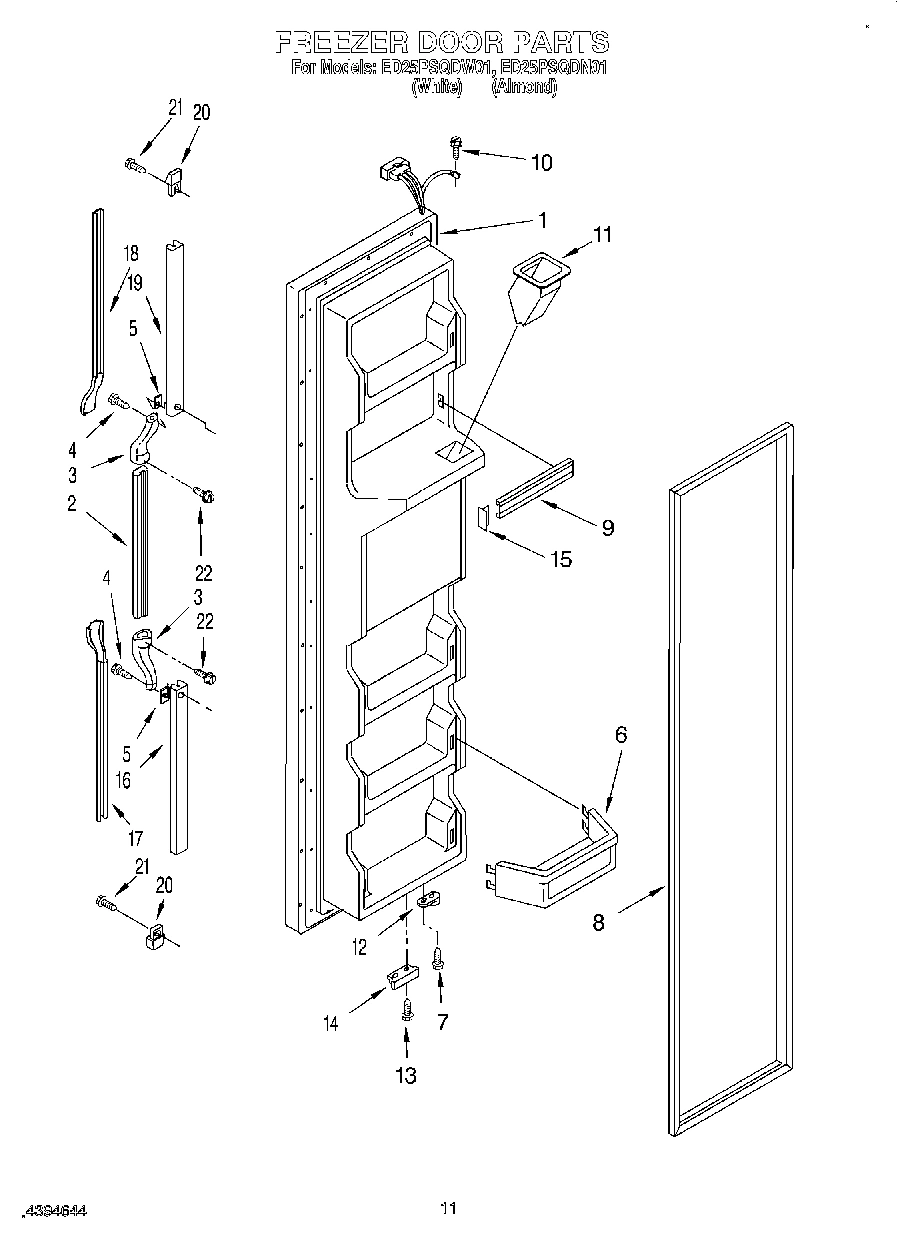

07 - FREEZER DOOR

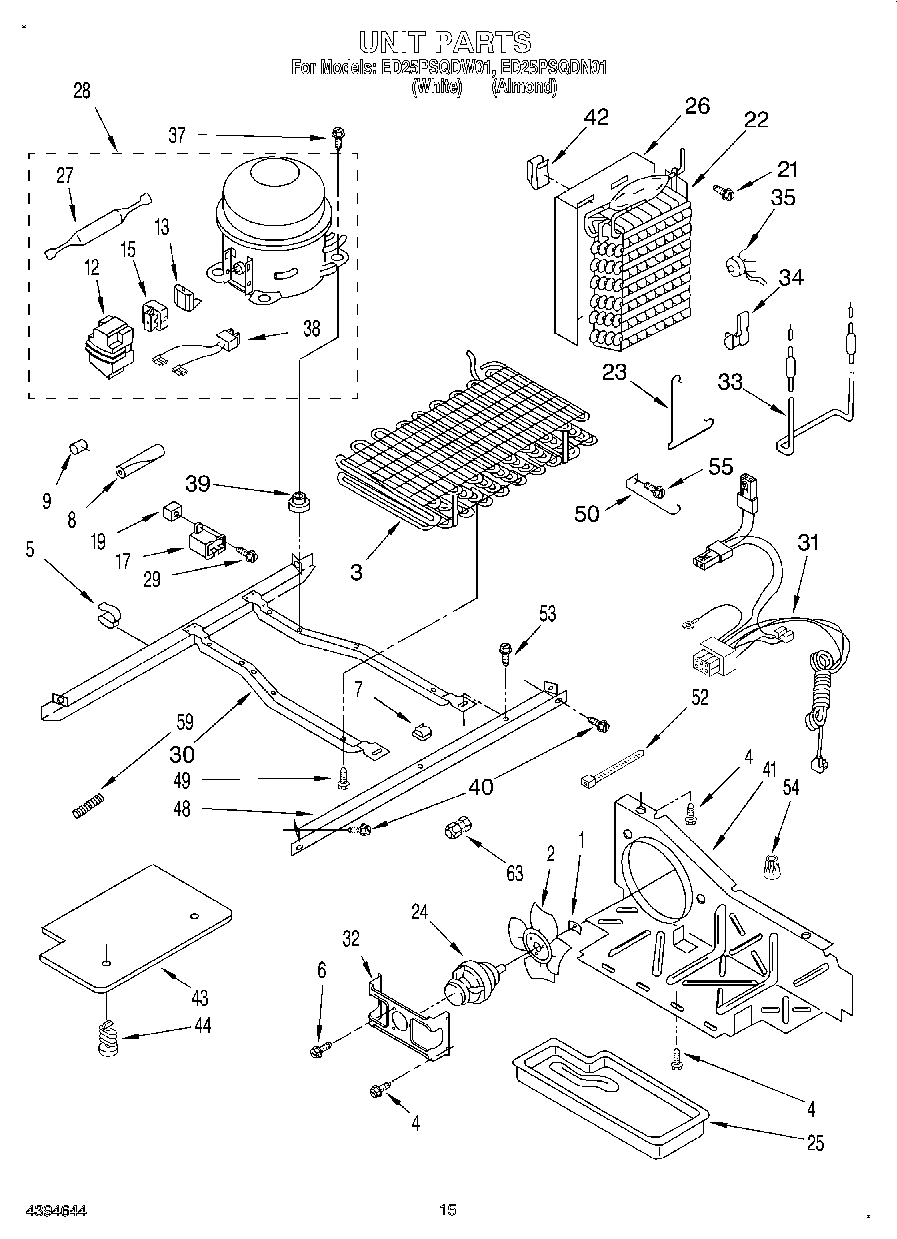

09 - UNIT

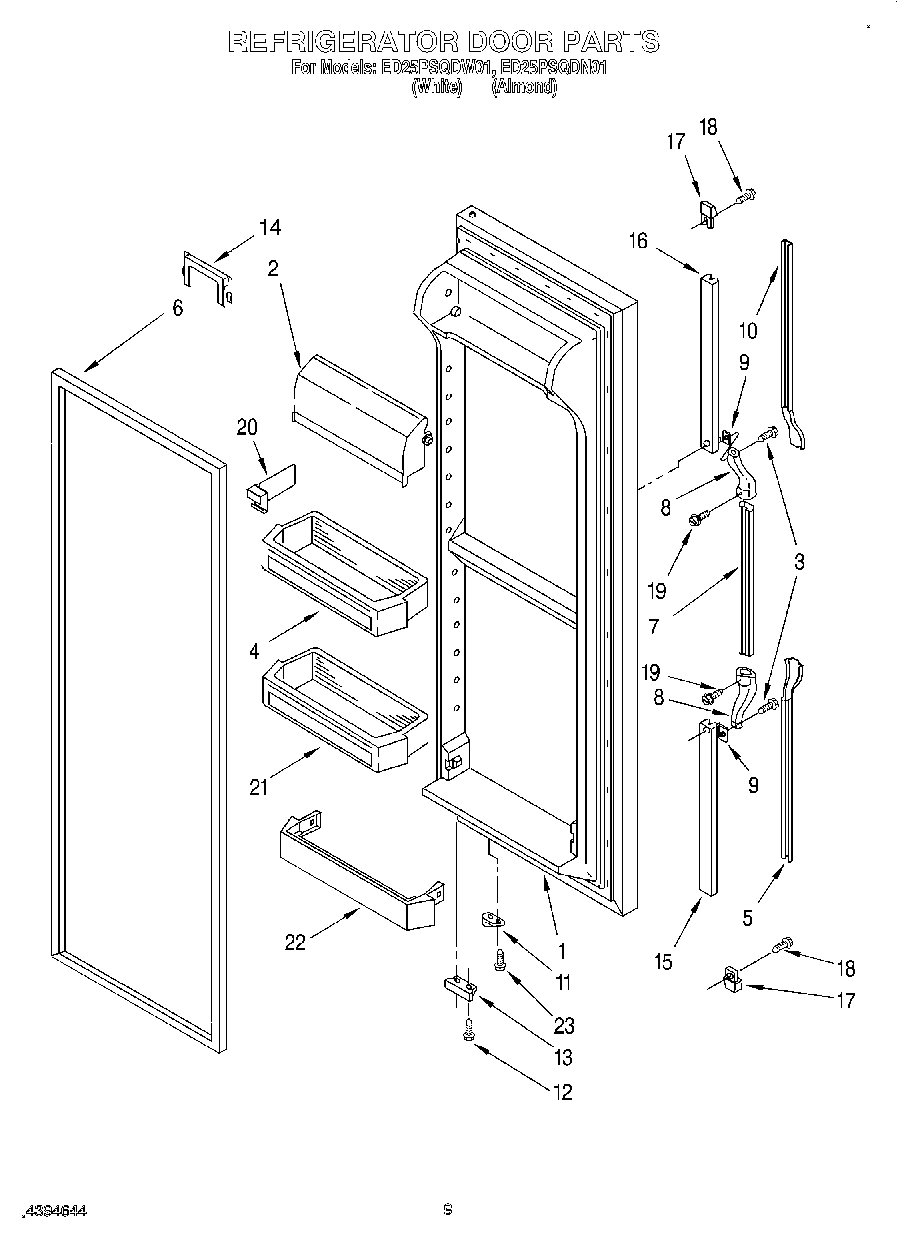

06 - REFRIGERATOR DOOR

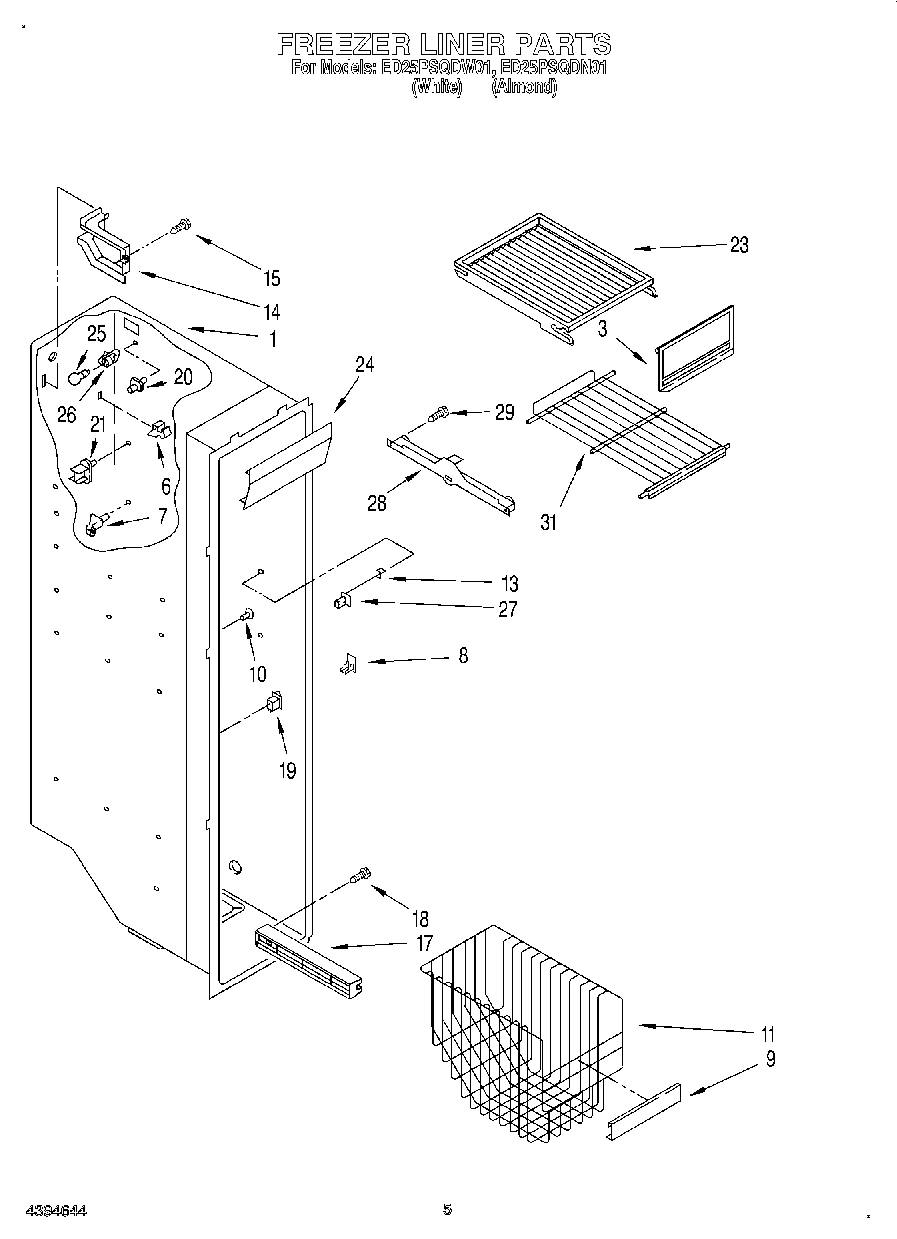

04 - FREEZER LINER

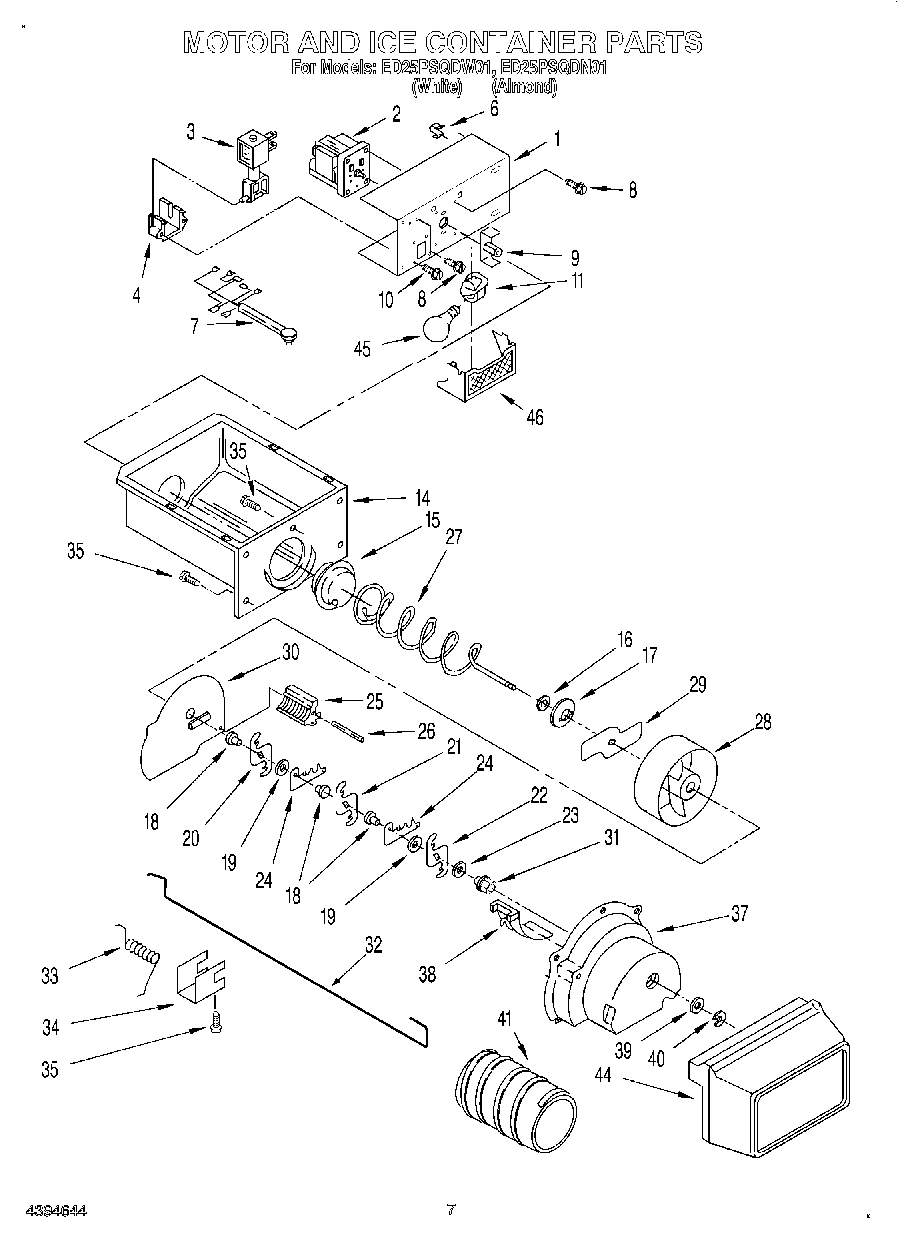

05 - MOTOR AND ICE CONTAINER

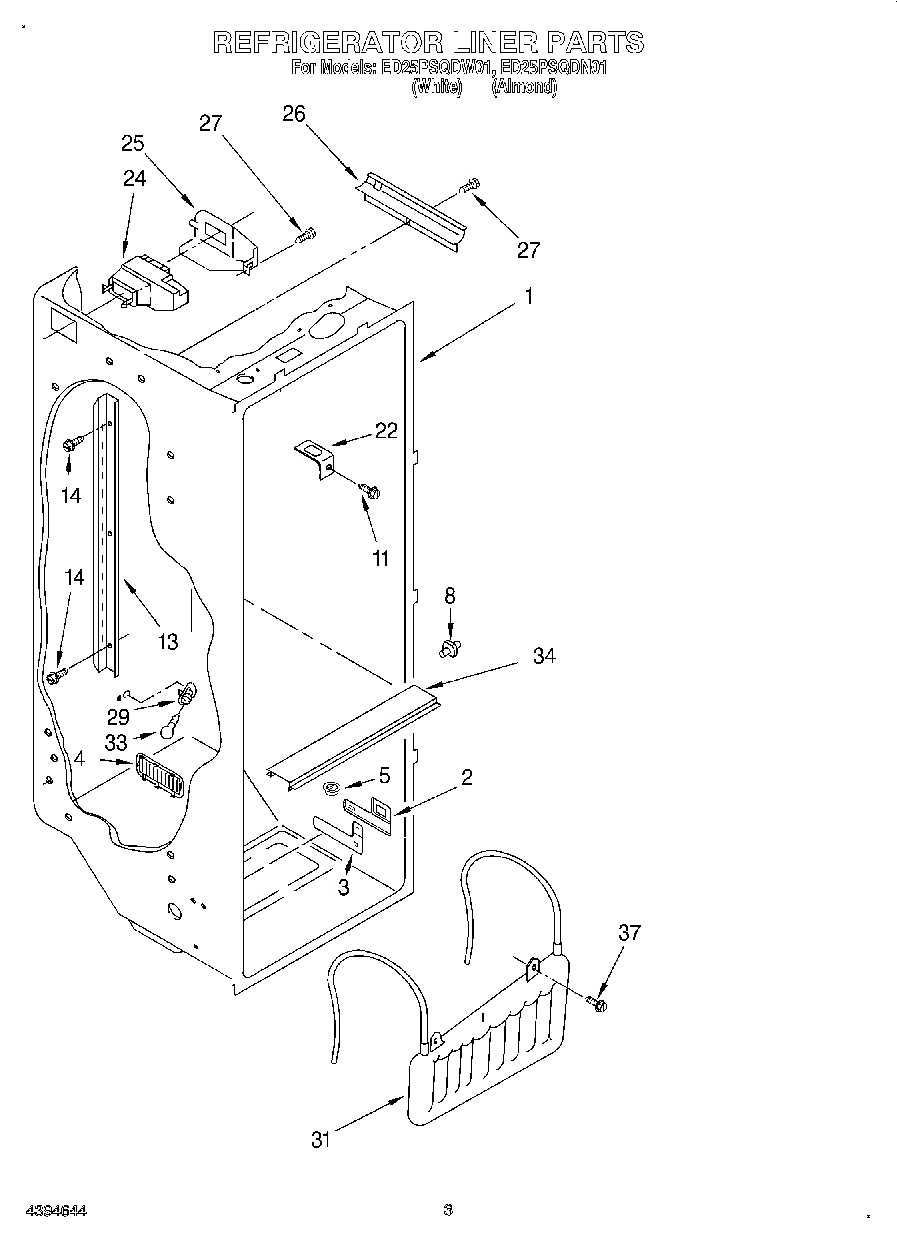

02 - REFRIGERATOR LINER
03 - REFRIGERATOR SHELF
10 - AIRFLOW
12 - ICEMAKER, LIT/OPTIONAL

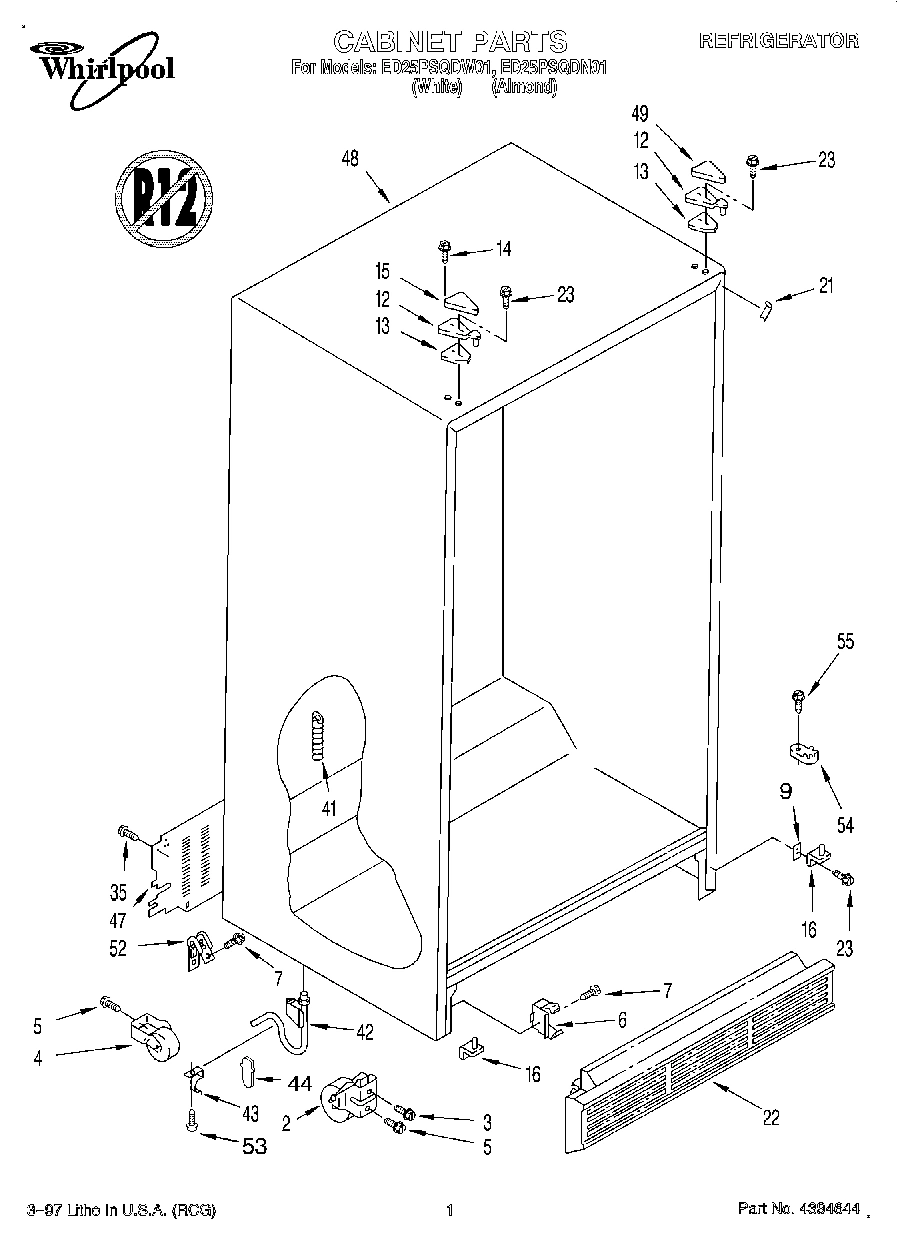

01 - CABINET

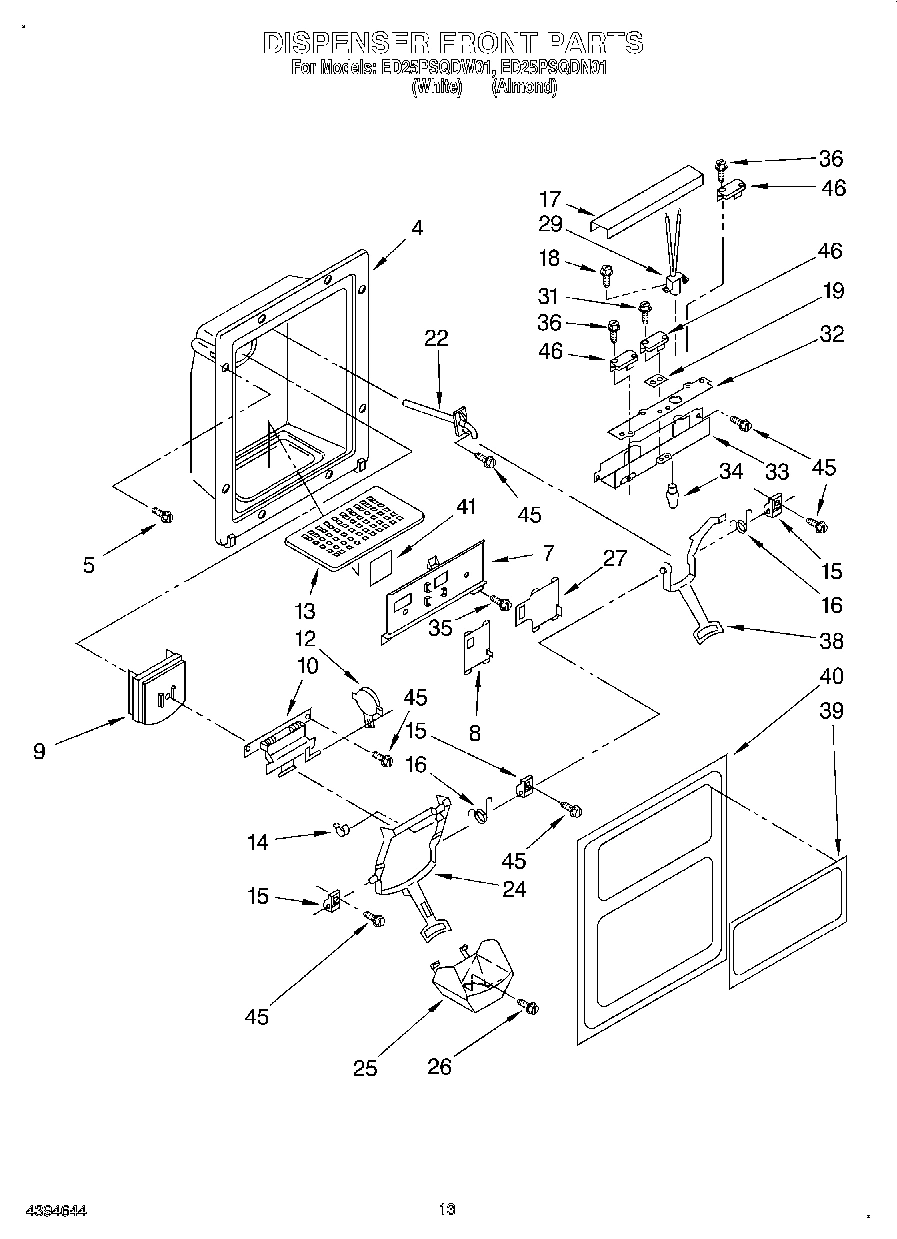

08 - DISPENSER FRONT

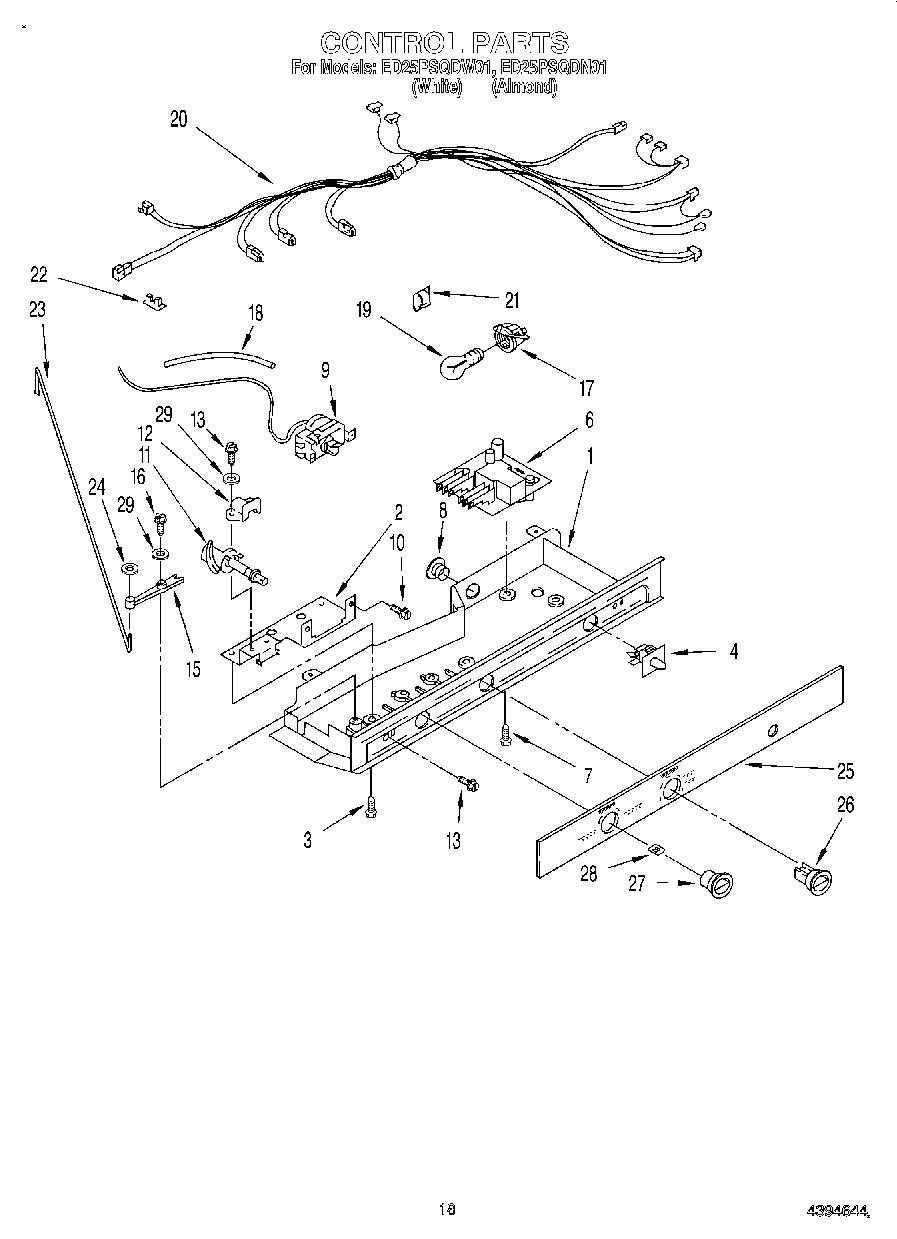

11 - CONTROL
Common parts from model Whirlpool ED25PSQDN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175296 WPL LIT2175296 Contact Us For Availability
WPL LIT2176077 WPL LIT2176077 Contact Us For Availability
WPL LIT2194920 WPL LIT2194920 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI27765A1 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Shelf Ladder WPL 2181796 Contact Us For Availability
13
Cover WPL 2169935 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
20
Control Box Harness WPL 2195015 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2162923 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2162924 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2198154N Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2198154W Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Tube, Extension WPL 2172932 Contact Us For Availability
44
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27762A9 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BUL WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
