Model Whirlpool ED25PQXFN02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

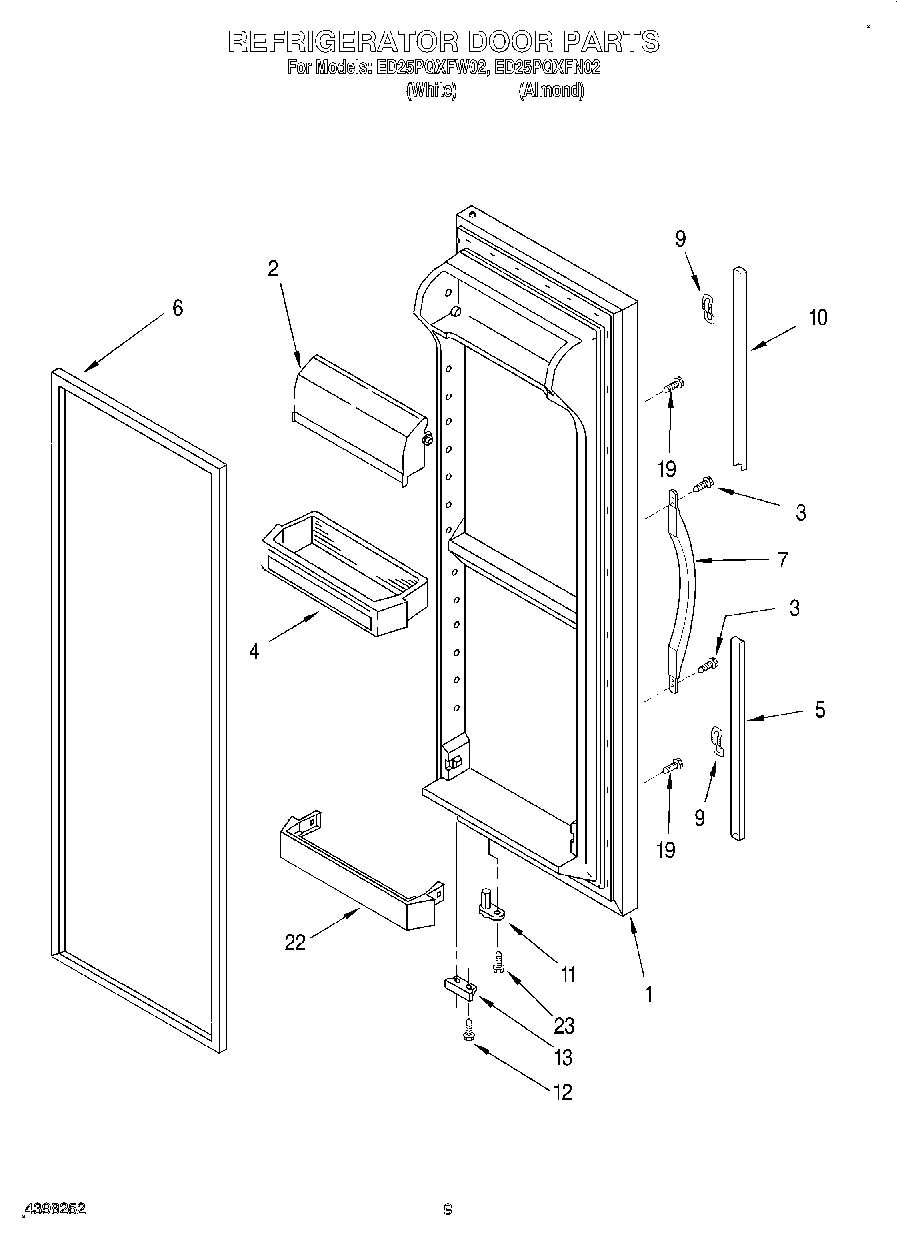

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT
07 - FREEZER DOOR
02 - REFRIGERATOR LINER
04 - FREEZER LINER
12 - ICE MAKER, OPTIONAL
10 - AIR FLOW
11 - CONTROL
01 - CABINET, LITERATURE
03 - REFRIGERATOR SHELF
05 - MOTOR AND ICE CONTAINER
09 - UNIT
Common parts from model Whirlpool ED25PQXFN02 SIDE BY SIDE REFRIGERATOR
1
LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2186936 Contact Us For Availability
1
Energy Label WPL LIT2203990 Contact Us For Availability
1
Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2194281 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
2
Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Trim, Pan WPL 2194905 Contact Us For Availability
5
Extension, Handle (White) WPL 2194969W Contact Us For Availability
5
Release Valve WPL 2171846 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Door Gasket, Magnetic (Repair) WPL 2159075 Contact Us For Availability
6
Deflector WPL 2179350 Contact Us For Availability
7
Handle, Center (White) WPL 2186649W Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2186815 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Door Gasket, Magnetic (Repair) WPL 2159074 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Grommet WPL 509812 Contact Us For Availability
11
Duct, Icemaker WPL 2182146 Contact Us For Availability
11
Meat Pan WPL 2194907 Contact Us For Availability
12
Bearing Body WPL 1110560 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Shelf, Snack Bin WPL 2194734 Contact Us For Availability
15
Relay (Production) (Service, see Overload) WPL 2183454 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Lens, Light WPL 2171705 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Cover, Air Diffuser WPL 2152019 Contact Us For Availability
25
BLOCK BLADE WPL 2157405 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Knob, Thermostat WPL 2182111 Contact Us For Availability
26
Roll Pin WPL 489229 Contact Us For Availability
26
Cover, Conduit WPL 2150331 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
28
Tube Kit WPL 876765 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Unit, Harness (Includes Power Cord) WPL 2186830 Contact Us For Availability
33
Spring, Return WPL 1119020 Contact Us For Availability
34
Light Lens WPL 2203266 Contact Us For Availability
34
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw WPL 489387 Contact Us For Availability
38
SCREW WPL 489136 Contact Us For Availability
39
Washer, Plain WPL 489234 Contact Us For Availability
40
Screw WPL 489340 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Clip WPL 489396 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27736A7 Contact Us For Availability
49
Hinge Cover (White) WPL 1119787 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
CLAMP, SERVICE CORD WPL 549193 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
63
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
63
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
Complete Icemaker Assembly WPL 4317943 Contact Us For Availability
100
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
100
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
100
xEnamel, Almond (13 Oz. Spray Can) WPL 350956 Contact Us For Availability
100
Paint, Touch-Up 1/2 Oz. (White Porcelain) WPL 511873 Contact Us For Availability
100
WPL 876370 WPL 876370 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
WPL 833938 WPL 833938 Contact Us For Availability
100
Primer White (13 Oz. Spray Can) WPL 350942 Contact Us For Availability
100
Bag, Insulation (36-5/8`` x 46``) WPL 606755 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
