Model Whirlpool ED25PQXDW04 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

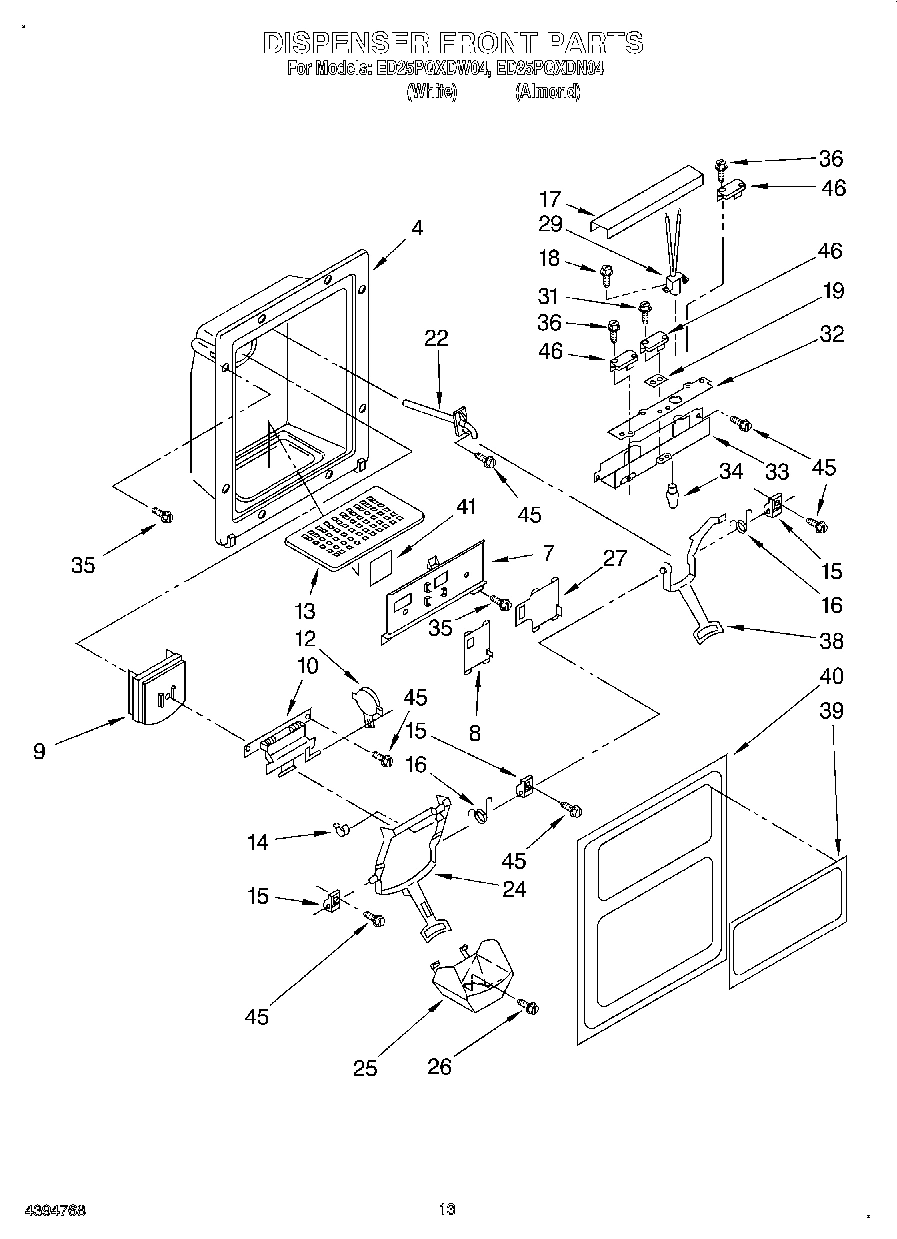

08 - DISPENSER FRONT

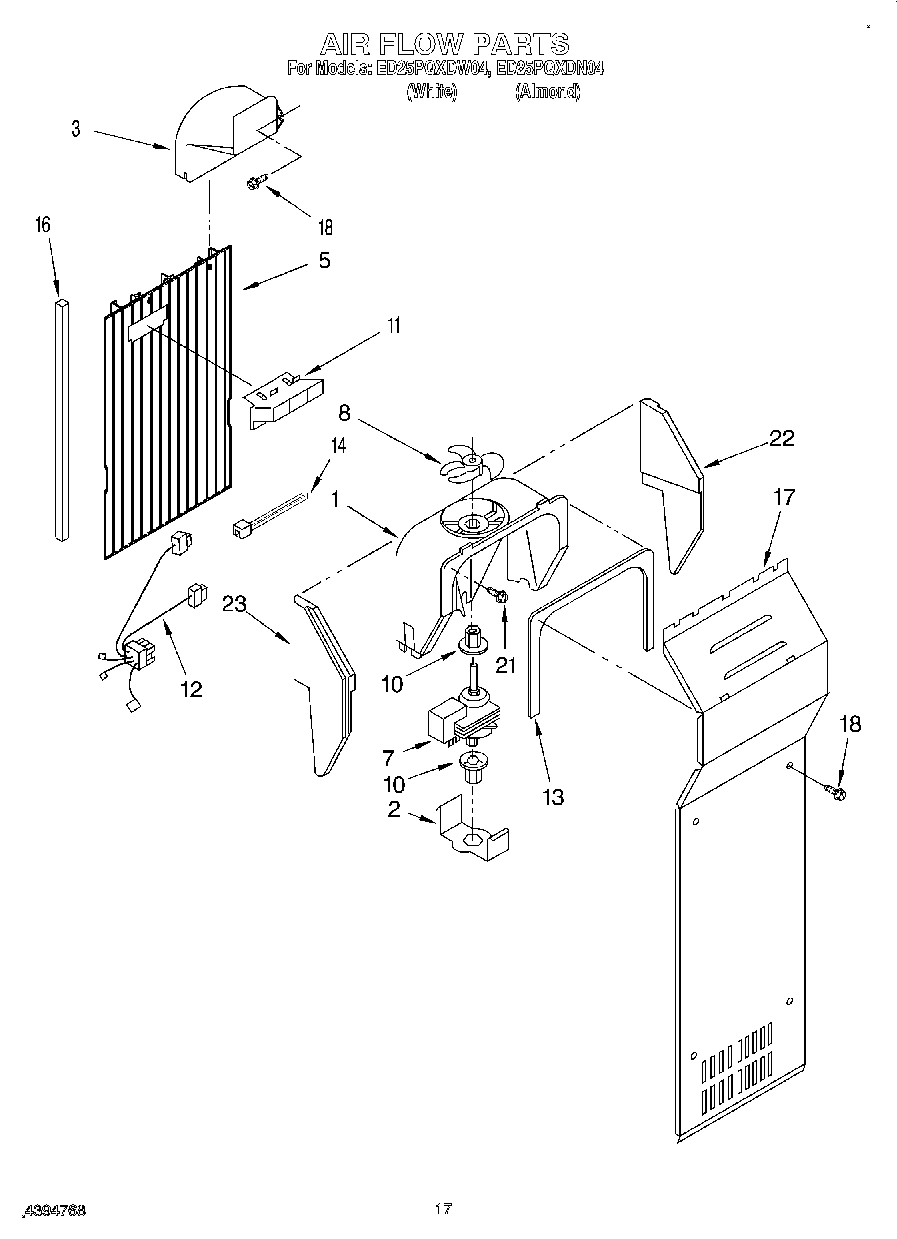

10 - AIR FLOW
11 - CONTROL
04 - FREEZER LINER
06 - REFRIGERATOR DOOR
12 - ICEMAKER, LIT/OPTIONAL
05 - MOTOR AND ICE CONTAINER
07 - FREEZER DOOR
02 - REFRIGERATOR LINER
09 - UNIT
01 - CABINET
03 - REFRIGERATOR SHELF
Common parts from model Whirlpool ED25PQXDW04 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2194806N Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2194806W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI27721A1 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
2
Handle, Center (White) WPL 2194767W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2171168 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
13
Shelf Ladder WPL 2181796 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Cover WPL 2169935 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Relay (See Overload) WPL ARI27724A7 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer, Insert WPL 2194770 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
17
Insert, Handle (White) WPL 2194773W Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
18
Insert, Handle (Almond) WPL 2194775N Contact Us For Availability
18
Insert, Handle (White) WPL 2194775W Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Retainer, Insert WPL 2194772 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Unit, Harness (Includes Power Cord) WPL 2194746 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27720A6 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
