Model Whirlpool ED22TWXDW02 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
10 - AIR FLOW

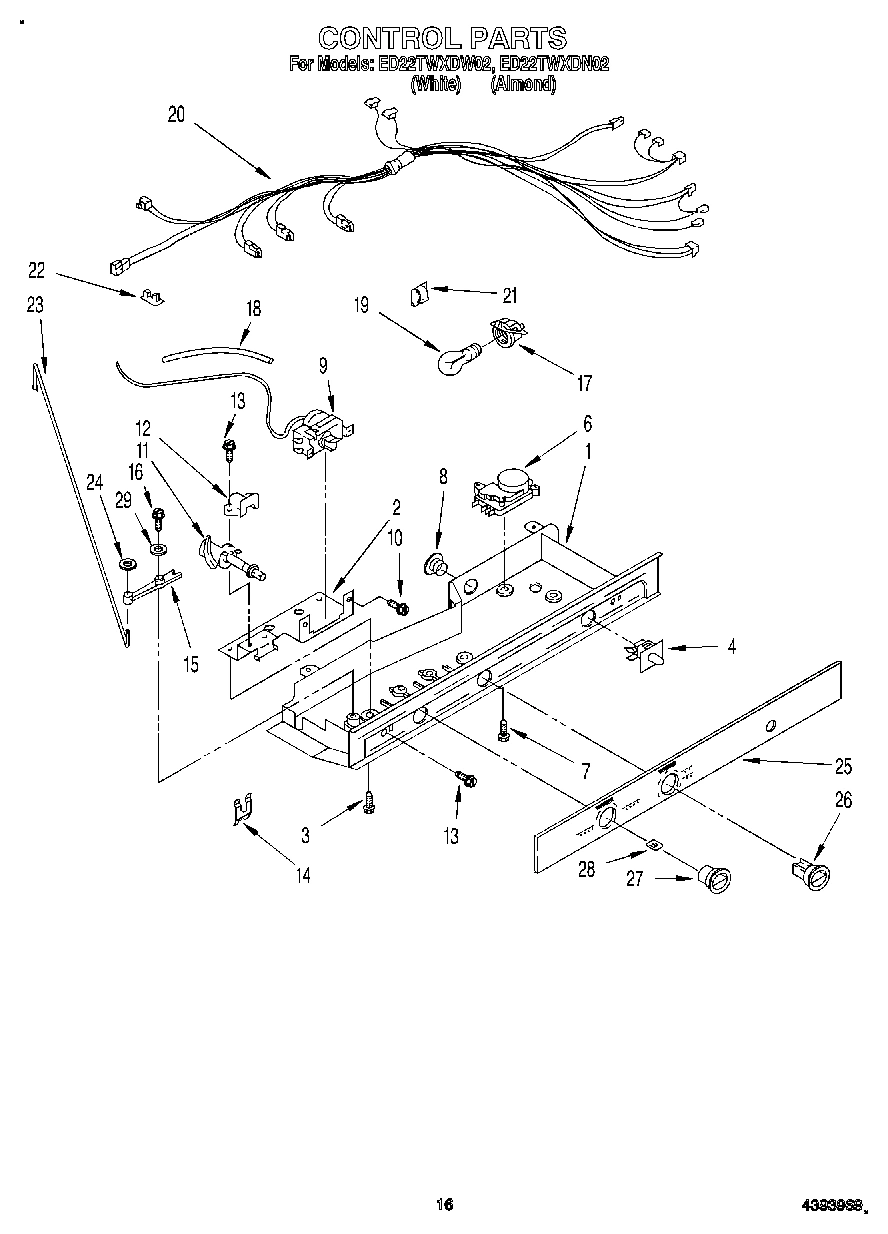

11 - CONTROL

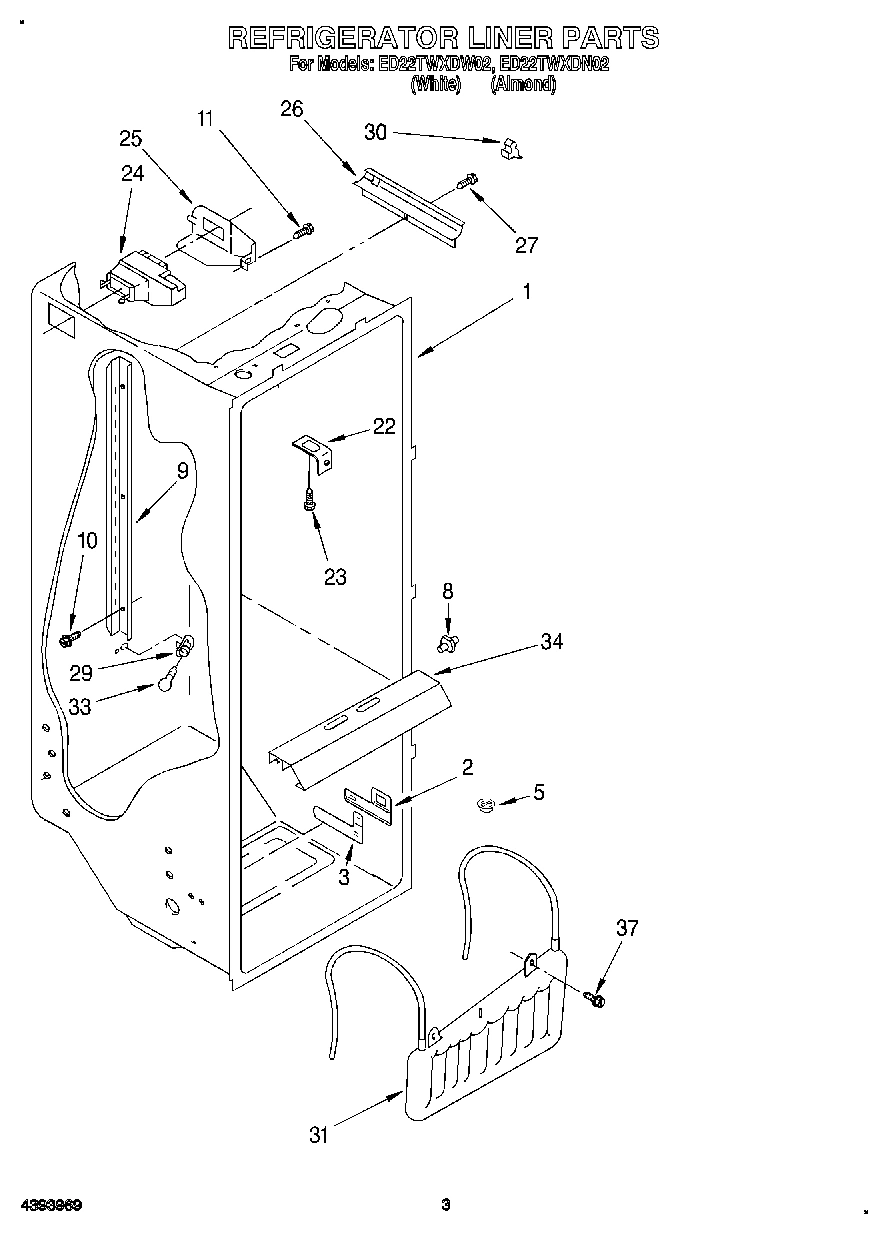

02 - REFRIGERATOR LINER

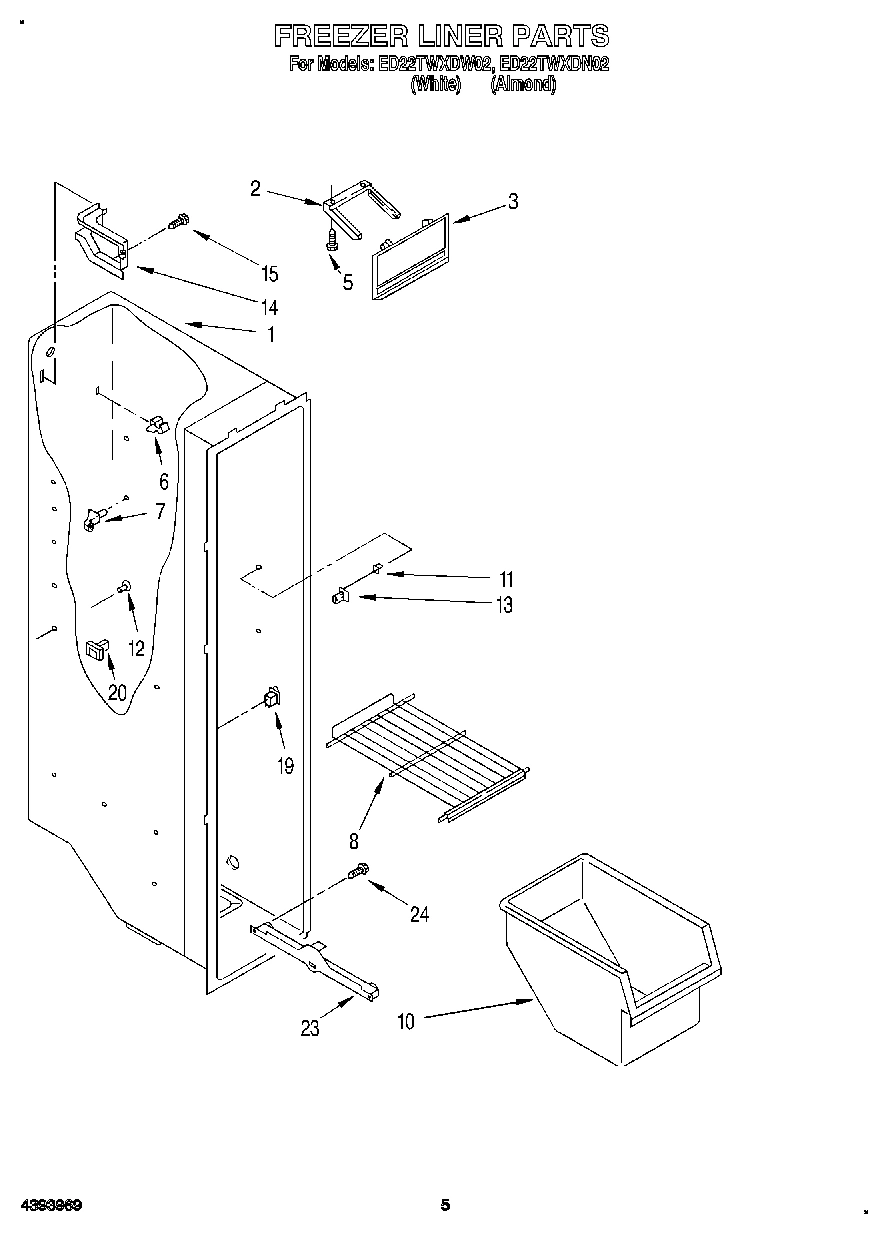

04 - FREEZER LINER

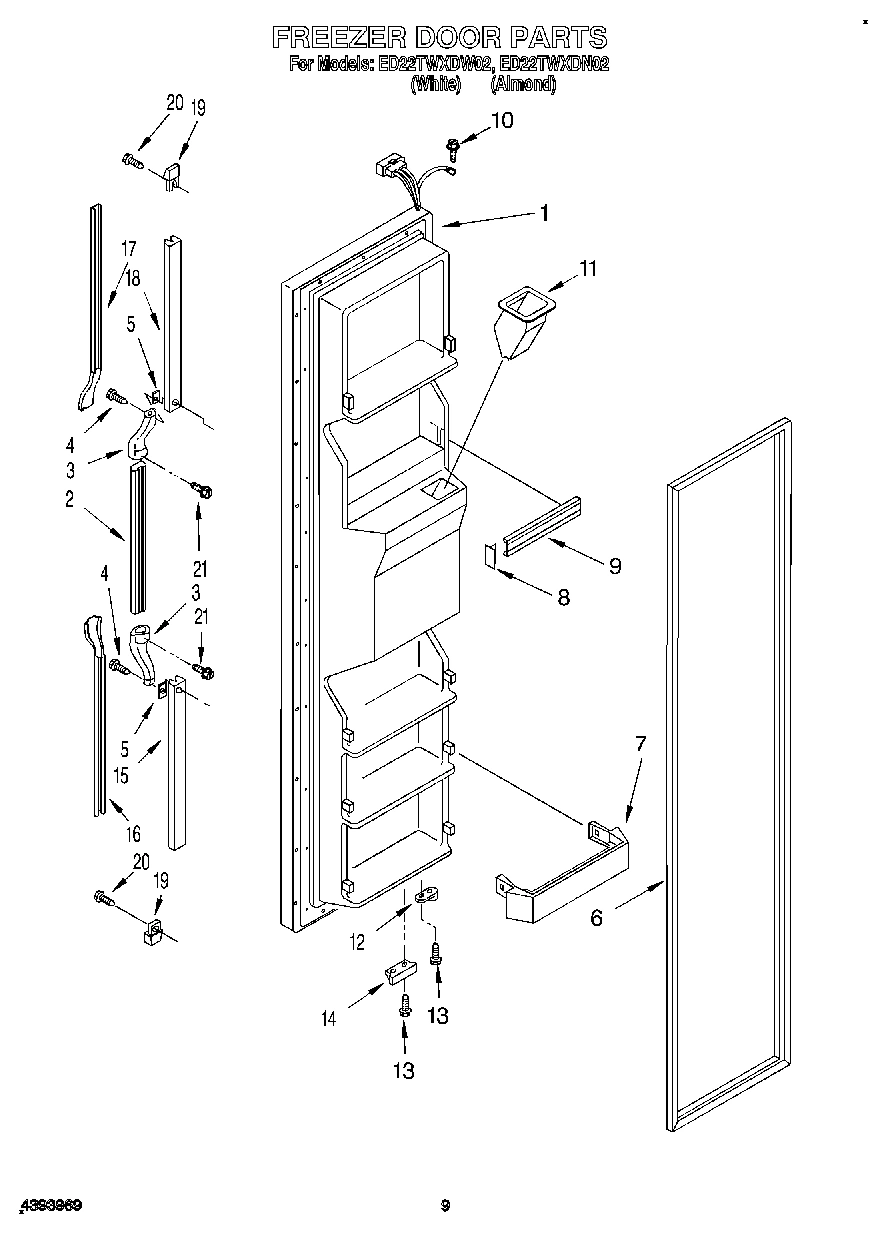

07 - FREEZER DOOR
09 - UNIT

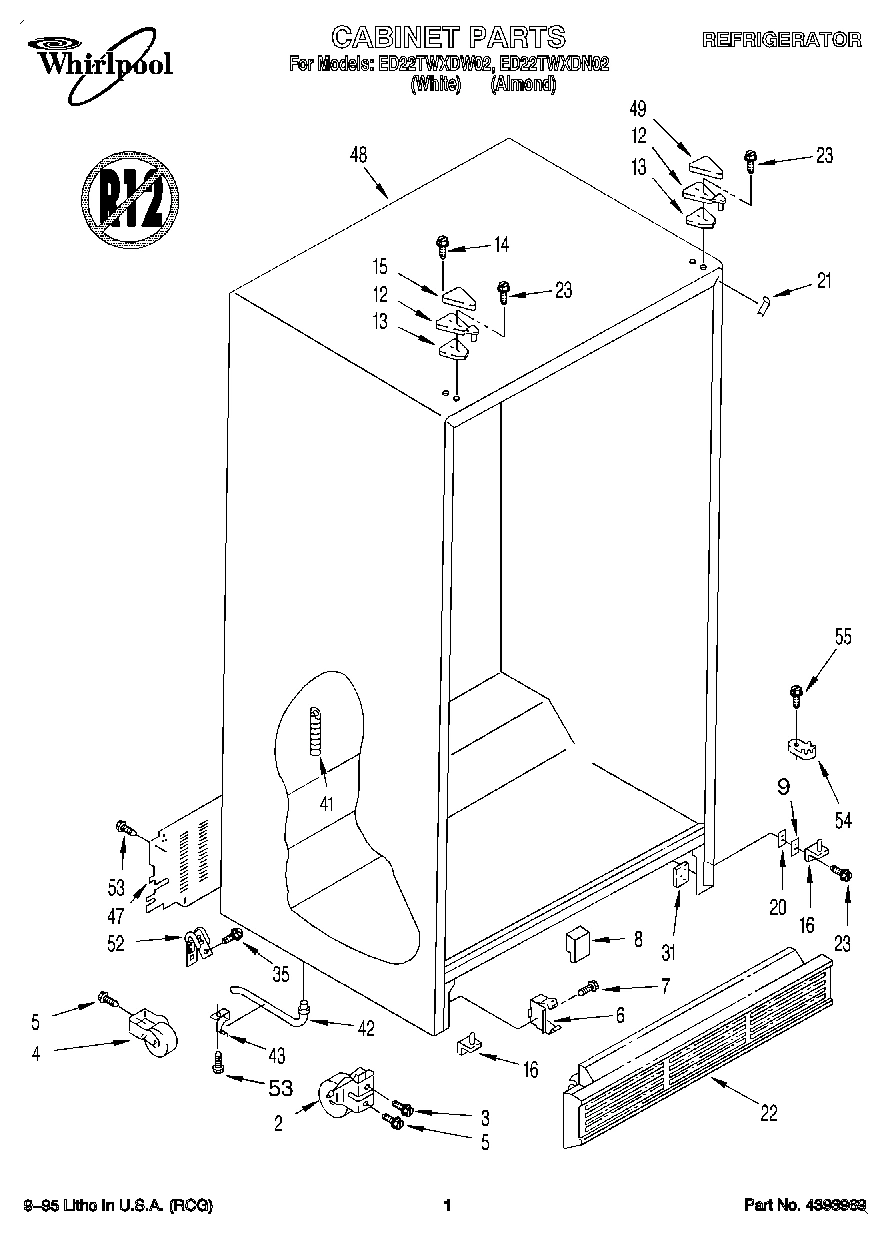

01 - CABINET

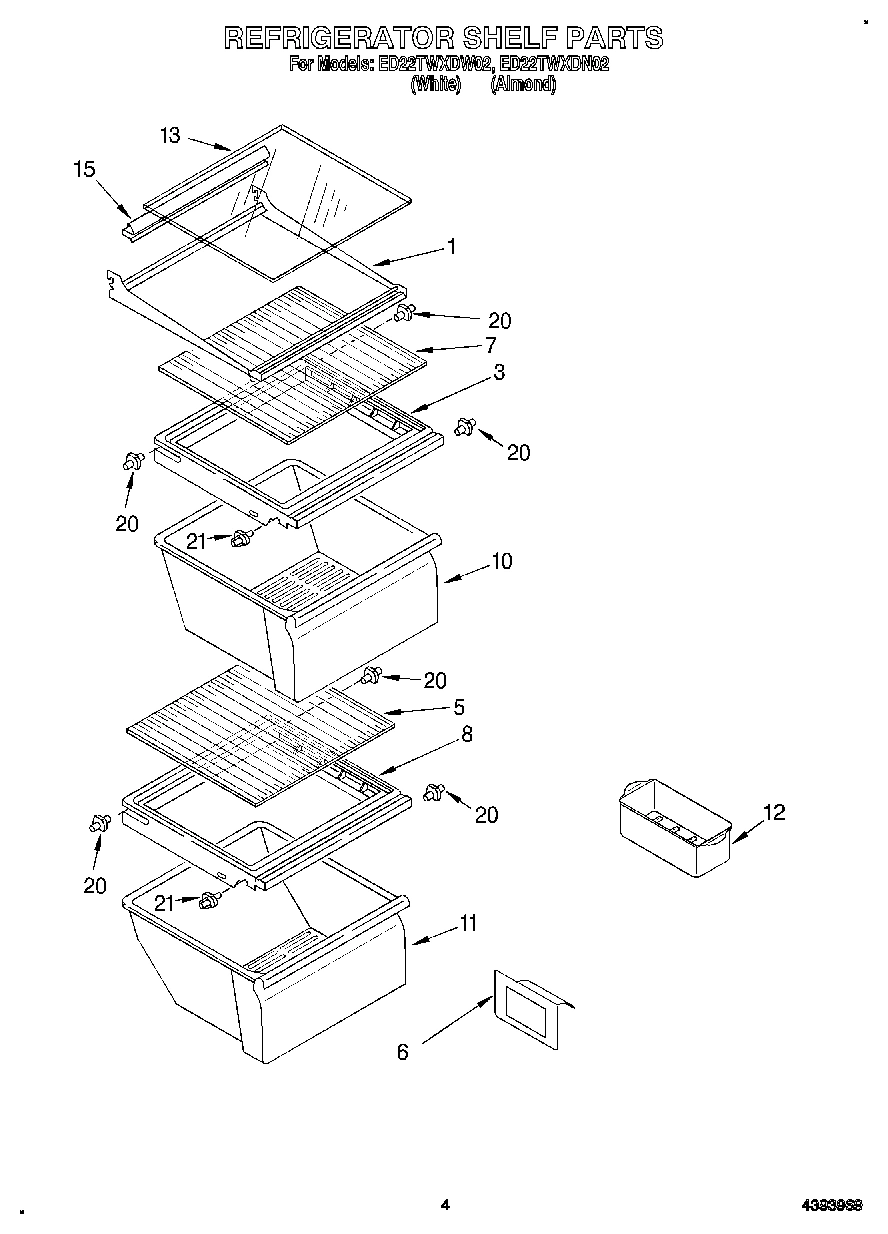

03 - REFRIGERATOR SHELF

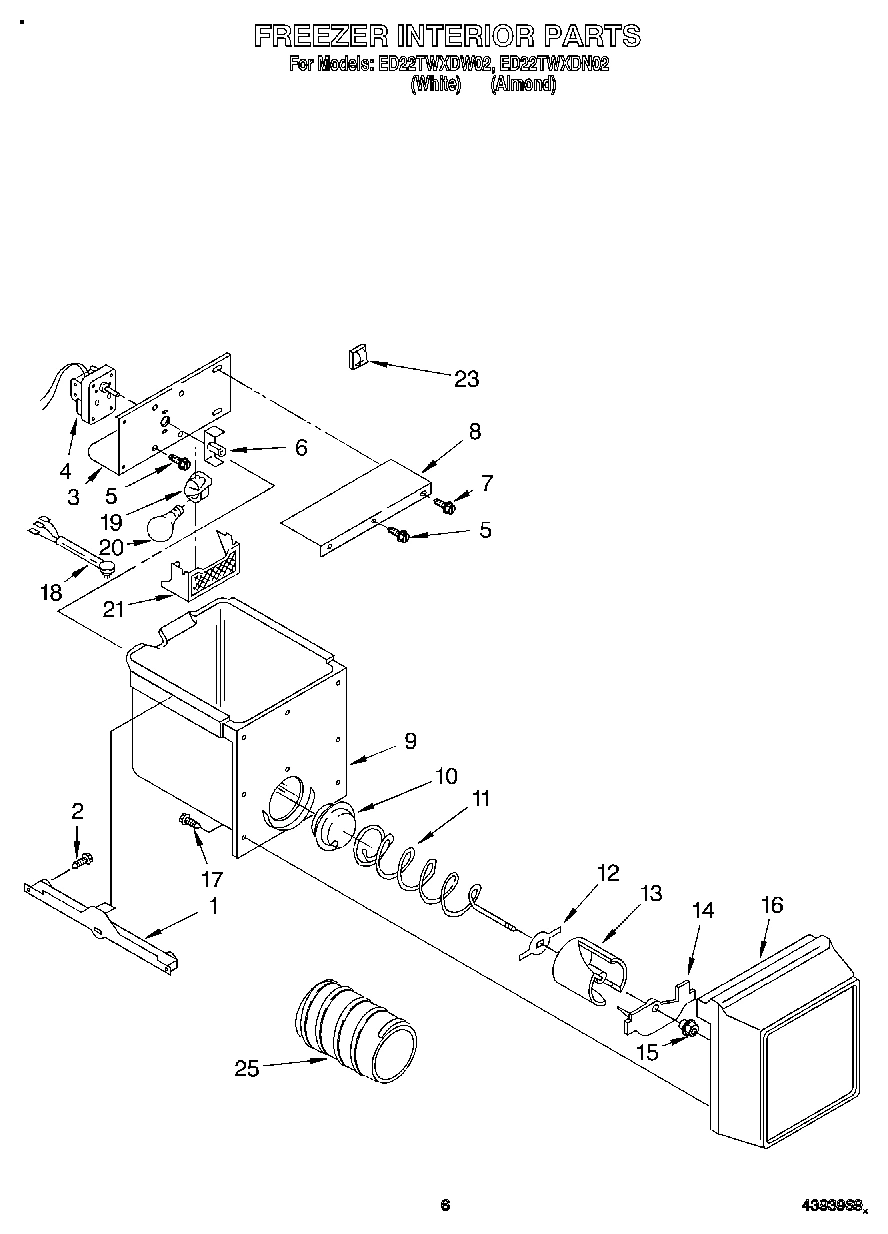

05 - FREEZER INTERIOR
12 - ICEMAKER, LIT/OPTIONAL

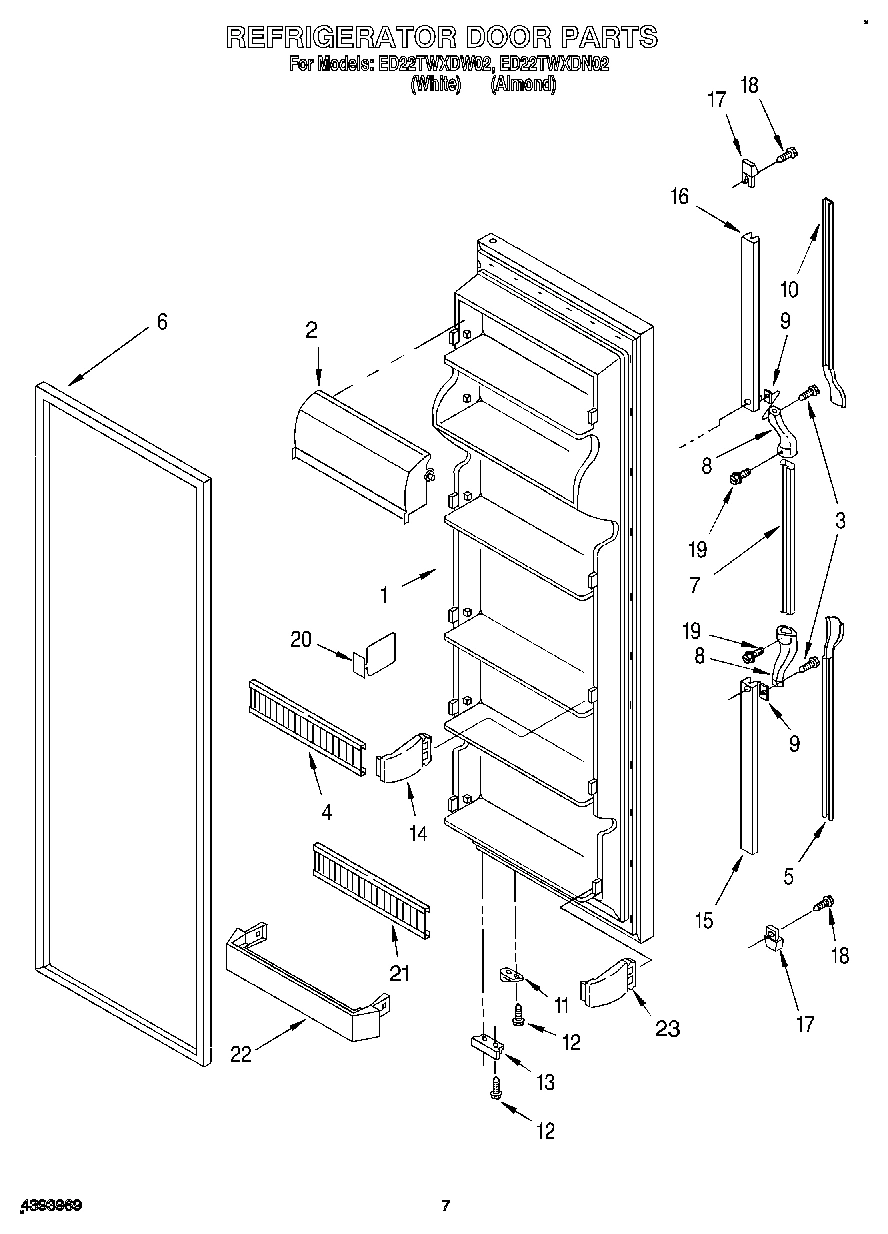

06 - REFRIGERATOR DOOR

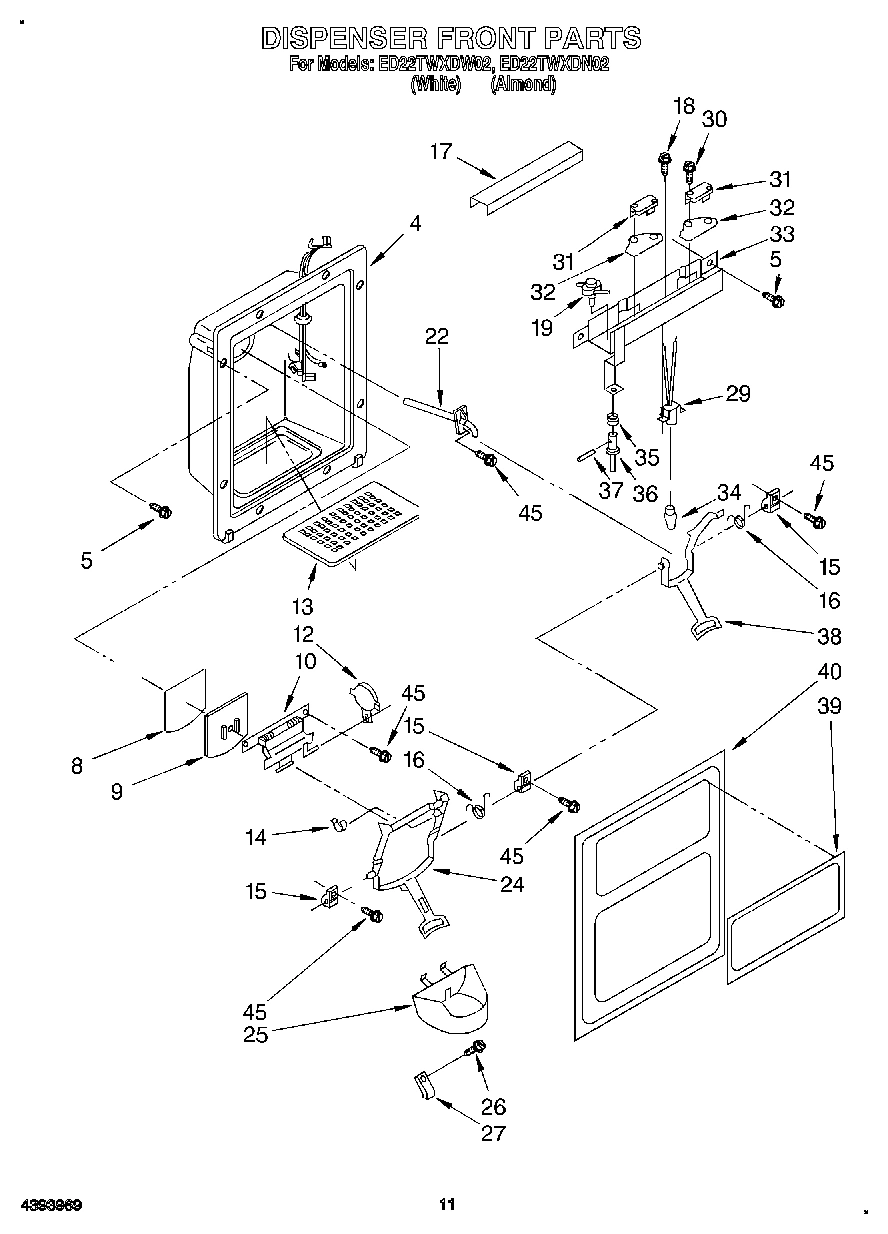

08 - DISPENSER FRONT
Common parts from model Whirlpool ED22TWXDW02 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176837 WPL LIT2176837 Contact Us For Availability
WPL LIT2180535 WPL LIT2180535 Contact Us For Availability
WPL LIT2182515 WPL LIT2182515 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 2163572 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (White) WPL 2175993 Contact Us For Availability
1
Refrigerator Door (Includes No.6) (Almond) WPL 2175994 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
4
Motor WPL 2155262 Contact Us For Availability
4
Trim, Door (3) WPL 2175989 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI27144A5 Contact Us For Availability
5
Insert, Handle (White) WPL 1119361 Contact Us For Availability
5
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Handle, Center (White) WPL 1124713 Contact Us For Availability
7
Handle, Center (Almond) WPL 943079 Contact Us For Availability
8
Shield, Ice Door WPL 987121 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
10
Insert, Handle (White) WPL 1119367 Contact Us For Availability
10
Insert, Handle (Almond) WPL 1119369 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
11
Conveyor WPL 1115214 Contact Us For Availability
12
Grommet (8) WPL 2176134 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Glass, Shelf WPL 2175987 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
14
Baffle WPL 2181722 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
15
Relay (See Overload) WPL ARI27145A3 Contact Us For Availability
15
Reflector WPL 2170621 Contact Us For Availability
15
Nut, Bearing WPL 946195 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119366 Contact Us For Availability
16
Front Cover Ice Container WPL 2174351 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Capacitor (Service Compressor Only) WPL 2169137 Contact Us For Availability
17
Shield, Wiring WPL 984494 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
18
Wiring Assembly, Ice Dispenser WPL 2149193 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Switch, Light WPL 851386 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
20
Divider, Bin WPL 2160050 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Trim, Door (1) WPL 2175990 Contact Us For Availability
22
Grille (White) WPL 2155477 Contact Us For Availability
22
Grille (Almond) WPL 2155478 Contact Us For Availability
23
woodgrain handle insert WPL 4210445 Contact Us For Availability
23
Trimless Black Decor Panel WPL 4318948 Contact Us For Availability
23
Black Handle Insert WPL 4319080 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1125977 Contact Us For Availability
25
Guide, Ice (White) WPL 2147479 Contact Us For Availability
26
Harness, Unit (Includes Power Cord) WPL 2181709 Contact Us For Availability
26
Screw WPL 489197 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Stop, Glass (Almond) WPL 1125978 Contact Us For Availability
27
Stop, Glass (White) WPL 2147480 Contact Us For Availability
29
Socket, Lamp WPL 987265 Contact Us For Availability
30
Screw WPL 488362 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
32
Insulator, Switch (2) WPL 984683 Contact Us For Availability
33
Bracket, Control WPL 1129283 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Spring, Plunger WPL 983986 Contact Us For Availability
36
Clip, Support (2) WPL 2155021 Contact Us For Availability
36
Plunger WPL 1116563 Contact Us For Availability
37
Pin, Retainer WPL 983987 Contact Us For Availability
38
Lever, Water (White) WPL 2177149 Contact Us For Availability
38
Lever, Water (Almond Dispenser) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2171495 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2175844 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2177169 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2177171 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI27141A5 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
