Model Whirlpool ED22DSXEN01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

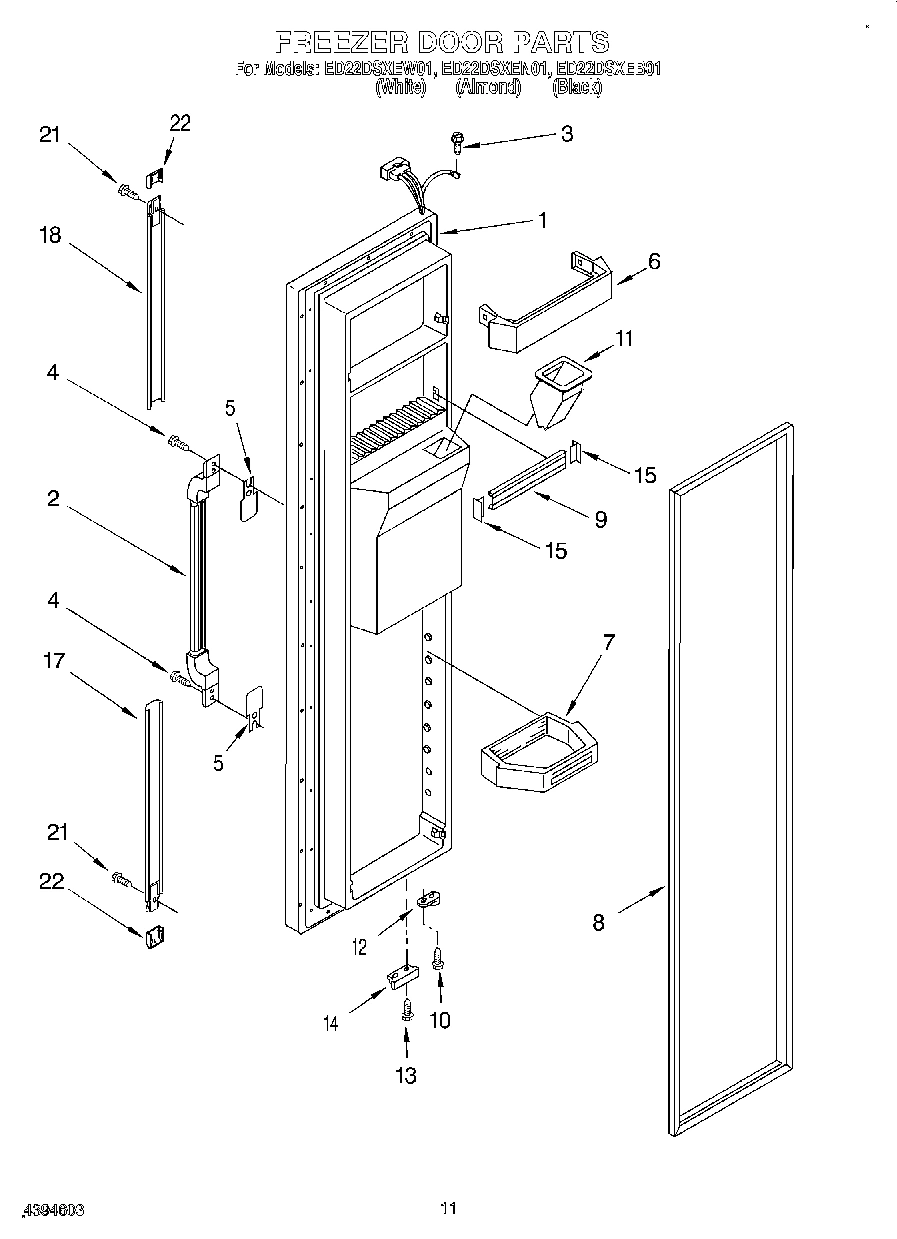

08 - FREEZER DOOR

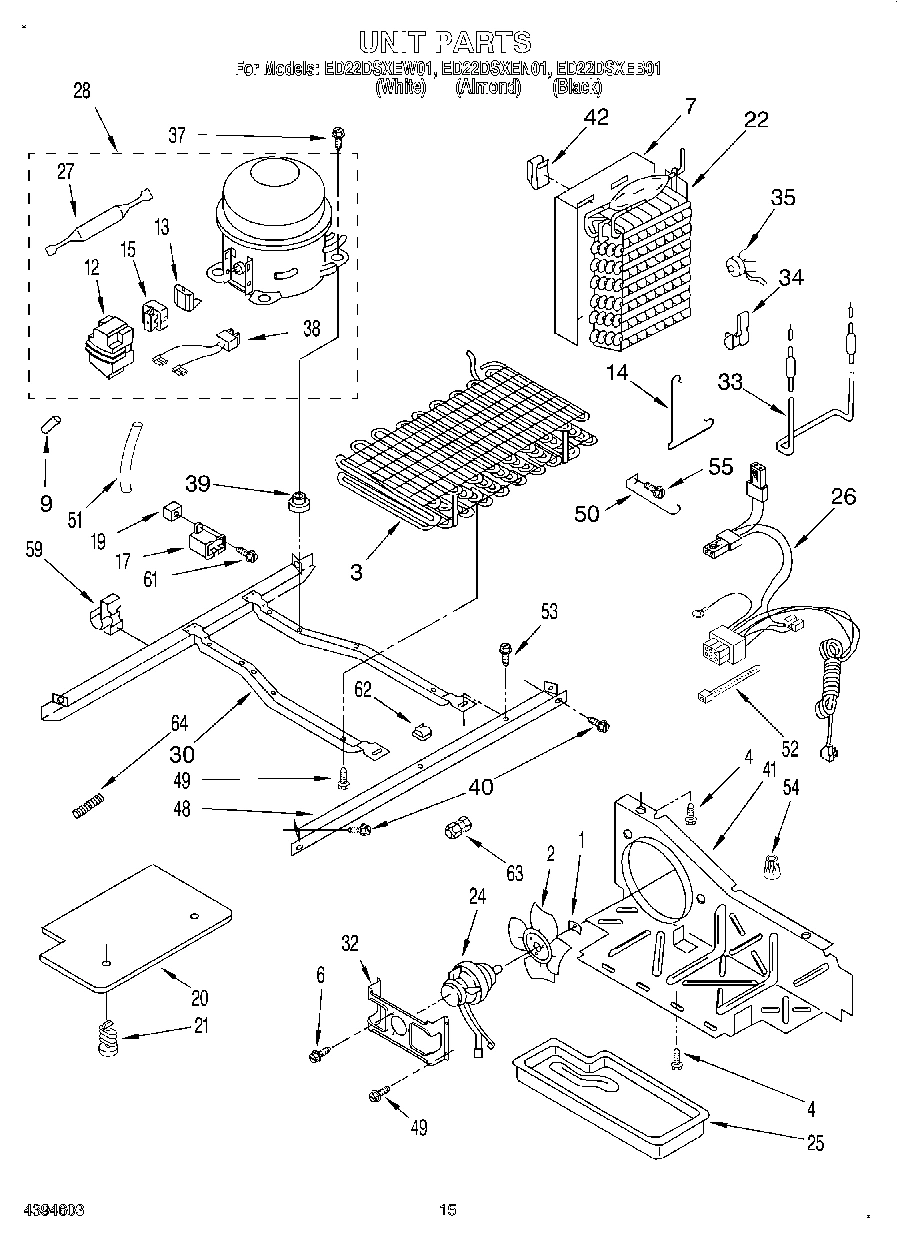

10 - UNIT

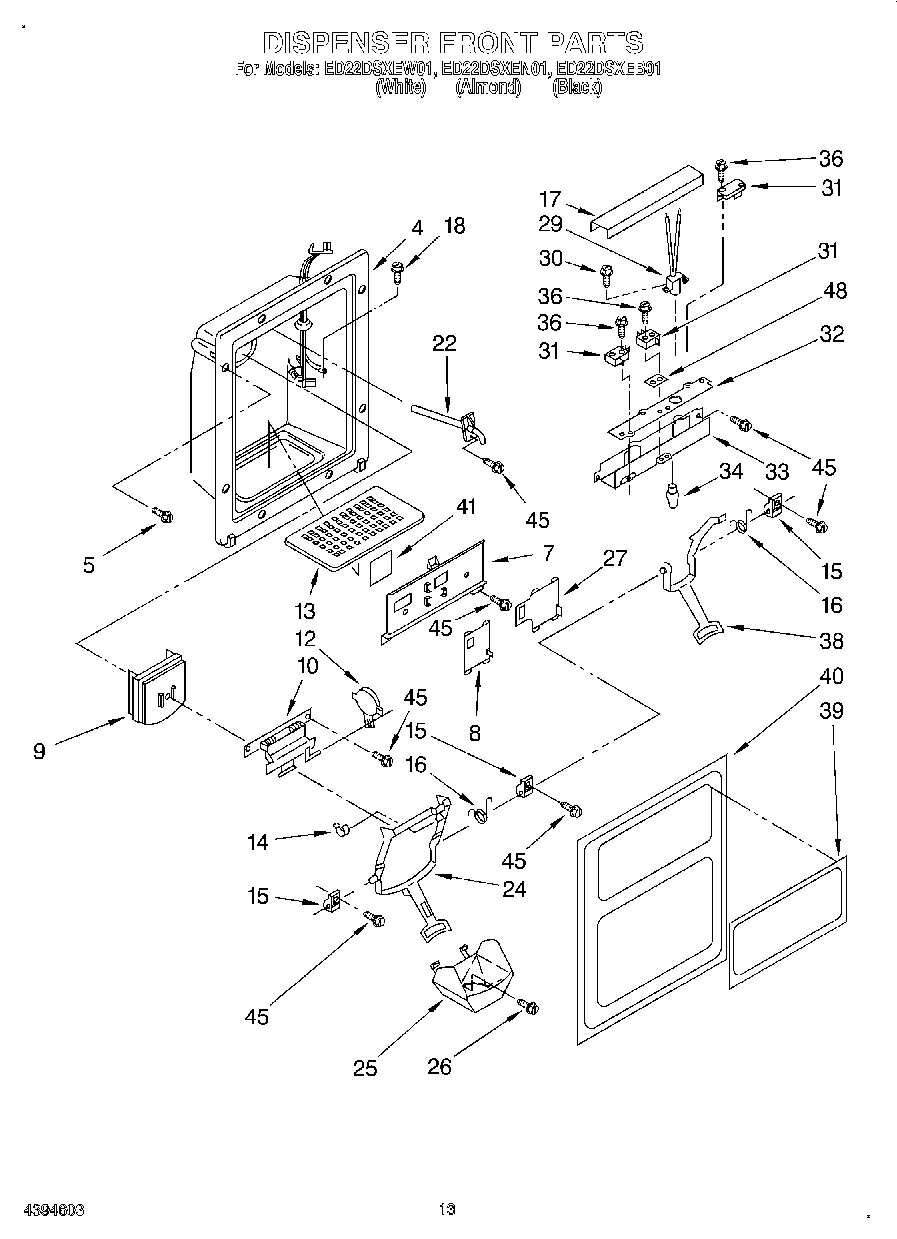

09 - DISPENSER FRONT

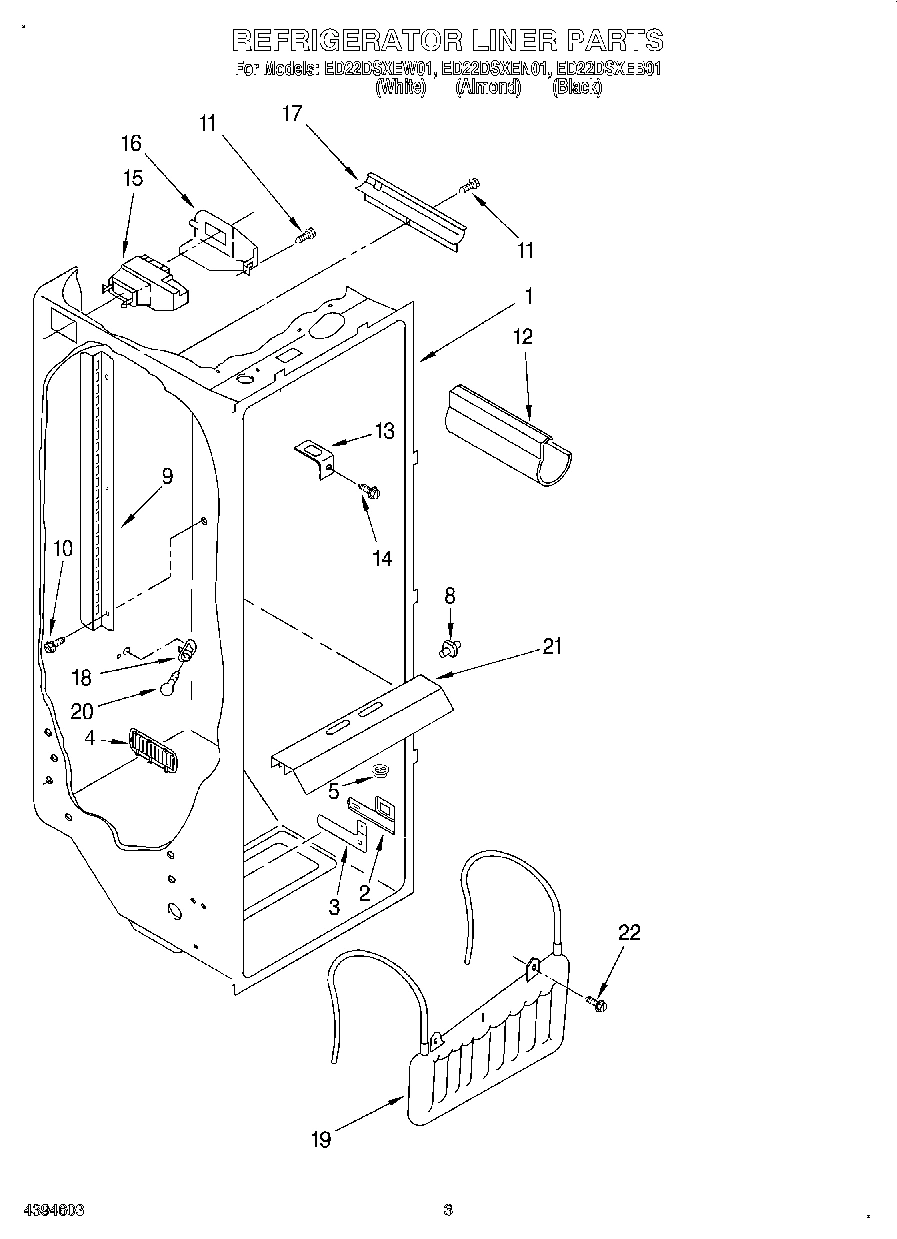

02 - REFRIGERATOR LINER
04 - FREEZER LINER

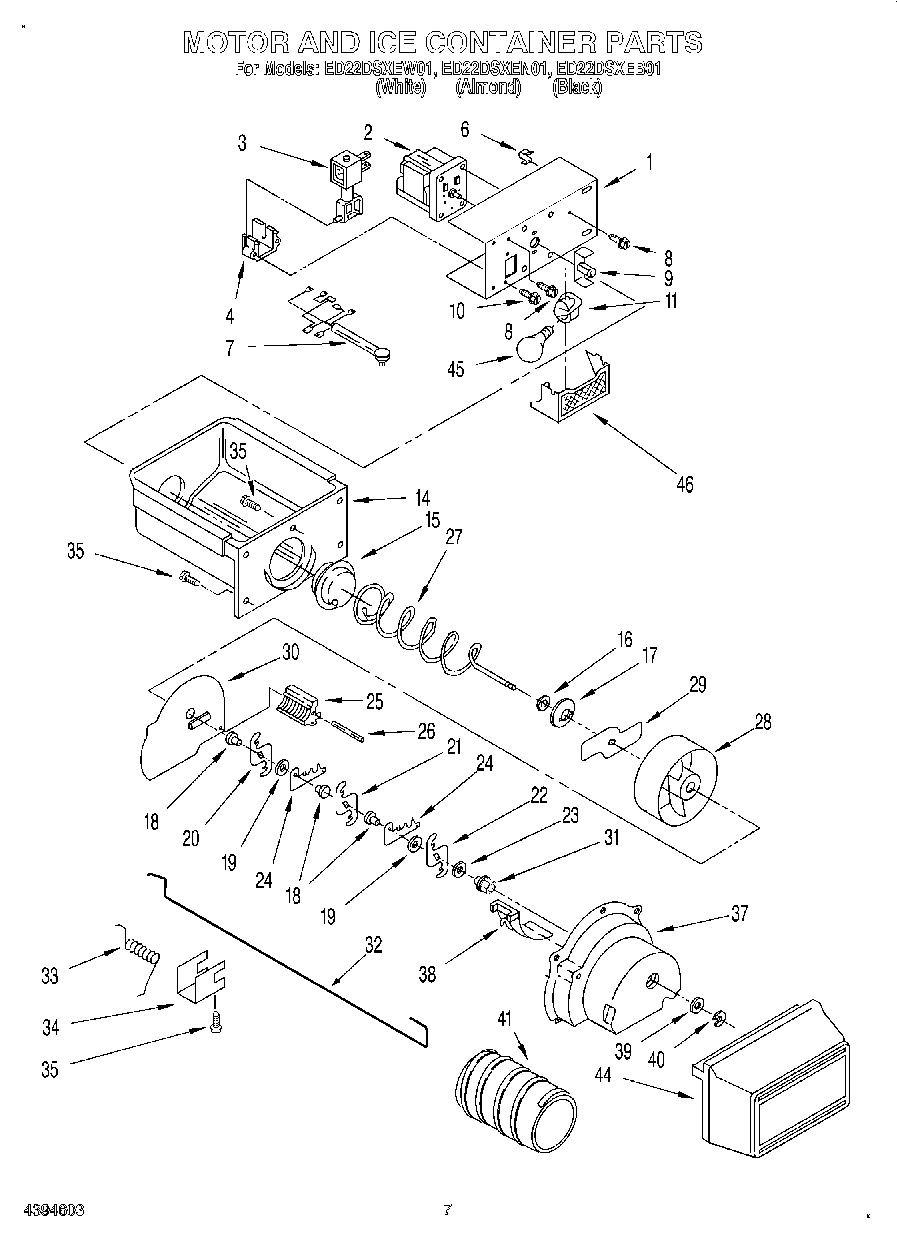

06 - MOTOR AND ICE CONTAINER

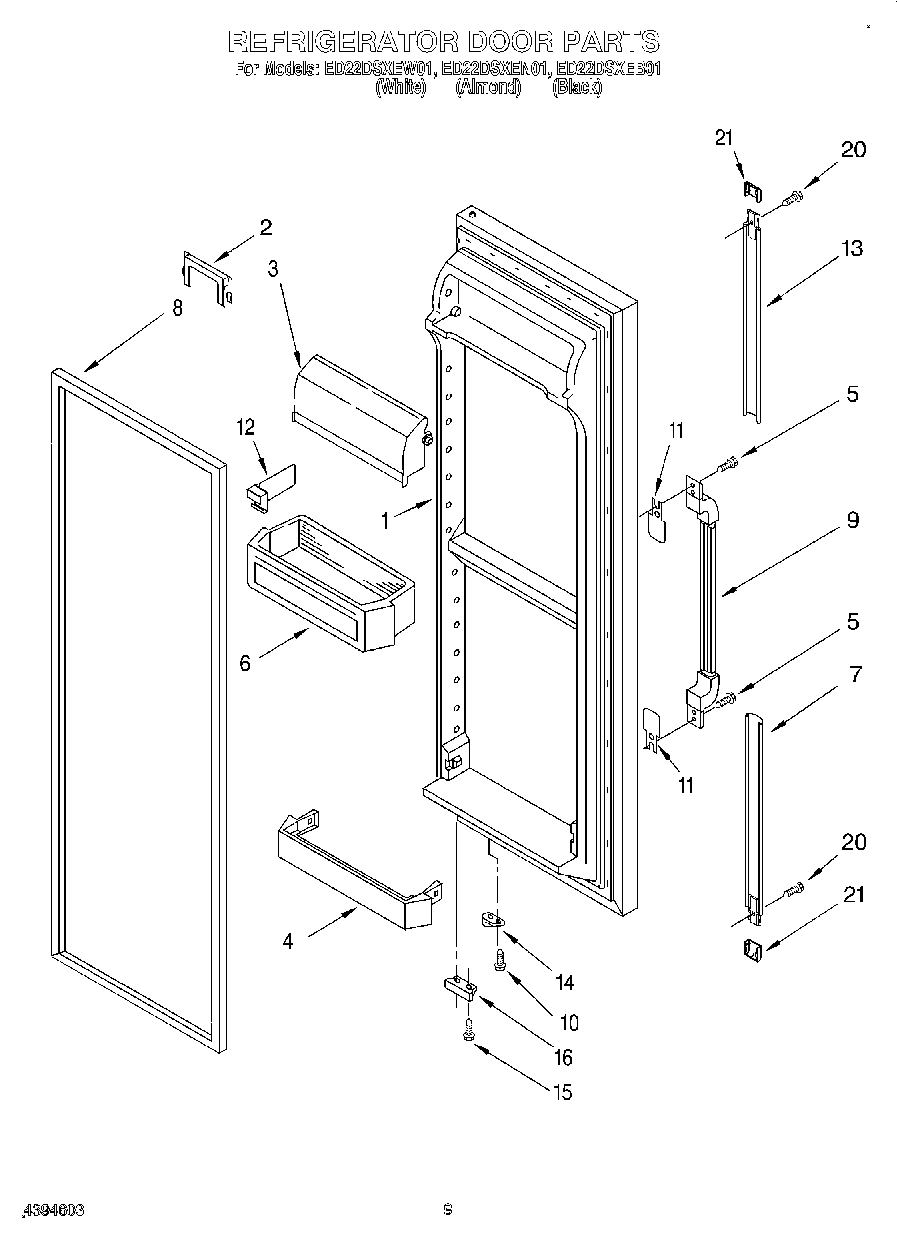

07 - REFRIGERATOR DOOR

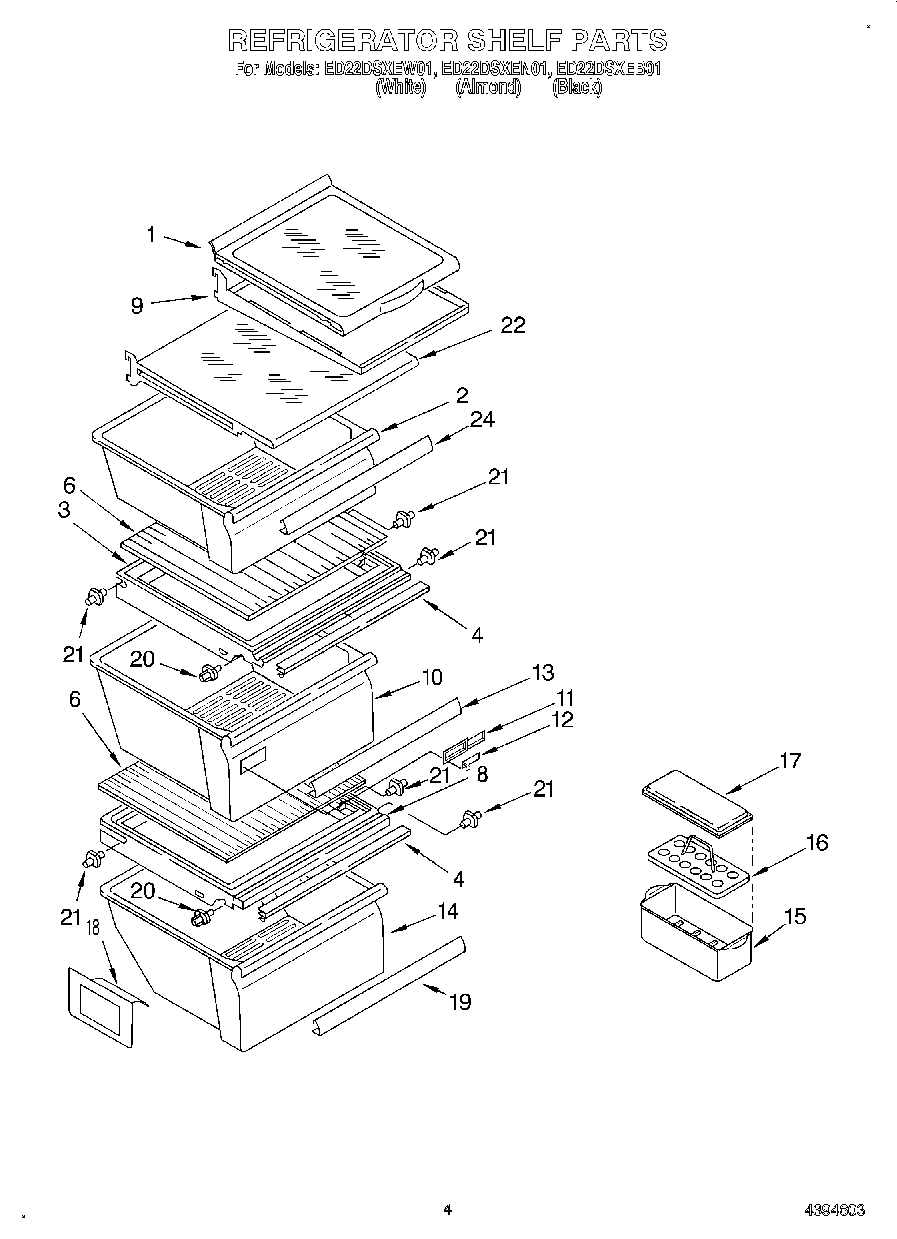

03 - REFRIGERATOR SHELF
05 - AIRFLOW

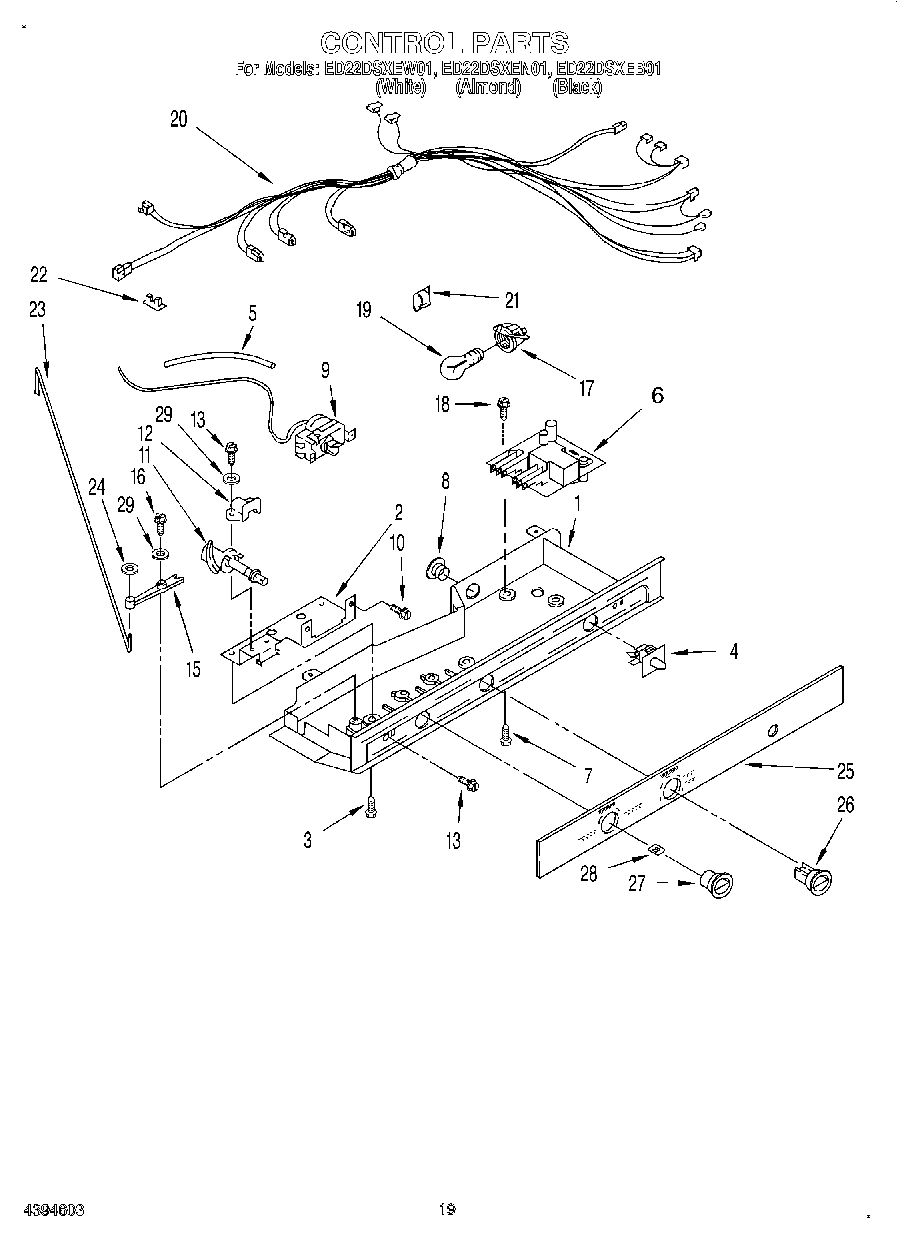

12 - CONTROL, LIT/OPTIONAL

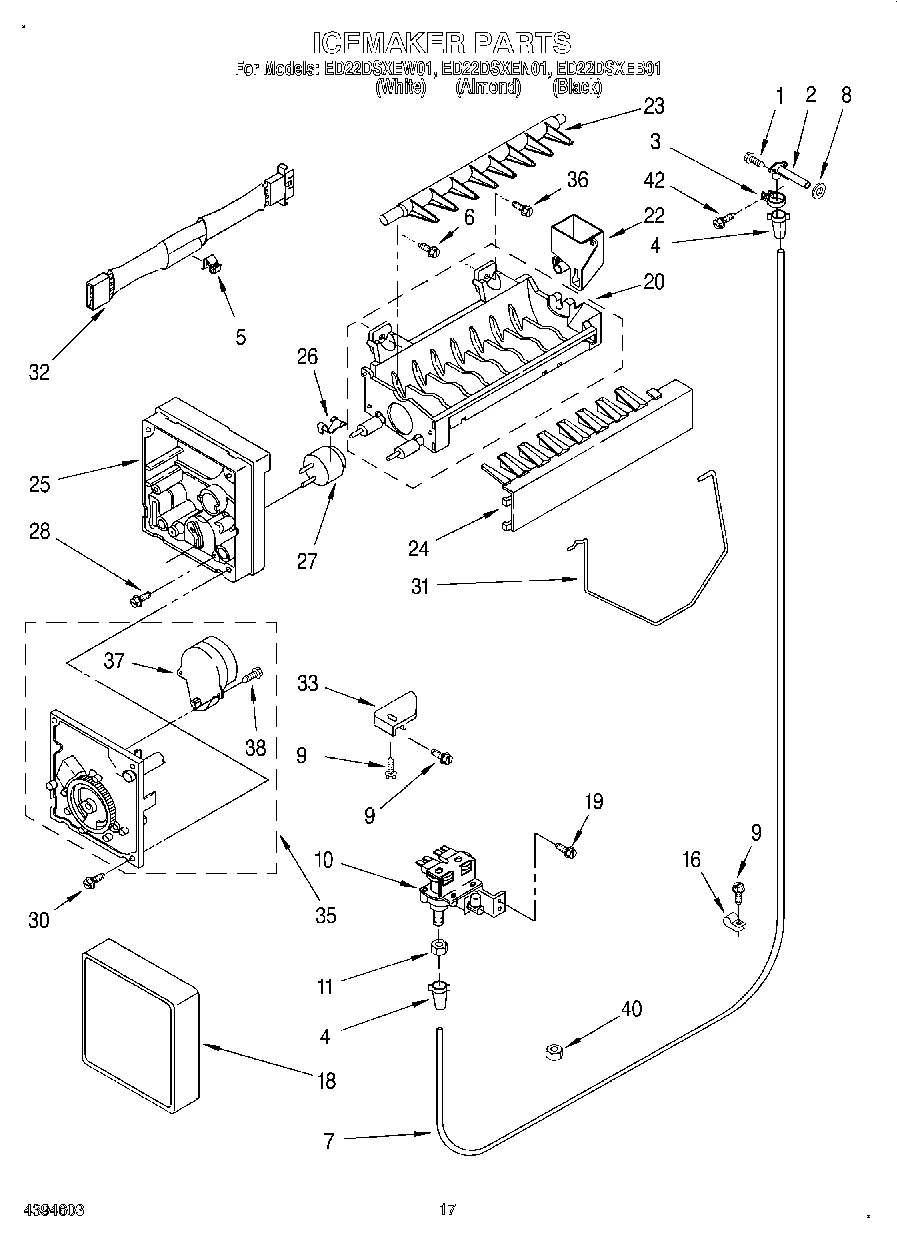

11 - ICEMAKER

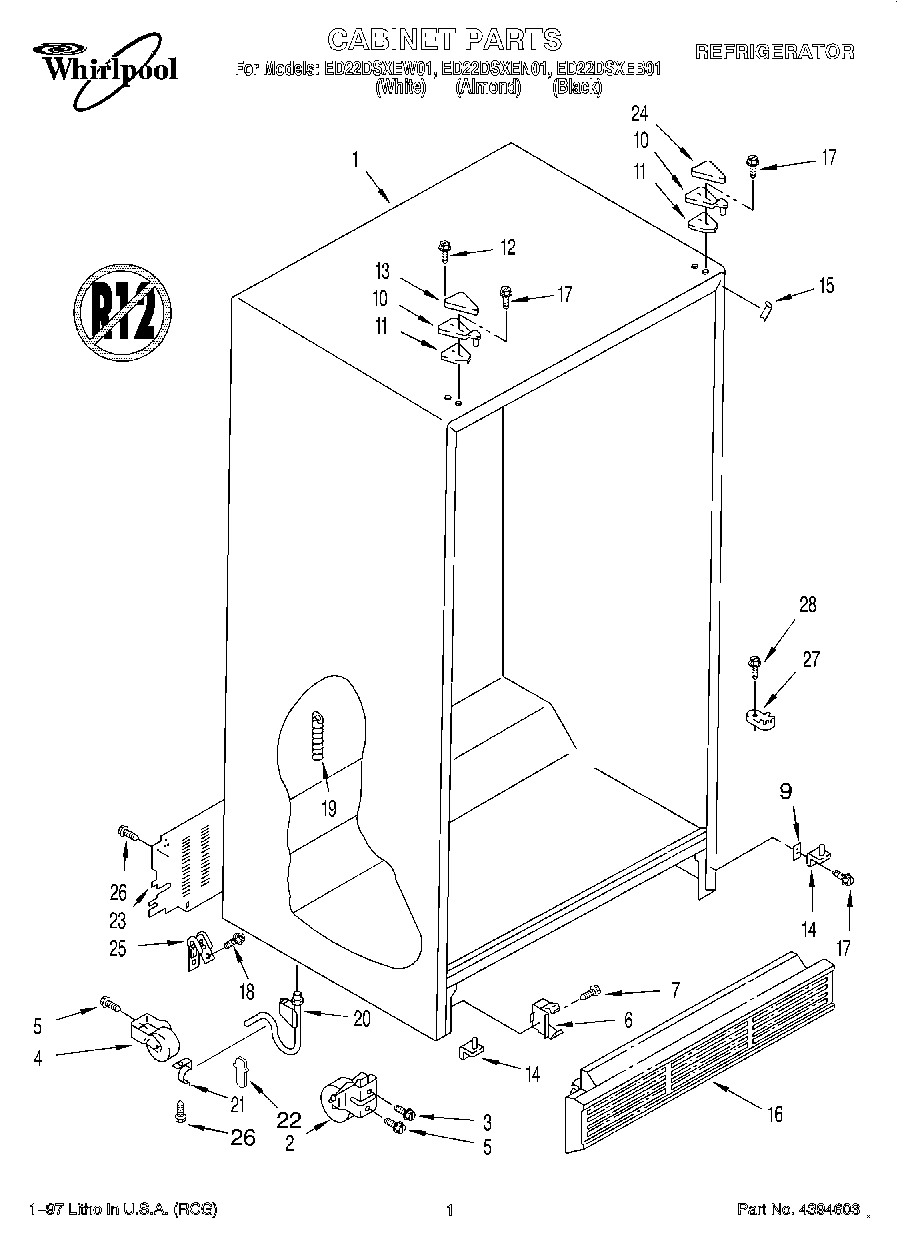

01 - CABINET
Common parts from model Whirlpool ED22DSXEN01 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2175293 WPL LIT2175293 Contact Us For Availability
WPL LIT2176079 WPL LIT2176079 Contact Us For Availability
WPL LIT2194920 WPL LIT2194920 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Bracket, Motor WPL 2183728 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194787B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194787N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194787W Contact Us For Availability
1
Control Box WPL 2169148 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI26452A2 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Extension, Bottom (Black) WPL 2194766B Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194766N Contact Us For Availability
7
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
9
Handle, Center (Black) WPL 2194759B Contact Us For Availability
9
Handle, Center (Almond) WPL 2194759N Contact Us For Availability
9
Handle, Center (White) WPL 2194759W Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
11
Shim WPL 2179399 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
11
Shim, Hinge Top WPL 2171868 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Screw WPL 489284 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Extension, Top (Black) WPL 2194764B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194764N Contact Us For Availability
13
Extension, Top (White) WPL 2194764W Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
15
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
15
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
16
Grille (Black) WPL 2155476 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Bracket, Door Stop WPL 2155331 Contact Us For Availability
16
Grille (White) WPL 2155477 Contact Us For Availability
16
Grille (Almond) WPL 2155478 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
20
Control Box Harness WPL 2195015 Contact Us For Availability
20
Tube, Extension WPL 2172932 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
21
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
21
Cover, End Cap (Almond) WPL 2174007 Contact Us For Availability
21
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Flappper, Drain Extension WPL 2172957 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Motor, Fan WPL 2169135 Contact Us For Availability
24
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
24
Lever, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2179361 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
36
Screw WPL 489486 Contact Us For Availability
38
Lever, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196005 Contact Us For Availability
48
WPL 625834 WPL 625834 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
