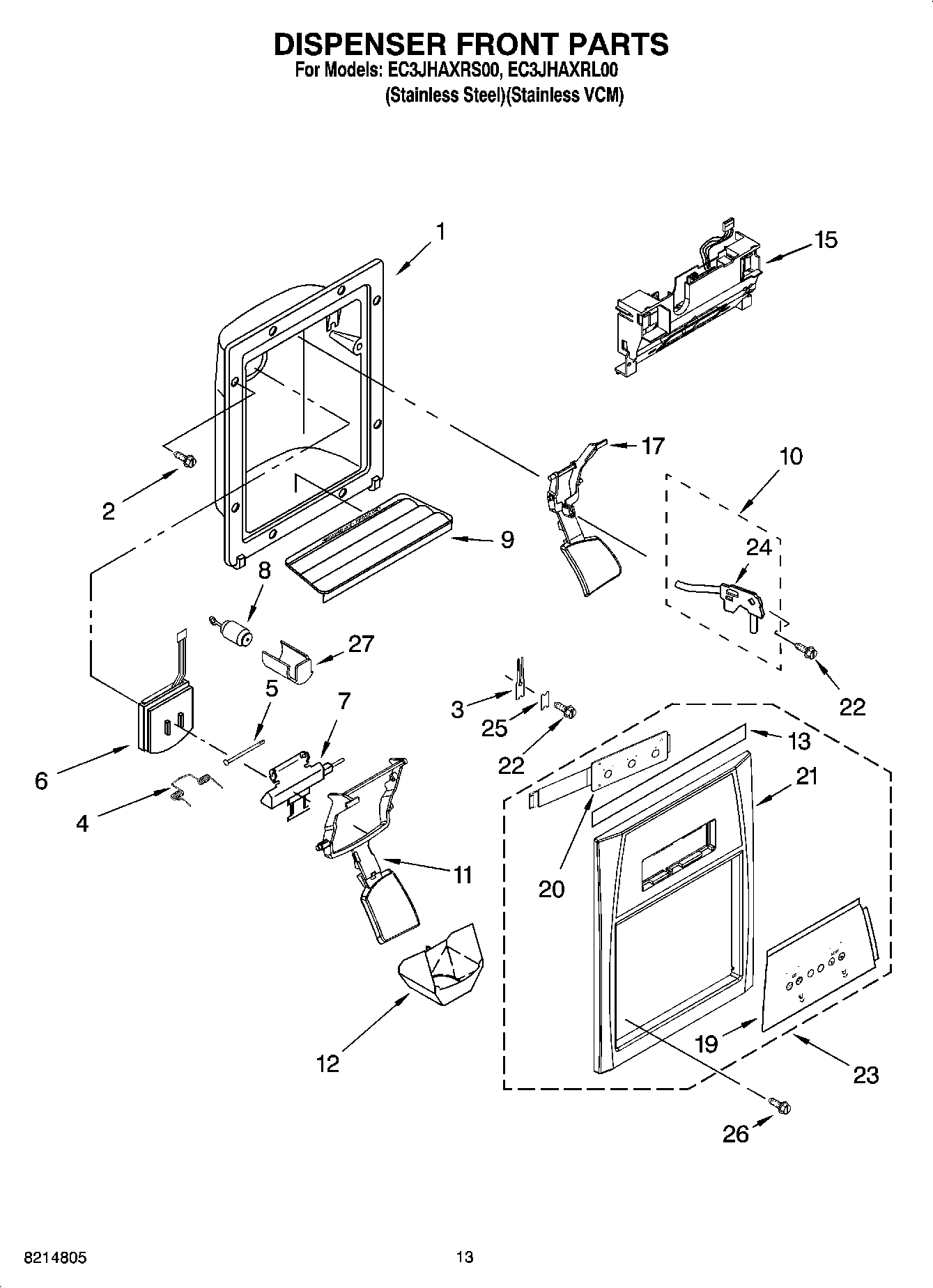

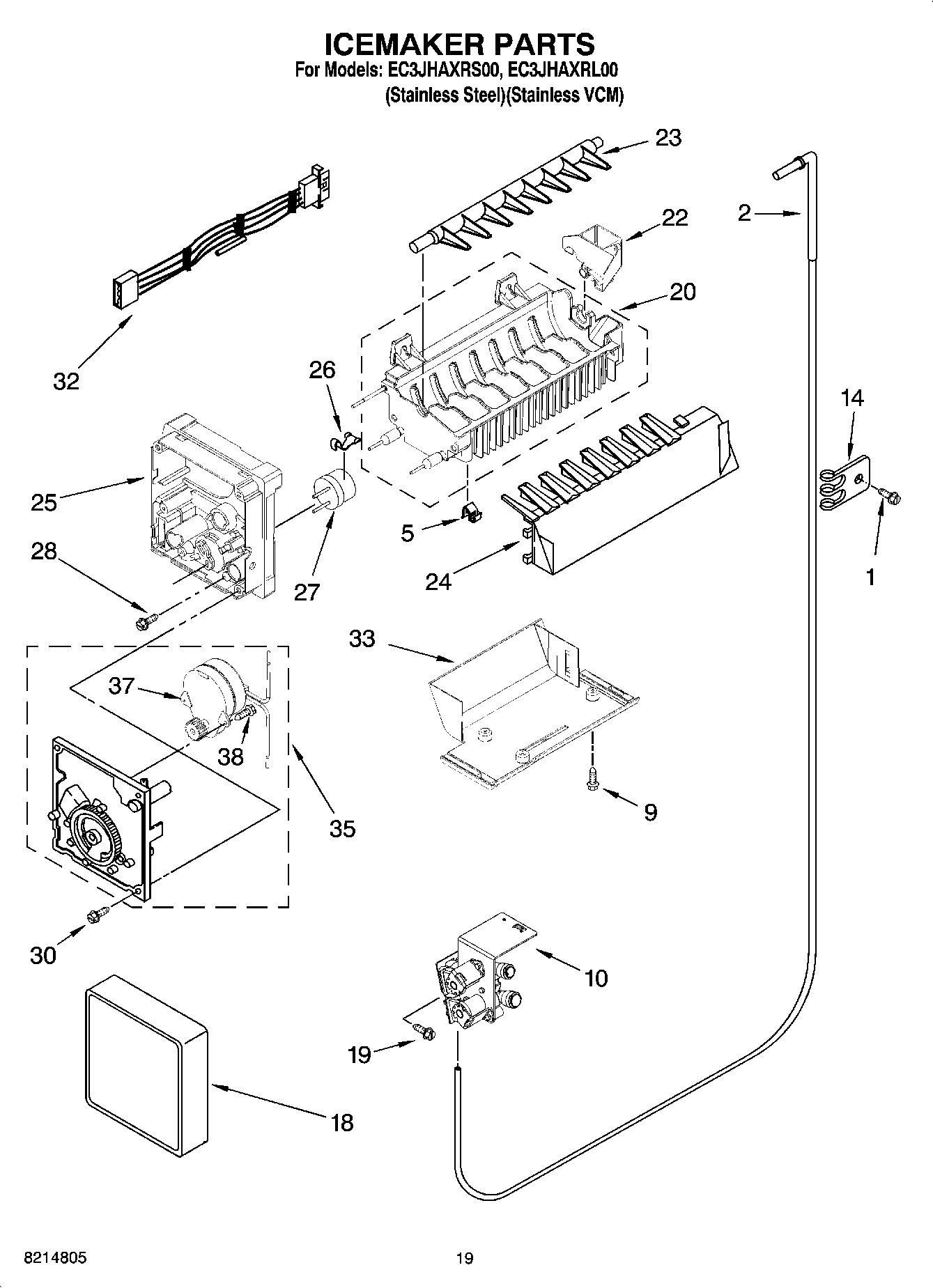

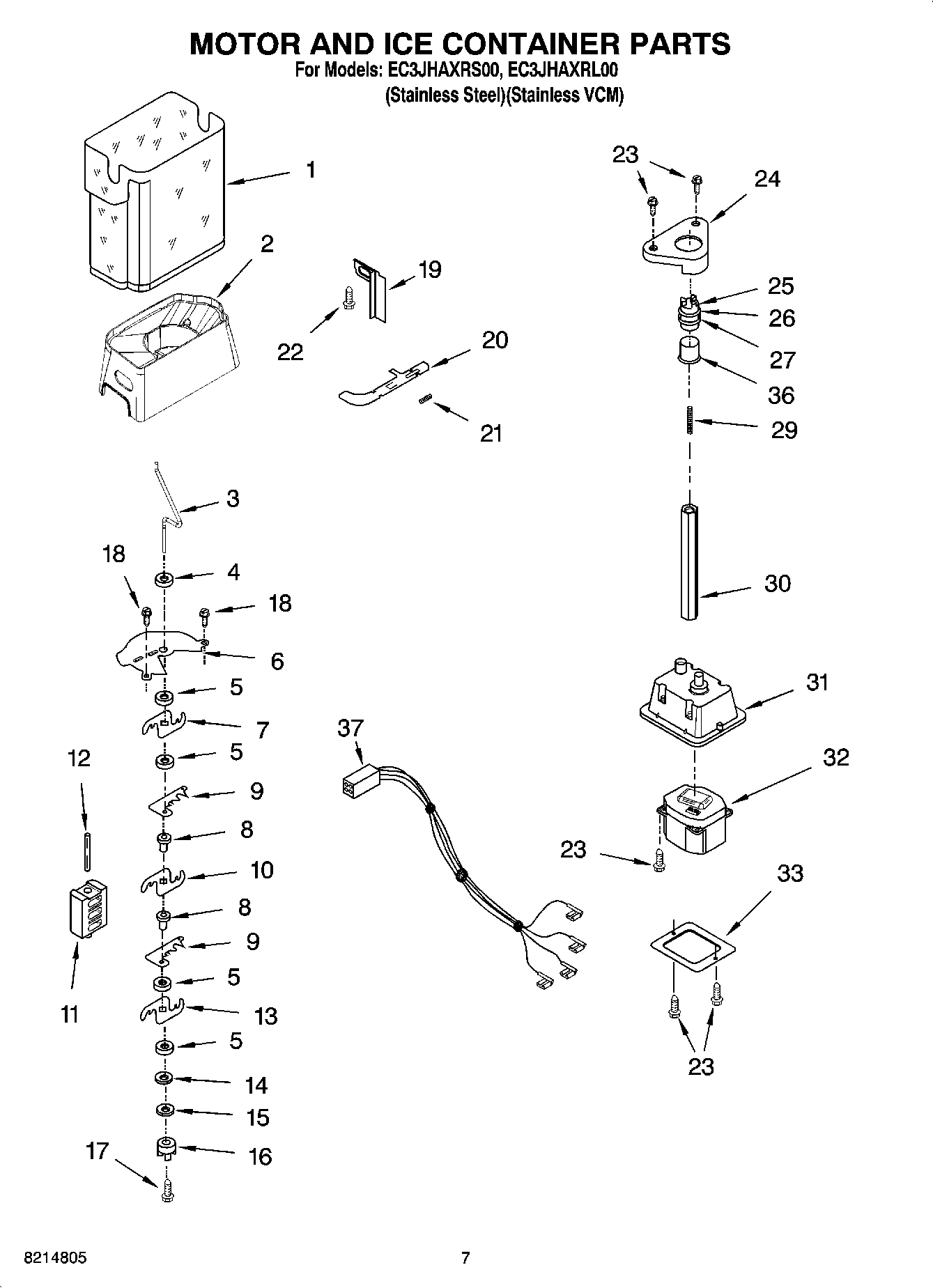

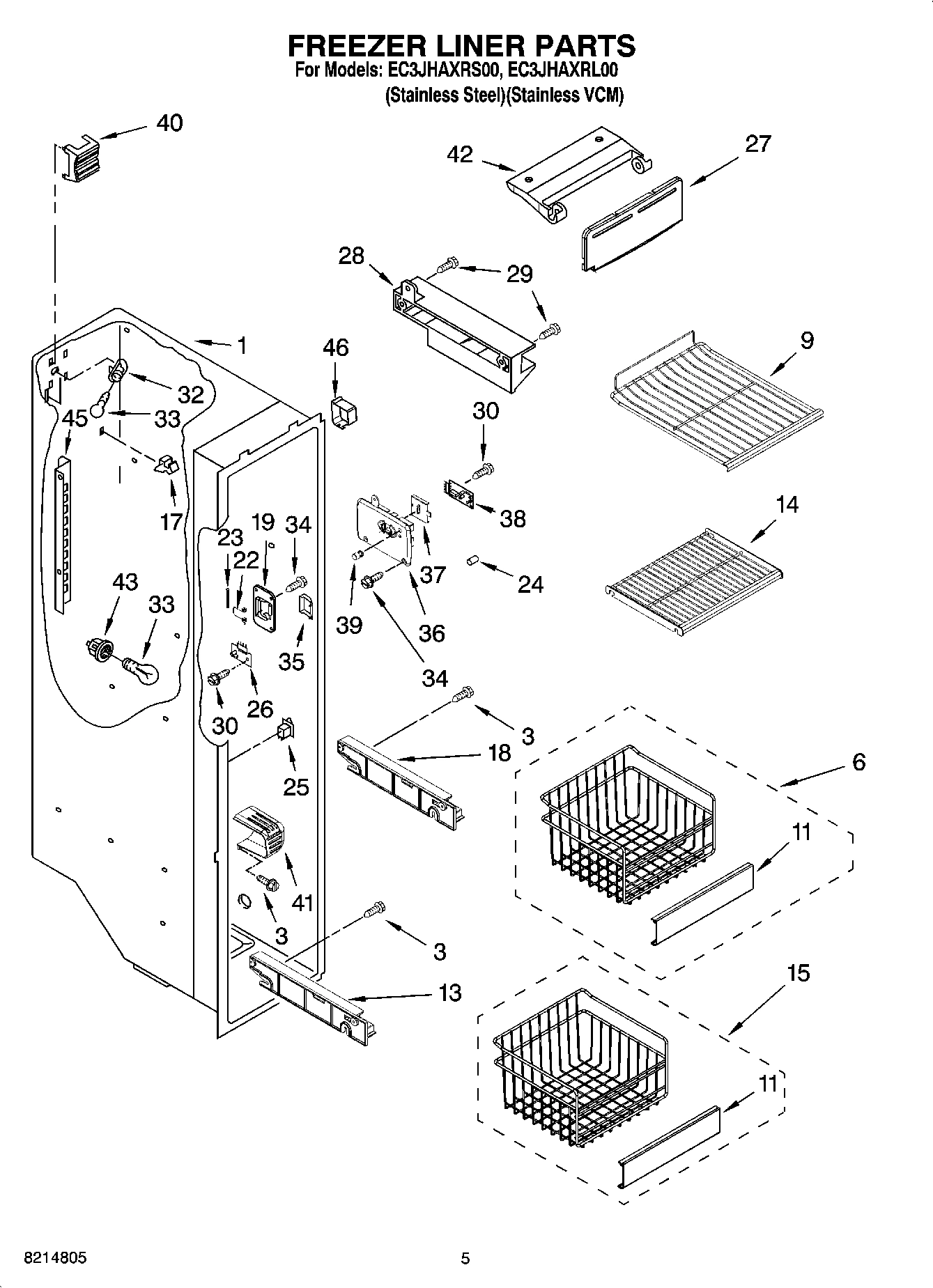

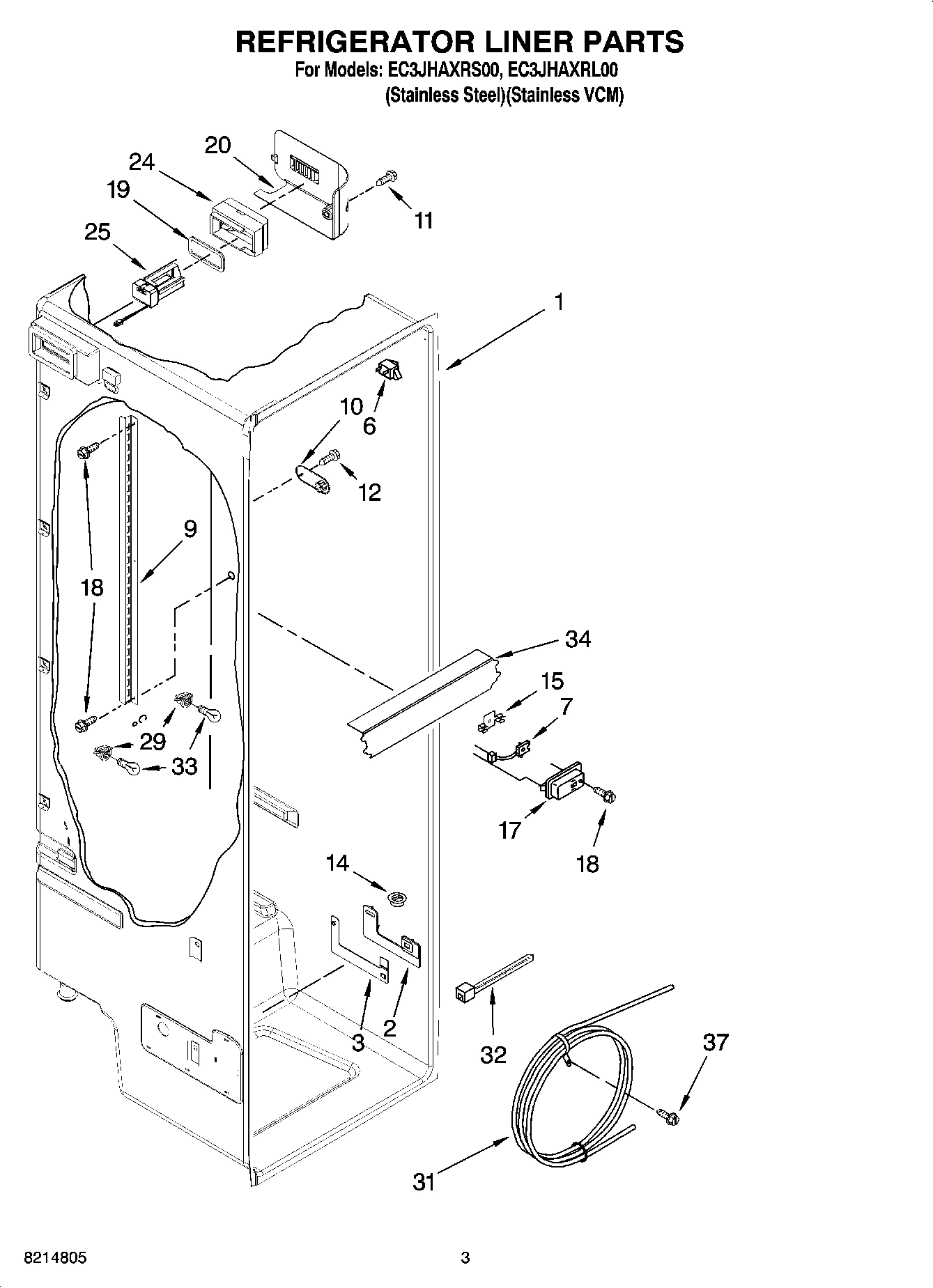

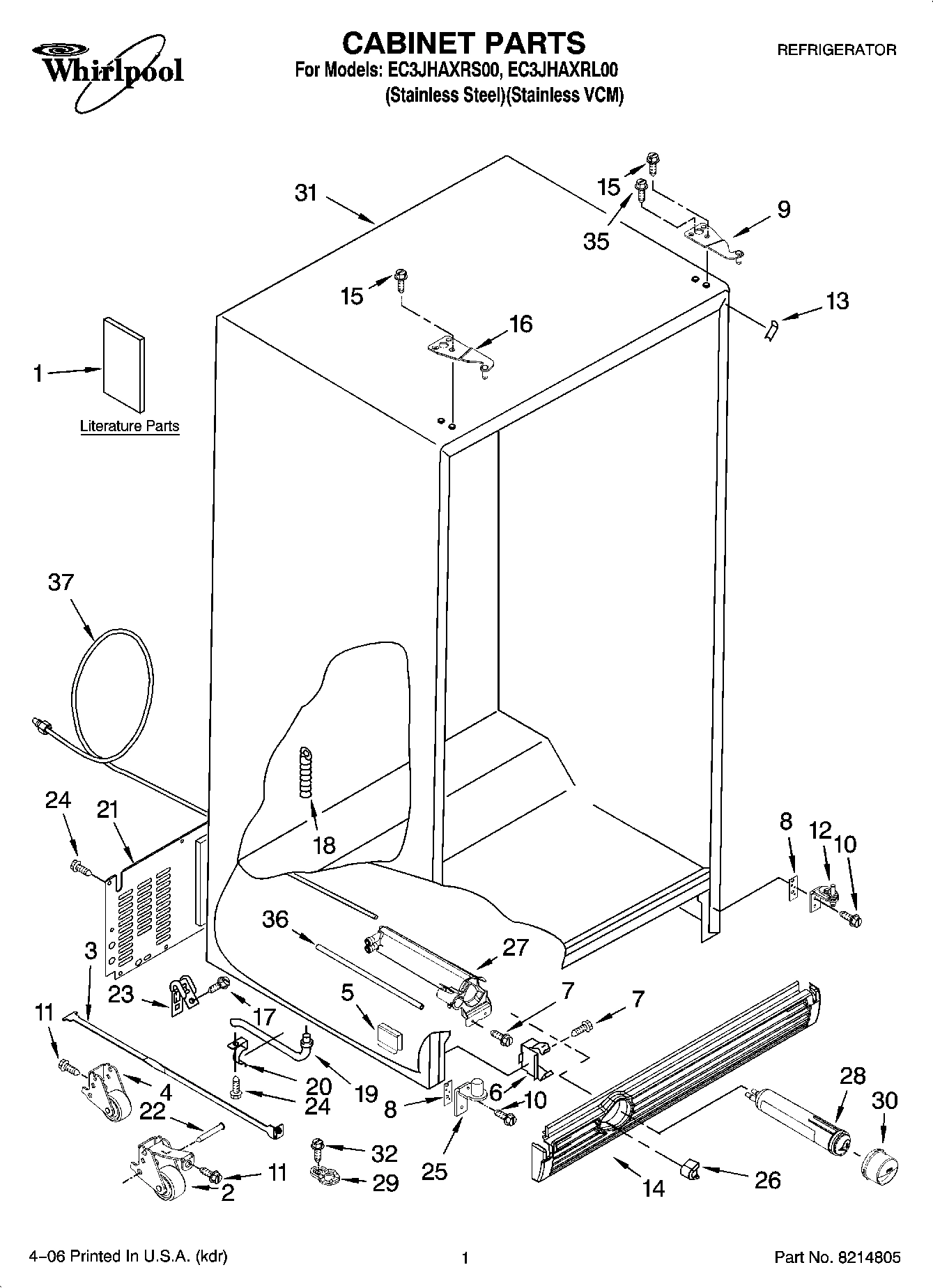

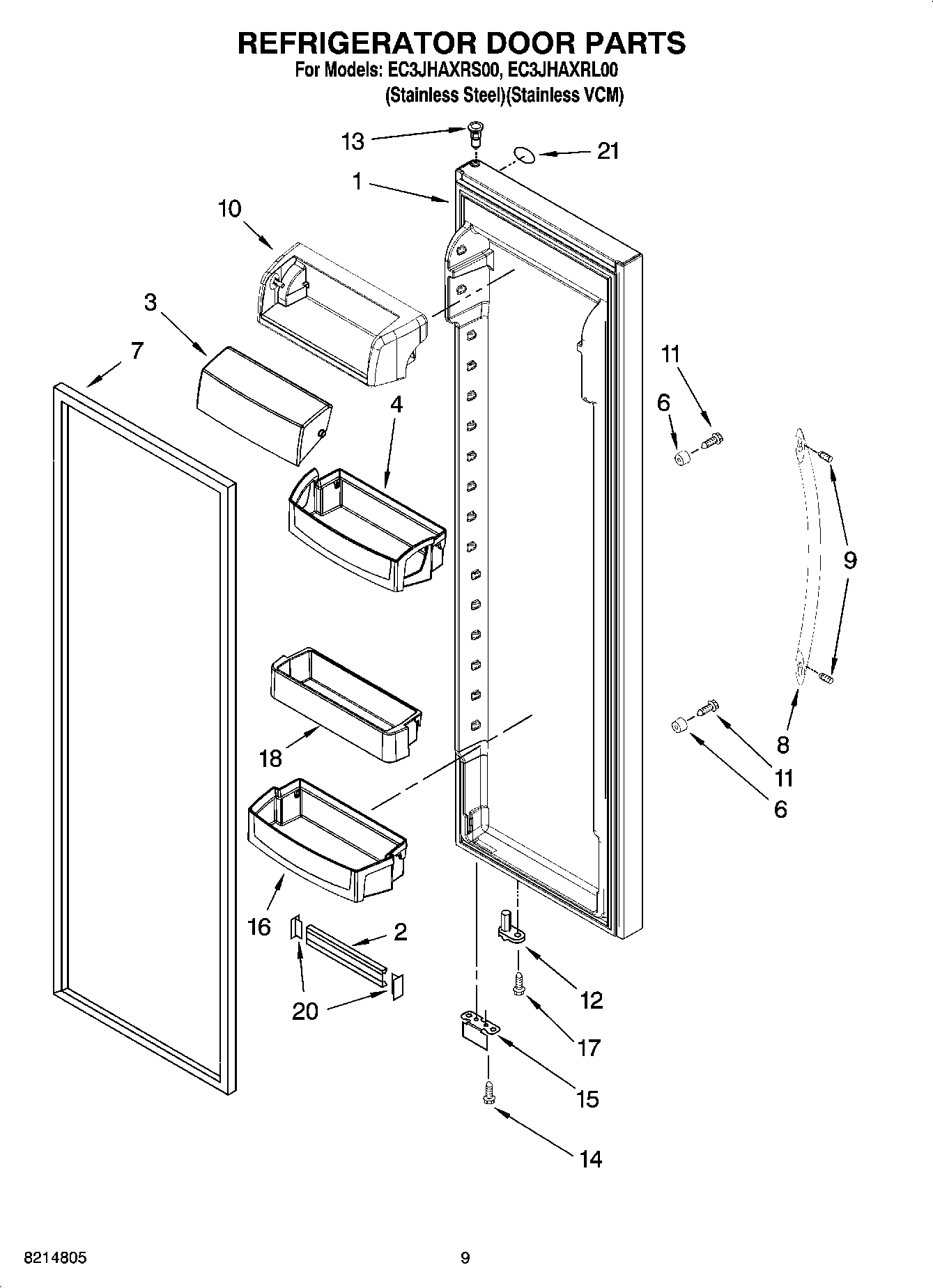

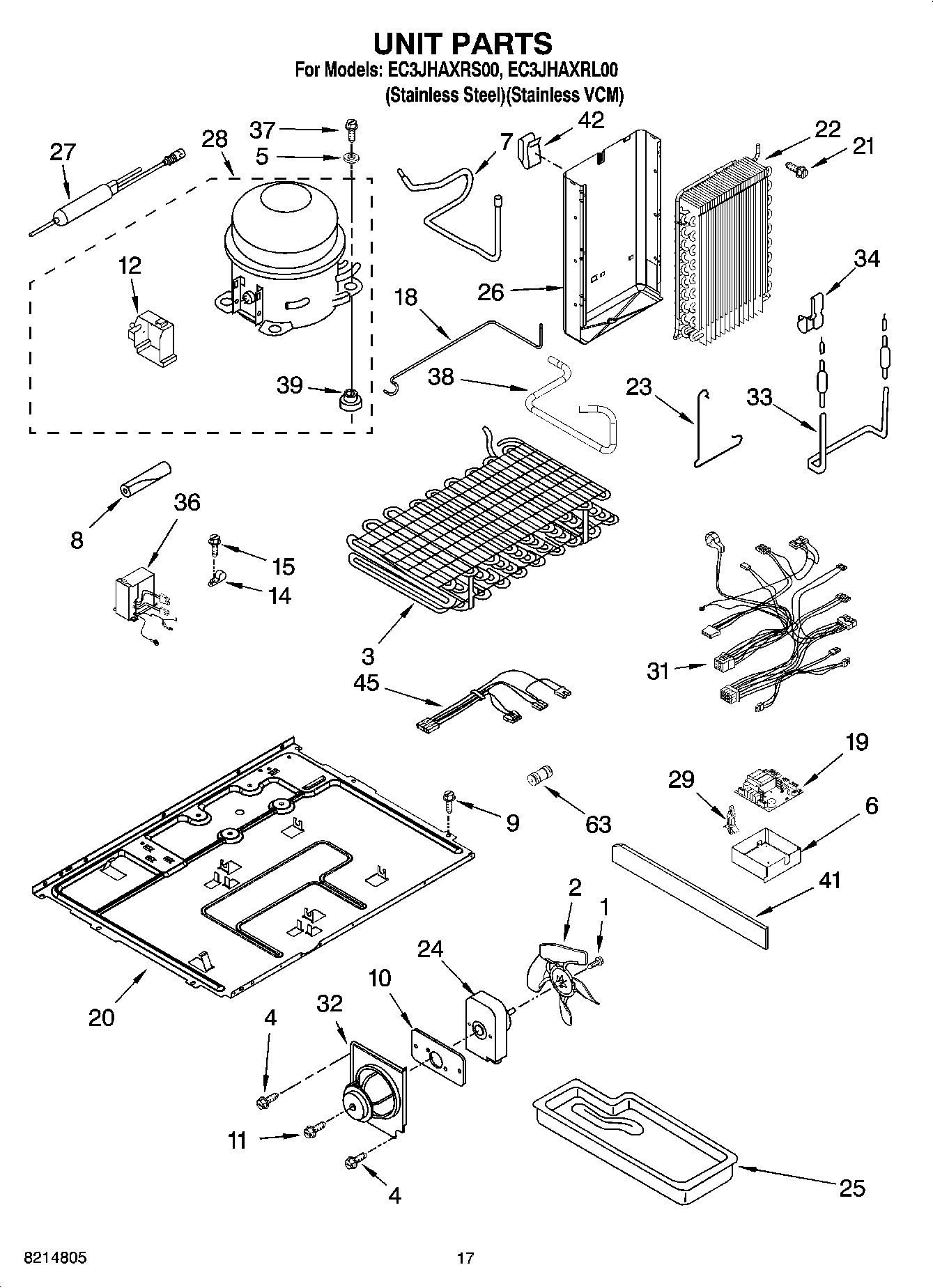

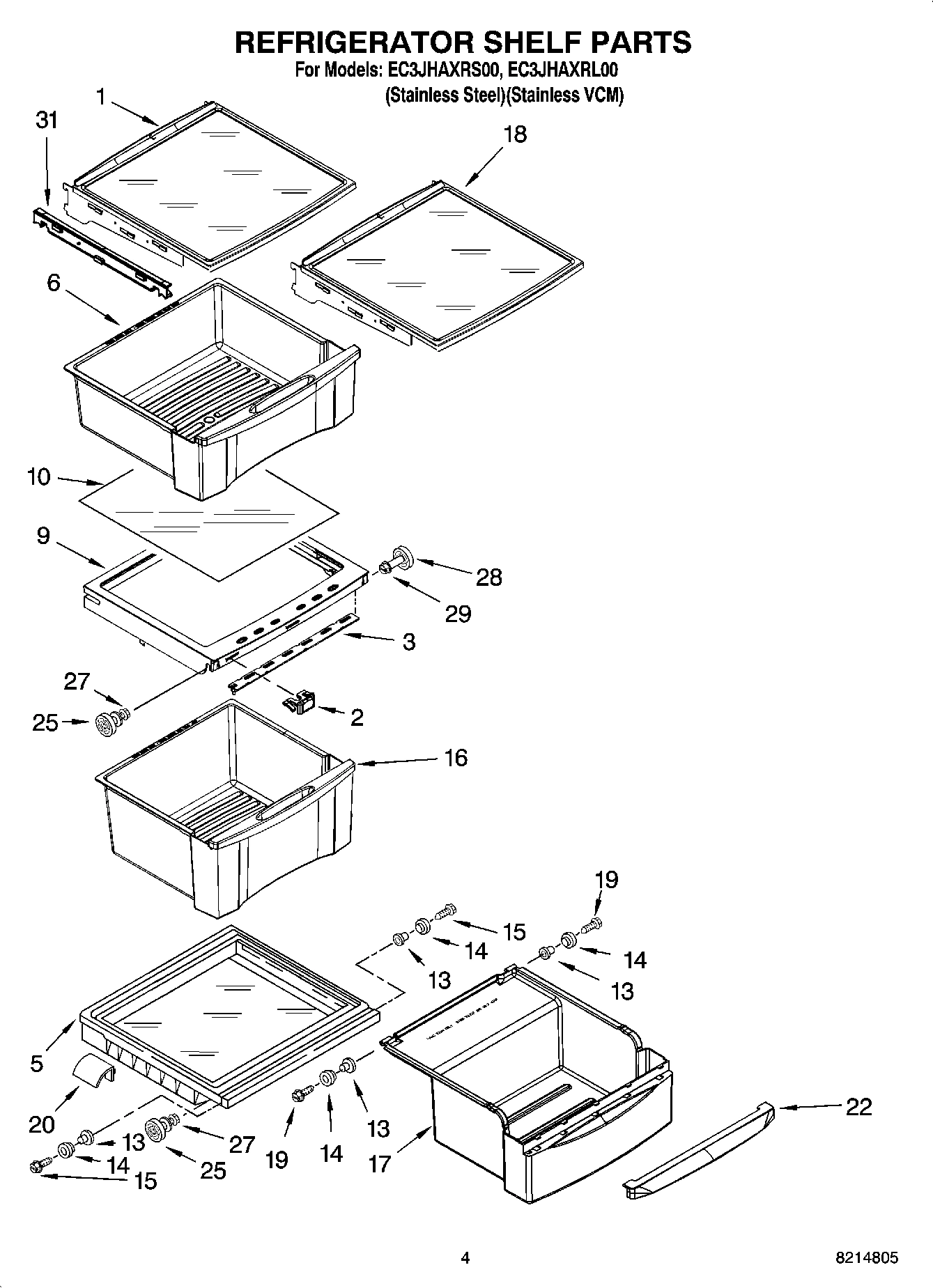

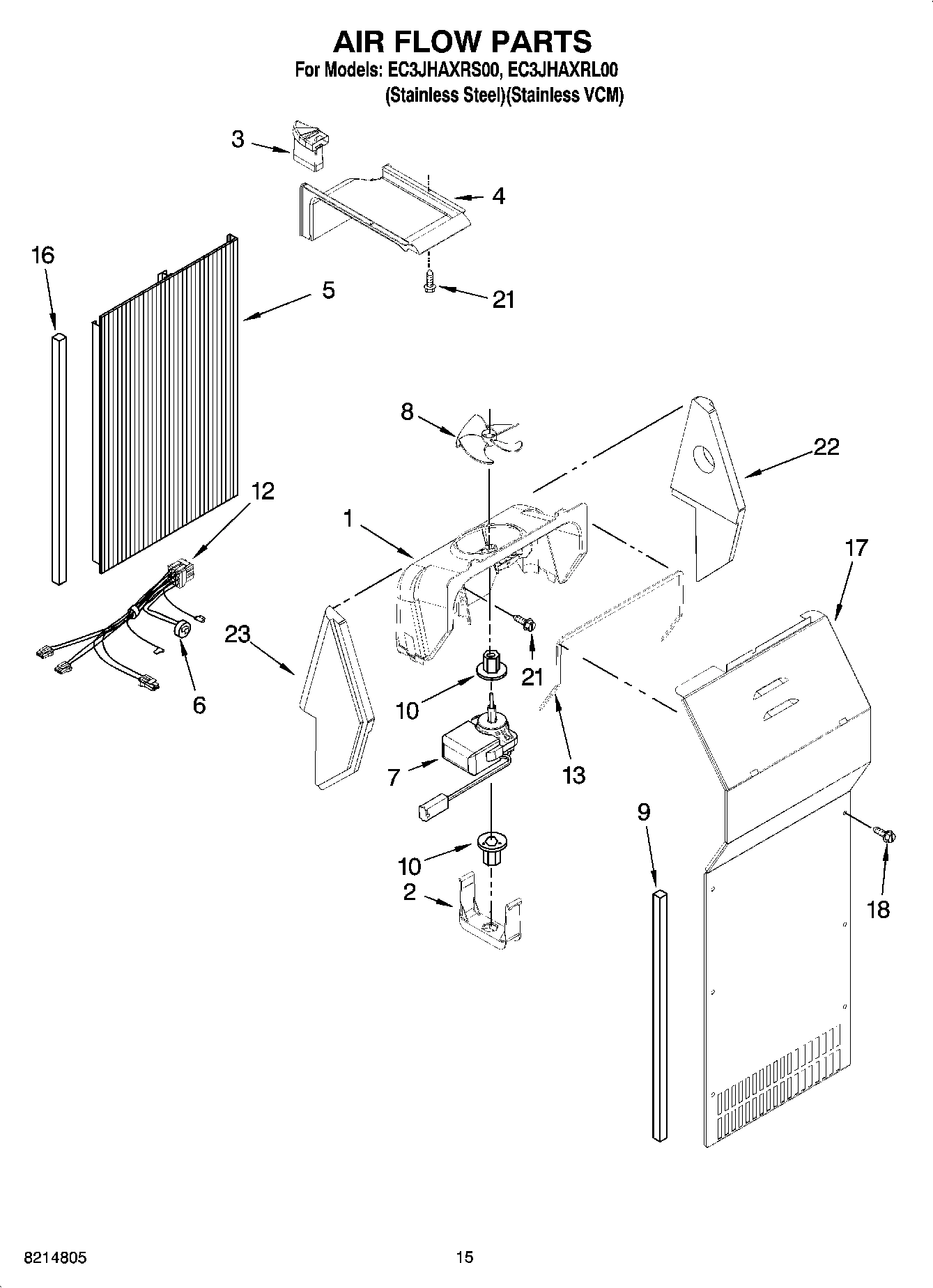

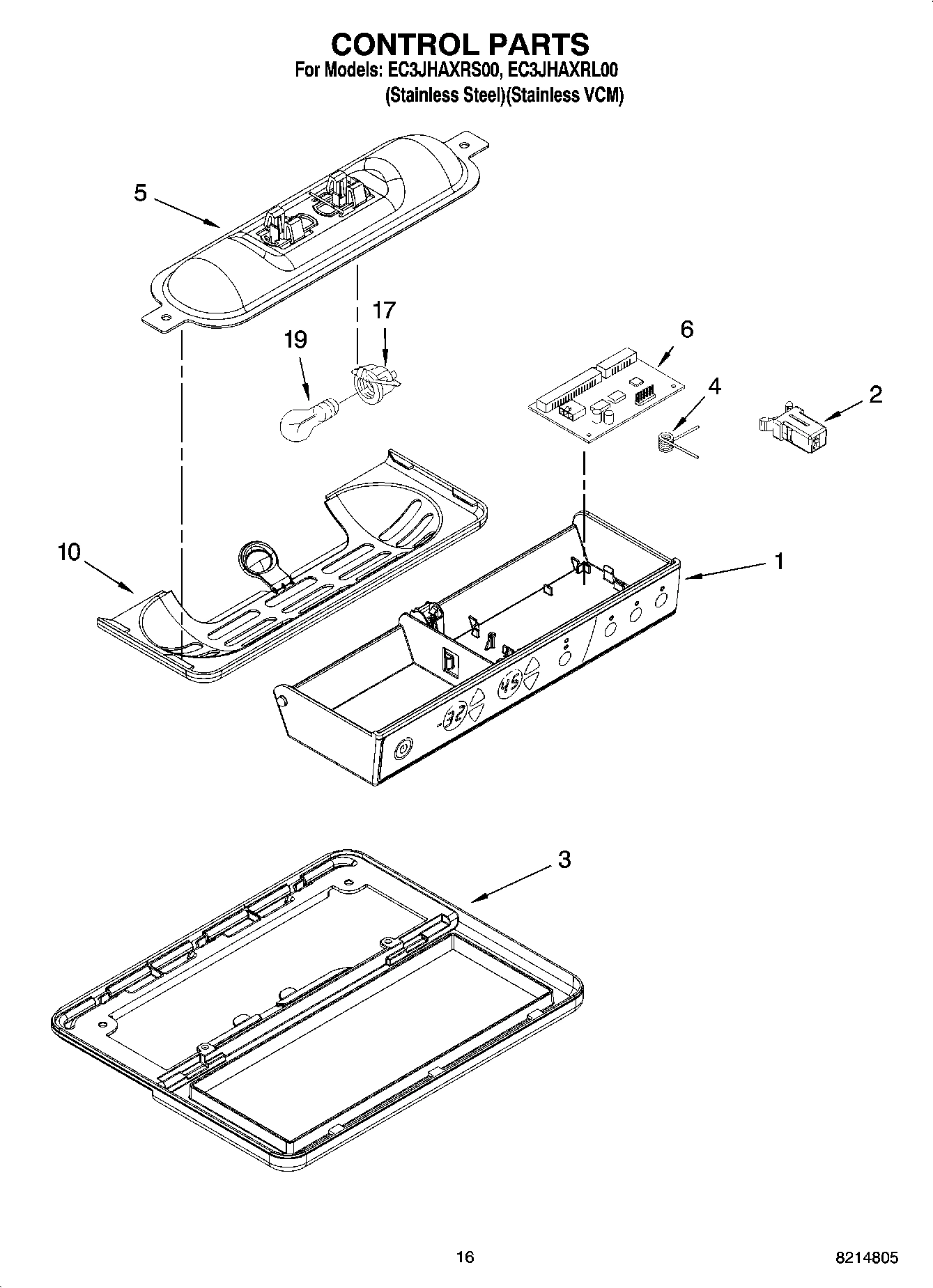

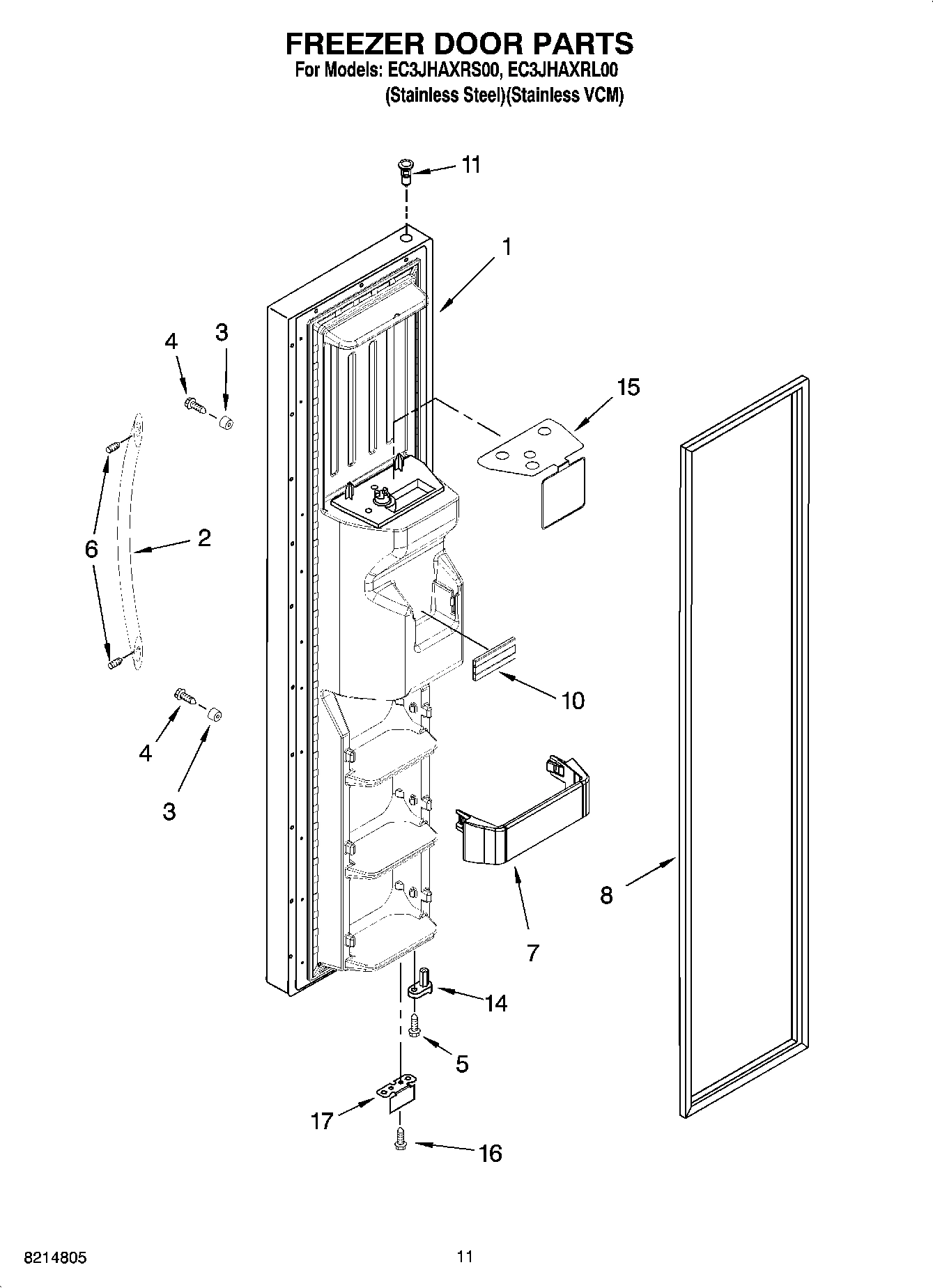

Model Whirlpool EC3JHAXRS00 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $28.82

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

TORX SCREW WRENCH WPL ARI25482A5 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

1

NLA:SCREW Backorder WPL WPW10141645 $3.70

1

Ice Bin WPL 2223317 Contact Us For Availability

1

Control Box (Includes 6) WPL 2306990 Contact Us For Availability

2

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $49.89

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $78.10

2

Button, Humidity WPL 2223309 Contact Us For Availability

2

Crusher Bin WPL 2255574 Contact Us For Availability

3

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $30.25

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $83.82

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Trim, Control Box WPL 2306952 Contact Us For Availability

4

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

4

Washer WPL 2258220 Contact Us For Availability

4

Spring, Torsion WPL 2223512 Contact Us For Availability

5

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $39.09

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.39

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

WPW10270150 Whirlpool Crisper Drawer Cover In Stock WPL WPW10270150 $212.25

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

6

Control Board Asm WPL 2307037 Contact Us For Availability

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Housing, Control Board WPL 2223703 Contact Us For Availability

6

Snack Pan WPL 2223261 Contact Us For Availability

7

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

7

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $18.70

8

2223545 Whirlpool Refrigerator Shim Backorder WPL 2223545 $33.31

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

9

2307008B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307008B $16.76

9

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $7.80

9

W11366418 Whirlpool Screw In Stock WPL W11366418 $9.59

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Crisper (Includes 2 & 3) WPL 2223307 Contact Us For Availability

W10247725 Whirlpool Water Inlet Valve In Stock WPL W10247725 $113.14

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2223506 Whirlpool Refrigerator Light Lens Backorder WPL WP2223506 $54.75

Dairy Compartment WPL 2223879 Contact Us For Availability

Plate, Mounting WPL 2301979 Contact Us For Availability

Glass, Cover WPL 2223591 Contact Us For Availability

11

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

11

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

11

Block, Blade WPL 2198602 Contact Us For Availability

12

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

12

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

13

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

13

Eyelet, Roller WPL 2174478 Contact Us For Availability

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

WP2223752 Whirlpool Refrigerator Door Cam Backorder WPL WP2223752 $6.00

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Roller WPL 2188212 Contact Us For Availability

15

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

15

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

15

Clip, Thermistor WPL 2209204 Contact Us For Availability

16

2307007B Whirlpool Refrigerator Butt Hinge Backorder WPL 2307007B $46.59

16

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

16

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $152.60

2306940B Whirlpool Refrigerator Bracket Backorder WPL 2306940B $13.10

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $4.02

Meat Pan (Includes 13, 14, 19 & 22) WPL 2223526 Contact Us For Availability

18

W10235943 Whirlpool Refrigerator CANT Shelf Backorder WPL W10235943 $150.66

18

WP2224173 Whirlpool Refrigerator Cantilever B Backorder WPL WP2224173 $47.93

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.64

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $12.96

WP489261 Whirlpool Refrigerator Screw Backorder WPL WP489261 $2.51

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $8.43

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

20

2223487 Whirlpool Refrigerator Deflector Backorder WPL 2223487 $33.25

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $144.80

20

Latch, Bin WPL 2212371 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

21

Cover, Unit WPL 2223409 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $4.58

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Handle WPL 2203029 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clamp WPL 2161324 Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $41.94

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Holder WPL 2212369 Contact Us For Availability

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $179.78

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

Sleeve, Mechanism WPL 2252127 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

DOOR CLOSER, (FC) WPL 2223751 Contact Us For Availability

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

30

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

31

Harness, Main Control WPL 2187849 Contact Us For Availability

31

Enclosure, Motor WPL 2256154 Contact Us For Availability

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $48.50

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $121.47

32

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

33

WP2210737 Whirlpool Refrigerator Heater Backorder WPL WP2210737 $66.57

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $55.72

33

Cover WPL 2212305 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

34

Light Lens WPL 2223663 Contact Us For Availability

35

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $54.86

37

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $13.56

37

Screw WPL 489387 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Tube, Discharge WPL 2223352 Contact Us For Availability

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $5.51

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

41

2223394 Whirlpool Extension Backorder WPL 2223394 $34.40

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

45

2187737 Whirlpool Refrigerator Wire Harness Backorder WPL 2187737 $57.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI25480A2 Contact Us For Availability

REFRIGERANT CHARGE 6.00 oz. (R-134A) WPL ARI25481A9 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $119.51

100

Ice Container (Complete) WPL 2258249 Contact Us For Availability
