Model GE DDG8589RCMAA Dryer Gas – Common Parts & Diagrams
0
1
2

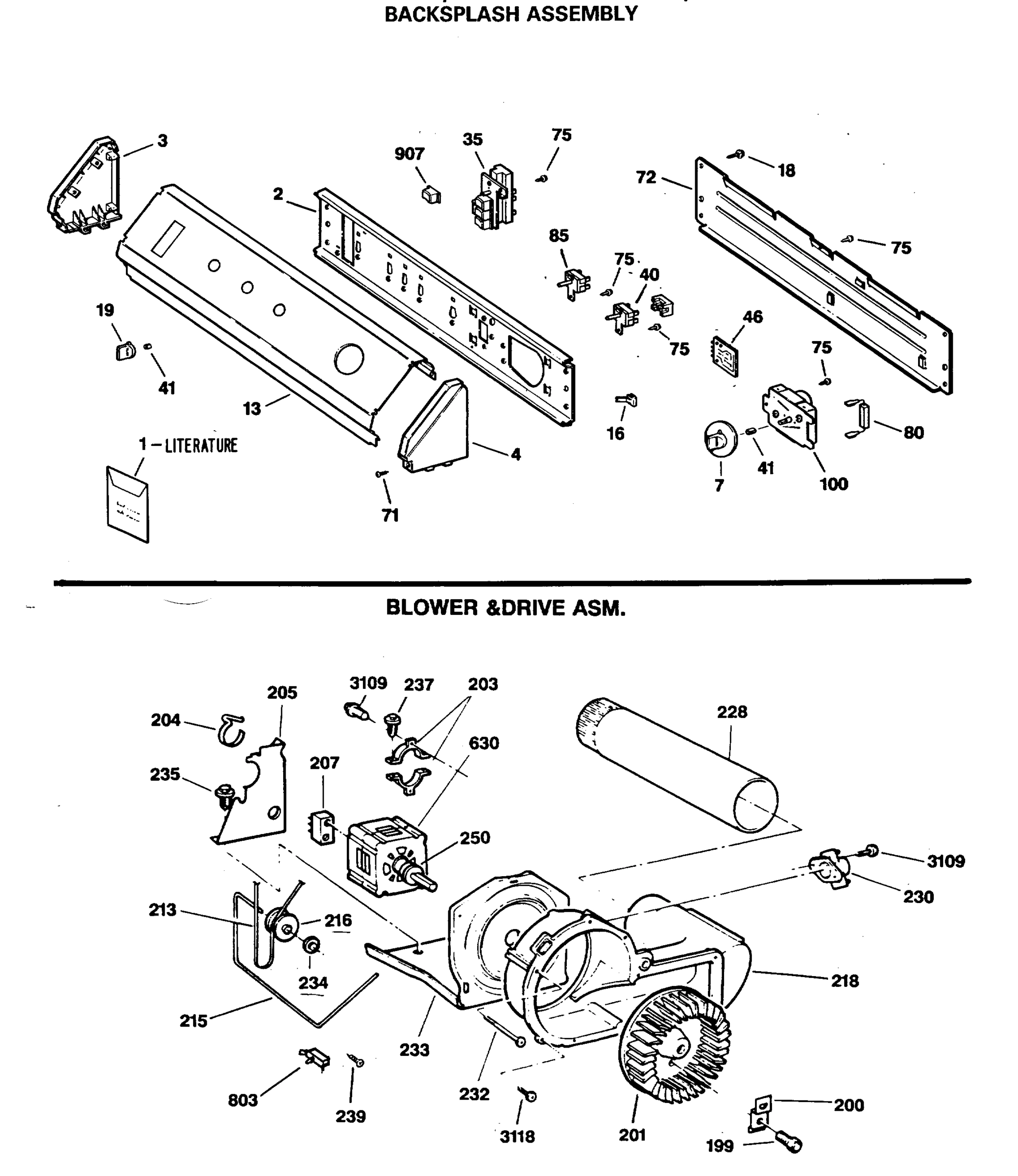

BACKSPLASH ASSEMBLY

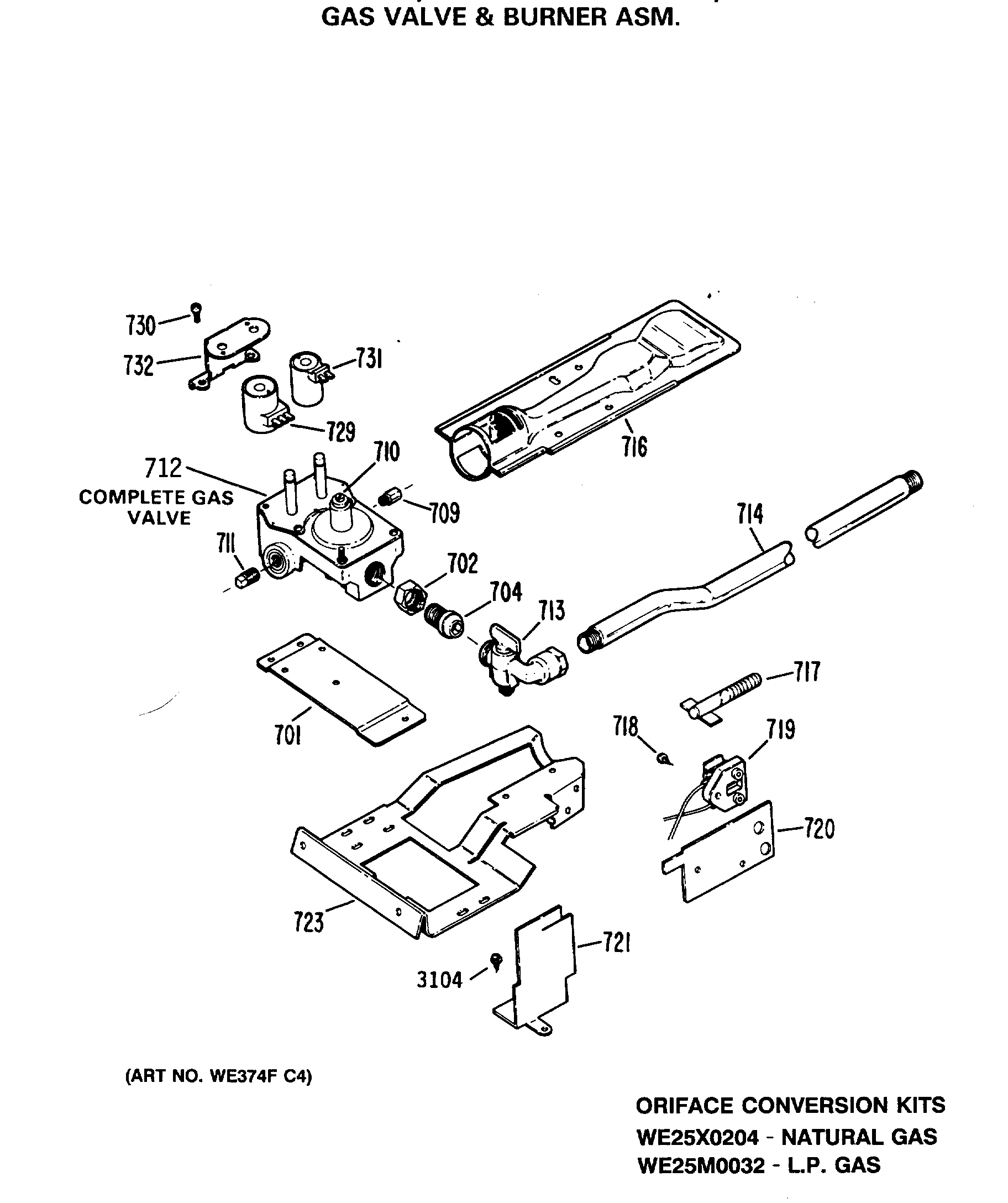

GAS VALVE & BURNER ASM.
Common parts from model GE DDG8589RCMAA Dryer Gas
1
GEN 31-1822 GEN 31-1822 Contact Us For Availability
1
GEN 31-2594 GEN 31-2594 Contact Us For Availability
1
GEN 49-9780 GEN 49-9780 Contact Us For Availability
2
GEN WH46X0312 GEN WH46X0312 Contact Us For Availability
3
END CAP L.H. AD GEN WH42X2281 Contact Us For Availability
4
END CAP R.H. AD GEN WH42X2282 Contact Us For Availability
7
KNOB & CLIP TIMER AD GEN WE01X1186 Contact Us For Availability
13
SWITCH TRIM ASM AD GEN WE19M0841 Contact Us For Availability
16
GEN WH02X1151 GEN WH02X1151 Contact Us For Availability
18
GEN WH02X1152 GEN WH02X1152 Contact Us For Availability
19
KNOB & CLIP ASM AD GEN WH01X2649 Contact Us For Availability
35
GEN WE04X0785 GEN WE04X0785 Contact Us For Availability
40
GEN WE04X0798 GEN WE04X0798 Contact Us For Availability
41
GEN WE01X0980 GEN WE01X0980 Contact Us For Availability
71
SCREW 8-18X1 PH AD GEN WH02X1157 Contact Us For Availability
72
GEN WH46X0311 GEN WH46X0311 Contact Us For Availability
85
GEN WE04X0779 GEN WE04X0779 Contact Us For Availability
199
SCR 12-14 AB HXW 1/2 S GEN WE02X0280 Contact Us For Availability
218
GEN WE14M0055 GEN WE14M0055 Contact Us For Availability
226
GEN WH02X1154 GEN WH02X1154 Contact Us For Availability
230
GEN WE04M0156 GEN WE04M0156 Contact Us For Availability
233
GEN WE13M0024 GEN WE13M0024 Contact Us For Availability
234
GEN WE02M0096 GEN WE02M0096 Contact Us For Availability
235
GEN WE02M0155 GEN WE02M0155 Contact Us For Availability
239
GEN WE02M0167 GEN WE02M0167 Contact Us For Availability

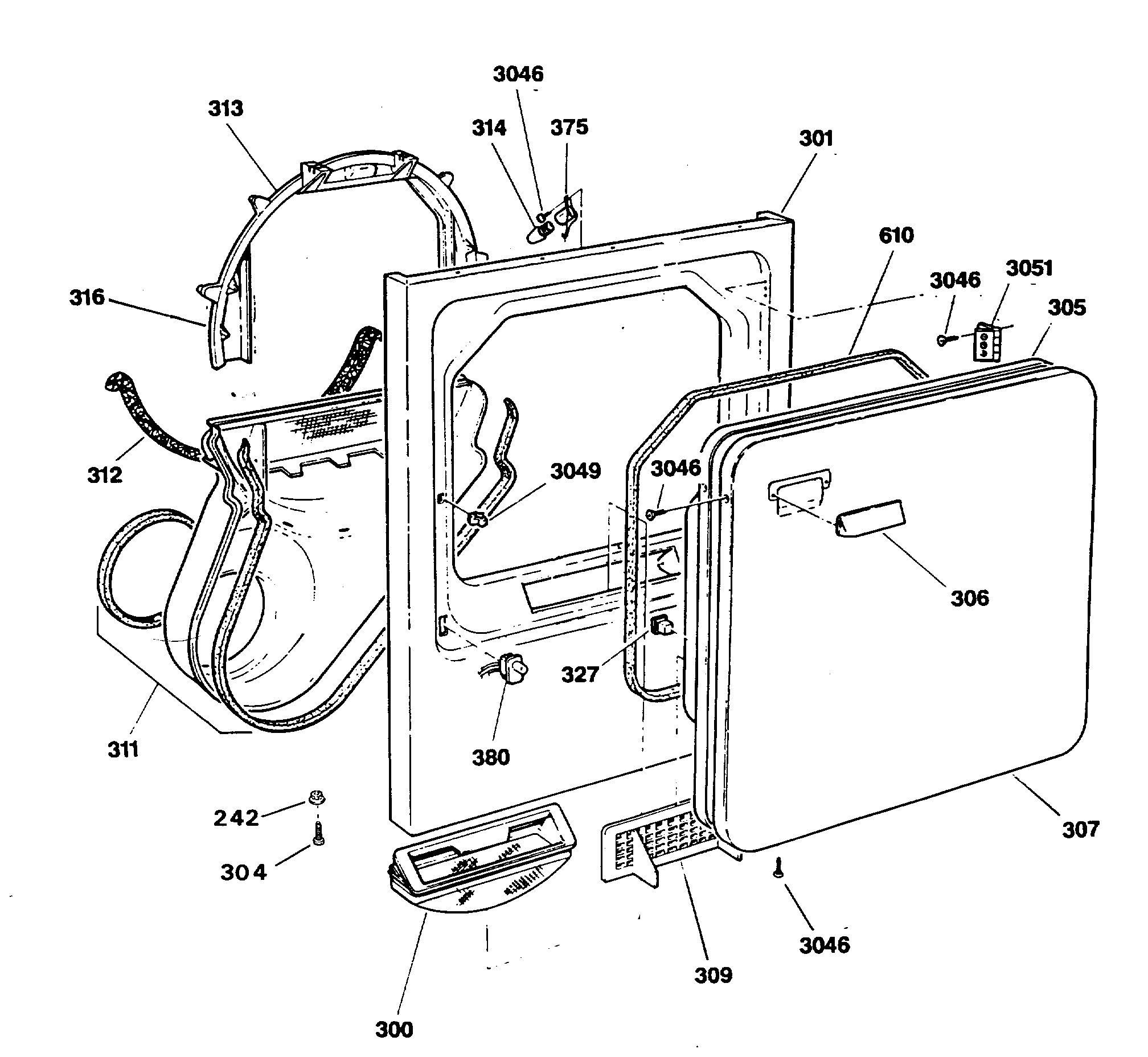

300
GEN WE18M0013 GEN WE18M0013 Contact Us For Availability
301
GEN WE20M0240 GEN WE20M0240 Contact Us For Availability
305
GEN WE10M0079 GEN WE10M0079 Contact Us For Availability
306
GEN WE01M0342 GEN WE01M0342 Contact Us For Availability
307
GEN WE10M0077 GEN WE10M0077 Contact Us For Availability
309
GEN WE01M0306 GEN WE01M0306 Contact Us For Availability
311
GEN WE14M0058 GEN WE14M0058 Contact Us For Availability
312
GEN WE09M0010 GEN WE09M0010 Contact Us For Availability
313
GEN WE03M0016 GEN WE03M0016 Contact Us For Availability
314
GEN WE01M0323 GEN WE01M0323 Contact Us For Availability
316
GEN WE01M0333 GEN WE01M0333 Contact Us For Availability
375
GEN WE05M0004 GEN WE05M0004 Contact Us For Availability

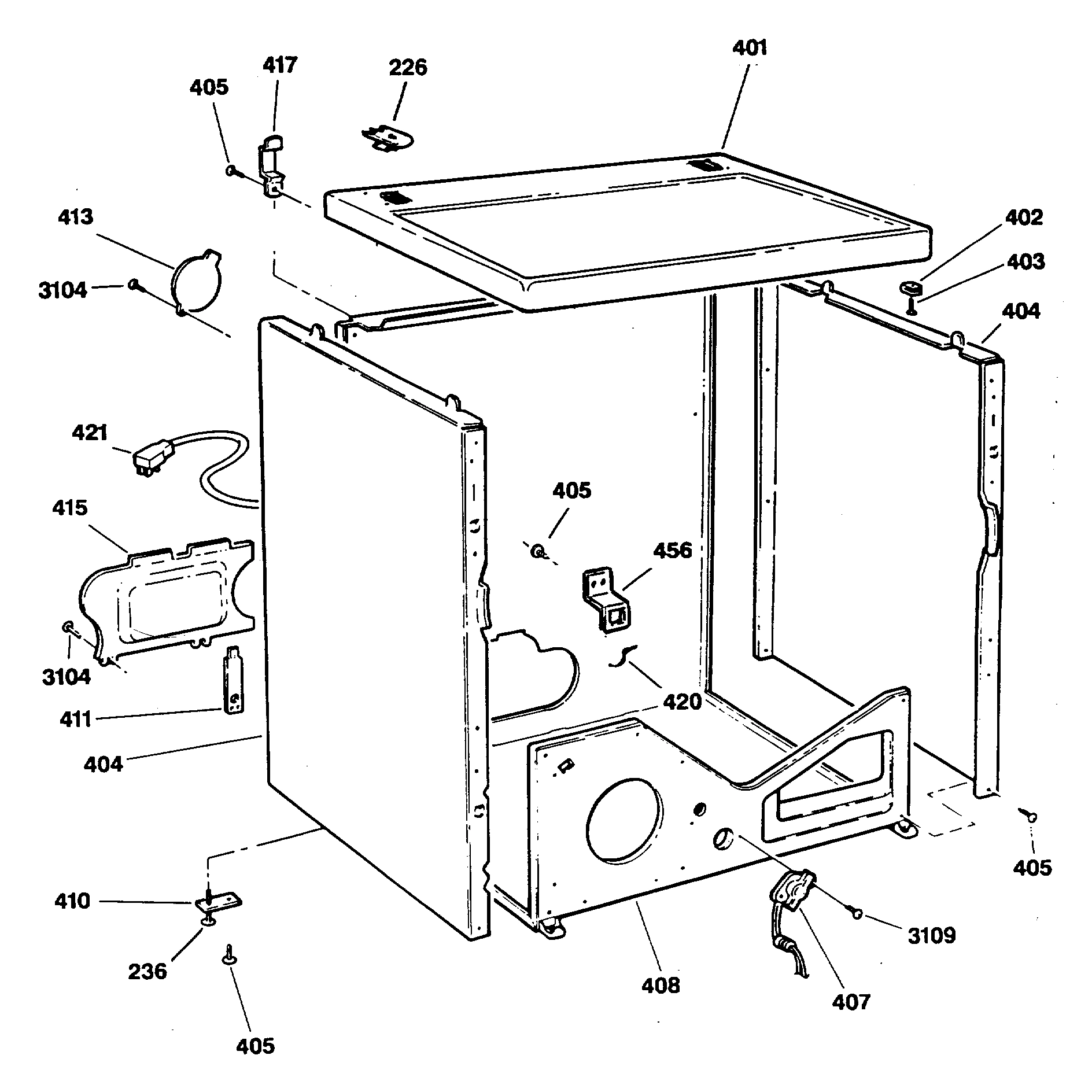

401
GEN WE20M0236 GEN WE20M0236 Contact Us For Availability
402
GEN WE02M0162 GEN WE02M0162 Contact Us For Availability
404
GEN WE20M0218 GEN WE20M0218 Contact Us For Availability
407
GEN WE04M0155 GEN WE04M0155 Contact Us For Availability
408
GEN WE20M0237 GEN WE20M0237 Contact Us For Availability
410
GEN WE01M0349 GEN WE01M0349 Contact Us For Availability
410
GEN WE01M0350 GEN WE01M0350 Contact Us For Availability
413
GEN WE01M0365 GEN WE01M0365 Contact Us For Availability
415
KNOCKOUT GEN WE01M0366 Contact Us For Availability
417
GEN WE01M0308 GEN WE01M0308 Contact Us For Availability
417
GEN WZ07X0038 GEN WZ07X0038 Contact Us For Availability
420
GEN WE20M0238 GEN WE20M0238 Contact Us For Availability
421
GEN WH19M0043 GEN WH19M0043 Contact Us For Availability
503
GEN WE21M0011 GEN WE21M0011 Contact Us For Availability
504
GEN WE14M0057 GEN WE14M0057 Contact Us For Availability
509
GEN WE14M0064 GEN WE14M0064 Contact Us For Availability
527
GEN WE14M0071 GEN WE14M0071 Contact Us For Availability
528
GEN WE14M0067 GEN WE14M0067 Contact Us For Availability
531
GEN WE13X0138 GEN WE13X0138 Contact Us For Availability
532
GEN WE14M0066 GEN WE14M0066 Contact Us For Availability
610
GEN WE09X0028 GEN WE09X0028 Contact Us For Availability
701
GEN WE13X0166 GEN WE13X0166 Contact Us For Availability
702
GEN WE02X0319 GEN WE02X0319 Contact Us For Availability
704
GEN WE02X0320 GEN WE02X0320 Contact Us For Availability
711
GEN 1/8-27 NPT GEN 1/8-27 NPT Contact Us For Availability
713
GEN WE01X1078 GEN WE01X1078 Contact Us For Availability
714
GEN WE01X1077 GEN WE01X1077 Contact Us For Availability
718
GEN WZ04X0220 GEN WZ04X0220 Contact Us For Availability
719
GEN WE01X1075 GEN WE01X1075 Contact Us For Availability
720
BRACKET IGNITER GEN WE13X0116 Contact Us For Availability
721
GEN WE13X0118 GEN WE13X0118 Contact Us For Availability
723
BRACKET VALVE GEN WE13X0117 Contact Us For Availability
732
GEN WE13X0169 GEN WE13X0169 Contact Us For Availability
907
GEN WH01X2651 GEN WH01X2651 Contact Us For Availability
3118
GEN WH02M0342 GEN WH02M0342 Contact Us For Availability
× ![]()
