Model GE DCCB330EJ2WC Dryer Electric – Common Parts & Diagrams
CONTROL PANEL & COIN BOX ASSEMBLY
TIMER ASSEMBLY

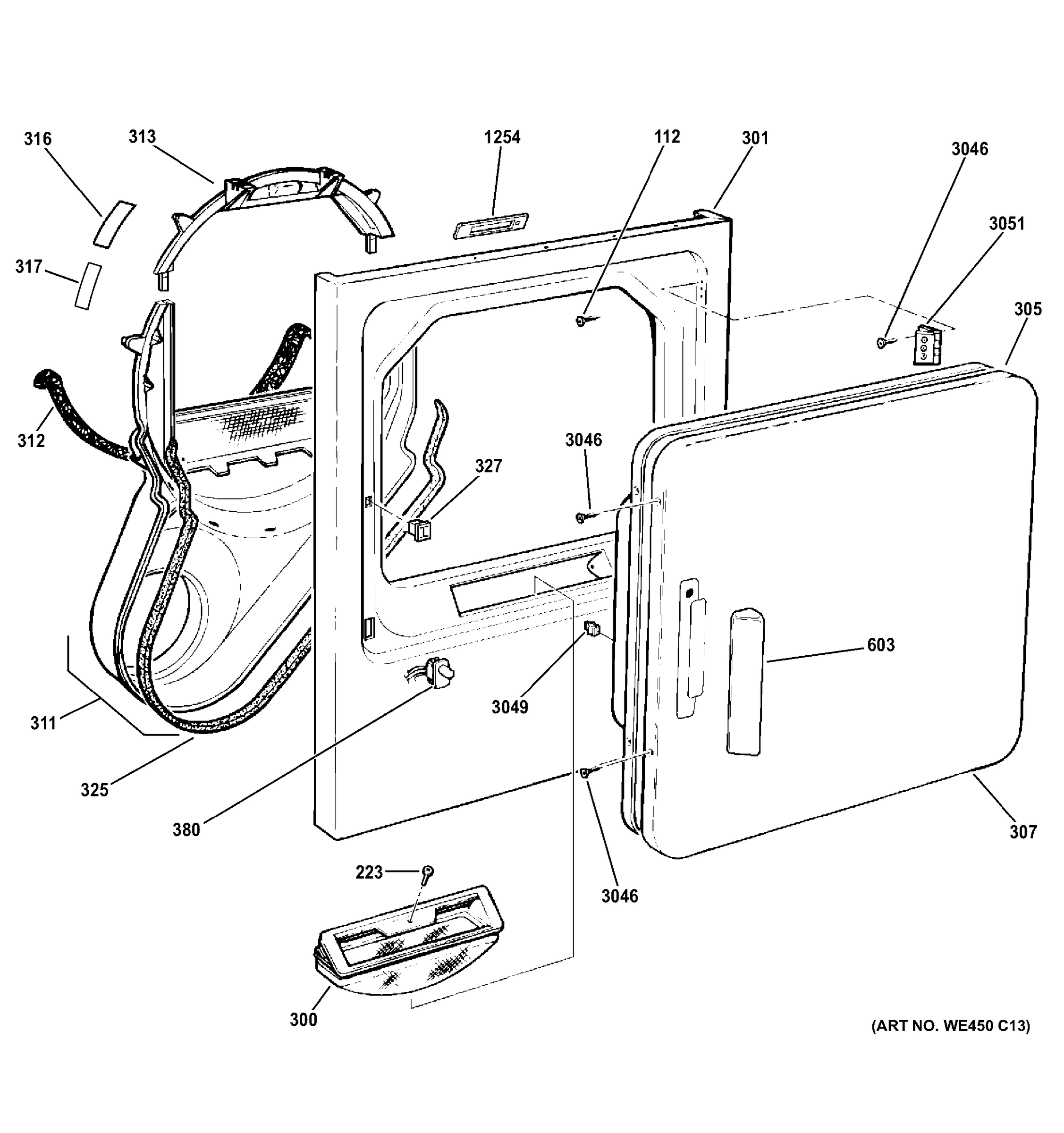

FRONT PANEL & DOOR

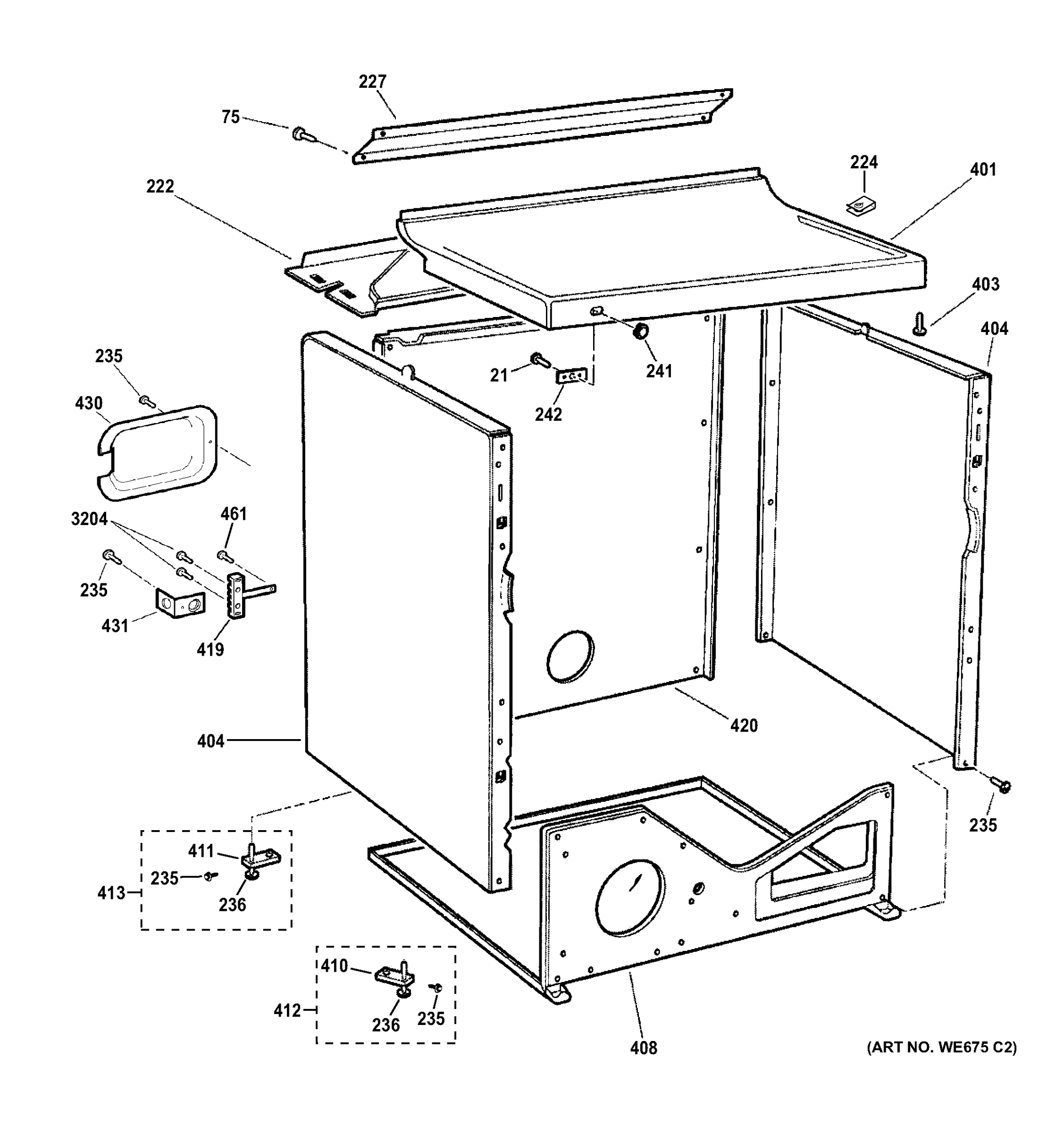

CABINET & TOP PANEL

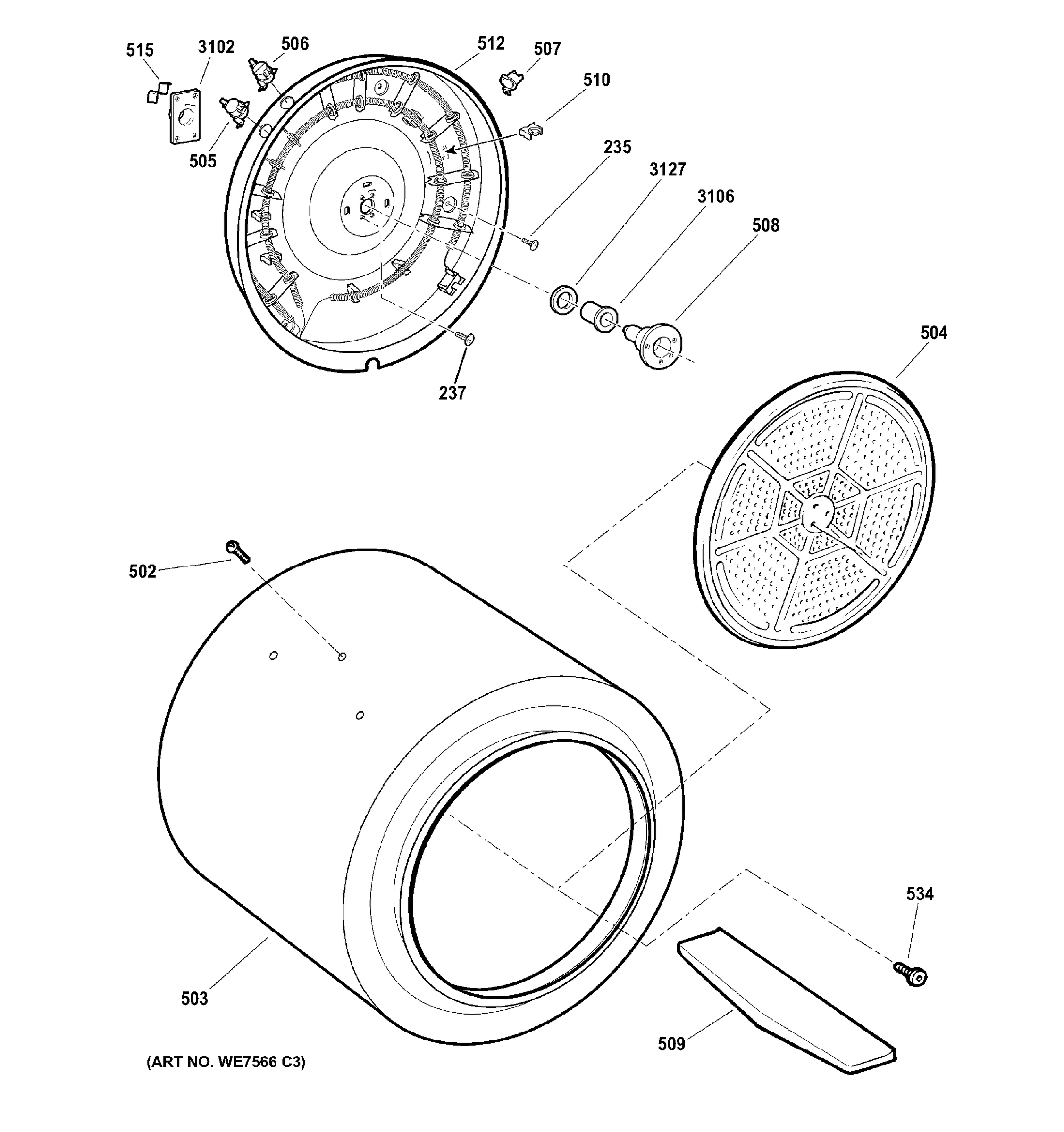

DRUM

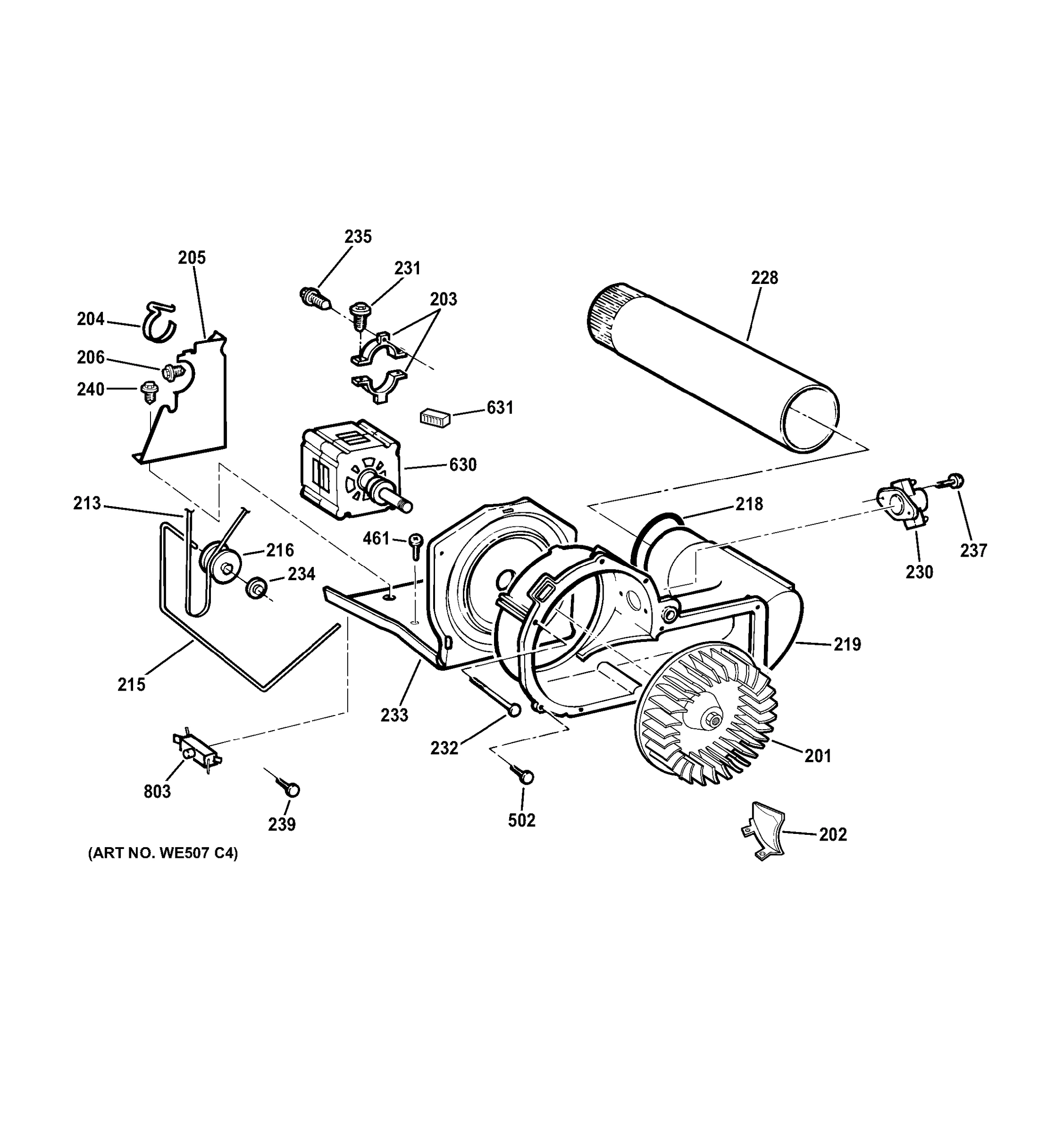

BLOWER & MOTOR ASSEMBLY
Common parts from model GE DCCB330EJ2WC Dryer Electric
80
RESISTOR (3500OHM) BEIGE GEN WE4M307 Contact Us For Availability
100
TIMER & BRACKET ASM. GEN WE4M468 Contact Us For Availability
202
DEFLECTOR GEN WE1M532 Contact Us For Availability
203
STRAP MOTOR GEN WE13X200 Contact Us For Availability
204
STRAP MOTOR GEN WE1X921 Contact Us For Availability
206
SCREW GEN WE2M200 Contact Us For Availability
219
BLOWER HOUSING GEN WE14M93 Contact Us For Availability
230
THERMOSTAT OUTLET BIASED GEN WE4M311 Contact Us For Availability
234
CAP NUT GEN WE2M96 Contact Us For Availability
235
SCR 10-16 X 1/2 AB GEN WE2M307 Contact Us For Availability
382
DOOR AND LATCH ASM GEN WH42X10804 Contact Us For Availability
396
ADAPTER METER CASE GEN WH42X10806 Contact Us For Availability
403
SCREW 8-18 X 2 TORX T-15 GEN WE2M227 Contact Us For Availability
404
SIDE PANEL WH GEN WE20M490 Contact Us For Availability
408
BASE CABINET COIN GEN WE20M320 Contact Us For Availability
410
FRONT BRACKET LEVEL LEG GEN WE1M781 Contact Us For Availability
411
BRACKET LEVELLING LEG GEN WE1M772 Contact Us For Availability
413
BRACKET & LEVEL LEG ASM GEN WE1M773 Contact Us For Availability
505
THERMOSTAT SAFETY LEFT GEN WE4M160 Contact Us For Availability
506
THERMOSTAT INLET BLUE GEN WE4M309 Contact Us For Availability
507
THERMOSTAT HI-LIMIT GEN WE4M137 Contact Us For Availability
510
CERAMIC INSULATOR GEN WE1M452 Contact Us For Availability
534
SCREW #10 GEN WE2M163 Contact Us For Availability
631
CONNECTOR MOTOR GEN WE1M650 Contact Us For Availability
3049
STRIKE GEN WE1X1192 Contact Us For Availability
3102
BEARING RETAINER GEN WE1M300 Contact Us For Availability
3106
SLEEVE DRUM GEN WE1M462 Contact Us For Availability
× ![]()
