Model GE CGS995SEL1SS Gas Range Or Dual Fuel – Common Parts & Diagrams
GAS & BURNER PARTS
CONTROL PANEL & COOKTOP

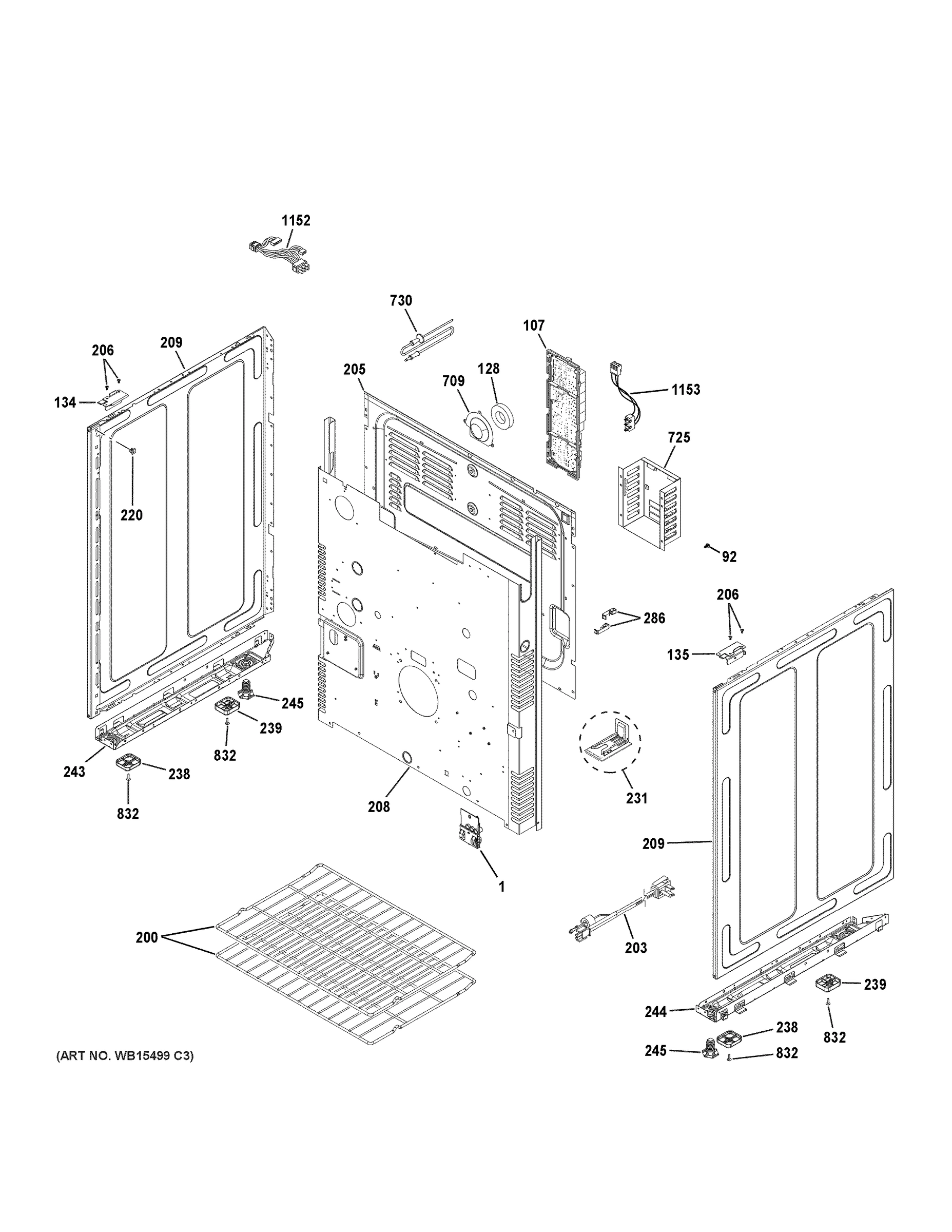

BODY PARTS

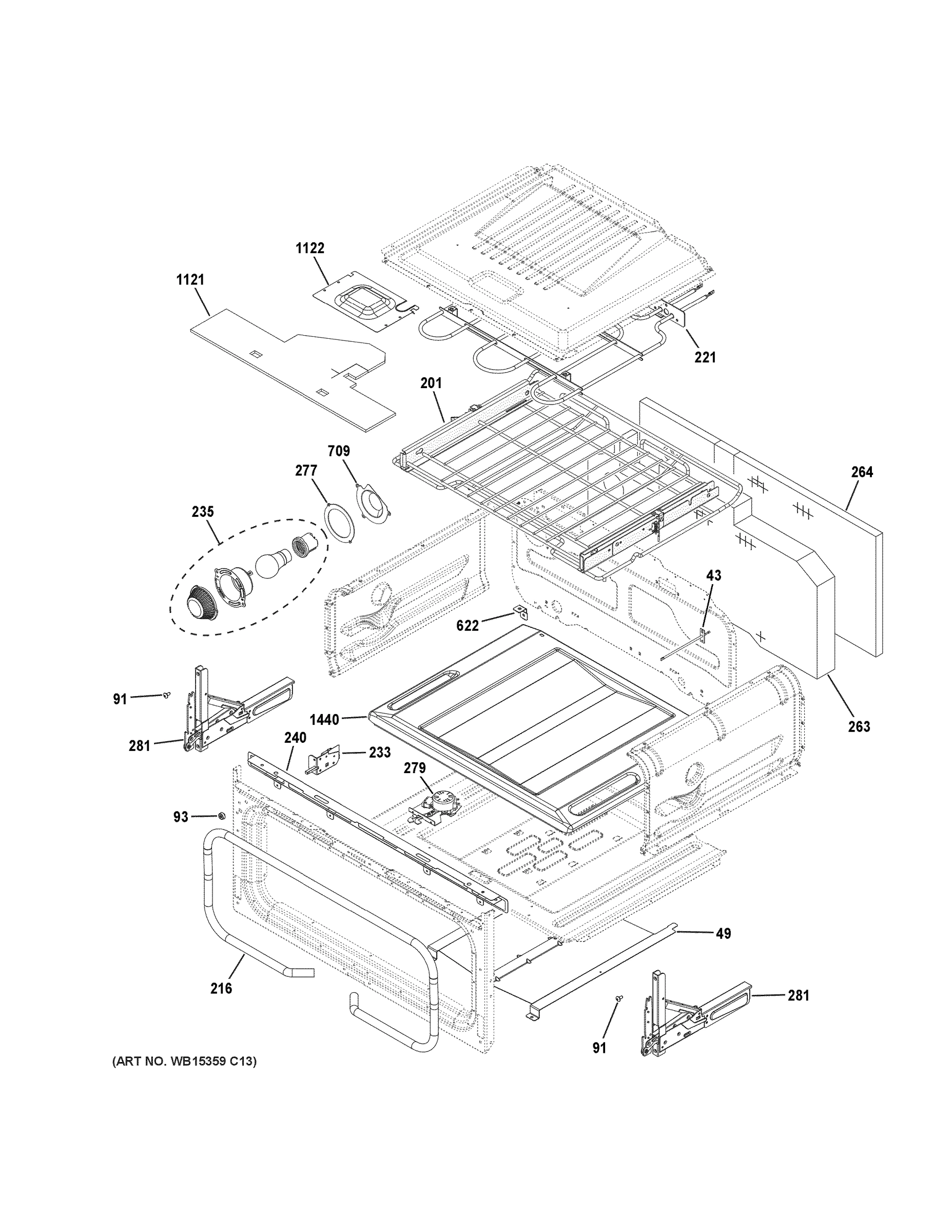

UPPER OVEN

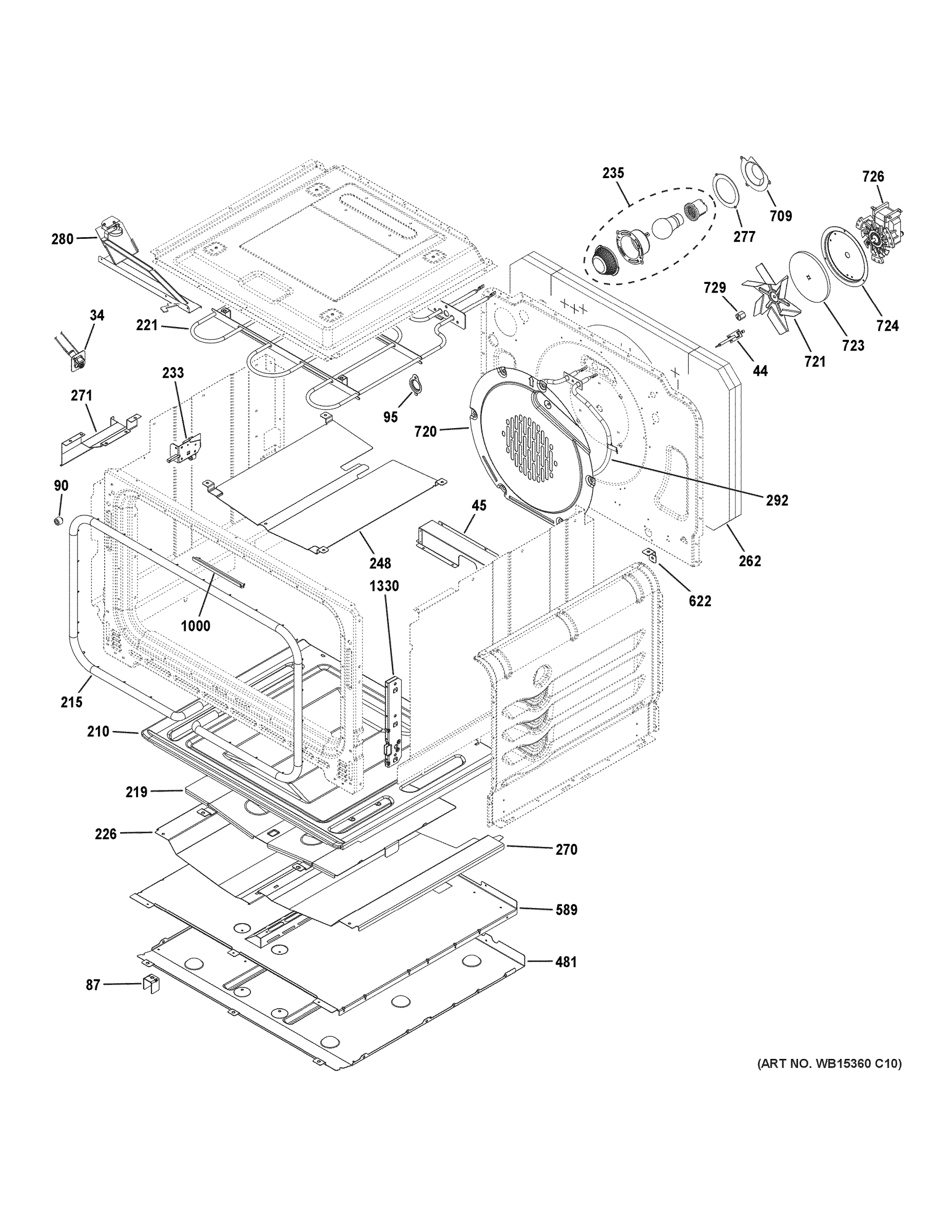

LOWER OVEN

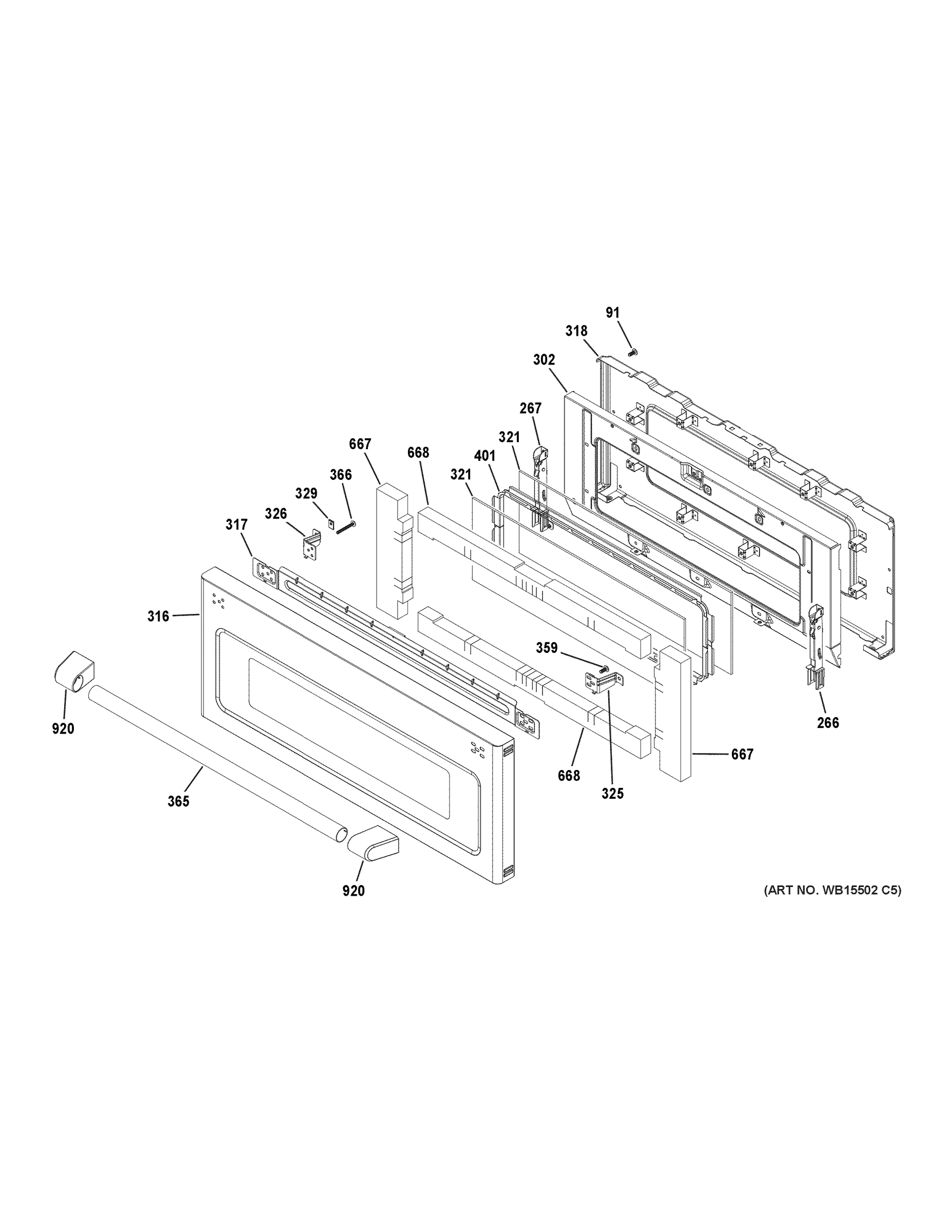

UPPER DOOR

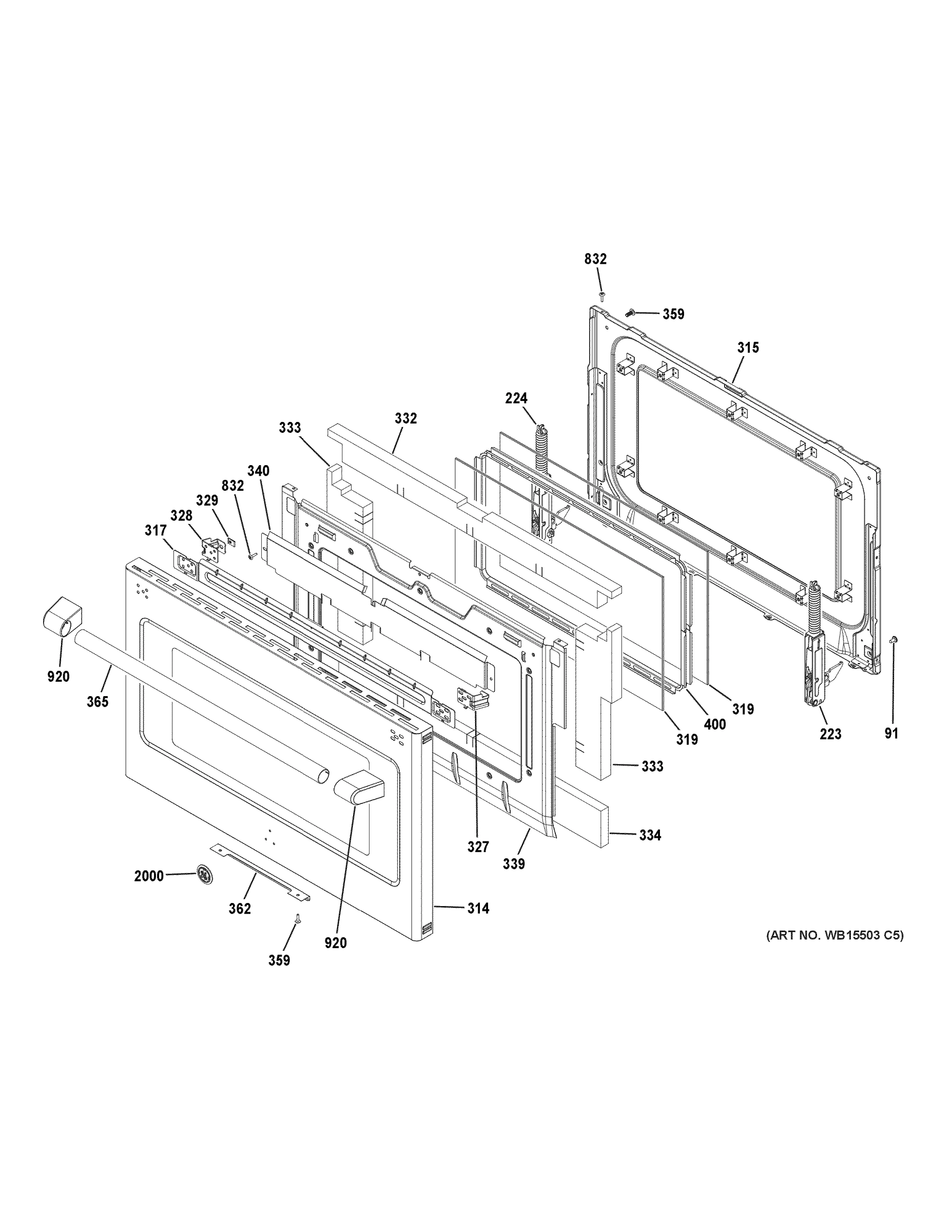

LOWER DOOR
Common parts from model GE CGS995SEL1SS Gas Range Or Dual Fuel
1
KIT NG HIGH ALTITUDE ASM GEN WB28X29254 Contact Us For Availability
1
KIT LP HIGH ALTITUDE ASM GEN WB28X29255 Contact Us For Availability
2
KNOB ASM GEN WB03X28125 Contact Us For Availability
5
PANEL MANIFOLD GEN WB36X28215 Contact Us For Availability
9
INJET, SMALL V2 GEN WB02X24728 Contact Us For Availability
11
INJET, LARGE V2 GEN WB02X24726 Contact Us For Availability
16
ORIFICE SPUD NG GEN WB28X28843 Contact Us For Availability
17
ORIFICE SPUD GEN WB28X29600 Contact Us For Availability
21
CR ORIFICE HOLDER GEN WB16X28685 Contact Us For Availability
22
LR ORIFICE HOLDER GEN WB28X28141 Contact Us For Availability
23
CF ORIFICE HOLDER GEN WB13X28673 Contact Us For Availability
24
RF ORIFICE HOLDER GEN WB28X28846 Contact Us For Availability
25
RR ORIFICE HOLDER GEN WB28X28148 Contact Us For Availability
30
BURNER BAKE GEN WB16X28249 Contact Us For Availability
31
BURNER BROIL GEN WB16X28251 Contact Us For Availability
32
BURNER BAKE GEN WB16X28670 Contact Us For Availability
34
RECEPTABLE ASM GEN WB34K10134 Contact Us For Availability
44
SENSOR ASM GEN WB24X25557 Contact Us For Availability
45
COVER SHUTTER GEN WB34X20526 Contact Us For Availability
46
TUBE VALVE SAFETY GEN WB28X28164 Contact Us For Availability
47
TUBE LOWER BAKE SUPPLY GEN WB28X28152 Contact Us For Availability
57
VALVE BURNER 270 GEN WB21X25979 Contact Us For Availability
58
VALVE BURNER 3R 310 GEN WB21X28821 Contact Us For Availability
65
INJECT BURNER MRHOB ASM GEN WB16X28867 Contact Us For Availability
71
ELBOW 90 ASM GEN WB28X20451 Contact Us For Availability
72
ELBOW 90 ASM GEN WB28X28696 Contact Us For Availability
73
ELBOW 90 ASM GEN WB28X28695 Contact Us For Availability
78
TUBE UPPER BAKE SUPPLY GEN WB28X28163 Contact Us For Availability
90
FRAME FRONT BUMPER GEN WB02X28738 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
93
FRAME FRONT BUMPER GEN WB02X28737 Contact Us For Availability
107
MACHINE BOARD WITH FRAME (SERVICE) GEN WB27X29500 Contact Us For Availability
109
BOARD SENSOR GEN WB27X28659 Contact Us For Availability
111
ELECTRODES & HARNESS H. V. GEN WB18X28728 Contact Us For Availability
113
GRATE ASM GEN WB31X28754 Contact Us For Availability
114
RANGE TOP GEN WB62X28227 Contact Us For Availability
115
CENTRAL GRATE GEN WB31X28256 Contact Us For Availability
122
CKT SCREW GEN WB01X24735 Contact Us For Availability
128
LAMP INSULATION GEN WB02K10349 Contact Us For Availability
131
TRIM KIT GEN WB07X28824 Contact Us For Availability
132
SCR 8-18 AB TRP 3/8 SS GEN WB01K10086 Contact Us For Availability
136
GLASS & TOUCH BOARD ASM GEN WB56X28191 Contact Us For Availability
149
CAP OUTER GEN WB29X28253 Contact Us For Availability
151
ASM. CAP, BURNER SMALL V2 GEN WB16X28654 Contact Us For Availability
153
CAP INNER GEN WB16X28252 Contact Us For Availability
157
BASE BURNER GEN WB16X28656 Contact Us For Availability
162
HEAD BURNER GEN WB16X28764 Contact Us For Availability
171
HARNESS INTERFACE GEN WB18X28905 Contact Us For Availability
203
LINE CORD GEN WB18X28855 Contact Us For Availability
208
RANGE BACK GEN WB63X28988 Contact Us For Availability
209
PANEL SIDE GEN WB56X28847 Contact Us For Availability
210
BOTTOM OVEN GEN WB34X24912 Contact Us For Availability
211
IGNITER GLOWBAR GEN WB28X28781 Contact Us For Availability
214
SAFETY VALVE DUAL GEN WB21X28835 Contact Us For Availability
215
GASKET OVEN LOWER CAVITY GEN WB32X29538 Contact Us For Availability
216
GASKET OVEN GEN WB35X29666 Contact Us For Availability
218
IGNITER GLOWBAR GEN WB28X28780 Contact Us For Availability
223
DOOR HINGE RIGHT GEN WB10X26520 Contact Us For Availability
224
DOOR HINGE LEFT GEN WB10X26521 Contact Us For Availability
226
OVEN DEFLECTOR GEN WB34X20443 Contact Us For Availability
233
PLUNGER SWITCH DUAL GEN WB24X29265 Contact Us For Availability
235
OVEN LAMP HOLDER ASM GEN WB08T10002 Contact Us For Availability
243
SUPPORT BASE LT GEN WB63X25480 Contact Us For Availability
244
SUPPORT BASE RT GEN WB63X25481 Contact Us For Availability
248
DEFLECTOR GEN WB34X29028 Contact Us For Availability
266
RECEIVER HINGE RH GEN WB10X29635 Contact Us For Availability
267
RECEIVER HINGE LH GEN WB10X29636 Contact Us For Availability
270
OVEN DEFLECTOR GEN WB34X20444 Contact Us For Availability
279
LATCH AUTOMATIC GEN WB10X28794 Contact Us For Availability
280
LATCH AUTOMATIC GEN WB10X28795 Contact Us For Availability
281
HINGE ASM GEN WB10X28782 Contact Us For Availability
318
LINER DOOR ASSEMBLY GEN WB34X28839 Contact Us For Availability
365
HANDLE TUBE SS GEN WB15X28757 Contact Us For Availability
400
FRAME WINDOW ASSY GEN WB34X28741 Contact Us For Availability
712
KNOB ASM GEN WB03X28123 Contact Us For Availability
720
FAN COVER GEN WB34X28701 Contact Us For Availability
723
FAN INSULATOR GEN WB35K10038 Contact Us For Availability
724
FAN SUPPORT GEN WB02K10034 Contact Us For Availability
726
FAN MOTOR CONVECT GEN WB26X28953 Contact Us For Availability
729
NUT GEN WB02T10017 Contact Us For Availability
781
CAST GRIDDLE GEN WB31X28254 Contact Us For Availability
920
ENDCAP HANDLE GEN WB34X28700 Contact Us For Availability
940
FAN SUPPORT GEN WB34X28735 Contact Us For Availability
970
VENT TRIM GEN WB07X28818 Contact Us For Availability
1107
SAFETY VALVE SINGLE GEN WB21X28836 Contact Us For Availability
1151
HARNESS MAIN GEN WB18X28899 Contact Us For Availability
1412
TUBE OVEN SUPPLY GEN WB28X28159 Contact Us For Availability
1413
TUBE BURNER BOX SUPPLY GEN WB28X28150 Contact Us For Availability
1416
TUBE SIMMER DUAL VALVE GEN WB28X28161 Contact Us For Availability
2000
BADGE ASM GEN WB02X29479 Contact Us For Availability
× ![]()
