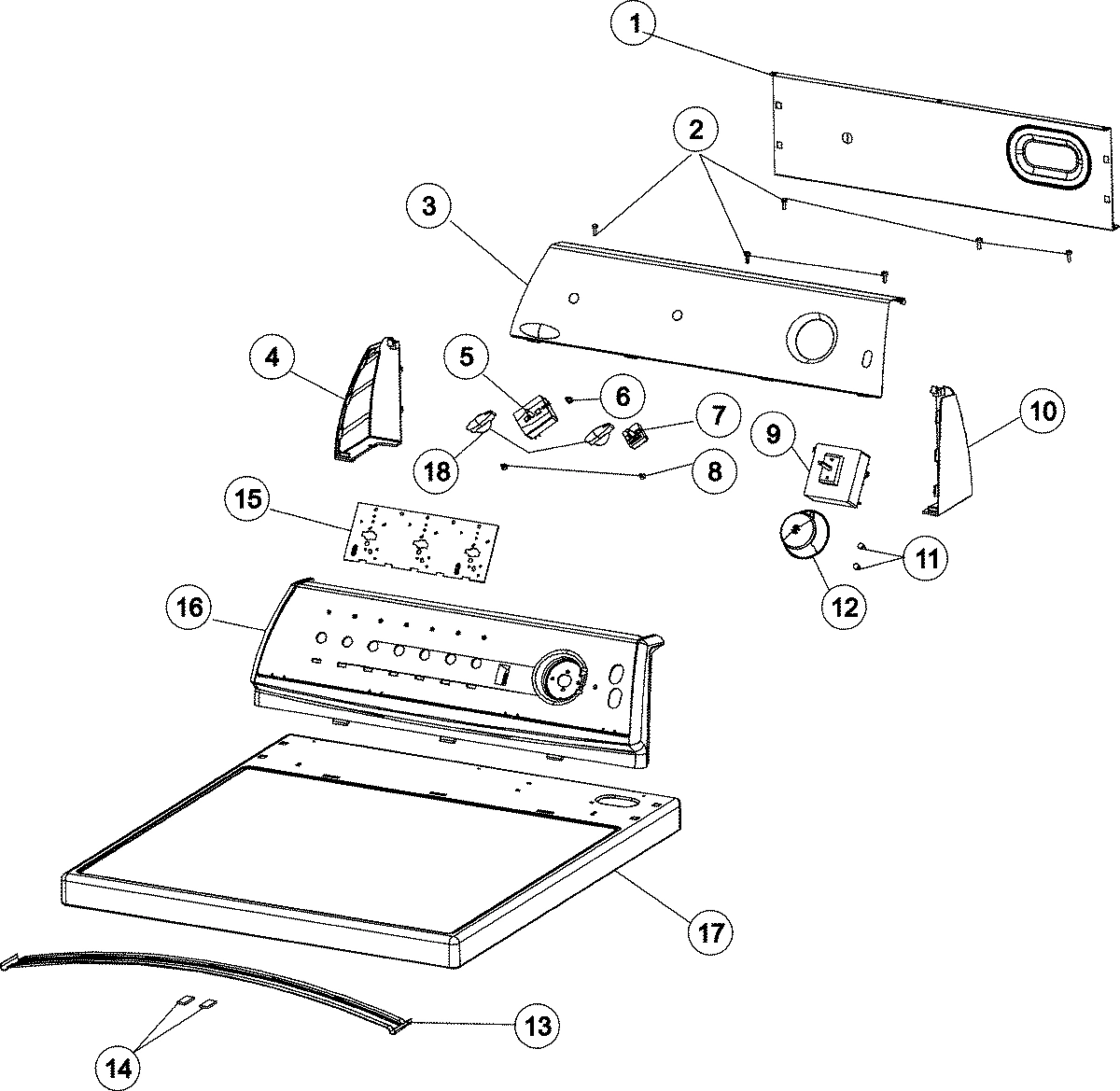

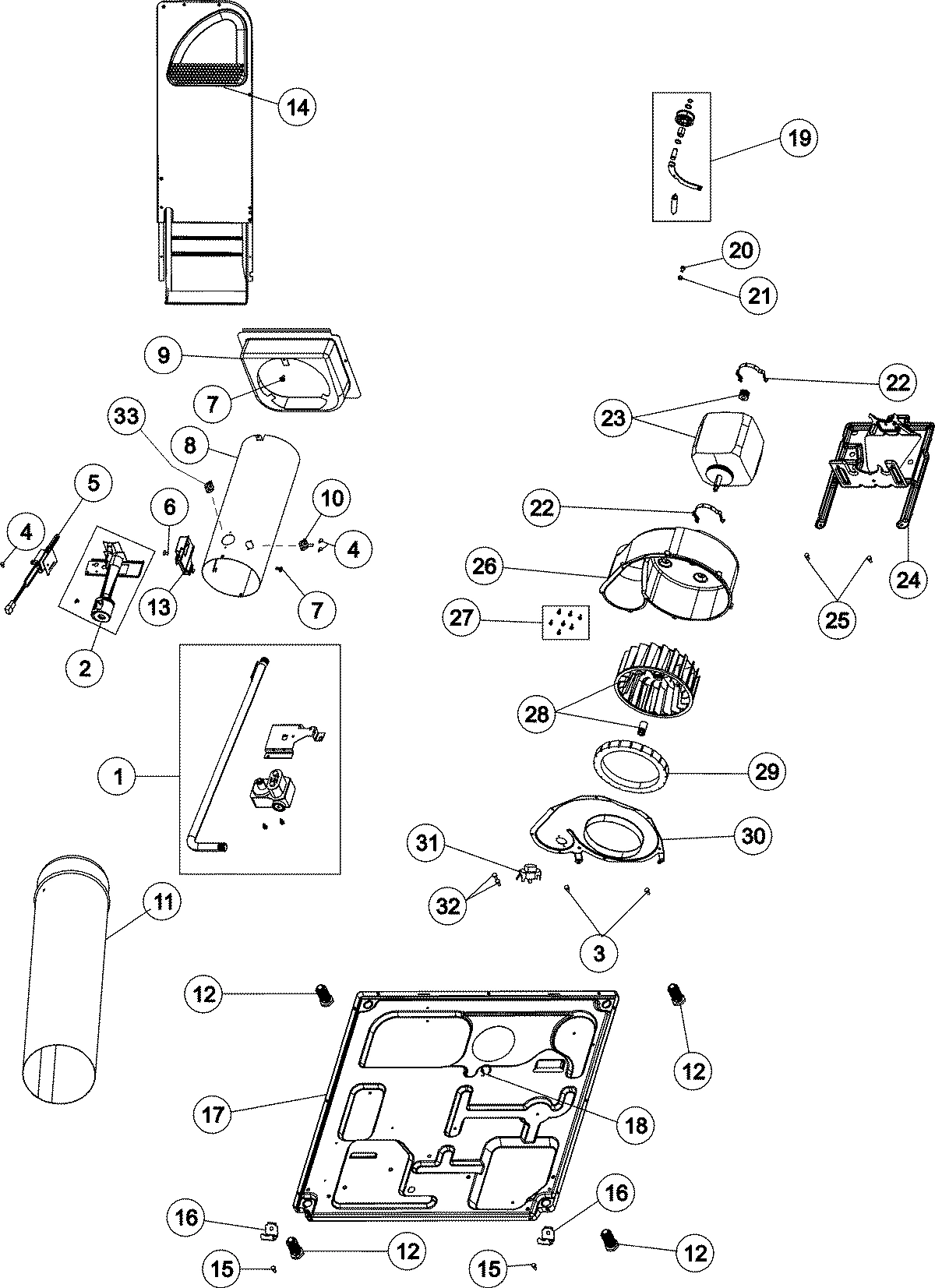

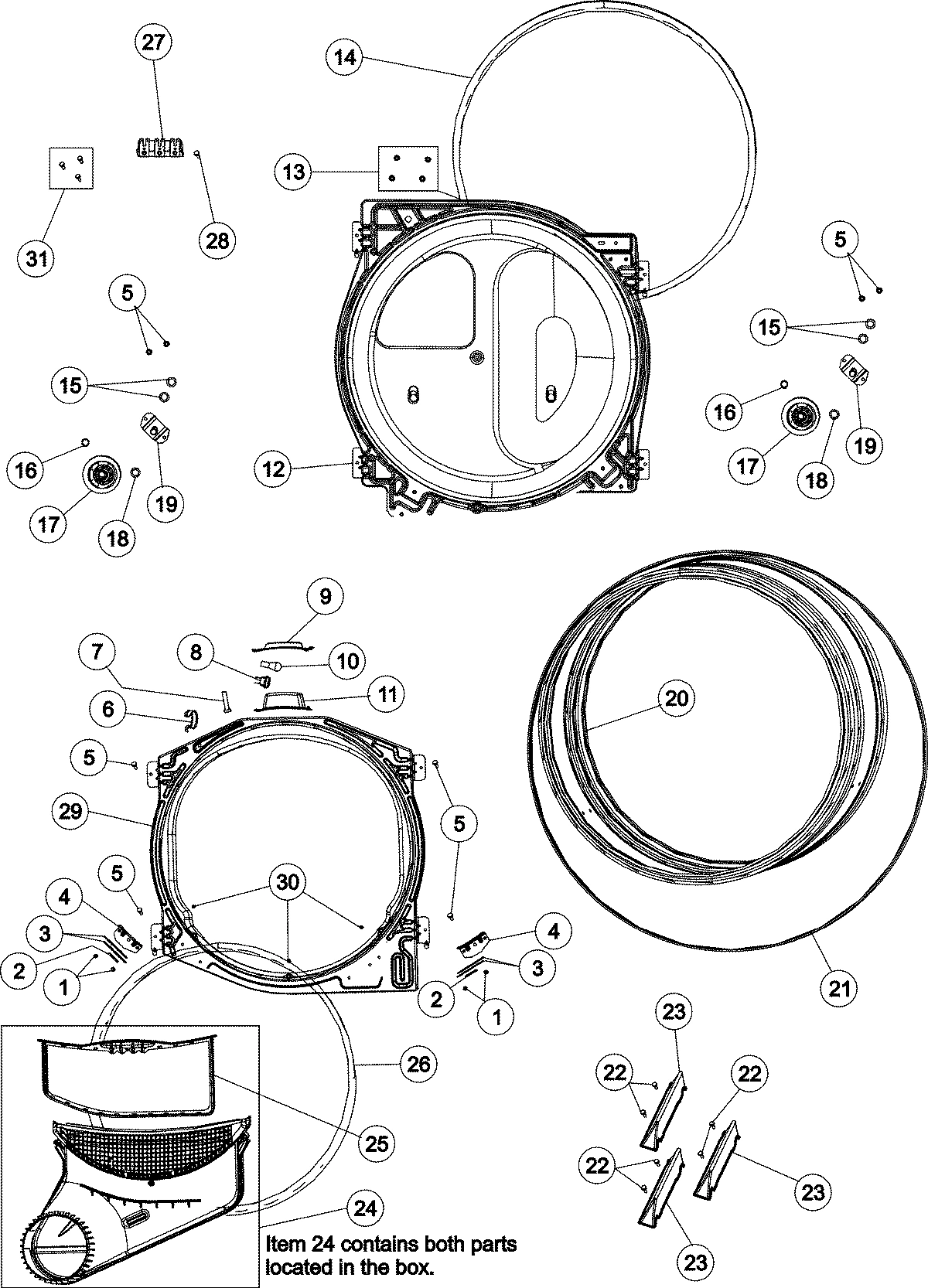

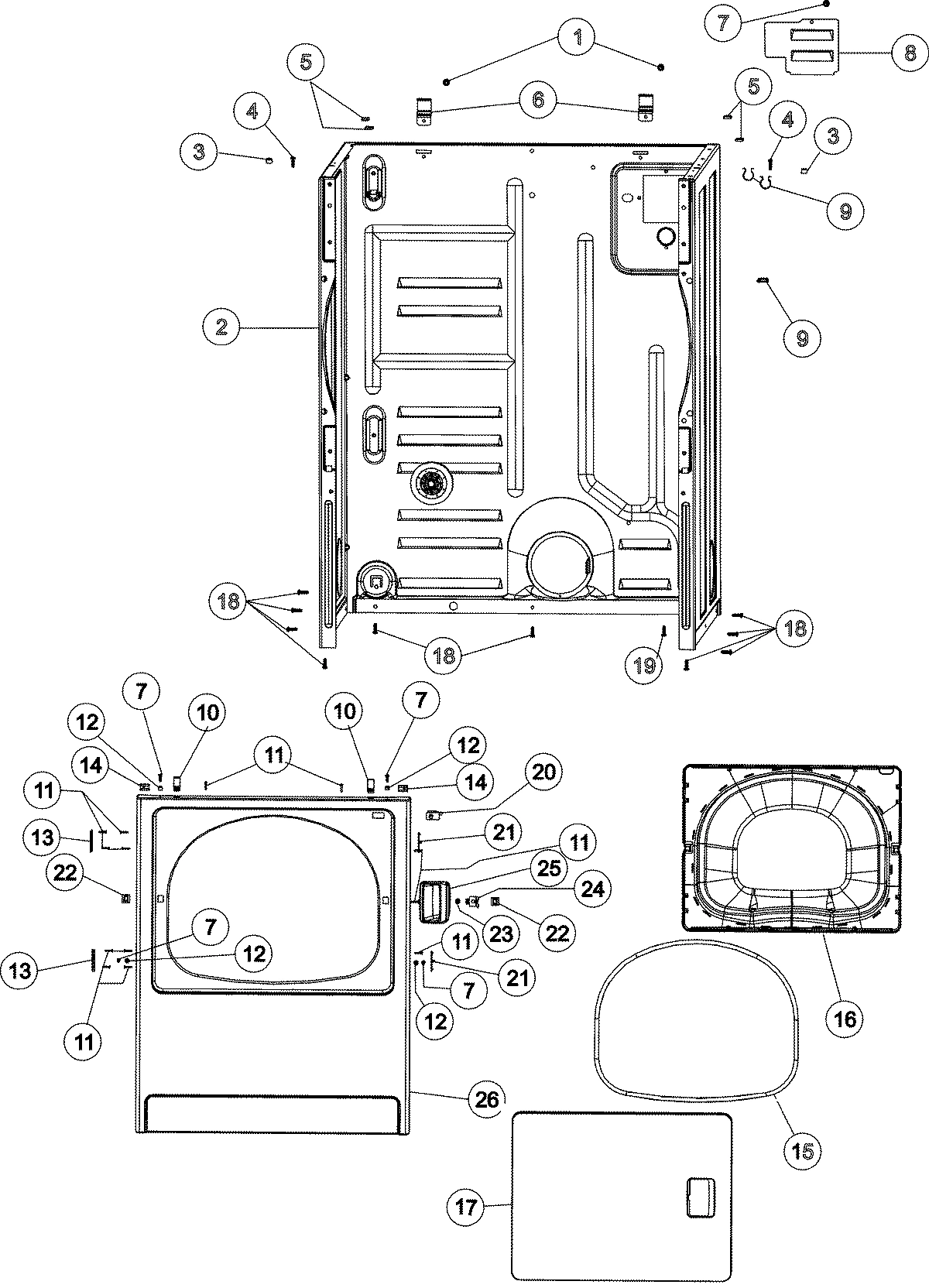

Model Whirlpool CDG6505W GAS DRYER – Common Parts &amp; Diagrams

1

VALVE & PIPE ASSY WPL 37001127 Contact Us For Availability

2

LPK1 Whirlpool Gas Dryer Natural to LP Propan In Stock WPL LPK1 $44.84

2

PAD, FELT-COIN WPL 500121 Contact Us For Availability

2

CABINET, WHITE/W/LOUVERS WPL 37001155 Contact Us For Availability

2

LP TO NATURAL CONVERSION KIT WPL 650P3 Contact Us For Availability

2

ASSEMBLY, BURNER WPL Y56234 Contact Us For Availability

4

WP37001036 Whirlpool Glide Bracket In Stock WPL WP37001036 $32.46

4

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $3.76

5

PAD, BUMPER WPL Y56128 Contact Us For Availability

6

WP3177991 Whirlpool Screw Backorder WPL WP3177991 $2.55

6

HINGE, TOP WPL 500003 Contact Us For Availability

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $2.55

7

WPY014874 Whirlpool Screw Backorder WPL WPY014874 $2.55

8

HOLDER, LAMP WPL 504458 Contact Us For Availability

8

PLATE, ACCESS COVER WPL 503293 Contact Us For Availability

8

DUCT, COMBUSTION WPL 37001041 Contact Us For Availability

9

LENS, LIGHT WPL 40094301 Contact Us For Availability

9

SHROUD, HEAT DUCT WPL 500122 Contact Us For Availability

10

W10857122 Whirlpool Refrigerator Light Bulb, In Stock WPL W10857122 $6.31

10

CLIP, CABINET TOP WPL 257220 Contact Us For Availability

10

THERMOSTAT, LIMIT WPL Y61886 Contact Us For Availability

11

HOUSING, CYLINDER LIGHT WPL 503622 Contact Us For Availability

11

SCREW, No.8AB-16X3/4 FH WPL 37001030 Contact Us For Availability

11

DUCT, EXHAUST WPL 505518 Contact Us For Availability

LEG, LEVELING (PLASTIC) WPL Y500101 Contact Us For Availability

KNOB/SKIRT, TIMER (WHT) WPL 31001388 Contact Us For Availability

BULKHEAD, REAR (WHT) WPL 504801W Contact Us For Availability

LOCATOR, PANEL WPL 505187 Contact Us For Availability

13

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

13

BRACE, TOP WPL 56486 Contact Us For Availability

13

HINGE, DOOR & TOP WPL Y503676 Contact Us For Availability

14

FRONT PANEL BRACKET/FASTENER WPL 213280 Contact Us For Availability

14

ASSEMBLY, HEATER DUCT WPL 503605 Contact Us For Availability

15

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.55

15

SEAL, FRONT PANEL WPL 504005 Contact Us For Availability

15

SHIELD, CONTROL (1 POS.) WPL 21001517 Contact Us For Availability

WP23748 Whirlpool Retaining Ring In Stock WPL WP23748 $5.25

SEAL & LINER, ASSY(INNER DOOR) WPL 37001028 Contact Us For Availability

FRAME, CONTROL PANEL, SUPPORT WPL 21001965 Contact Us For Availability

CLIP, FRONT PANEL WPL 37001145 Contact Us For Availability

WP37001042 Whirlpool Dryer Drum Support Rolle In Stock WPL WP37001042 $10.65

TOP AS PACK WPL 37001283 Contact Us For Availability

DOOR, DRYER (WHT) WPL 37001029 Contact Us For Availability

DRYER BASE WPL 37001156 Contact Us For Availability

18

KNOB, SELECTOR (WHT) WPL 21001544 Contact Us For Availability

18

CLIP, WIRE WPL 504034 Contact Us For Availability

18

WASHER, WAVE WPL Y504082 Contact Us For Availability

19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.55

19

WP37001287 Whirlpool Dryer Idler Lever Shaft In Stock WPL WP37001287 $19.93

19

WP40113601 Whirlpool Dryer Roller Bracket In Stock WPL WP40113601 $34.57

20

W10169313 Whirlpool Door Switch Kit In Stock WPL W10169313 $11.09

20

ASSEMBLY, CYLINDER (WHT) WPL 504467W Contact Us For Availability

20

SCREW, 1/4-20 UNC HEX WPL 500824 Contact Us For Availability

21

WP40111201 Whirlpool Dryer Drum Belt In Stock WPL WP40111201 $5.80

21

WPW10139757 Whirlpool Nut Backorder WPL WPW10139757 $2.55

21

PLUG, HINGE HOLE WPL 503126 Contact Us For Availability

22

LA-1003 Whirlpool Dryer Door Catch and Metal In Stock WPL LA-1003 $11.82

22

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

22

SCREW, 10BT-12 X 1 TAP WPL Y62588 Contact Us For Availability

23

WP2200376 Whirlpool Dryer Drum Drive Motor As In Stock WPL WP2200376 $89.00

23

BAFFLE, (WHT) WPL 37001125 Contact Us For Availability

23

STRIKE, DOOR (METAL) WPL 500039 Contact Us For Availability

24

AIR DUCT ASSEMBLY WPL 37001141 Contact Us For Availability

24

BRACKET,DOOR STRIKE WPL 40116201 Contact Us For Availability

24

MOUNT, MOTOR WPL 503613 Contact Us For Availability

25

WP27001200 Whirlpool Screw Backorder WPL WP27001200 $2.55

25

WP37001142 Whirlpool Lint Filter Backorder WPL WP37001142 $60.49

25

HANDLE, DOOR (WHT) WPL 33001241 Contact Us For Availability

26

WP37001132 Whirlpool Felt Seal In Stock WPL WP37001132 $28.69

26

FRONT PANEL - WHITE WPL 37001154 Contact Us For Availability

26

HOUSING, BLOWER WPL 56020 Contact Us For Availability

27

BLOCK, TERMINAL WPL 61923 Contact Us For Availability

27

SCREW, No.8 X 3/8 IND H WPL 31260 Contact Us For Availability

28

56000 Whirlpool Blower Wheel In Stock WPL 56000 $53.05

28

SCREW, No.12 X 9/16 WPL 501285 Contact Us For Availability

29

ASSY, BLKHD FRONT LIT (WHT) WPL 503616W Contact Us For Availability

29

SEAL, BLOWER HOUSING WPL 37001119 Contact Us For Availability

30

COVER, BLOWER HOUSING WPL 500078 Contact Us For Availability

31

WP37001136 Whirlpool Dryer Cycling Thermostat In Stock WPL WP37001136 $64.48

31

SCREW PKG, TERMINAL BLOCK WPL 37001300 Contact Us For Availability

32

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

33

WP40113801 Whirlpool Dryer High Limit Thermal In Stock WPL WP40113801 $4.32

SVC MAN, DOM DRYER GAS WPL 16026315 Contact Us For Availability

MANUAL, USE & CARE DRYER WPL 2206675 Contact Us For Availability

GROMMET, CORD WPL 33002053 Contact Us For Availability

CORD, POWER (AS WRAP) WPL 33002494 Contact Us For Availability

HARNESS, WIRE WPL 37001153 Contact Us For Availability

MANUAL, USE & CARE WPL Y2205343 Contact Us For Availability

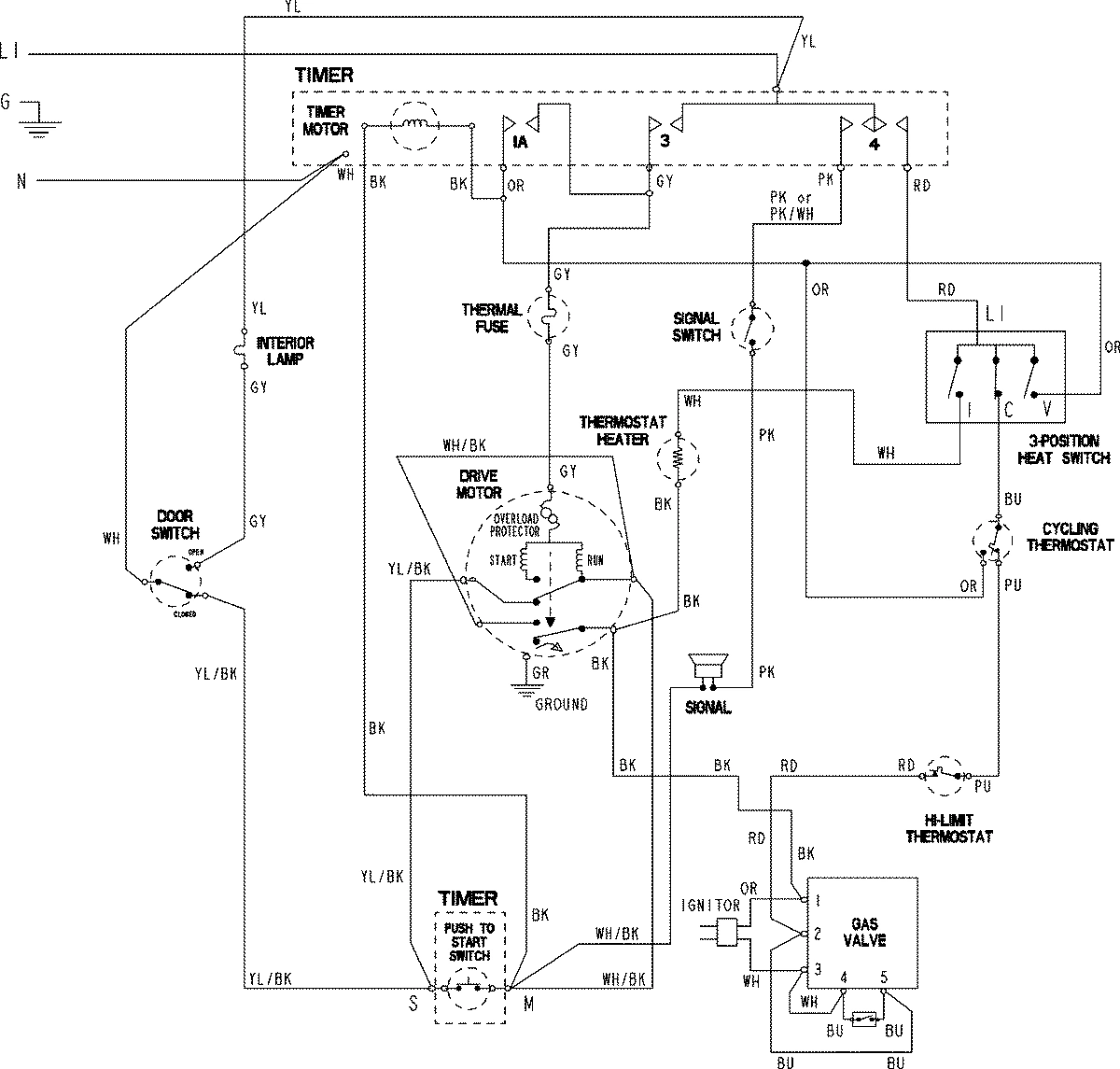

WIRING INFORMATION WPL 15003795 Contact Us For Availability
