Model GE C2S995SEL2SS Gas Range Or Dual Fuel – Common Parts & Diagrams
GAS & BURNER PARTS

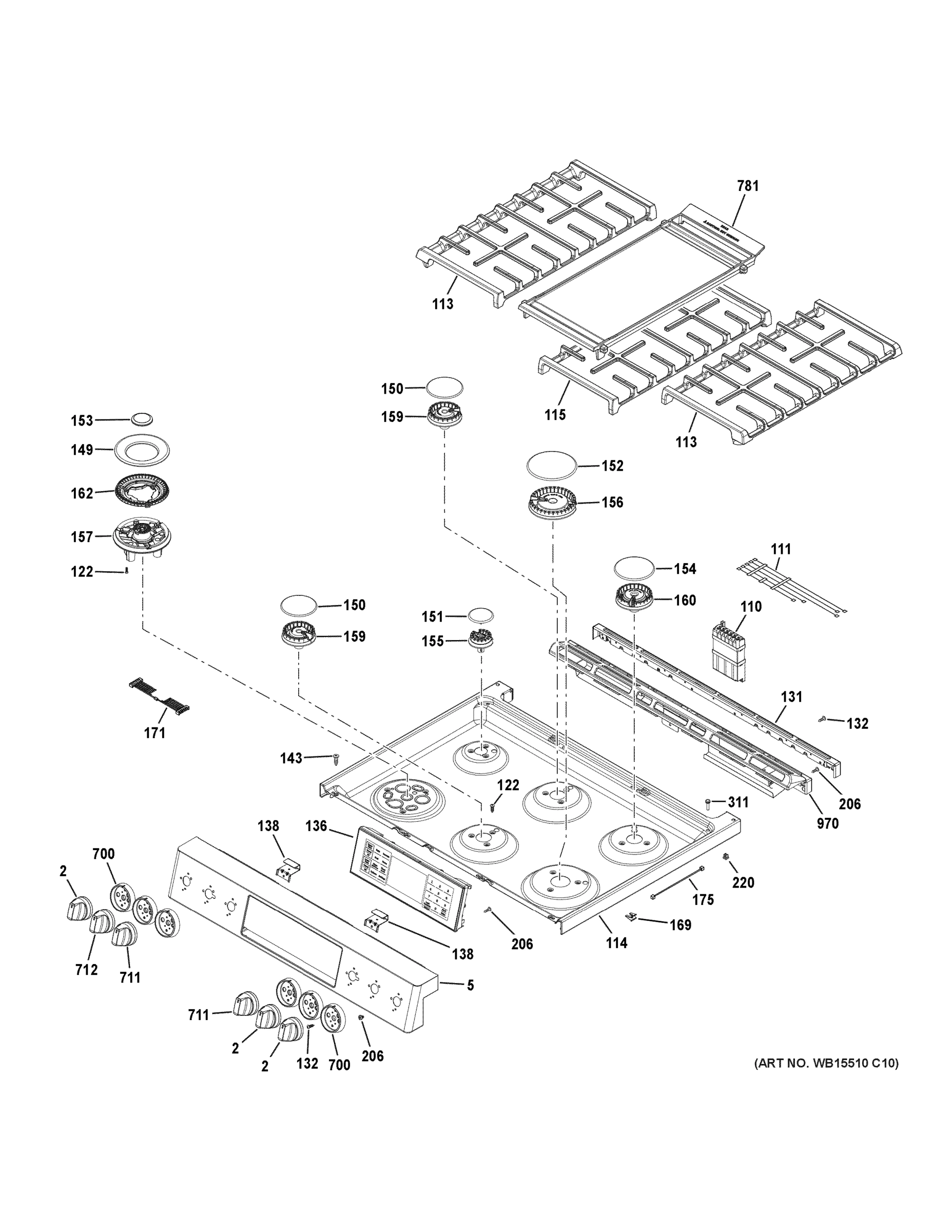

CONTROL PANEL & COOKTOP
BODY PARTS
UPPER OVEN
LOWER OVEN
UPPER DOOR
LOWER DOOR
CONVECTION FAN
Common parts from model GE C2S995SEL2SS Gas Range Or Dual Fuel
1
KIT NG HIGH ALTITUDE ASM GEN WB28X29254 Contact Us For Availability
1
KIT LP HIGH ALTITUDE ASM GEN WB28X29255 Contact Us For Availability
2
BRUSHED STAINLESS CONTROL KNOB GEN WB03X31672 Contact Us For Availability
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
5
PANEL MANIFOLD GEN WB36X28215 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
9
INJET, SMALL V2 GEN WB02X24728 Contact Us For Availability
10
INJET, MEDIUM V2 GEN WB02X24727 Contact Us For Availability
11
INJET, LARGE V2 GEN WB02X24726 Contact Us For Availability
12
HARNESS SWITCHES GEN WB18X28761 Contact Us For Availability
13
INJET, XL V2 GEN WB02X24725 Contact Us For Availability
16
ORIFICE SPUD NG GEN WB28X28843 Contact Us For Availability
17
ORIFICE SPUD GEN WB28X29600 Contact Us For Availability
20
SCR 8 HD 1/4 - 20 GEN WB01K10067 Contact Us For Availability
21
CR ORIFICE HOLDER GEN WB16X28685 Contact Us For Availability
22
LR ORIFICE HOLDER GEN WB28X28141 Contact Us For Availability
23
CF ORIFICE HOLDER GEN WB13X28673 Contact Us For Availability
24
RF ORIFICE HOLDER GEN WB28X28846 Contact Us For Availability
25
RR ORIFICE HOLDER GEN WB28X28148 Contact Us For Availability
34
RECEPTABLE ASM GEN WB34K10134 Contact Us For Availability
40
FASTENER DOOR HANDLE GEN WR01X11007 Contact Us For Availability
43
SENSOR-OVEN GEN WB23X5340 Contact Us For Availability
55
VALVE BURNER 270 GEN WB21X20470 Contact Us For Availability
56
VALVE BURNER 270 GEN WB21X20612 Contact Us For Availability
57
VALVE BURNER 270 GEN WB21X25979 Contact Us For Availability
58
VALVE BURNER 3R 310 GEN WB21X28821 Contact Us For Availability
65
INJECT BURNER MRHOB ASM GEN WB16X28867 Contact Us For Availability
90
FRAME FRONT BUMPER GEN WB02X28738 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
93
FRAME FRONT BUMPER GEN WB02X28737 Contact Us For Availability
106
SWITCH HIGH LIMIT GEN WB24X29505 Contact Us For Availability
107
MACHINE BOARD WITH FRAME (SERVICE) GEN WB27X29494 Contact Us For Availability
108
BOARD DAUGHTER RELAY GEN WB27X28658 Contact Us For Availability
110
MODULE SPARK GEN WB27X28838 Contact Us For Availability
111
ELECTRODES & HARNESS H. V. GEN WB18X28727 Contact Us For Availability
113
GRATE ASM GEN WB31X28754 Contact Us For Availability
114
RANGE TOP GEN WB62X28227 Contact Us For Availability
115
CENTRAL GRATE GEN WB31X28256 Contact Us For Availability
122
CKT SCREW GEN WB01X24735 Contact Us For Availability
128
LAMP INSULATION GEN WB02K10349 Contact Us For Availability
131
TRIM KIT GEN WB07X28824 Contact Us For Availability
132
SCR 8-18 AB TRP 3/8 SS GEN WB01K10086 Contact Us For Availability
136
GLASS & TOUCH BOARD ASM GEN WB56X28191 Contact Us For Availability
149
CAP OUTER GEN WB29X28253 Contact Us For Availability
150
ASM BURNER CAP (9500) GEN WB29K10023 Contact Us For Availability
151
ASM. CAP, BURNER SMALL V2 GEN WB16X28654 Contact Us For Availability
152
CAP BURNER ASM (15K) GEN WB28K10222 Contact Us For Availability
153
CAP INNER GEN WB16X28252 Contact Us For Availability
154
ASM BURNER CAP (12000) GEN WB29K10024 Contact Us For Availability
155
BURNER, SMALL V2 GEN WB16X24721 Contact Us For Availability
156
BURNER, XL V2 GEN WB16X24722 Contact Us For Availability
157
BASE BURNER GEN WB16X28656 Contact Us For Availability
159
BURNER, MEDIUM V2 GEN WB16X24724 Contact Us For Availability
160
BURNER, LARGE V2 GEN WB16X24723 Contact Us For Availability
162
HEAD BURNER GEN WB16X28764 Contact Us For Availability
169
CLIP, IGNITER V2 GEN WB02X24976 Contact Us For Availability
171
HARNESS INTERFACE GEN WB18X28905 Contact Us For Availability
200
OVEN RACK GEN WB48X21508 Contact Us For Availability
201
RACK OVEN SLIDE ASM GEN WB48X20990 Contact Us For Availability
204
SCREW GEN WB01K10091 Contact Us For Availability
206
SCR 8-18 AB X 5/16S GEN WB01X26995 Contact Us For Availability
209
PANEL SIDE GEN WB56X28847 Contact Us For Availability
213
COVER TERMINAL BLOCK GEN WB34X28980 Contact Us For Availability
215
GASKET OVEN LOWER CAVITY GEN WB32X29538 Contact Us For Availability
216
GASKET OVEN GEN WB35X29666 Contact Us For Availability
222
HINGE ASM GEN WB10X28782 Contact Us For Availability
223
DOOR HINGE RIGHT GEN WB10X26520 Contact Us For Availability
224
DOOR HINGE LEFT GEN WB10X26521 Contact Us For Availability
233
PLUNGER SWITCH GEN WB24X27550 Contact Us For Availability
238
SPACER BASE FRONT GEN WB16X20448 Contact Us For Availability
239
SPACER BASE REAR GEN WB16X20449 Contact Us For Availability
243
SUPPORT BASE LT GEN WB63X25480 Contact Us For Availability
244
SUPPORT BASE RT GEN WB63X25481 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
277
GASKET OVEN LIGHT GEN WB32K10044 Contact Us For Availability
279
LATCH AUTOMATIC GEN WB10X28794 Contact Us For Availability
280
LATCH AUTOMATIC GEN WB10X28795 Contact Us For Availability
293
HIDDEN BAKE ELEMENT GEN WB30X28763 Contact Us For Availability
311
BUMPER GEN WB02X24790 Contact Us For Availability
315
LINER DOOR WELD ASSEMBLY GEN WB56X24931 Contact Us For Availability
316
STAINLESS STEEL GLASS & PANEL DOOR GEN WB56X31642 Contact Us For Availability
318
LINER DOOR ASSEMBLY GEN WB34X28839 Contact Us For Availability
319
CRYSTAL WINDOW GEN WB57K10155 Contact Us For Availability
321
CRYSTAL WINDOW GEN WB57K10156 Contact Us For Availability
333
INSULATION DOOR GEN WB34X21726 Contact Us For Availability
334
INSULATION DOOR GEN WB34X21728 Contact Us For Availability
365
BRUSHED STAINLESS RANGE HANDLE GEN WB15X31680 Contact Us For Availability
400
FRAME WINDOW ASSY GEN WB34X28741 Contact Us For Availability
711
BRUSHED STAINLESS V2 GRIDDLE KNOB GEN WB03X31662 Contact Us For Availability
712
BRUSHED STAINLESS MRHOB KNOB GEN WB03X31659 Contact Us For Availability
720
FAN COVER GEN WB34X28702 Contact Us For Availability
722
FAN INSULATOR GEN WB35X20989 Contact Us For Availability
723
FAN INSULATION GEN WB35K10013 Contact Us For Availability
724
FAN SUPPORT GEN WB02K10170 Contact Us For Availability
726
MOTOR PSC CONV GEN WB26X25118 Contact Us For Availability
728
HEAT ELEMENT CONVECTION GEN WB44X29061 Contact Us For Availability
729
NUT GEN WB02T10017 Contact Us For Availability
781
CAST GRIDDLE GEN WB31X28254 Contact Us For Availability
900
CAPACITOR MOTOR GEN WB08K10009 Contact Us For Availability
940
FAN SUPPORT GEN WB34X28735 Contact Us For Availability
955
PRESSURE REGULATOR GEN WB19K10018 Contact Us For Availability
970
VENT TRIM GEN WB07X28818 Contact Us For Availability
1151
HARNESS MAIN GEN WB18X28901 Contact Us For Availability
1152
HARNESS LATCH GEN WB18X31621 Contact Us For Availability
1154
HARNESS BLOWER GEN WB18X31604 Contact Us For Availability
1332
RECEIVER HINGE RH GEN WB10X29635 Contact Us For Availability
1333
RECEIVER HINGE LH GEN WB10X29636 Contact Us For Availability
1413
TUBE BURNER BOX SUPPLY GEN WB28X28150 Contact Us For Availability
1416
TUBE SIMMER DUAL VALVE GEN WB28X28161 Contact Us For Availability
1440
BOTTOM OVEN GEN WB63X28660 Contact Us For Availability
2000
BADGE ASM GEN WB02X29479 Contact Us For Availability
× ![]()
