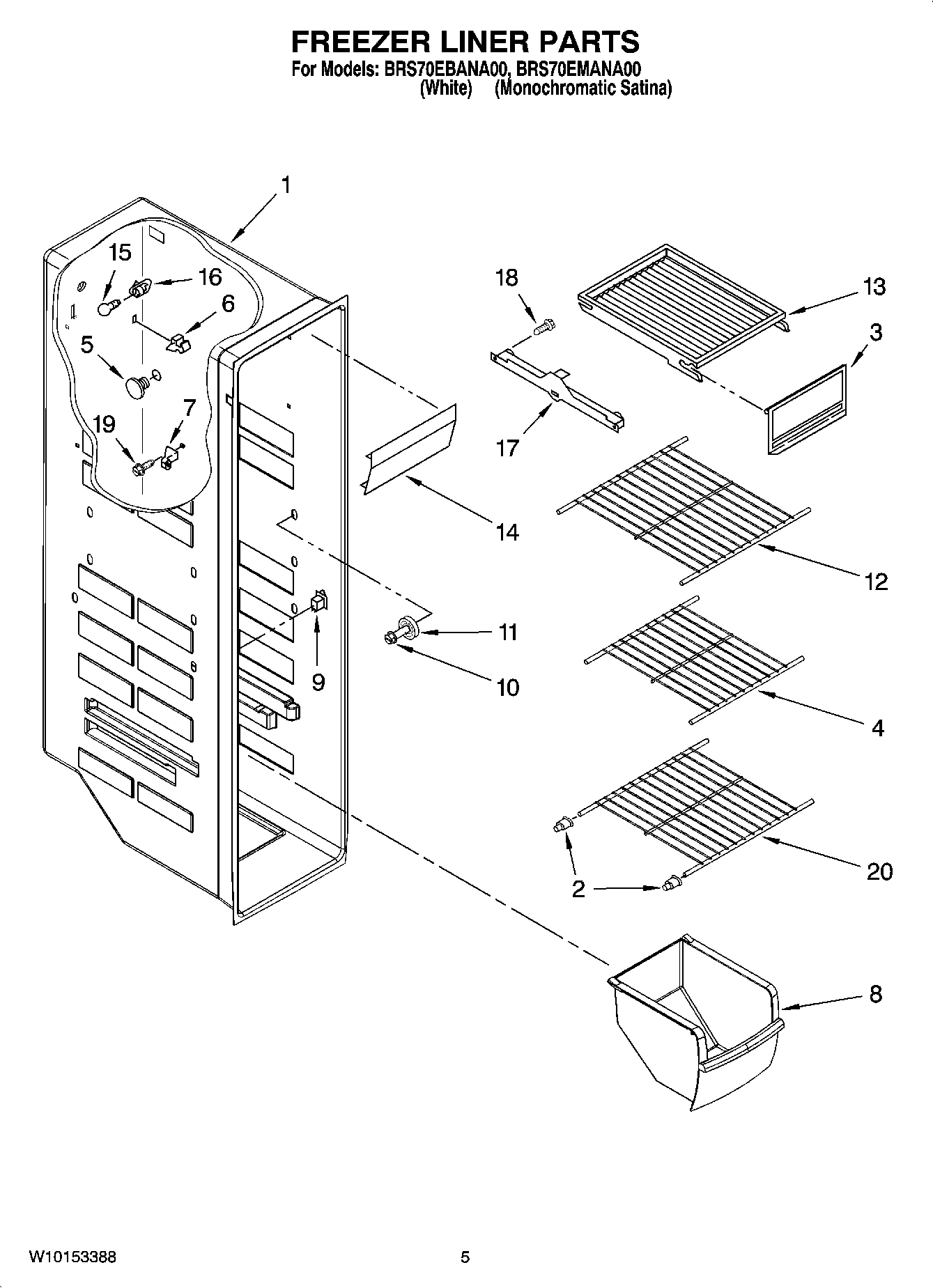

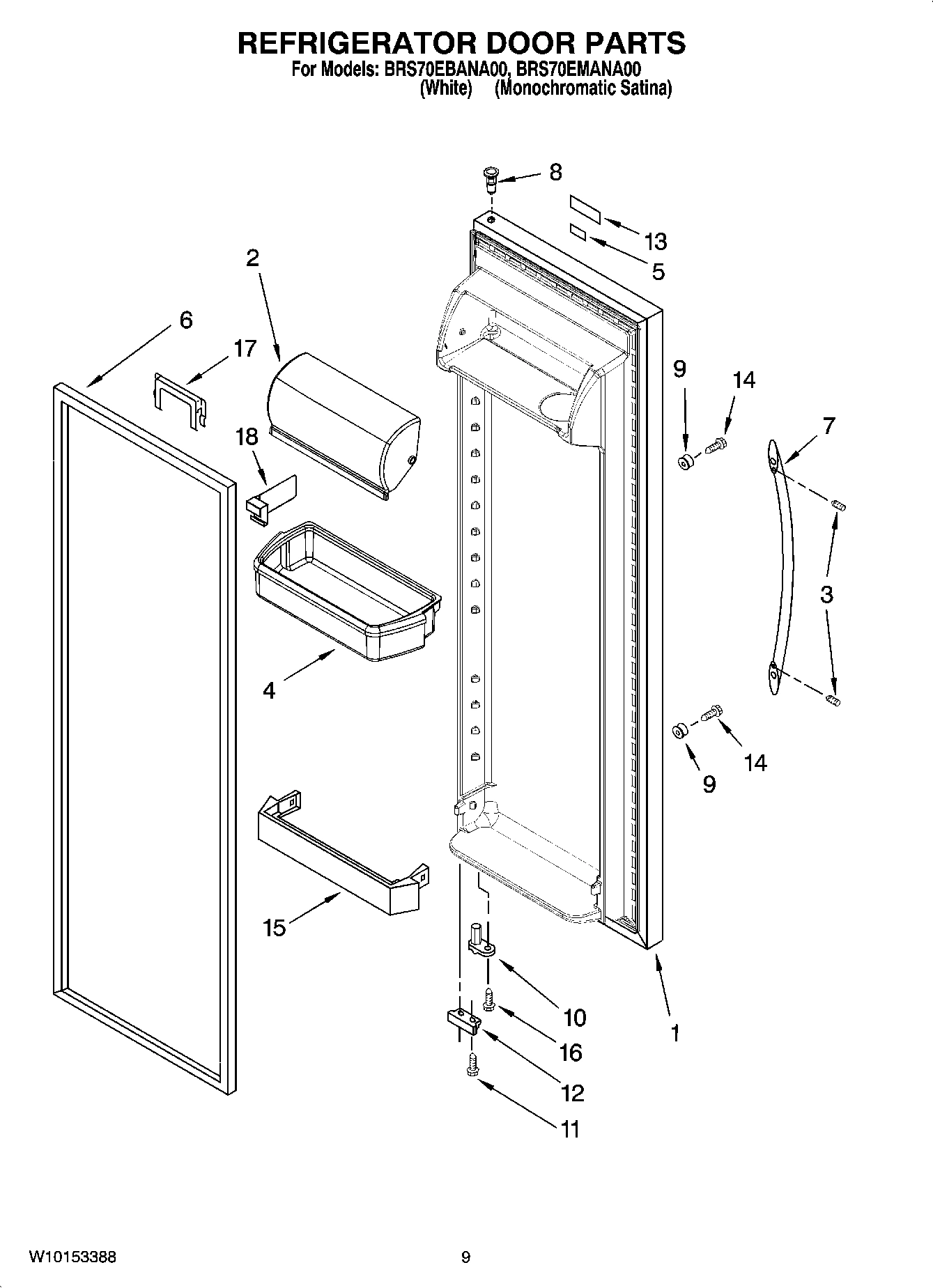

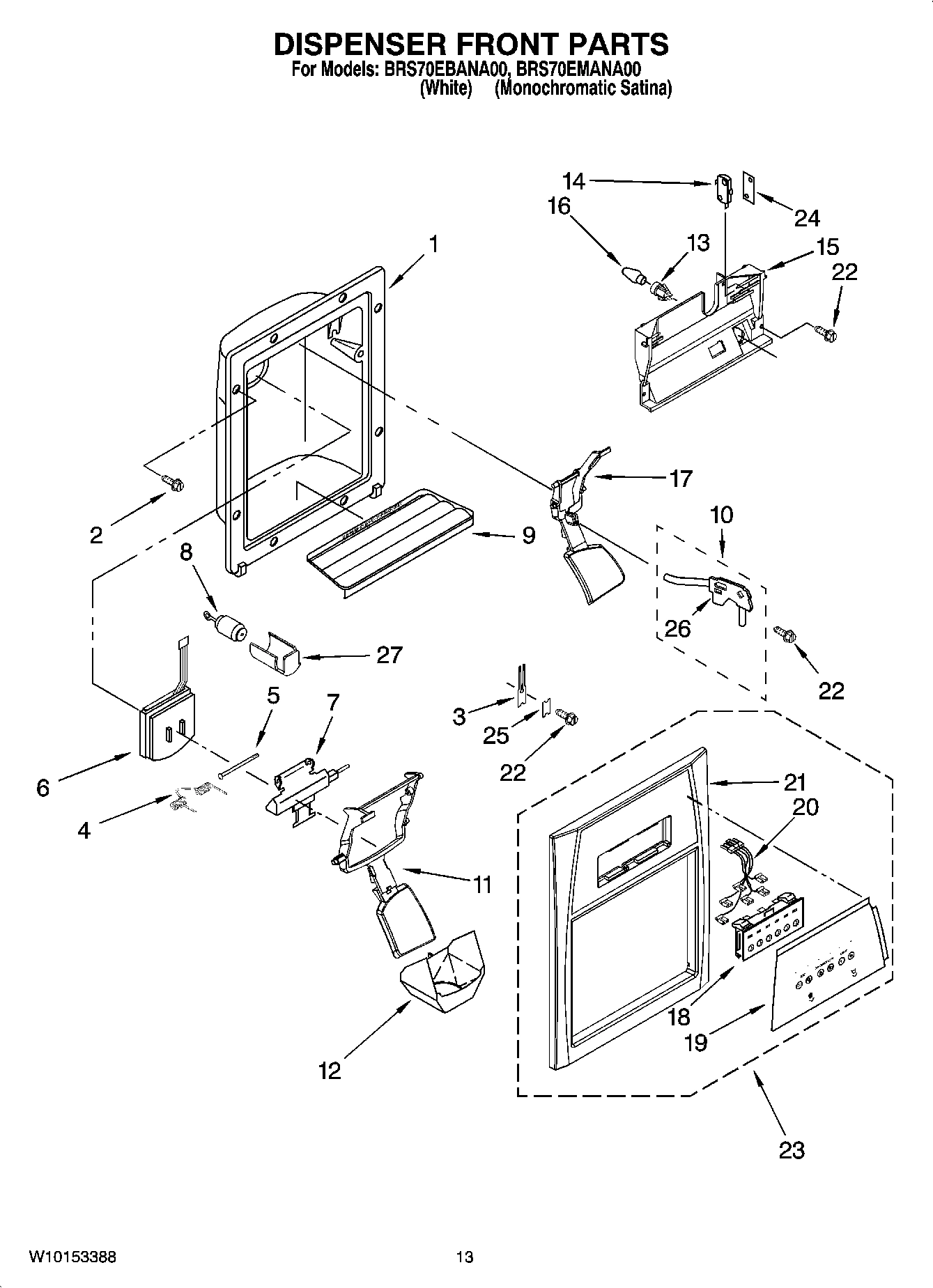

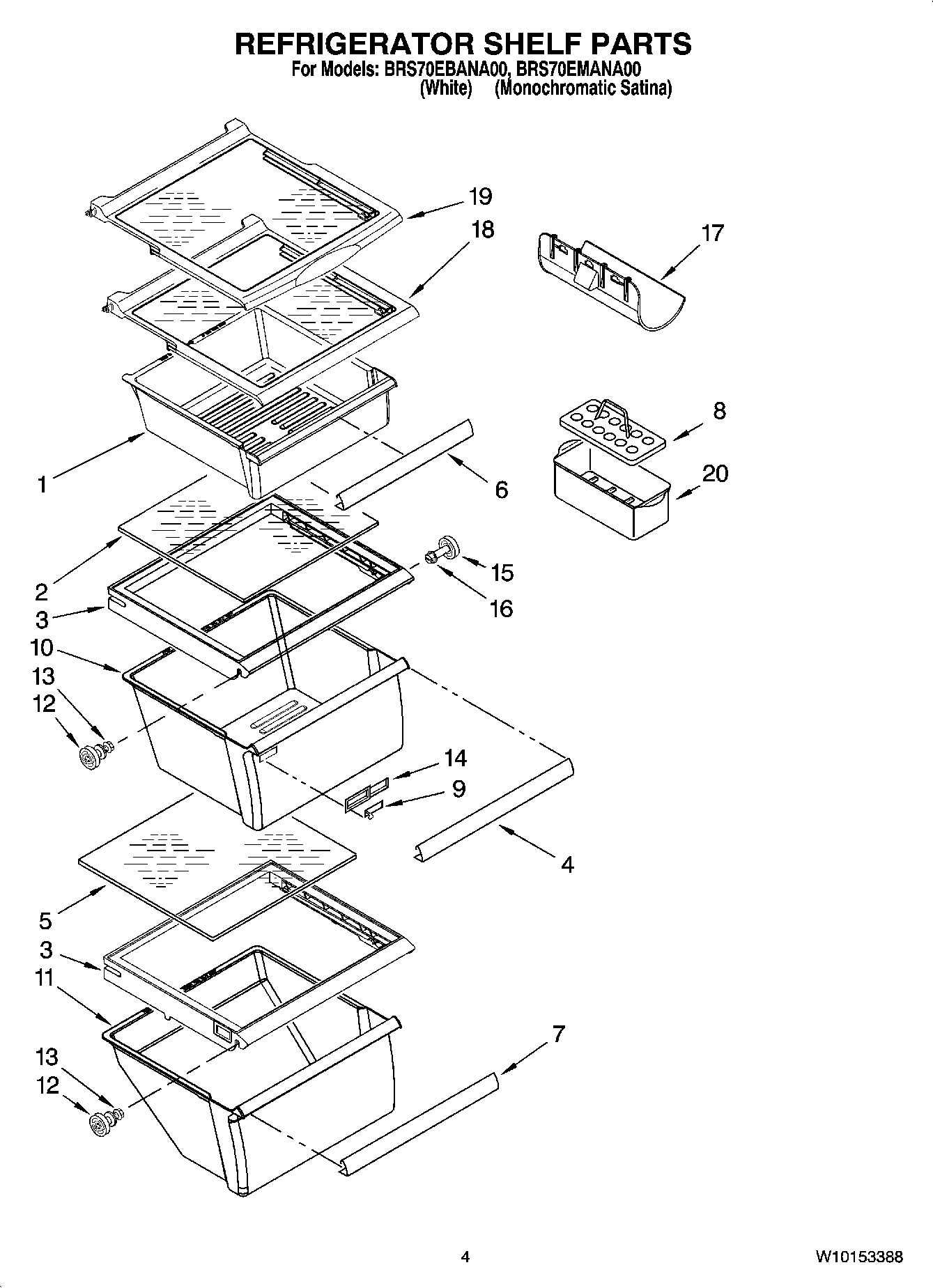

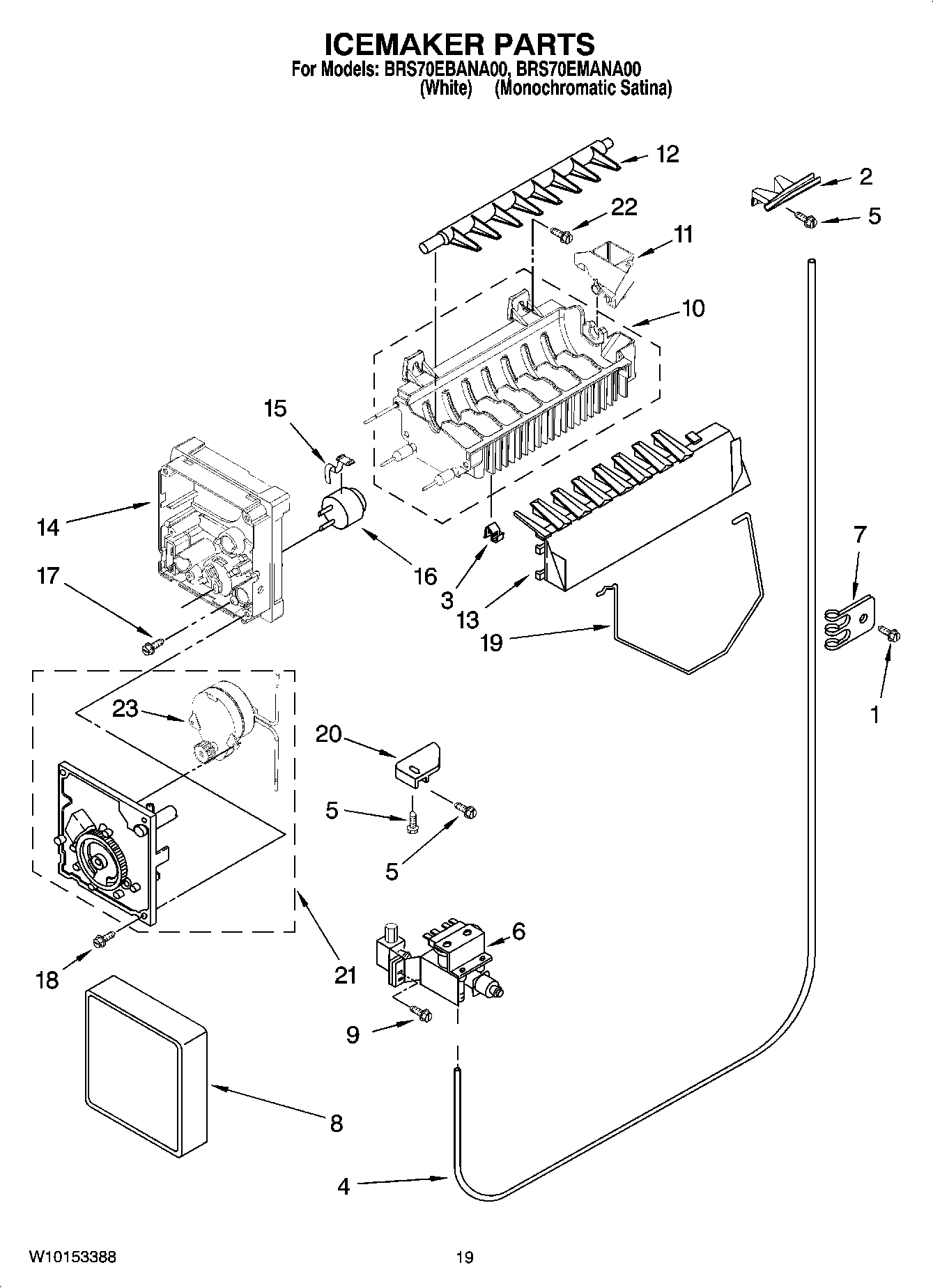

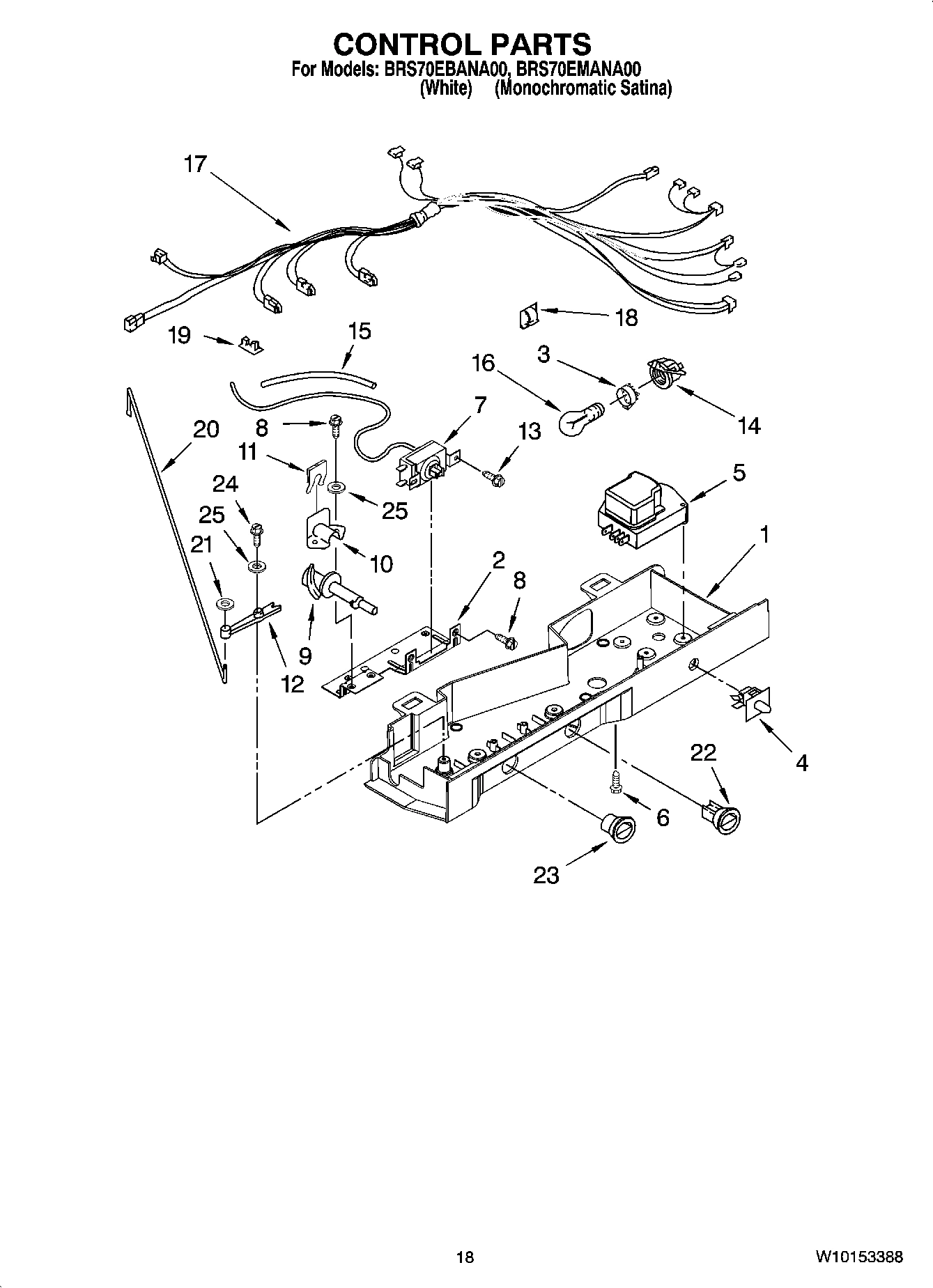

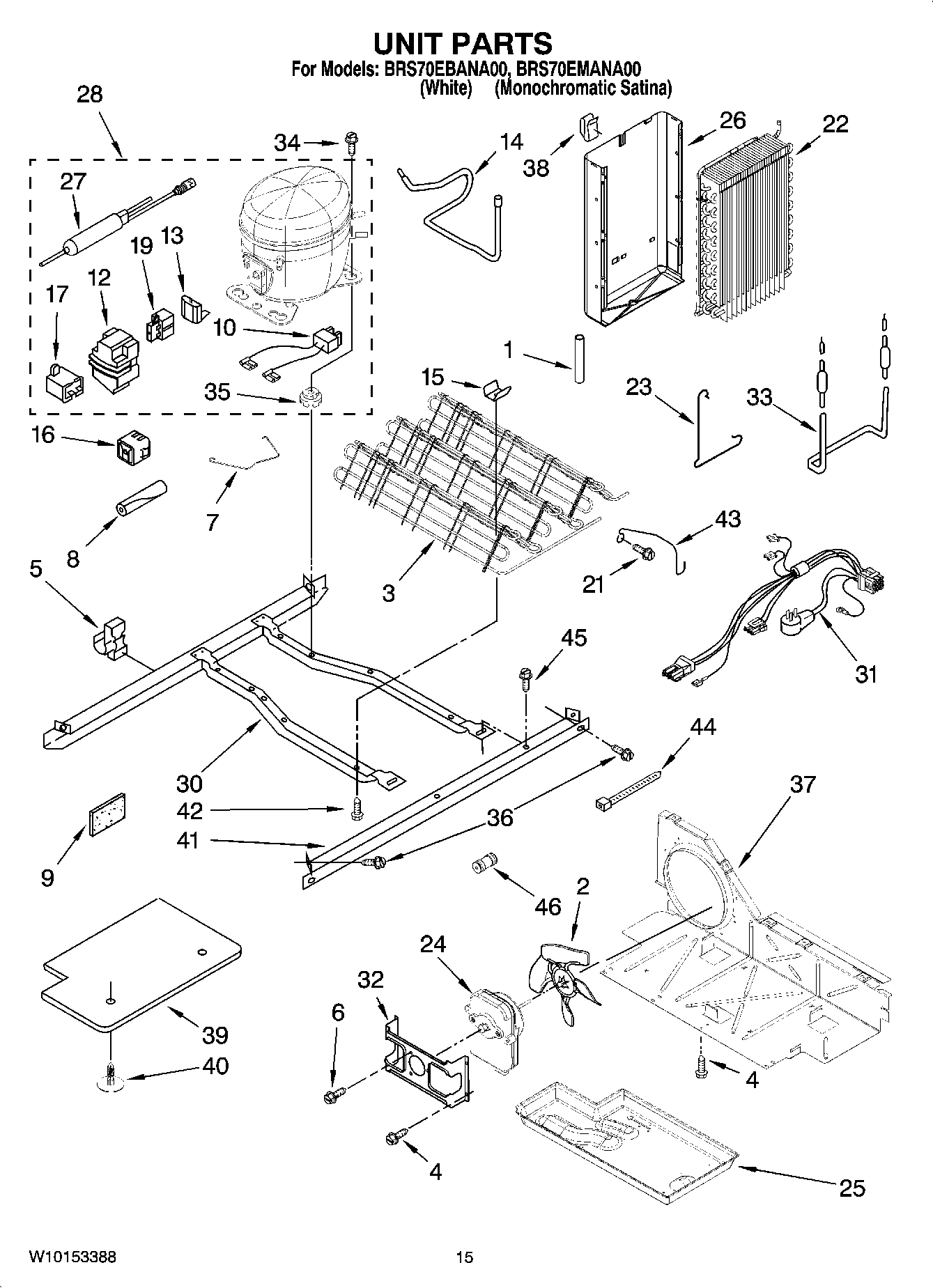

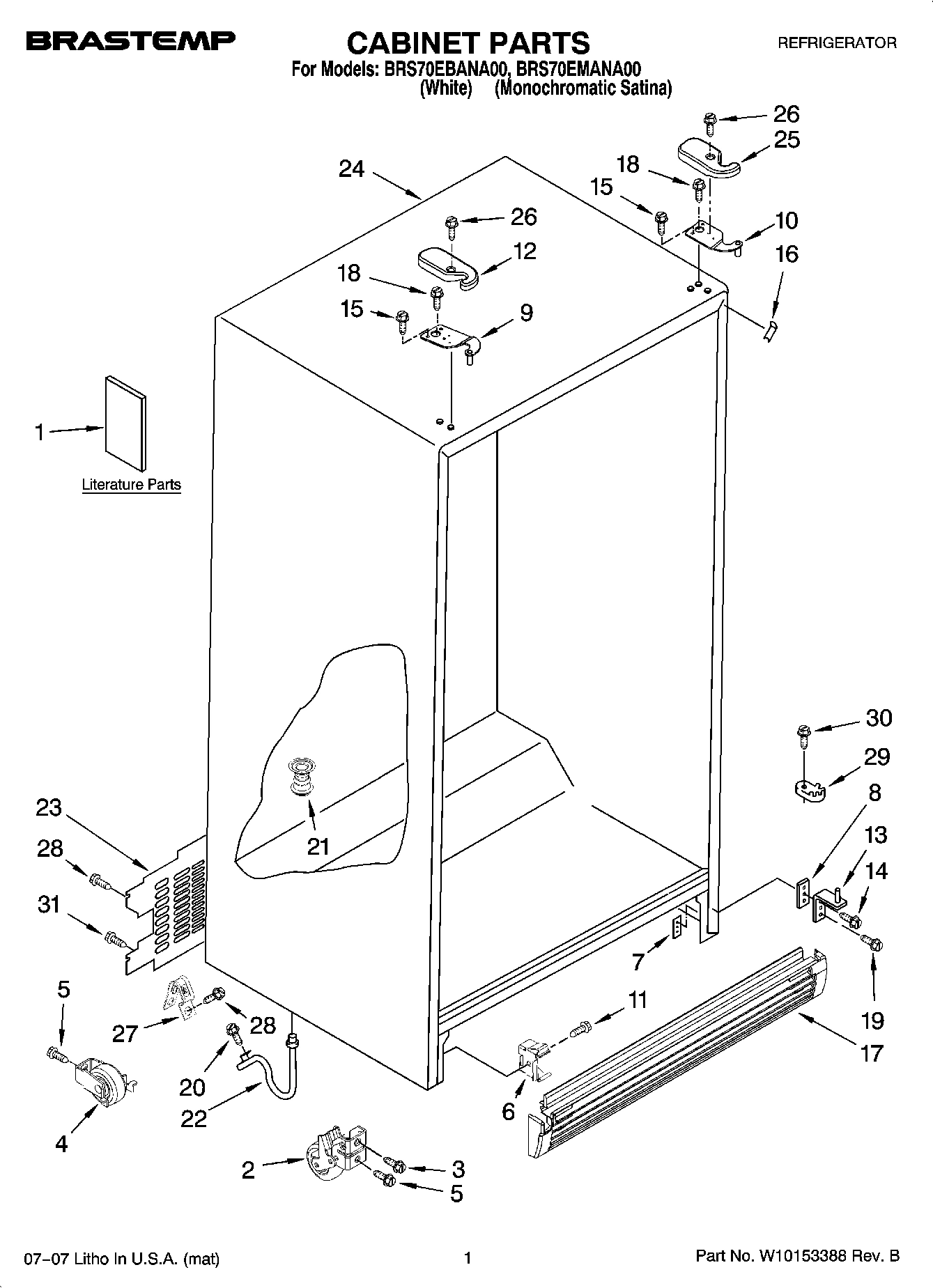

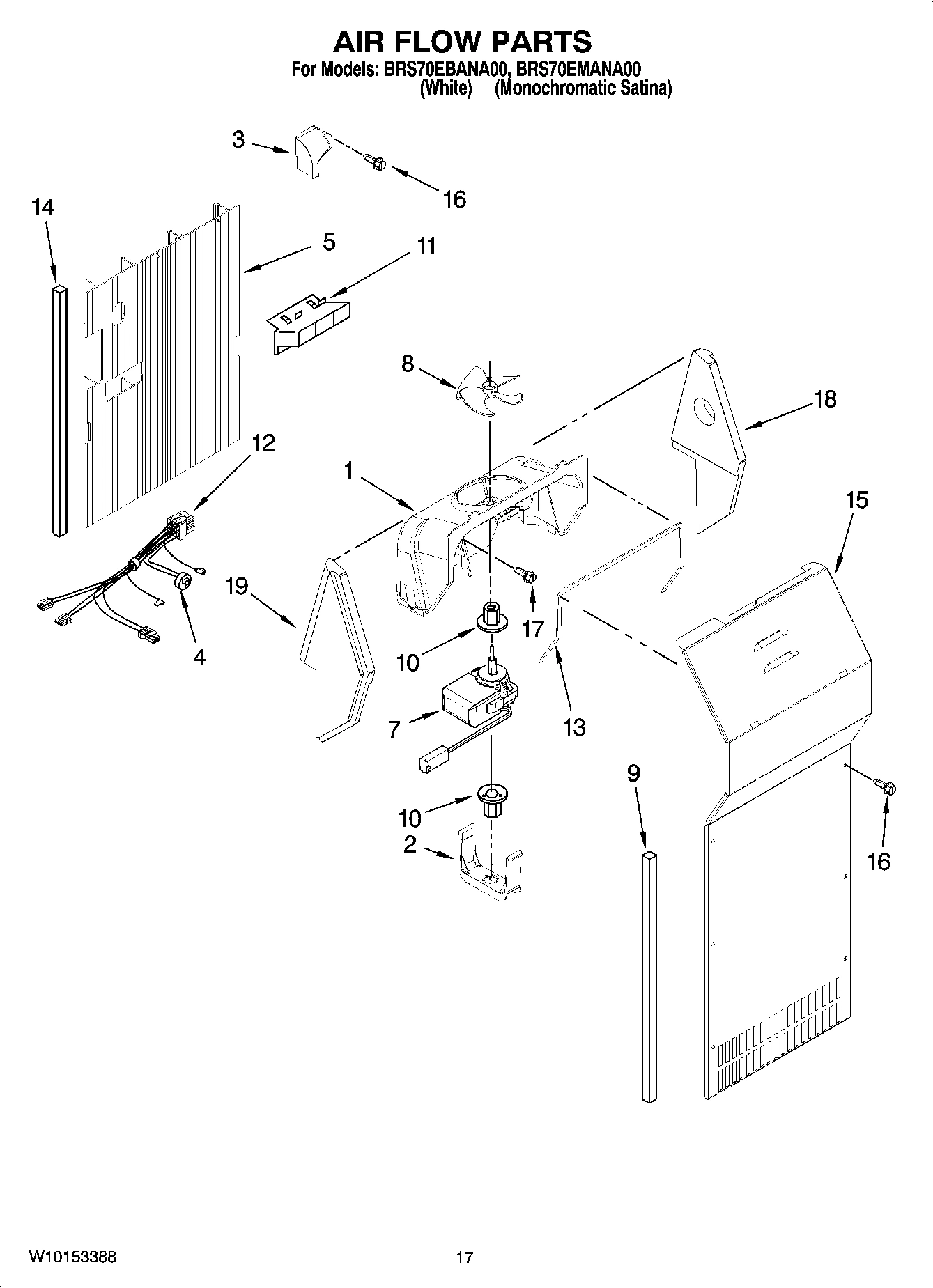

Model Whirlpool BRS70EMANA00 REFRIGERATOR – Common Parts &amp; Diagrams

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability

SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 oz.) (Graphite) WPL 8171357 Contact Us For Availability

Kit, Terminal Connector WPL 833938 Contact Us For Availability

PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH WPL 350942 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

PAINT, BULK (1 QT.) (BLACK) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

PAINT, BULK (1 QT.) (GRAPHITE`) WPL 8171358 Contact Us For Availability

Important: The spray paint is not to be used WPL ARI20925A3 Contact Us For Availability

WPL ARI20926A6 WPL ARI20926A6 Contact Us For Availability

WPL ARI20927A1 WPL ARI20927A1 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $32.96

1

Liner (Not A Seviceable Part) WPL ARI20917A4 Contact Us For Availability

1

Bracket, Motor WPL 2254587 Contact Us For Availability

2

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

Cup, Shelf Mounting (12) WPL 2163762 Contact Us For Availability

2

Mounting Bracket WPL 2311611 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

3

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Escutcheon, Meat Pan Control WPL 2194744 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

WPW10318947 Whirlpool Wire Shelf In Stock WPL WPW10318947 $39.73

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

5

Hole Plug WPL 940014 Contact Us For Availability

5

Screw (2) WPL 439355 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

2311639 Whirlpool Refrigerator Dispenser Wiri Backorder WPL 2311639 $113.83

6

W10853654 Whirlpool Water Inlet Valve In Stock WPL W10853654 $93.09

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

7

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

7

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.11

7

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

7

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WPW10144409 Whirlpool Refrigerator Freezer Bi In Stock WPL WPW10144409 $85.14

8

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

8

WPW10289690 Whirlpool Ice Maker Cover In Stock WPL WPW10289690 $2.51

9

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

9

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $26.21

9

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $36.34

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

WPW10670845 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10670845 $76.54

Duct, Icemaker WPL 2182146 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

Pivot Arm WPL 1110559 Contact Us For Availability

Bracket, Door Stop (Apollo Grey) WPL 2321218AP Contact Us For Availability

Bracket, Door Stop (White) WPL 2321218W Contact Us For Availability

Harness, Fan Evaporator (Includes 4) WPL W10122957 Contact Us For Availability

Shelf, Wire WPL W10154843 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $46.04

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.70

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Lamp Holder WPL 2180200 Contact Us For Availability

Nameplate WPL 2321226 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $157.80

Screw WPL W10029730 Contact Us For Availability

Light Lens WPL W10154839 Contact Us For Availability

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

Cover, Evaporator WPL 2203841 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Screw WPL W10029760 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

WP2255432AP Whirlpool Refrigerator Dispenser Backorder WPL WP2255432AP $39.58

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $35.94

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Retainer, Bottle WPL 2173643K Contact Us For Availability

Grille (Apollo Grey) WPL 2198470AP Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

Bin Divider (3) WPL 2195496K Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

19

BLOCK BLADE WPL 2157405 Contact Us For Availability

20

2311631 Whirlpool Refrigerator Rod Backorder WPL 2311631 $9.81

20

WPW10318948 Whirlpool Wire Shelf In Stock WPL WPW10318948 $111.89

20

Roll Pin WPL 489229 Contact Us For Availability

21

W10422851 Whirlpool Ice Maker Bucket Auger In Stock WPL W10422851 $97.41

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

21

Fastener, Push-On WPL 489285 Contact Us For Availability

22

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

22

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

22

Extension Tube WPL 2304937 Contact Us For Availability

2311615 Whirlpool Refrigerator Knob In Stock WPL 2311615 $30.73

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

Clamp WPL 2161324 Contact Us For Availability

Motor (Not Serviced, Order 21) WPL ARI20924A1 Contact Us For Availability

24

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

24

Spacer, Switch (2) WPL 625834 Contact Us For Availability

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

26

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

26

Spring, Return WPL 1119020 Contact Us For Availability

27

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

27

Retainer Clip, Rod WPL 1119021 Contact Us For Availability

29

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

30

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

Washer, Plain WPL 489234 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

33

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

35

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

40

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

45

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability

Valve, Access (5/16``) WPL 978026 Contact Us For Availability

Valve, Access (3/8``) WPL 978027 Contact Us For Availability

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability

100

WPW10190965 Whirlpool Refrigerator Ice Maker In Stock WPL WPW10190965 $54.18

100

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $219.89
