Model Speed Queen AWM593*-2200 Washer – Common Parts & Diagrams
Graphic Panel, Control Hood and Controls (Drawing 1 of 12)

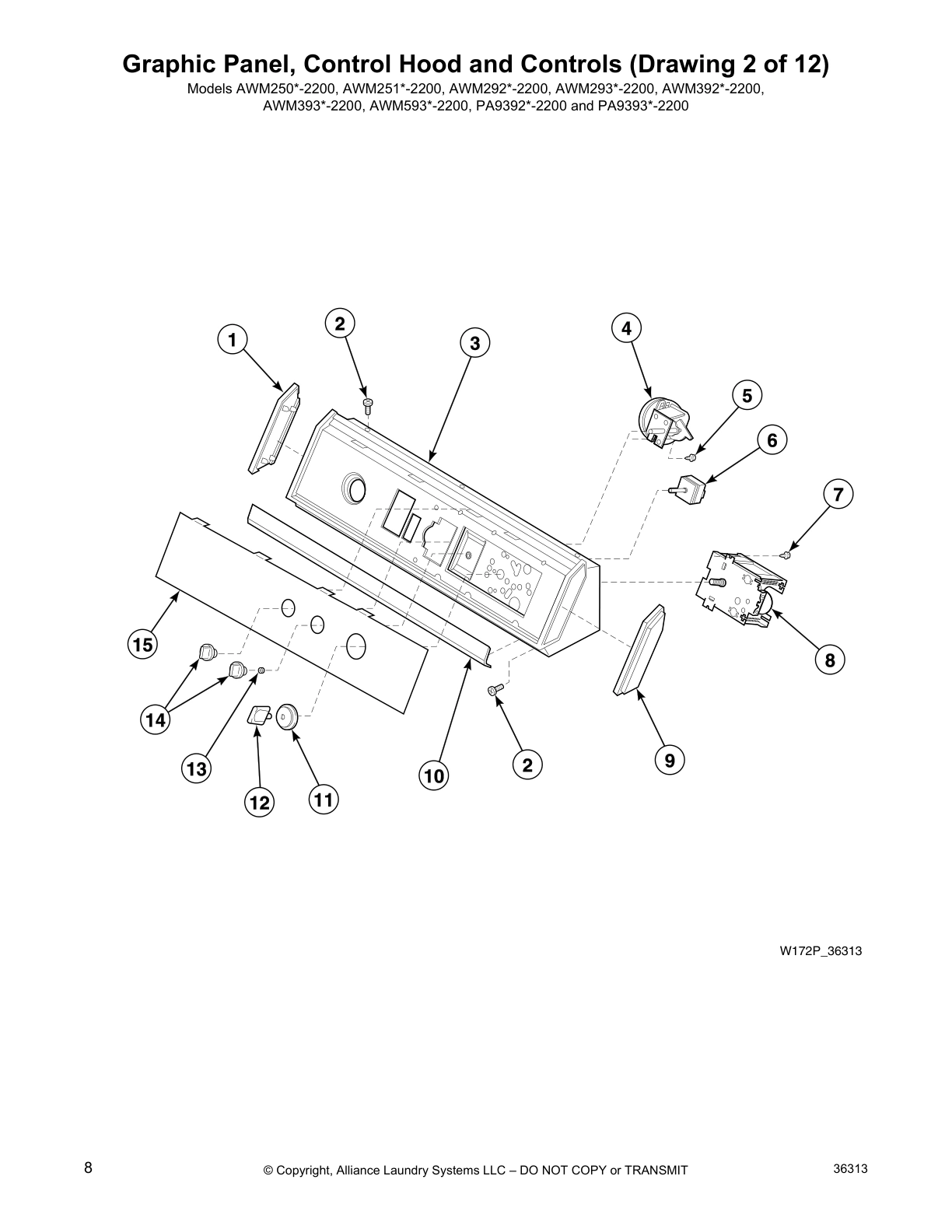

Graphic Panel, Control Hood and Controls (Drawing 2 of 12)
Graphic Panel, Control Hood and Controls (Drawing 3 of 12)
Graphic Panel, Control Hood and Controls (Drawing 4 of 12)
Graphic Panel, Control Hood and Controls (Drawing 5 of 12)
Graphic Panel, Control Hood and Controls (Drawing 6 of 12)
Graphic Panel, Control Hood and Controls (Drawing 7 of 12)
Graphic Panel, Control Hood and Controls (Drawing 8 of 12)
Graphic Panel, Control Hood and Controls (Drawing 9 of 12)
Graphic Panel, Control Mounting Plate and Controls
(Drawing 1 of 2)
Graphic Panel, Control Mounting Plate and Controls
(Drawing 2 of 2)
Graphic Panel, Control Hood and Controls (Drawing 10 of 12)
Graphic Panel, Control Hood and Controls (Drawing 11 of 12)
Graphic Panel, Control Hood and Controls (Drawing 12 of 12)
Out-of-Balance Switch
Cabinet Top and Loading Door
Cabinet Top, Loading Door and Control Hood Rear Panel
Inlet Hose, Fill Hose and Mixing Valve Mounting Bracket
Mixing Valve Assembly
Agitator and Drive Bell
Clothes Guard, Washtub, Lint Filter and Hub
Motor, Mounting Bracket, Belt, Pump and Idler Assembly
Motor, Mounting Bracket, Belts and Idler Assembly
Outer Tub, Cover and Pressure Hose
Direct Drive Pump with Plastic Drain Hose and Siphon Break Kit
Belt Drive Pump with Plastic Drain Hose and Siphon Break Kit
Belt Drive Pump with Rubber Drain Hose and Siphon Break Kit
Electric Drain Pump with Rubber Drain Hose and Siphon Break Kit
Electric Drain Pump with Plastic Drain Hose and Siphon Break Kit
Electric Drain Pump
Bearing Housing, Brake, Pulley and Pivot Dome
Transmission Assembly and Balance Ring
34526P Transmission Assembly
Front Panel, Base and Cabinet Assembly
Terminal Block and Hardware
Connection Blocks, Terminals and Terminal Extractor Tool
Special Tools (Drawing 1 of 2)
Special Tools (Drawing 2 of 2)
Power Cord and Terminals
Wire Harnesses and Wires
Common parts from model Speed Queen AWM593*-2200 Washer
2
Screw SPQ 31752 Contact Us For Availability
3
Tub Cover Kit SPQ 36025P Contact Us For Availability
5
Spring Installer SPQ 242P4 Contact Us For Availability
6
Drain Hose SPQ 39953 Contact Us For Availability
11
Top Shield SPQ 39744 Contact Us For Availability
12
Pump Assembly SPQ 31969 Contact Us For Availability
27
Capacitor Kit SPQ 39666 Contact Us For Availability
× ![]()
