Model Maytag ADB1400PYW1 DISHWASHER – Common Parts & Diagrams

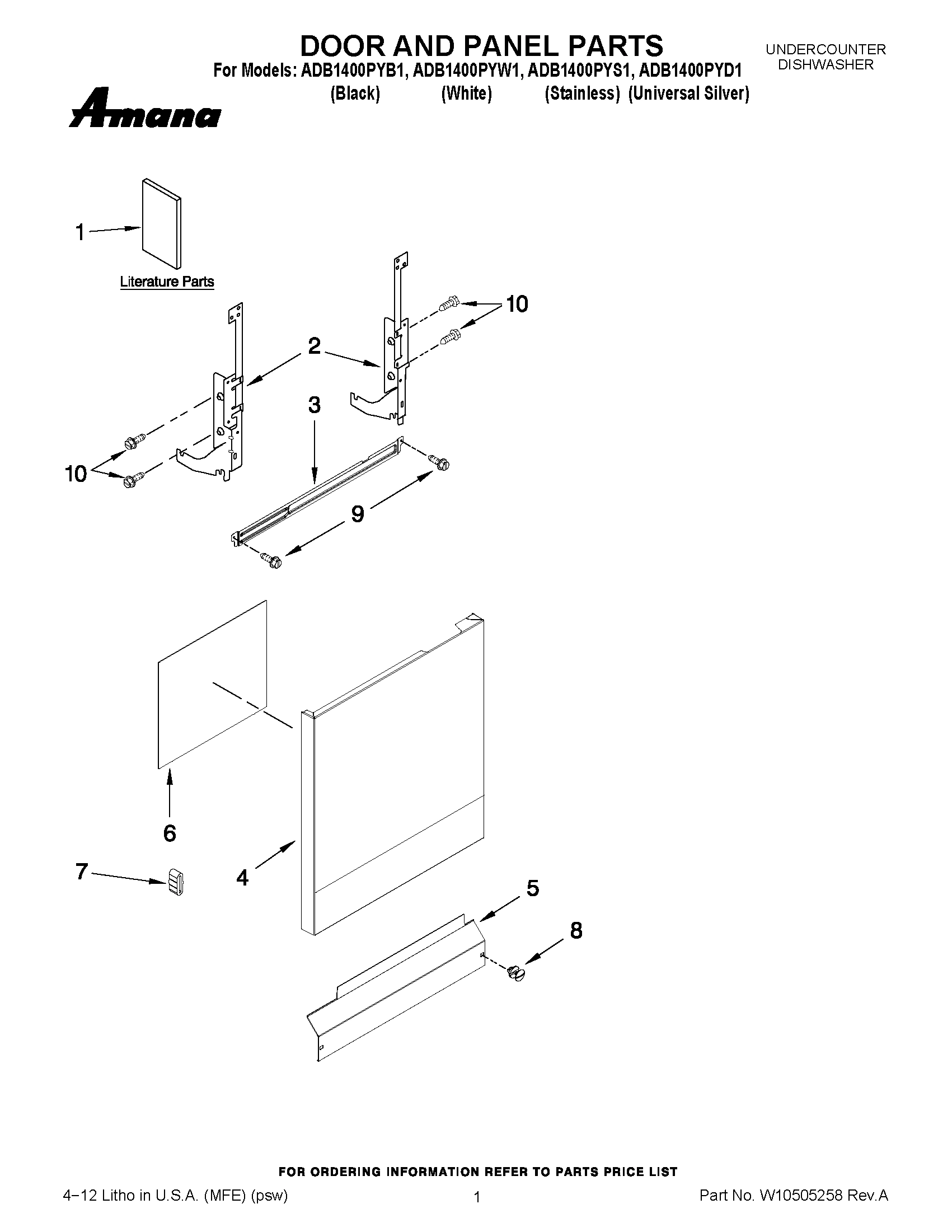

01 - DOOR AND PANEL PARTS

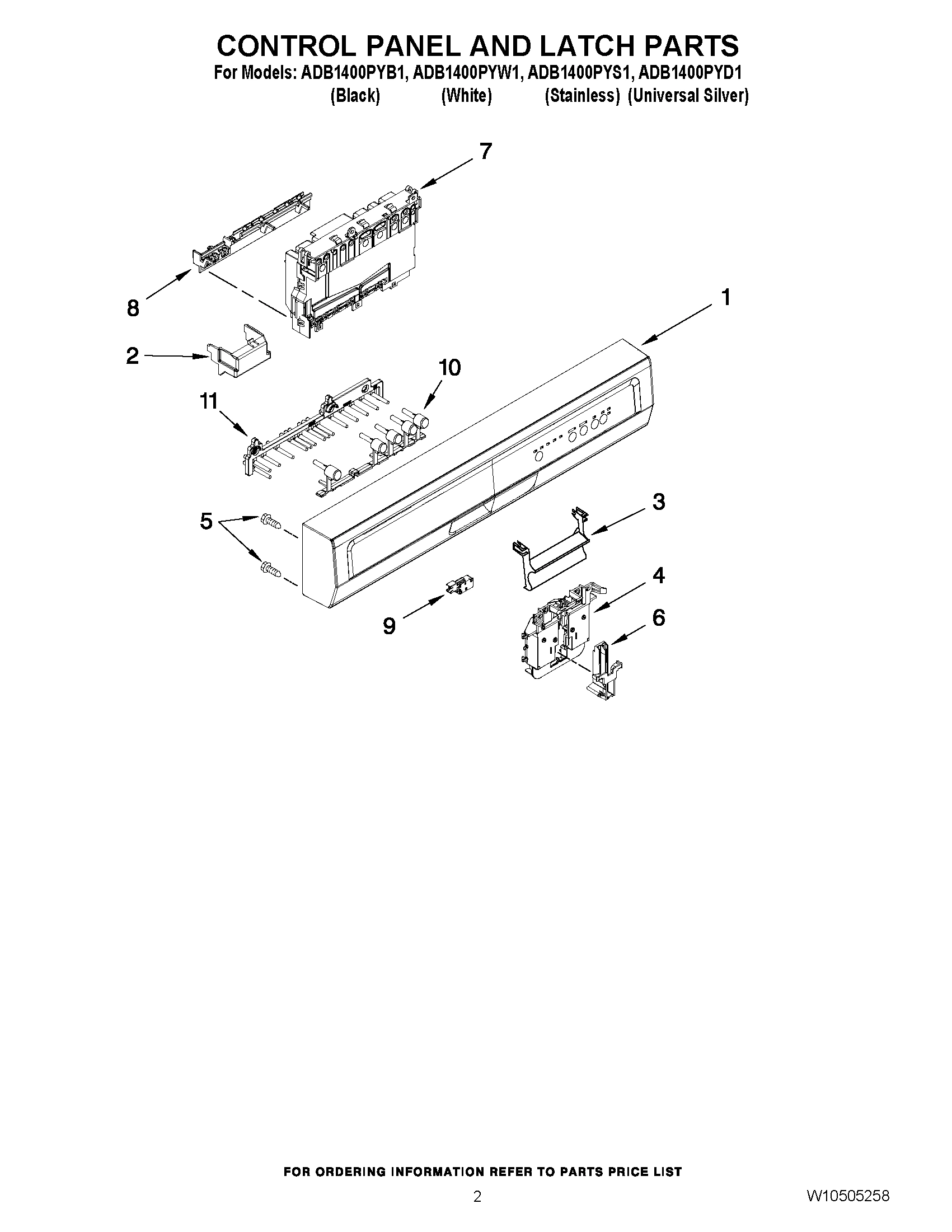

02 - CONTROL PANEL AND LATCH PARTS

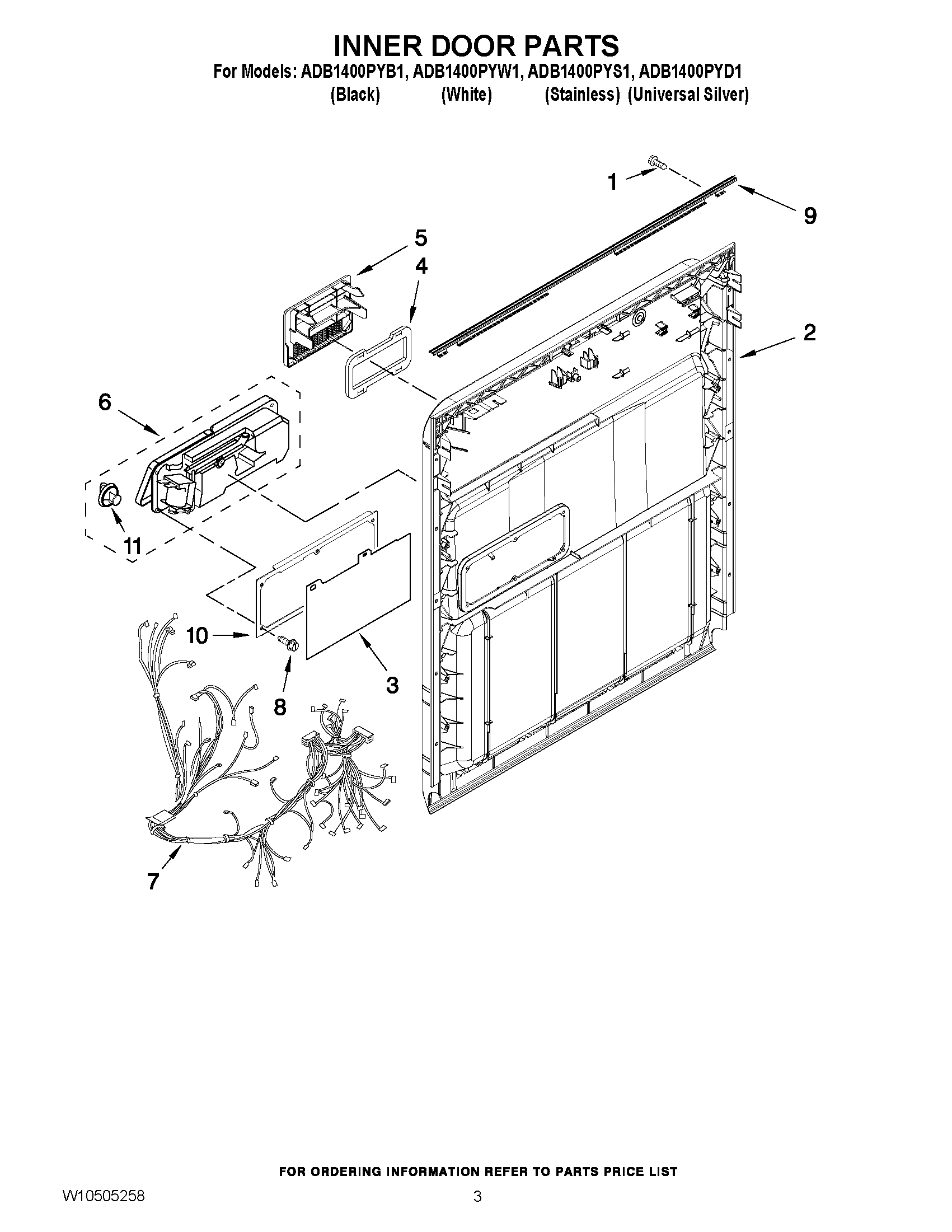

03 - INNER DOOR PARTS

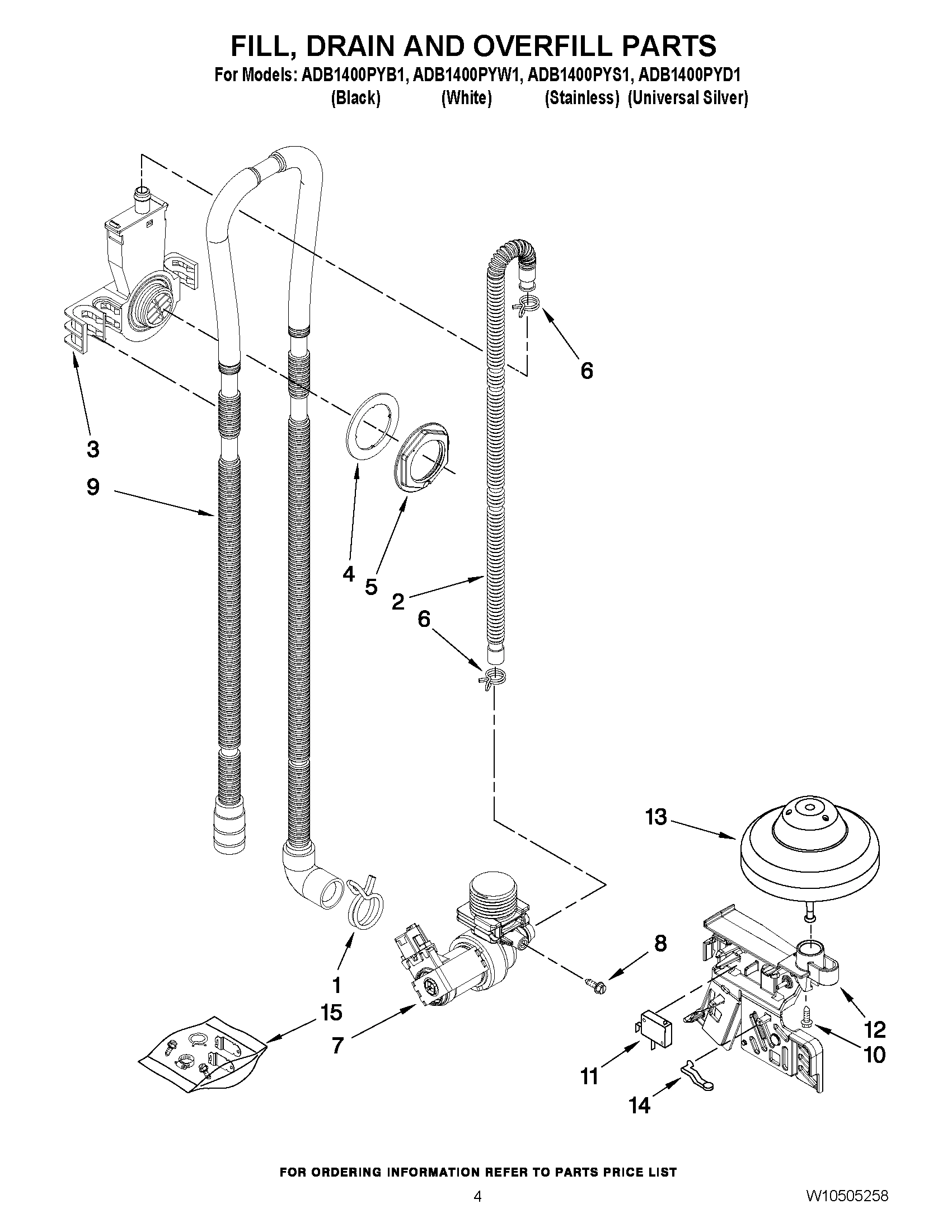

04 - FILL, DRAIN AND OVERFILL PARTS

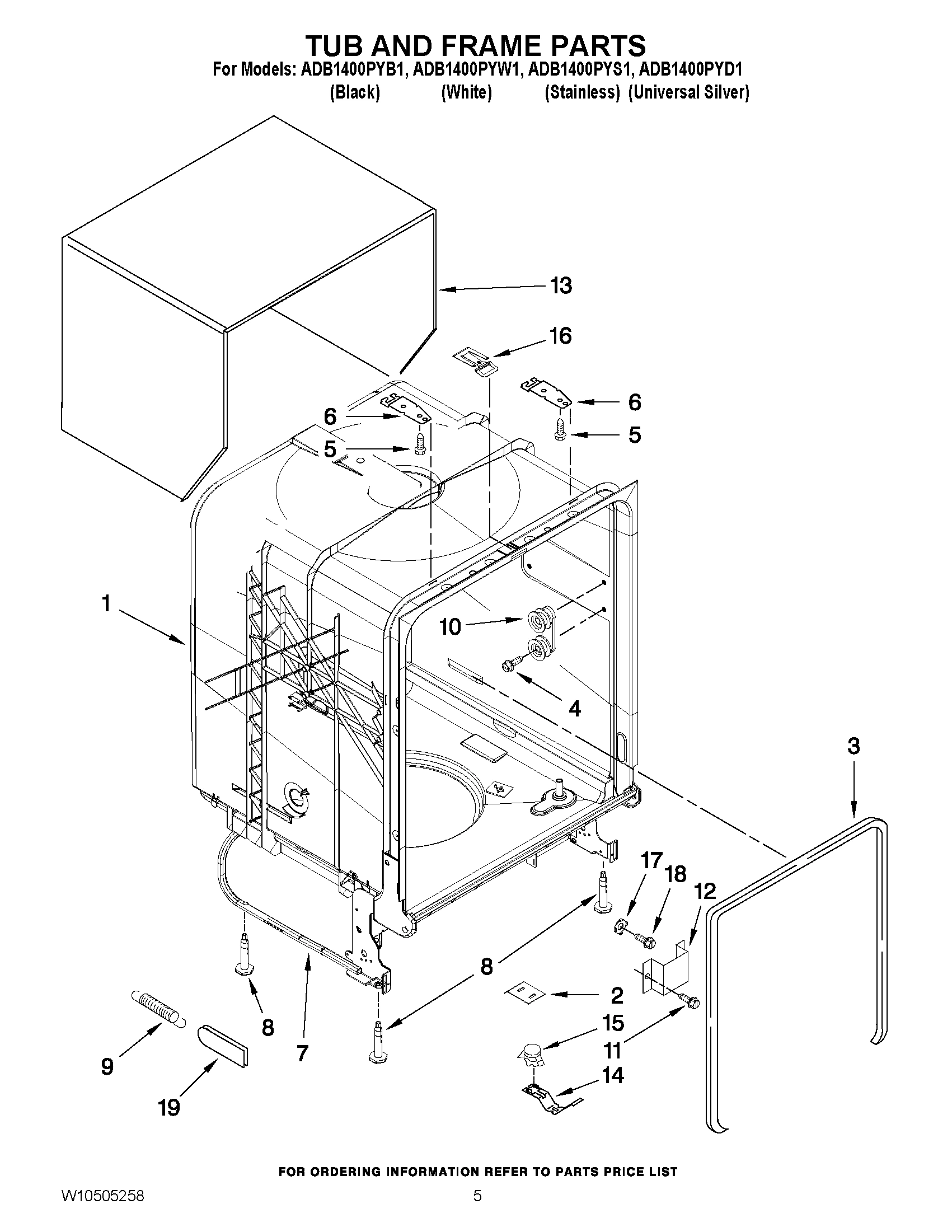

05 - TUB AND FRAME PARTS

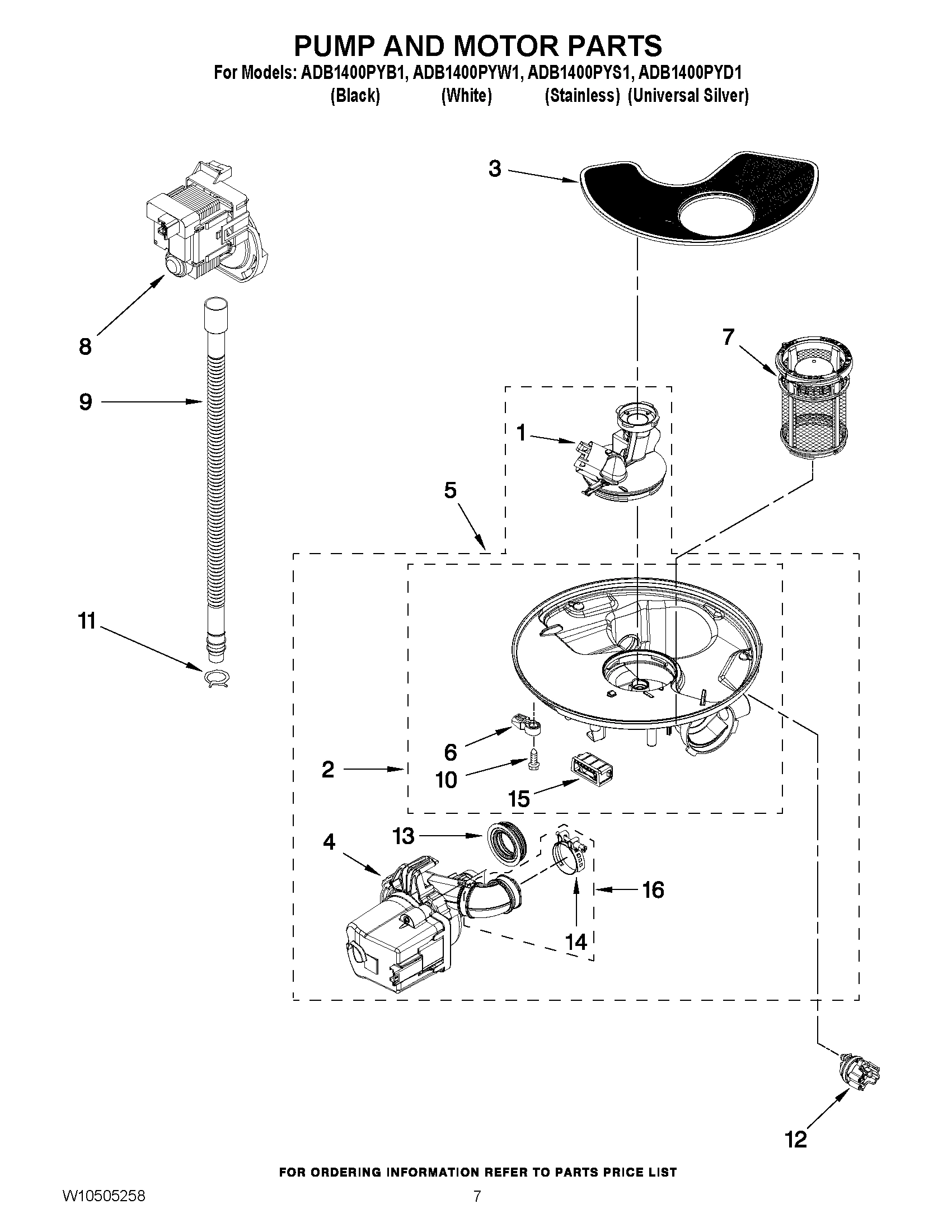

06 - PUMP AND MOTOR PARTS

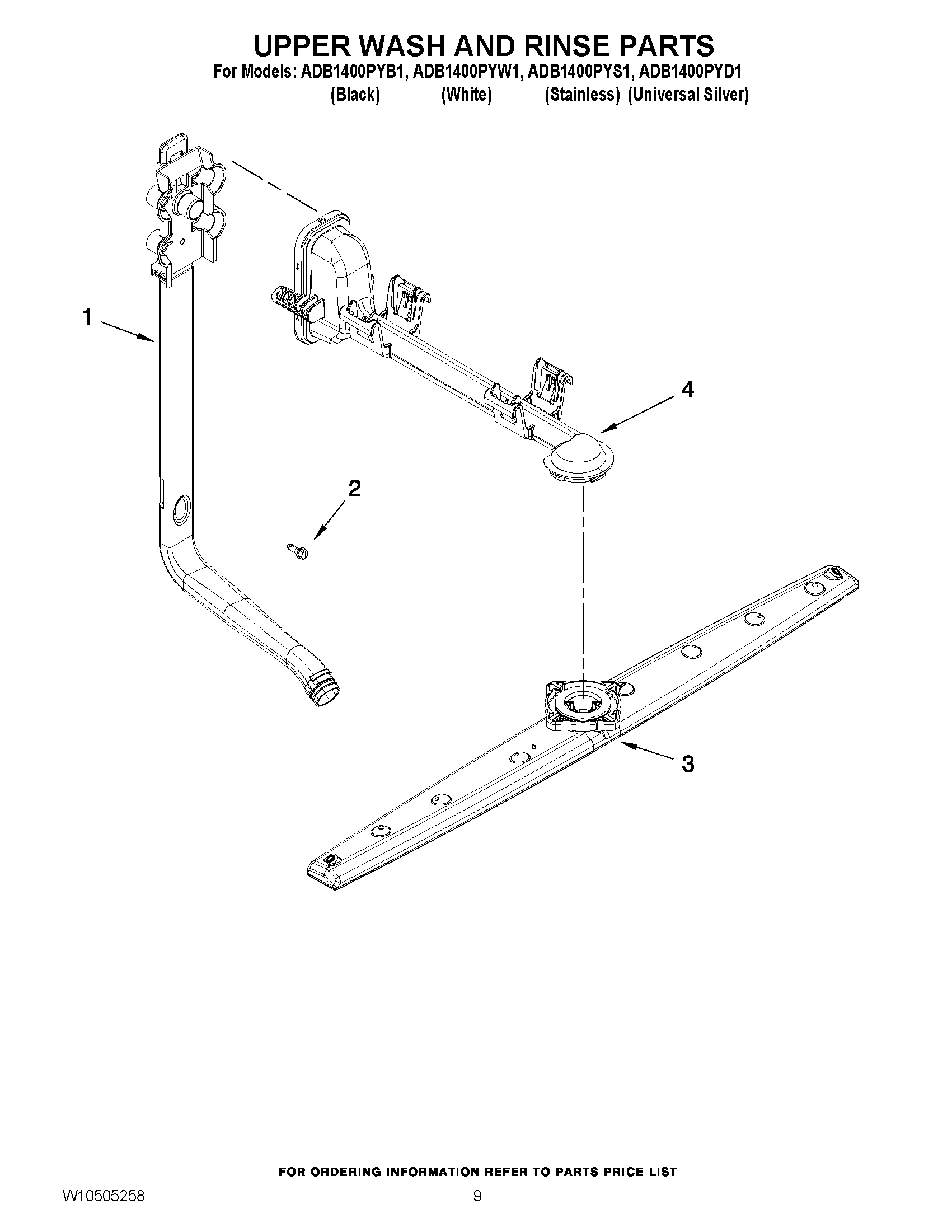

07 - UPPER WASH AND RINSE PARTS

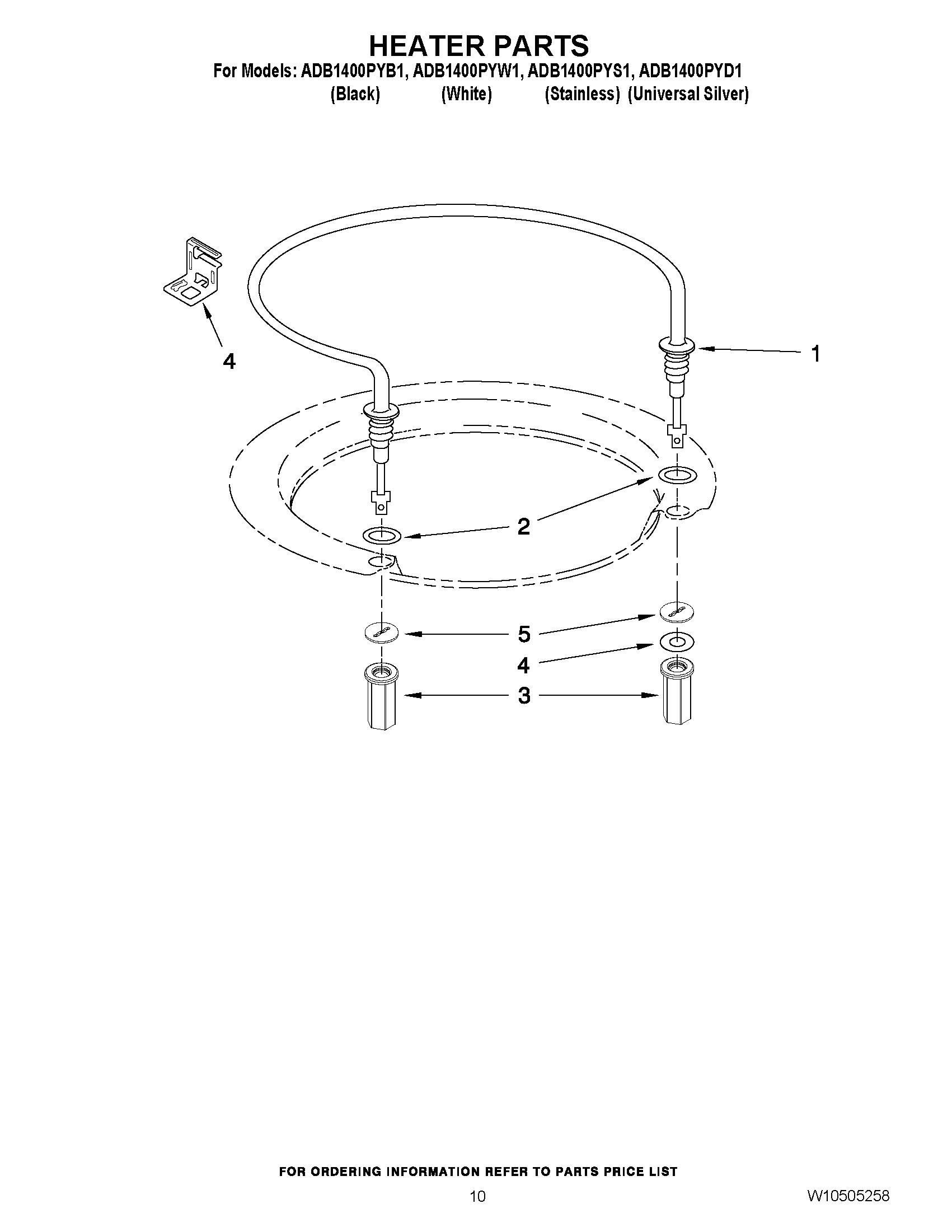

08 - HEATER PARTS

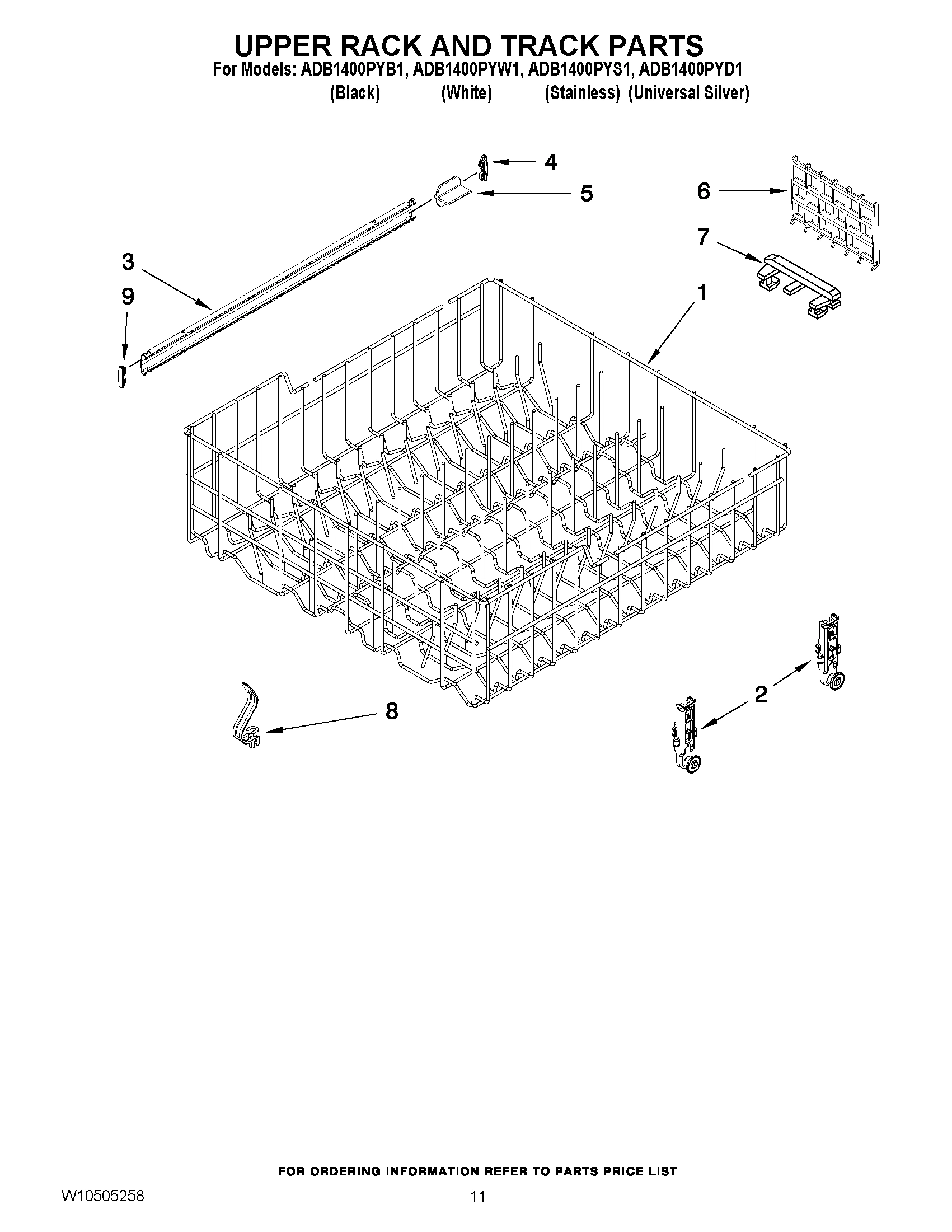

09 - UPPER RACK AND TRACK PARTS

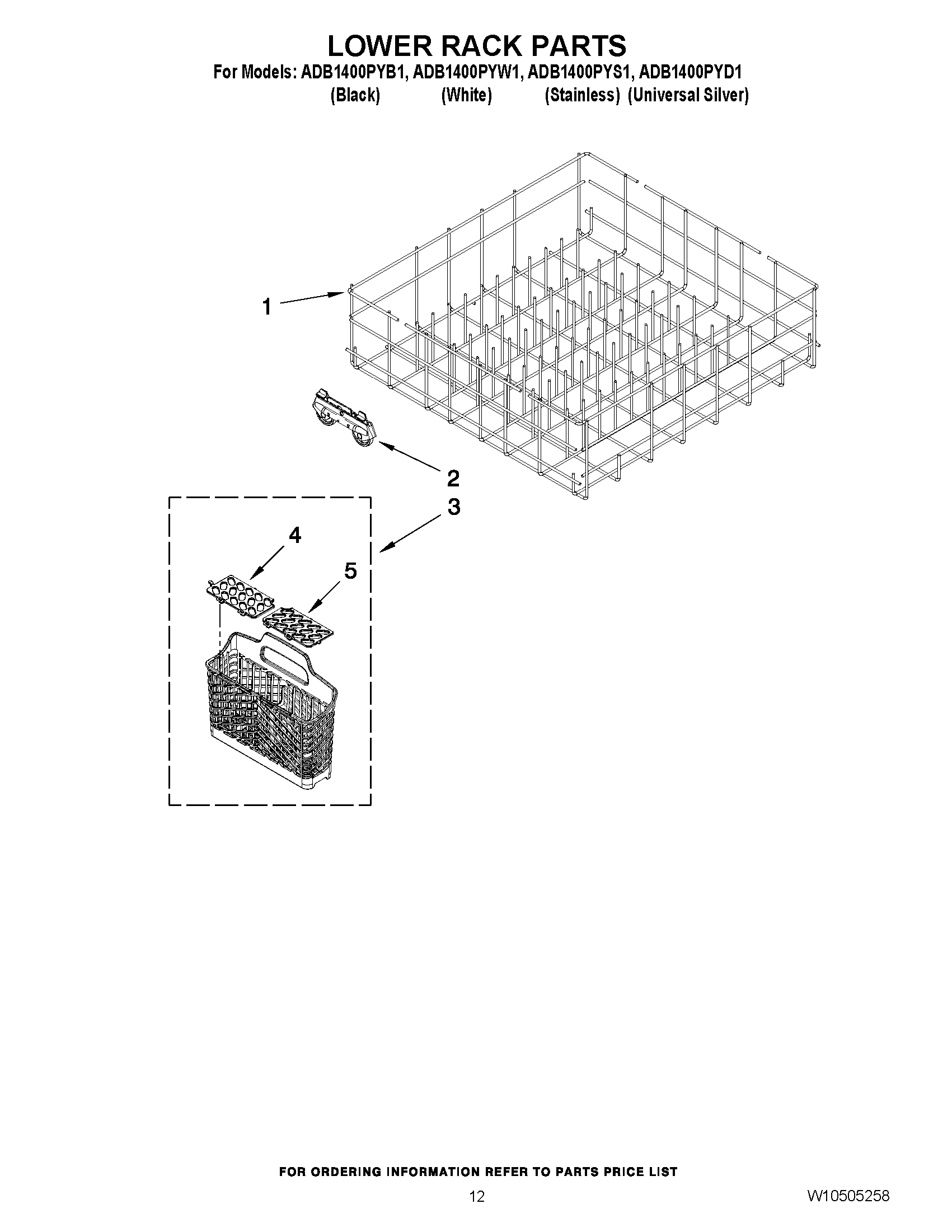

10 - LOWER RACK PARTS

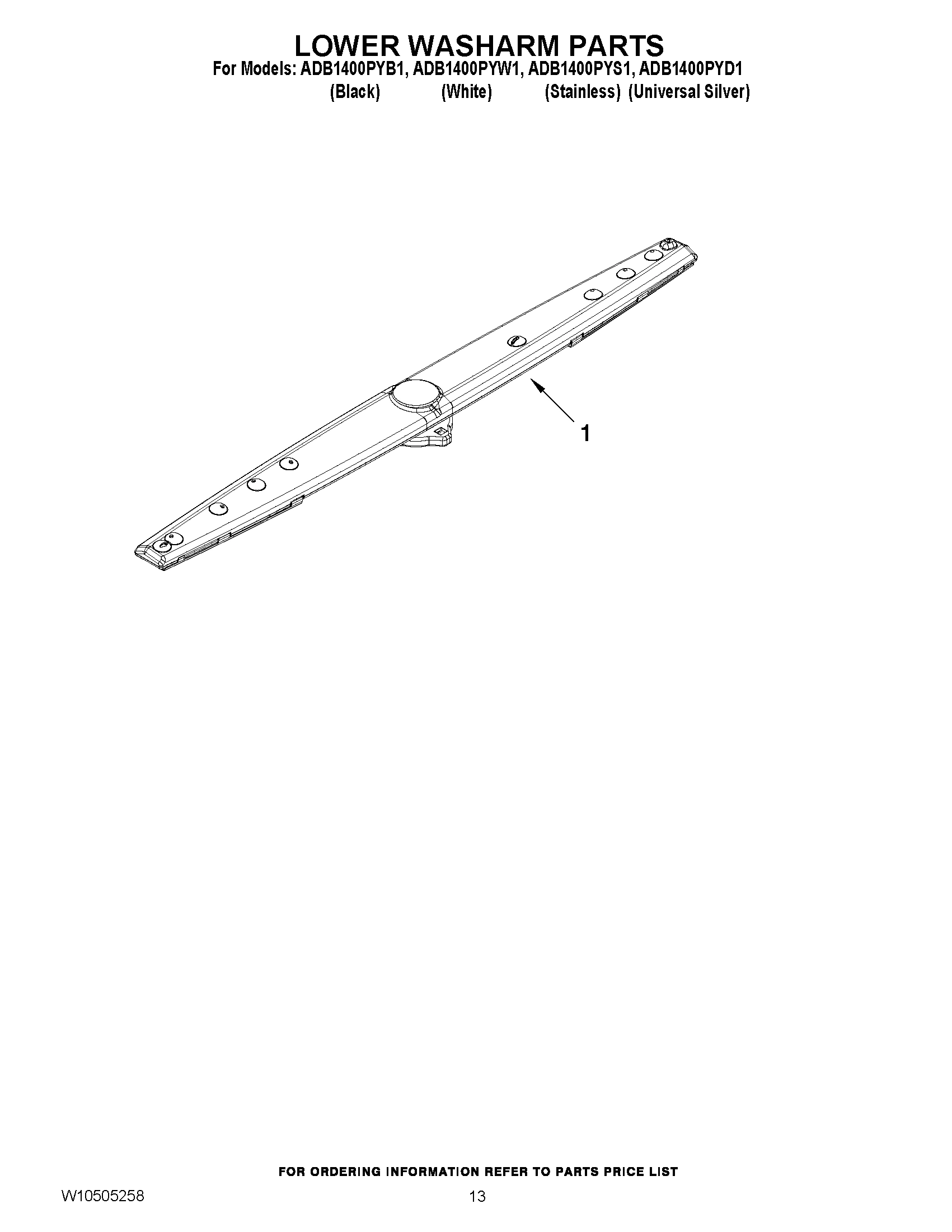

11 - LOWER WASHARM PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag ADB1400PYW1 DISHWASHER
1
MAY W10321977 MAY W10321977 Contact Us For Availability
1
USE & CARE GUIDE MAY W10380253 Contact Us For Availability
1
INSTALLATION INSTRUCTIONS MAY W10435040 Contact Us For Availability
1
MAY W10447872 MAY W10447872 Contact Us For Availability
1
MAY W10475842 MAY W10475842 Contact Us For Availability
1
CONSOLE ASSEMBLY (BLACK) MAY W10447856 Contact Us For Availability
1
CONSOLE ASSEMBLY (WHITE) MAY W10447857 Contact Us For Availability
1
SCREW, DOOR MAY W10348413 Contact Us For Availability
1
MAY W10349290 MAY W10349290 Contact Us For Availability
1
MAY W10455271 MAY W10455271 Contact Us For Availability
1
FEED TUBE MAY W10340747 Contact Us For Availability
1
MAY W10134009 MAY W10134009 Contact Us For Availability
1
MAY W10164198 MAY W10164198 Contact Us For Availability
1
LOWER RACK MAY 8561705 Contact Us For Availability
1
MAY W10319027 MAY W10319027 Contact Us For Availability
2
MAY W10274921 MAY W10274921 Contact Us For Availability
2
MAY W10274922 MAY W10274922 Contact Us For Availability
2
MAY W10401190 MAY W10401190 Contact Us For Availability
2
INNER DOOR (ALSO ORDER ITEM 4) MAY W10254547 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
SHIELD, THERMOSTAT MAY W10339699 Contact Us For Availability
2
MAY W10482462 MAY W10482462 Contact Us For Availability
2
MAY W10165274 MAY W10165274 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
MOUNT WHEEL STATIONARY MAY 8575281 Contact Us For Availability
2
WHEEL & TRANSPORT ASSEMBLY MAY 8268645 Contact Us For Availability
3
STIFFENER, DOOR MAY W10195120 Contact Us For Availability
3
MAY 8269323 MAY 8269323 Contact Us For Availability
3
MAY 8269324 MAY 8269324 Contact Us For Availability
3
MAY W10482094 MAY W10482094 Contact Us For Availability
3
MAY W10195536 MAY W10195536 Contact Us For Availability
3
MAY W10284090 MAY W10284090 Contact Us For Availability
3
MAY W10463906 MAY W10463906 Contact Us For Availability
3
MAY W10317197 MAY W10317197 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
TRACK, RACK MAY 3385089 Contact Us For Availability
3
SILVERWARE BASKET ASSEMBLY MAY W10321589 Contact Us For Availability
4
MAY W10274895 MAY W10274895 Contact Us For Availability
4
MAY W10274896 MAY W10274896 Contact Us For Availability
4
MAY W10274898 MAY W10274898 Contact Us For Availability
4
MAY W10274902 MAY W10274902 Contact Us For Availability
4
MAY W10274884 MAY W10274884 Contact Us For Availability
4
MAY W10254545 MAY W10254545 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10341745 MAY W10341745 Contact Us For Availability
4
MOTOR (ALSO ORDER ITEMS 13 & 16) MAY W10440714 Contact Us For Availability
4
MAY W10340683 MAY W10340683 Contact Us For Availability
4
MAY 8269262 MAY 8269262 Contact Us For Availability
4
TRACK, STOP NON-REMOVABLE MAY 8565920 Contact Us For Availability
4
LID, LEFT MAY W10321591 Contact Us For Availability
5
MAY W10441006 MAY W10441006 Contact Us For Availability
5
MAY W10441007 MAY W10441007 Contact Us For Availability
5
MAY W10254548 MAY W10254548 Contact Us For Availability
5
MAY 8531326 MAY 8531326 Contact Us For Availability
5
MAY 3367670 MAY 3367670 Contact Us For Availability
5
MAY W10482480 MAY W10482480 Contact Us For Availability
5
SHIELD, HEATER NUT MAY W10343251 Contact Us For Availability
5
MAY W10306228 MAY W10306228 Contact Us For Availability
5
LID, RIGHT MAY W10321592 Contact Us For Availability
6
INSULATION, DOOR PANEL MAY W10073520 Contact Us For Availability
6
MAY 8524471 MAY 8524471 Contact Us For Availability
6
MAY W10195411 MAY W10195411 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY 8269145 MAY 8269145 Contact Us For Availability
6
MAY W10372113 MAY W10372113 Contact Us For Availability
6
MAY 8268828 MAY 8268828 Contact Us For Availability
7
FRICTION SLEEVE MAY 8268961 Contact Us For Availability
7
MAY W10375805 MAY W10375805 Contact Us For Availability
7
MAY W10370883 MAY W10370883 Contact Us For Availability
7
MAY W10195047 MAY W10195047 Contact Us For Availability
7
SUPPORT ASSEMBLY, BOTTOM MAY W10304231 Contact Us For Availability
7
MAY W10393352 MAY W10393352 Contact Us For Availability
7
CLIP, CUPSHELF MAY 8268826 Contact Us For Availability
8
MAY W10331789 MAY W10331789 Contact Us For Availability
8
MAY W10331793 MAY W10331793 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
MAY W10372484 MAY W10372484 Contact Us For Availability
8
MAY W10177098 MAY W10177098 Contact Us For Availability
8
MAY 8524584 MAY 8524584 Contact Us For Availability
8
MAY 8558995 MAY 8558995 Contact Us For Availability
8
MAY W10286810 MAY W10286810 Contact Us For Availability
9
DOOR SWITCH MAY W10274880 Contact Us For Availability
9
MAY 8269296 MAY 8269296 Contact Us For Availability
9
MAY W10137608 MAY W10137608 Contact Us For Availability
9
MAY W10337934 MAY W10337934 Contact Us For Availability
9
MAY 8269144 MAY 8269144 Contact Us For Availability
9
TRACK, STOP REMOVABLE MAY W10082861 Contact Us For Availability
10
MAY 489470 MAY 489470 Contact Us For Availability
10
BUTTON TREE MAY W10274843 Contact Us For Availability
10
MAY W10462232 MAY W10462232 Contact Us For Availability
10
SCREW MAY 304231 Contact Us For Availability
10
MAY 8270016 MAY 8270016 Contact Us For Availability
10
MAY W10348407 MAY W10348407 Contact Us For Availability
11
LIGHT PIPE MAY W10274837 Contact Us For Availability
11
MAY 8533380 MAY 8533380 Contact Us For Availability
11
MAY 370445 MAY 370445 Contact Us For Availability
11
MAY W10195039 MAY W10195039 Contact Us For Availability
11
MAY 3400892 MAY 3400892 Contact Us For Availability
12
MAY W10316267 MAY W10316267 Contact Us For Availability
12
MAY 8268991 MAY 8268991 Contact Us For Availability
12
MAY W10134017 MAY W10134017 Contact Us For Availability
13
MAY W10345285 MAY W10345285 Contact Us For Availability
13
MAY 8573240 MAY 8573240 Contact Us For Availability
13
MAY W10195068 MAY W10195068 Contact Us For Availability
14
MAY W10195037 MAY W10195037 Contact Us For Availability
14
MAY 3378595 MAY 3378595 Contact Us For Availability
14
MAY W10169167 MAY W10169167 Contact Us For Availability
15
MISCELLANEOUS PARTS BAG (INCLUDES 2 SCREWS, 2 MAY W10292152 Contact Us For Availability
15
MAY W10339474 MAY W10339474 Contact Us For Availability
15
MAY W10195086 MAY W10195086 Contact Us For Availability
16
STRIKE, LATCH MAY 8580309 Contact Us For Availability
16
MAY W10445975 MAY W10445975 Contact Us For Availability
17
MAY 3378128 MAY 3378128 Contact Us For Availability
18
MAY 3400014 MAY 3400014 Contact Us For Availability
19
MAY 8268990 MAY 8268990 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (BISQUE/BISCUIT) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (BISQUE/BISCUIT) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (BISQUE/BIS MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396840 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ SILVER A MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR (TIP TINE REPAIR KIT (ENOUGH MAY 4396854 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ WHITE) MAY 676453 Contact Us For Availability
NI
DISHRACK REPAIR, VINYL TOUCH-UP (4OZ GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
× ![]()
