Model Whirlpool 8ED25PQXFW01 REFRIGERATOR – Common Parts & Diagrams
11 - CONTROL

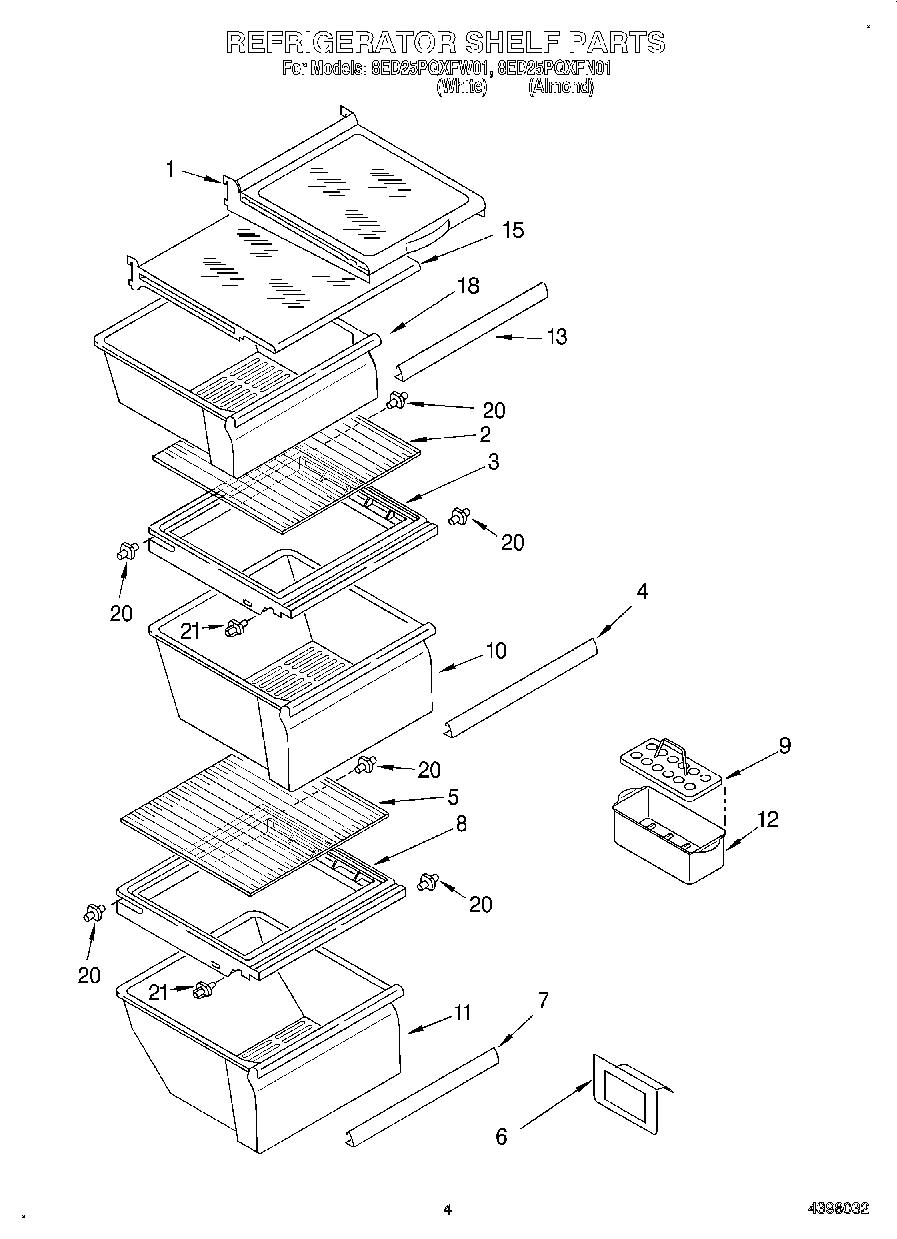

03 - REFRIGERATOR SHELF

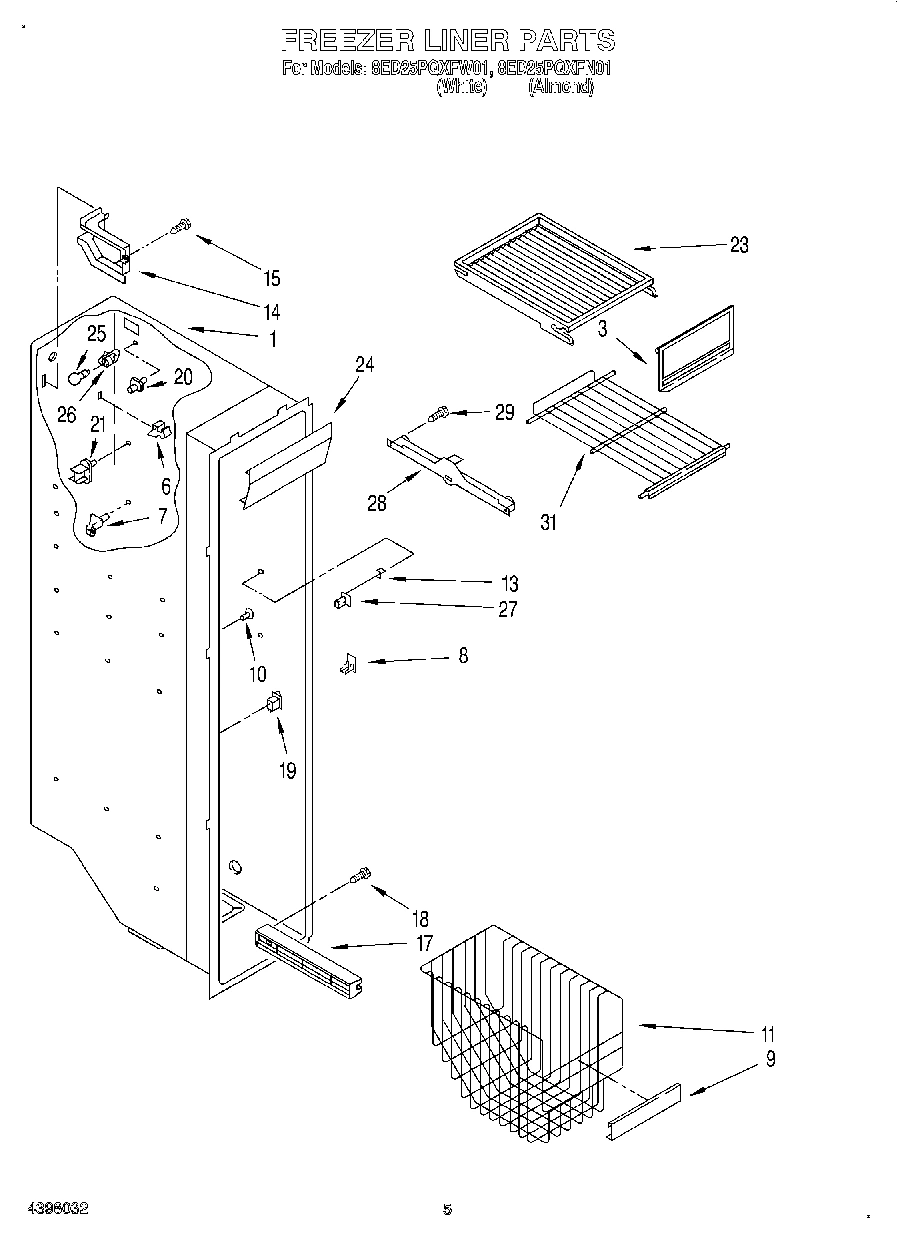

04 - FREEZER LINER

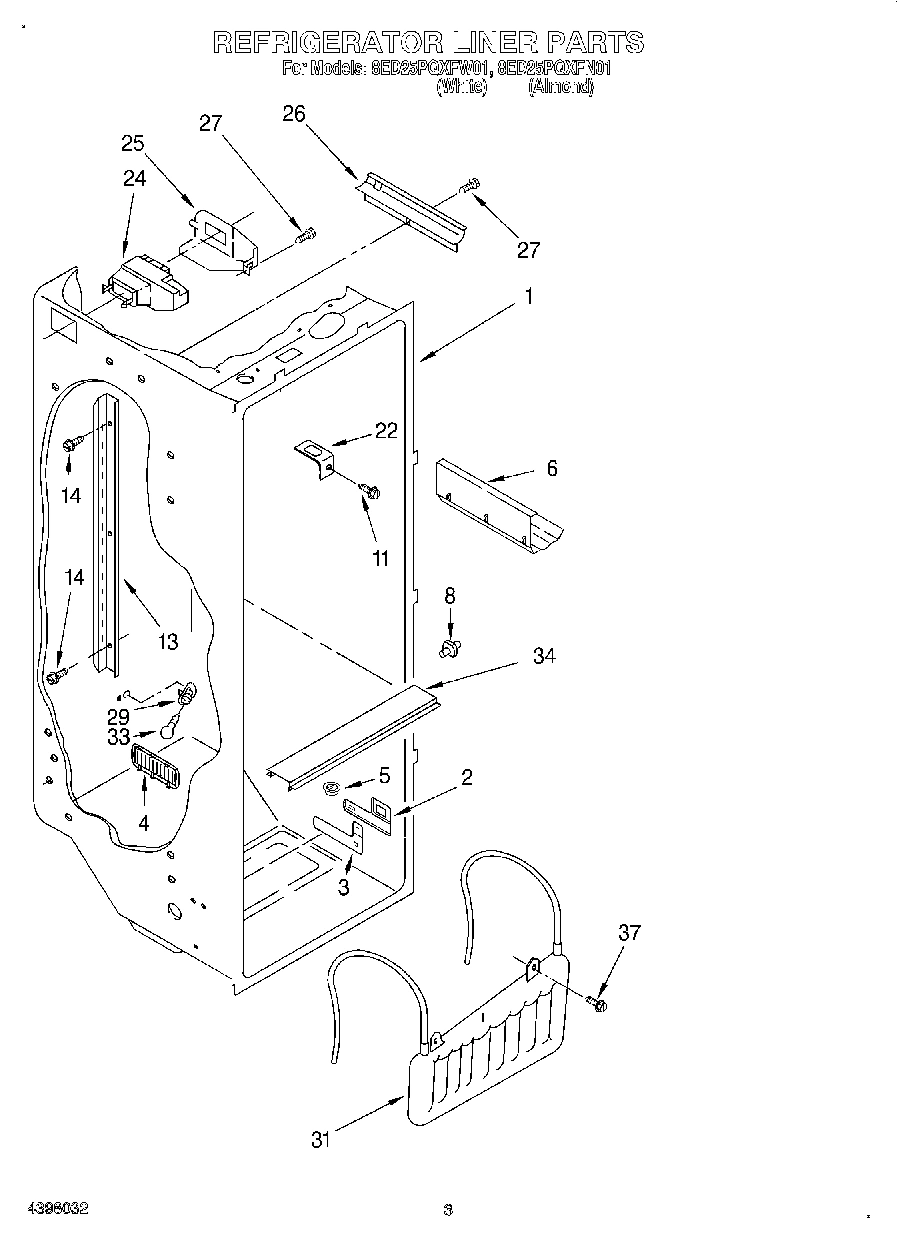

02 - REFRIGERATOR LINER
05 - MOTOR AND ICE CONTAINER

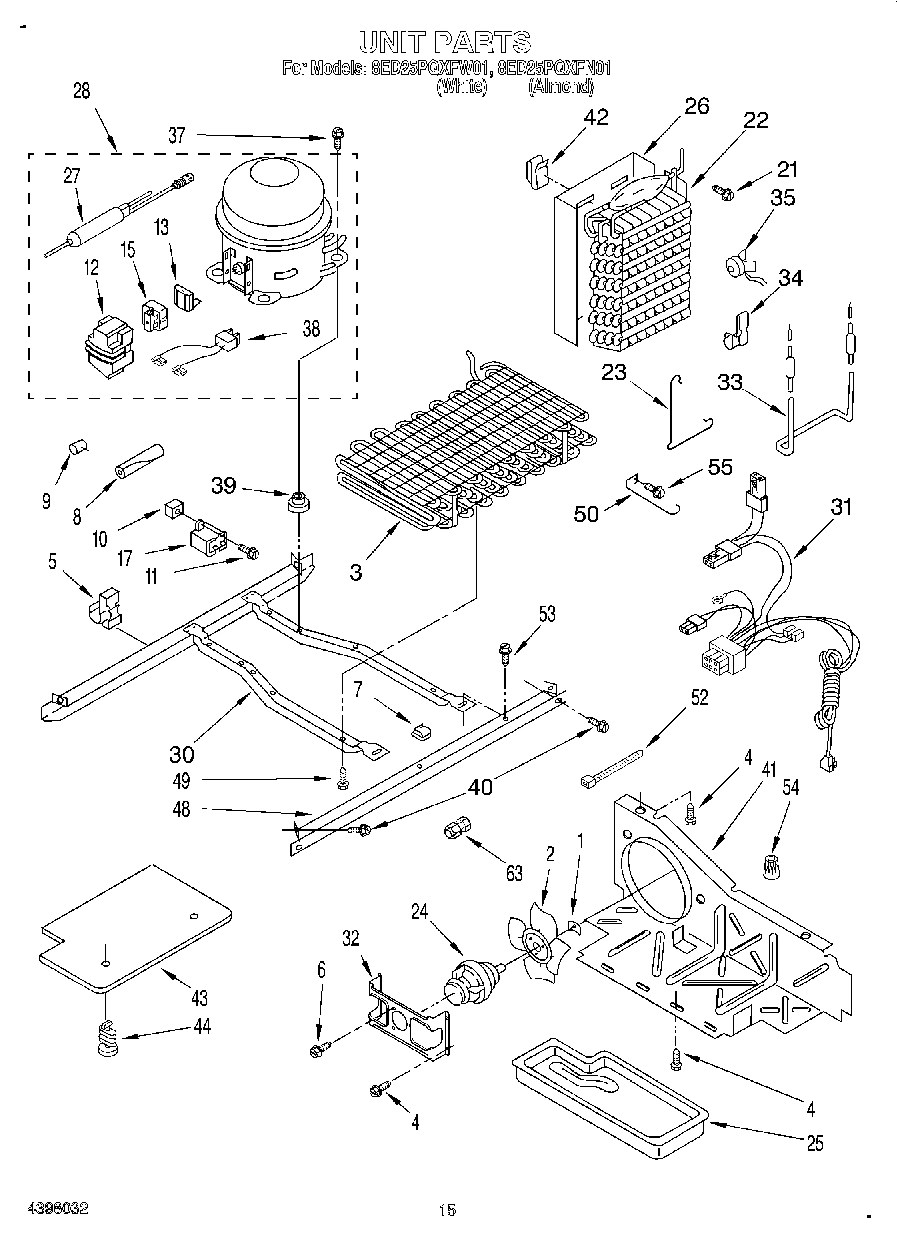

09 - UNIT

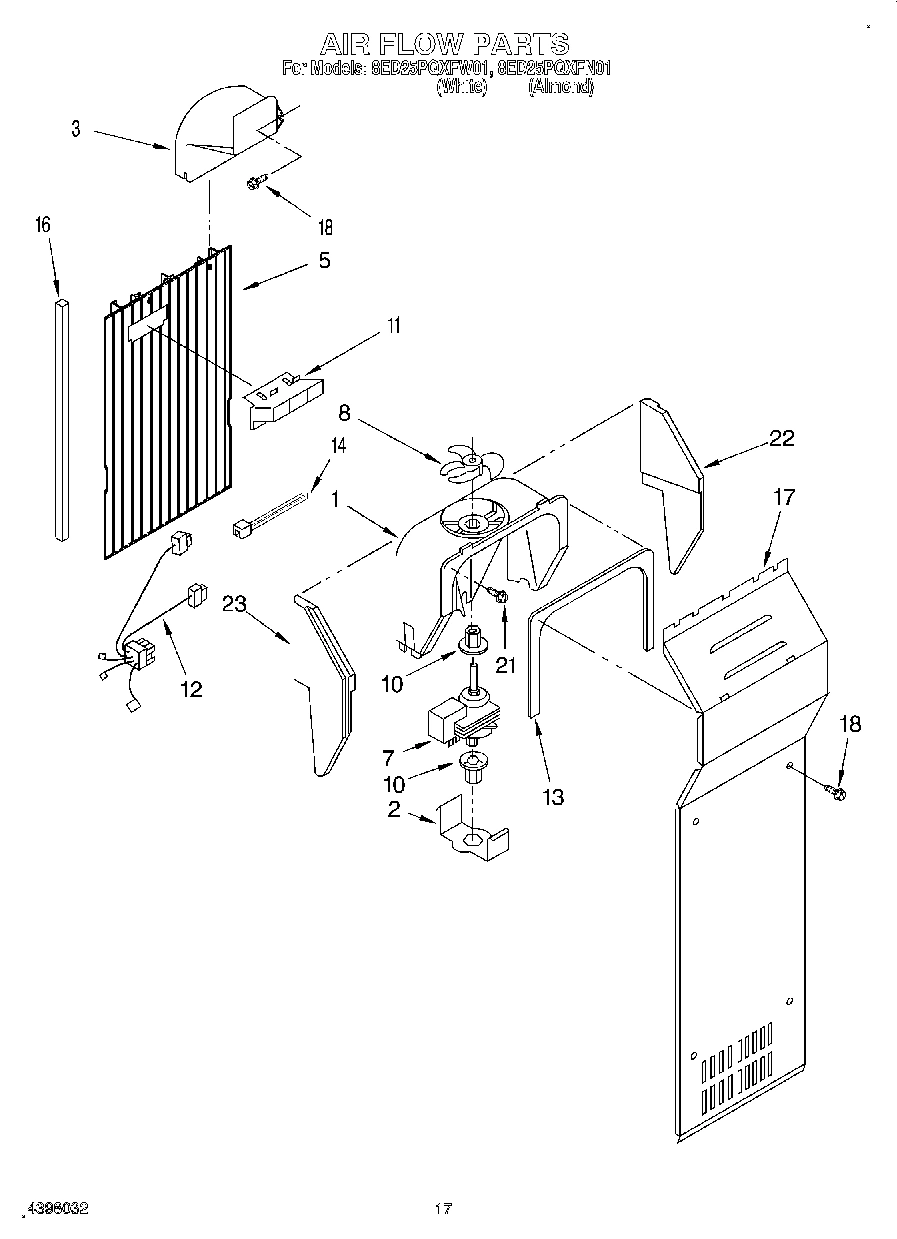

10 - AIR FLOW
12 - ICE MAKER, LIT/OPTIONAL
01 - CABINET

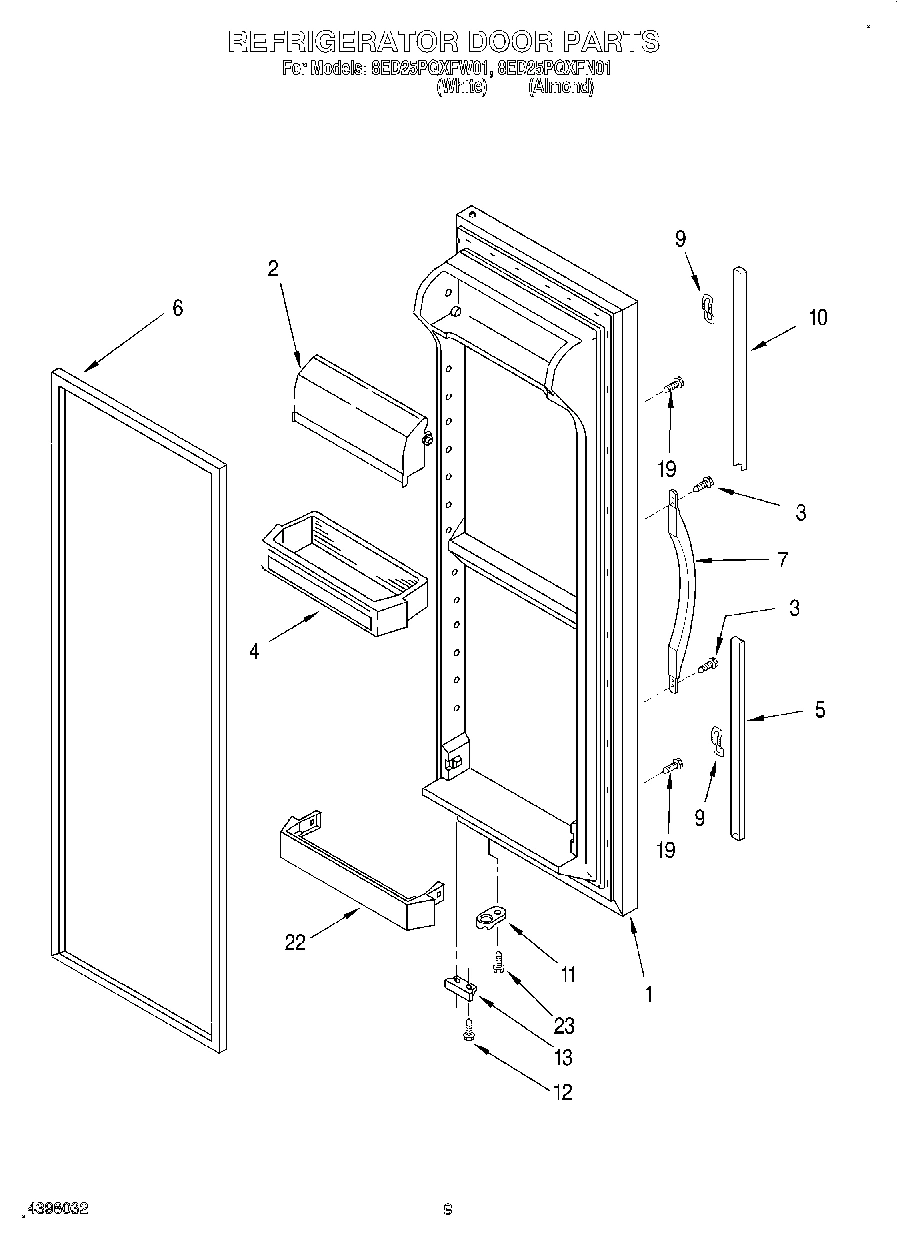

06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT

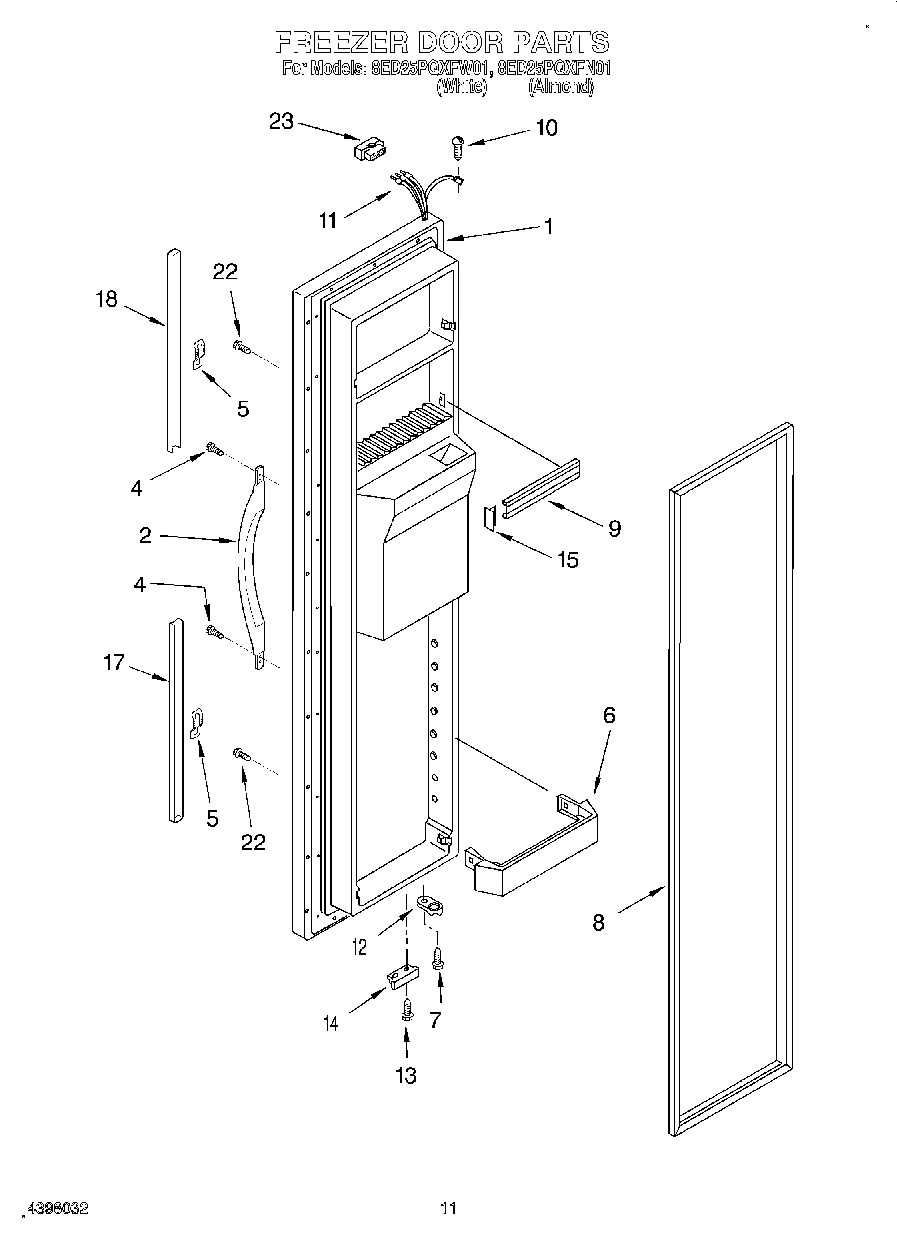

07 - FREEZER DOOR
Common parts from model Whirlpool 8ED25PQXFW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2194509N Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2194509W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI18352A1 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2197990N Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2197990W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Shelf Bin (3) WPL 2194917 Contact Us For Availability
5
Extension, Handle (White) WPL 2194969W Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2194501 Contact Us For Availability
7
Handle, Center (White) WPL 2186649W Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2183787W Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability
11
Wire Harness WPL 2183713 Contact Us For Availability
13
Bracket, Door Stop WPL 2195950 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
17
Extension, Handle (Almond) WPL 2194969N Contact Us For Availability
18
Extension, Handle (Almond) WPL 2194973N Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2197719N Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2197719W Contact Us For Availability
20
Wire Assembly WPL 2180331 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI18353A2 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2197848N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2197848W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI18349A4 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
KIT, WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
