Model Whirlpool 8ED25PQXDN00 REFRIGERATOR – Common Parts & Diagrams
05 - MOTOR AND ICE CONTAINER
06 - REFRIGERATOR DOOR

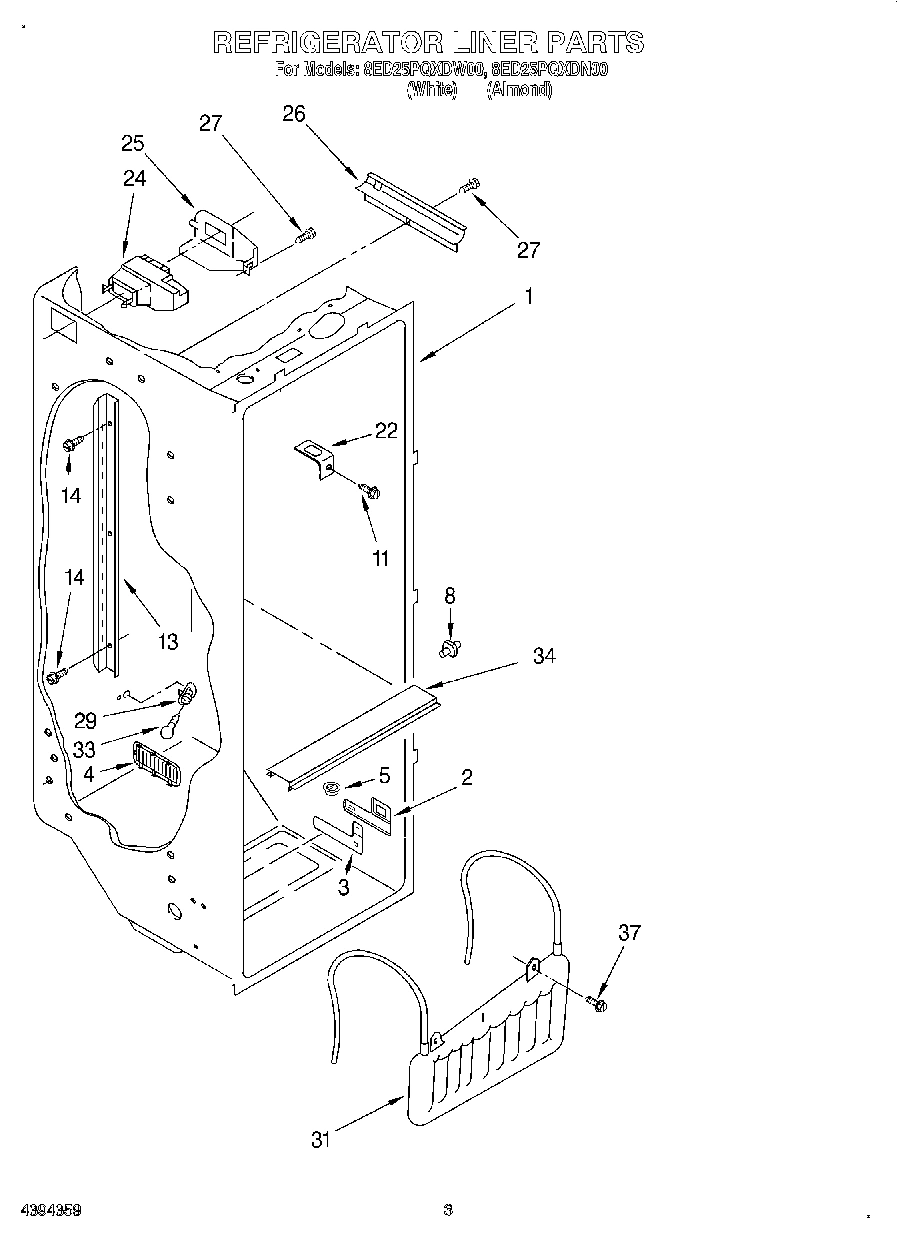

02 - REFRIGERATOR LINER
09 - UNIT

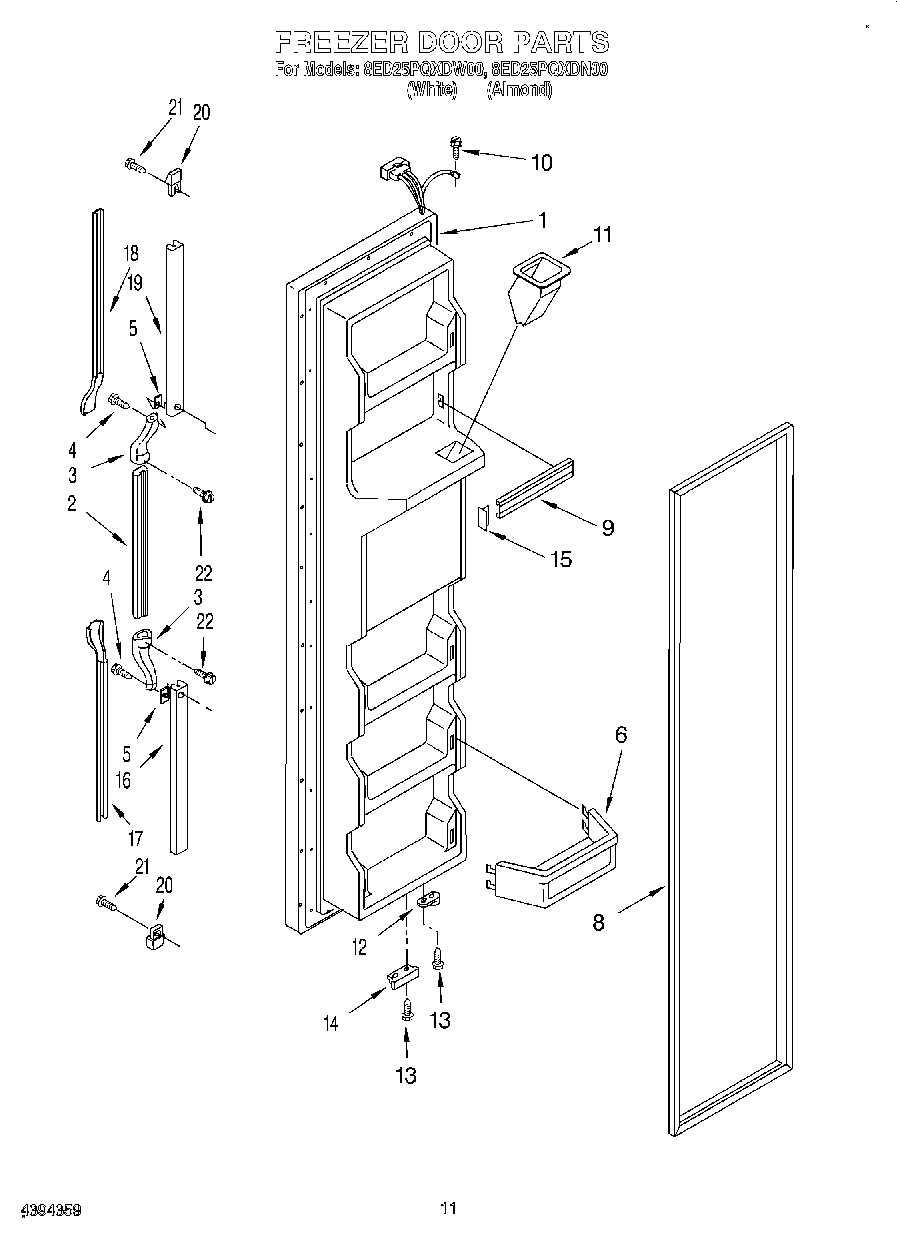

07 - FREEZER DOOR

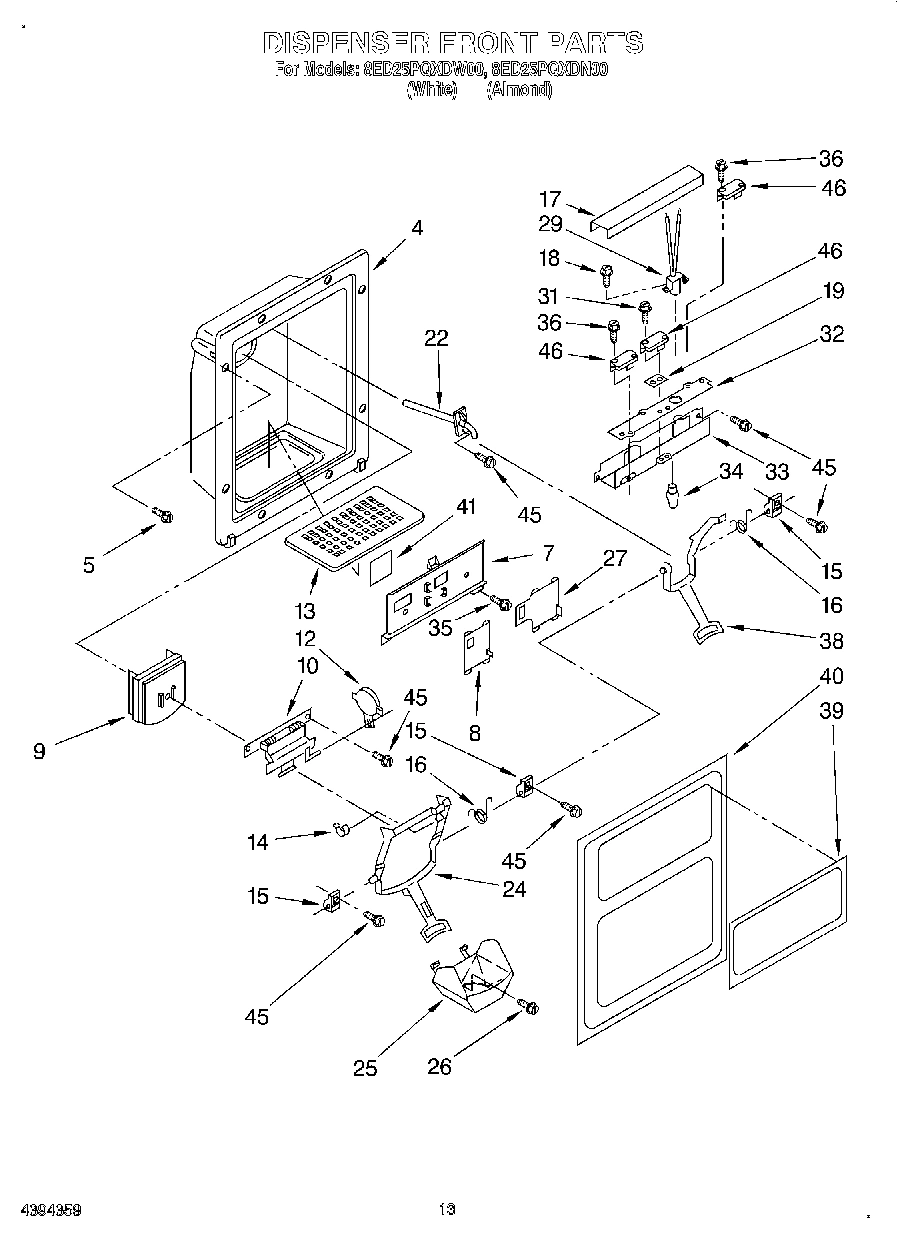

08 - DISPENSER FRONT

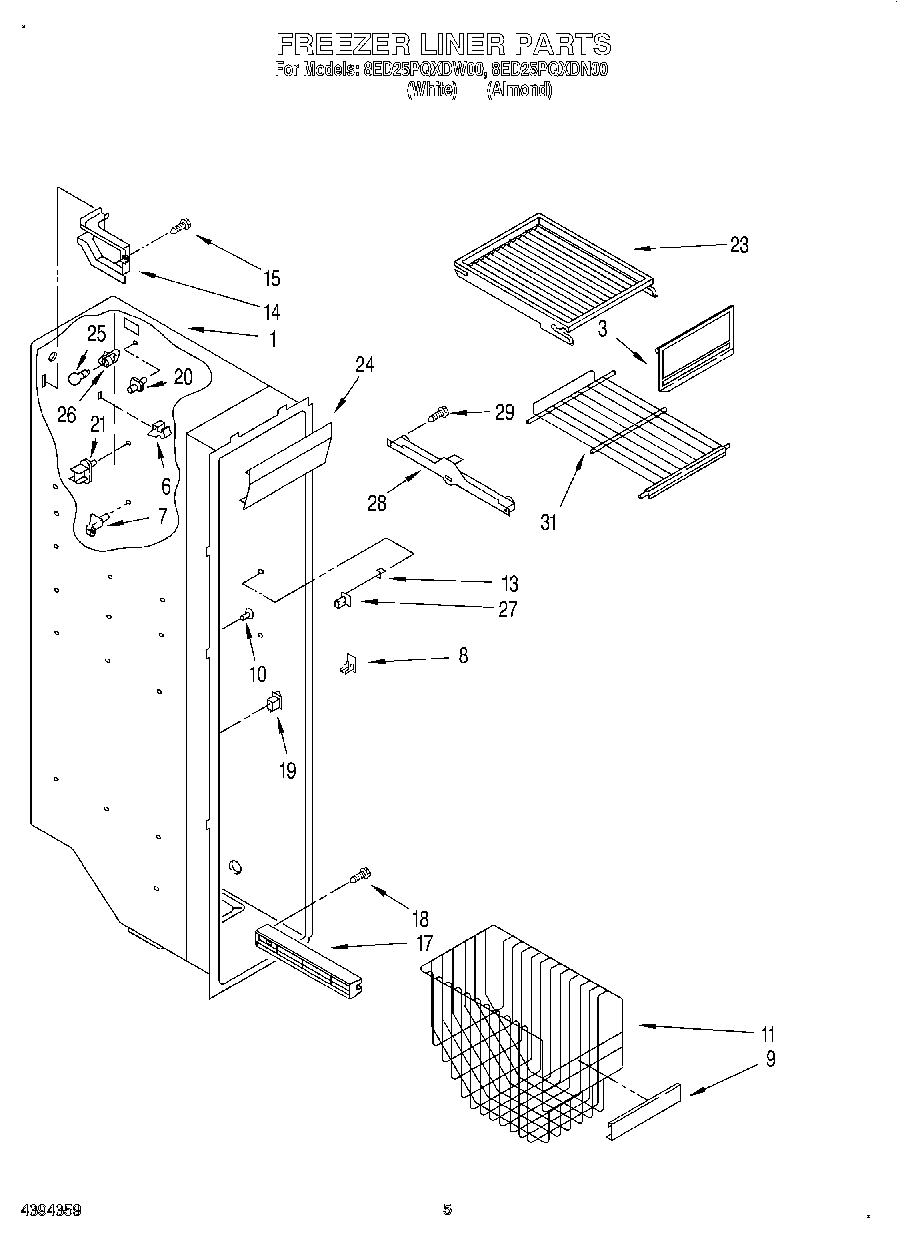

04 - FREEZER LINER

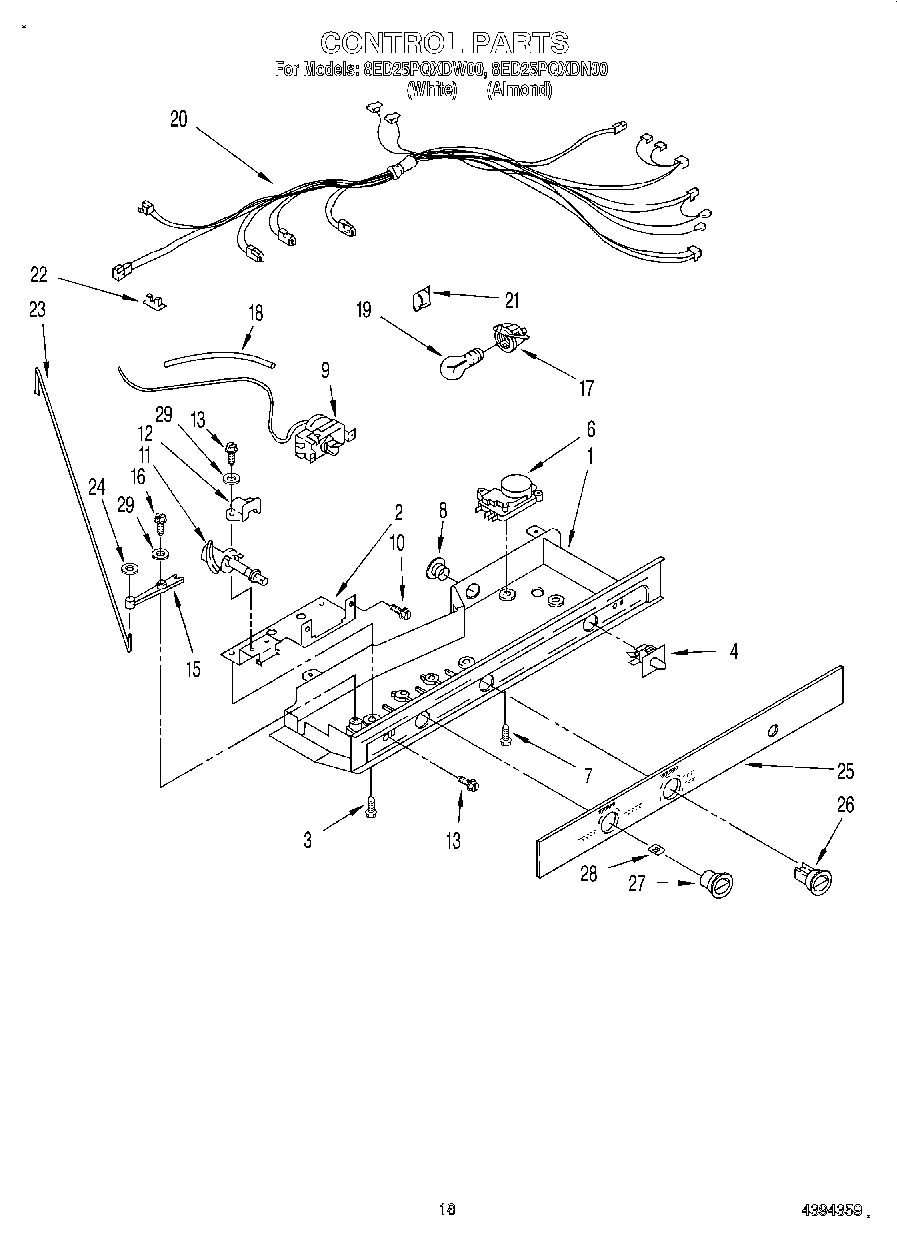

11 - CONTROL

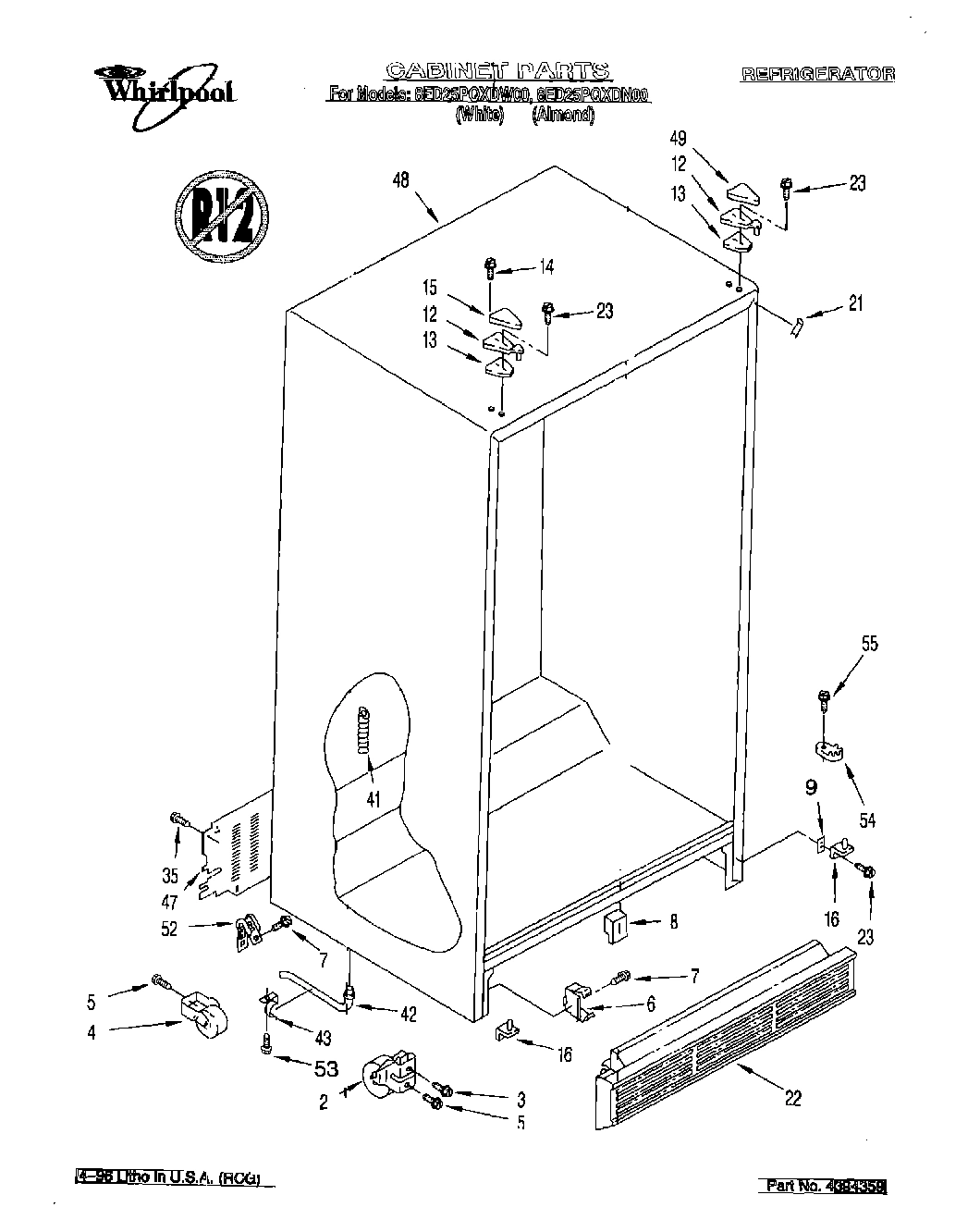

01 - CABINET
03 - REFRIGERATOR SHELF
10 - AIR FLOW
12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool 8ED25PQXDN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2173748 WPL LIT2173748 Contact Us For Availability
WPL LIT2182518 WPL LIT2182518 Contact Us For Availability
WPL LIT2182955 WPL LIT2182955 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2180583 Contact Us For Availability
1
Freezer Door (Includes Item 8 And Dispenser F WPL 2180584 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI18299A9 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Shelf, Cantilever (2) WPL 2174046 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 1124713 Contact Us For Availability
2
Handle, Center (Almond) WPL 943079 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
End Cap (2) WPL 1119359 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI18300A8 Contact Us For Availability
5
Shim, End Cap (2) WPL 935075 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Trivet, Shelf (4) WPL 2171168 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
7
Frame, Slides (White) WPL 2152717 Contact Us For Availability
7
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
8
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
8
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
9
Trim, Basket WPL 2171774 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
13
Cover WPL 2169935 Contact Us For Availability
14
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Shelf, Snack Bin WPL 2174485 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Retainer, Insert WPL 1119360 Contact Us For Availability
17
Insert, Handle (White) WPL 1119361 Contact Us For Availability
17
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Insert, Handle (White) WPL 1119373 Contact Us For Availability
18
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Retainer, Insert WPL 1119372 Contact Us For Availability
20
End Cap (2) WPL 2156220 Contact Us For Availability
20
Control Box Harness WPL 2149186 Contact Us For Availability
21
Screw WPL 489075 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
22
Screw WPL 489022 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2171714 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond) WPL 2177145 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
27
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
27
Knob, Air Control WPL 1116853 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
31
Screw WPL 488361 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond) WPL 2177150 Contact Us For Availability
39
Plaque, Front Cover (White) WPL 2162923 Contact Us For Availability
39
Plaque, Front Cover (Almond) WPL 2162924 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Whit WPL 2162926 Contact Us For Availability
40
Front Cover, Housing (Includes Item 39) (Almo WPL 2162928 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI18297A4 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
