Model Whirlpool 8340NFSBS00 REFRIGERATOR – Common Parts & Diagrams

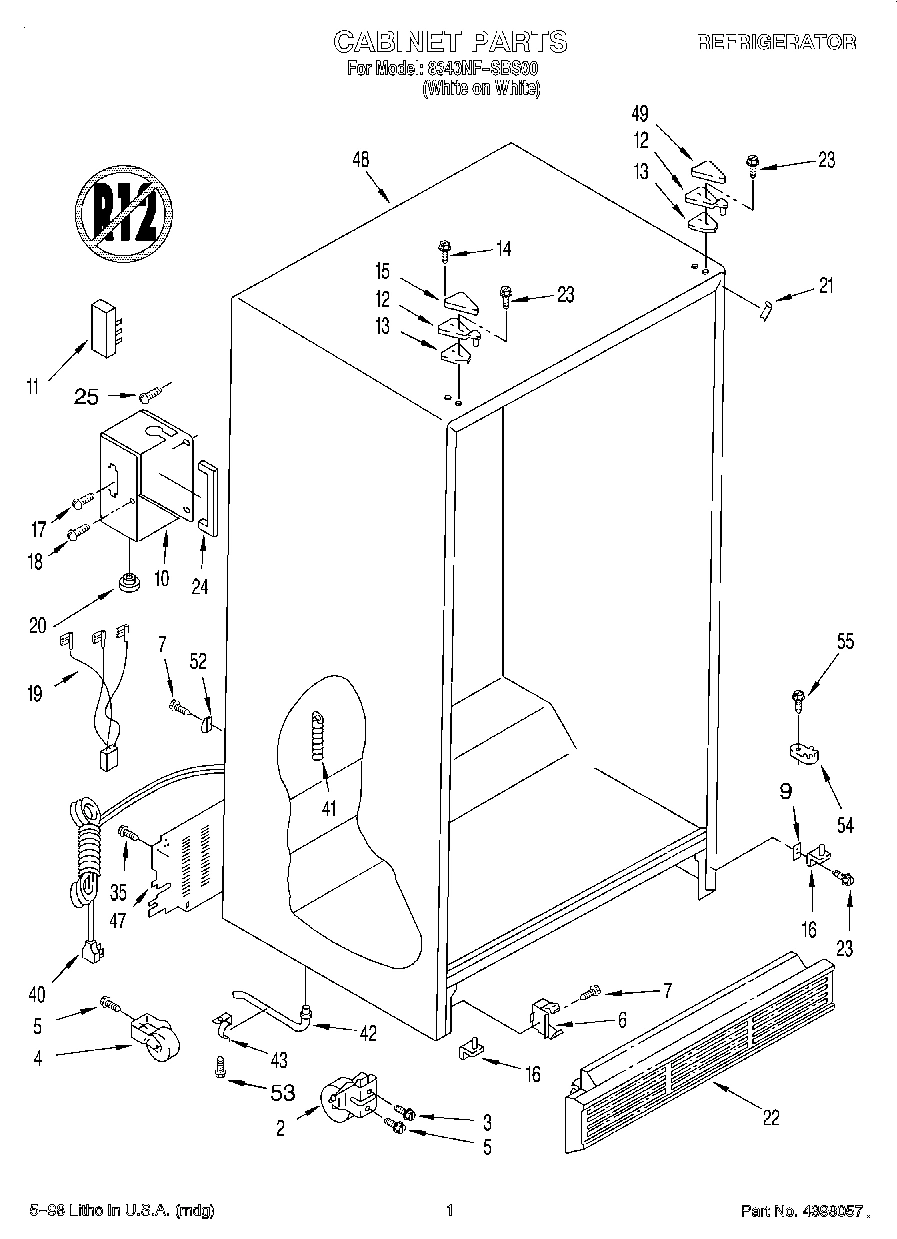

01 - CABINET

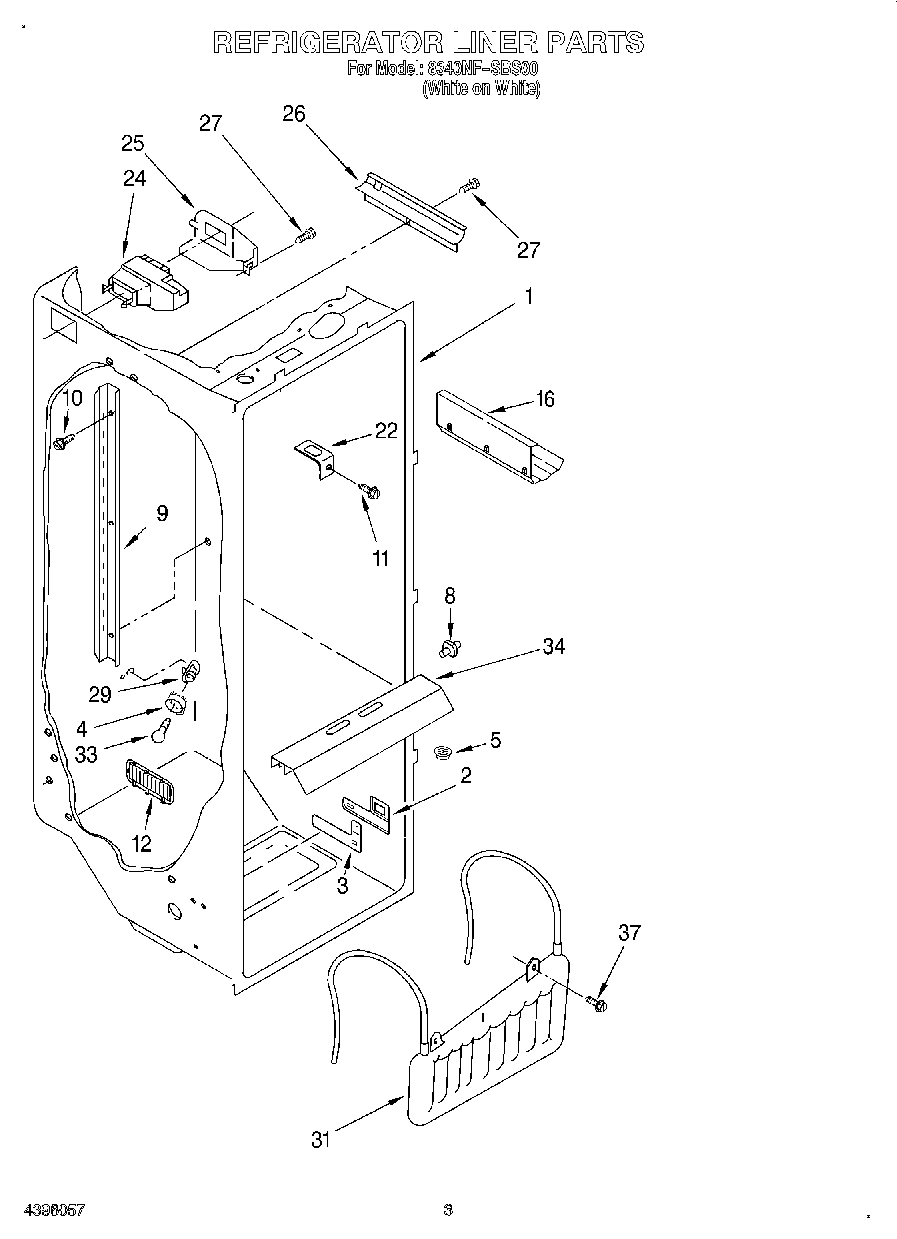

02 - REFRIGERATOR LINER

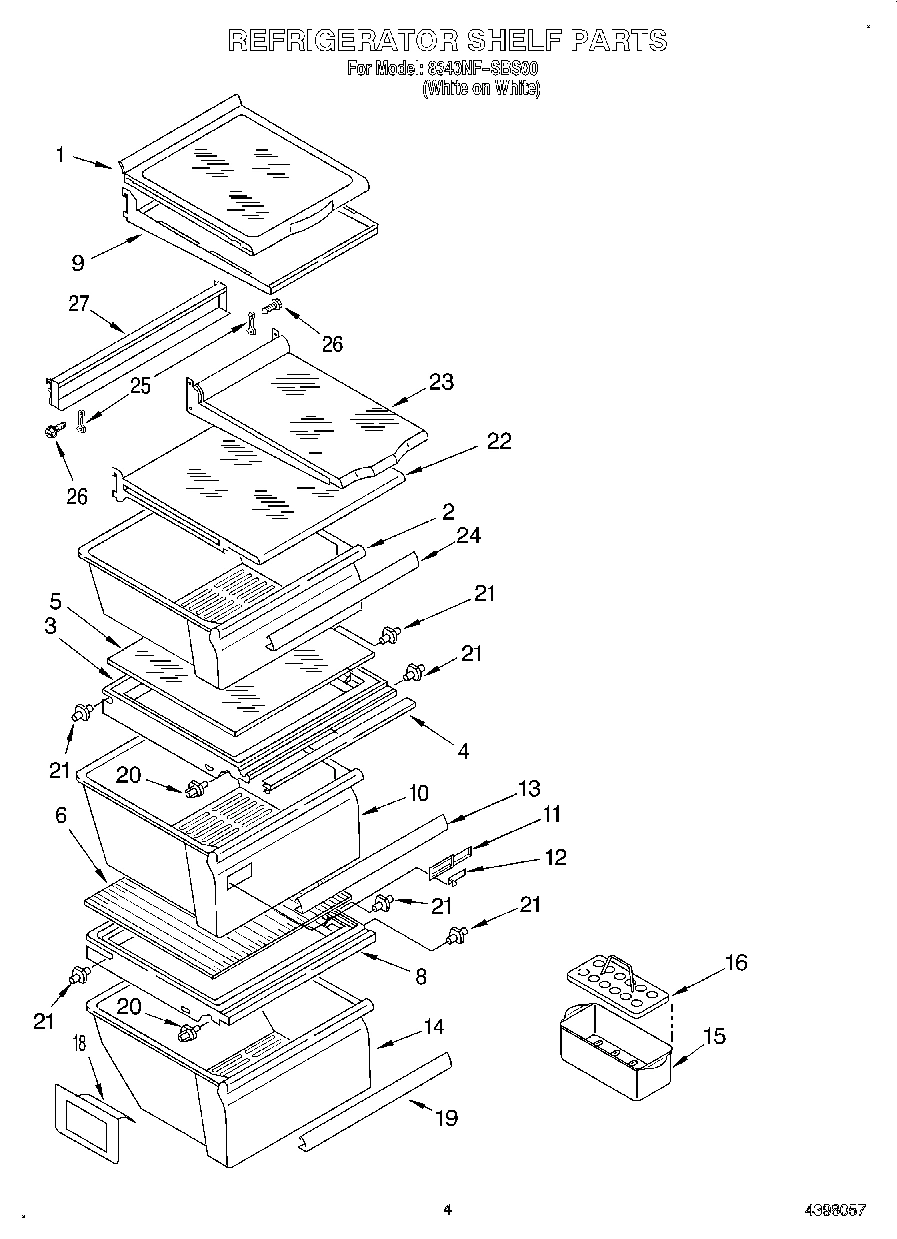

03 - REFRIGERATOR SHELF

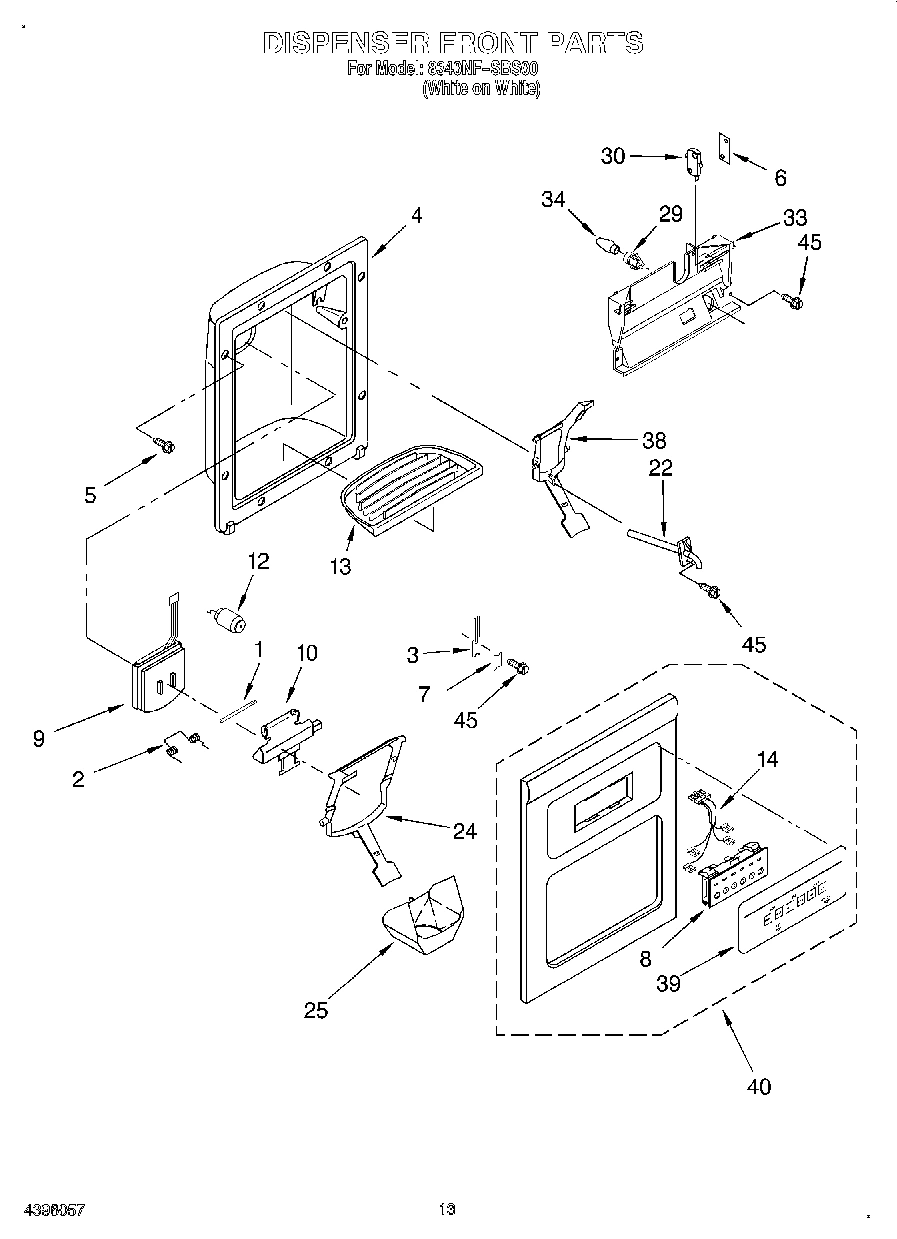

08 - DISPENSER FRONT
10 - AIR FLOW

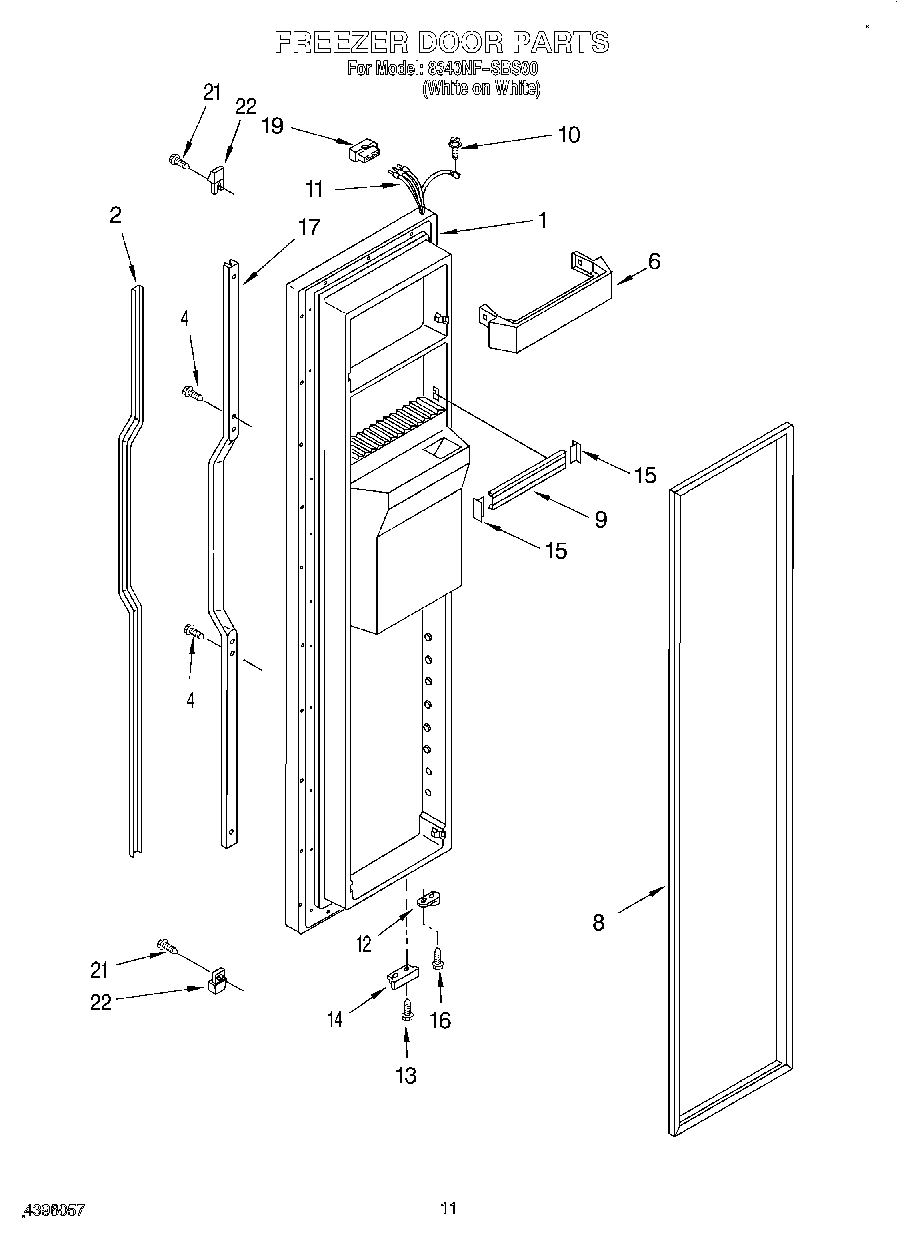

07 - FREEZER DOOR

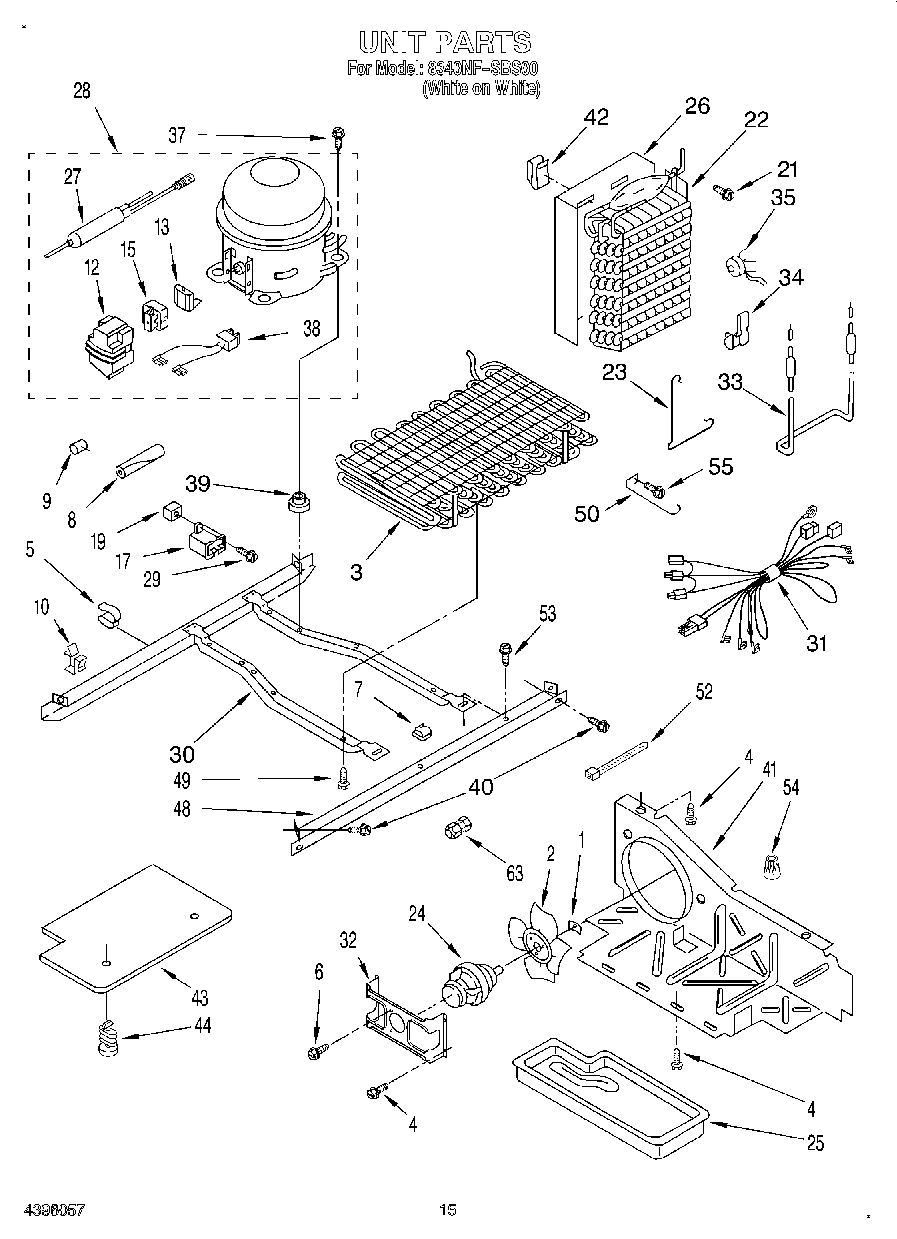

09 - UNIT

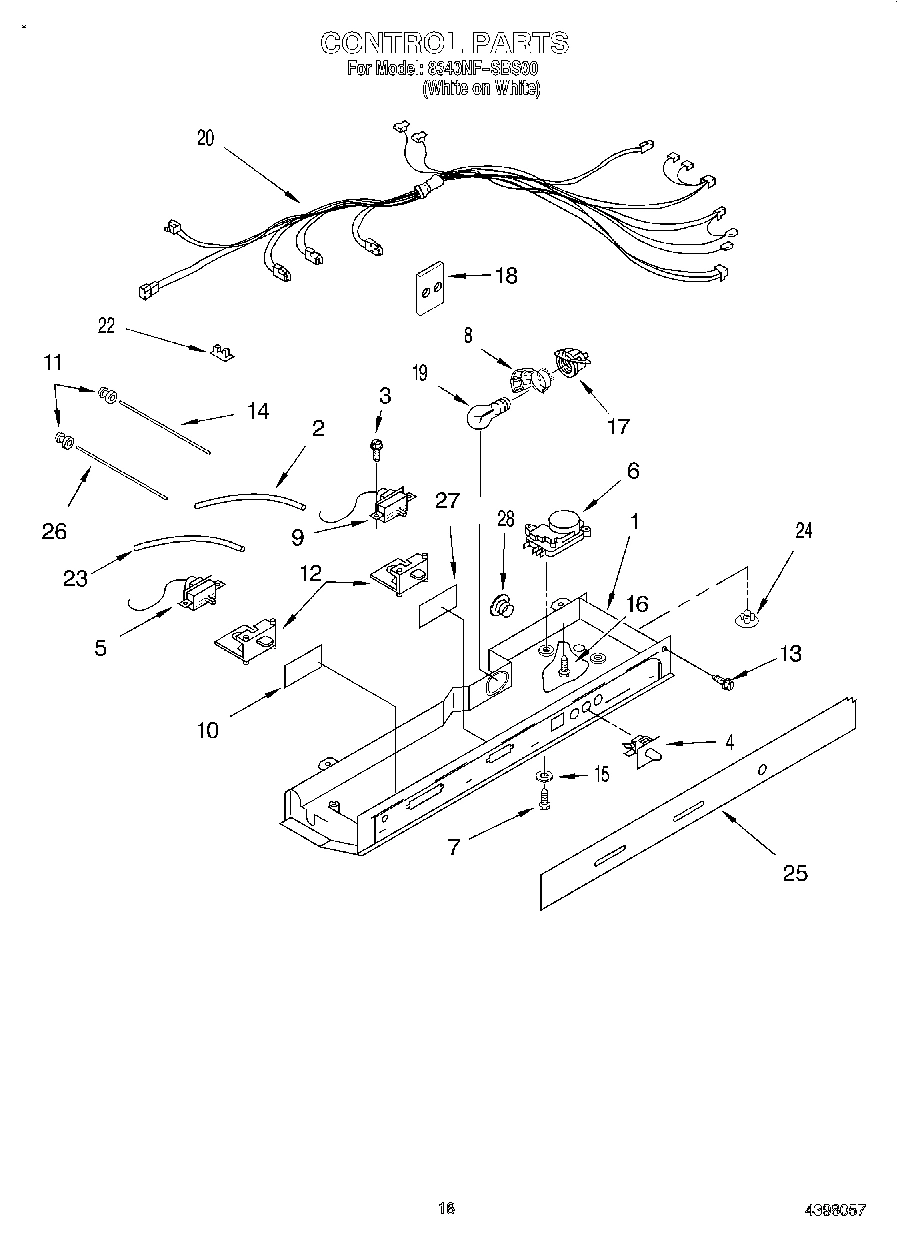

11 - CONTROL

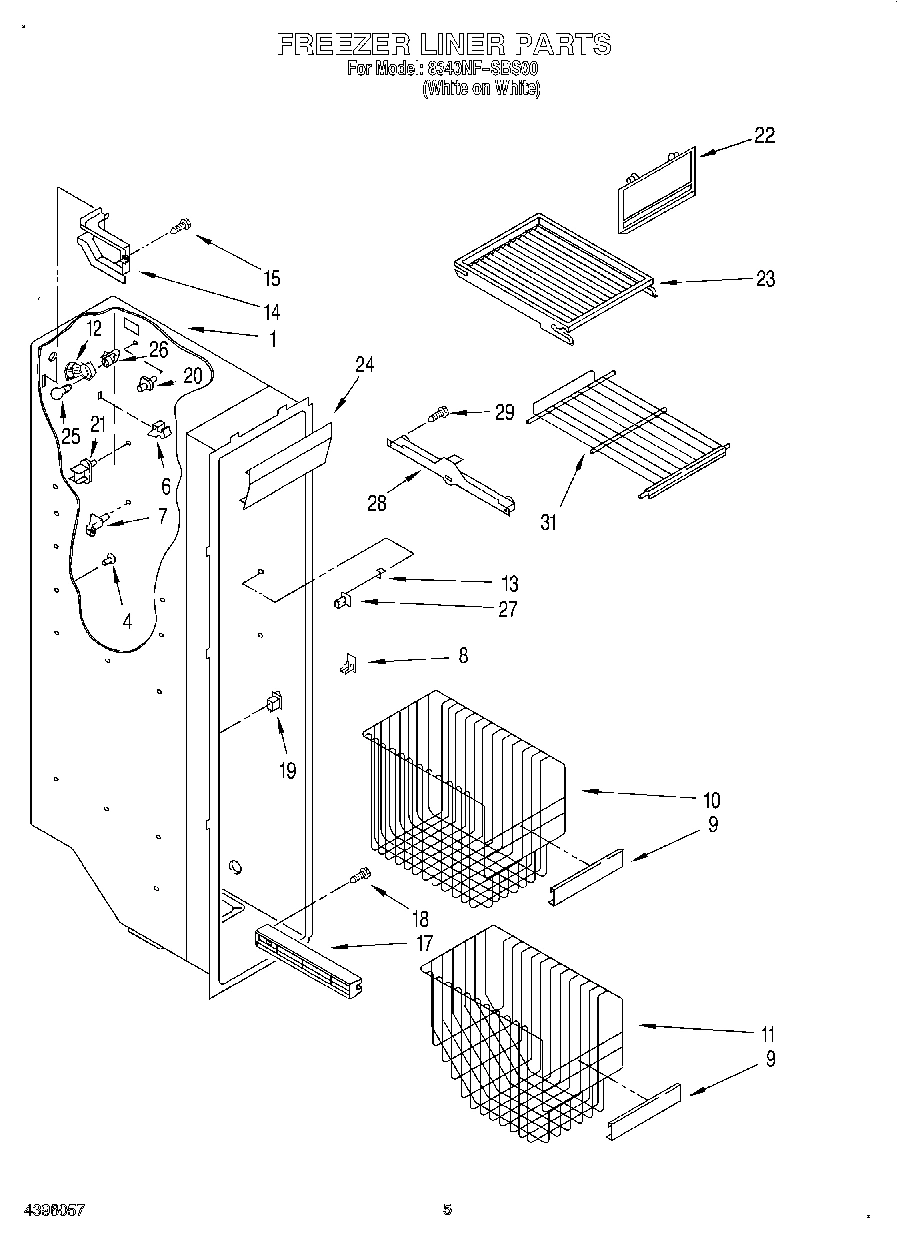

04 - FREEZER LINER

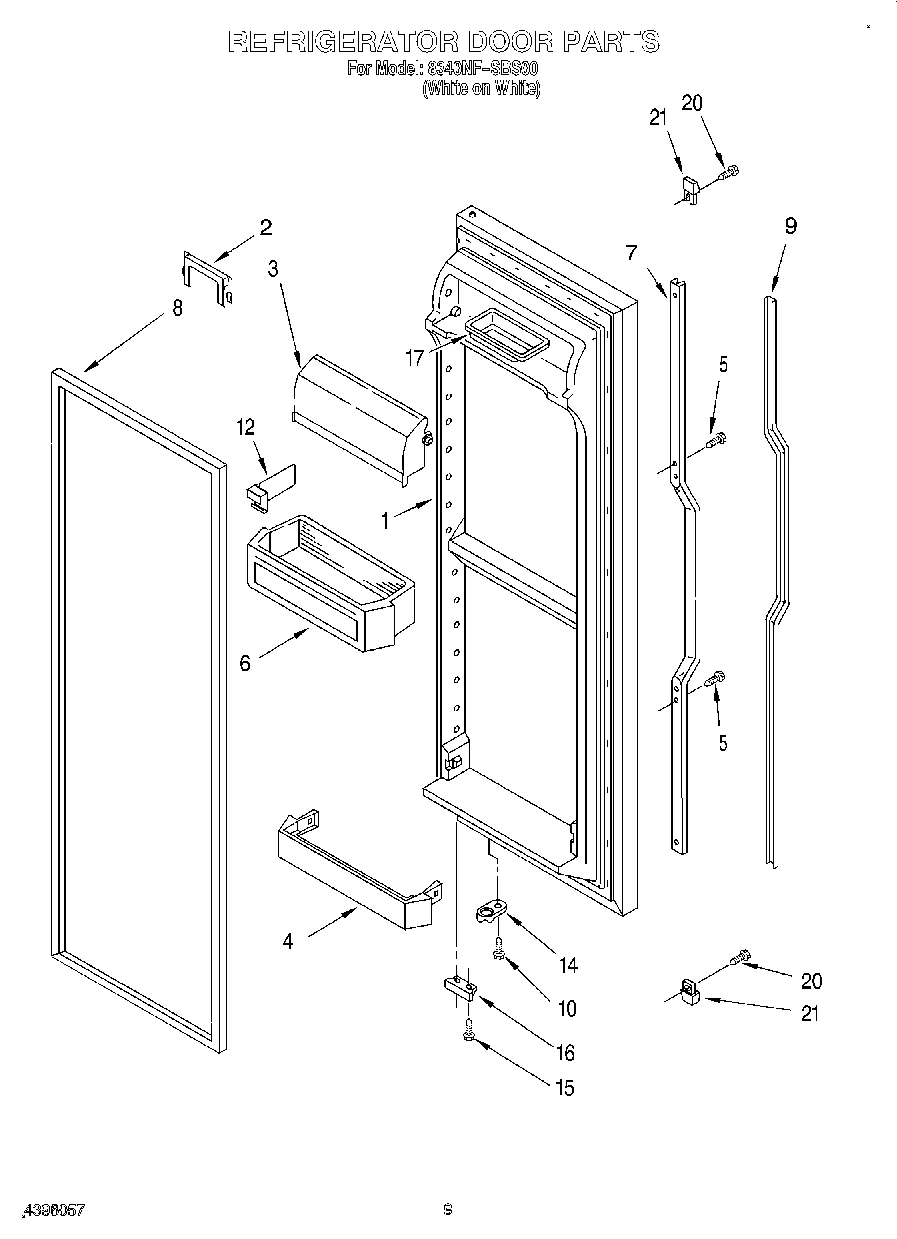

06 - REFRIGERATOR DOOR

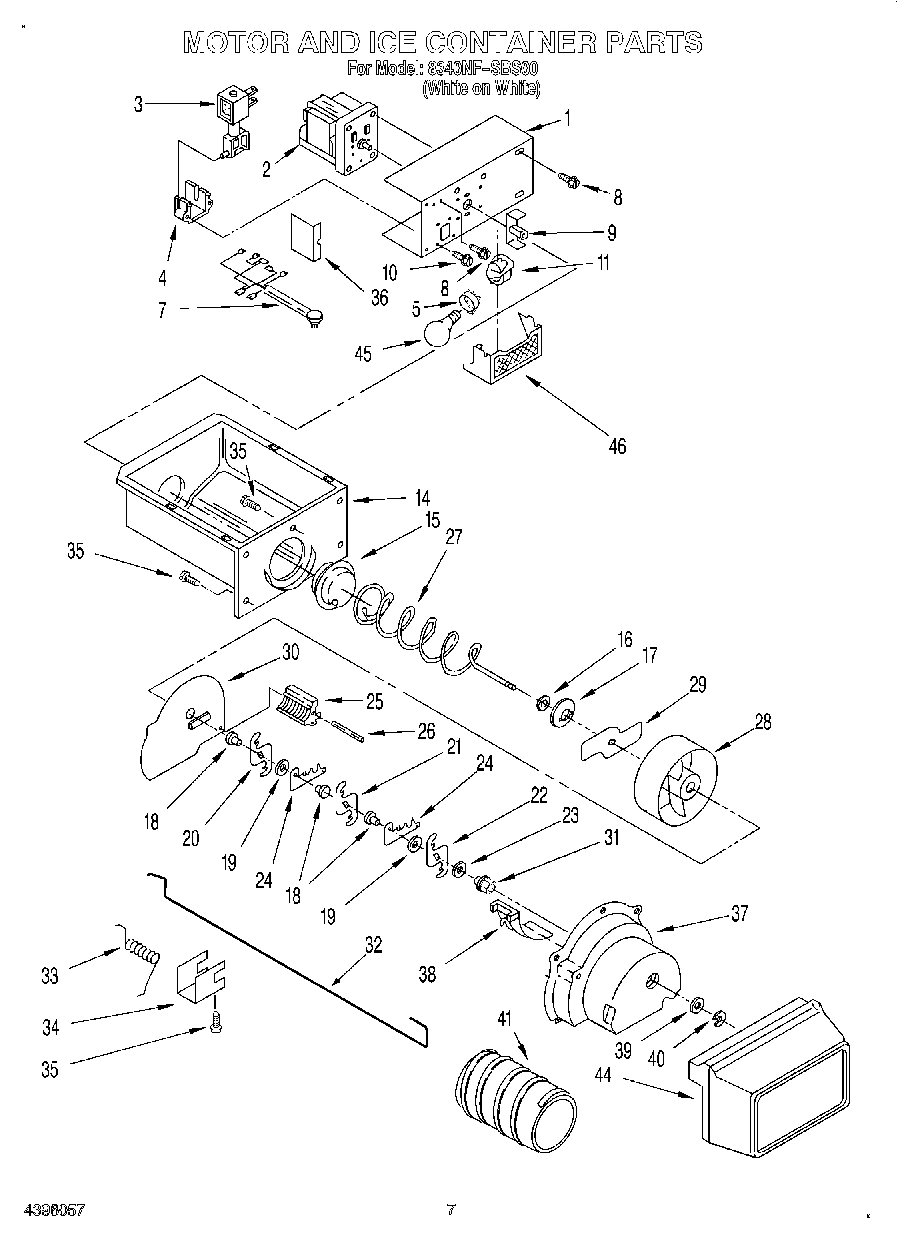

05 - MOTOR AND ICE CONTAINER

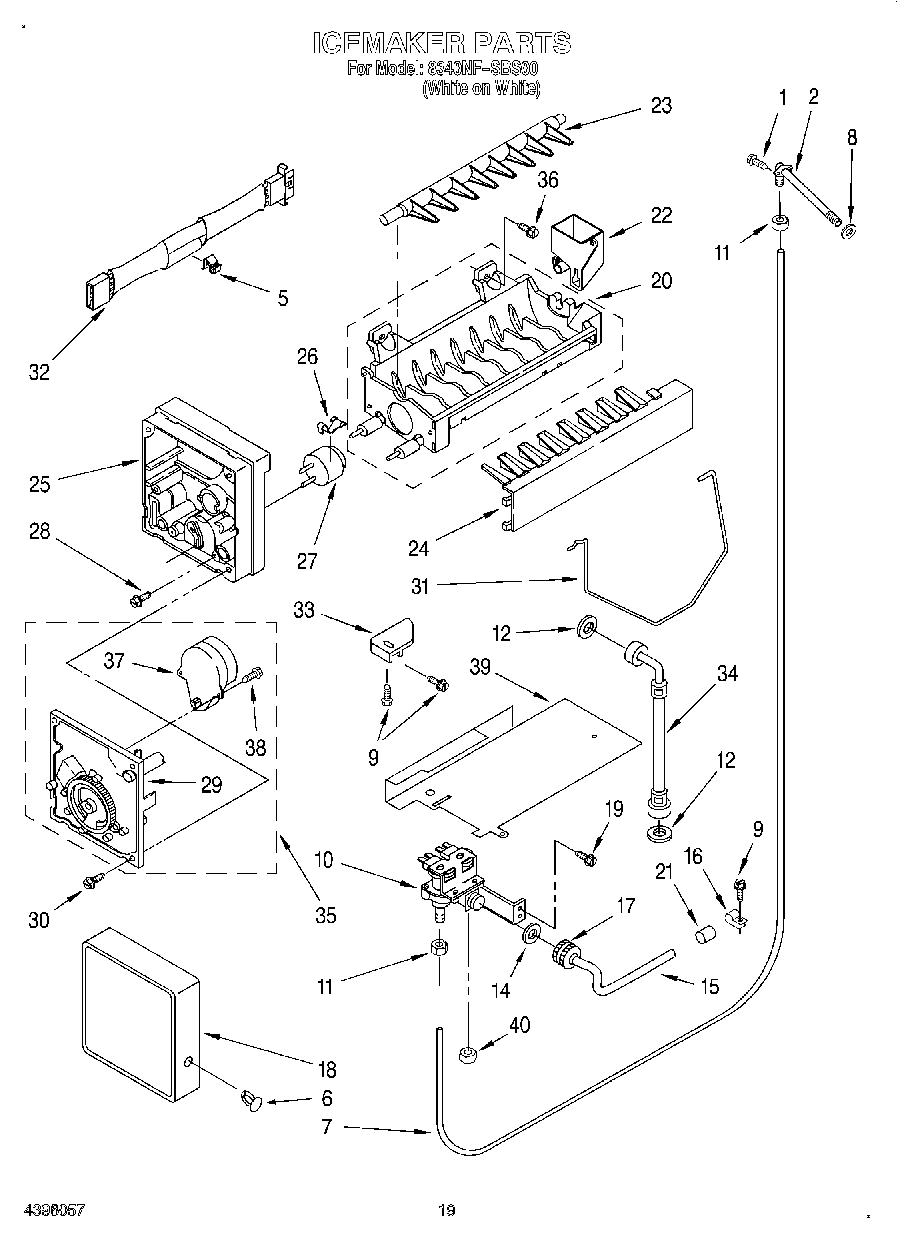

12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool 8340NFSBS00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2187104 WPL LIT2187104 Contact Us For Availability
WPL LIT2198355 WPL LIT2198355 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI17823A3 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) WPL 2194509W Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
6
Spacer, Switch (2) WPL 625834 Contact Us For Availability
7
Retainer, Insert WPL 2194777W Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
9
Insert, Handle WPL 2173825 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Basket WPL 2181765 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
12
Washer WPL 1129722 Contact Us For Availability
13
Grille, Overflow WPL 2180323 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Bracket, Door Stop WPL 2195950 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Tray, Butter WPL 2165792 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
End Cap, Handle WPL 2194778W Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Top Compartment WPL 2194297 Contact Us For Availability
24
Hole Plug WPL 2166844 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
European Water Connection Tube WPL 1129723 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
WPL 799340 WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
