Model Maytag 7MI2569VEM4 REFRIGERATOR – Common Parts & Diagrams

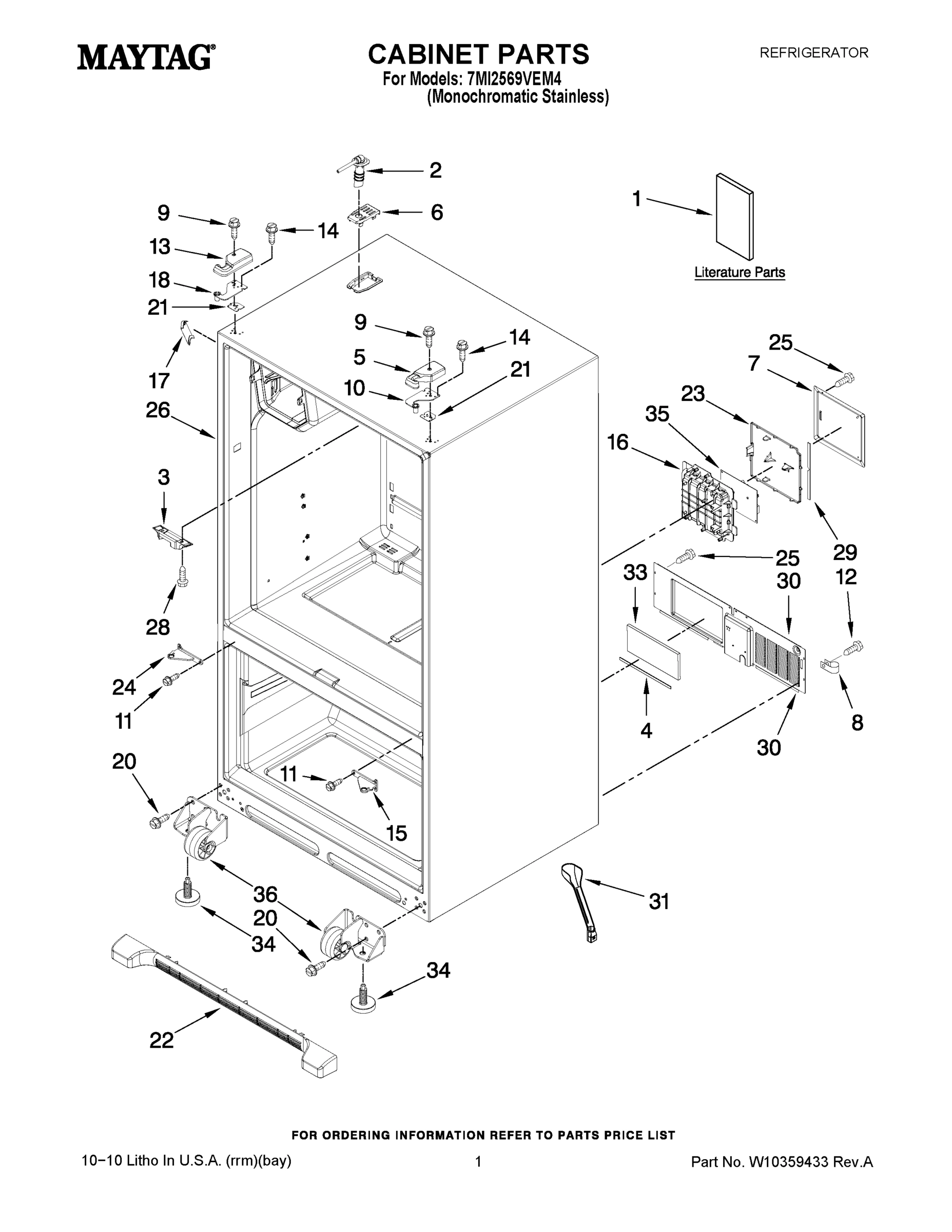

01 - CABINET PARTS

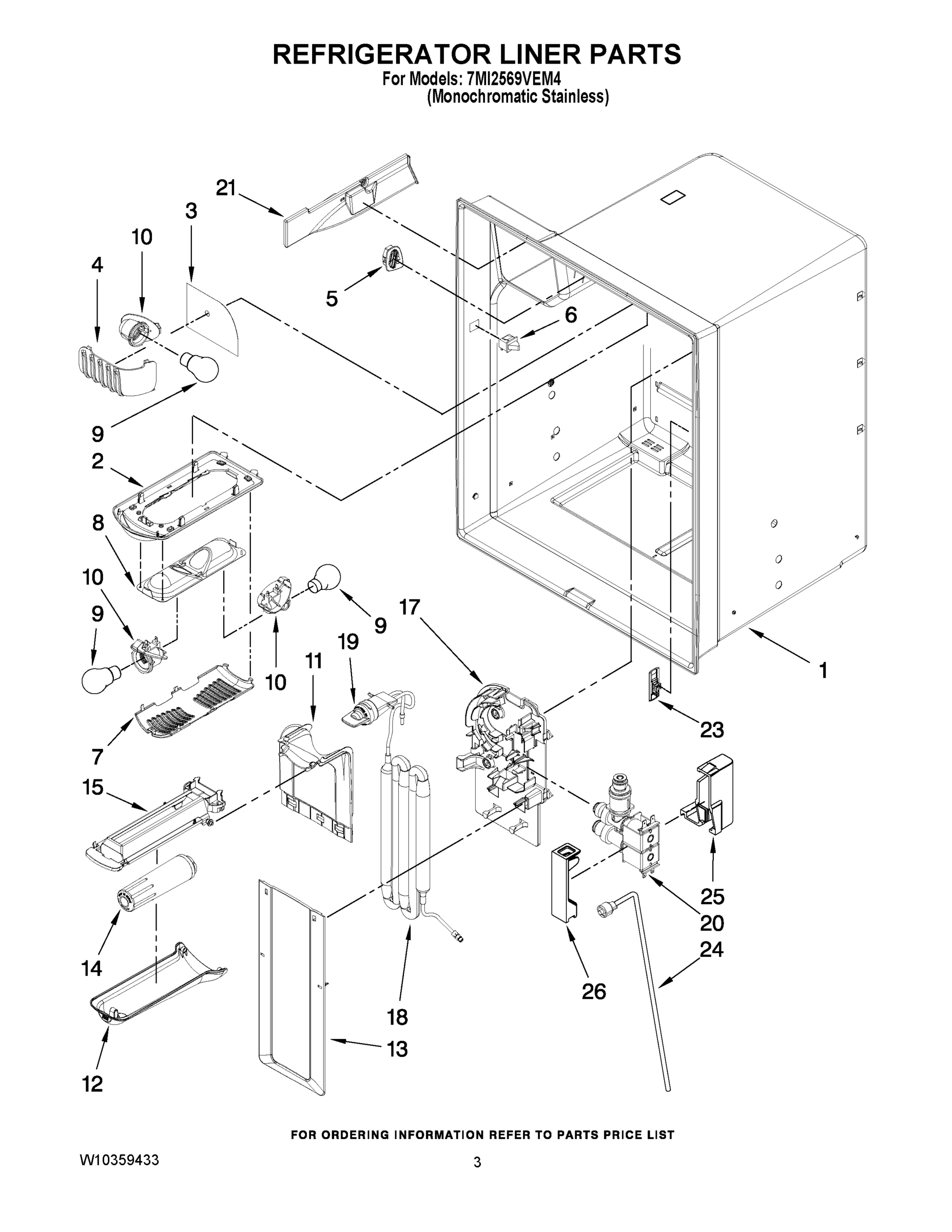

02 - REFRIGERATOR LINER PARTS

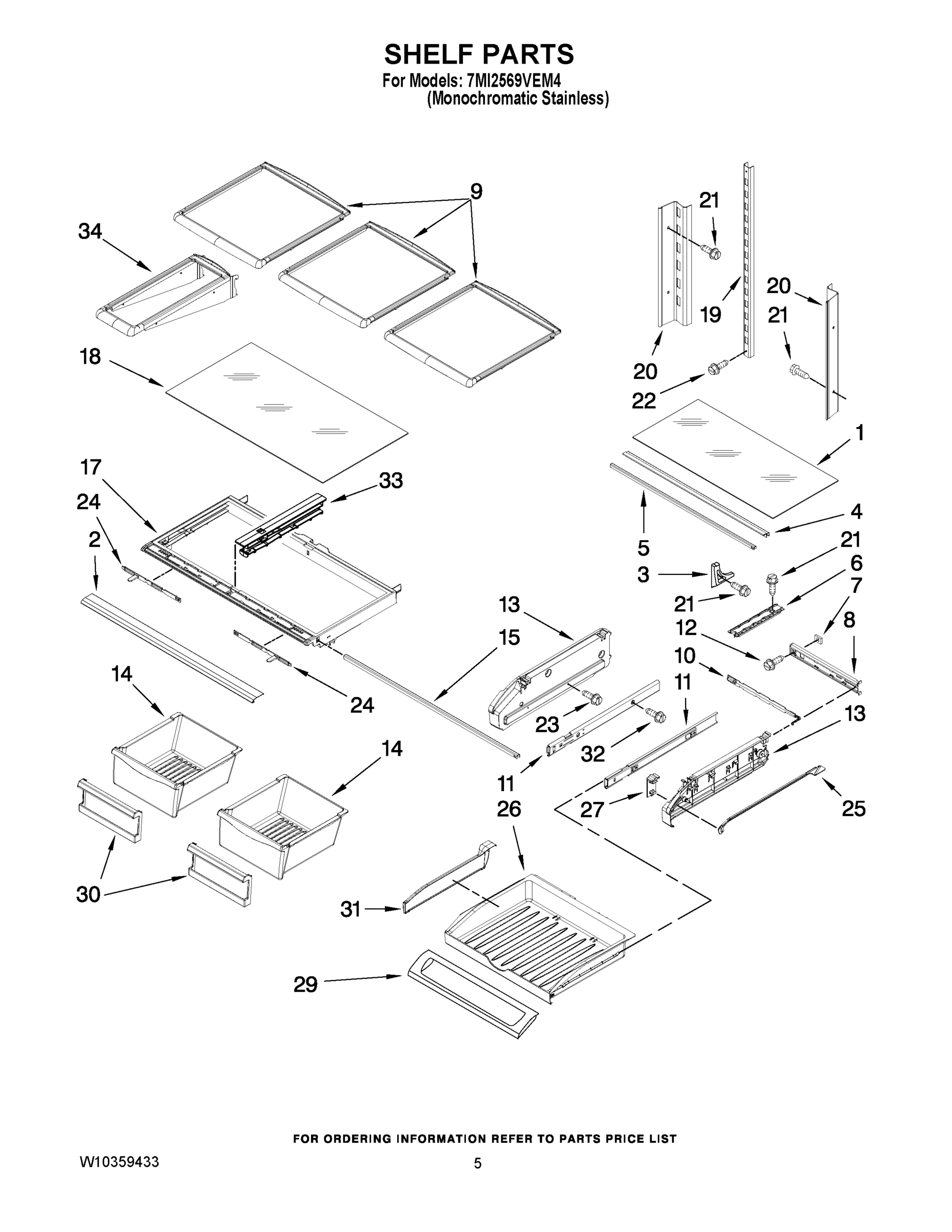

03 - SHELF PARTS

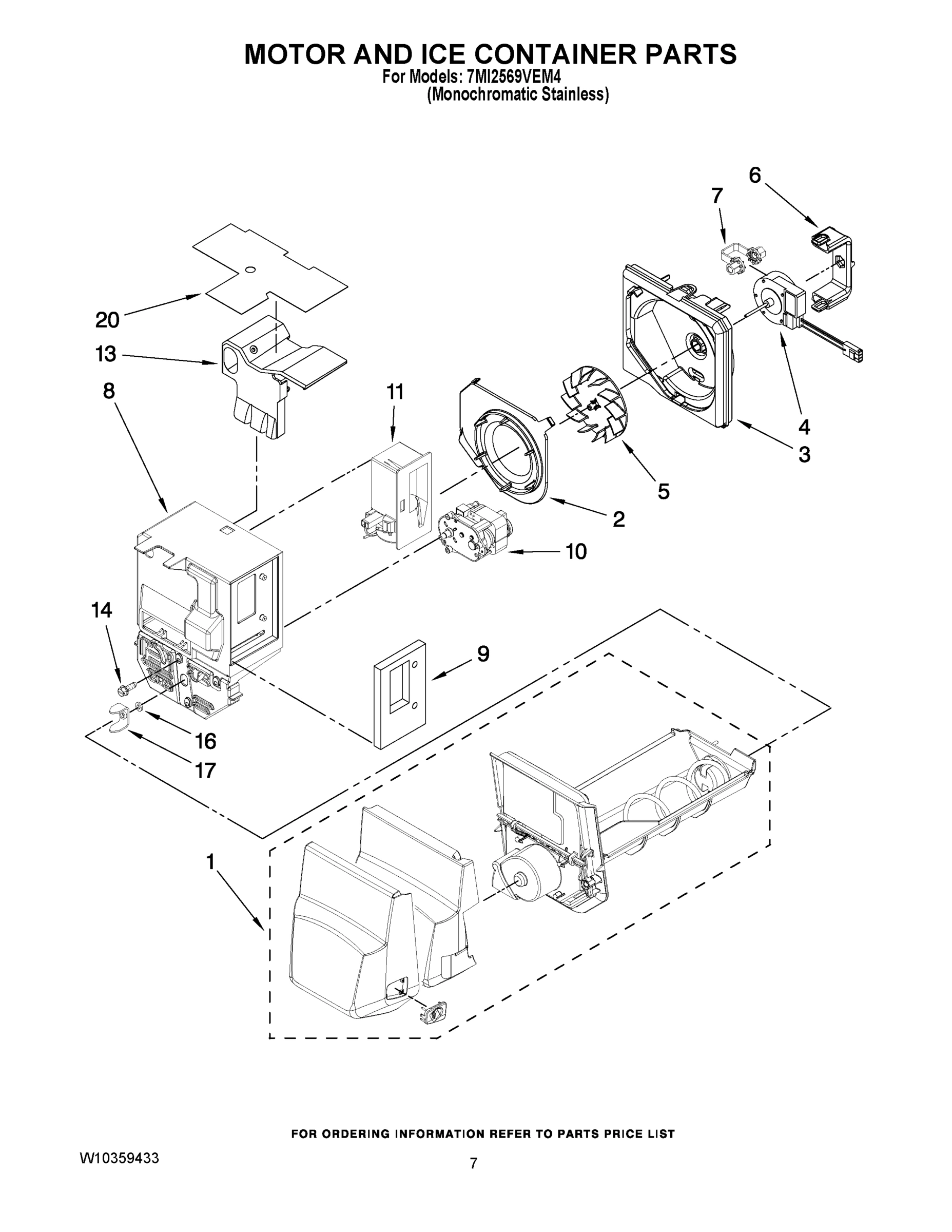

04 - MOTOR AND ICE CONTAINER PARTS

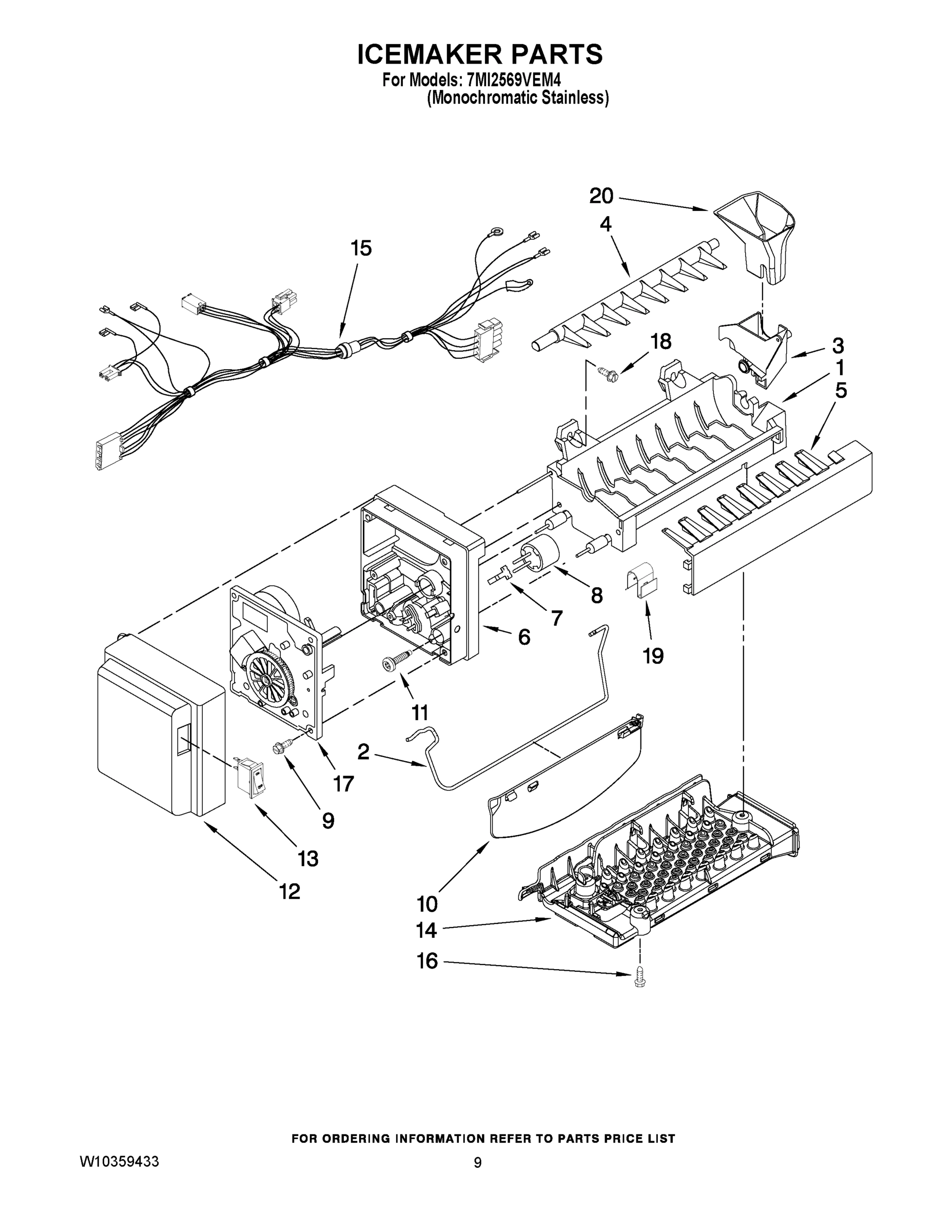

05 - ICEMAKER PARTS

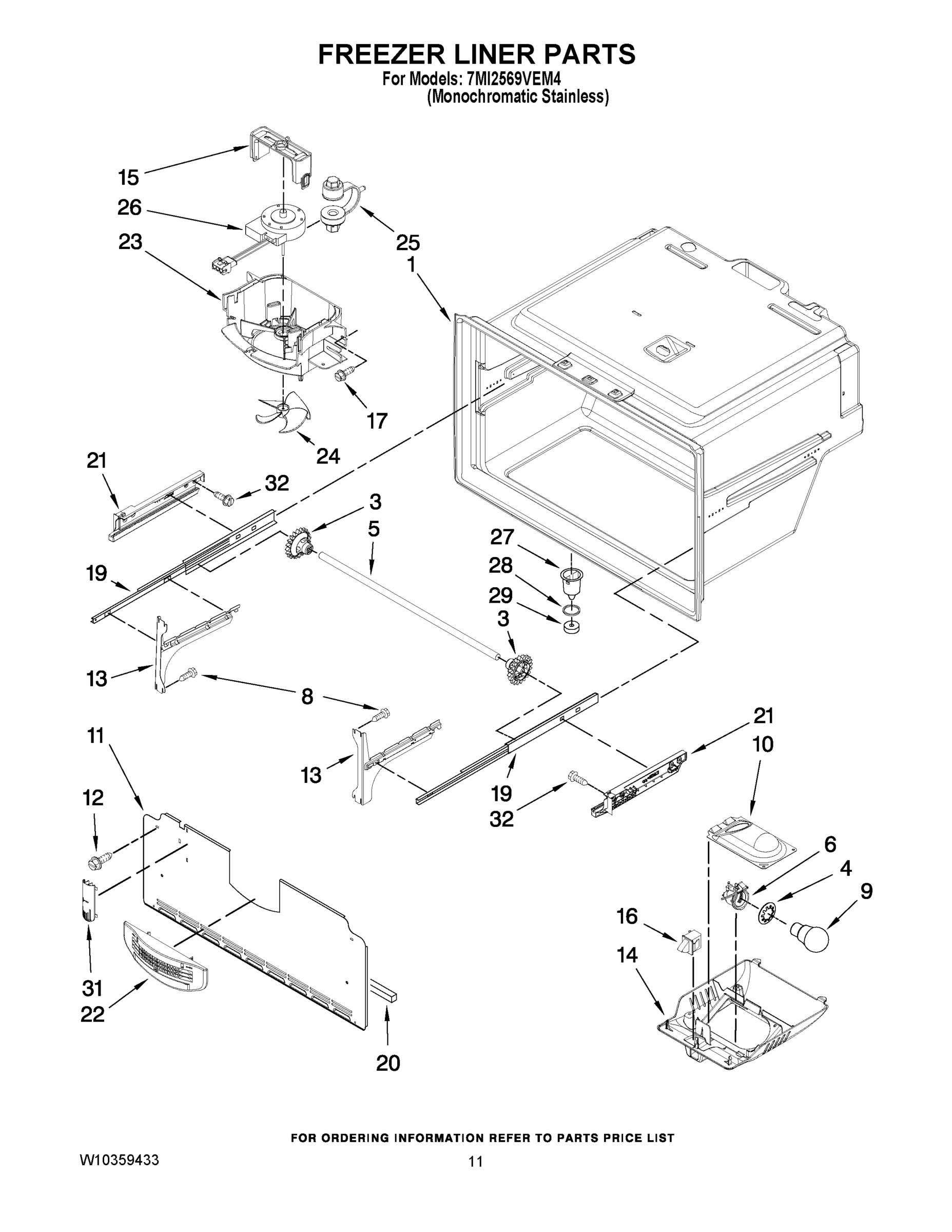

06 - FREEZER LINER PARTS

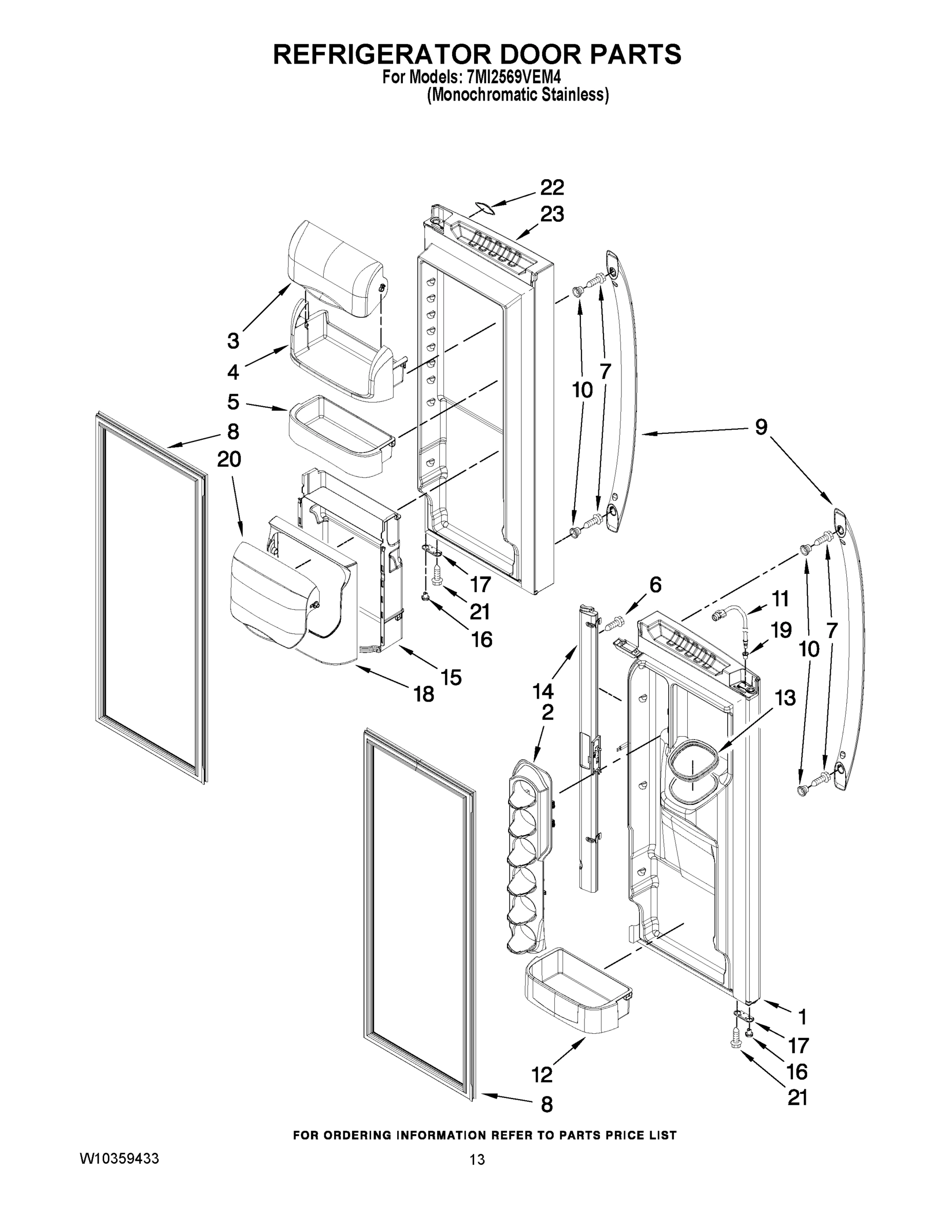

07 - REFRIGERATOR DOOR PARTS

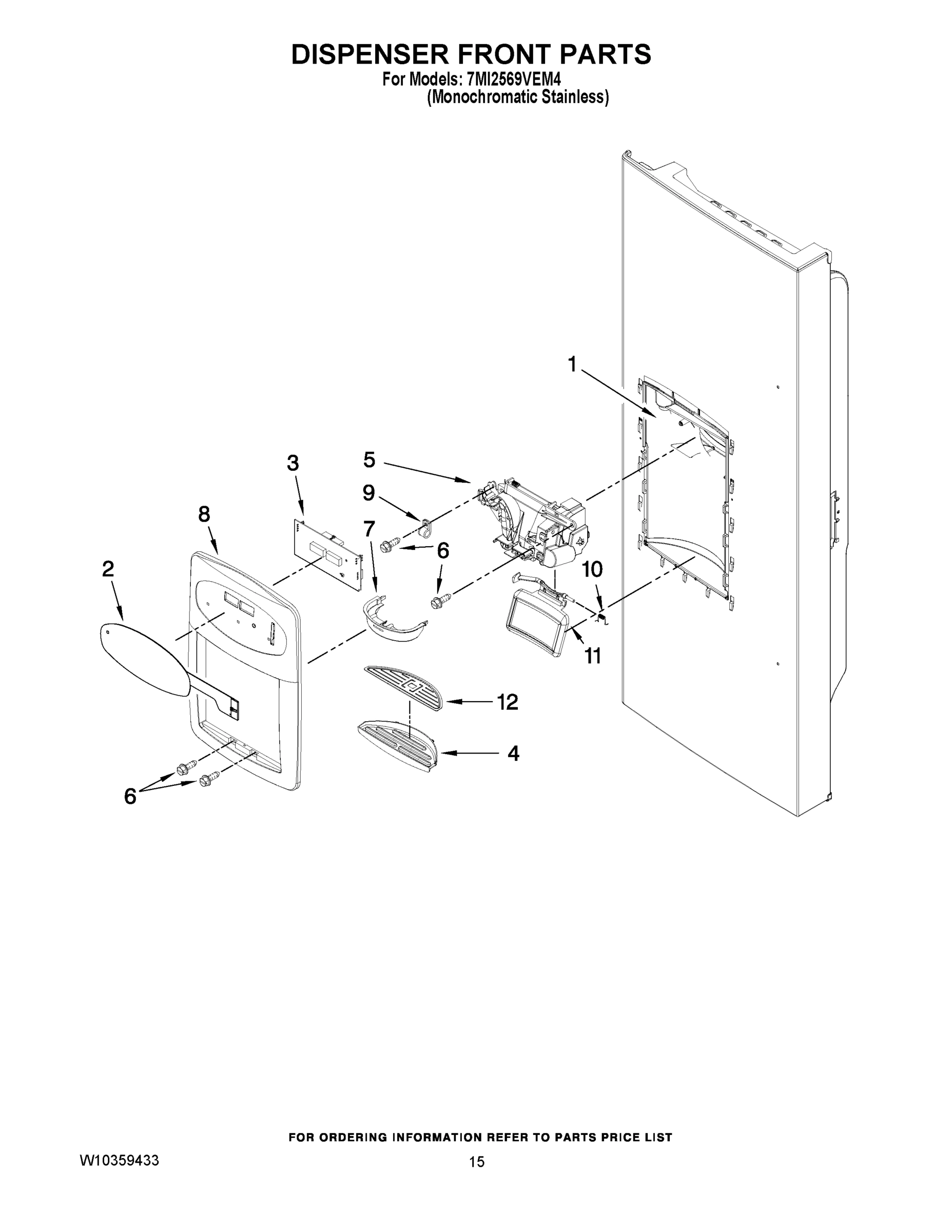

08 - DISPENSER FRONT PARTS

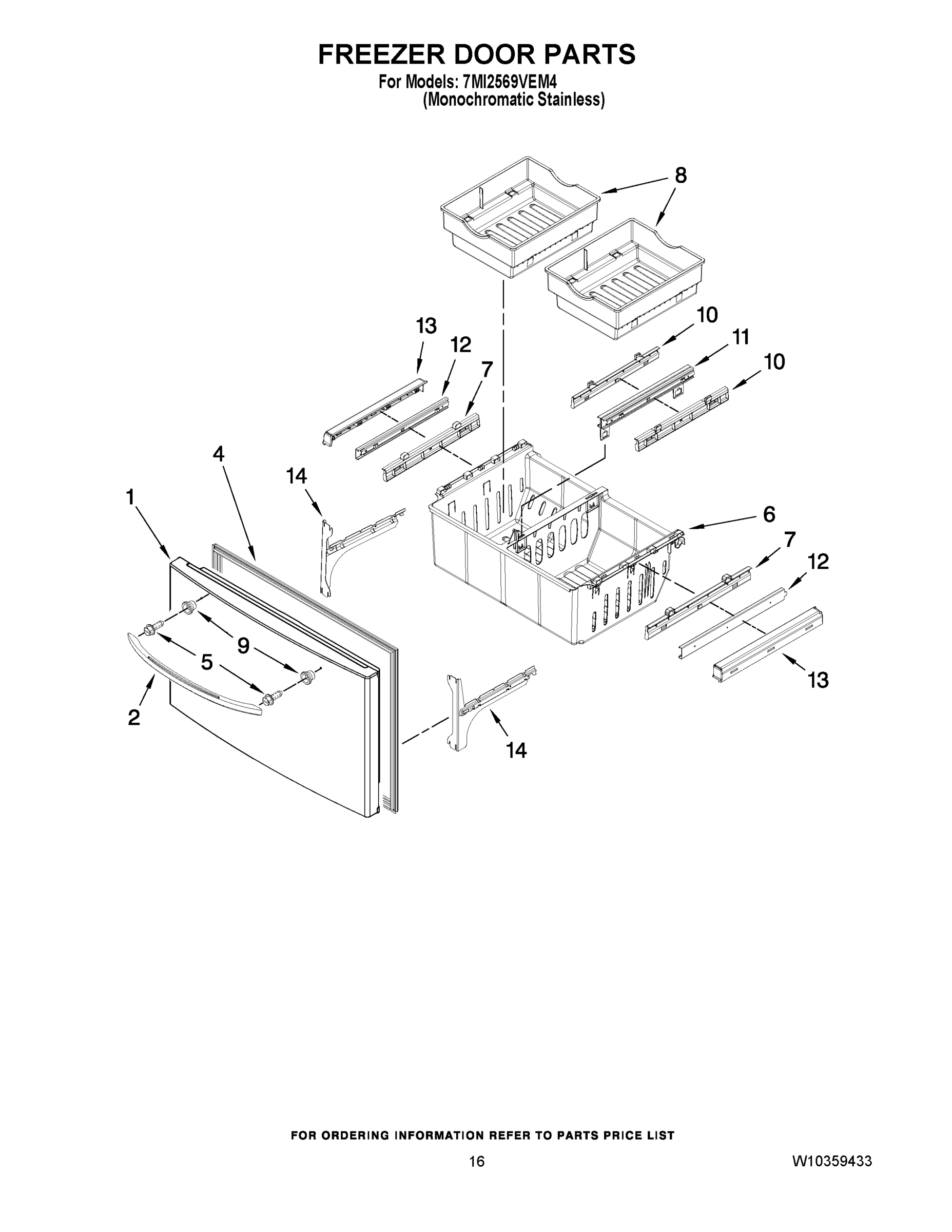

09 - FREEZER DOOR PARTS

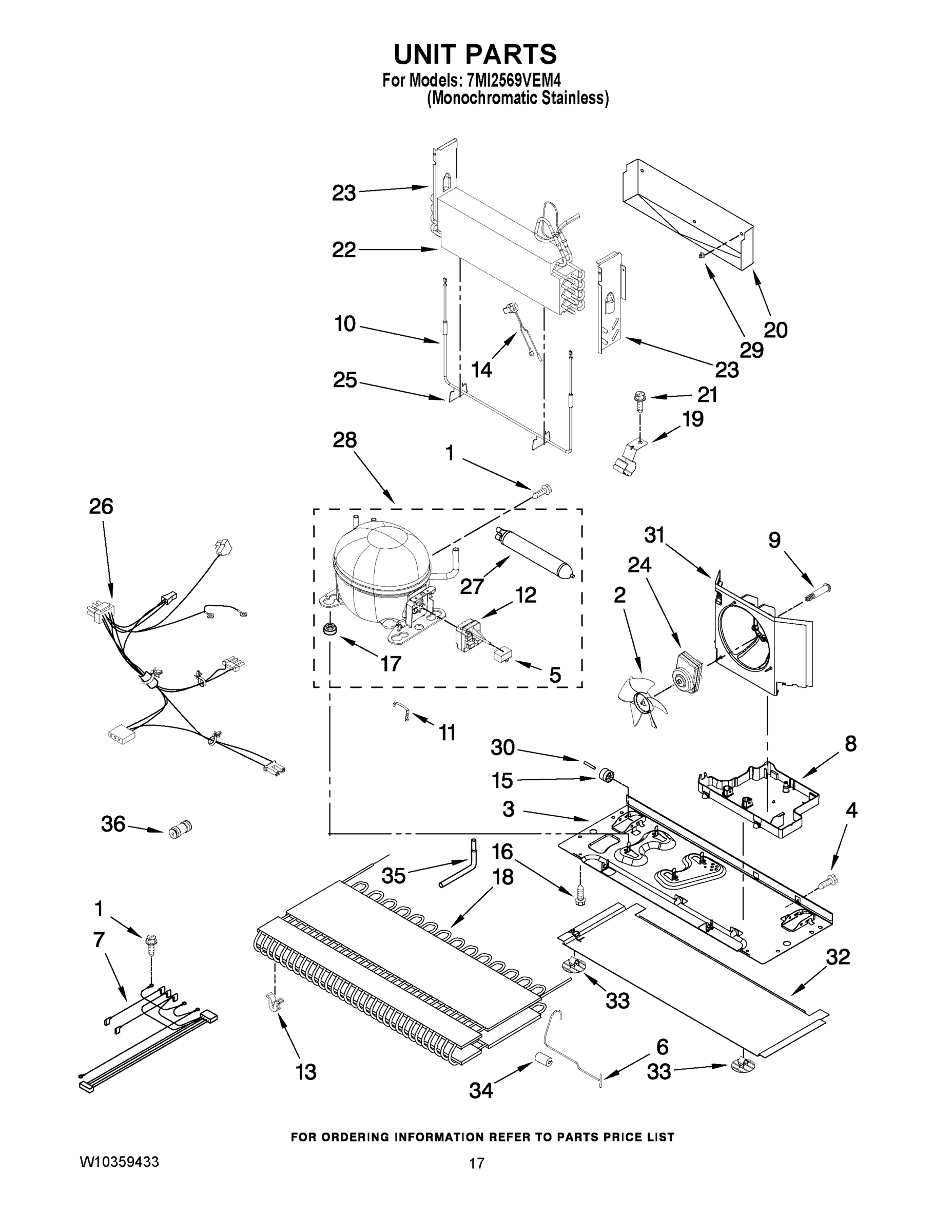

10 - UNIT PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag 7MI2569VEM4 REFRIGERATOR
1
GLASS, PANTRY MAY 12204824 Contact Us For Availability
1
MAY W10324090 MAY W10324090 Contact Us For Availability
1
MAY W10300025 MAY W10300025 Contact Us For Availability
1
DOOR, LEFT (MONO STAINLESS) MAY 13107808S Contact Us For Availability
1
MAY 12977846S MAY 12977846S Contact Us For Availability
1
MAY 12992301 MAY 12992301 Contact Us For Availability
2
Tube W/Waterline, Fill-IM MAY 12961401 Contact Us For Availability
2
MAY 12905803 MAY 12905803 Contact Us For Availability
2
MAY W10231345 MAY W10231345 Contact Us For Availability
2
MAY W10121282 MAY W10121282 Contact Us For Availability
2
MAY W10175514 MAY W10175514 Contact Us For Availability
2
MAY 12922301 MAY 12922301 Contact Us For Availability
2
MAY W10316089 MAY W10316089 Contact Us For Availability
2
MAY W10138763 MAY W10138763 Contact Us For Availability
2
MAY 12825803 MAY 12825803 Contact Us For Availability
3
Block, Pivot MAY 12698403 Contact Us For Availability
3
MAY 12691605 MAY 12691605 Contact Us For Availability
3
SUPPORT,CRISPER(2) MAY 13062602 Contact Us For Availability
3
MAY W10121281 MAY W10121281 Contact Us For Availability
3
MAY W10327050 MAY W10327050 Contact Us For Availability
3
MAY 12804701SP MAY 12804701SP Contact Us For Availability
3
MAY 12939601 MAY 12939601 Contact Us For Availability
3
MAY W10210985 MAY W10210985 Contact Us For Availability
4
GASKET, MC BACK MAY B5759655 Contact Us For Availability
4
MAY 12990511 MAY 12990511 Contact Us For Availability
4
MAY 12921801 MAY 12921801 Contact Us For Availability
4
Support, Pantry(2) MAY 12655902SP Contact Us For Availability
4
MAY W10162697 MAY W10162697 Contact Us For Availability
4
MAY W10318914 MAY W10318914 Contact Us For Availability
4
SHROUD-LGHT SOCKET MAY 2169193 Contact Us For Availability
4
MAY 12369502SP MAY 12369502SP Contact Us For Availability
4
MAY W10185235 MAY W10185235 Contact Us For Availability
4
MAY W10164045 MAY W10164045 Contact Us For Availability
5
COVER, TOP HINGE (RIGHT) (APOLLO GREY) MAY 12962302AP Contact Us For Availability
5
MAY 13008201 MAY 13008201 Contact Us For Availability
5
MAY 12227305WD MAY 12227305WD Contact Us For Availability
5
MAY W10123444 MAY W10123444 Contact Us For Availability
5
ICE STRIPPER MAY W10122563 Contact Us For Availability
5
MAY 12812903WD MAY 12812903WD Contact Us For Availability
5
MAY 12945801SP MAY 12945801SP Contact Us For Availability
5
SCREW, HANDLE MAY W10290759 Contact Us For Availability
5
CHUTE, EXT/YOKE (INCLUDES SWITCH) (MIDNIGHT G MAY 13005705 Contact Us For Availability
5
MAY 2264017 MAY 2264017 Contact Us For Availability
6
COVER, FILL TUBE (APOLLO GREY) MAY 12981401AP Contact Us For Availability
6
MAY 12466103 MAY 12466103 Contact Us For Availability
6
TRACK, PANTRY MAY 12531901 Contact Us For Availability
6
SCREW (3) MAY 12990513 Contact Us For Availability
6
MAY 12956603SP MAY 12956603SP Contact Us For Availability
6
MAY 2194712 MAY 2194712 Contact Us For Availability
6
MAY 12570701SP MAY 12570701SP Contact Us For Availability
6
MAY 12990204 MAY 12990204 Contact Us For Availability
6
MAY 12924801SP MAY 12924801SP Contact Us For Availability
6
MAY W10217747 MAY W10217747 Contact Us For Availability
7
MAY 12961602 MAY 12961602 Contact Us For Availability
7
MAY 12905902 MAY 12905902 Contact Us For Availability
7
MAY 12656901 MAY 12656901 Contact Us For Availability
7
MAY W10151687 MAY W10151687 Contact Us For Availability
7
MAY 2315522 MAY 2315522 Contact Us For Availability
7
MAY 12958301 MAY 12958301 Contact Us For Availability
7
MAY 12925403SP MAY 12925403SP Contact Us For Availability
7
MAY W10257095 MAY W10257095 Contact Us For Availability
8
MAY M0108107 MAY M0108107 Contact Us For Availability
8
MAY 12806601V MAY 12806601V Contact Us For Availability
8
MAY 12656202 MAY 12656202 Contact Us For Availability
8
MAY W10331712 MAY W10331712 Contact Us For Availability
8
THERMOSTAT (ALSO ORDER 542369 CEMENT) MAY 628532 Contact Us For Availability
8
GASKET, DOOR (LEFT DOOR) (APOLLO GREY) MAY W10163991 Contact Us For Availability
8
MAY W10310688 MAY W10310688 Contact Us For Availability
8
MAY 12924903 MAY 12924903 Contact Us For Availability
8
MAY W10296785 MAY W10296785 Contact Us For Availability
9
Screw, Hinge Cover MAY 12992602 Contact Us For Availability
9
Bulb, Light MAY 2255743 Contact Us For Availability
9
SHELF, GLIDE (3) MAY 12883507N Contact Us For Availability
9
MAY 12920001SP MAY 12920001SP Contact Us For Availability
9
Screw (3) MAY W10001240 Contact Us For Availability
9
MAY W10291144 MAY W10291144 Contact Us For Availability
9
MAY 13001201 MAY 13001201 Contact Us For Availability
9
MAY M0108106 MAY M0108106 Contact Us For Availability
9
MAY W10216919 MAY W10216919 Contact Us For Availability
10
MAY 12963205ED MAY 12963205ED Contact Us For Availability
10
SLIDE, TEMPERATURE MAY 12655402 Contact Us For Availability
10
MAY 12955405 MAY 12955405 Contact Us For Availability
10
MAY W10121440 MAY W10121440 Contact Us For Availability
10
MAY 12476401SP MAY 12476401SP Contact Us For Availability
10
YOKE PAD ASSY. (MIDNIGHT GREY) MAY W10185233 Contact Us For Availability
10
MAY 12925404SP MAY 12925404SP Contact Us For Availability
10
MAY 12729123 MAY 12729123 Contact Us For Availability
11
SCREW, CENTER HINGE MAY 12992201 Contact Us For Availability
11
Cover, Water Tank (Upper) MAY 12960101 Contact Us For Availability
11
GLIDE, DRAWER (2) MAY W10235370 Contact Us For Availability
11
MAY W10127427 MAY W10127427 Contact Us For Availability
11
Screw (2) MAY 8533917 Contact Us For Availability
11
COVER, EVAP MAY W10308421 Contact Us For Availability
11
MAY W10275942 MAY W10275942 Contact Us For Availability
11
MAY W10235357 MAY W10235357 Contact Us For Availability
11
MAY W10204187 MAY W10204187 Contact Us For Availability
12
Lid, Water Filter MAY 12960301 Contact Us For Availability
12
MAY W10121444 MAY W10121444 Contact Us For Availability
12
Bin, Shelf (Gallon) MAY 12840004 Contact Us For Availability
12
MAY W10142275 MAY W10142275 Contact Us For Availability
12
MAY W10235367 MAY W10235367 Contact Us For Availability
12
MAY W10197428 MAY W10197428 Contact Us For Availability
13
COVER, TOP HINGE (LEFT) (APOLLO GREY) MAY 12962301AP Contact Us For Availability
13
COVER, WATER TANK(LOWER) MAY 12960001 Contact Us For Availability
13
ENDCAP, PANTRY (RIGHT) MAY 12656019 Contact Us For Availability
13
ENDCAP, PANTRY (LEFT) MAY 12656106 Contact Us For Availability
13
MAY W10118612 MAY W10118612 Contact Us For Availability
13
MAY 2313326 MAY 2313326 Contact Us For Availability
13
MAY 12665101SP MAY 12665101SP Contact Us For Availability
13
MAY 12925501SP MAY 12925501SP Contact Us For Availability
13
MAY 12925502SP MAY 12925502SP Contact Us For Availability
13
GROMMET, COND (4) MAY W10137529 Contact Us For Availability
14
Screw, Top Hinge MAY 12992403 Contact Us For Availability
14
PAN, CRISPER (2) MAY 12804601SP Contact Us For Availability
14
IMPINGER ASSY. MAY W10312691 Contact Us For Availability
14
MAY W10122147 MAY W10122147 Contact Us For Availability
14
MAY W10122148 MAY W10122148 Contact Us For Availability
14
MAY 13027902SP MAY 13027902SP Contact Us For Availability
14
MAY 12722813APK MAY 12722813APK Contact Us For Availability
14
MAY 12639311SP MAY 12639311SP Contact Us For Availability
15
Hinge, Center (RT) (Apollo Grey) MAY 13000002AP Contact Us For Availability
15
MAY 12955901 MAY 12955901 Contact Us For Availability
15
Brace, Crisper MAY 12642303WD Contact Us For Availability
15
MAY W10312697 MAY W10312697 Contact Us For Availability
15
MAY 12956601 MAY 12956601 Contact Us For Availability
15
MAY 12945601SP MAY 12945601SP Contact Us For Availability
15
Roller (2) MAY 12477102 Contact Us For Availability
16
MAY 12957601 MAY 12957601 Contact Us For Availability
16
MAY 420107A700 MAY 420107A700 Contact Us For Availability
16
MAY 12466115SP MAY 12466115SP Contact Us For Availability
16
Closure, Door (Apollo Grey) MAY 12028505AP Contact Us For Availability
16
MAY 12992101 MAY 12992101 Contact Us For Availability
17
Cover, Corner (2) (Apollo Grey) MAY 12587703AP Contact Us For Availability
17
MAY 12956001 MAY 12956001 Contact Us For Availability
17
MAY W10329866 MAY W10329866 Contact Us For Availability
17
Screw, Fan Shroud To Basket MAY 12990504 Contact Us For Availability
17
YOKE, ICE (DISPENSER) MAY 63052A001 Contact Us For Availability
17
MODULE ASSEMBLY (INCLUDES MOTOR W10122551) MAY 626691 Contact Us For Availability
17
Stop, Door (Apollo Grey) MAY 12968202AP Contact Us For Availability
17
Grommet (4) MAY 10835903SP Contact Us For Availability
18
MAY 12963204ED MAY 12963204ED Contact Us For Availability
18
MAY W10273376 MAY W10273376 Contact Us For Availability
18
GLASS, CRISPER COVER MAY 12204830 Contact Us For Availability
18
SCREW (3) MAY 489136 Contact Us For Availability
18
MAY 12945501SP MAY 12945501SP Contact Us For Availability
18
MAY W10135026 MAY W10135026 Contact Us For Availability
19
PLUG, BYPASS MAY 12664501SP Contact Us For Availability
19
MAY W10273464 MAY W10273464 Contact Us For Availability
19
Clip MAY 628379 Contact Us For Availability
19
SLIDE, DRAWER (2) MAY W10120018 Contact Us For Availability
19
MAY 12996601 MAY 12996601 Contact Us For Availability
19
MAY W10281329 MAY W10281329 Contact Us For Availability
20
Screw (8) MAY 12991302 Contact Us For Availability
20
MAY W10312696 MAY W10312696 Contact Us For Availability
20
LADDER, SIDE (RIGHT) MAY W10251965 Contact Us For Availability
20
LADDER, SIDE (LEFT) MAY W10251966 Contact Us For Availability
20
MAY W10142628 MAY W10142628 Contact Us For Availability
20
MAY W10121434 MAY W10121434 Contact Us For Availability
20
MAY A3189397 MAY A3189397 Contact Us For Availability
20
MAY 12945701SP MAY 12945701SP Contact Us For Availability
20
MAY W10292803 MAY W10292803 Contact Us For Availability
21
Shim, Top Hinge (Left) MAY 12999501 Contact Us For Availability
21
Shim, Top Hinge (Right) MAY 12999502 Contact Us For Availability
21
COVER, ICE BOX HARNESS MAY W10309869 Contact Us For Availability
21
MAY 12990521 MAY 12990521 Contact Us For Availability
21
ADAPTER (LEFT) MAY W10284682 Contact Us For Availability
21
ADAPTER (RIGHT) MAY W10284683 Contact Us For Availability
21
MAY 12990701 MAY 12990701 Contact Us For Availability
22
GRILLE, TOE (APOLLO GREY) MAY W10244558 Contact Us For Availability
22
Screw MAY 12990515 Contact Us For Availability
22
MAY 12959901 MAY 12959901 Contact Us For Availability
22
Nameplate MAY W10170766 Contact Us For Availability
22
MAY 12959803 MAY 12959803 Contact Us For Availability
23
MAY 12957701 MAY 12957701 Contact Us For Availability
23
MAY 12987301 MAY 12987301 Contact Us For Availability
23
MAY 12990512 MAY 12990512 Contact Us For Availability
23
Shroud, Evap Fan MAY 12951401 Contact Us For Availability
23
DOOR, RIGHT (MONO STAINLESS) MAY 13107811S Contact Us For Availability
23
Dam (Left Side) MAY 12963002SP Contact Us For Availability
23
Dam (Right Side) MAY 12963102SP Contact Us For Availability
24
Hinge, Center (LT) (Apollo Grey) MAY 13000001AP Contact Us For Availability
24
MAY W10328202 MAY W10328202 Contact Us For Availability
24
MAY 12530805SP MAY 12530805SP Contact Us For Availability
24
Blade, Fan (Evaporator) MAY 12986101 Contact Us For Availability
24
MAY W10239053 MAY W10239053 Contact Us For Availability
25
Screw, Cover MAY 12990702 Contact Us For Availability
25
MAY W10118193 MAY W10118193 Contact Us For Availability
25
BAR, TEMPERATURE CONTROL MAY 12655304 Contact Us For Availability
25
Grommet, Fan Motor (2) MAY 12951101 Contact Us For Availability
26
MAY W10118194 MAY W10118194 Contact Us For Availability
26
MAY 12731302 MAY 12731302 Contact Us For Availability
26
MAY W10257096 MAY W10257096 Contact Us For Availability
26
MAY W10234027 MAY W10234027 Contact Us For Availability
27
KNOB, TEMPERATURE CONTROL CRISPER FRAME MAY 12655204V Contact Us For Availability
27
MAY D7753903 MAY D7753903 Contact Us For Availability
27
Drier MAY W10143759 Contact Us For Availability
28
Screw, Block MAY 12990302 Contact Us For Availability
28
SEAL, O RING MAY M0500703 Contact Us For Availability
28
Compressor (Includes items 11,12,17,27) MAY W10134623 Contact Us For Availability
29
Gasket, HV Control MAY 12957801 Contact Us For Availability
29
MAY 12656815 MAY 12656815 Contact Us For Availability
29
GASKET, DRAIN TUBE MAY B8381501 Contact Us For Availability
29
MAY 10623002 MAY 10623002 Contact Us For Availability
30
MAY W10270394 MAY W10270394 Contact Us For Availability
30
FRONT-CRISPER MAY 12802602SP Contact Us For Availability
30
Axle, Roller (2) MAY 12477202 Contact Us For Availability
31
MAY W10210988 MAY W10210988 Contact Us For Availability
31
MAY 12731901 MAY 12731901 Contact Us For Availability
31
MAY 12815301 MAY 12815301 Contact Us For Availability
31
SHROUD MAY W10189184 Contact Us For Availability
32
Screw, Adapter MAY 12990501 Contact Us For Availability
32
EXTENSION, BASEPAN MAY W10206338 Contact Us For Availability
33
Fiber, Acoustic MAY 12820505 Contact Us For Availability
33
RAIL-CENTER-CRSPR. MAY W10326469 Contact Us For Availability
33
MAY W10206339 MAY W10206339 Contact Us For Availability
34
Brake, Foot MAY W10141622 Contact Us For Availability
34
SHELF-MINI MAY 12885501 Contact Us For Availability
34
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
35
MAY W10312695 MAY W10312695 Contact Us For Availability
35
MAY W10184616 MAY W10184616 Contact Us For Availability
36
ROLLER ASSEMBLY (RIGHT) MAY W10275849 Contact Us For Availability
36
ROLLER ASSEMBLY (LEFT) MAY W10275850 Contact Us For Availability
36
CONNECTOR, WATER MAY W10334458 Contact Us For Availability
100
MAY W10300024 MAY W10300024 Contact Us For Availability
NI
REFRIGERANT CHARGE (5.25 OZS. (R-134A)) MAY N/P Contact Us For Availability
NI
MAY 10244904SP MAY 10244904SP Contact Us For Availability
NI
HARNESS FZ-LIGHT (INCL. THERMISTOR) MAY 12952005SP Contact Us For Availability
NI
MAY 876764 MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS (1/4``) MAY 978025 Contact Us For Availability
NI
Valve, Access (5/16``) MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS (3/8``) MAY 978027 Contact Us For Availability
NI
Valve, Access (1/2``) MAY 978028 Contact Us For Availability
NI
Valve, Access (5/8``) MAY 978029 Contact Us For Availability
NI
Valve, Access (3/4``) MAY 978030 Contact Us For Availability
NI
MAY 1117510 MAY 1117510 Contact Us For Availability
NI
Cleaner, Stnls Steel Magic MAY 20000008 Contact Us For Availability
NI
SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, White (13 MAY 350930 Contact Us For Availability
NI
Customer Touch-Up Material (Enamel, Black (13 MAY 350939 Contact Us For Availability
NI
Customer Touch-Up Material (Primer, White (13 MAY 350942 Contact Us For Availability
NI
MAY 479502 MAY 479502 Contact Us For Availability
NI
MAY 503695 MAY 503695 Contact Us For Availability
NI
MAY 505587 MAY 505587 Contact Us For Availability
NI
MAY 542638 MAY 542638 Contact Us For Availability
NI
MAY 542639 MAY 542639 Contact Us For Availability
NI
MAY 606755 MAY 606755 Contact Us For Availability
NI
MAY 67007112 MAY 67007112 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72017 Contact Us For Availability
NI
CUSTOMER TOUCH-UP MATERIAL (BRUSH TOUCH-UP KI MAY 72032 Contact Us For Availability
NI
Refinishing Material (Enamel, Black (1 Qt. Un MAY 799340 Contact Us For Availability
NI
REFINISHING MATERIAL (ENAMEL, WHITE (1 QT. UN MAY 799344 Contact Us For Availability
NI
MAY 833938 MAY 833938 Contact Us For Availability
NI
MAY 876029 MAY 876029 Contact Us For Availability
NI
MAY 876305 MAY 876305 Contact Us For Availability
NI
MAY 876370 MAY 876370 Contact Us For Availability
NI
MAY 978941 MAY 978941 Contact Us For Availability
× ![]()
