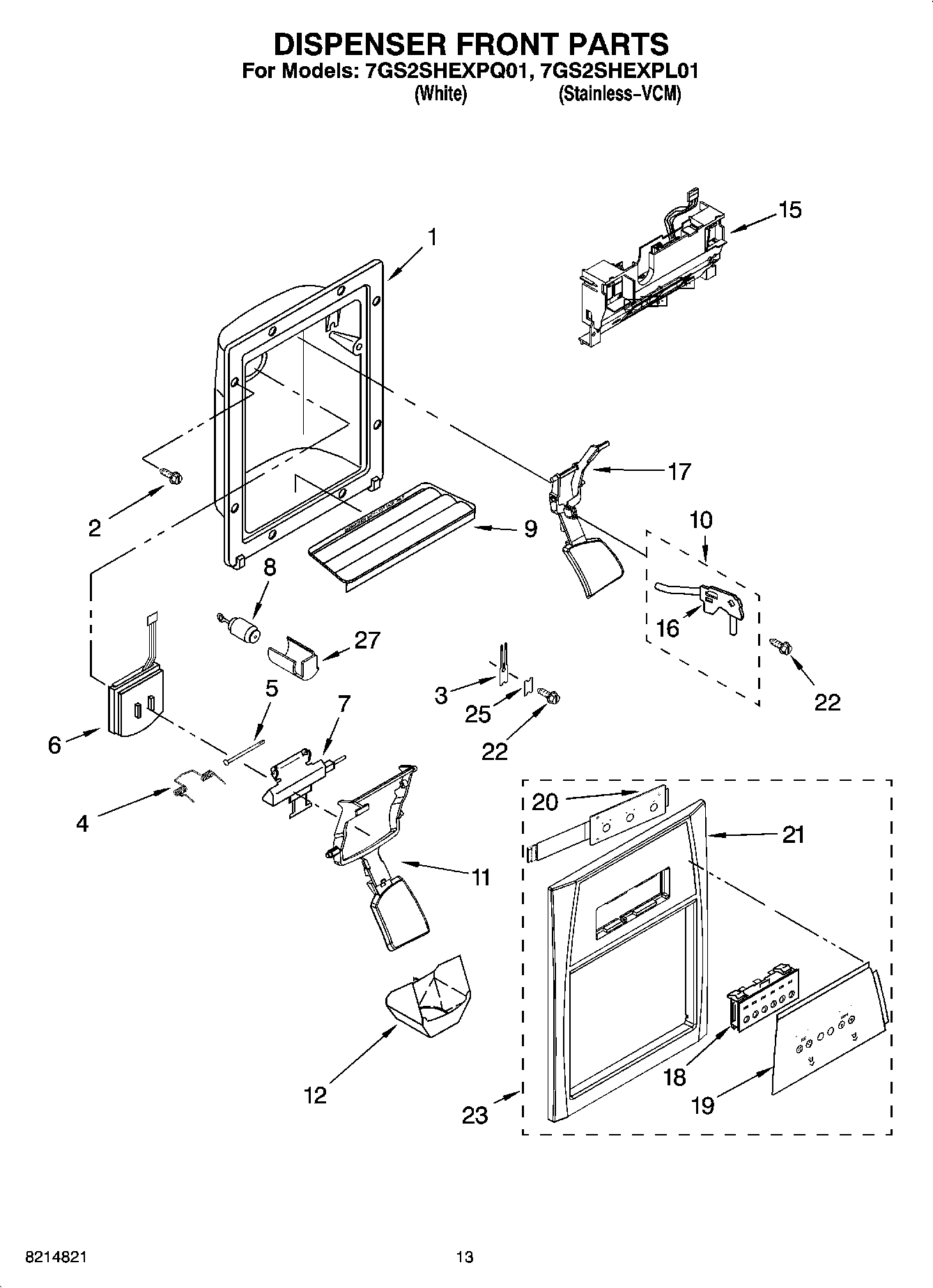

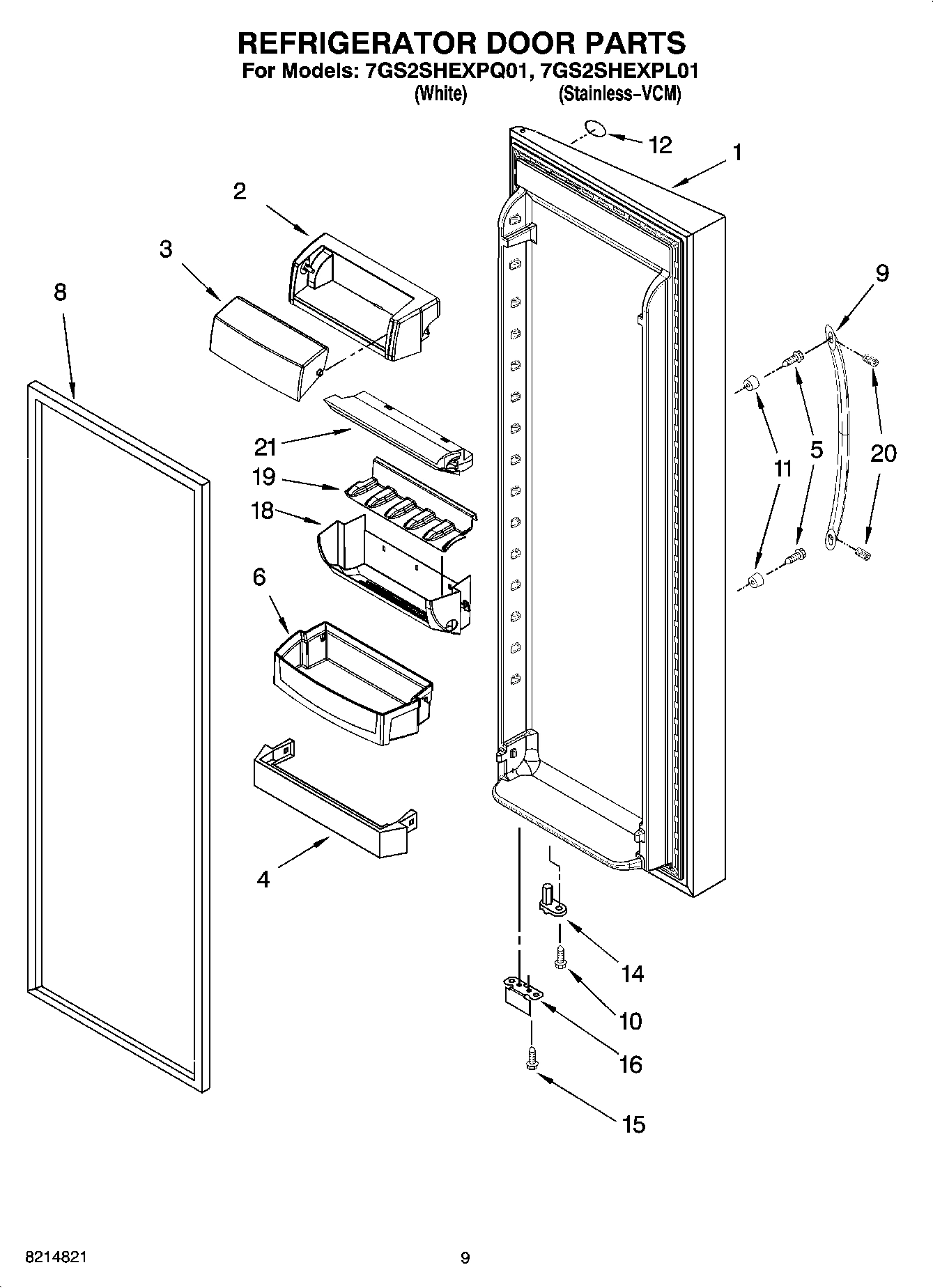

Model Whirlpool 7GS2SHEXPL01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $115.82

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Service & Wiring Sheet WPL 2255955 Contact Us For Availability

1

INSTRUCTION SHEET (DOOR REMOVAL) WPL 2261037 Contact Us For Availability

1

Energy Guide WPL 2261377 Contact Us For Availability

1

Use & Care Guide WPL 2261383 Contact Us For Availability

1

Frame Assembly WPL 2223517 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

Snack Bin Asm WPL 2223261 Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $159.43

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Cover, Crisper WPL 2223592 Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

4

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Washer WPL 2258220 Contact Us For Availability

4

Louver WPL 2257741 Contact Us For Availability

5

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $7.05

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $13.32

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Glass, Cover WPL 2223591 Contact Us For Availability

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

Electronic Control WPL 2304103 Contact Us For Availability

6

Glass, Cover WPL 2223714 Contact Us For Availability

6

Door Control Asm WPL 2261601 Contact Us For Availability

7

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

7

Bracket, Dual Crisper WPL 2256035 Contact Us For Availability

7

Heat Shield And Drain Pan WPL 2304288 Contact Us For Availability

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $28.09

8

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $52.54

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $44.27

8

WP2223242 Whirlpool Refrigerator Cover In Stock WPL WP2223242 $209.82

9

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

9

WP2223320 Whirlpool Slide Track Pan In Stock WPL WP2223320 $12.22

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Grille, Overflow (Black) WPL 2207048B Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

9

Shelf Ladder WPL 2206270 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $131.65

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WPW10233488 Whirlpool Refrigerator Crisper Pa Backorder WPL WPW10233488 $152.60

2223308 Whirlpool Refrigerator Slide Backorder WPL 2223308 $30.25

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $38.08

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $38.16

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Relay (Service Only) WPL 2183454 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $31.53

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

Nameplate WPL 2220214 Contact Us For Availability

Knob, Humidity Control WPL 2223309 Contact Us For Availability

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $54.68

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $43.20

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Meat Pan Asm WPL 2223243 Contact Us For Availability

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $2.51

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $58.14

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $27.52

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $67.68

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $37.53

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $53.14

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP2223288 Whirlpool Refrigerator Cantilever S Backorder WPL WP2223288 $258.82

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $66.24

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

20

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

20

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

Light Lens WPL 2209769 Contact Us For Availability

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $57.55

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $194.99

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $28.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $16.56

Shelf, Slide Out WPL 2255160 Contact Us For Availability

Screw WPL 488280 Contact Us For Availability

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $8.53

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Bracket, Insert WPL 2216997 Contact Us For Availability

Cover, Unit WPL 2214543 Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $83.11

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Holder WPL 2212369 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $65.37

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.63

26

NLA:SCREW Backorder WPL WPW10141645 $3.70

26

Harness, Unit WPL 2187740 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $38.32

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.03

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

Sleeve, Mechanism Display WPL 2252127 Contact Us For Availability

Knob, FC WPL 2255992 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10309990 Whirlpool Refrigerator Compressor In Stock WPL W10309990 $312.79

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $18.10

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

29

Electronic Control WPL 2304095 Contact Us For Availability

2304903 Whirlpool Refrigerator Frame Backorder WPL 2304903 $100.60

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $20.14

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $31.24

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $42.87

31

Control Box WPL 2255623 Contact Us For Availability

31

Cabinet, (Not A Serviceable Part) WPL ARI17190A9 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

32

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

32

Dispenser, Motor WPL 2188860 Contact Us For Availability

33

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $49.61

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $4.39

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.56

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $27.27

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

36

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $41.91

36

Cover WPL 2255624 Contact Us For Availability

37

WP2304697 Whirlpool Refrigerator Water Tube Backorder WPL WP2304697 $50.33

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

Clip, Retaining WPL 2255199 Contact Us For Availability

39

876811 Whirlpool Grommet Backorder WPL 876811 $3.70

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $2.51

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $3.70

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $4.56

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $2.51

42

Clip, Heat WPL 2155547 Contact Us For Availability

48

Unit Mounting Rail WPL 2149718 Contact Us For Availability

49

8281160 Whirlpool Screw Backorder WPL 8281160 $5.33

50

Guard, Fan WPL 2186496 Contact Us For Availability

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

59

W10169512 Whirlpool Clip Backorder WPL W10169512 $27.52

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following WPL ARI17198A9 Contact Us For Availability

WPL ARI17199A5 WPL ARI17199A5 Contact Us For Availability
