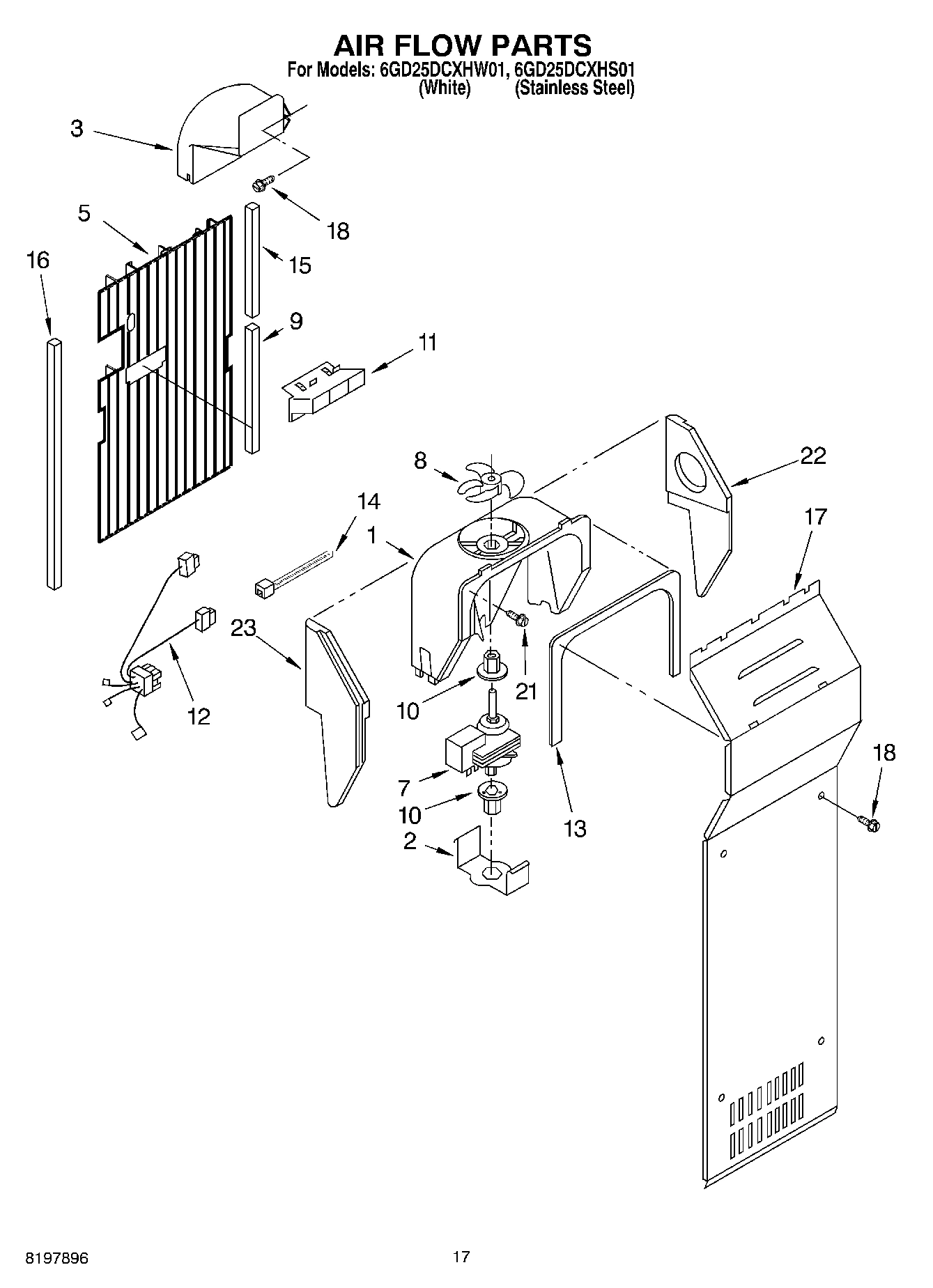

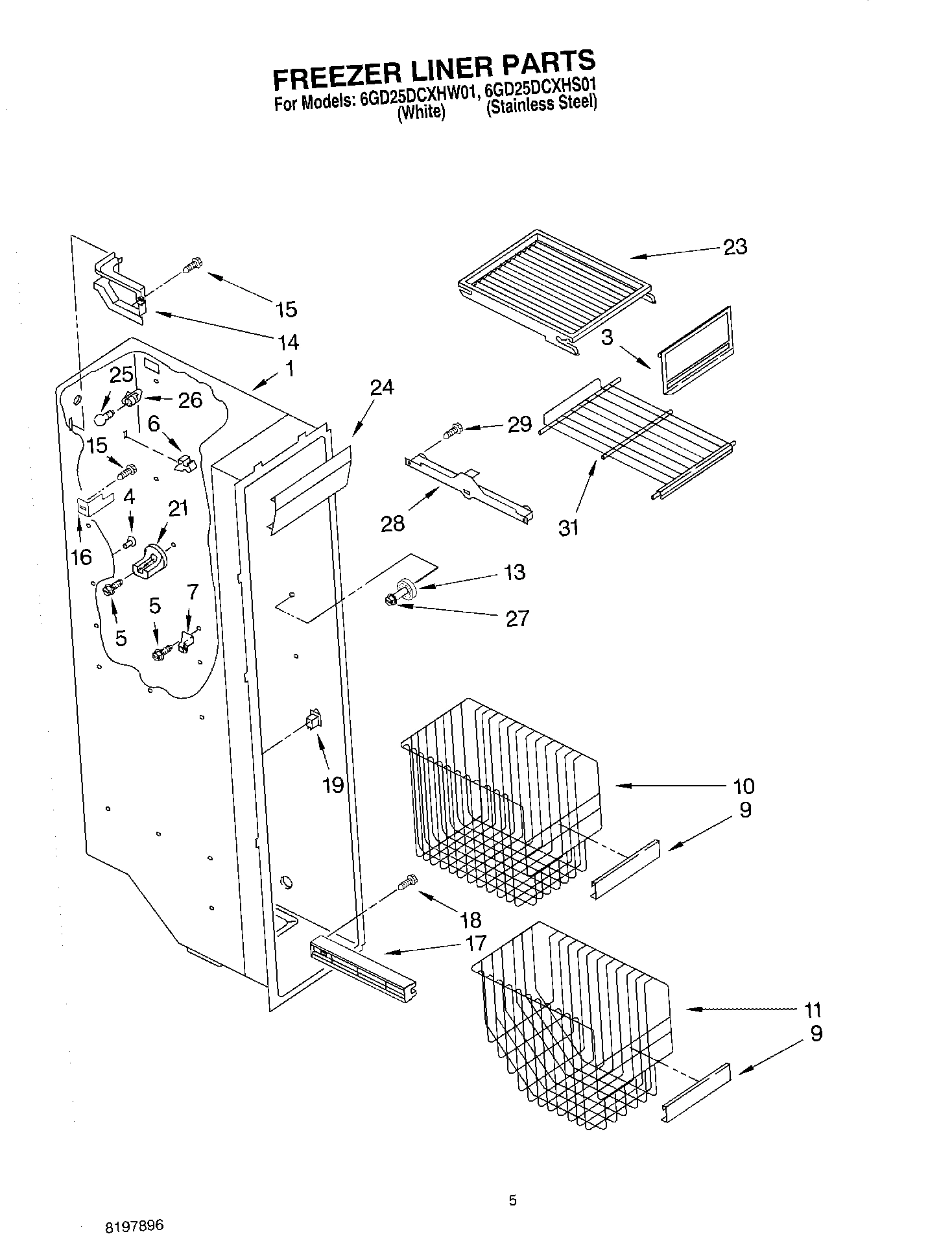

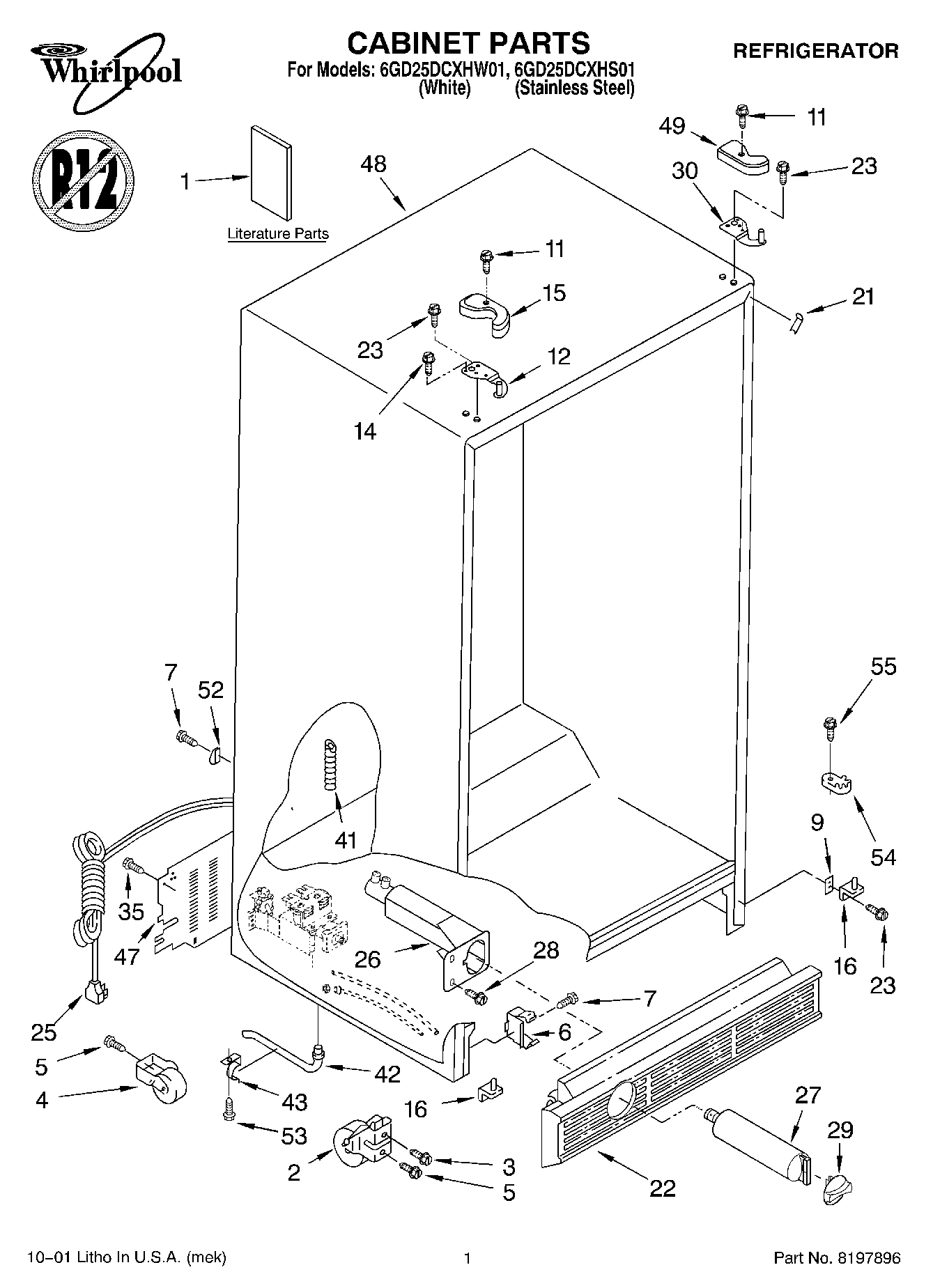

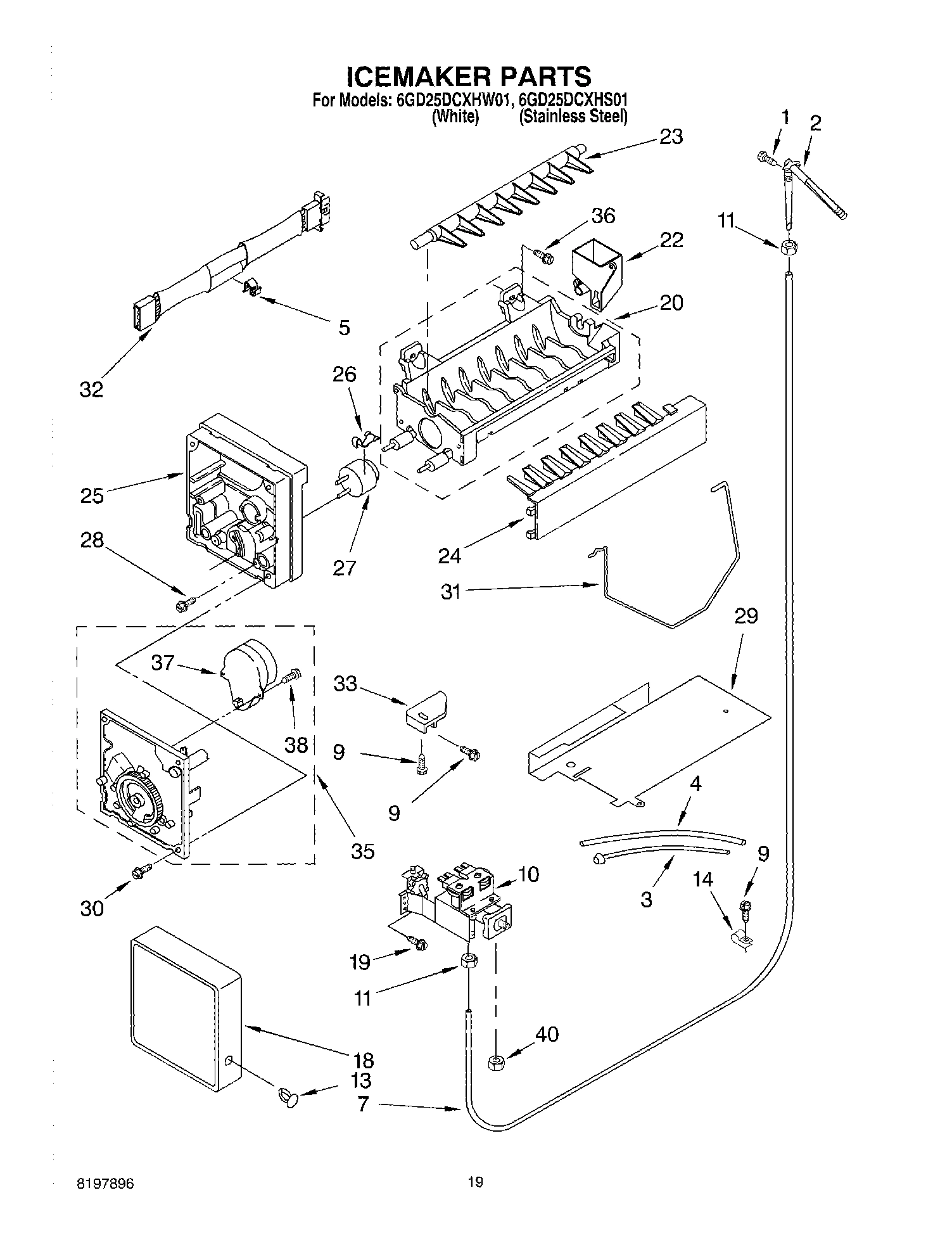

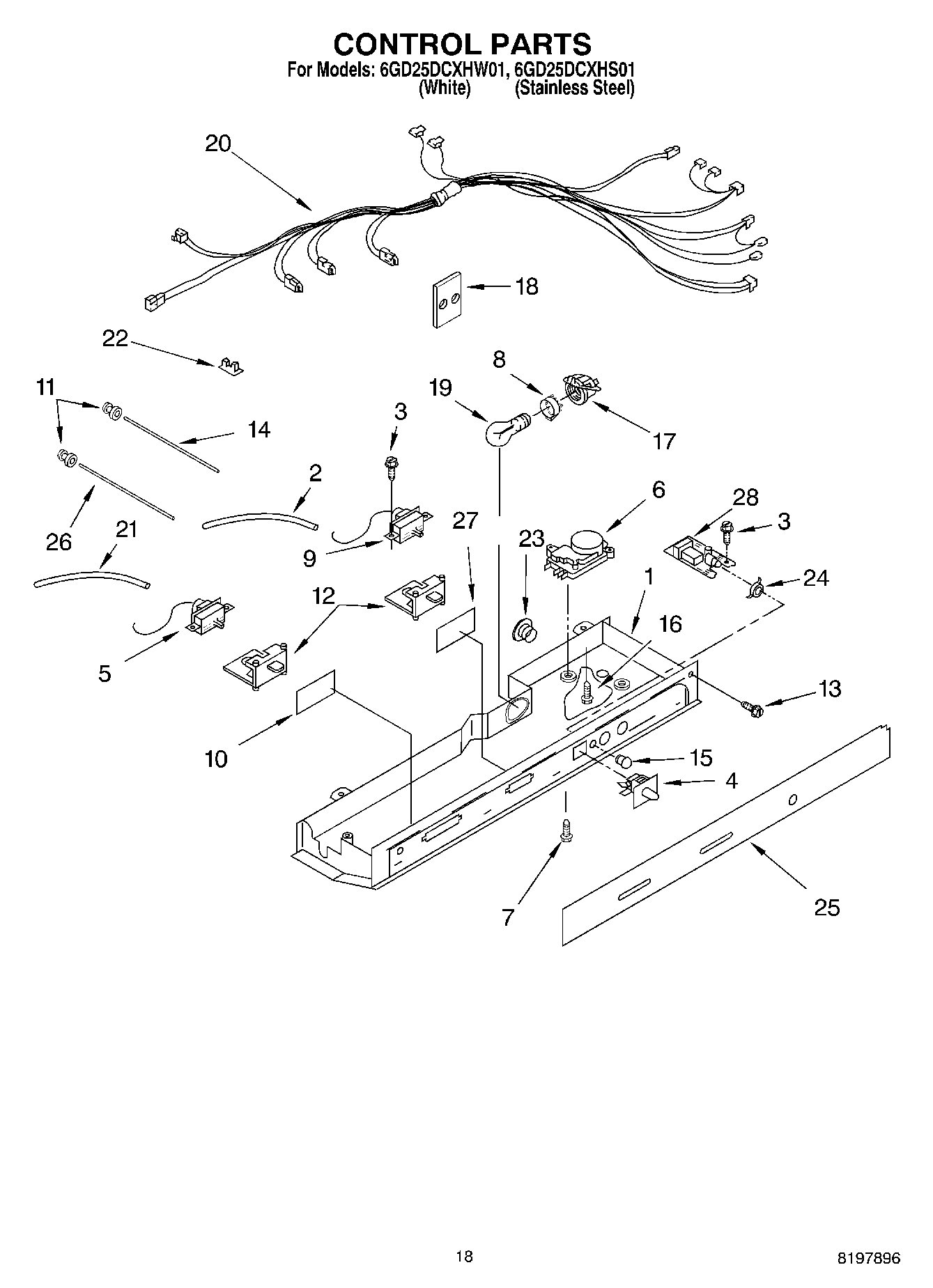

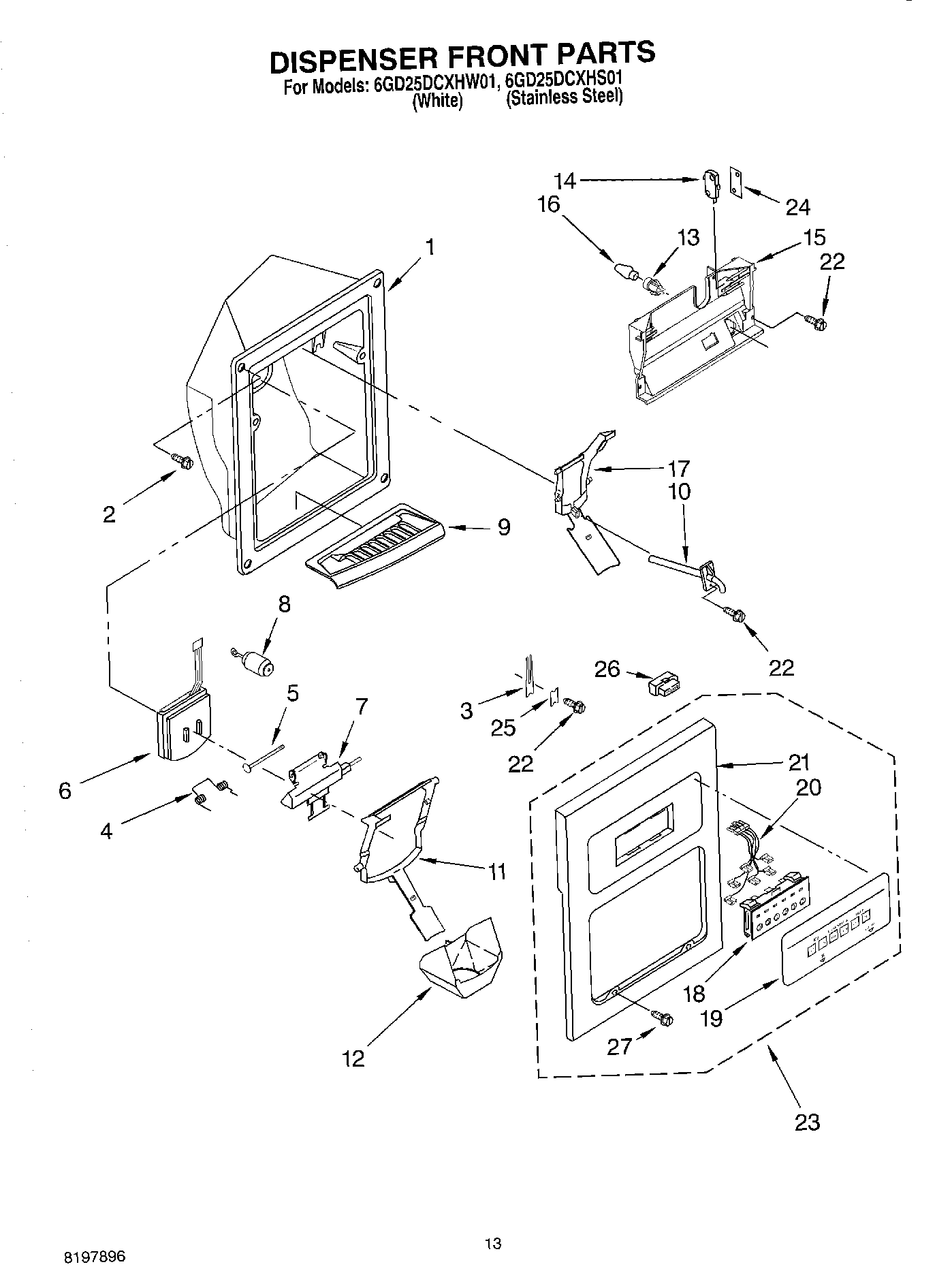

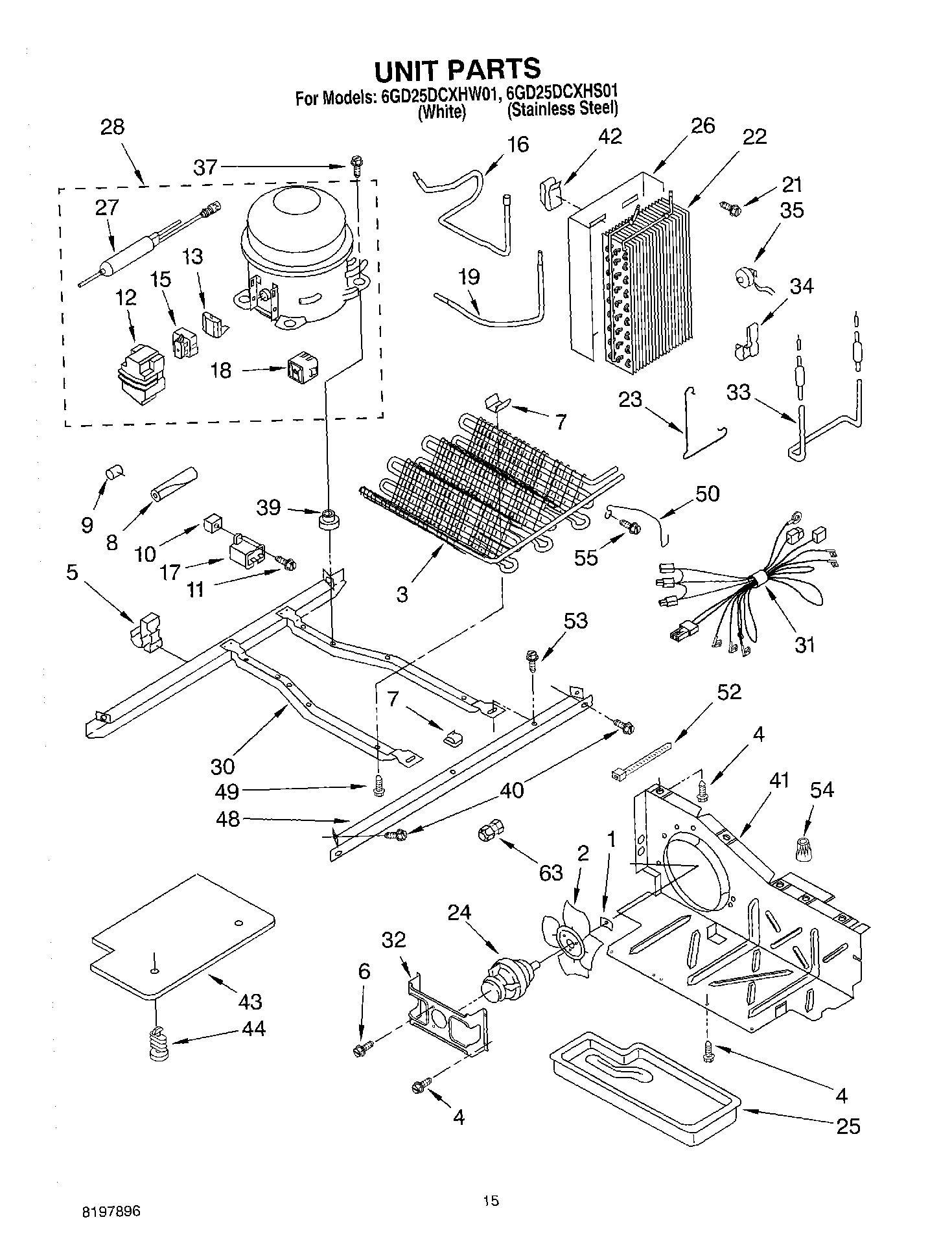

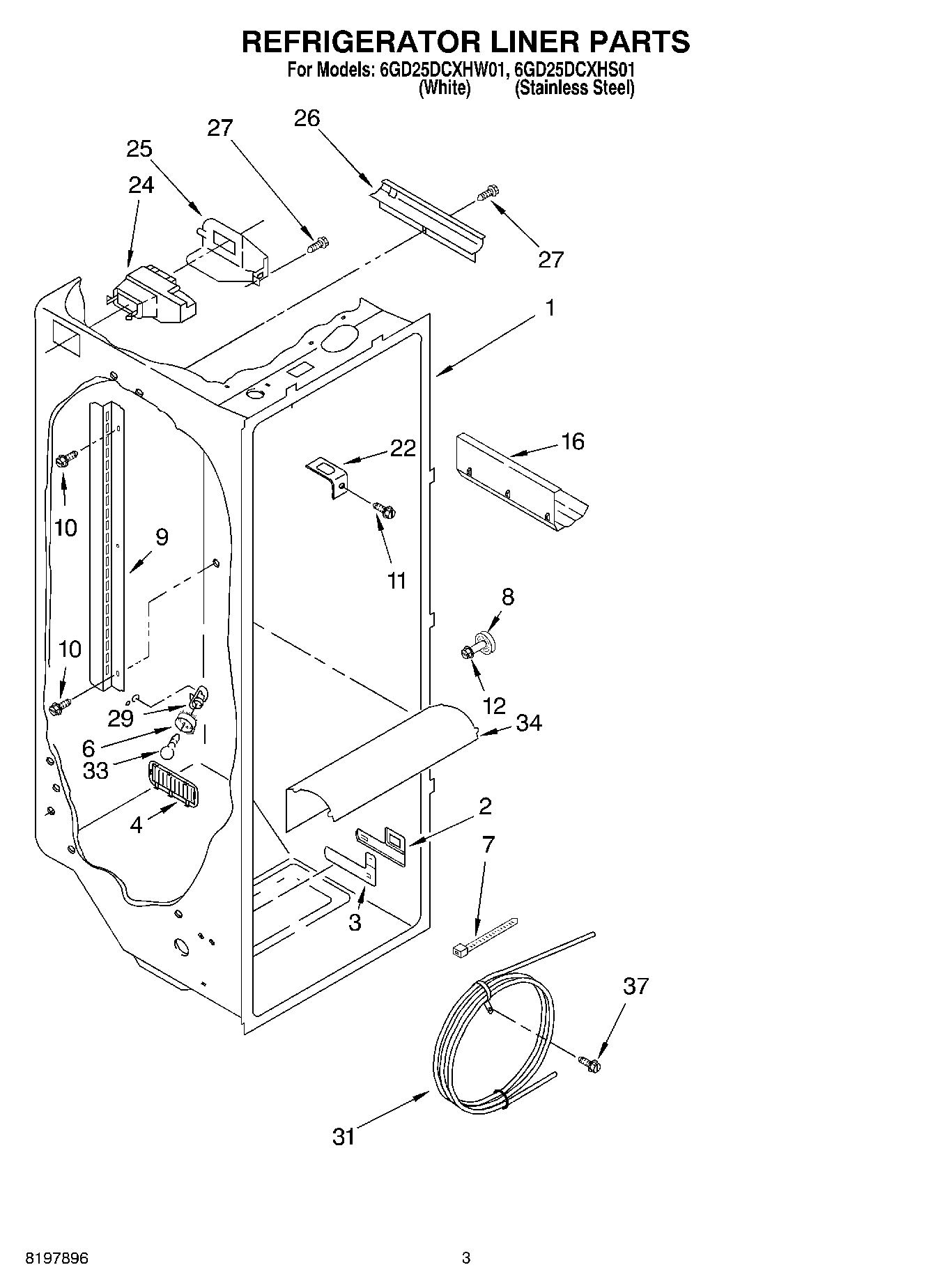

Model Whirlpool 6GD25DCXHW01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

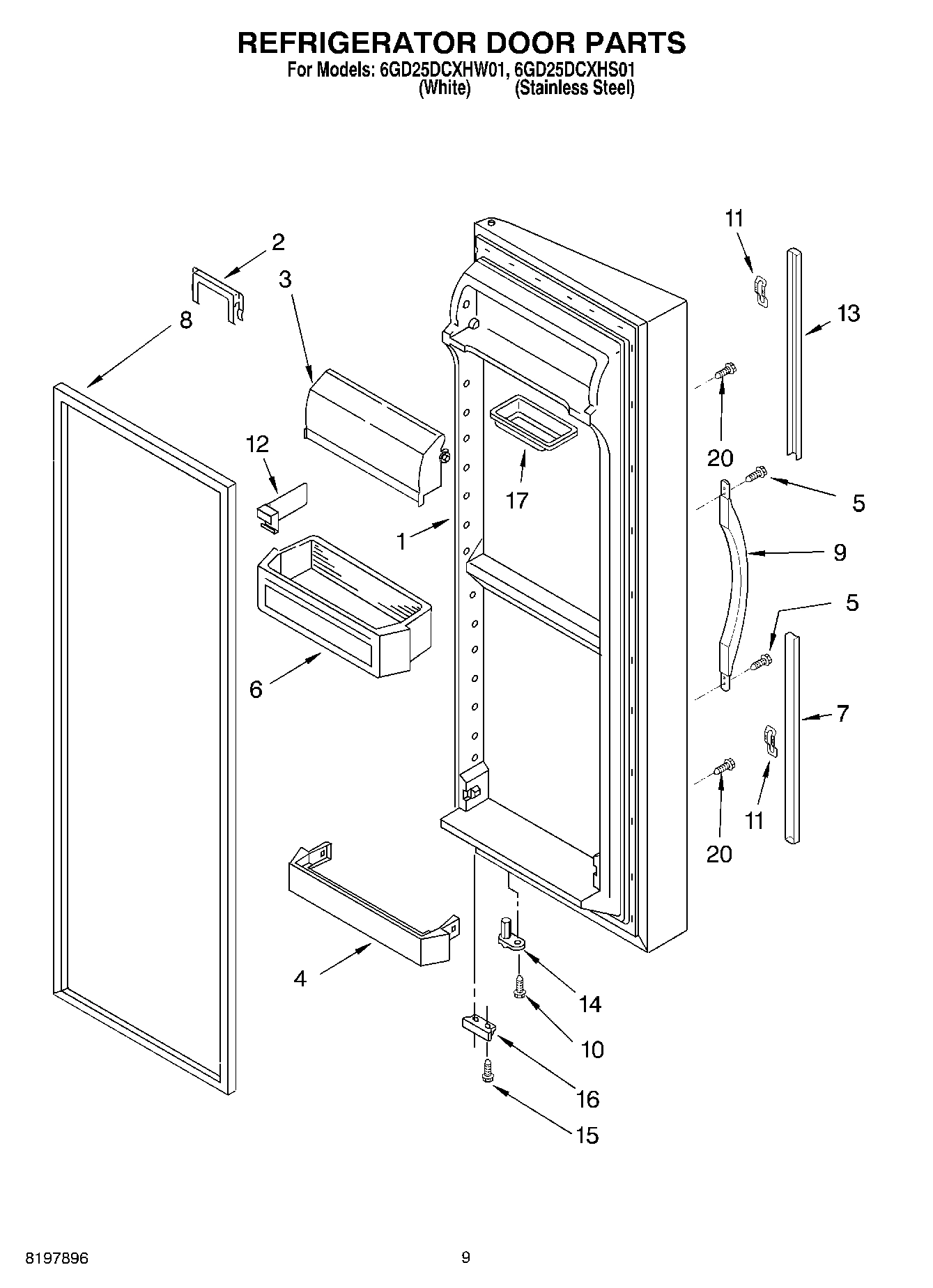

Refrigerator Door (Includes Item No.8) (Stain WPL 2207026S Contact Us For Availability

1

Refrigerator Door (Includes Item No.8) (White WPL 2207026W Contact Us For Availability

1

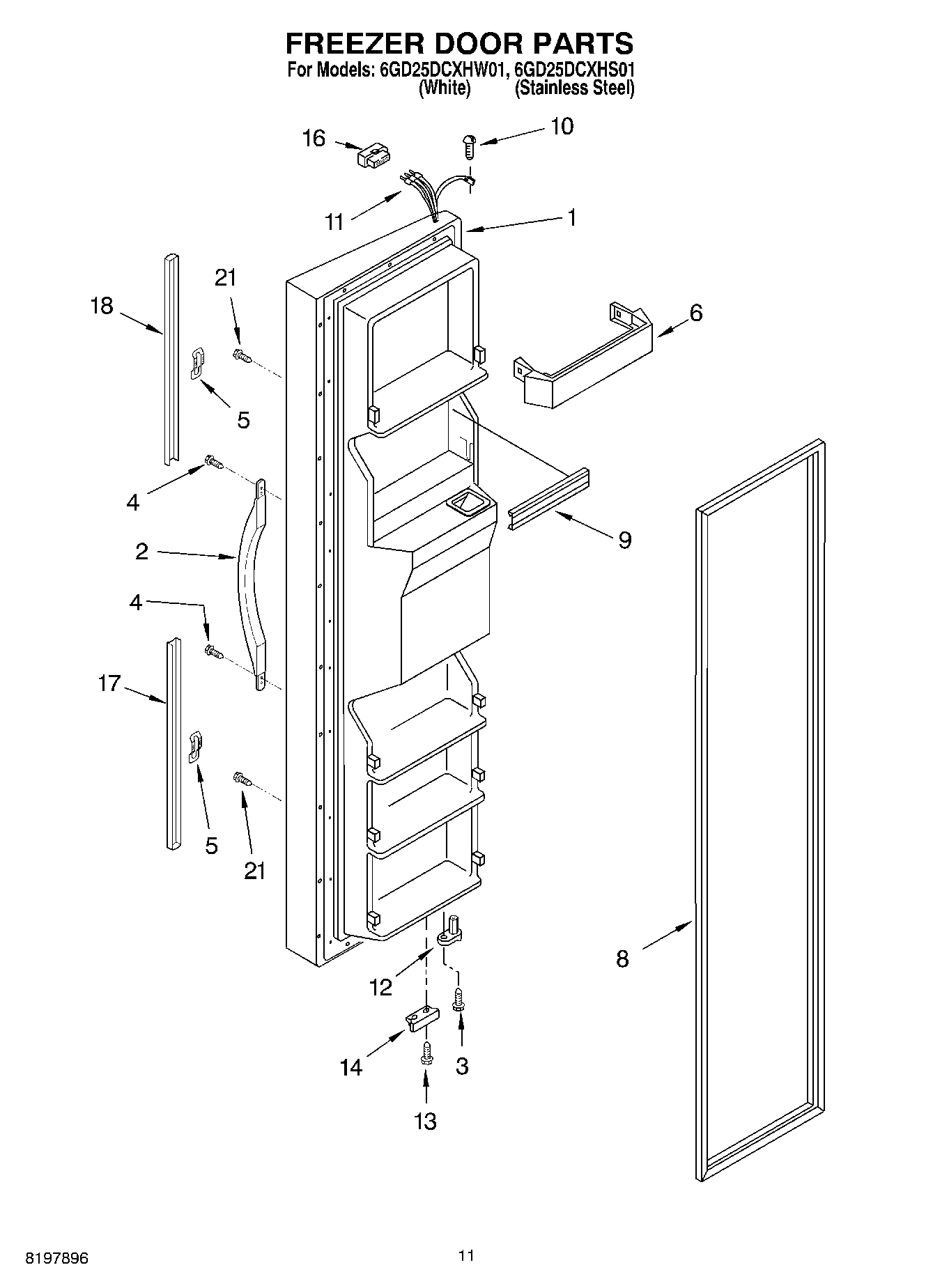

Freezer Door (Includes Item No.8 And Dispense WPL 2207076S Contact Us For Availability

1

Freezer Door (Includes Item No.8 And Dispense WPL 2207076W Contact Us For Availability

1

Energy Label WPL LIT2214381 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2214768 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2219976 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628371 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $28.80

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $4.59

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

2

Retainer, Bottle WPL 2173643 Contact Us For Availability

2

Handle, Center (Tempest Grey) WPL 2217185TG Contact Us For Availability

2

Handle, Center (White) WPL 2217185W Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $12.61

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

4

Grommet WPL 2176134 Contact Us For Availability

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $31.93

6

WPW10321304 Whirlpool Refrigerator Door Shelf In Stock WPL WPW10321304 $25.24

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $152.24

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $155.73

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $147.90

8

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $129.94

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $26.21

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

9

WP2161460 Whirlpool Refrigerator Thermostat Backorder WPL WP2161460 $137.81

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $11.97

9

WP2209697 Whirlpool Refrigerator Shim Backorder WPL WP2209697 $30.80

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $4.56

Valve, Solenoid WPL 2204400 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $86.75

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $10.76

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

Divider, Bin WPL 2195496 Contact Us For Availability

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

13

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $3.70

13

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

Light Bar (RC) WPL 2179920 Contact Us For Availability

Bracket, Door Stop WPL 2200082 Contact Us For Availability

15

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

15

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

15

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

16

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $28.26

16

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

16

Bracket, Door Stop (Black) WPL 2200082B Contact Us For Availability

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $34.13

Extension, Bottom (Tempest Grey) WPL 2217186TG Contact Us For Availability

Extension, Bottom (White) WPL 2217186W Contact Us For Availability

Butter, Dish WPL 2165792 Contact Us For Availability

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $30.85

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

Extension, Top (Tempest Grey) WPL 2217187TG Contact Us For Availability

Extension, Top (White) WPL 2217187W Contact Us For Availability

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

19

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

20

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

20

WPW10122523 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122523 $85.43

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.70

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

Stud, Rear WPL 2196207 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

22

W10803964 Whirlpool Grille Assembly In Stock WPL W10803964 $46.67

22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

23

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

23

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

23

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $32.56

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

Spacer, Switch (2) WPL 625834 Contact Us For Availability

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Service Cord WPL 2205330 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $40.17

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Cememnt Alumilastic WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

2256178 Whirlpool Shield Assembly Backorder WPL 2256178 $69.97

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

35

W10190933 Whirlpool Refrigerator Motor Assemb Backorder WPL W10190933 $191.63

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $219.89

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2`` WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Nut, Compresion WPL 1129179 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $10.07

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

47

Cover, Unit WPL 2214571 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI16216A9 Contact Us For Availability

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39
