Model Whirlpool 6ED25DQXFB00 REFRIGERATOR – Common Parts & Diagrams

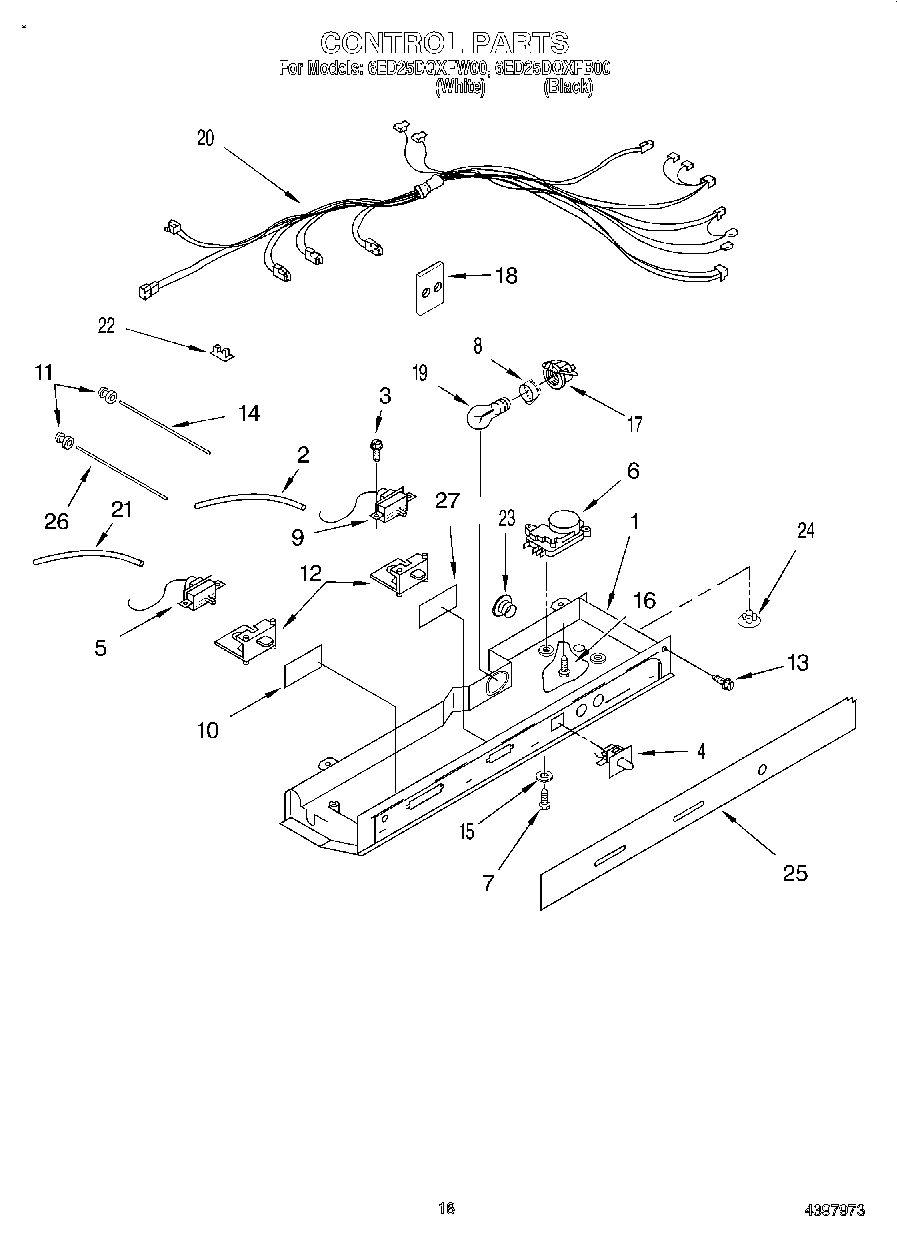

11 - CONTROL
10 - AIR FLOW

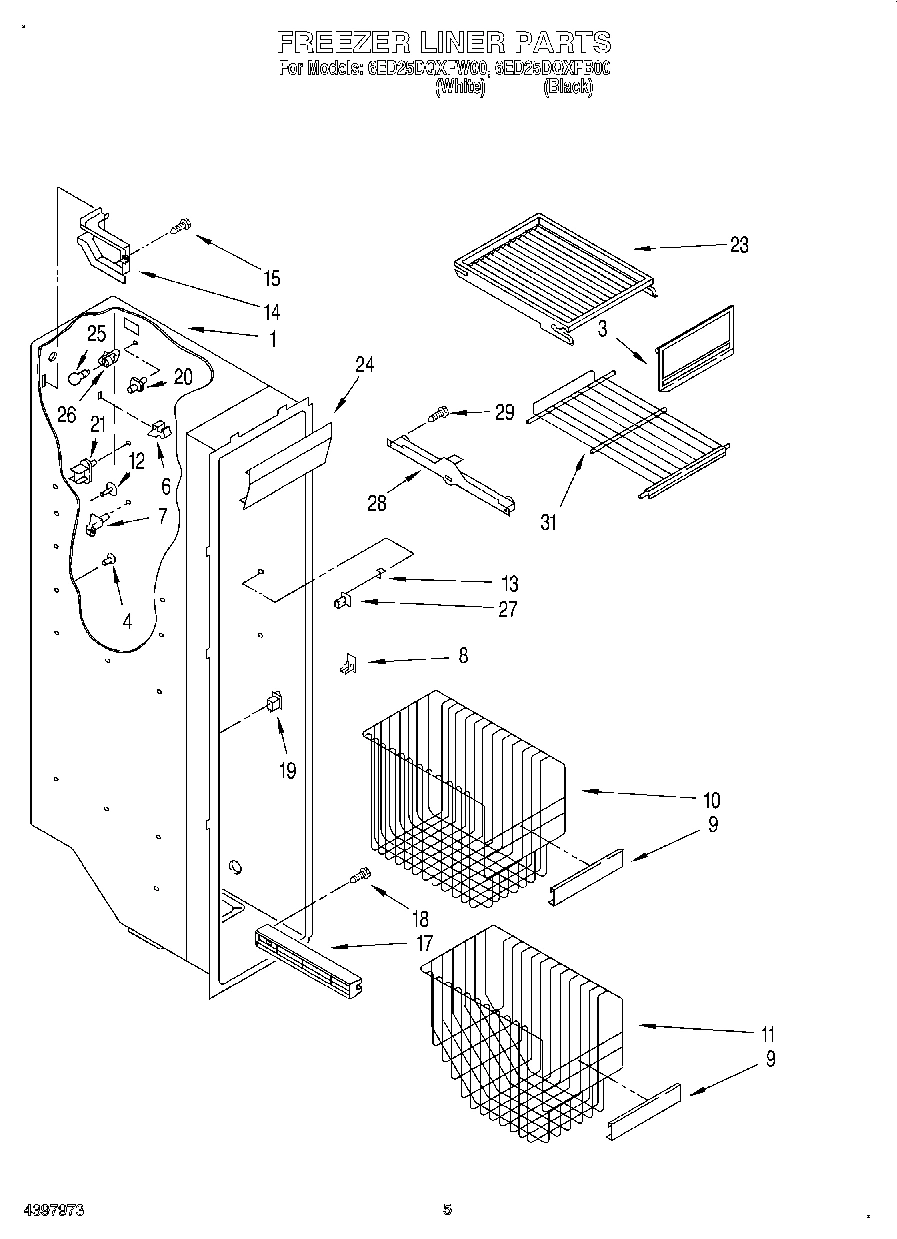

04 - FREEZER LINER

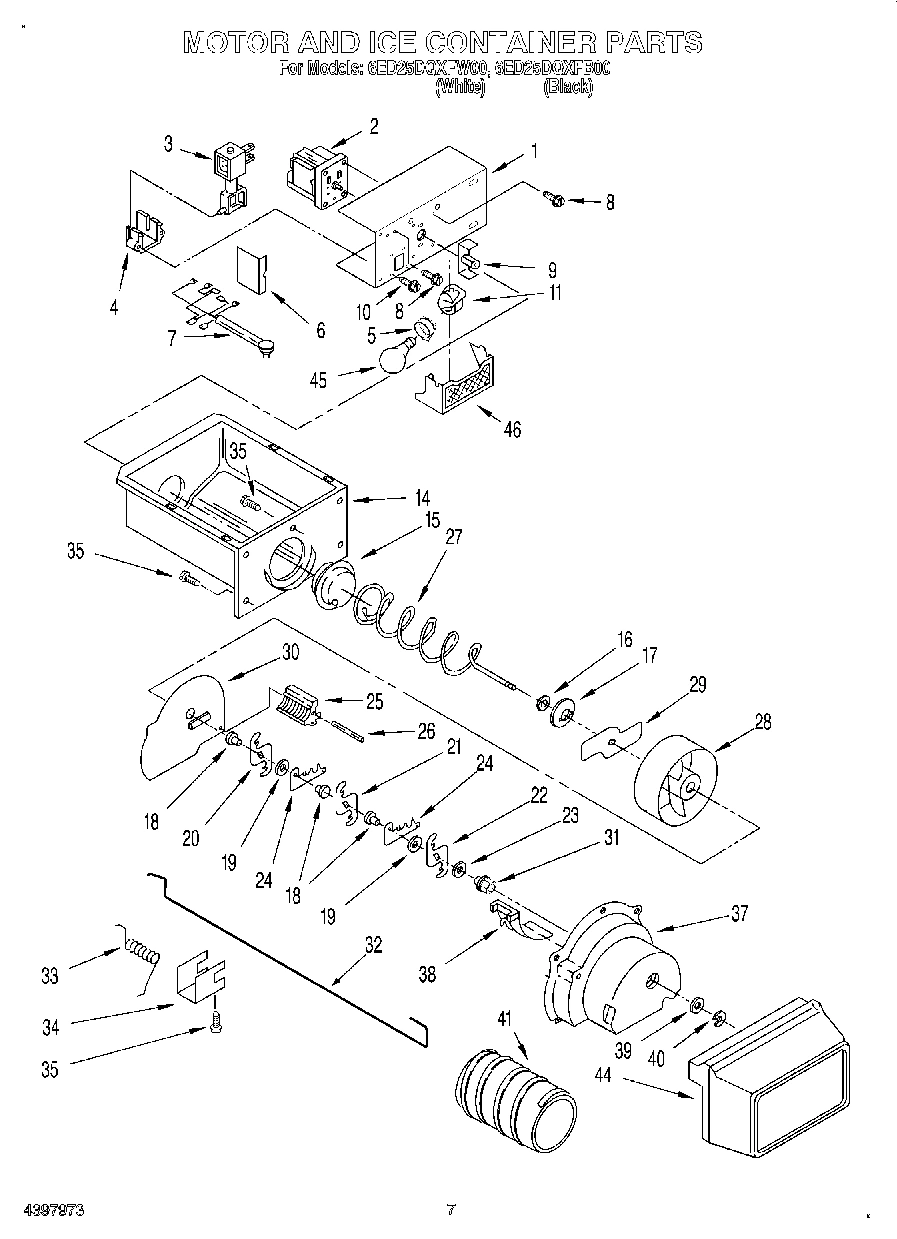

05 - MOTOR AND ICE CONTAINER

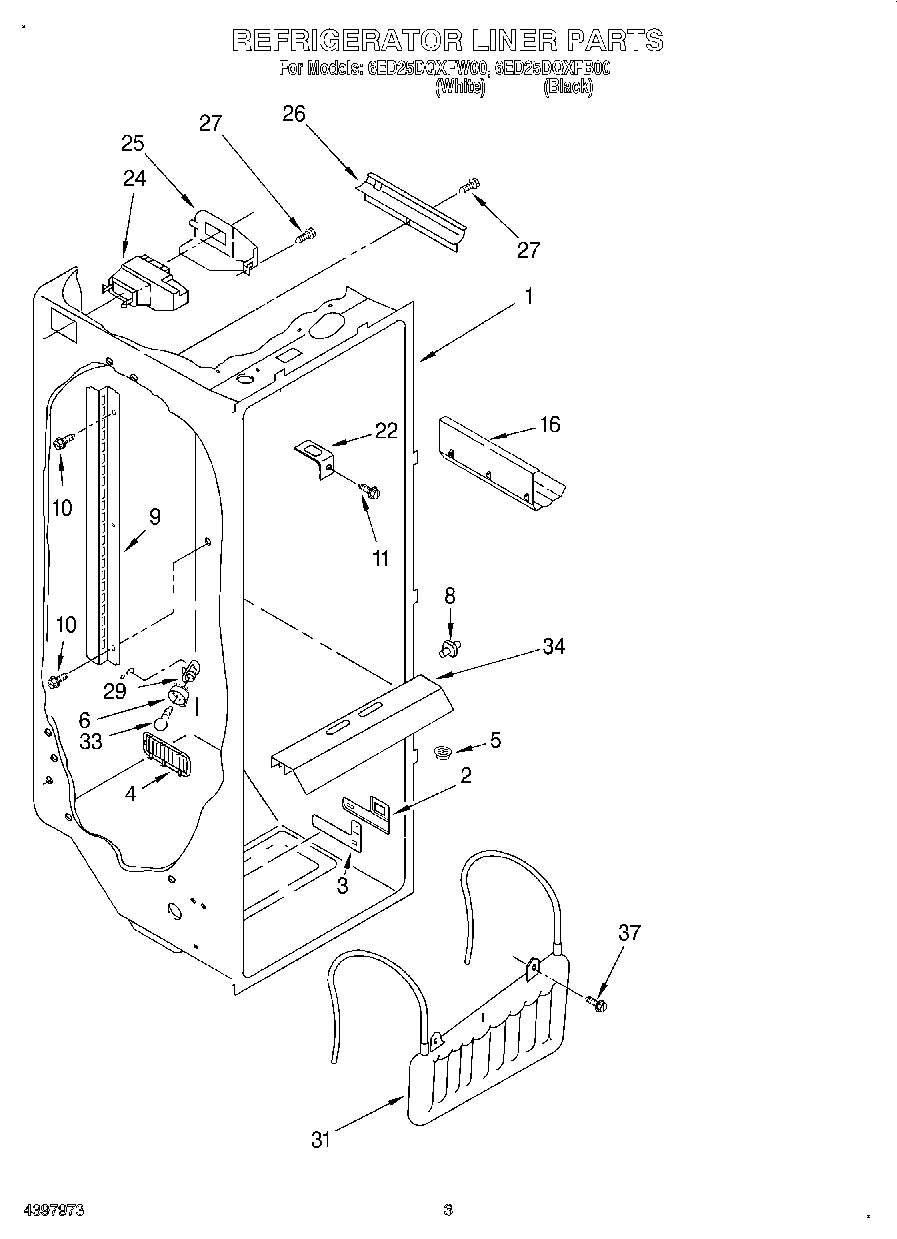

02 - REFRIGERATOR LINER

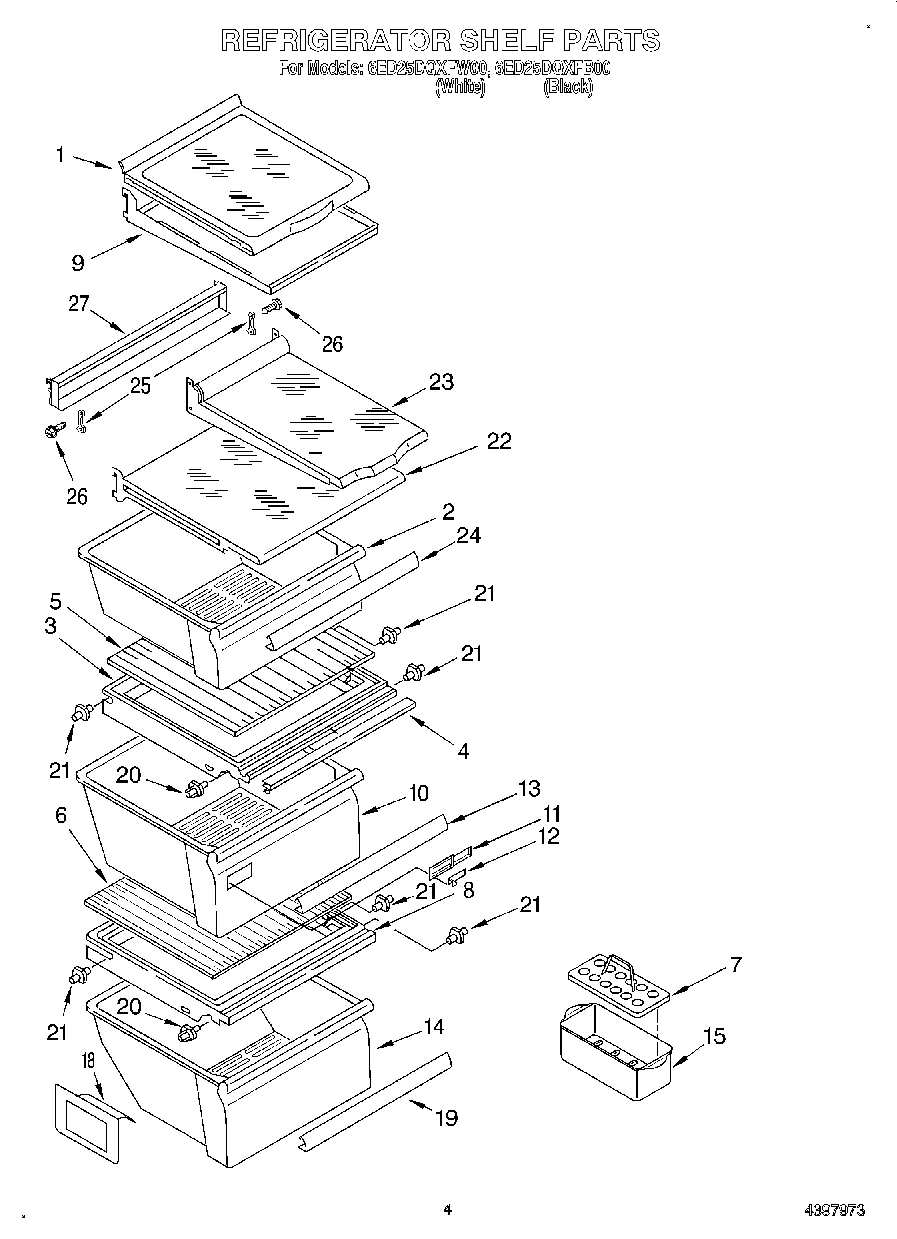

03 - REFRIGERATOR SHELF

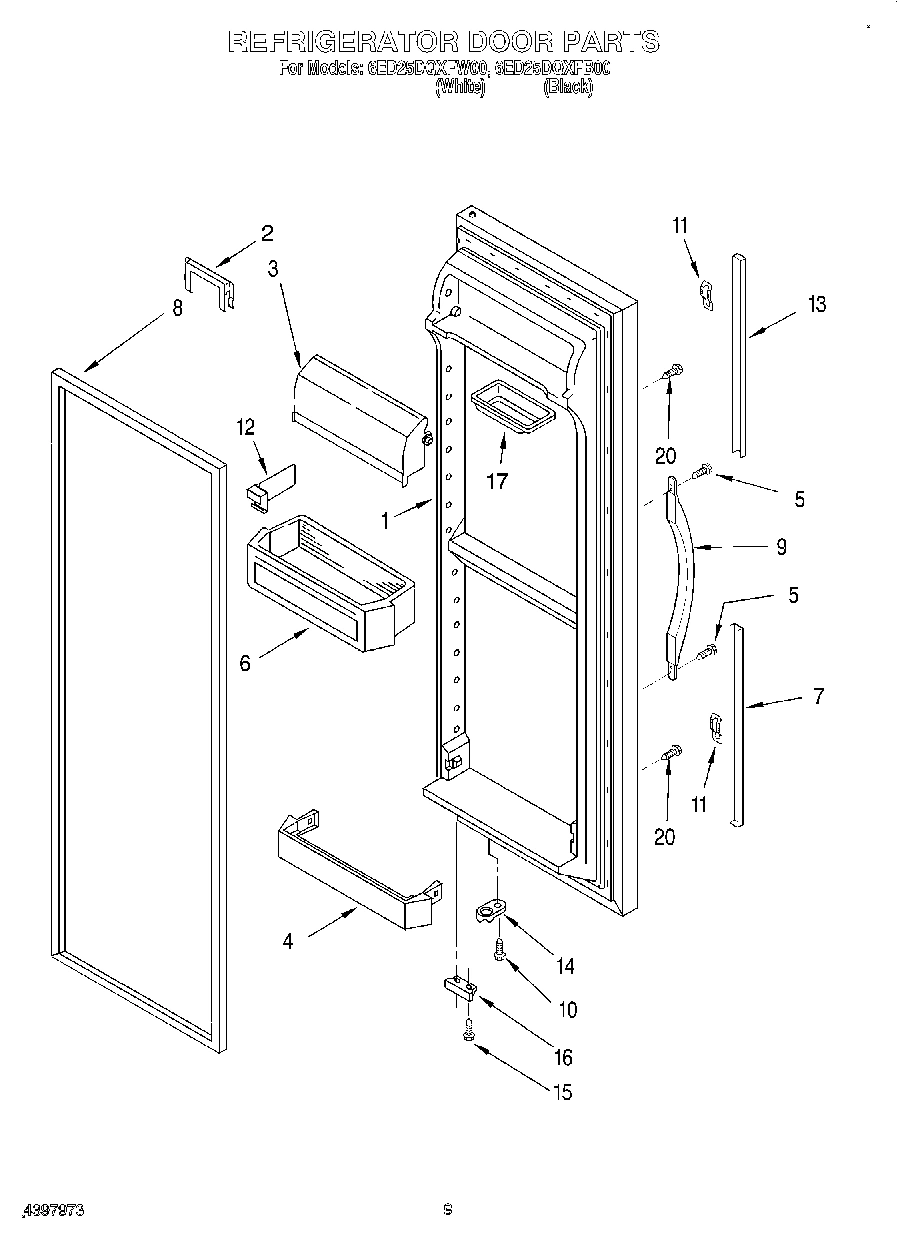

06 - REFRIGERATOR DOOR

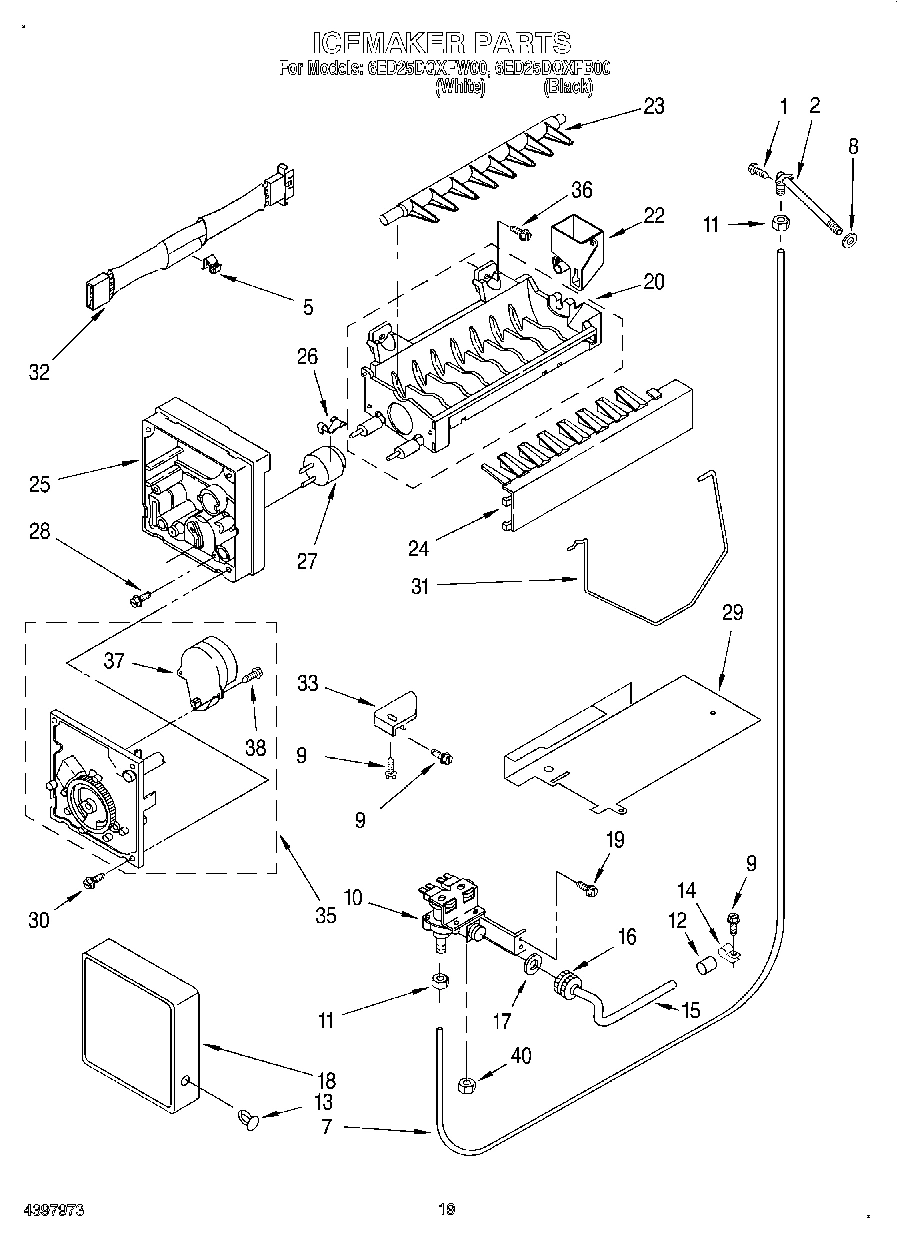

12 - ICE MAKER, LIT/OPTIONAL

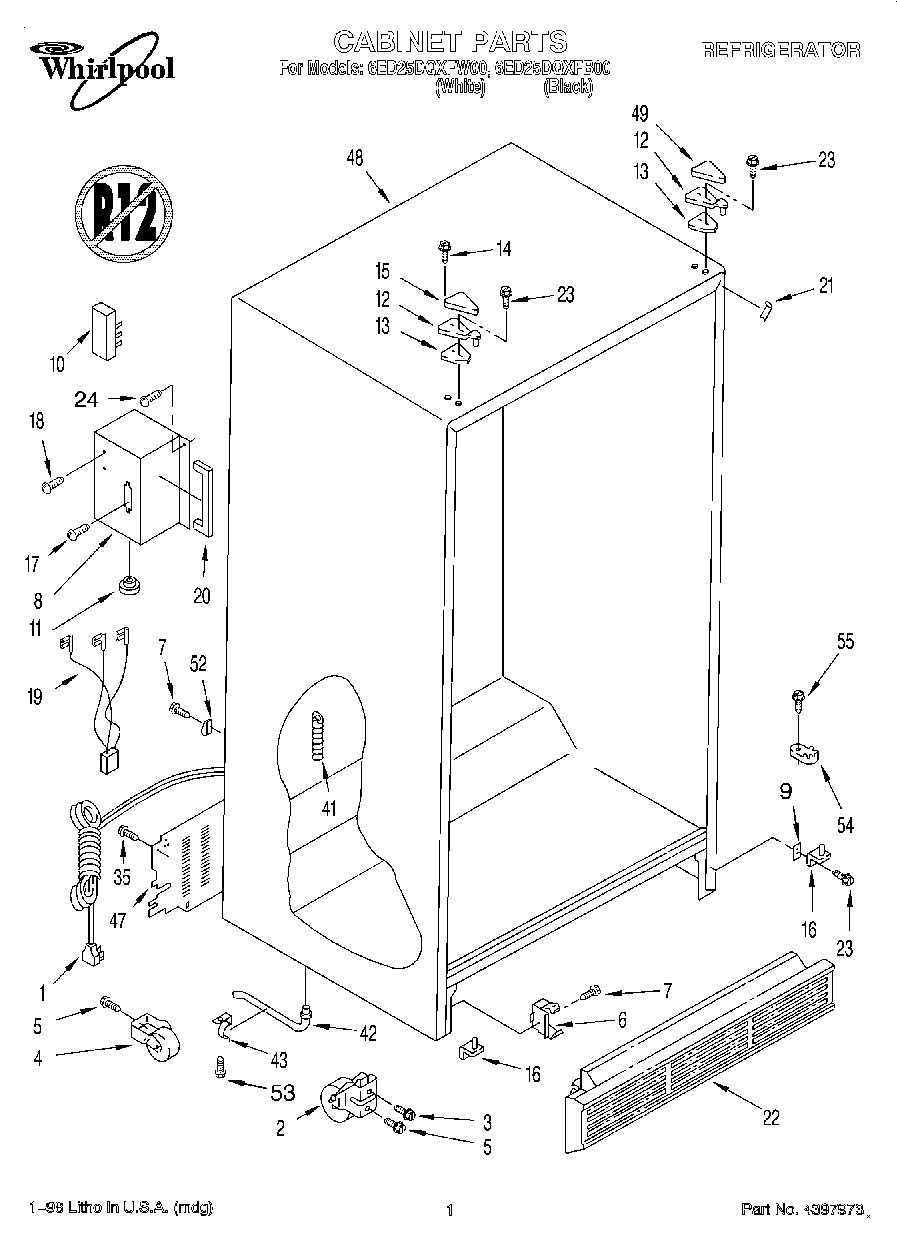

01 - CABINET

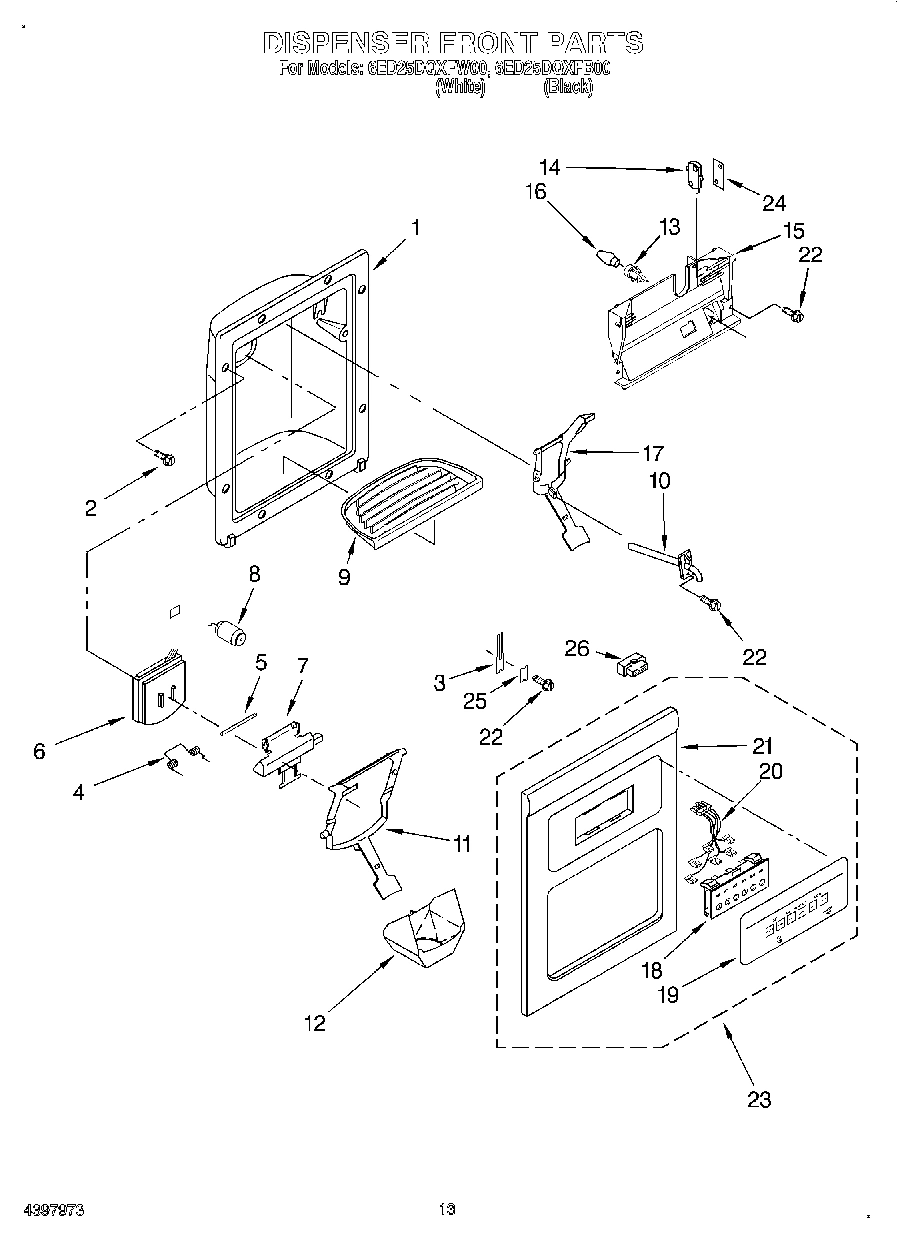

08 - DISPENSER FRONT

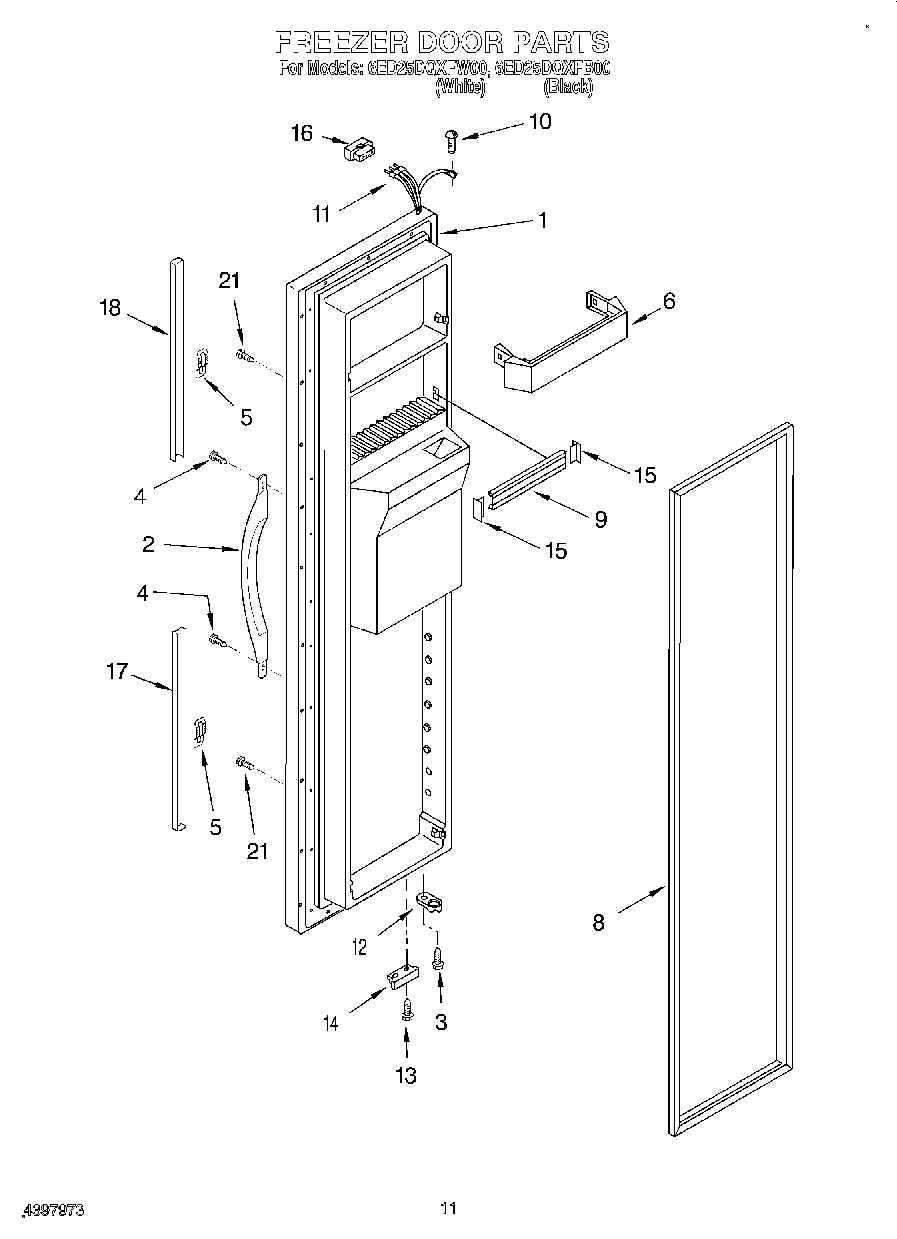

07 - FREEZER DOOR

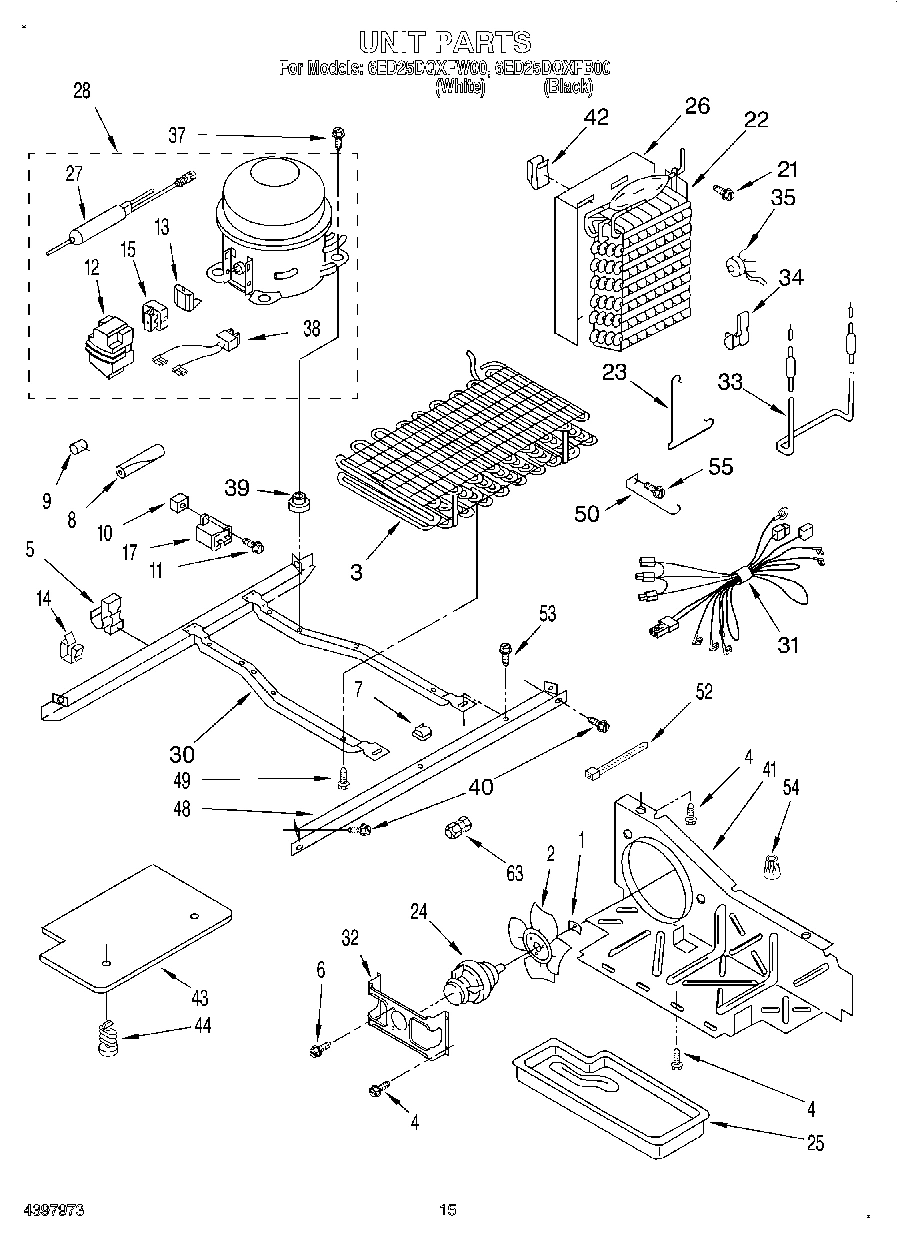

09 - UNIT
Common parts from model Whirlpool 6ED25DQXFB00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Service Cord WPL 1129331 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI15890A9 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2187025B Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2187025W Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
Condenser Assembly WPL 2198175 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
8
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Grille, Overflow (Black) WPL 2180243 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Terminal Block WPL 1129346 Contact Us For Availability
10
Screw Grommet WPL 509812 Contact Us For Availability
11
Bushing WPL 1129449 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180258 Contact Us For Availability
11
Wiring Harness WPL 2183713 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Bulb, Light WPL 989331 Contact Us For Availability
18
Extension, Top (Black) WPL 2194973B Contact Us For Availability
19
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2187023B Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2187023W Contact Us For Availability
20
Gasket WPL 2167227 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI15891A9 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2187028B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2187028W Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Connector WPL 2169477 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 15, 17, 27 WPL 2183443 Contact Us For Availability
31
Unit, Harness WPL 2195108 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
40
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
40
WPL 799833 WPL 799833 Contact Us For Availability
40
WPL 978883 WPL 978883 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
47
Cover, Unit WPL 2189570 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI15887A5 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
