Model Whirlpool 6ED25DQXDW01 REFRIGERATOR – Common Parts & Diagrams
06 - REFRIGERATOR DOOR
08 - DISPENSER FRONT

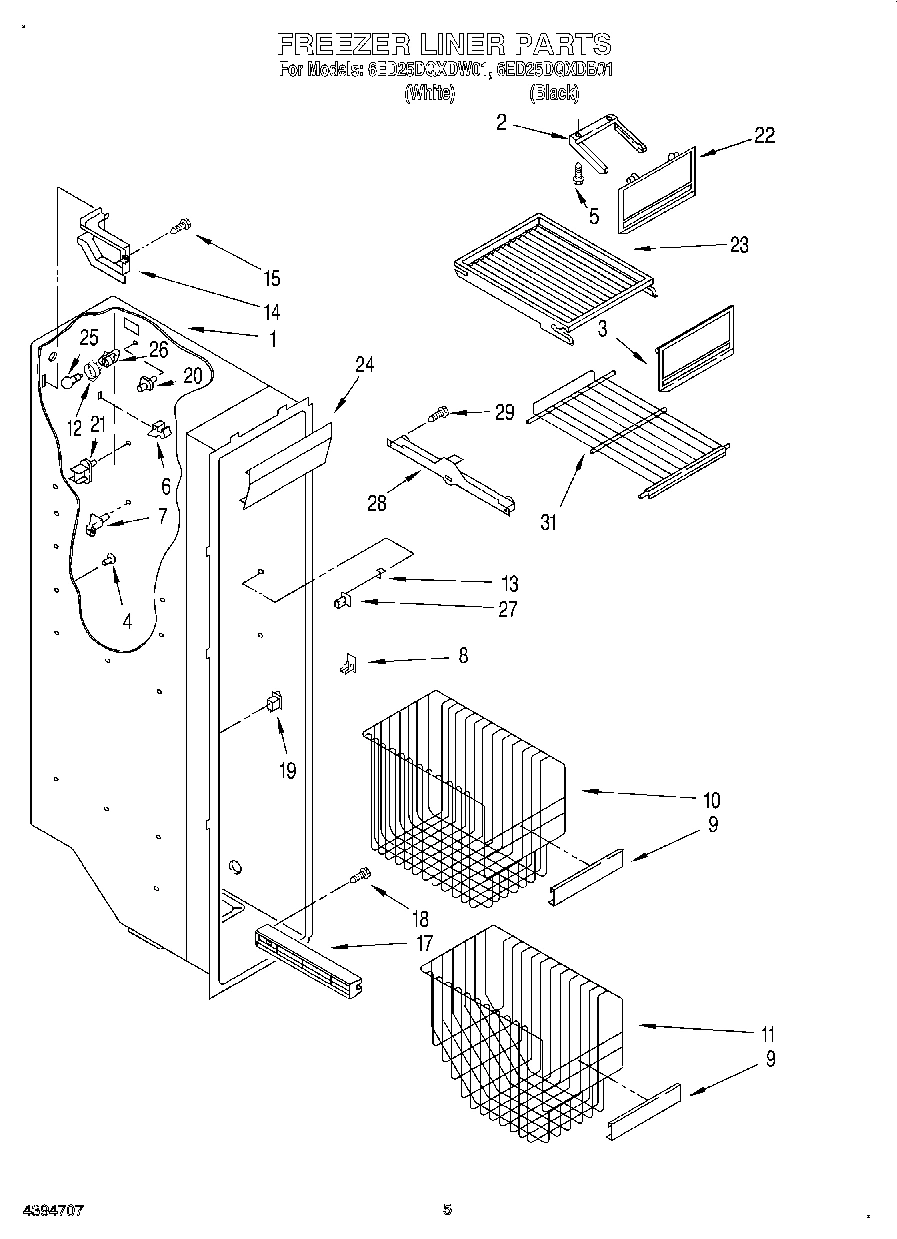

04 - FREEZER LINER

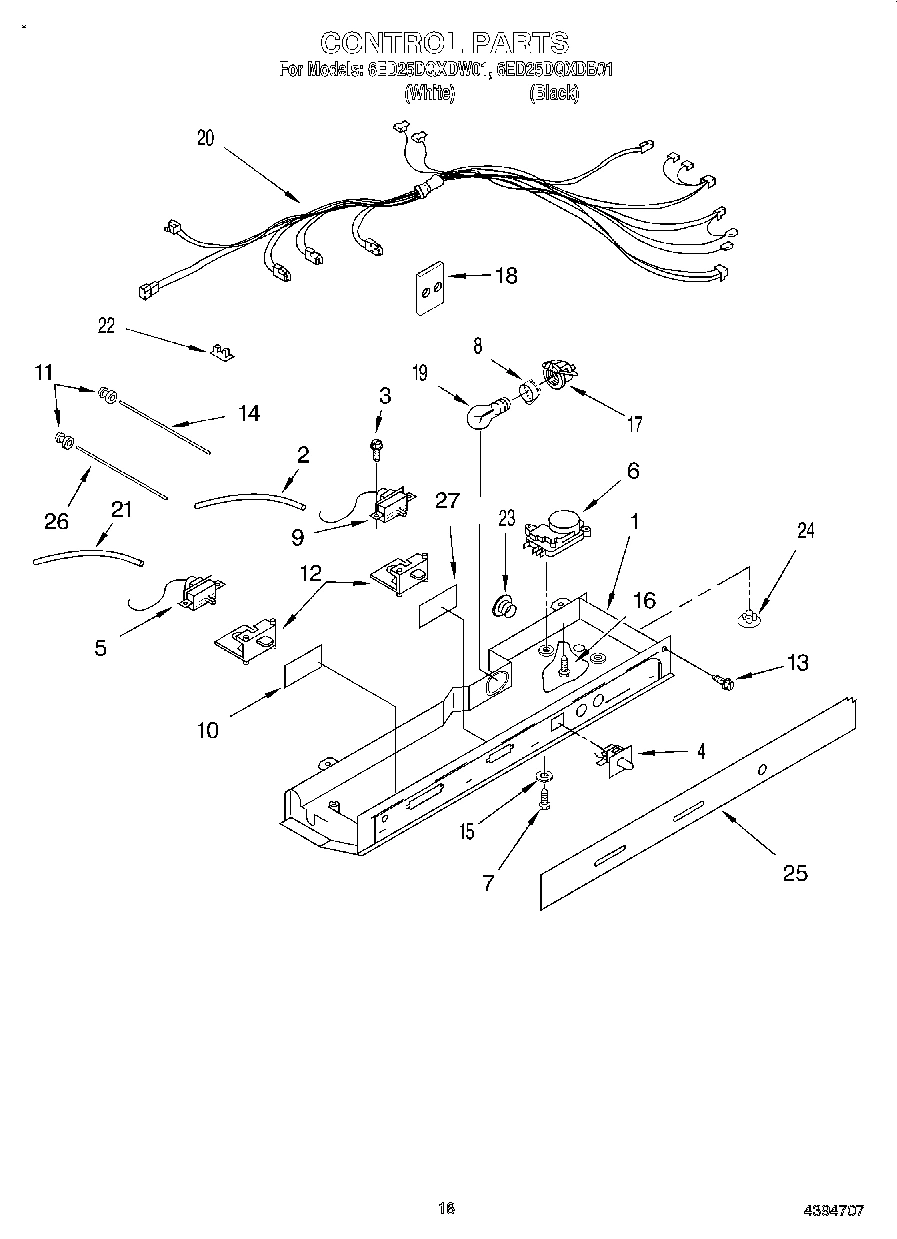

11 - CONTROL

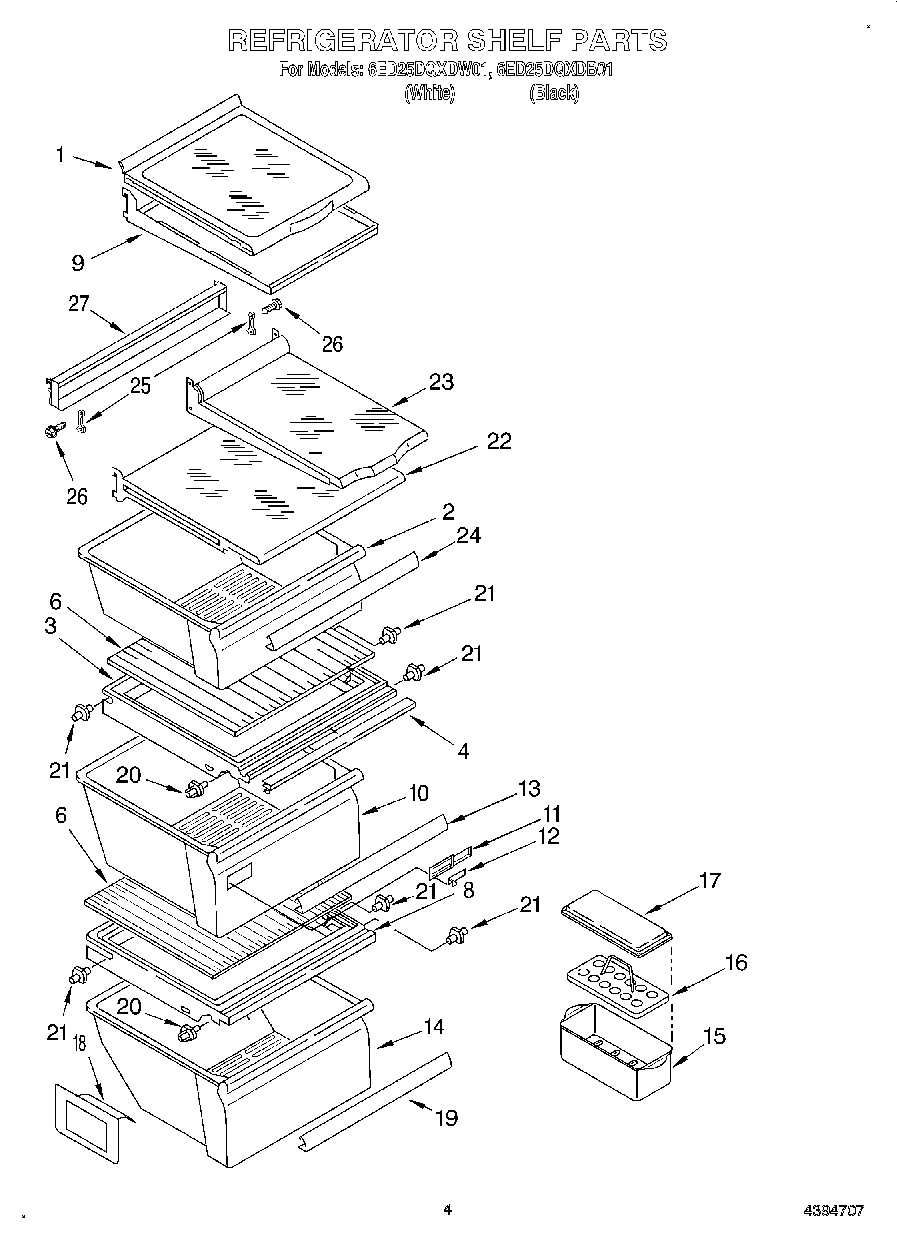

03 - REFRIGERATOR SHELF

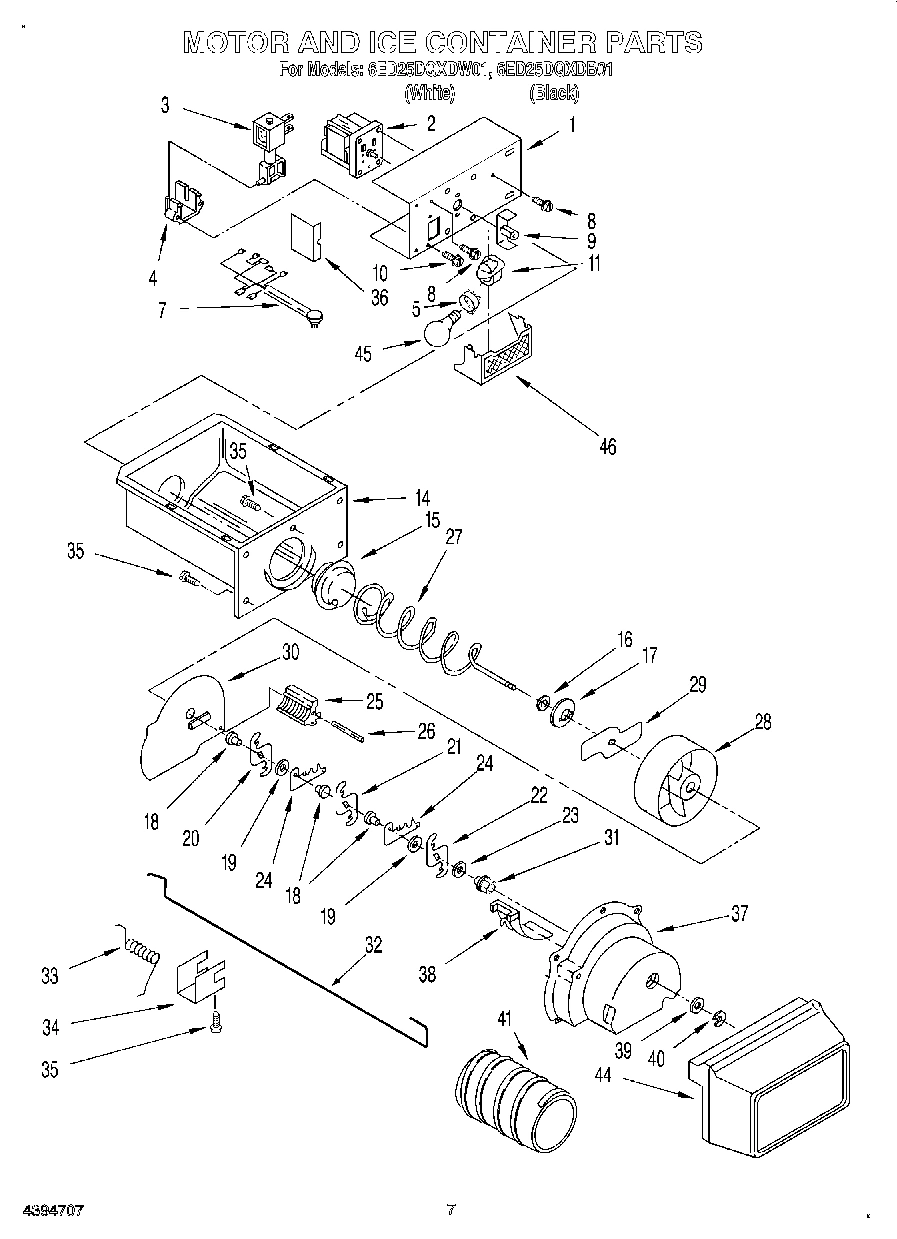

05 - MOTOR AND ICE CONTAINER

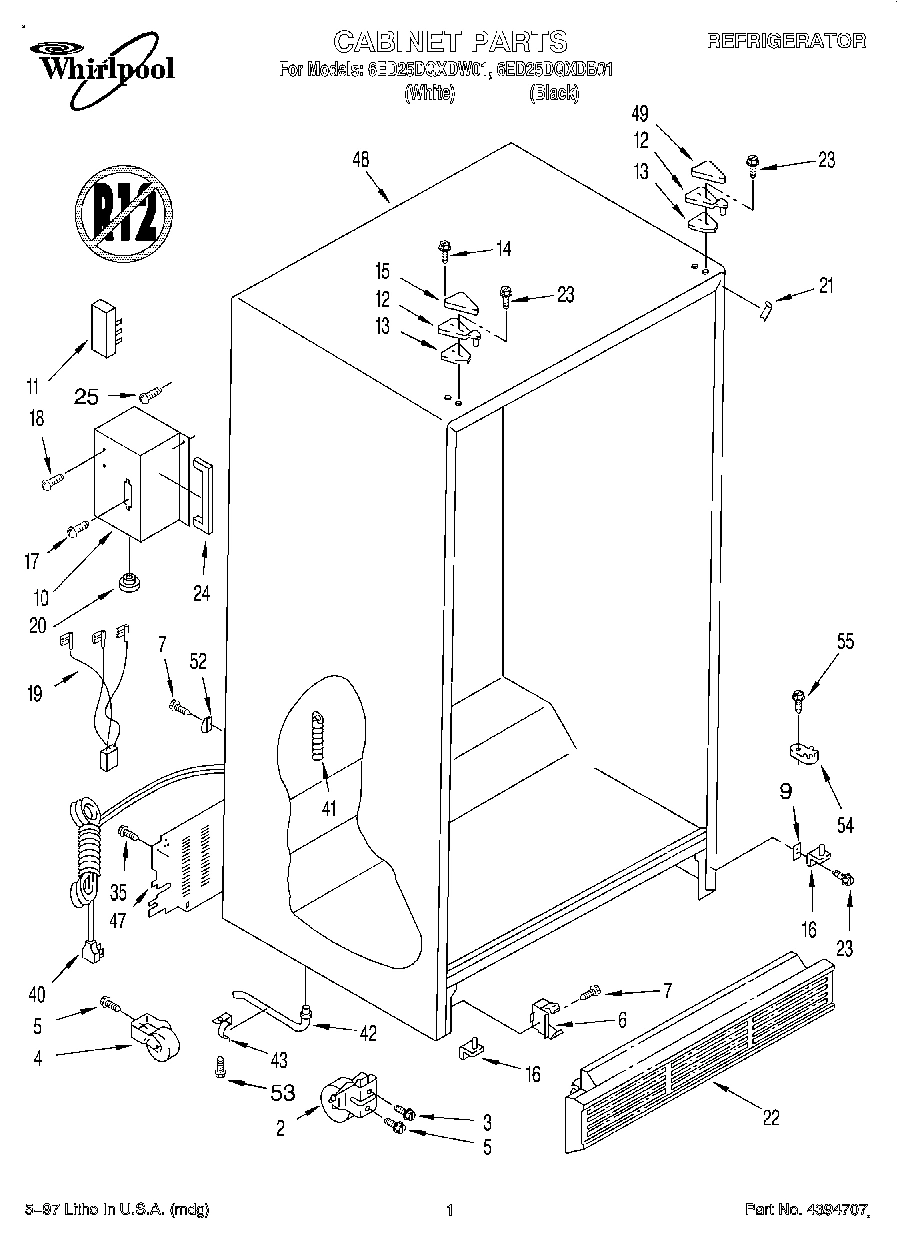

01 - CABINET

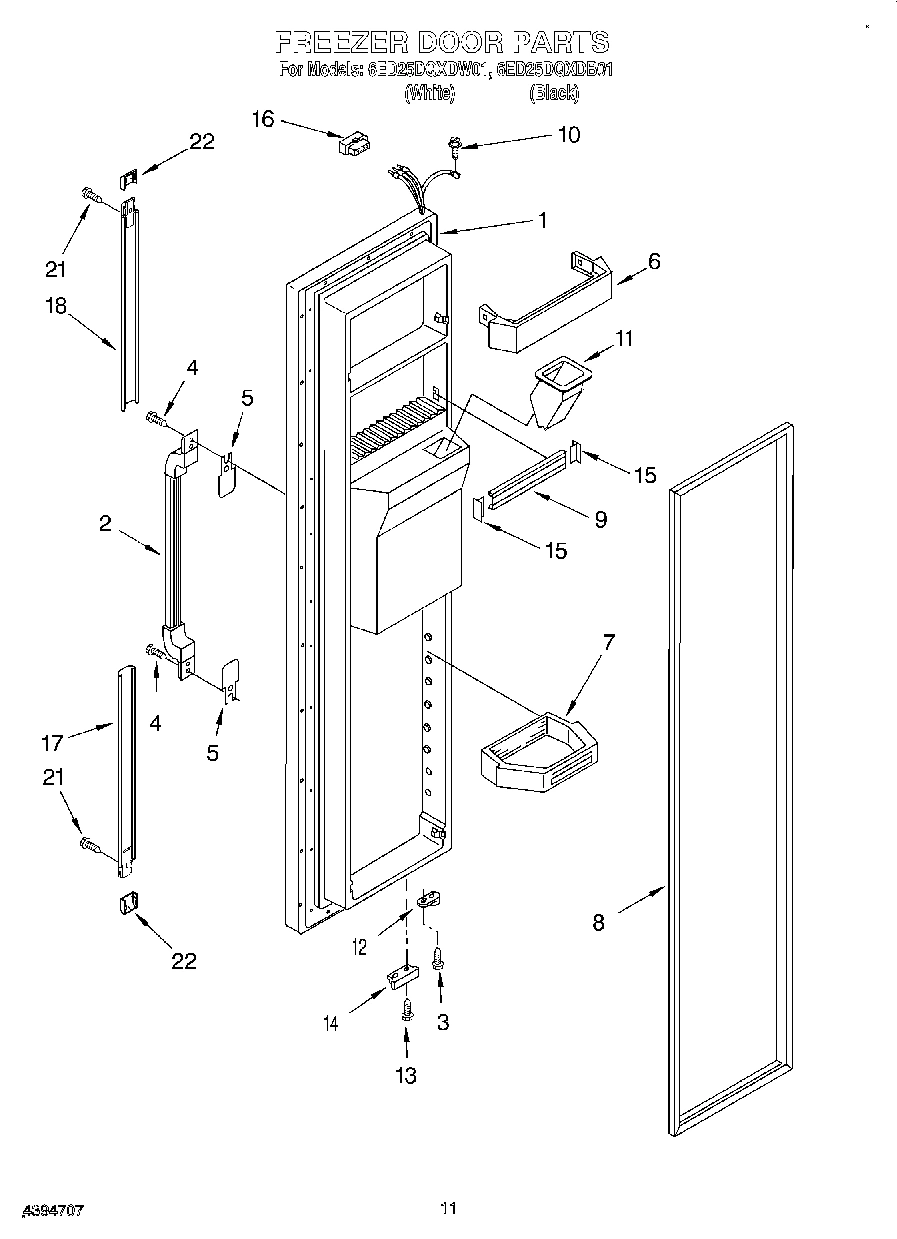

07 - FREEZER DOOR

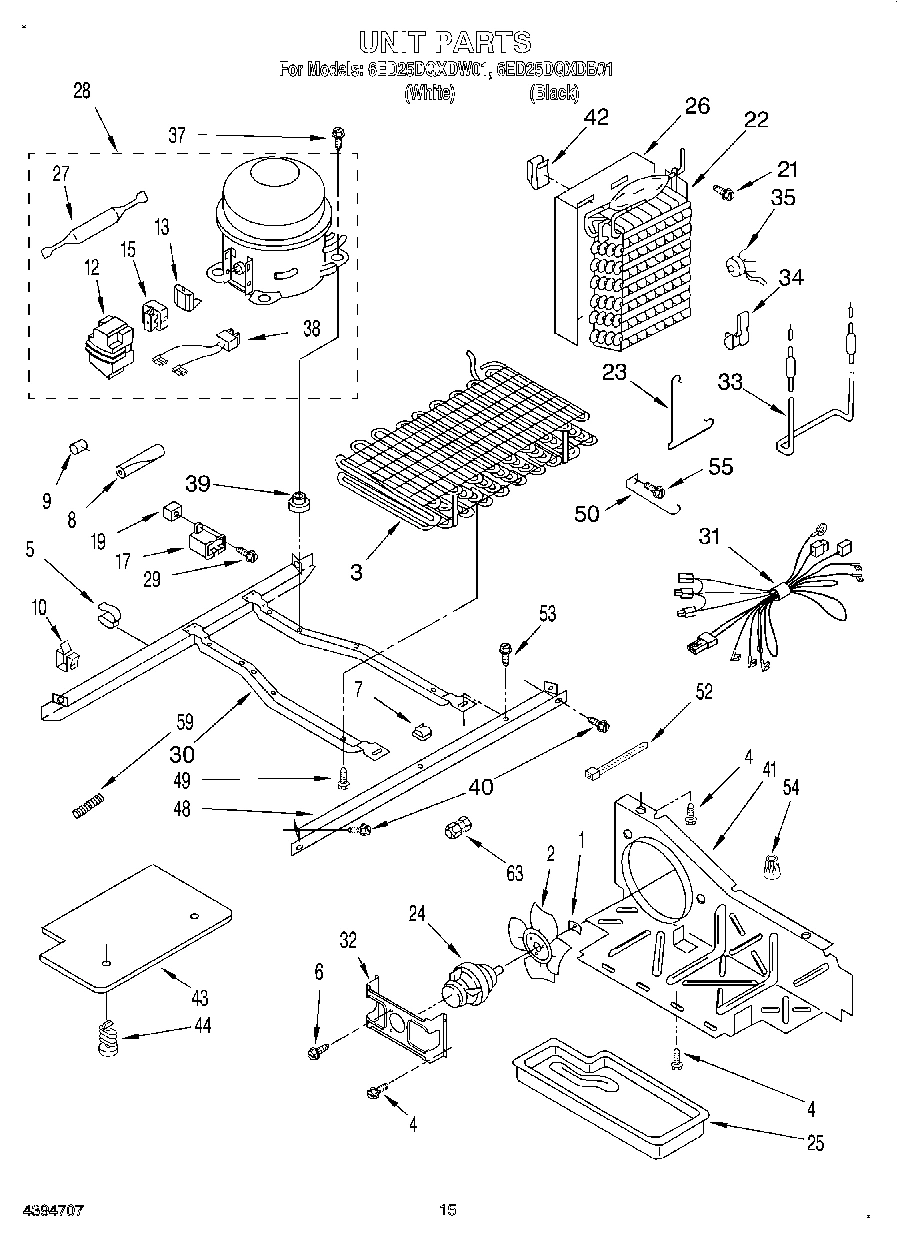

09 - UNIT

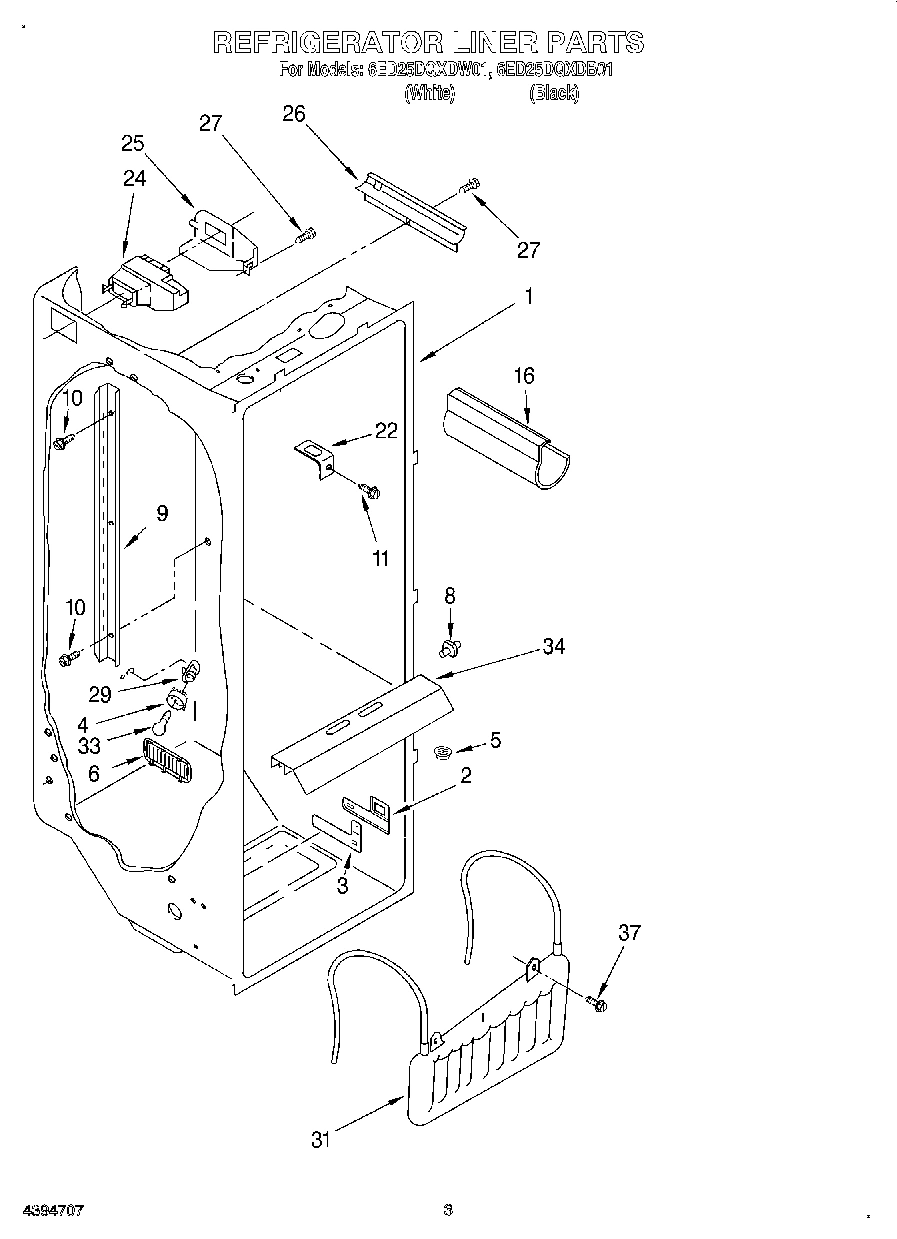

02 - REFRIGERATOR LINER
10 - AIRFLOW

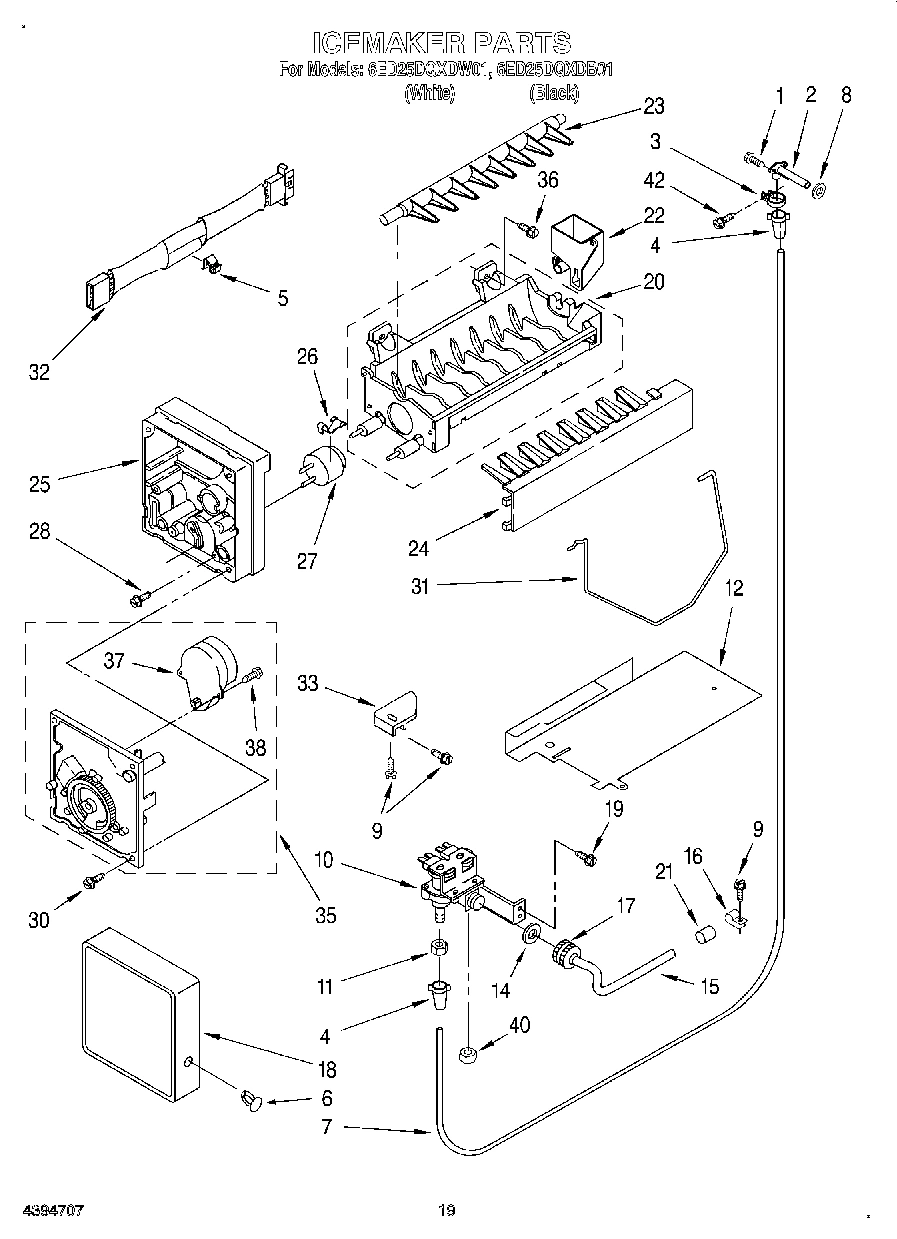

12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool 6ED25DQXDW01 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2182955 WPL LIT2182955 Contact Us For Availability
WPL LIT2182981 WPL LIT2182981 Contact Us For Availability
WPL LIT2194030 WPL LIT2194030 Contact Us For Availability
WPL LIT628371 WPL LIT628371 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197762B Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197762W Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15884A6 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Handle, Center (Black) WPL 2194759B Contact Us For Availability
2
Handle, Center (White) WPL 2194759W Contact Us For Availability
3
Condenser Assembly WPL 2198177 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
5
Shim, End Cap (2) WPL 2179399 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Louver WPL 2182147 Contact Us For Availability
7
Shelf Bin (2) WPL 2179576 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
14
Washer WPL 628337 Contact Us For Availability
15
Tube, Inlet Valve WPL 627861 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Clamp WPL 510716 Contact Us For Availability
17
Extension, Bottom (Black) WPL 2194766B Contact Us For Availability
17
Extension, Bottom (White) WPL 2194766W Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
17
Nut WPL 537588 Contact Us For Availability
18
Extension, Top (Black) WPL 2194765B Contact Us For Availability
18
Extension, Top (White) WPL 2194765W Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Bushing WPL 1129449 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
22
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 15, 17, 27 WPL 2183443 Contact Us For Availability
31
Unit, Harness WPL 2195108 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Service Cord WPL 1129331 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
42
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
42
Enamel, Black (1 WPL 799340 Contact Us For Availability
42
WPL 799833 WPL 799833 Contact Us For Availability
42
WPL 978883 WPL 978883 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
47
Cover, Unit WPL 2189570 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI15883A7 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
