Model Whirlpool 6ED25DQXDB00 REFRIGERATOR – Common Parts & Diagrams
10 - AIRFLOW
12 - ICEMAKER, LIT/OPTIONAL

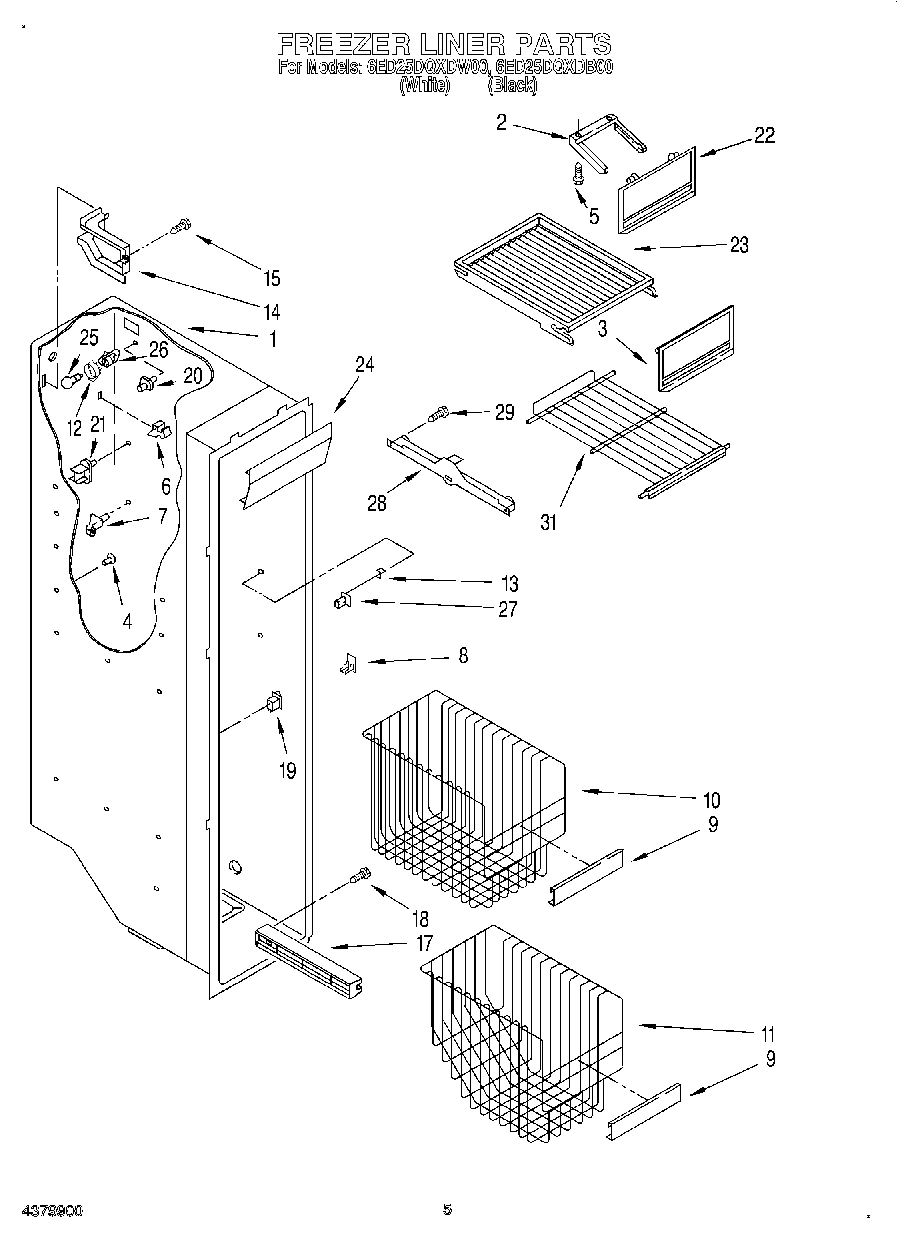

04 - FREEZER LINER

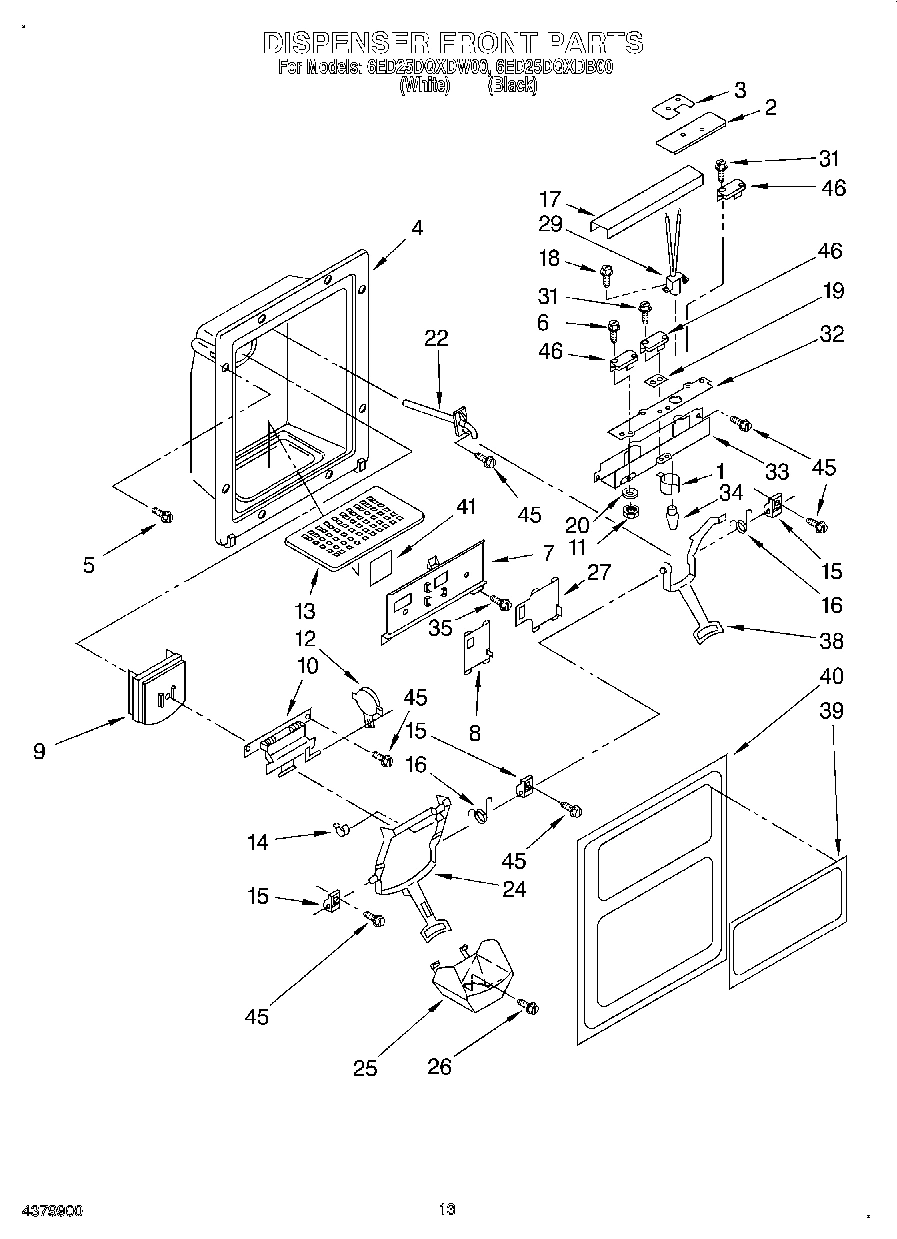

08 - DISPENSER FRONT

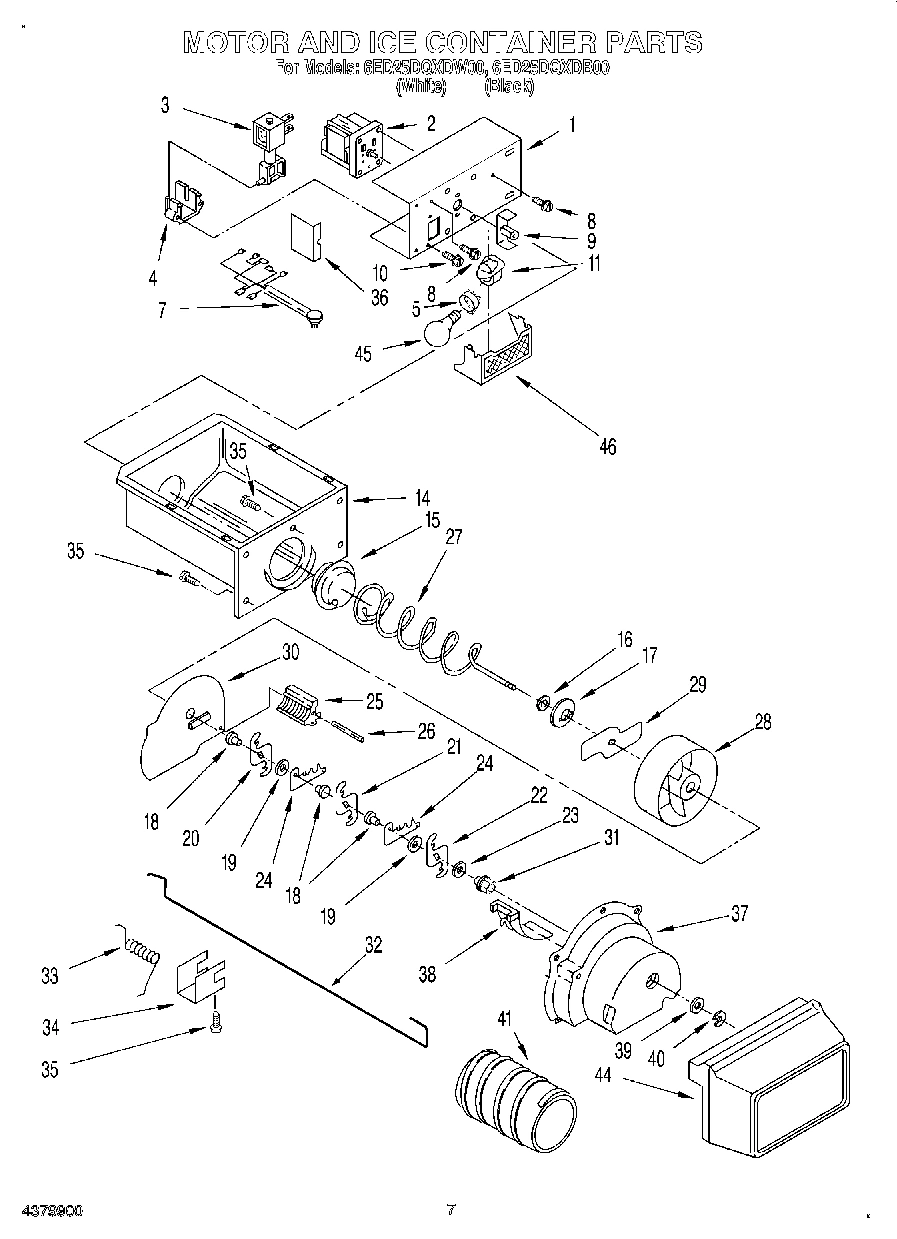

05 - MOTOR AND ICE CONTAINER

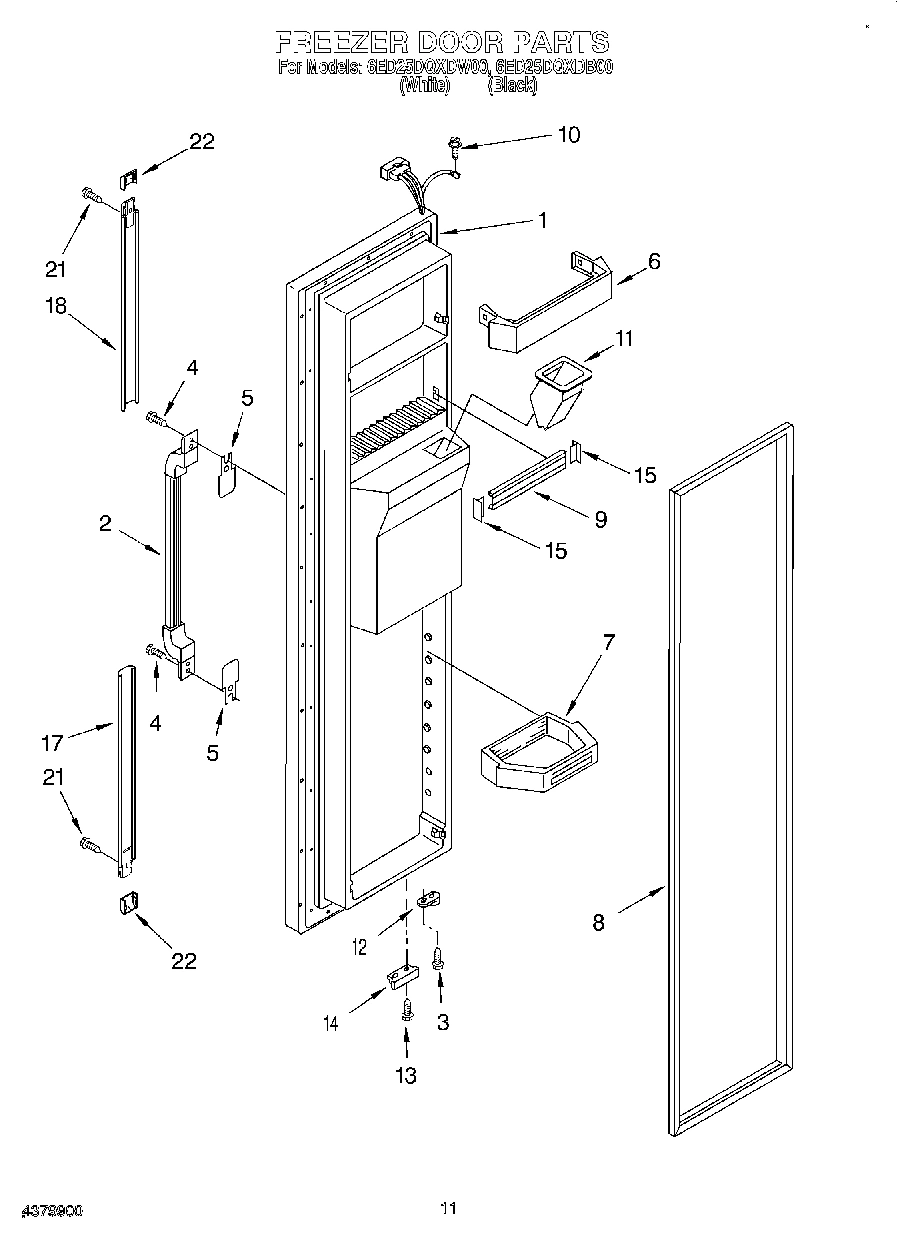

07 - FREEZER DOOR

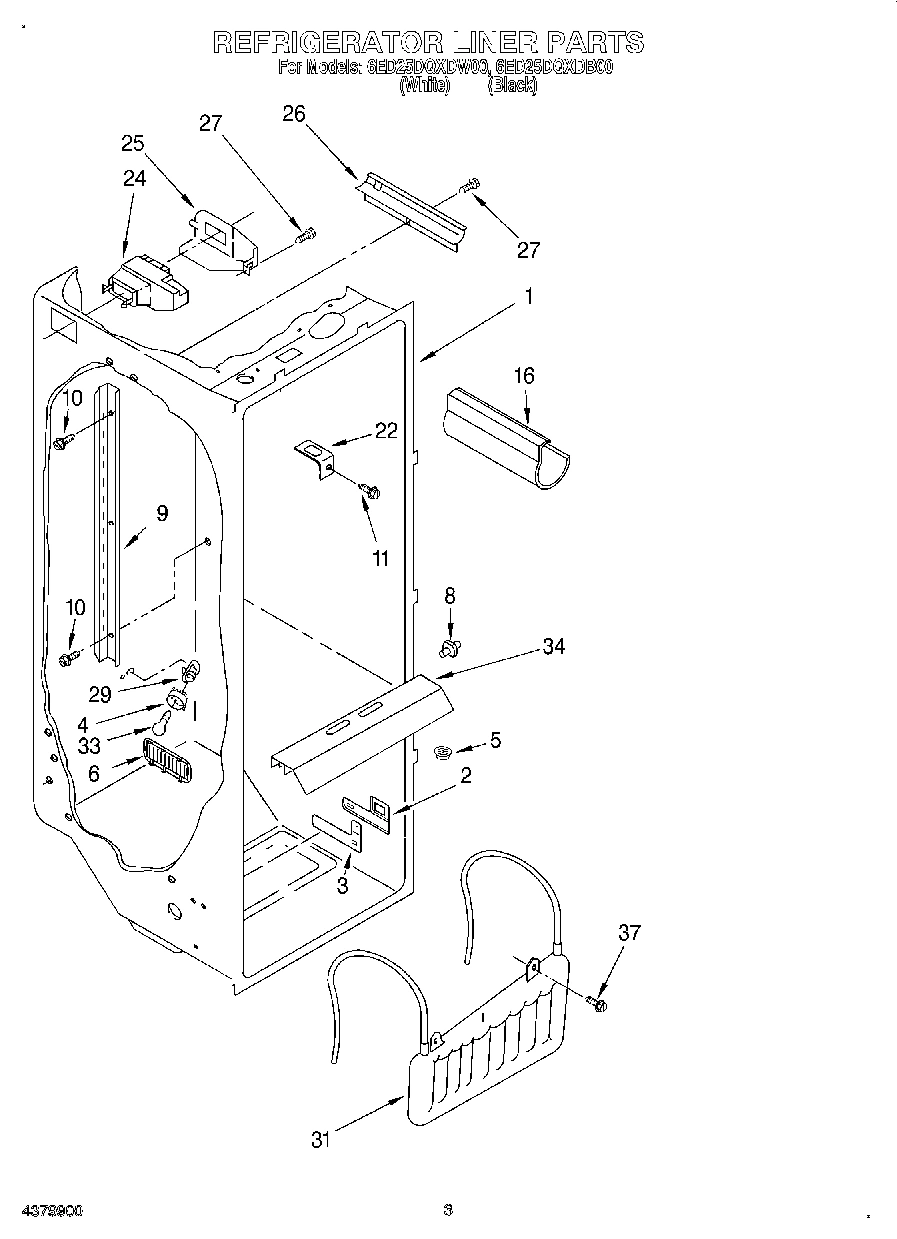

02 - REFRIGERATOR LINER

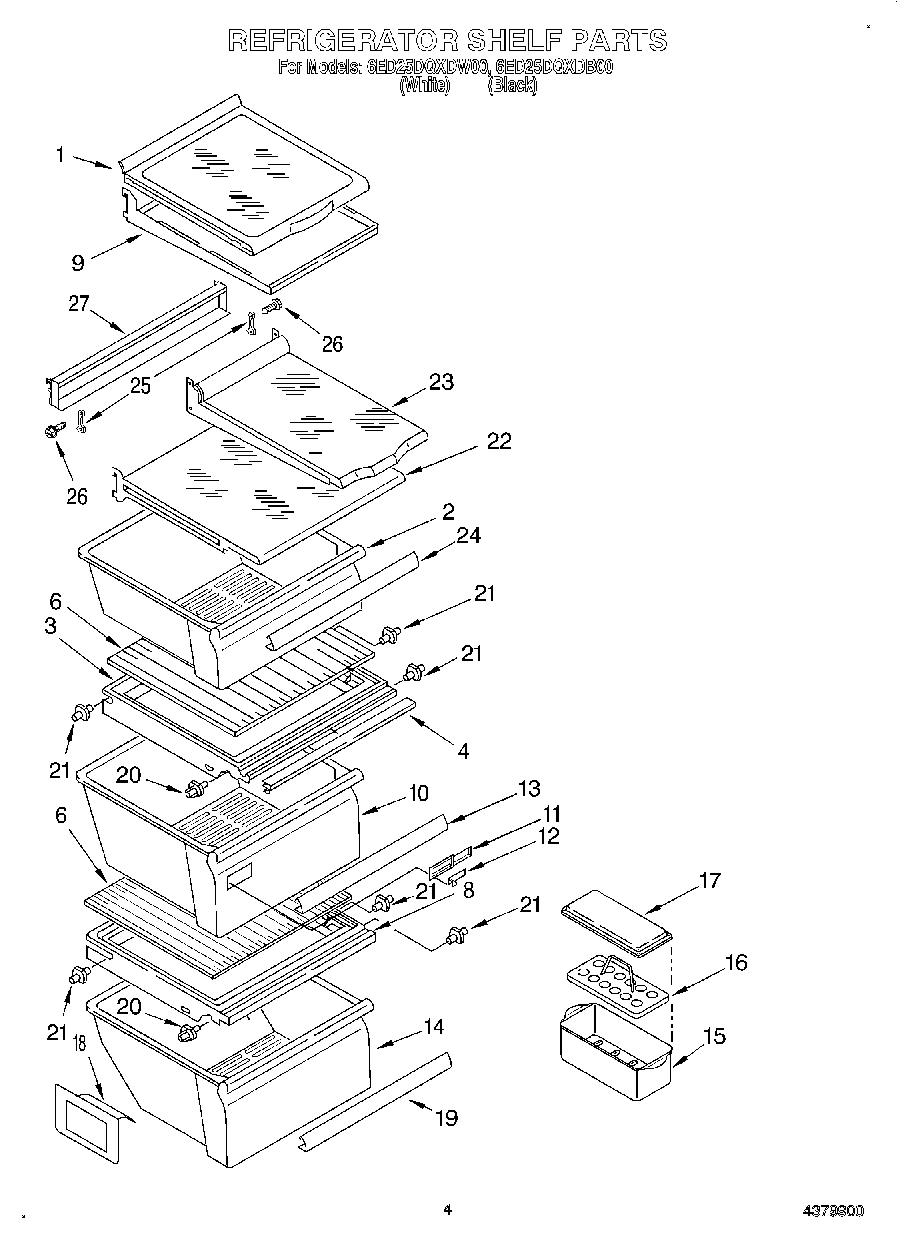

03 - REFRIGERATOR SHELF

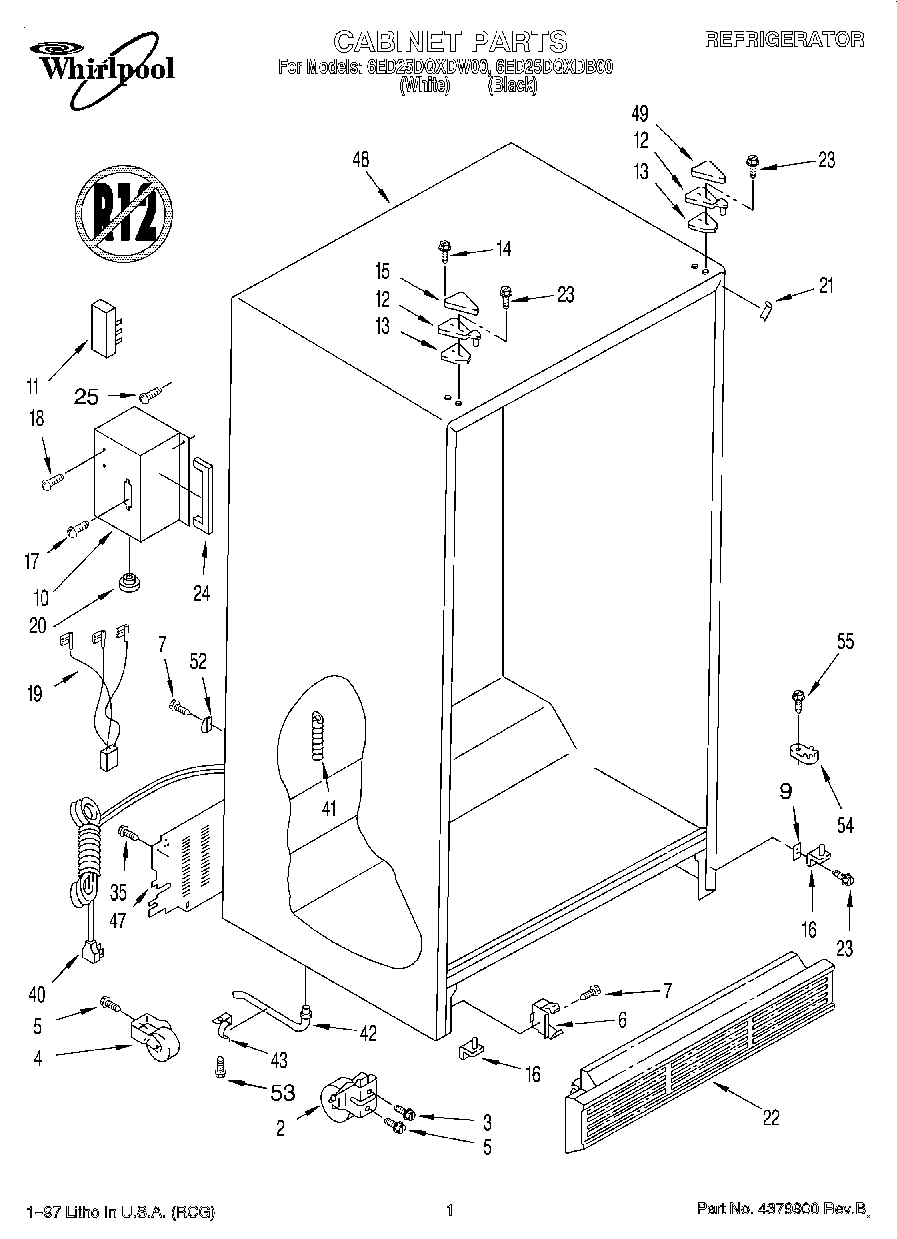

01 - CABINET

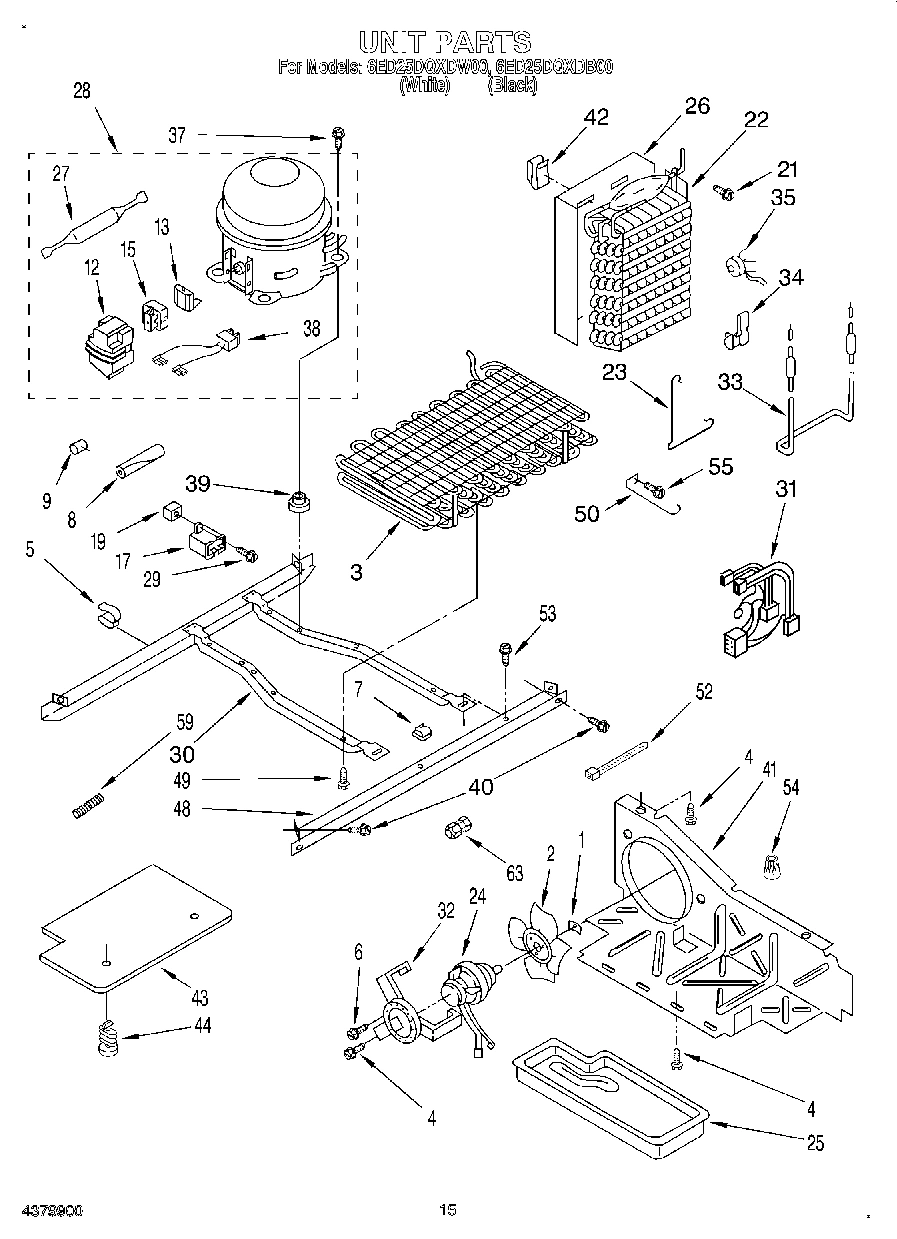

09 - UNIT

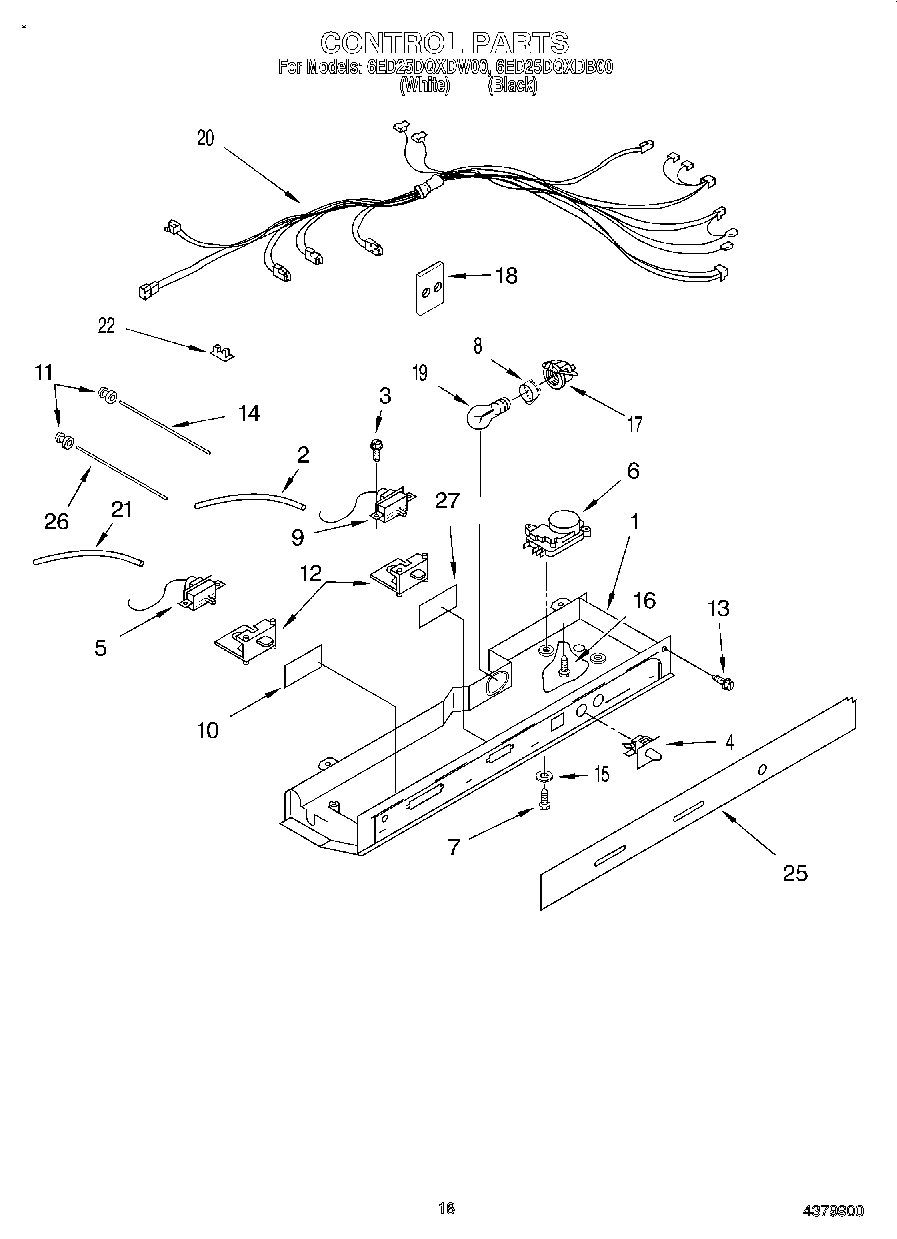

11 - CONTROL

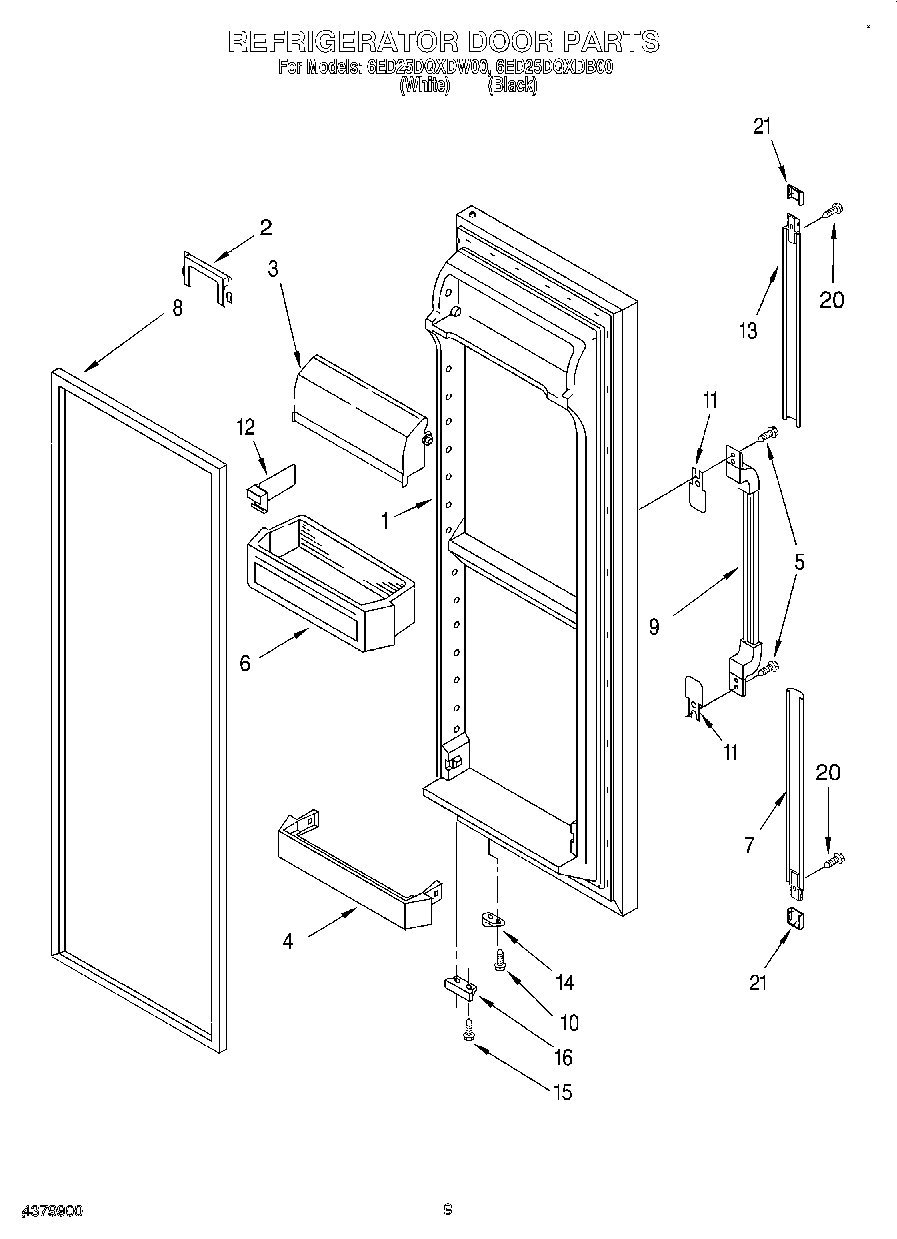

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool 6ED25DQXDB00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2175057 Contact Us For Availability
1
Freezer Door (Includes Item No.8 And Dispense WPL 2197808 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI15872A2 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2177319 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2177321 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
3
Condenser Assembly WPL 2164504 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
5
Clip, Wire WPL 2155658 Contact Us For Availability
6
Louver WPL 2182147 Contact Us For Availability
7
Shelf Bin (2) WPL 2179576 Contact Us For Availability
7
Extension, Bottom (White) WPL 2174282 Contact Us For Availability
7
Extension, Bottom (Black) WPL 2174284 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
9
Handle, Center (White) WPL 2194697 Contact Us For Availability
9
Handle, Center (Black) WPL 2194699 Contact Us For Availability
9
Ladder, Shelf WPL 2181796 Contact Us For Availability
9
Frame, Shelf (2) WPL 2174042 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
11
Shim WPL 2179399 Contact Us For Availability
11
Chute, Ice WPL 2156146 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Divider, Bin WPL 2171284 Contact Us For Availability
13
Extension, Top (White) WPL 2174279 Contact Us For Availability
13
Extension, Top (Black) WPL 2174281 Contact Us For Availability
13
Shim, Hinge Top WPL 2171868 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
17
Cover WPL 2169935 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
20
Bushing WPL 1129449 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Cover, Endcap (White) WPL 2174006 Contact Us For Availability
21
Cover, Endcap (Black) WPL 2174008 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Shelf, Snack Bin WPL 2174045 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2174392 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Trim, Handle WPL 2189620 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
28
Compressor (Includes Items 12, 13, 15, 17, 27 WPL 2169451 Contact Us For Availability
31
Unit, Harness WPL 2167065 Contact Us For Availability
32
Fan, Motor Bracket WPL 548695 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Service Cord WPL 1129331 Contact Us For Availability
42
WPL 876029 WPL 876029 Contact Us For Availability
42
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196004 Contact Us For Availability
47
Cover, Unit WPL 2189570 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI15871A2 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
50
Guard, Fan WPL 1110663 Contact Us For Availability
52
Strap WPL 851095 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
59
Spring-Tube WPL 983659 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
