Model Whirlpool 4KSRS27QFW00 REFRIGERATOR – Common Parts & Diagrams
03 - AIR FLOW
05 - FREEZER LINER
07 - REFRIGERATOR DOOR

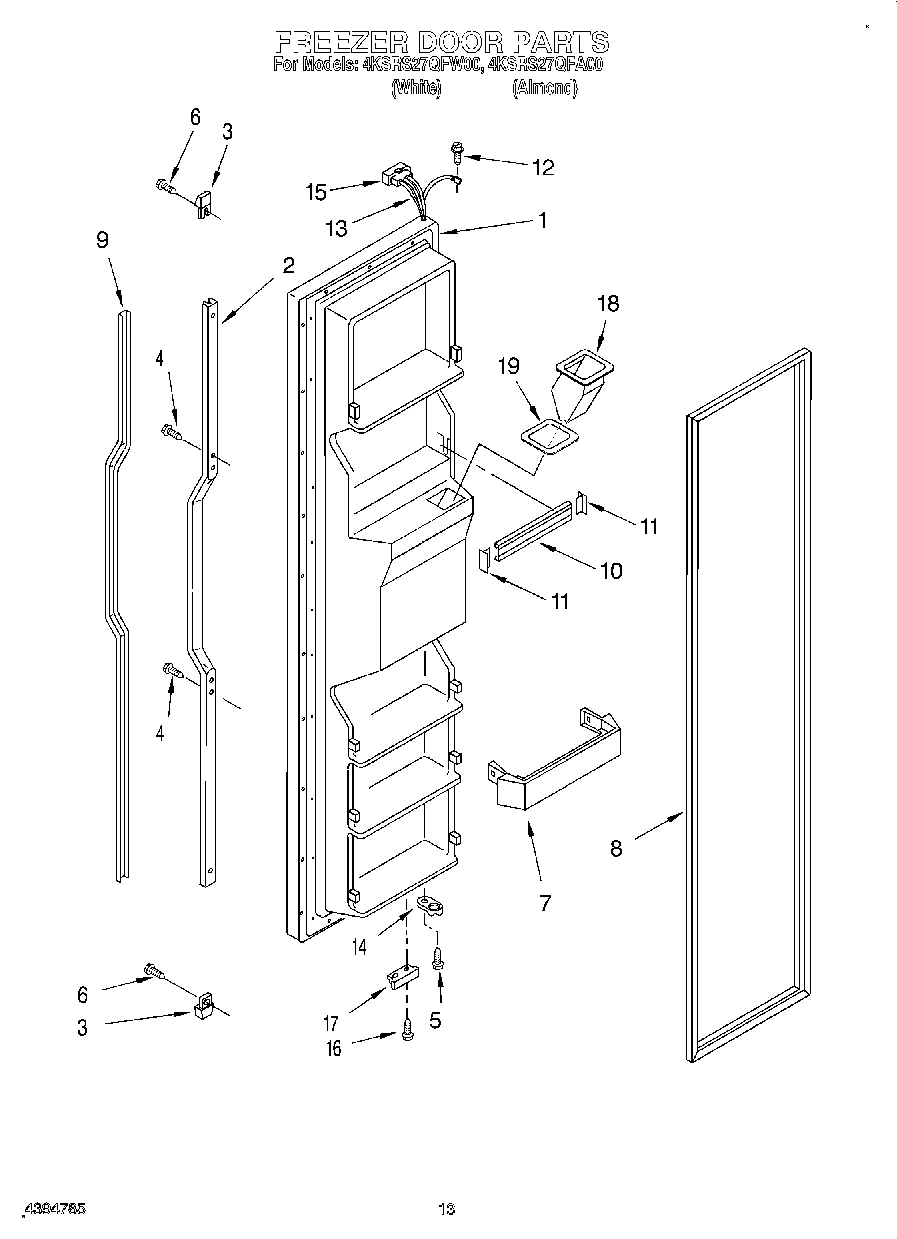

08 - FREEZER DOOR

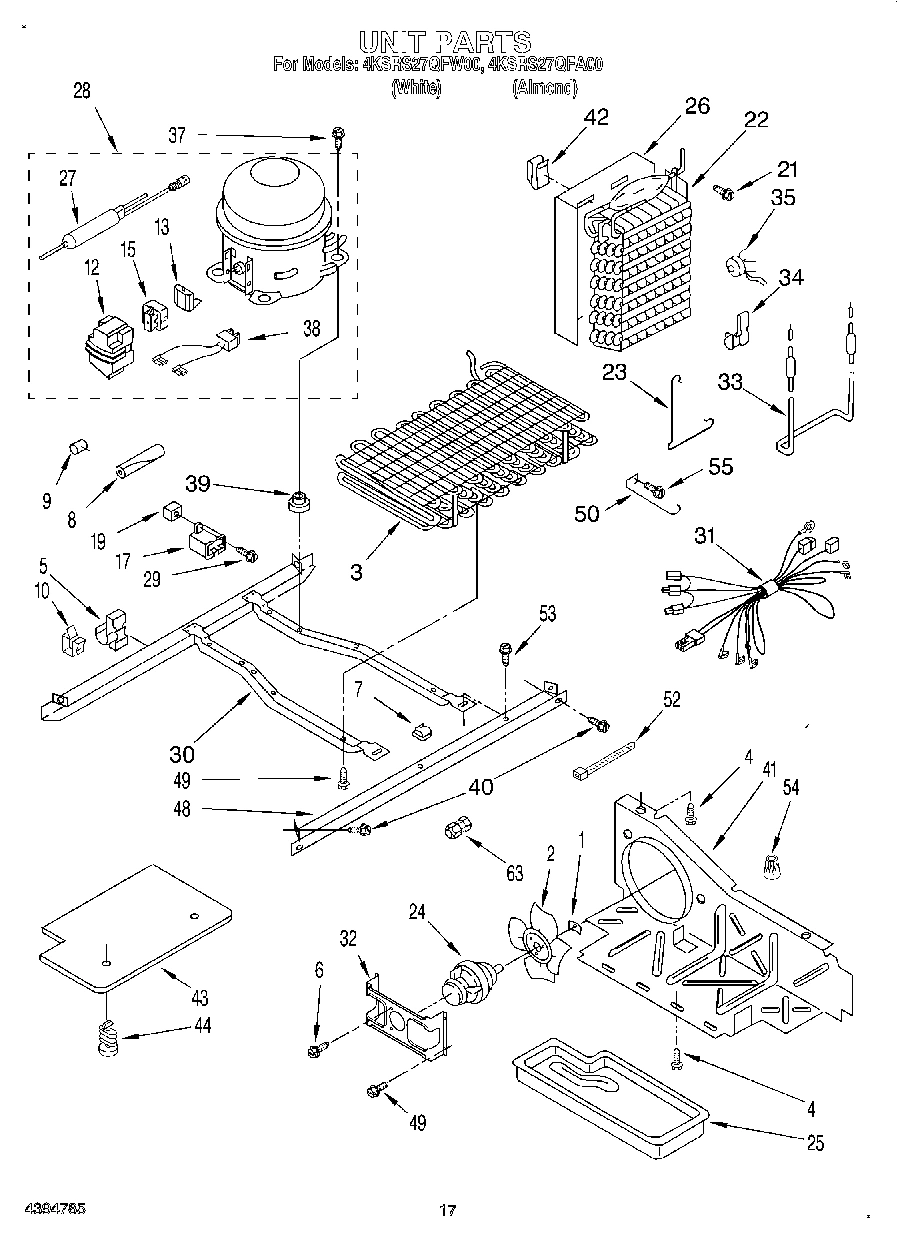

10 - UNIT

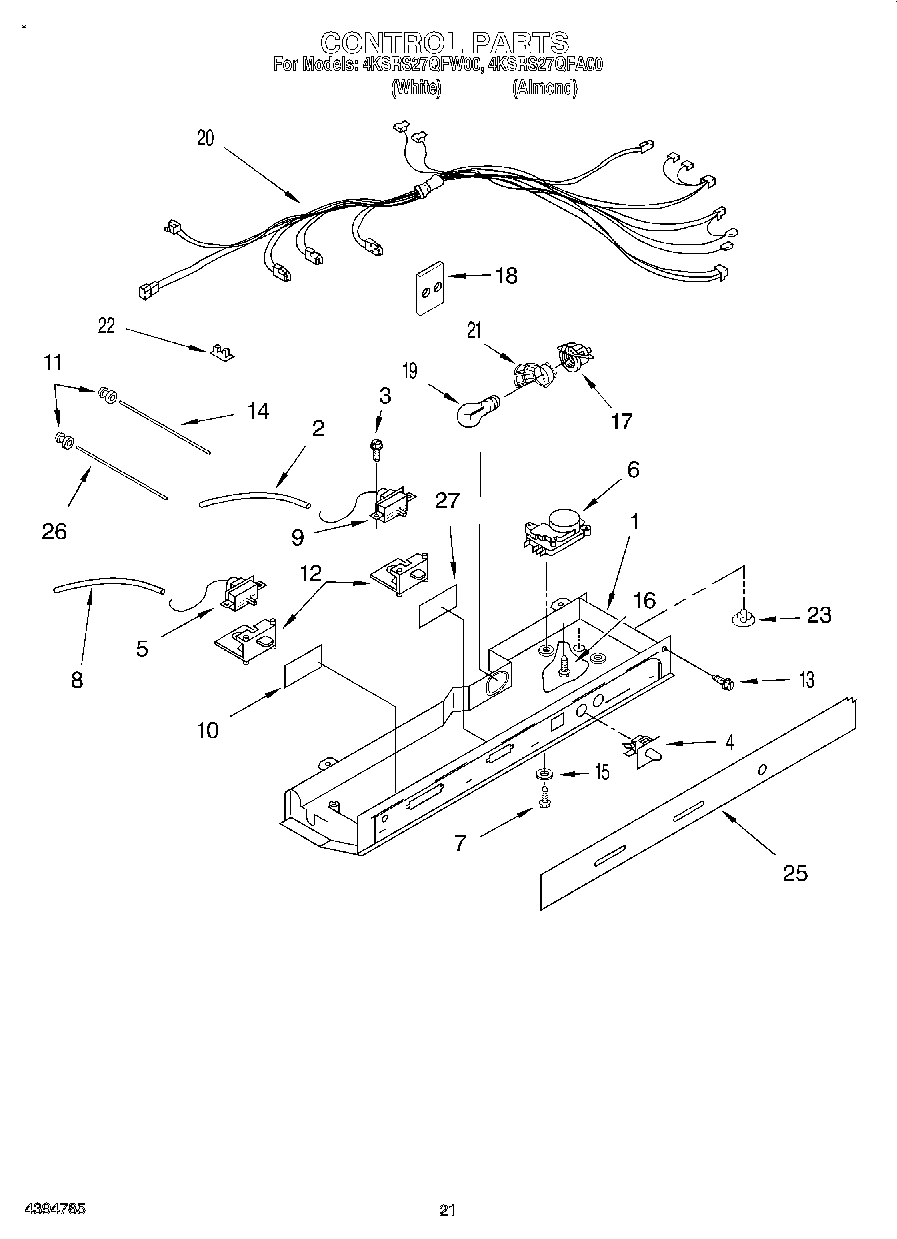

12 - CONTROL, LIT/OPTIONAL

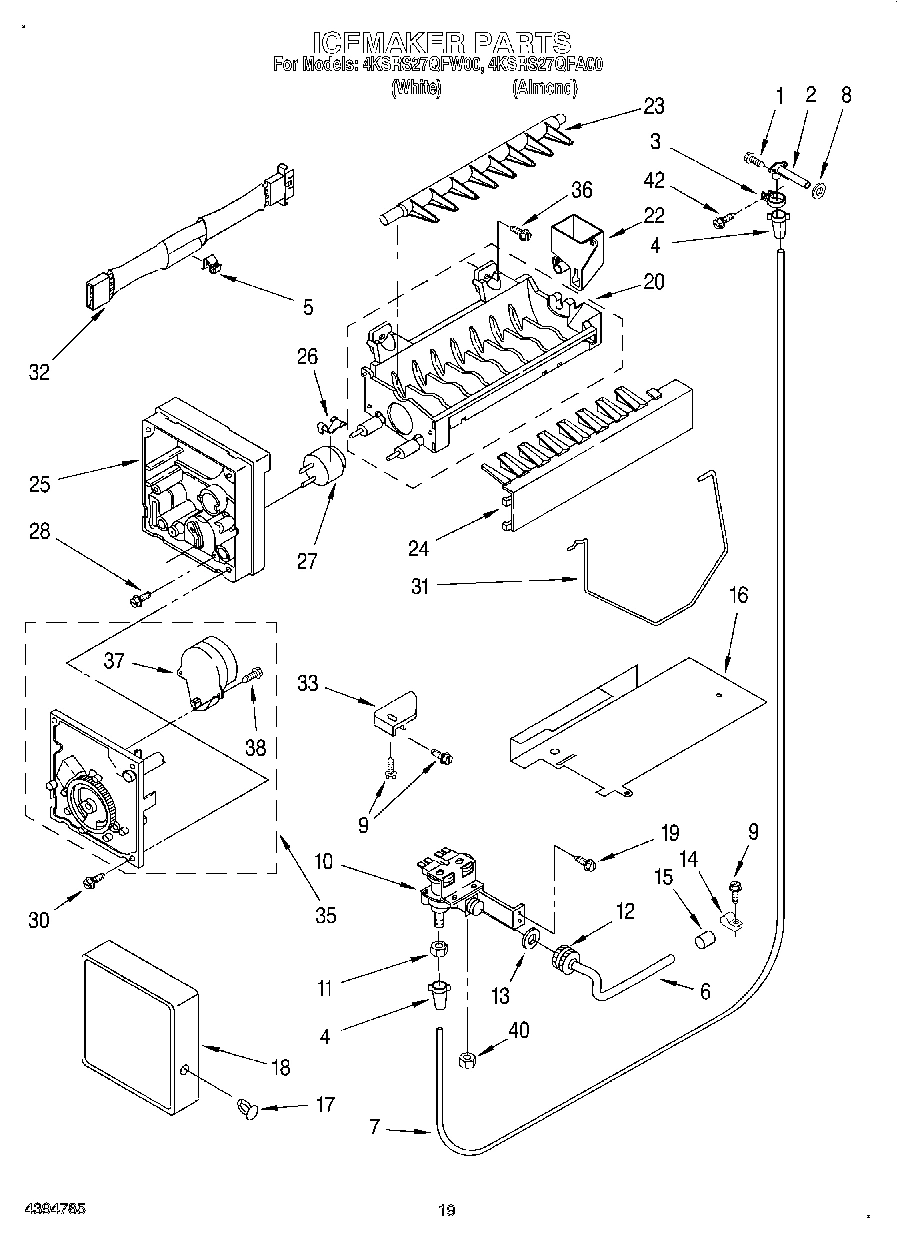

11 - ICE MAKER

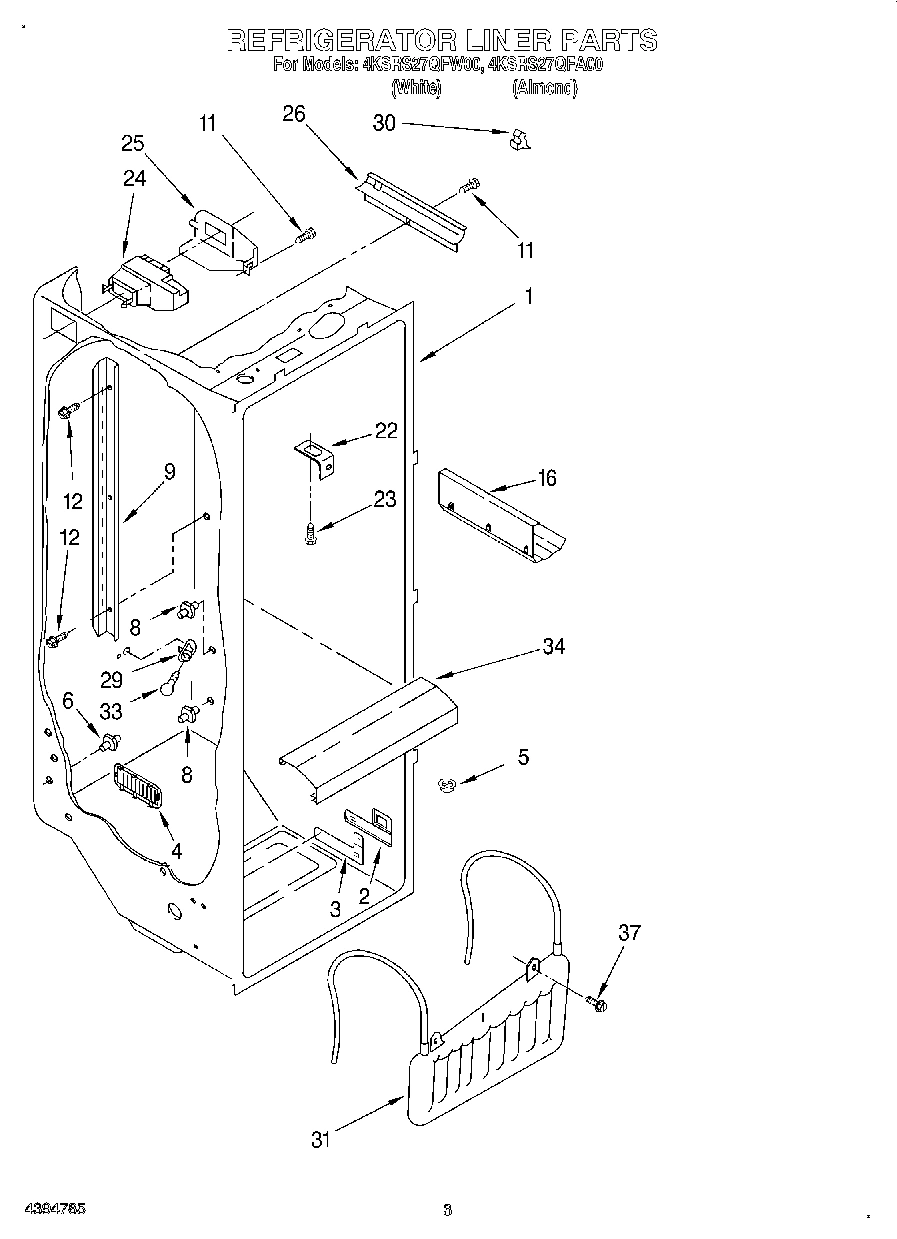

02 - REFRIGERATOR LINER
09 - DISPENSER FRONT

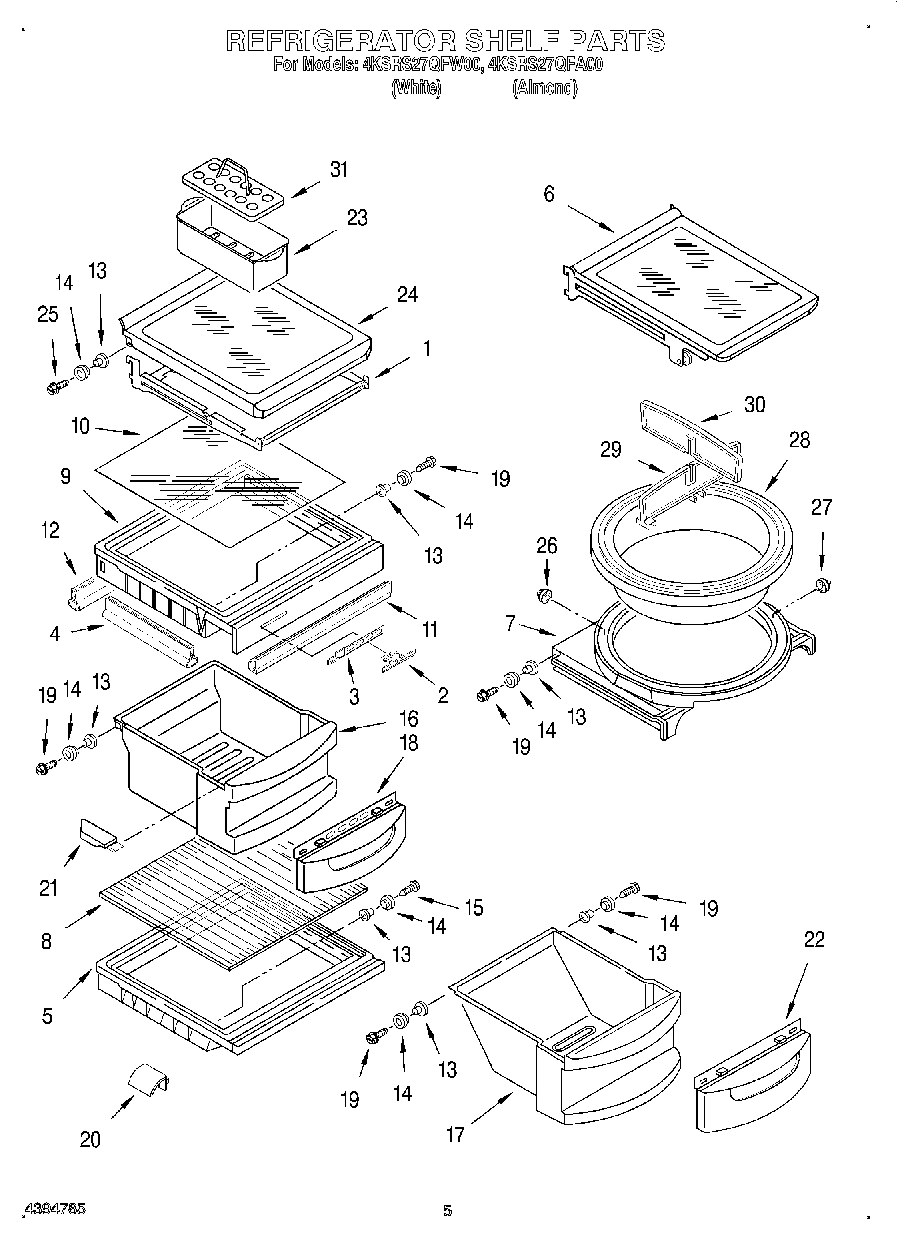

04 - REFRIGERATOR SHELF

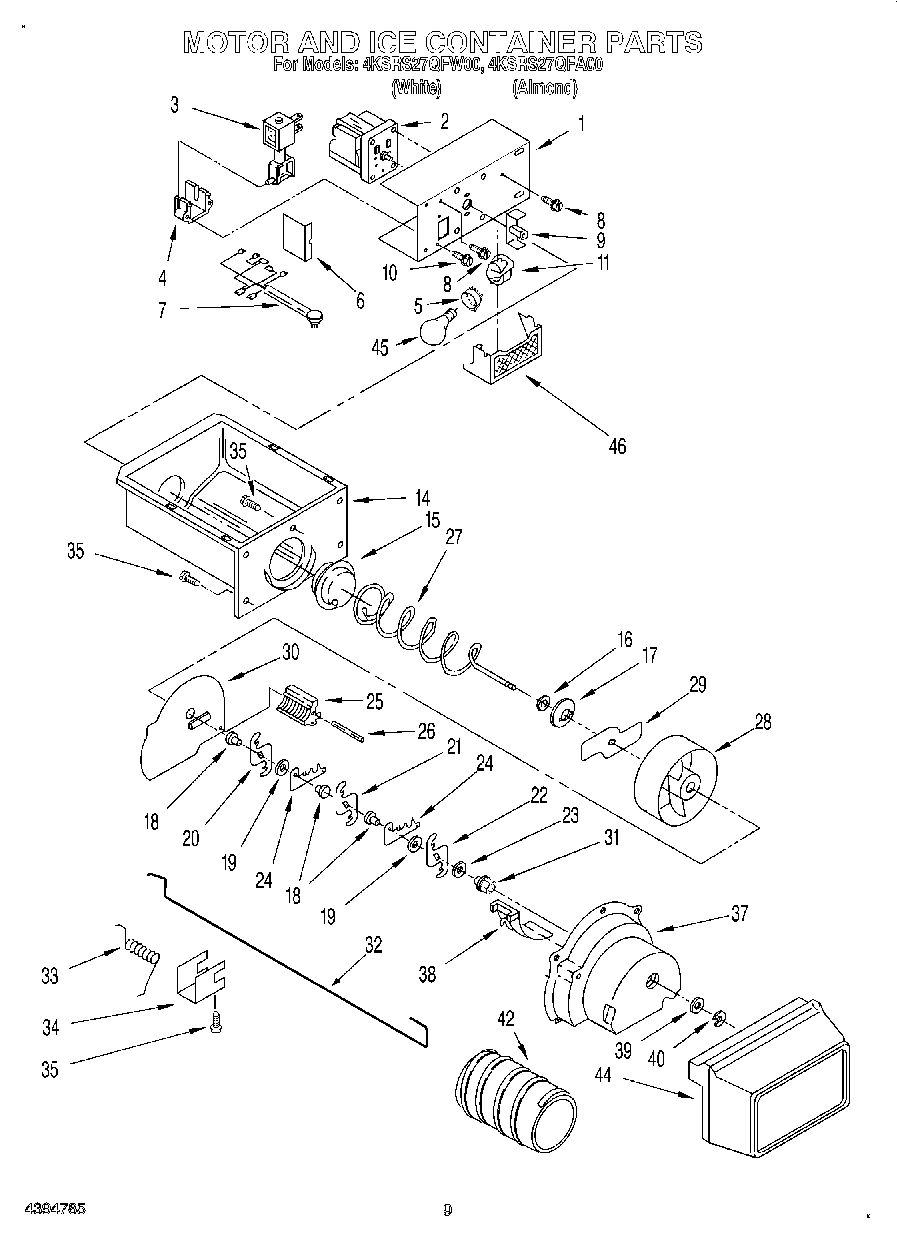

06 - MOTOR AND ICE CONTAINER

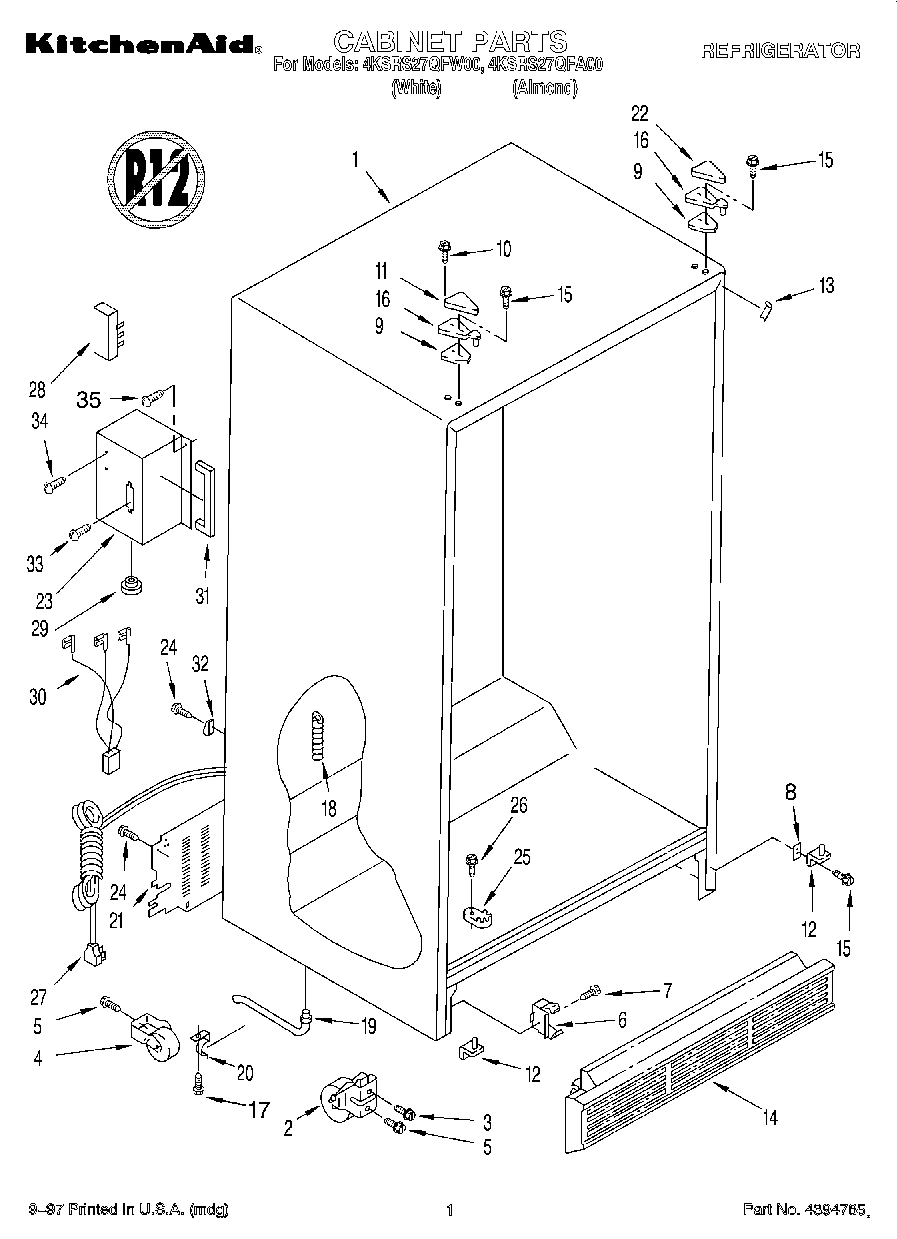

01 - CABINET
Common parts from model Whirlpool 4KSRS27QFW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI14424A4 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI14426A3 Contact Us For Availability
1
Shelf Assembly, Cantilever (3) WPL 2174023 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI14423A8 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Motor, Dispenser WPL 2165401 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
6
Tube, Inlet WPL 627861 Contact Us For Availability
6
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Carriage WPL 2168792 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
8
Glass, Cover WPL 2174148 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Glass, Cover WPL 2189526 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180260 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
12
Nut, Valve WPL 537588 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Washer WPL 628337 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Tube Clamp WPL 510716 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
14
Grille (White) WPL 2155486 Contact Us For Availability
14
Grille (Almond) WPL 2155487 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
16
Bulb, Light WPL 989331 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180269 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19, & 22) WPL 2179231 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2195142N Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2195142W Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI14427A5 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Cover, Unit WPL 2189570 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2195140N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2195140W Contact Us For Availability
23
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
24
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Screw WPL 489439 Contact Us For Availability
26
Roller, Front (2) WPL 2179486 Contact Us For Availability
27
WPL 876029 WPL 876029 Contact Us For Availability
27
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
27
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Roller, Rear (2) WPL 2179487 Contact Us For Availability
27
Service Cord WPL 1129332 Contact Us For Availability
28
Round Pan WPL 2168793 Contact Us For Availability
28
Terminal Block WPL 1129346 Contact Us For Availability
29
Divider, 1/2 WPL 2174363 Contact Us For Availability
29
Bushing WPL 1129449 Contact Us For Availability
30
Divider, 1/4 WPL 2174364 Contact Us For Availability
30
Wiring Assembly WPL 2165297 Contact Us For Availability
31
Gasket WPL 2167227 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
