Model Whirlpool 3XKGN7050F00 REFRIGERATOR – Common Parts & Diagrams
05 - FREEZER LINER
10 - UNIT
12 - AIR FLOW, LIT/OPTIONAL

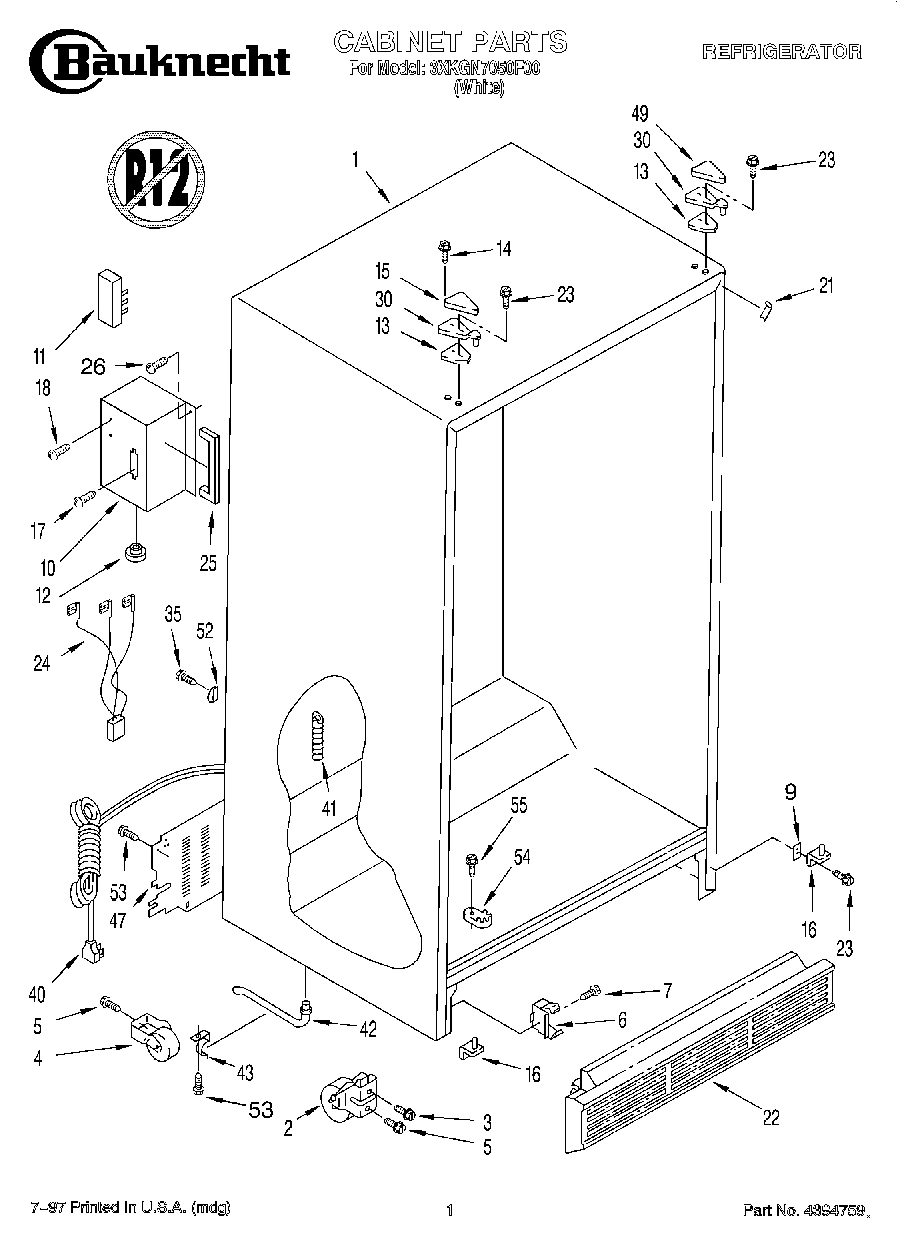

01 - CABINET

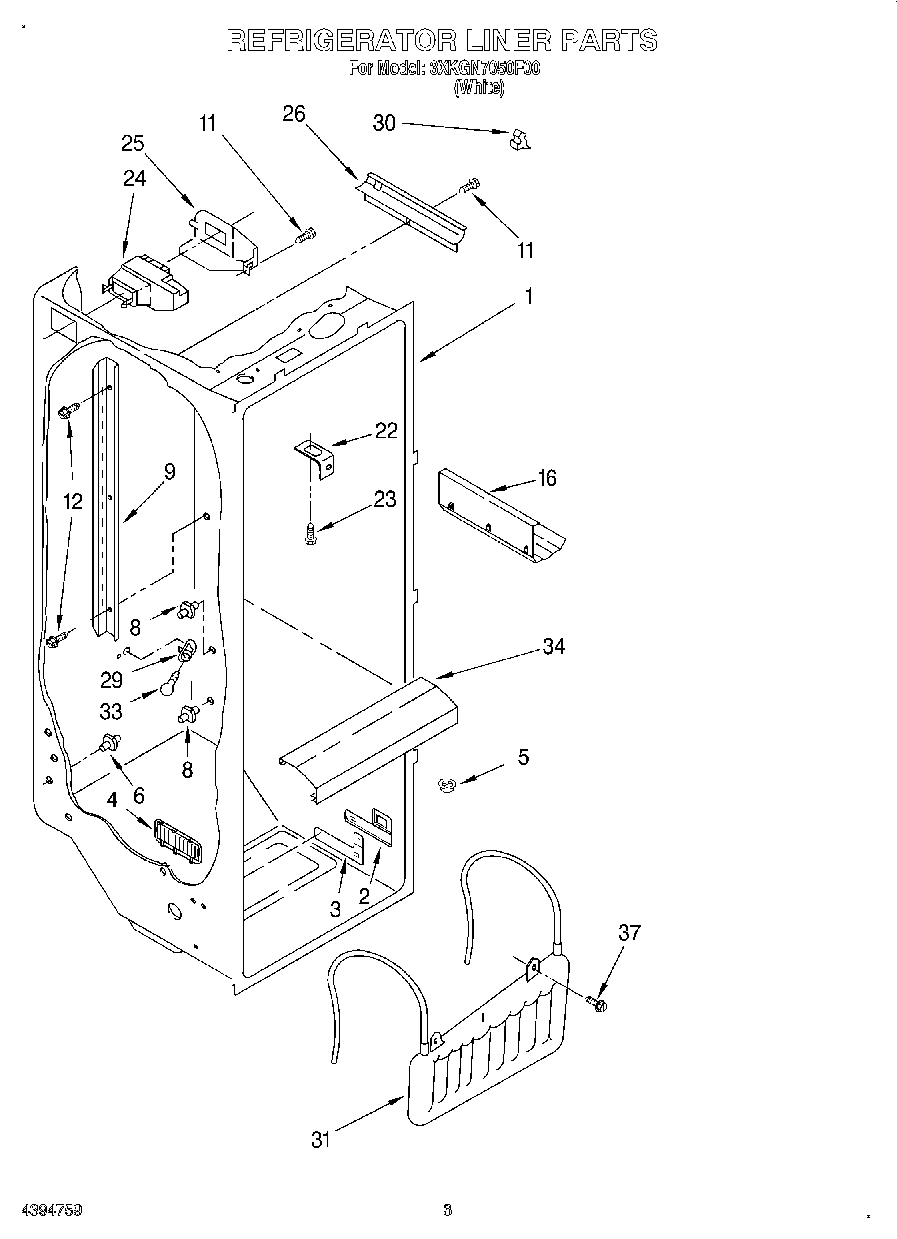

02 - REFRIGERATOR LINER

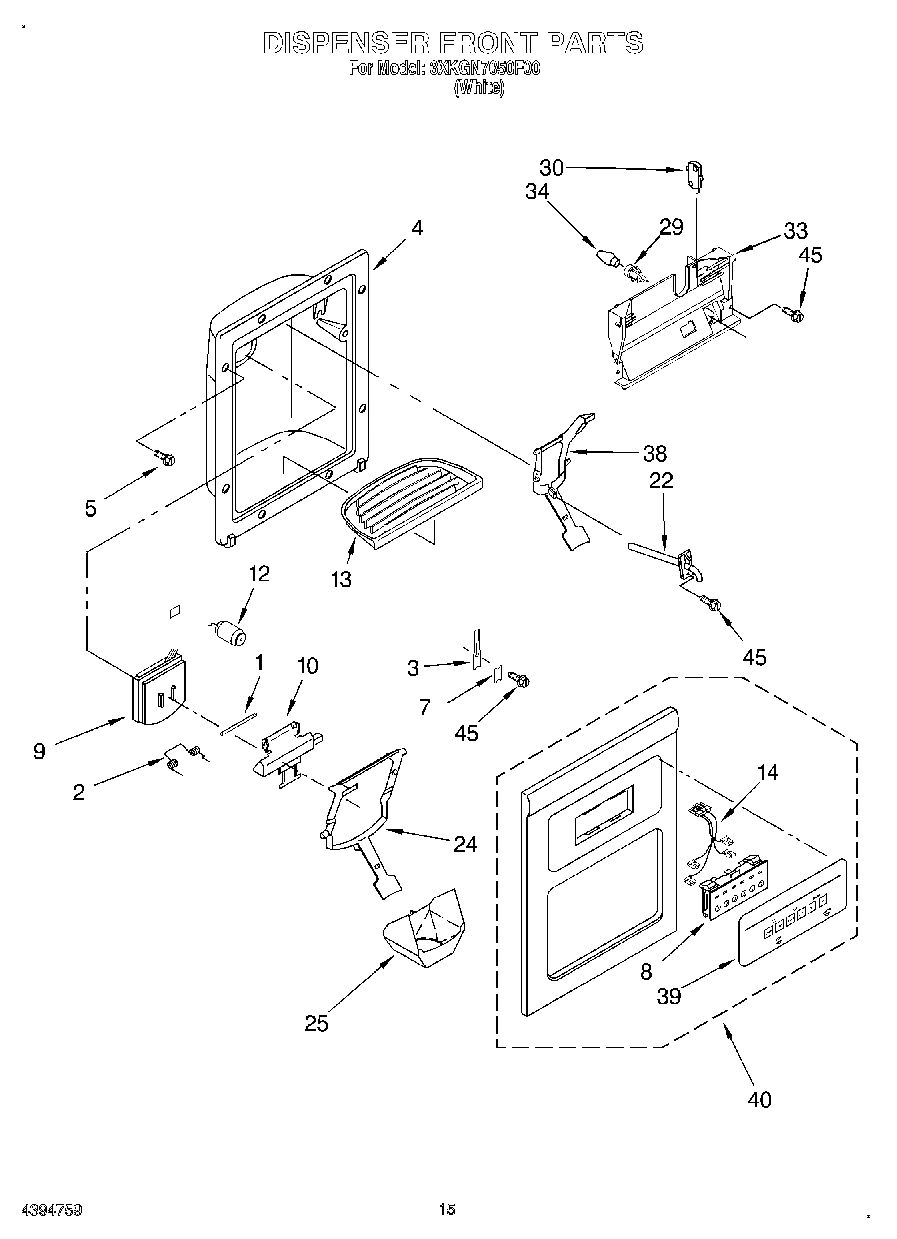

09 - DISPENSER FRONT

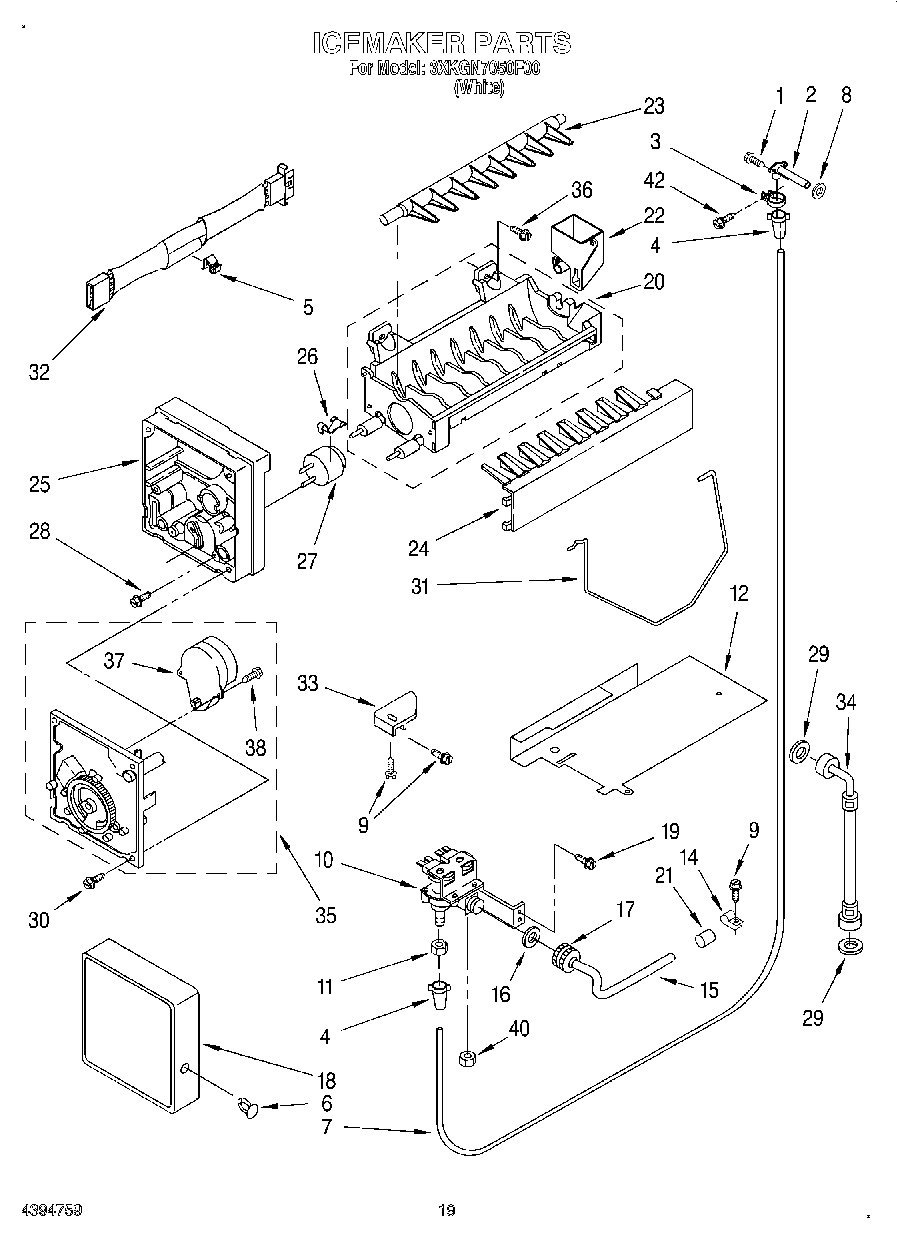

11 - ICEMAKER

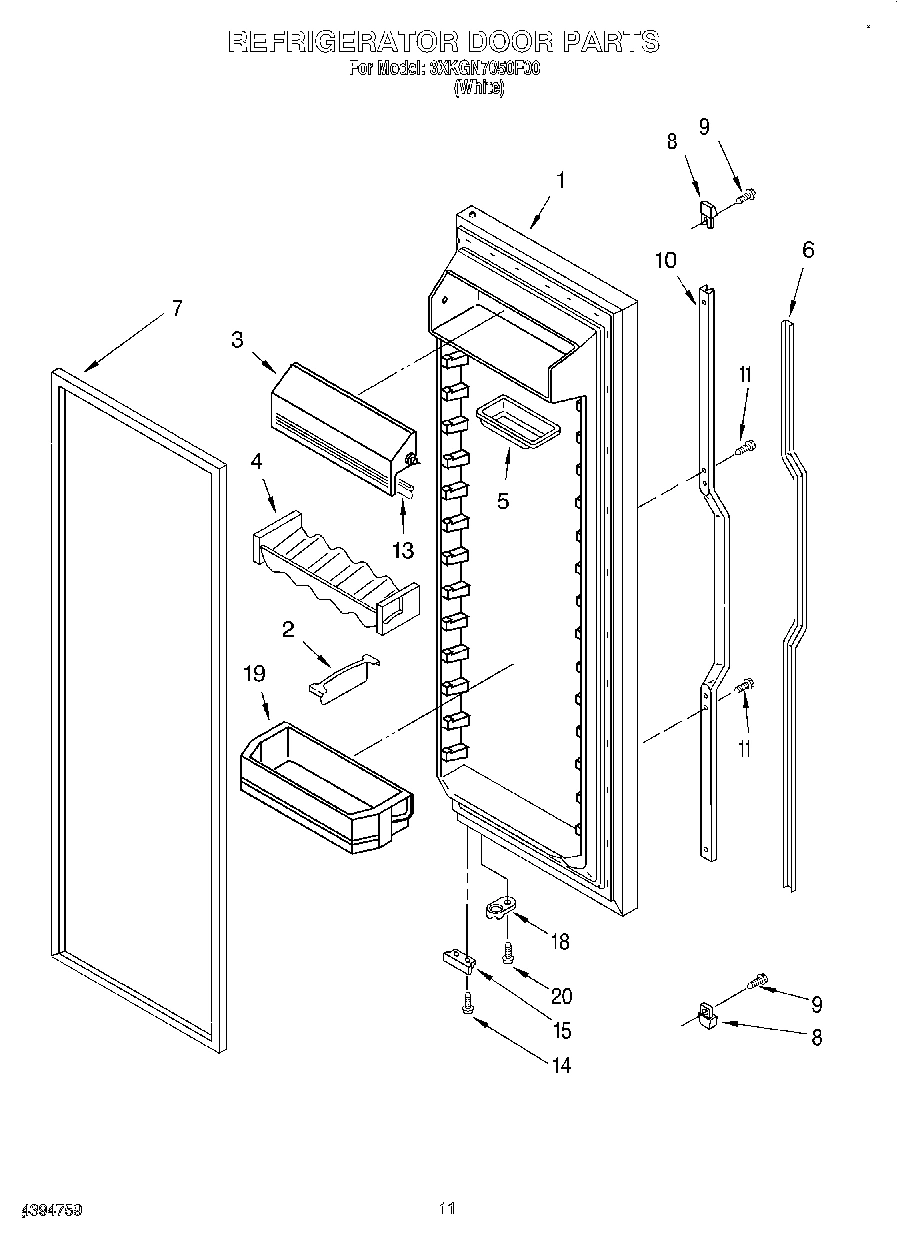

07 - REFRIGERATOR DOOR

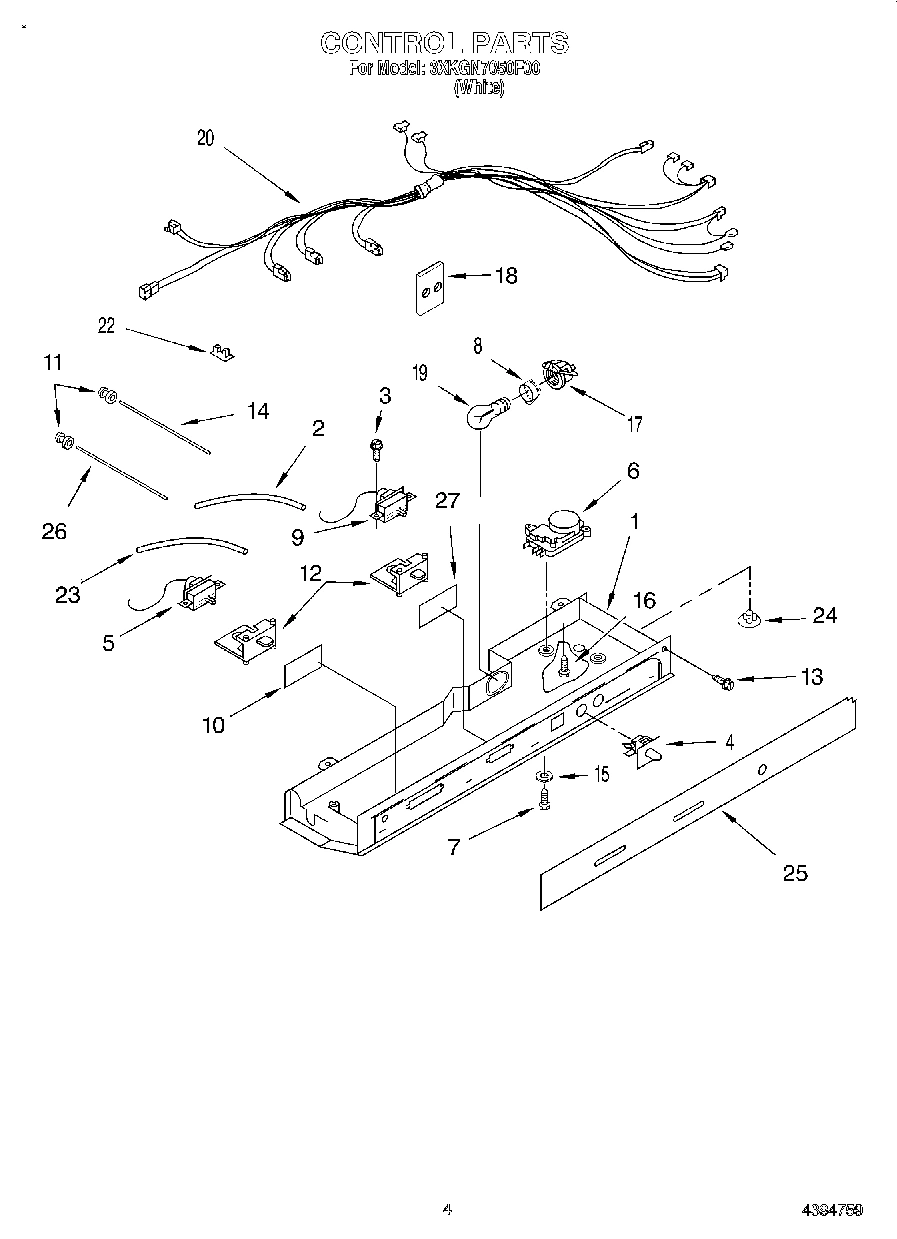

03 - CONTROL PANEL
04 - REFRIGERATOR SHELF

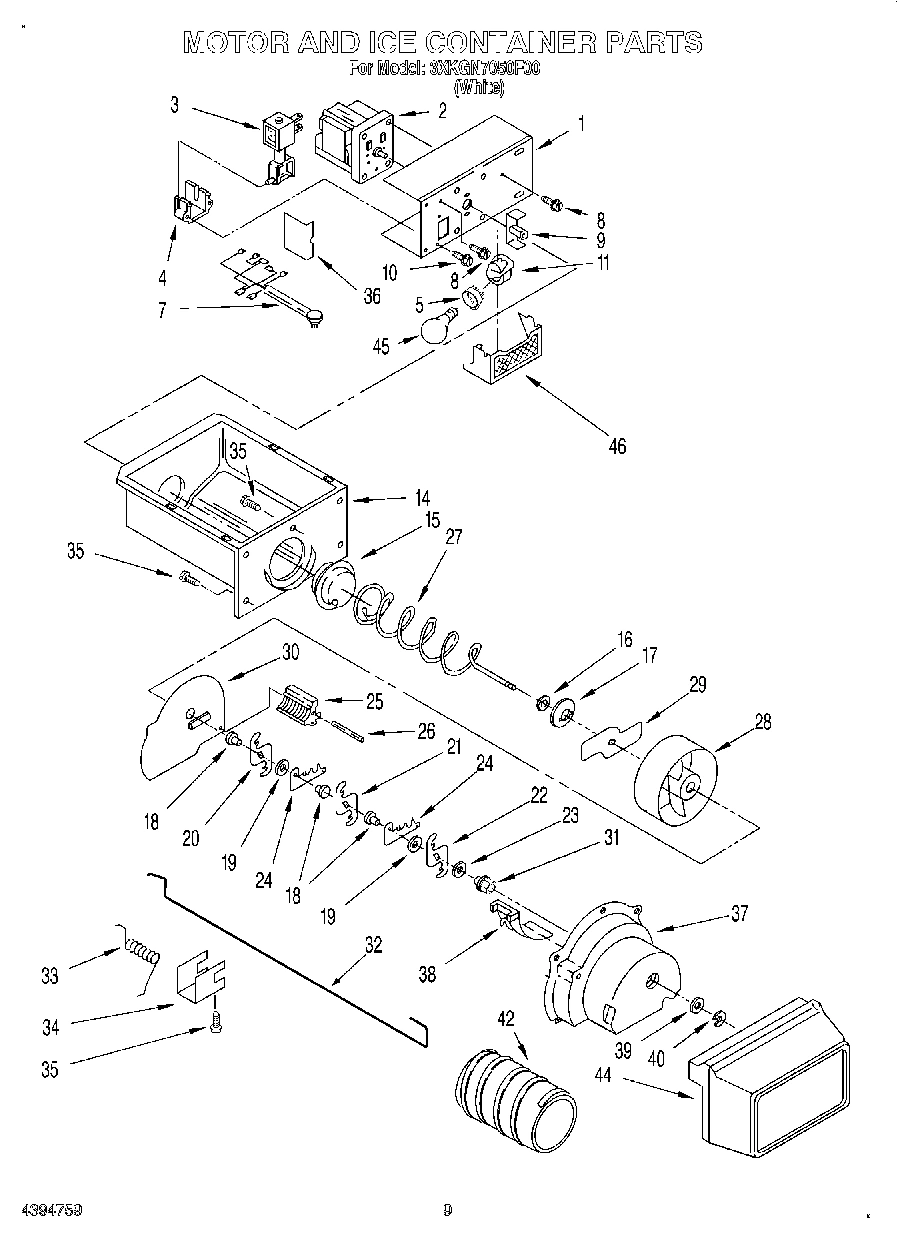

06 - MOTOR AND ICE CONTAINER

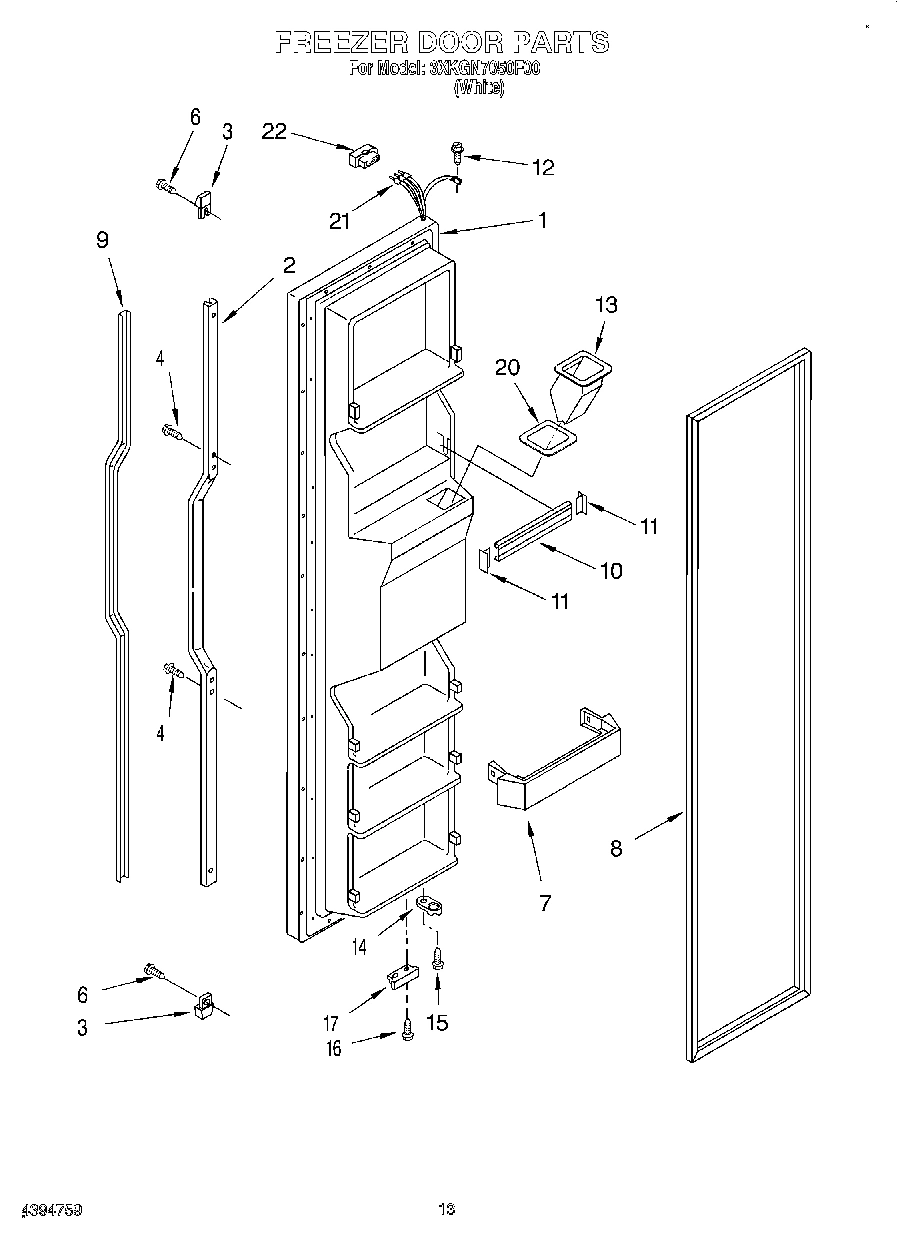

08 - FREEZER DOOR
Common parts from model Whirlpool 3XKGN7050F00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.7) WPL 2194233W Contact Us For Availability
1
Shelf Assembly, Cantilever (2) WPL 2174023 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Freezer Door (Includes No.8 And Dispenser Fro WPL 2197723 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Load, Lock (4) WPL 2195497 Contact Us For Availability
2
Retainer, Insert WPL 2194777W Contact Us For Availability
2
Button, Humidity WPL 2174253 Contact Us For Availability
2
Motor, Dispenser WPL 2165167 Contact Us For Availability
3
End Cap (2) WPL 2194778W Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
4
Gasket, Side (2) WPL 2174273 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Nameplate WPL 2166897 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Shelf Bin (4) WPL 2171070 Contact Us For Availability
8
Glass, Cover WPL 2174148 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Insert, Handle WPL 2173825 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Glass, Cover WPL 2189526 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Gasket, (Rear) WPL 2174274 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Grille, Overflow WPL 2180323 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
13
Chute, Ice WPL 2180204 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Tube Clamp WPL 510716 Contact Us For Availability
14
Roller WPL 2174388 Contact Us For Availability
15
Tube, Inlet WPL 627861 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
16
Washer WPL 628337 Contact Us For Availability
16
Crisper Pan (Includes 13, 14, 18, 19 & 21) WPL 2175157 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
17
Bracket, Door Stop WPL 2195950 Contact Us For Availability
17
Nut, Valve WPL 537588 Contact Us For Availability
17
Meat Pan (Includes 13, 14, 19 & 22) WPL 2175158 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Shelf Bin (4) WPL 2171063 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
20
Seal, Housing WPL 2198249 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Wire Harness WPL 2180229 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 2180259 Contact Us For Availability
24
Hole Plug WPL 2166844 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175064 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
28
Screw WPL 489439 Contact Us For Availability
29
Washer WPL 1129722 Contact Us For Availability
30
Carriage WPL 2168792 Contact Us For Availability
31
Roller, Front (2) WPL 2179486 Contact Us For Availability
32
Roller, Rear (2) WPL 2179487 Contact Us For Availability
33
Round Pan WPL 2168793 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
European Water Connection Tube WPL 1129723 Contact Us For Availability
34
Divider, 1/2 WPL 2174363 Contact Us For Availability
35
Divider, 1/4 WPL 2174364 Contact Us For Availability
40
Front Cover Assembly (Includes Items 8, 14 & WPL 2197724W Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
