Model Whirlpool 3VED29DQFW00 REFRIGERATOR – Common Parts & Diagrams
12 - ICE MAKER, LIT/OPTIONAL
11 - CONTROL

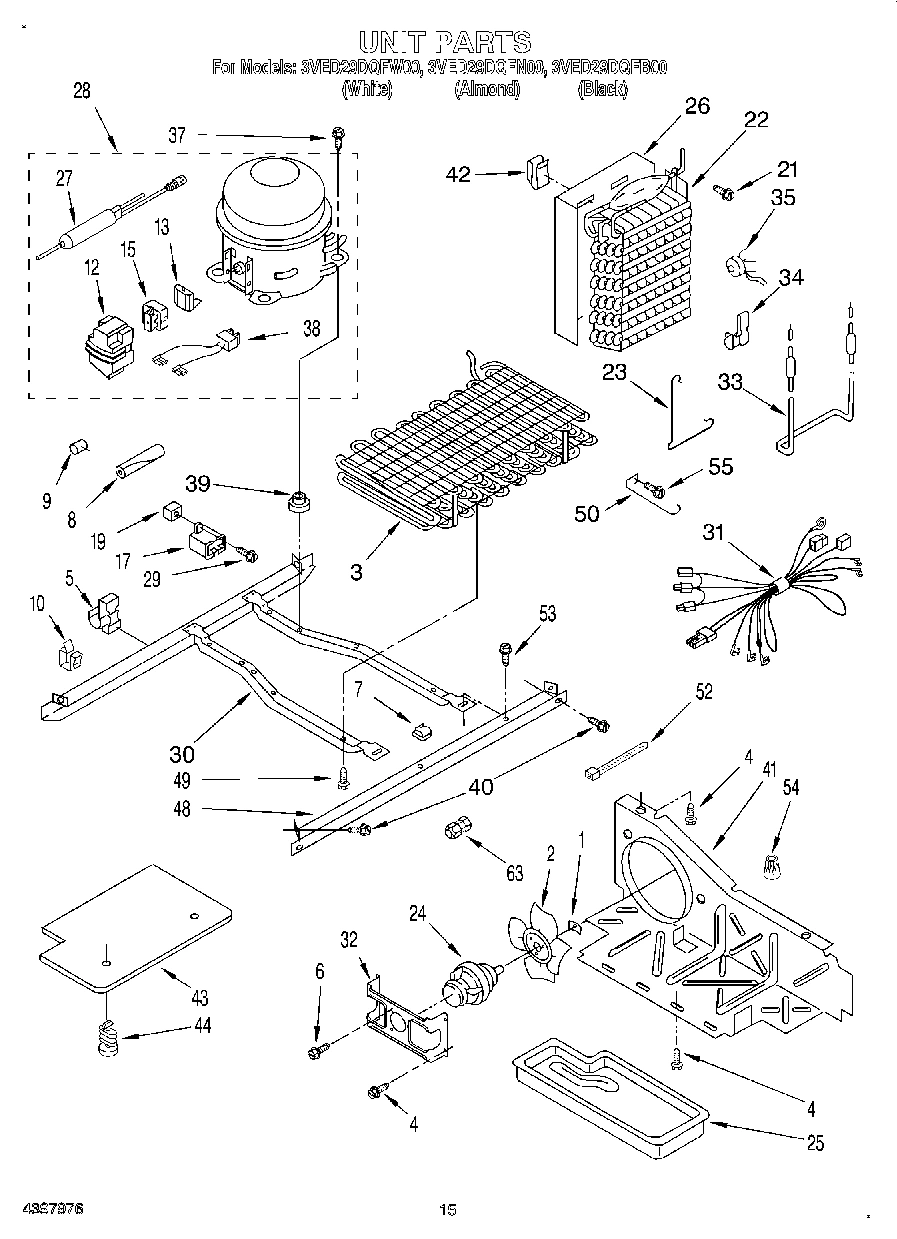

09 - UNIT

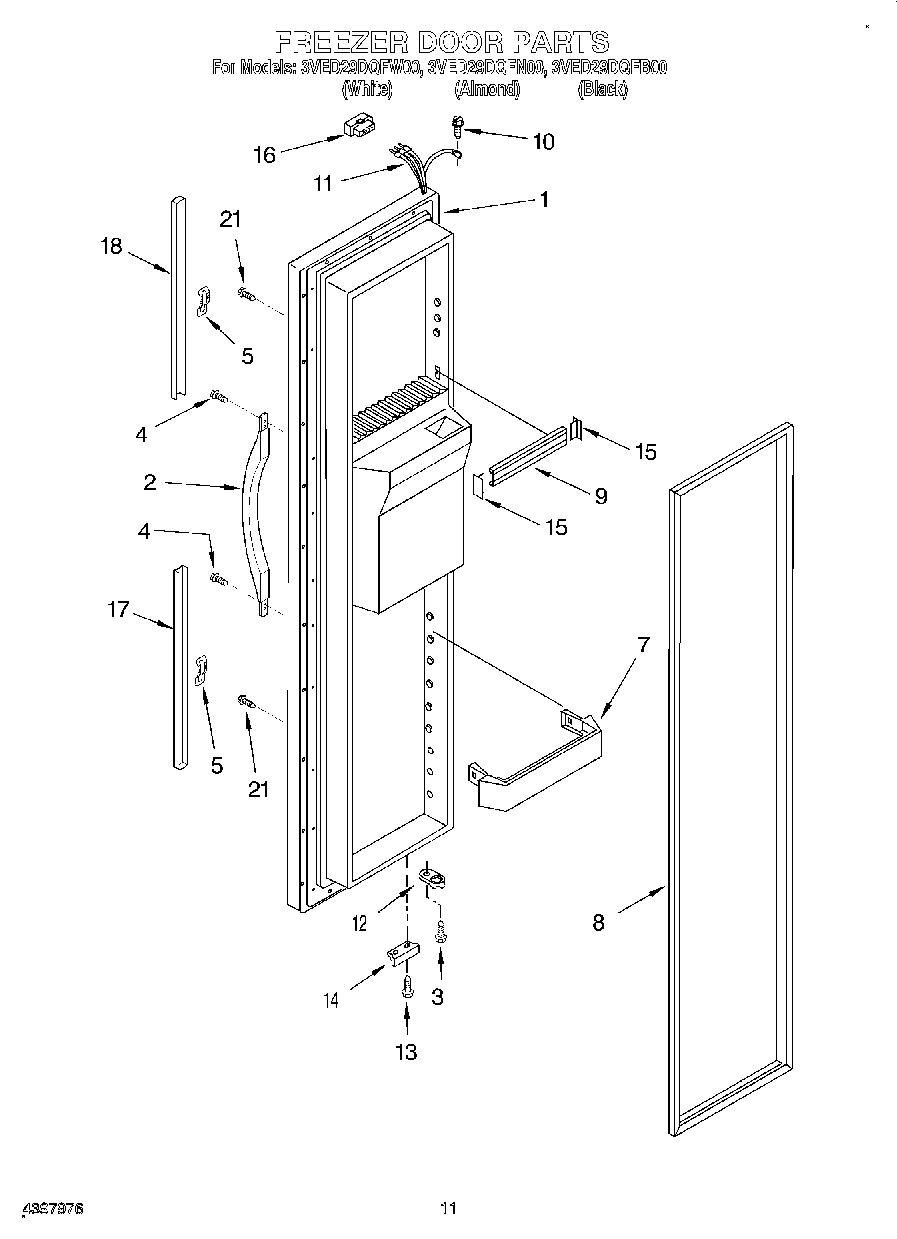

07 - FREEZER DOOR

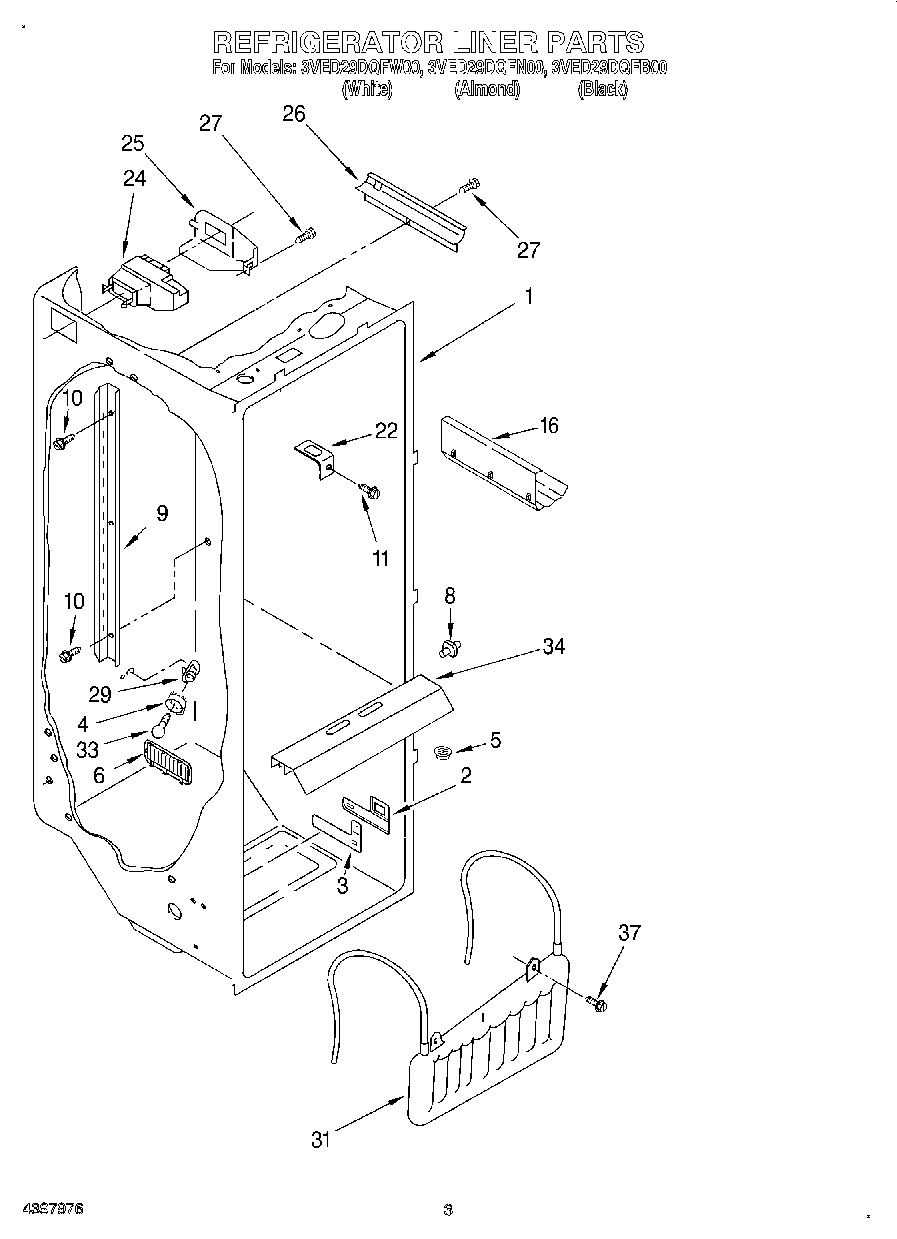

02 - REFRIGERATOR LINER

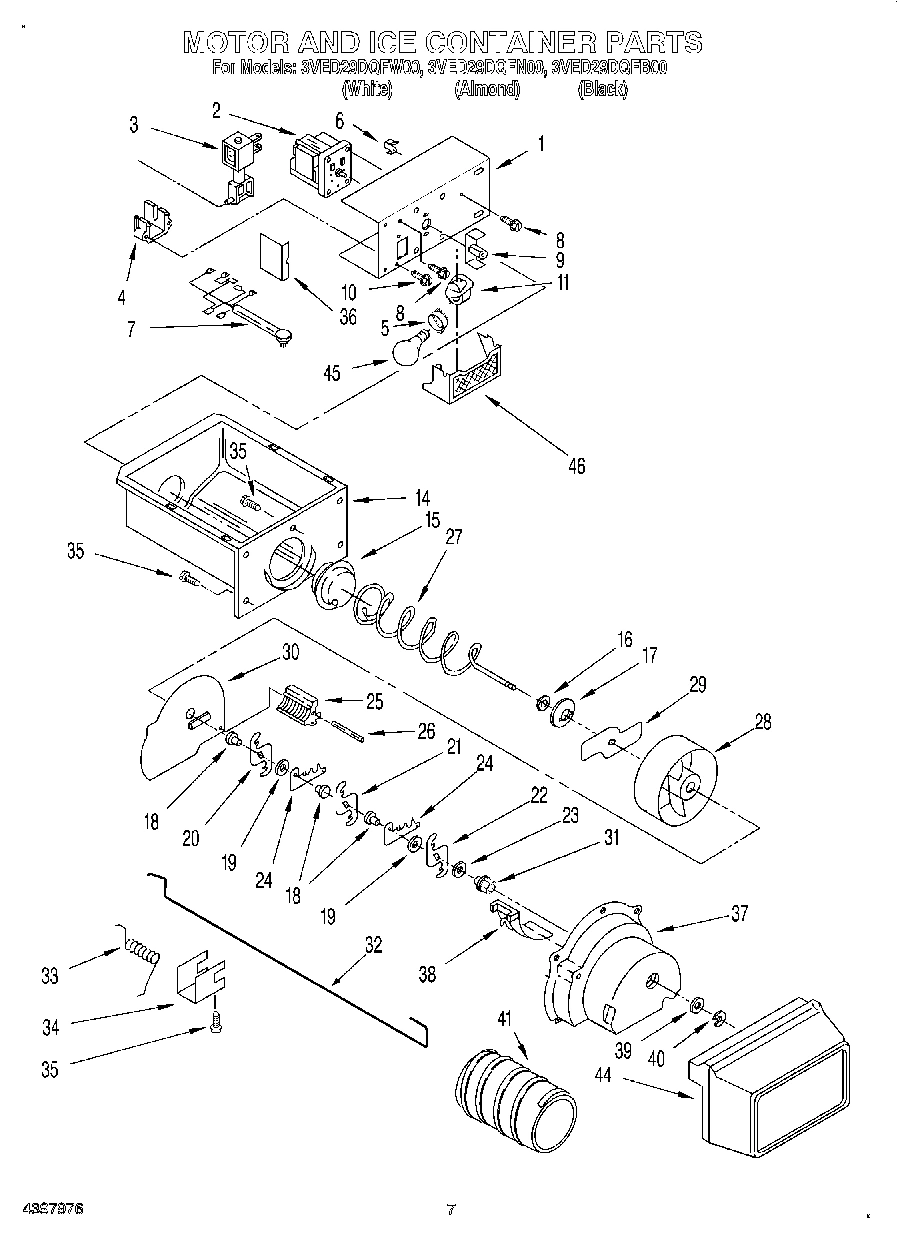

05 - MOTOR AND ICE CONTAINER

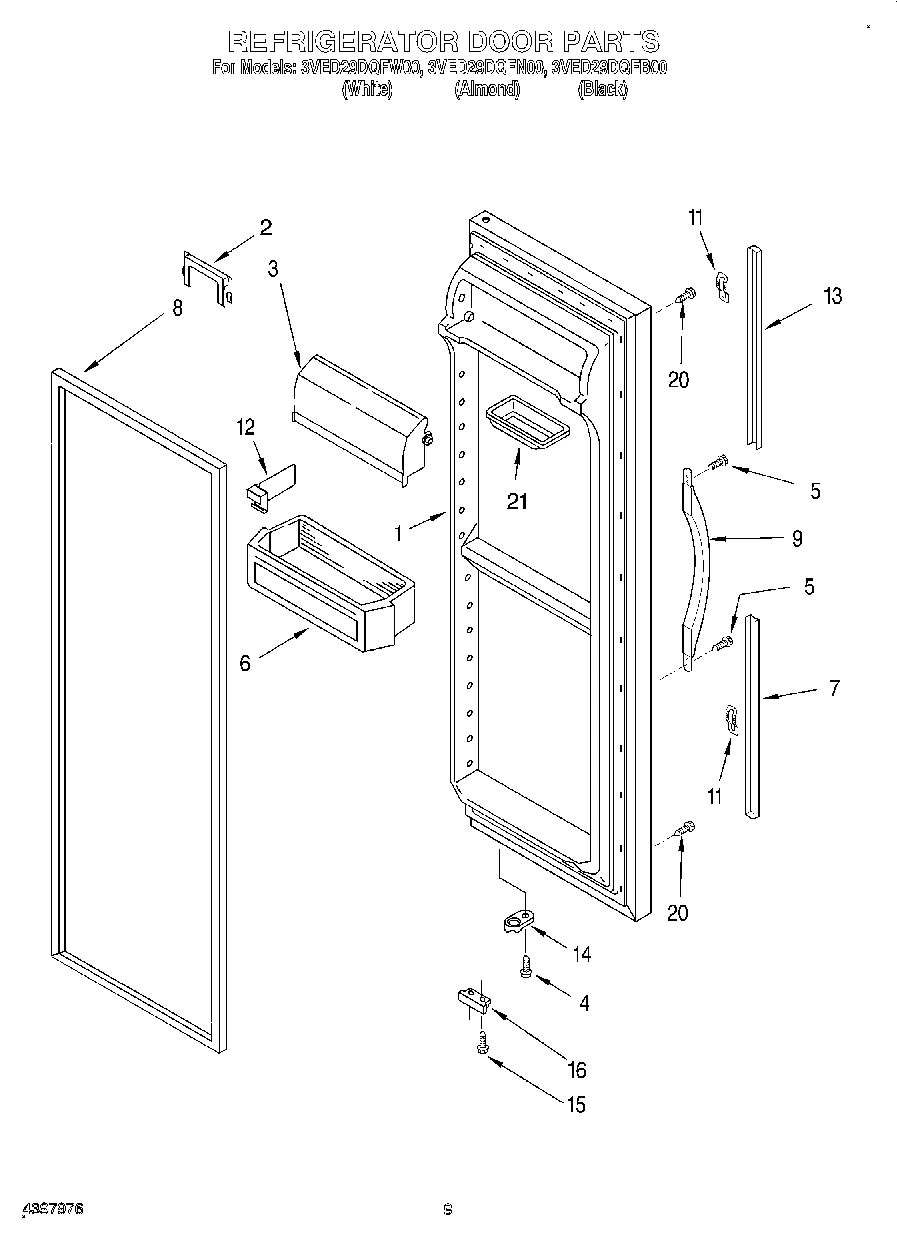

06 - REFRIGERATOR DOOR

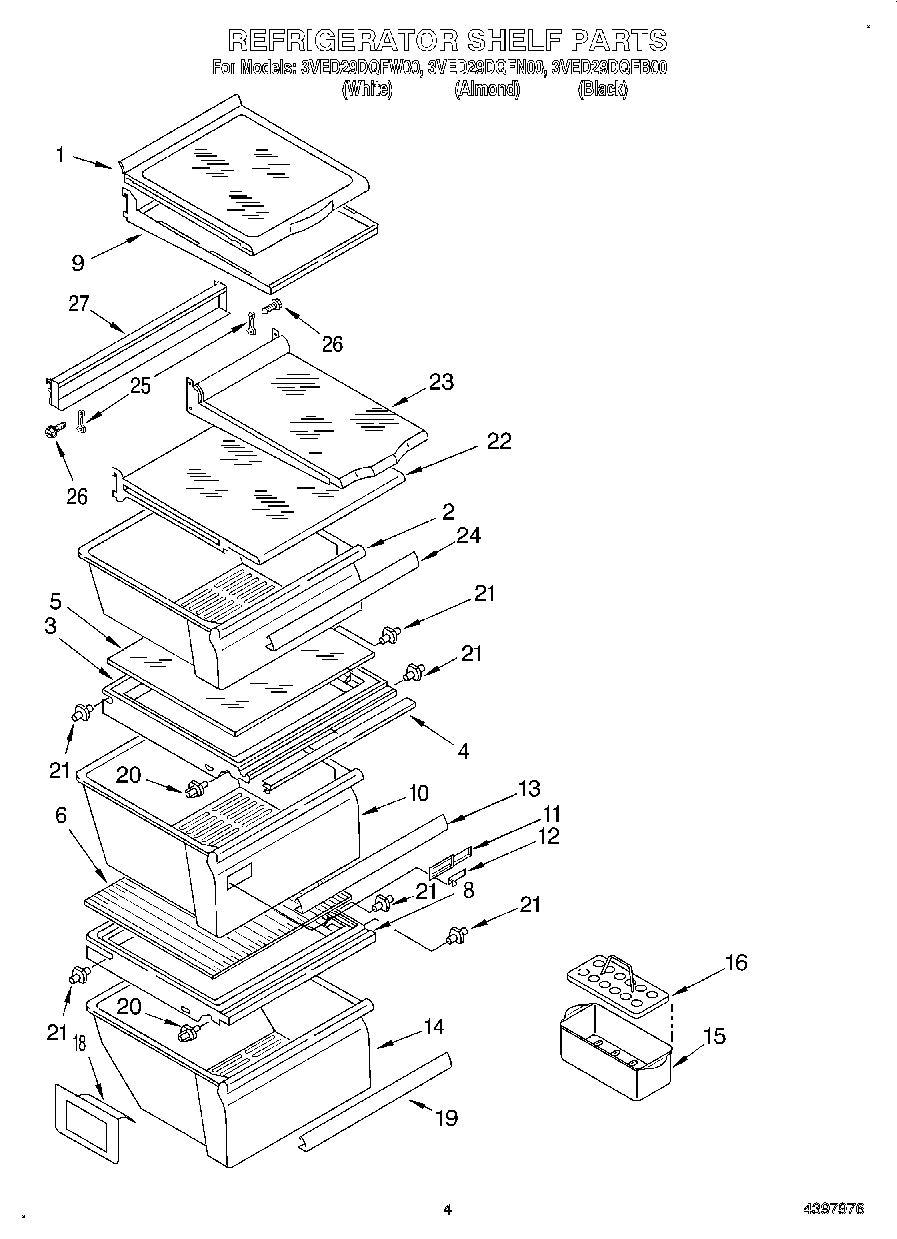

03 - REFRIGERATOR SHELF
04 - FREEZER LINER

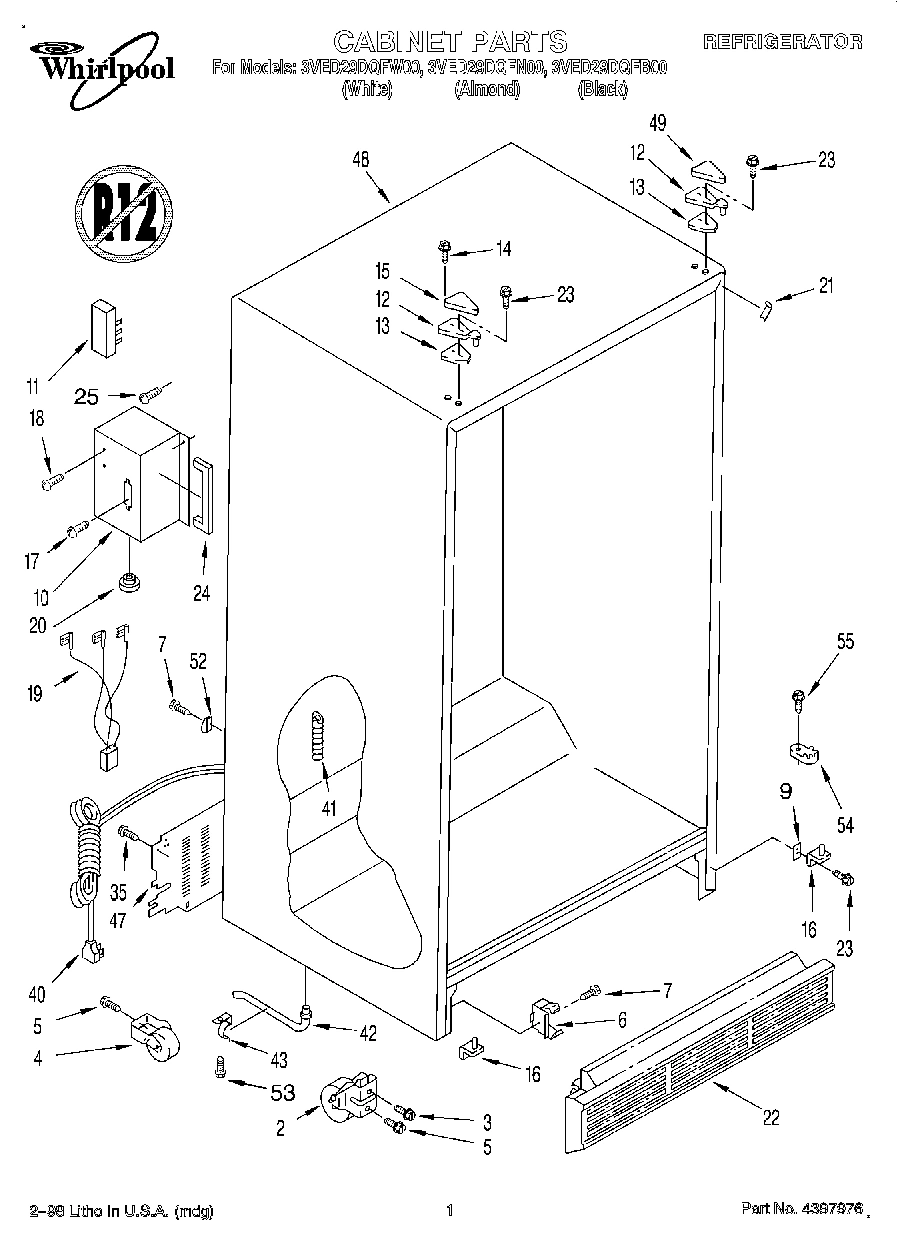

01 - CABINET

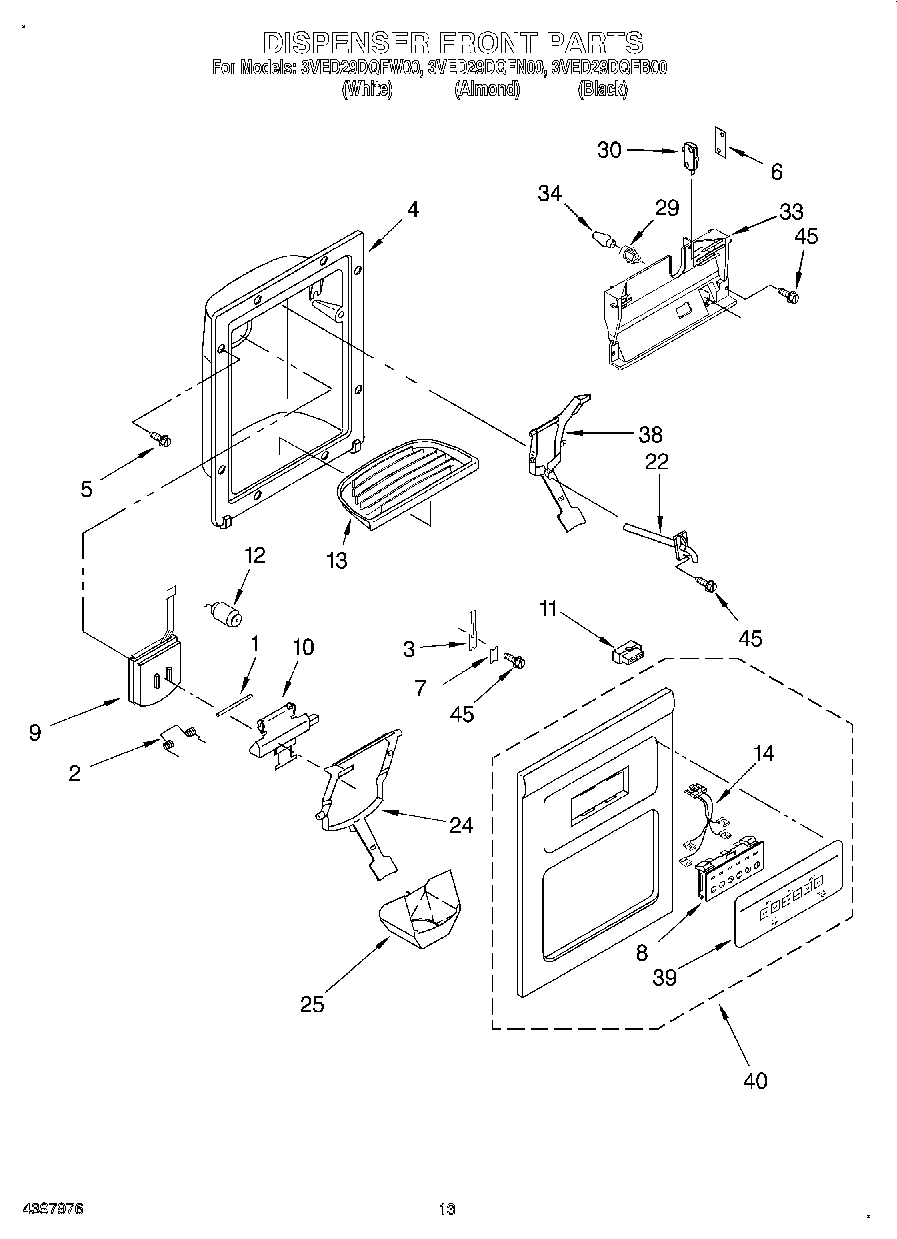

08 - DISPENSER FRONT
10 - AIR FLOW
Common parts from model Whirlpool 3VED29DQFW00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI12476A6 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI12477A4 Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Spacer, Switch WPL 625834 Contact Us For Availability
6
Shelf Bin (4) WPL 2179608 Contact Us For Availability
7
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
7
Fan, Motor WPL 2154976 Contact Us For Availability
9
Handle, Center (Black) WPL 2186649B Contact Us For Availability
9
Handle, Center (White) WPL 2186649W Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
9
Frame, Shelf (2) WPL 2195975 Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Basket WPL 2181765 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2158579 Contact Us For Availability
10
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Connector WPL 2169477 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
12
Delay Mechanism WPL 2180223 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2189564 Contact Us For Availability
13
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
13
Extension, Top (Black) WPL 2194973B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
13
Grille, Overflow (Black) WPL 2180243 Contact Us For Availability
14
Meat Pan WPL 2194907 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
16
Bracket, Door Stop WPL 2155331 Contact Us For Availability
16
Basket, Shallow WPL 2181763 Contact Us For Availability
17
Slide, Basket (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
19
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
20
Bushing WPL 1129449 Contact Us For Availability
21
Tray, Butter WPL 2165792 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 1127272 Contact Us For Availability
22
Grille (Black) WPL 2155485 Contact Us For Availability
22
Shelf, Snack Bin WPL 2194734 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2194741 Contact Us For Availability
23
Shelf, Top Compartment WPL 2194297 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White (White S WPL 2180256 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Almond (Almond WPL 2180257 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (Black (Storm G WPL 2180258 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Knob, Control WPL 2197871 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Bulb, Light WPL 989331 Contact Us For Availability
38
Lever Assembly, Water Dispenser (Almond (Almo WPL 2180266 Contact Us For Availability
39
Overlay, Front Cover (Black) WPL 2197636B Contact Us For Availability
39
Overlay, Front Cover (Almond) WPL 2197636N Contact Us For Availability
39
Overlay, Front Cover (White) WPL 2197636W Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
PAINT, WPL 799344 Contact Us For Availability
40
Front Cover, Housing (Includes Items 8, 14 & WPL 2197645B Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
40
Front Cover, Housing (Includes Items 8, 14 & WPL 2197645N Contact Us For Availability
40
Front Cover, Housing (Includes Items 8, 14 & WPL 2197645W Contact Us For Availability
47
Cover, Unit WPL 2189570 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI12474A6 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
